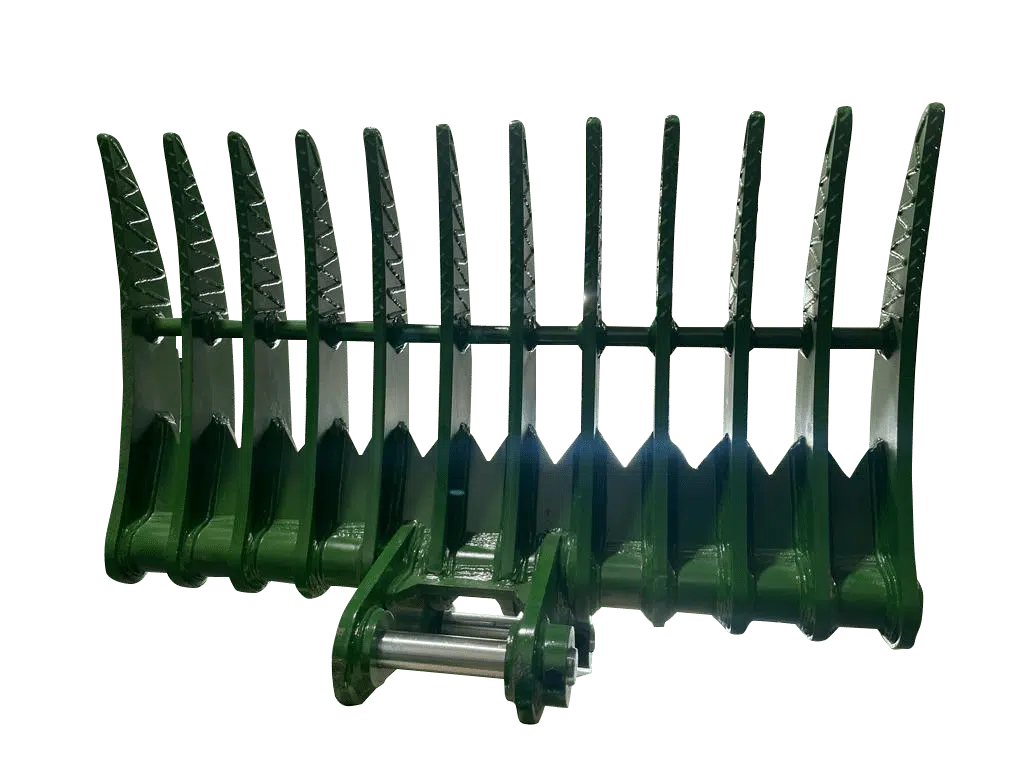

JMA Attachments Brush Rake | Rake Width 70" Inches | Pin Size 65mm | For 10 – 15 Tons Excavators

JMA Attachments Brush Rake | Rake Width 70" Inches | Pin Size 65mm | For 10 – 15 Tons Excavators

$5,276.70
$5,276.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Impressive Width: 70" width for efficient clearing of large areas.
  • Durable Construction: Built with AR450 Steel for exceptional strength and longevity.
  • Precision Engineering: 65mm pins with ear-to-ear distance of 260 mm and center-to-center distance of 362 mm, ensuring secure attachment.
View full details

Product Description

JMA Attachments Brush Rake | Rake Width 70" Inches | Pin Size 65mm | For 10 – 15 Tons Excavators

Description

Transform your land clearing operations with the 70" Brush Rake for 10 - 15 Tons Excavators. 65mm Pins. This robust attachment is engineered to tackle the toughest brush and debris with ease. Designed for 20,000 - 30,000 lbs Excavators, this brush rake combines power and precision for unmatched performance.

Key Features

  • Impressive Width: 70" width for efficient clearing of large areas.
  • Durable Construction: Built with AR450 Steel for exceptional strength and longevity.
  • Precision Engineering: 65mm pins with ear-to-ear distance of 260 mm and center-to-center distance of 362 mm, ensuring secure attachment.
  • Versatile Performance: Ideal for land clearing, site preparation, and forestry applications.
  • 10 heavy-duty tines, each 0.98" (25 mm) thick.
  • Tine penetration depth of 36.69" (932 mm).

Detailed Specifications

Attribute Value
Product Length (mm) 1,013 mm
Product Length (in) 39.88"
Product Width (mm) 1,778 mm
Product Width (in) 70"
Tines (ct.) 10
Tines Thickness (mm) 25 mm
Tines Thickness (in) 0.98"
Penetration (mm) 932 mm
Penetration (in) 36.69"
Material Type AR450 Steel
Finish Powder-Coated Green
Tines Spacing (mm) 170 mm
Front Pin Diameter (mm) 65 mm
Rear Pin Diameter (mm) 65 mm
Front Ear to Ear Distance (mm) 260 mm
Rear Ear to Ear Distance (mm) 260 mm
Center to Center Distance (mm) 362 mm
Front Pin Length (mm) 449 mm
Rear Pin Length (mm) 449 mm
Carrier Weight Class (tn) 10 - 15 Tons
Carrier Weight Class (lbs) 20,000 - 30,000 lbs
Product Weight (lbs) 1,190.49 lbs
Product Weight (kg) 540 kg

Fits To

Brand

Model
Case CX145D MSR, CX130B LC, CX130C LR, CX130D LC, CX130 LC, CX135MS3, CX135MSR, CX145CSR, CX145DSR, CX135CR, CX135SR, CX130B, CX130C, CX130D, CX130E, CX130K, CX135C, CX140E, CX145C, CX130, CX135, CX90
Caterpillar 314CL LCR, 312B LGP, 312D2 GC, 313D2 GC, 314C LCR, 314D LCR, 314E LCR, 314G LCR, 311DLRR, 311F RR, 311FLRR, 313B CR, 313C CR, 313D CR, 313D2 L, 313FLGC, 314C CR, 314D CR, 314E CR, 314E SR, 314F CR, 311 V2, 311C U, 311DRR, 312 V2, 312BLN, 312CLR, 312D2L, 312F L, 312FGC, 313BSR, 313CSR, 313DSR, 313FGC, 311BL, 311FL, 312BL, 312CL, 312D2, 312DL, 312EL, 312GC, 313D2, 313DL, 313FL, 313GC, 314DL, 314EL, 315FL, E120B, 311B, 311C, 311D, 312B, 312C, 312D, 312E, 312F, 312L, 313B, 313C, 313D, 313E, 313F, 314C, 311, 312, 313, 314
Daewoo S130W-111, S130 LC V, S155 LC V, S140LC-V, S130-2
Develon DX140LCR-7K, DX140LC-7K, DX140LCR-7, DX165WR-7, DX100W-7, DX140W-5, DX140W-7, DX160W-7
Doosan DX160 LC-5 HT, DX140 LC-9C, DX140 LCR-3, DX140 LCR-5, DX140 LCR-7, DX150 LC-9C, DH150 LC-7, DX140 LC-3, DX140 LC-5, DX140 LC-7, DX160 LC-3, DX140LCR-7, DX130-9CN, DX140 LCA, DX140 LCR, DX140WACE, DX150W-9C, DX165WR-7, S140WV RW, DX160 LC, DH140W-7, DH150W-7, DX100W-7, DX140W-3, DX140W-5, DX140W-7, DX160W-3, DX160W-5, DX160W-7, DX165W-5, DX140LC, DX140WA, DX140WE, S140W V, DX140W, DX160W, S130WV, S160WV, DX130, DX140, DX120, DX140LC-7K
Hitachi H15 Super Long, ZX200 H15 Supe, ZX130 LCN-5B, ZX135USOS-5B, ZX130 LC-5N, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-6, ZX130 LCN-7, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USOS-3, ZX135USOS-6, ZX135USTN-Z, EX100WD-3C, ZX120USR-5, ZX130 LC-3, ZX135US LC, ZX135US-5B, ZX135US-5N, ZX135US-6N, ZX135USB-3, ZX135USB-5, ZX135USK-3, ZX135USK-6, ZX135USR-5, EX100WD-1, EX100WD-2, EX100WD-3, EX125WD-5, EX130UR-1, EX130UR-5, EX135UR-1, EX135UR-5, ZX130 LCM, ZX130 LCN, ZX130K HG, ZX130K-5B, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-6, ZX135US-7, ZX135US-E, ZX110M-3, ZX120 IV, ZX120 LC, ZX120-5B, ZX130 LC, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6N, ZX130K-3, ZX130K-6, ZX135USK, ZX135USM, ZX140W-3, EX100-1, EX100-2, EX100-3, EX100-5, EX100WD, EX120-1, EX120-2, EX120-3, EX120-5, EX135UR, ZX110-2, ZX110-3, ZX110BL, ZX120-2, ZX120-3, ZX120-6, ZX120BL, ZX125US, ZX130-3, ZX130-5, ZX130-6, ZX130-7, ZX130BL, ZX130MT, ZX135UR, ZX135US, EX130K, EX130W, ZX110E, ZX110M, ZX120B, ZX120E, ZX130H, ZX130K, ZX130L, ZX135U, ZX140H, EX100, EX120, EX130, EX135, UH053, UH063, ZX110, ZX120, ZX130, ZX135, EX-5, ZX130-7H, ZX135US-7H
Hyundai R125LCR-9A, HX145LCR, R130LC-3, R140LC-7, R140LC-9, R145LC-9, R130W-3, R140W-7, HX140L, R110-7, R130LC, HX125, HX140, HX145, R120W, 130W, HX130A LCR, HX140A L, HX145A LCR
JCB 131LLC, 150X-1, JS130C, JS145W, JS130, JS131, JS135, JS145, JS160, JZ140, JZ141, 131X, 140X, 145X, 150X, 814S
John Deere 120C LC, 120 LC, JD120, 120C, 120D, 130G, 135C, 135D, 135G, 490D, 110, 120, 135 P-Tier
Kato HD513 MR-3, HD512 E, HD512-3, HD512, 450, 512, 572
Kobelco SK135SR 1E, SK115SRDZ, SK125SR-2, SK135SR-2, SK135SR-3, SK140LC-8, SK120-2, SK120-5, SK130-8, SK130LC, SK130UR, SK135SR, SK120v, K905, SK140SRLC, SK130LC-11
Liebherr R914
Linkbelt 135 X3 SPIN, 130 X4LC, 130 LX, 130 X2, 130 X3, 130 X4, 135 LX, 145 X3, 145 X4
Liugong 915D, 915E
Sany SY135 IV, SY135-3A, SY130-1, SY135-2, SY155U, SY155W, SY115, SY125, SY135, SY155, SY125C PRO, SY140C-9S, SY135C-9, SY155H-9, SY115C, SY135C, SY155C, SY155H
Sumitomo SH120- 2, SH120-A3, SH125X-3, SH145X-6, SH120-1, SH120-3, SH130-5, SH135X, SH120
Takeuchi TB2150R, TB1140, TB2150
Terex 145
Volvo MX135WS/LS, EC135B LC, EC140 LCM, EC140B LC, EC140E LM, SE130LC-3, EC140 LC, EC140CLM, EC140DLM, ECR145CL, ECR145EL, SE130W-3, EC140-7, EC140CL, EC140DL, EC140EL, ECR145C, EC120D, EC140B, EC140C, EC140D, EC140E, EC145E, ECR145, EC120, EC130, EC140, EW130, ECR145E, ECR145SE
XCMG XE155UCR, XE155U, XR155U
