Product Description

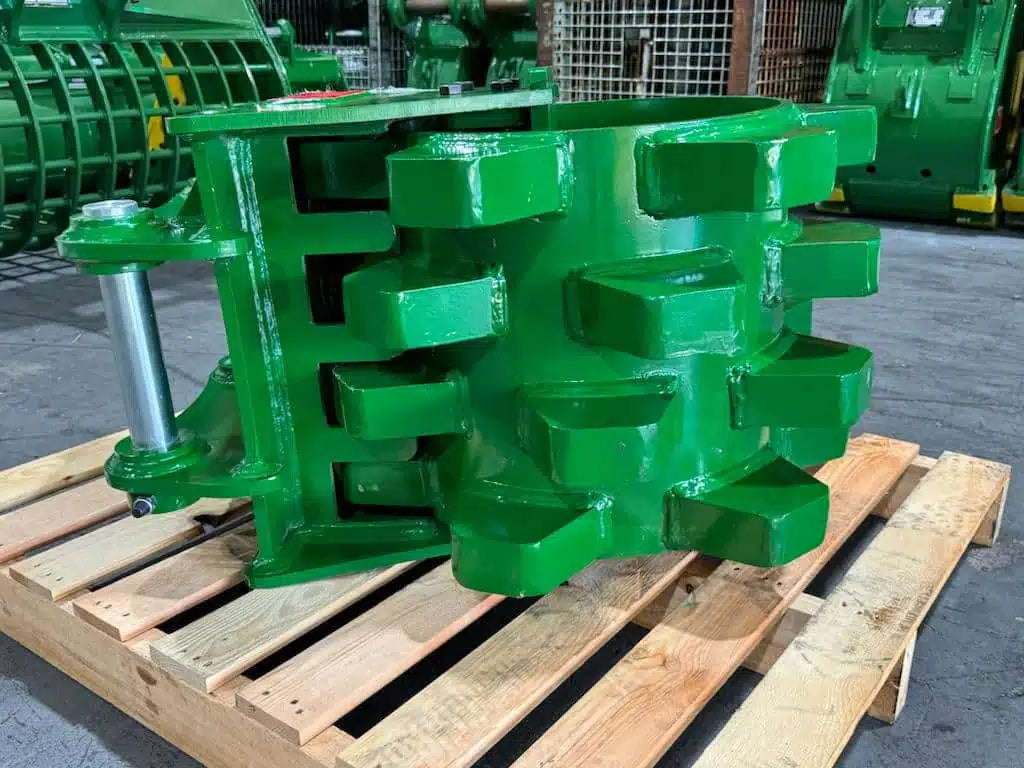

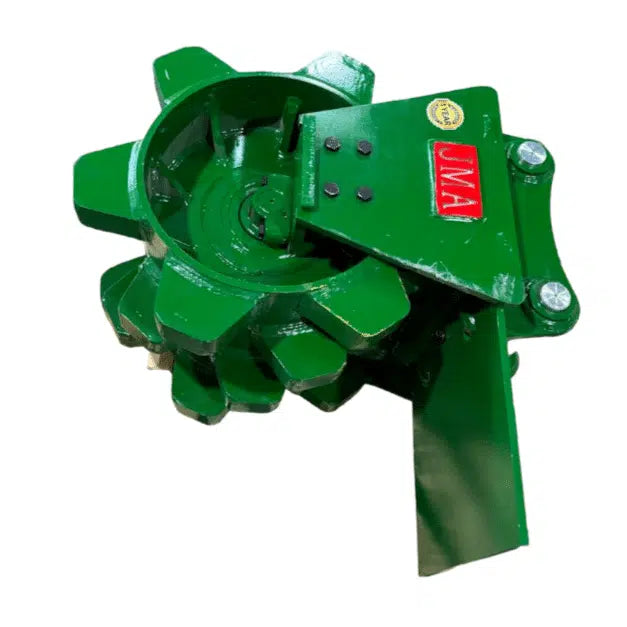

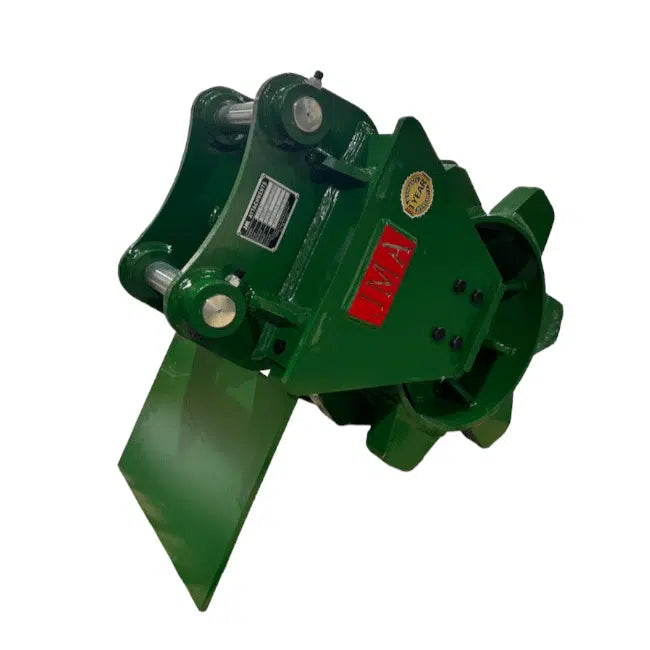

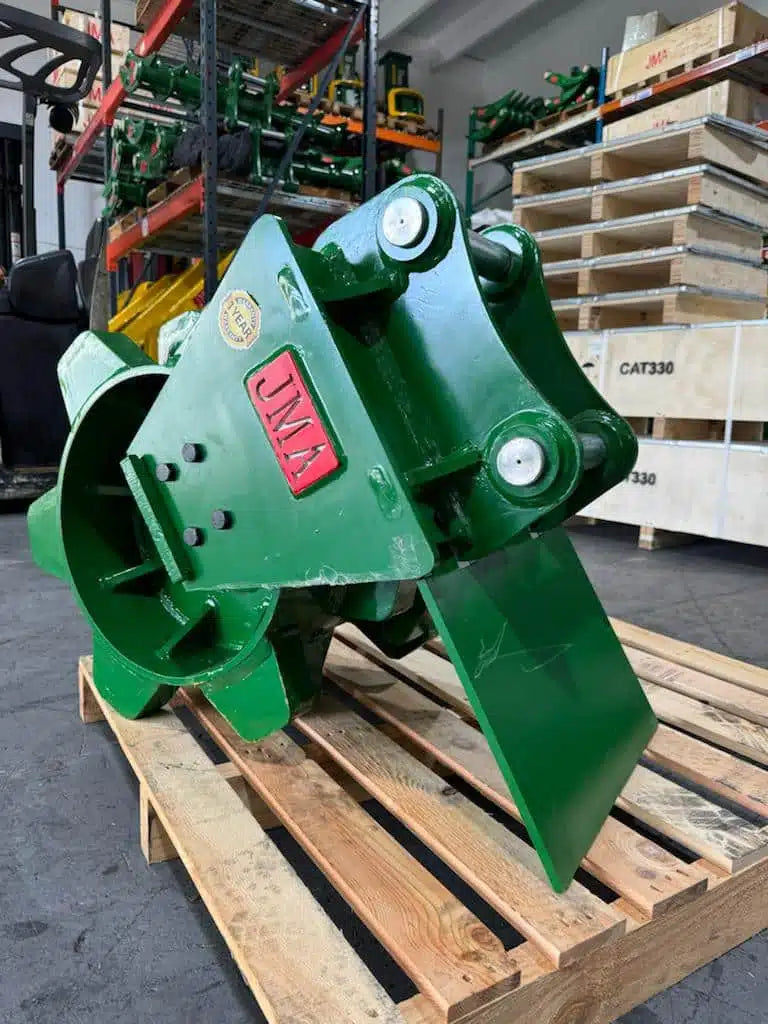

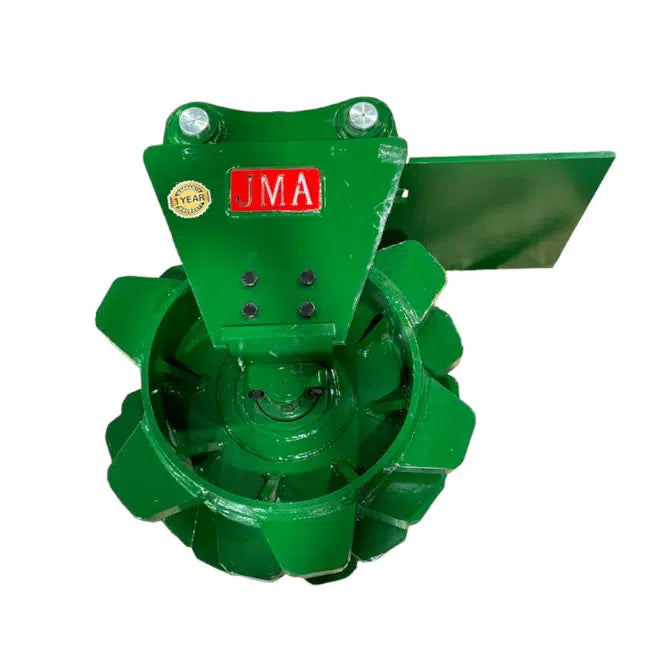

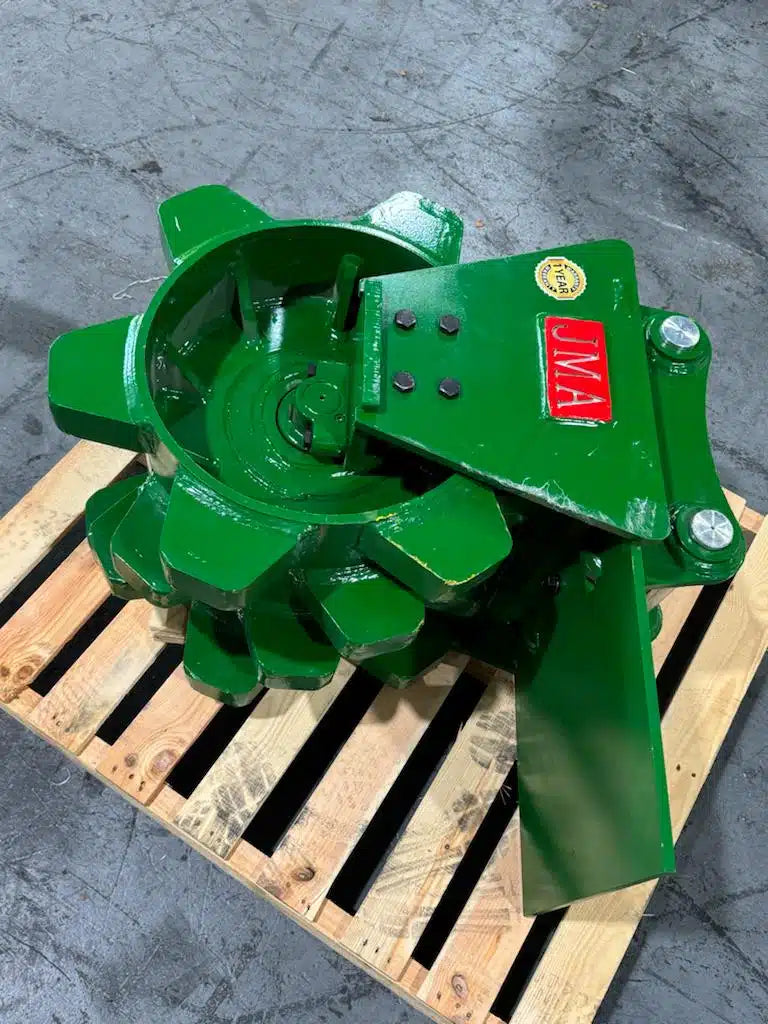

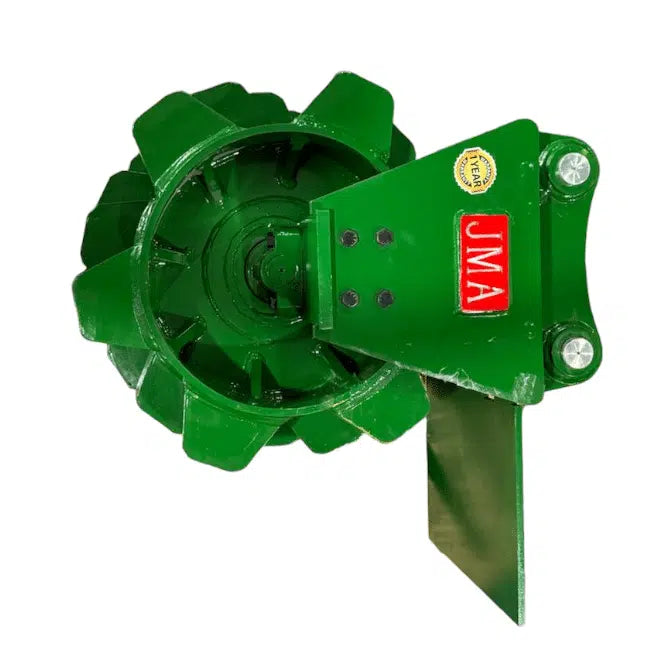

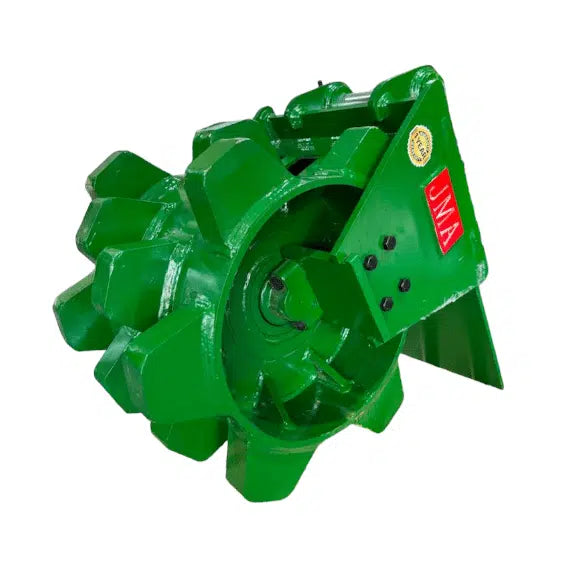

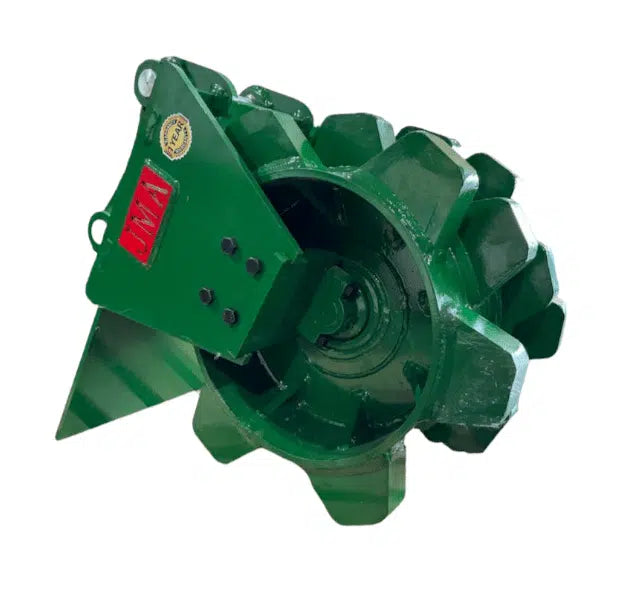

JMA Attachments Compaction Wheels | Compaction Width 20" inches | For 5 – 6.5 Tons Mini Excavators
Description
Elevate your ground preparation game with the 20" Compaction Wheels for 5 - 6.5 Tons Mini Excavators. 45mm Pins. This isn't just a compaction wheel; it's your partner in creating perfectly compressed foundations for any project.
Key Features
- Efficiency Redefined: The 20" compaction width covers more ground in less time, boosting your productivity to new heights.
- Built to Dominate: AR400 Steel construction ensures these wheels can handle whatever your job site throws at them, day after day.
- Mini Excavator Optimized: Designed specifically for your machine, ensuring seamless integration and enhanced performance.
- Adaptability Personified: From tight spaces to open areas, tackle diverse compaction tasks with a single, powerful tool.
Detailed Specifications
| Attribute | Value |
|---|---|
| Compaction Width (mm) | 508 mm |
| Compaction Width (in) | 20" |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Inner Wheel Dimension (mm) | 380 mm |
| Outer Wheel Dimension (mm) | 576 mm |
| Front Pin Diameter (mm) | 45 mm |
| Rear Pin Diameter (mm) | 45 mm |
| Front Ear to Ear Distance (mm) | 156 mm |
| Rear Ear to Ear Distance (mm) | 156 mm |
| Center to Center Distance (mm) | 260 mm |
| Carrier Weight Class (tn) | 5 - 6.5 Tons |
| Carrier Weight Class (lbs) | 10,000 - 13,000 lbs |
| Product Weight (lbs) | 694.46 lb |
| Product Weight (kg) | 315 kg |
Fits To
|
Brand |
Model |
|---|---|
| Airman | AX40U-5F, AX48U-5A, AX50U-5F, AX55U-5A, AX50U-4, AX50-2, AX40U, AX40, AX45, AX50 |
| Bobcat | E42R2, E45EM, E42M, E45M, E55Z, X435, E40, E42, E45, E48, E50, E55, E58, E60, E62 EM, E63, E55EM, E55R2, E60EA, E60R2, E48R2, E50EM, E50R2, E55M, E60A, E63M, E50M, E50Z, E55W, E57W, E65W |
| Case | CX50B, CX55B, CX65D, CX40, CX47, CX50, CX55, CX57, CX58, CX60 |
| Caterpillar | 305.5E2 CR, 305.5D CR, 305.5E CR, 305E2 CR, 305SR II, 304C CR, 305.5SR, 305C CR, 305D CR, 305E CR, 304CCR, 305.5E, 428MK1, 428MK2, 305.5, 305BR, 305CR, 305SR, 306.5, 306CR, 305C, 305D, 305E, 306D, 306E, E70B, 305, 306 |
| Daewoo | S55 V PLUS, S75 LC V, S55V-G, S55W V, S75-V, S50 V, S055, S50 |
| Develon | DX60WN ECO, DX50Z-7, DX55R-7, DX57W-7, DX63-7, DX55 |
| Doosan | DX55-9CN ACE, DX55MT ACE, S55 V PLUS, DX60WN ECO, DX60E-9CN, DX60E-10N, DX75E-9CN, DX60W ECO, DX55MT-5, DX60-9CN, DX75-9CN, DX55W-5K, DX55W-5L, DX55WACE, DX60E-9C, DX60W-9C, DX55-5K, DX60-9C, DX62R-3, DX62R-7, DX65-9C, DX75-5B, DX75-9C, DX85R-3, DX89R-7, DX42-5K, DX50-5K, DX50Z-7, DX55-9C, DX55R-7, DX55W-5, DX57W-5, DX57W-7, DX70-9C, DH55-V, DH60-7, DH70-7, DH80-7, DX63-3, DH55-7, DX42-5, DX50-5, S55W V, DX55WA, DX55WK, DX85R, DX55A, DX55E, DX80R, DX50Z, DX53W, DX55W, DX60R, DX60W, DX55, DX60, DX62, DX63, DX80, DX85, SL55, DH55, DH70, DH80, DX75, DX42, DX50, S55, S70, S75 |
| Ford | 555C, 555, 655 |
| Hanix | H50B, H50C, H56B, H56C, H45, H50 |
| Hitachi | ZX65USB-5A CLP, ZX65USB-5A CLR, ZX65USB-5A LC, ZX60USB-3CLR, ZX60USBNA-3, ZX48U-2 -3, ZX55U-2 -3, ZX60USB LC, ZX60USB-3F, ZX60USB-5N, ZX65USB-3F, ZX65USB-5A, ZX60USB-3, ZX60USB-5, ZX65USB-3, ZX65USB-5, ZX65USB-6, EX55UR-3, EX75UR-3, ZX48U-5A, ZX50U-3F, ZX55U-5A, ZX55UR-3, ZX50U-2, ZX50U-3, ZX60-5A, ZX60USB, EX40-2, EX45-2, EX55UR, EX58MU, EX60-1, EX60-2, EX60-3, EX60UR, EX75UU, ZX50-2, ZX60-2, ZX60-3, ZX60US, EX40U, EX50U, ZX40U, EX40, EX50, EX58, UE02, ZX60, ZX50U, ZX60U |
| Hyundai | R60CR-9, R60W-9S, R55-3, R55-7, R55-9 |
| Ihi | IS40-JX, 50NX, 50VX, 55NX, IS40, IS45 |
| JCB | 8080 ZTS, 100C-1, 50Z-2, 51R-1, 56Z-2, 57C-1, 60C-2, 65R-1, 67C-1, 805.2, 8052C, 8060C, 85Z-1, 86C-1, 90Z-1, 8052, 8060, 8065, 8080, 8085, 45Z, 48Z, 55Z, 65R, 67C, 85Z, 86C, 90Z |
| John Deere | 50C ZTS, 50D ZTS, 50 ZTS, 55 ZTS, 50C, 50D, 50G, 60D, 60G, 70D, 50 |
| Kobelco | SK040SR-3, SK040SR-5, SK050SR-3, SK050SR-5, SK40SR-1, SK40SR-2, SK40SR-3, SK40SR-5, SK45SR-1, SK45SR-2, SK50SR-3, SK50SR-5, SK50UR-2, SK55SR-5, SK045-1, SK045-2, SK045-3, SK045SR, SK40SR, SK50UR, SK042, SK045 |
| Komatsu | PC45 MRX-1, PC50 MRX-2, PC40MRC-2, PC40MRX-1, PC50UUT-2, PC40MR-2, PC40MR-3, PC50MR-2, PC50UU-1, PC50UU-2, PC50UU-3, PC55MR-3, PC58SF-1, PC58UU-3, PC40MRX, PC40R-8, PC45R-8, PC50 MR, PC50UUT, PC40-7, PC45-1, WB97, WB93, WB91, PC45, PC55 |
| Kubota | KX057-4, KX121-4, KX161-2, KX161-3, KH191, KX060, KX151, KX161, U45-3, U48-4, U48-5, U50-3, U50-5, U55-4, U56-6, K045, KH28, KO40, KX75, U40, U45, KX057-5, U55 |
| Linkbelt | MS070 |
| Nagano | NS55-3 |
| New Holland | EH50 BSR, E50-2SR, NH115 B |
| Sany | SY50U, SY50 |
| Takeuchi | TB153FR, TB53FR, TB045, TB145, TB153, TB250, TB260, TB45 |
| Volvo | EC55 - 12 Volt, EC55B PRO, EC60B LC, EC50/W, MX55/W, SE50-3, EC60C, EC60D, EC60E, ECR58, BL71, EC55 |
| Wacker Neuson | 6003, 6503, EZ53, 50Z |
| XCMG | XCG60-8 |
| Yanmar | VIO50B50, VIO40-2, VIO40-7, VIO45-5, VIO50-2, VIO55-5, YC45-7, VIO50, VIO55, VIO57, SV60 |
