JMA Attachments

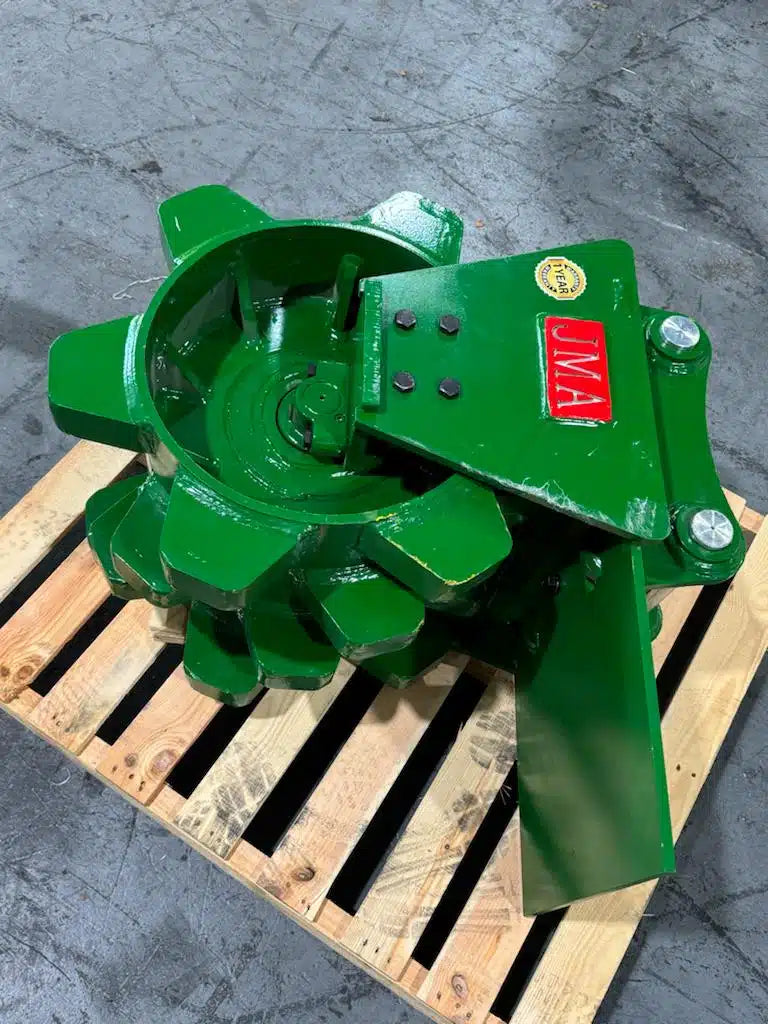

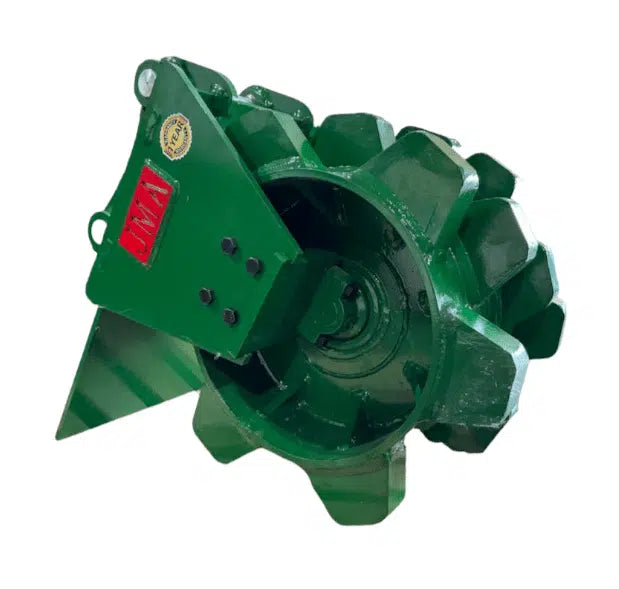

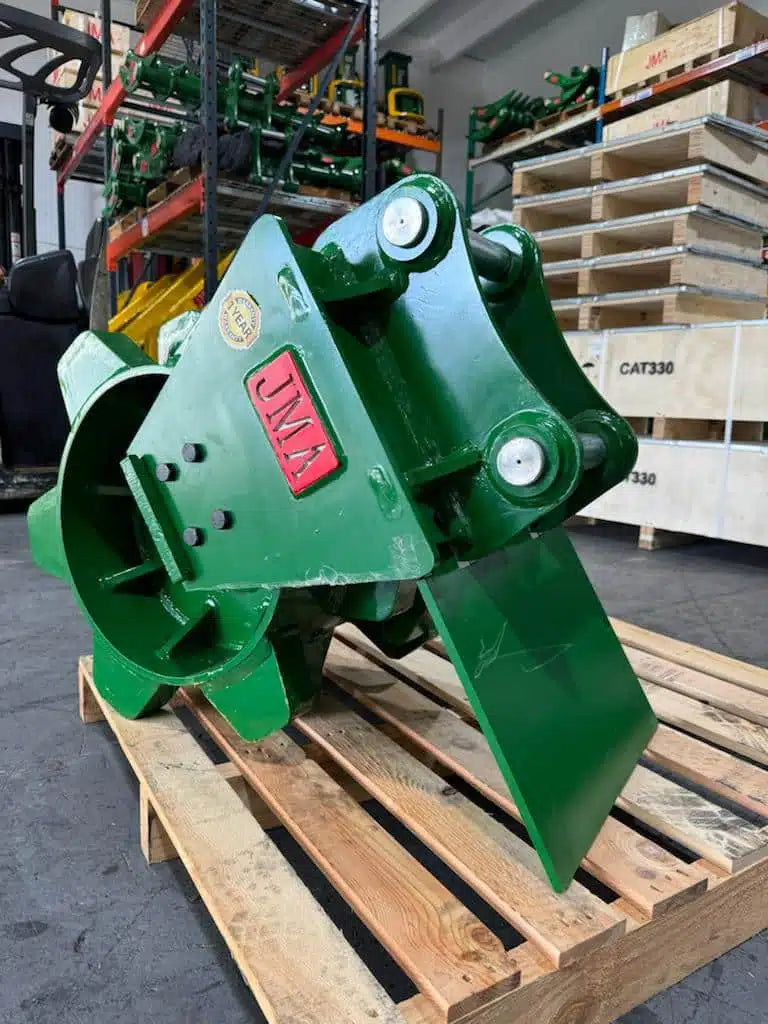

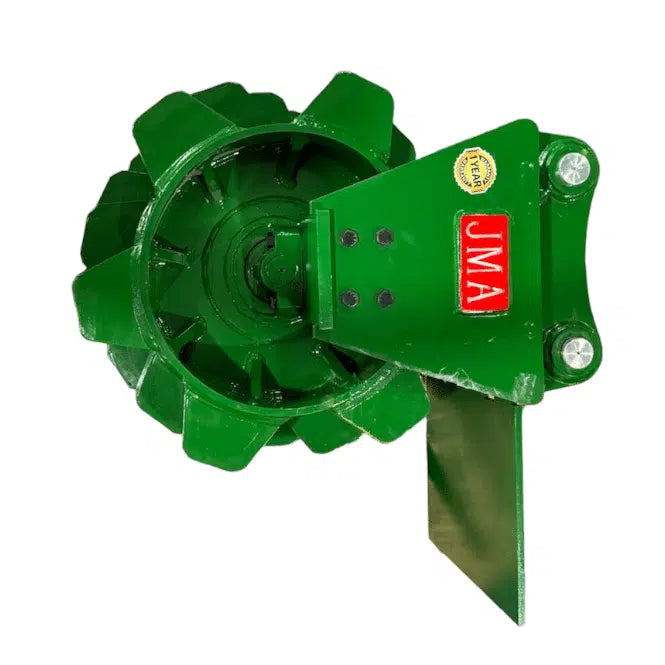

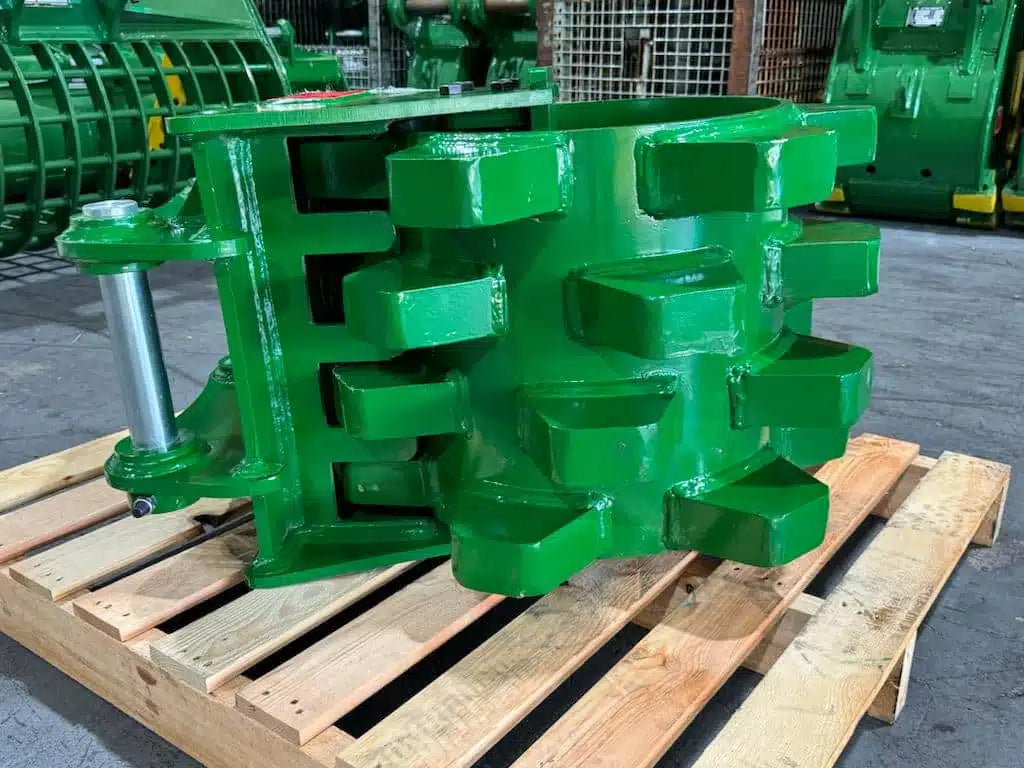

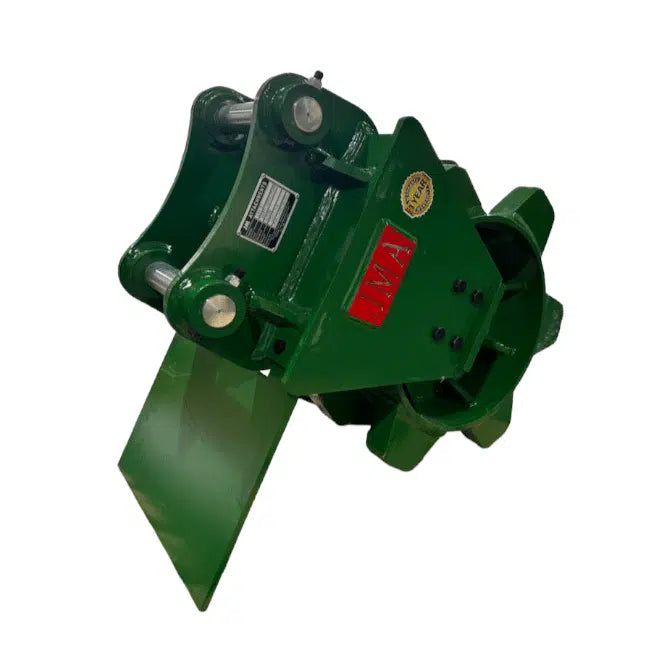

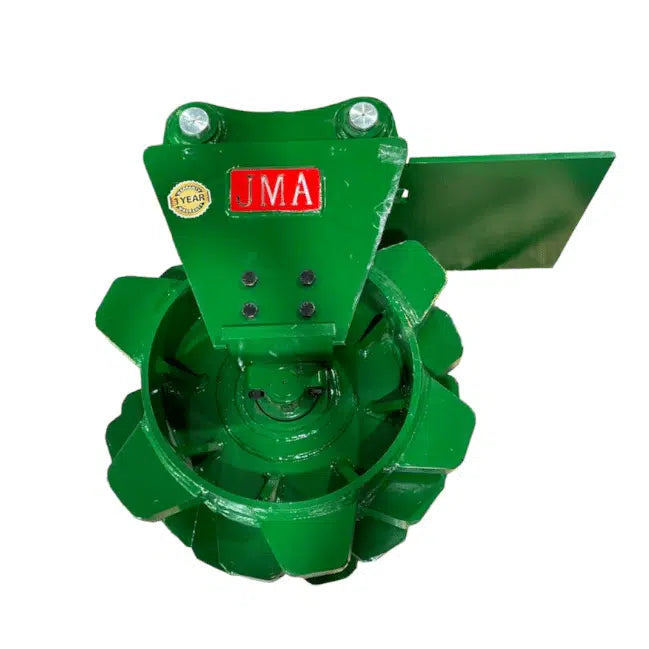

JMA Attachments Compaction Wheels | Compaction Width 25" inches | For 7 – 10 Tons Excavators

JMA Attachments Compaction Wheels | Compaction Width 25" inches | For 7 – 10 Tons Excavators

Regular price $5,716.70
Regular price Sale price $5,716.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Efficiency Amplified: Cover more ground in less time with the impressive 25" compaction width.
  • Built for the Long Haul: AR400 Steel construction ensures years of reliable service, even in the most demanding environments.
  • Versatility Unleashed: From tight trenches to open fields, conquer diverse terrains and tasks with ease.
View full details

Product Description

JMA Attachments Compaction Wheels | Compaction Width 25" inches | For 7 – 10 Tons Excavators

Description

Elevate your Excavator's capabilities with the game-changing 25" Compaction Wheels for 7 - 10 Tons Excavator. 50mm Pins. This innovative compaction wheel is set to redefine your expectations of what's possible in soil preparation.

Key Features

  • Efficiency Amplified: Cover more ground in less time with the impressive 25" compaction width.
  • Built for the Long Haul: AR400 Steel construction ensures years of reliable service, even in the most demanding environments.
  • Versatility Unleashed: From tight trenches to open fields, conquer diverse terrains and tasks with ease.
  • Precision Engineered: Achieve optimal soil density consistently, thanks to the wheel's perfect balance of weight and surface area.
  • Experience the future of ground preparation. With the 25" Compaction Wheels for 7 - 10 Tons Excavator. 50mm Pins, you're not just compacting – you're crafting the perfect canvas for your construction masterpiece.

Detailed Specifications

Attribute Value
Compaction Width (mm) 508 mm
Compaction Width (in) 25"
Material Type AR400 Steel
Finish Powder-Coated Green
Inner Wheel Dimension (mm) 450 mm
Outer Wheel Dimension (mm) 646 mm
Front Pin Diameter (mm) 50 mm
Rear Pin Diameter (mm) 50 mm
Front Ear to Ear Distance (mm) 200 mm
Rear Ear to Ear Distance (mm) 200 mm
Center to Center Distance (mm) 310 mm
Carrier Weight Class (tn) 7 - 10 Tons
Carrier Weight Class (lbs) 14,000 - 20,000 lbs
Product Weight (lbs) 740.75 lb
Product Weight (kg) 336 kg



Fits To

Brand

Model

Airman AX90
Case CX80C MSR, CX90D MSR, CX85D SR, CX75 LR, CX75CSR, CX75MSR, CX75SR, CX80SR, CX80B, CX80C, CX90D, CX75, CX80
Caterpillar 308E2 Z2.1, 309 CR VAB, 307SSR-V2, 308CR VAB, 308E2 CR, 308E2 SR, 308B CR, 308C CR, 308D CR, 308E CR, 308E SR, 307 CR, 307SSR, 308 CR, 308BSR, 308C R, 308CSR, 308DRR, 308DSR, 309 CR, 307.5, 307B2, 308.5, 308SR, 307B, 307C, 307D, 307E, 308D, 308E, 307, 308, 309
Daewoo S130W
Hanix H75C
Hitachi ZX85USB LCN-3, ZX85USB LC-3, ZX85US LC-3, ZX70 LCN-3, ZX75US-3LC, ZX75USK-5B, ZX85USB-5A, ZX85USB-5N, ZX70 LC-2, ZX70 LC-3, ZX75UR-5B, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75USL-3, ZX80 LC-2, ZX80LCK-3, ZX80SB LC, ZX85US-5A, ZX85USB-3, ZX85USB-5, ZX85USB-6, ZX85USB-7, EX75US-5, ZX75UR-3, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-5, ZX75US-7, ZX75USBL, ZX80 LCK, ZX85US-3, ZX85US-5, ZX85US-6, ZX95US-7, ZX70 LC, ZX70-5A, ZX70-5G, ZX80 LC, EX60-5, EX75US, ZX70-3, ZX70BL, ZX75UR, ZX75US, ZX80SB, ZX85US, EX80U, UH043, WH04D, EX90, ZX70, ZX75, ZX80, ZX90, ZX85USB
Ihi 80NX-3, IS50G, IS55J, IS55N, 65NX, 80NX, IS50, IS55, IS65
John Deere 75C, 75D, 75G, 80C, 85D, 85G, 70, 75, 80, 80G, 50P, 60P, 75P, 85P
Kato HD140SE, 180G
Kobelco SK070 SR, SK075 SR, SK75SR-3, SK85SR-3, SK070SR, SK60MK5, SK80MSR, SK60-2, SK60SR, SK70SR, SK75UR, SK95UR, K9033, SK80
Komatsu PC88MR-11E0, PC60-7C BL, PC75UU-3AC, PC78US-6E0, PC78US-6N0, PC78UU-6E0, PC60 LC-5, PC70FR-2B, PC75 LC-6, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3C, PC75UU-3E, PC78MRX-1, PC78US LC, PC78US-10, PC78US-11, PC78US-6E, PC78US-6Y, PC78UU-10, PC78UU-6E, PC78UUT-6, PC80 LC-3, PC88MR-10, PC88MR-11, PC60-6BL, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60SC-7, PC60SS-1, PC60UU-5, PC70FR-1, PC75R HD, PC75R-2K, PC75UR-2, PC75UR-3, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU-1, PC75UU-2, PC75UU-3, PC76UU-2, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78US-2, PC78US-5, PC78US-6, PC78US-7, PC78US-8, PC78UU-6, PC78UU-8, PC80MR-3, PC80MR-5, PC88MR-2, PC88MR-6, PC88MR-8, PC60 LC, PC60-6B, PC60-6S, PC60-7A, PC60-7B, PC60-7C, PC60-7E, PC60-7S, PC60B-7, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60L-6, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC70-7E, PC75 HD, PC75R-1, PC75R-2, PC75R-8, PC75U-2, PC90R-2, PC95R-1, PC95R-2, PW110RT, PC110R, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-7, PC60-8, PC60-9, PC60BL, PC60SS, PC70-1, PC70-4, PC70-6, PC70-7, PC70-8, PC70FR, PC75-1, PC75-2, PC75-3, PC75U1, PC75UL, PC75UR, PC75US, PC75UU, PC78LC, PC78MR, PC78US, PC78UU, PC80-1, PC80-3, PC80-5, PC80MR, PC88MR, PC90-1, PC90-5, PC90-6, PC90-7, PC95-1, PC95-2, PC95-5, PC95-6, PC95RT, PC60B, PC60L, PC60S, PC60U, PC75R, PC75U, PC78R, PC78U, PC95R, PC60, PC70, PC71, PC75, PC78, PC80, PC88, PC90, PC91, PC95
Linkbelt 75 SPIN ACE, 80 SPIN ACE, 75 X3, 80 X3
Lonking CDM6065
Sany SY65 C, SY75C, SY85C, SY65, SY70, SY75, SY80, SY85, SY75C PRO, SY55C-9, SY60C-9, SY75C-9
Sumitomo SH75XU-3B, rSH60B65, SH80X-3, SH80X-6, SH60-2, SH80-3, SH60B, SH75U, S160
Takeuchi TB180FR, TB175W, TB070, TB175, TB285, TB68S
Volvo EC80D PRO, EC70VV, EC70V, EC75D, EC80D, EC70
XCMG XE80E
Yanmar VIO100, SV100, VIO70, VIO75, VIO80
