JMA Attachments Concrete Pulverizer | Pin Size 70mm | For 15 – 19 Tons Excavators
JMA Attachments Concrete Pulverizer | Pin Size 70mm | For 15 – 19 Tons Excavators
Regular price
$7,696.70
Regular price
Sale price
$7,696.70
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

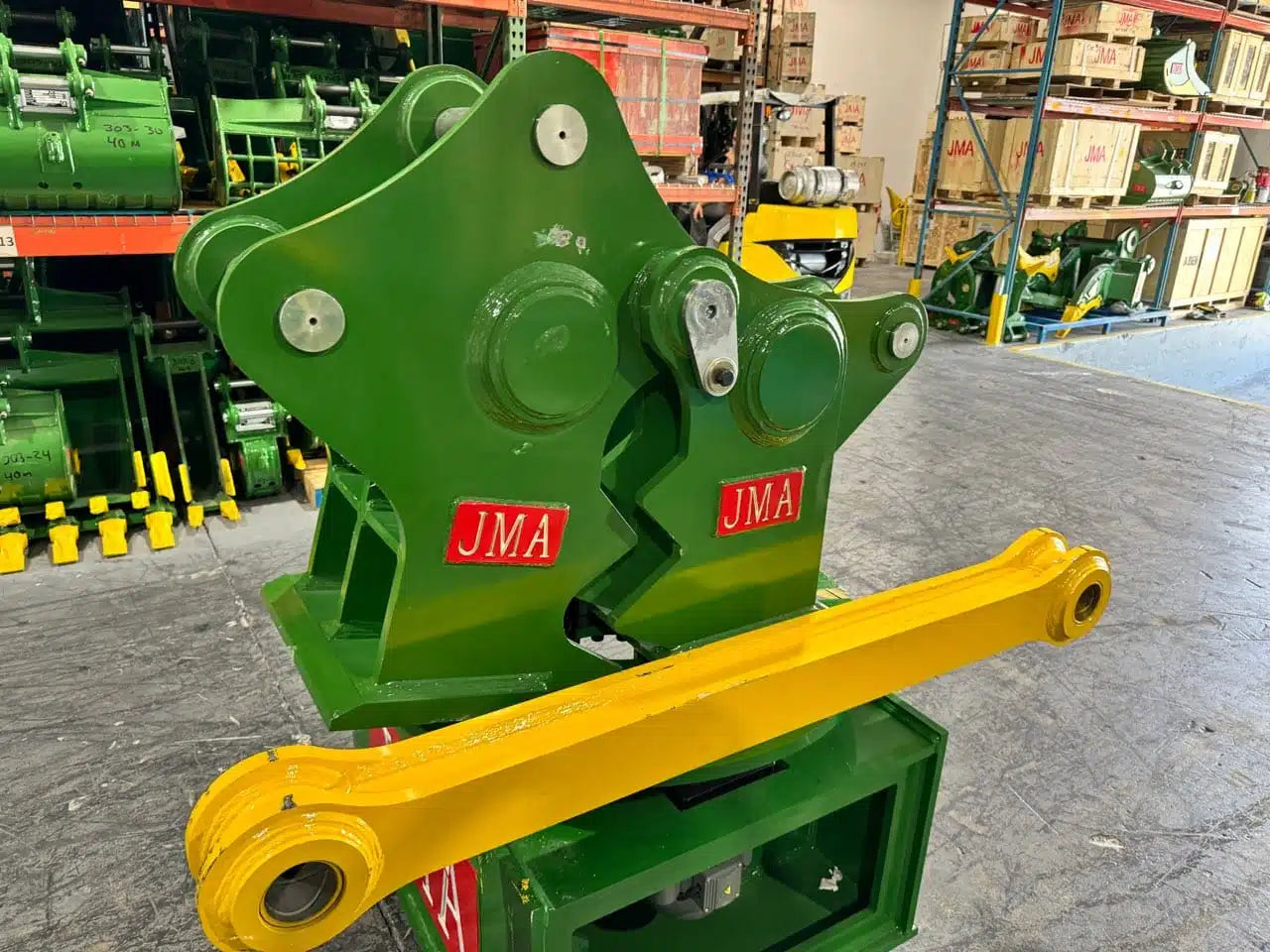

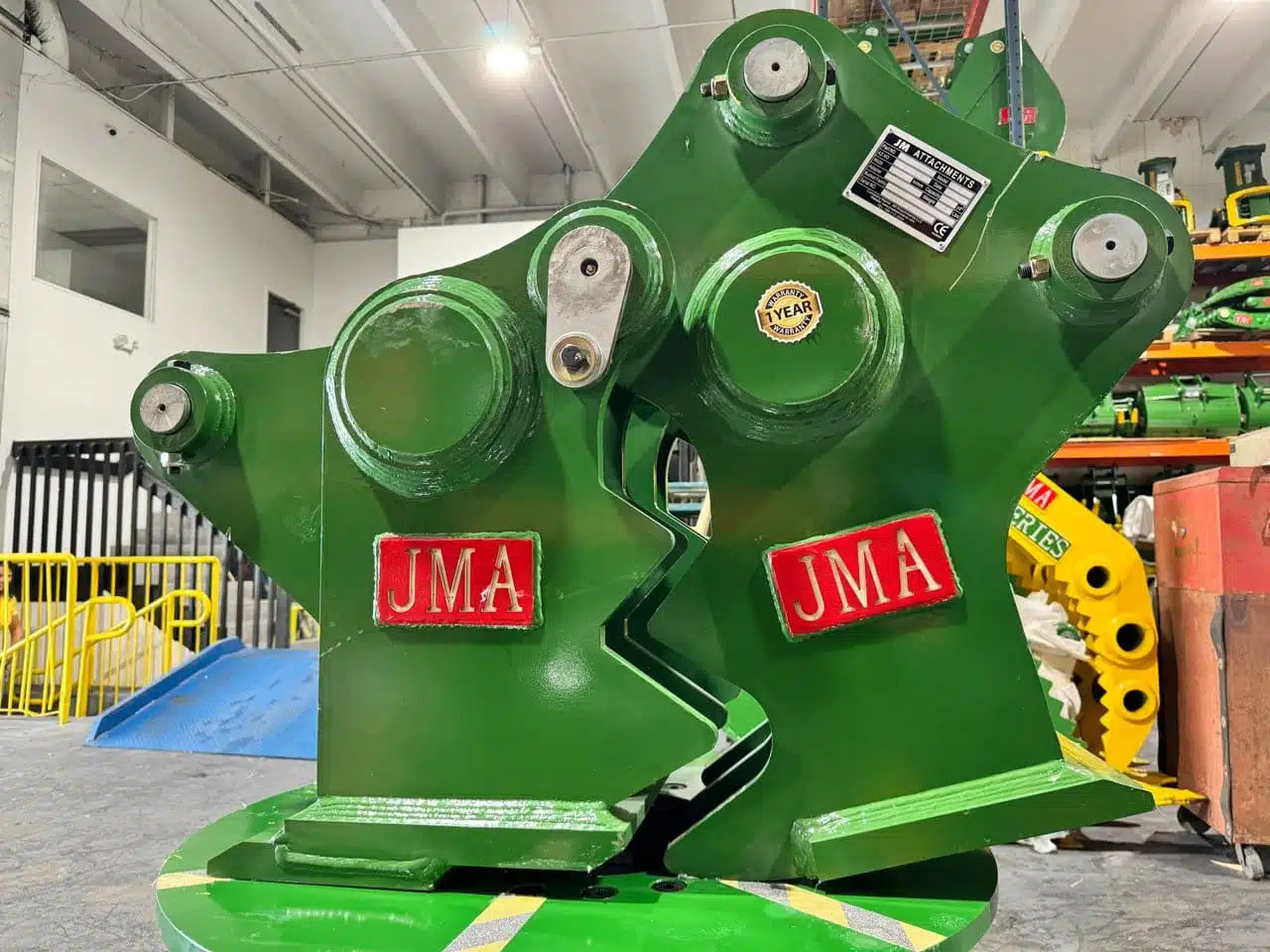

JMA Attachments Concrete Pulverizer | Pin Size 70mm | For 15 – 19 Tons Excavators
Description
Revolutionize your demolition projects with the Concrete Pulverizer for 15 - 19 Tons Excavator. 70mm Pins. This isn't just another attachment; it's your gateway to unparalleled efficiency and precision in concrete processing.
Key Features
- Impressive Jaw Capacity: With a max opening of 28.15", tackle even the toughest demolition tasks with ease.
- Optimized Crushing Power: The 4 x 3 jaw configuration ensures optimal material breakdown and separation.
- Unmatched Durability: Crafted from premium AR450 Steel, this pulverizer is built to withstand the harshest job site conditions.
- Versatility Redefined: The 23.23" fixed jaw width adapts seamlessly to a wide range of concrete processing tasks.
- Transform your Excavator into a concrete-crushing powerhouse. With the Concrete Pulverizer, you're not just demolishing – you're redefining efficiency in construction and recycling.
Detailed Specifications
| Attribute | Value |
|---|---|
| Material Type | AR450 Steel |
| Finish | Powder-Coated Green |
| Moving Jaw Width (mm) | 458 mm |
| Moving Jaw Width (in) | 18.03" |
| Fixed Jaw Width (mm) | 590 mm |
| Fixed Jaw Width (in) | 23.23" |
| Max Jaw Opening (mm) | 715 mm |
| Max Jaw Opening (in) | 28.15" |
| Jaw Configuration | 4 x 3 |
| Front Pin Diameter (mm) | 70 mm |
| Rear Pin Diameter (mm) | 70 mm |
| Front Ear to Ear Distance (mm) | 311 mm |
| Rear Ear to Ear Distance (mm) | 311 mm |
| Center to Center Distance (mm) | 401 mm |
| Carrier Weight Class (tn) | 15 - 19 Tons |
| Carrier Weight Class (lbs) | 30,000 - 38,000 lbs |
| Product Weight (lbs) | 1,653.47 lb |
| Product Weight (kg) | 750 kg |
Fits To
|
Brand |
Model |
|---|---|
| Caterpillar | 315D2 GC, 315F LCR, 315 GC, 315D2L, 317BLN, 318BL2, 318BLN, 318CLN, 318D2L, 318DL2, 318EL2, 318FL2, 315BL, 315CL, 315DL, 315LN, 316EL, 316FL, 316GC, 317BL, 317GC, 318CN, M313D, 315B, 315C, 315D, 315F, 315L, 316E, 317B, 317N, 318B, 318E, 215, 315, 317 |
| Hyundai | R160LC-3, R160LC-7, R160LC-9, R180LC-3, R180LC-7, R180LC-9, R210LC-3, R170W-3, R200W-2, R200W-3, R160LC, R180LC, R200LC, R220LC |
| Kato | 700SEV2, HD700SE, HD700V2, HD700, 900 |
| Kobelco | SK170LC-8 |
| Komatsu | PC160 LC-7A E0, PC150 HD LC-5, PC150N HD-5K, PC158US LC-2, PC160 LC-7E0, PC160 LC-7KA, PC180 LC-7E0, PC180N LC-5K, PC180N LC-6K, PC180N LC-7K, PC150 HD-5K, PC150 LC-3W, PC150 LC-6K, PC150 LC-8K, PC150 LGP-6, PC150N HD-5, PC160 LC-6K, PC160 LC-7E, PC160 LC-7K, PC160 LC-7L, PC160LC-7EO, PC170 LC-10, PC170 LC-11, PC180 LC-5K, PC180 LC-6K, PC180 LC-7K, PC180L LC-3, PC180N LC-3, PC180N LC-5, PC180N LC-6, PC180N LC-7, PC150 HD-3, PC150 HD-5, PC150 LC-1, PC150 LC-3, PC150 LC-5, PC150 LC-6, PC150 LC-7, PC158US LC, PC160 LC-6, PC160 LC-7, PC160 LC-8, PC180 LC-3, PC180 LC-5, PC180 LC-6, PC180 LC-7, PC150N HD, PC158US-2, PC160N LC, PC180N LC, PC150 HD, PC150 LC, PC150 SE, PC150-3W, PC150-5K, PC150-6K, PC150C-3, PC150C-6, PC150L-6, PC158 LC, PC160 LC, PC160-6K, PC160-7K, PC168 LC, PC170 LC, PC180 LC, PC180-3K, PC180-5K, PC180-6K, PC150-1, PC150-3, PC150-5, PC150-6, PC160-6, PC160-7, PC160-8, PC180-3, PC180-5, PC180-6, PC180-7, PC150C, PC150L, PC150, PC158, PC160, PC180, PW150 |
| Liebherr | 922 |
| Samsung | SE130LC |
| Sumitomo | LS2800FJ, S2800FJ |
| Volvo | EC160B LC, EC160C LC, EC150 LC, EC160 LC, SE170W-3, EC160CL, EC160DL, EC160EL, EC170DL, EC180CL, EC180DL, EC180EL, MX175WS, EC150B, EC150C, EC160B, EC160C, EC160N, EC160P, EC180B, EC180C, EC180D, EC150, EC160, EW170 |
