JMA Attachments Digging Bucket | Bucket Width 36" inches | For 7 – 10 Tons Excavators
JMA Attachments Digging Bucket | Bucket Width 36" inches | For 7 – 10 Tons Excavators
Regular price
$2,856.70
Regular price
Sale price
$2,856.70
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
JMA Attachments Digging Bucket | Bucket Width 36" inches | For 7 – 10 Tons Excavators
Description

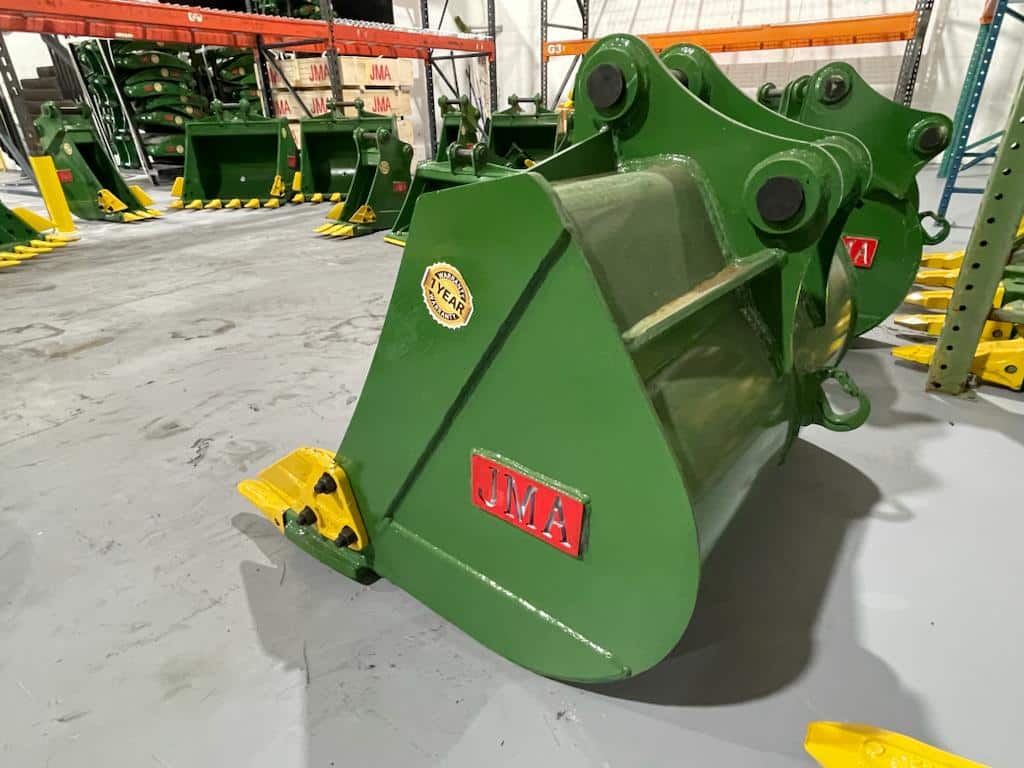

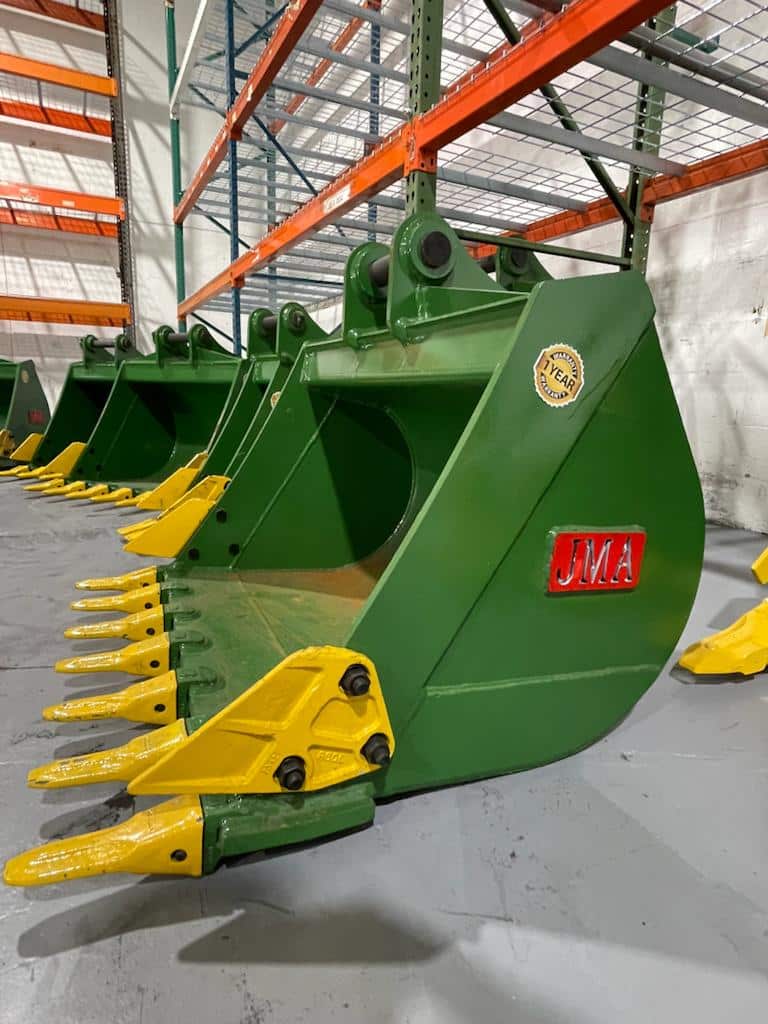

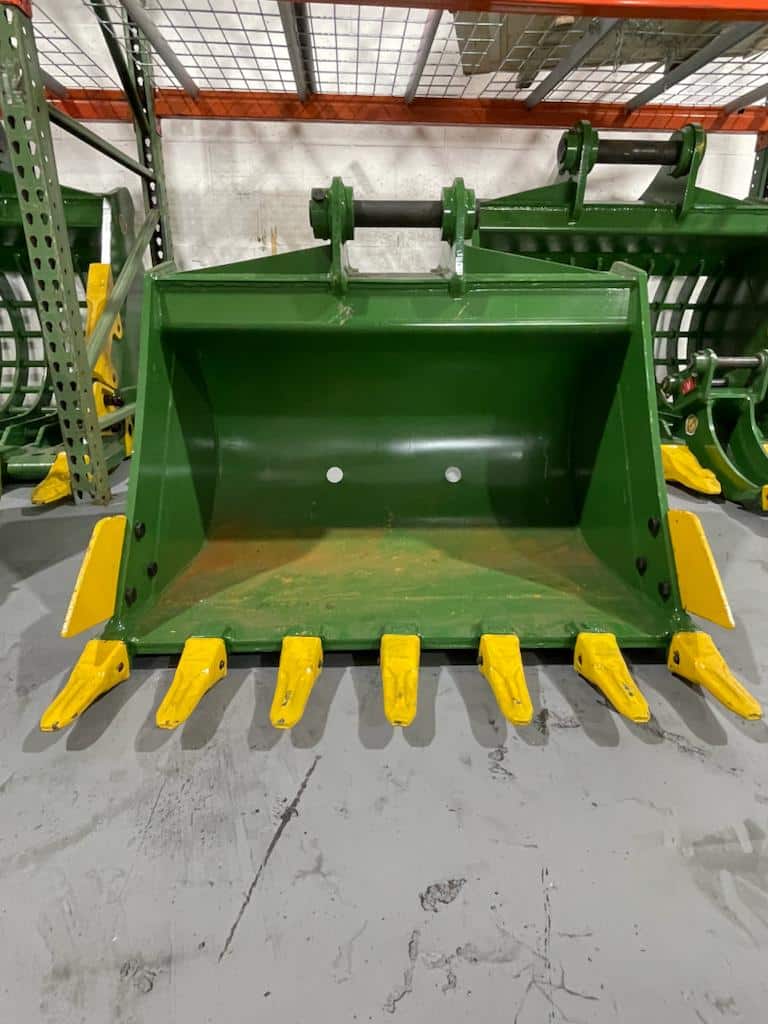

Introducing the 36" Digging Bucket for 7 - 10 Tons Excavators. 50mm Pins - where power meets precision in a 36" package. Transform your excavator into a terrain-conquering marvel. Meticulously designed for the discerning professional, this bucket delivers unparalleled performance in every scoop.
What's In The Box:
- 36" Professional-Grade Digging Bucket
- 7 high-performance J200 series Rock Chisel Bucket Tooth
- Complete tooth pin and retainer set
Key Features
- Built Tough: Premium AR400 Steel construction
- Engineered for Stability: 50 mm pins (200 mm ear-to-ear, 310 mm center-to-center)
- Multi-Talented: Perfect for landscaping, utility work, and excavation
- Time-Saver: Swift attachment for increased uptime
Detailed Specifications
| Attribute | Value |
|---|---|
| Left Side Cutter Part Number | CLZ-01-L |
| Right Side Cutter Part Number | CLZ-01-D |
| Carrier Weight Class (tn) | 7 - 10 Tons |
| Bucket Width (mm) | 914.4 mm |
| Bucket Width (in) | 36" |
| Inner Bucket Height (mm) | 700 mm |
| Bucket Side Wall Thickness (mm) | 14 mm |
| Bucket Depth (mm) | 490 mm |
| Capacity (yd³) | 0.35 yd³ |
| Capacity (m³) | 0.27 m³ |
| Bucket Tooth Series | J200 |
| Tooth Style | Rock Chisel Bucket Tooth |
| Tooth (ct.) | 7 Teeth |
| Tooth Part Number | 1U3202RC |
| Tooth Pin Part Number | 9W7112 |
| Tooth Retainer Part Number | 8E6209 |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Add-on included | AMH 10 Ton Weld-on Bucket Hook |
| Front Pin Length (mm) | 346 mm |
| Rear Pin Length (mm) | 346 mm |
| Front Pin Diameter (mm) | 50 mm |
| Rear Pin Diameter (mm) | 50 mm |
| Front Ear to Ear Distance (mm) | 200 mm |
| Rear Ear to Ear Distance (mm) | 200 mm |
| Center to Center Distance (mm) | 310 mm |
| Carrier Weight Class (lbs) | 14,000 - 20,000 lbs |
| Drain Holes (ct) | 2 |
| Features | 3x Reinforced Side Plates |
| Product Weight (lbs) | 456.36 lb |
| Product Weight (kg) | 207 kg |
Fits To
|
Brand |
Model |
|---|---|
| Airman | AX90 |
| Case | CX80C MSR, CX90D MSR, CX85D SR, CX75 LR, CX75CSR, CX75MSR, CX75SR, CX80SR, CX80B, CX80C, CX90D, CX75, CX80 |
| Caterpillar | 308E2 Z2.1, 309 CR VAB, 307SSR-V2, 308CR VAB, 308E2 CR, 308E2 SR, 308B CR, 308C CR, 308D CR, 308E CR, 308E SR, 307 CR, 307SSR, 308 CR, 308BSR, 308C R, 308CSR, 308DRR, 308DSR, 309 CR, 307.5, 307B2, 308.5, 308SR, 307B, 307C, 307D, 307E, 308D, 308E, 307, 308, 309 |
| Daewoo | S130W |
| Hanix | H75C |
| Hitachi | ZX85USB LCN-3, ZX85USB LC-3, ZX85US LC-3, ZX70 LCN-3, ZX75US-3LC, ZX75USK-5B, ZX85USB-5A, ZX85USB-5N, ZX70 LC-2, ZX70 LC-3, ZX75UR-5B, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75USL-3, ZX80 LC-2, ZX80LCK-3, ZX80SB LC, ZX85US-5A, ZX85USB-3, ZX85USB-5, ZX85USB-6, ZX85USB-7, EX75US-5, ZX75UR-3, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-5, ZX75US-7, ZX75USBL, ZX80 LCK, ZX85US-3, ZX85US-5, ZX85US-6, ZX95US-7, ZX70 LC, ZX70-5A, ZX70-5G, ZX80 LC, EX60-5, EX75US, ZX70-3, ZX70BL, ZX75UR, ZX75US, ZX80SB, ZX85US, EX80U, UH043, WH04D, EX90, ZX70, ZX75, ZX80, ZX90, ZX85USB |
| Ihi | 80NX-3, IS50G, IS55J, IS55N, 65NX, 80NX, IS50, IS55, IS65 |
| John Deere | 75C, 75D, 75G, 80C, 85D, 85G, 70, 75, 80, 80G, 50P, 60P, 75P, 85P |
| Kato | HD140SE, 180G |
| Kobelco | SK070 SR, SK075 SR, SK75SR-3, SK85SR-3, SK070SR, SK60MK5, SK80MSR, SK60-2, SK60SR, SK70SR, SK75UR, SK95UR, K9033, SK80 |
| Komatsu | PC88MR-11E0, PC60-7C BL, PC75UU-3AC, PC78US-6E0, PC78US-6N0, PC78UU-6E0, PC60 LC-5, PC70FR-2B, PC75 LC-6, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3C, PC75UU-3E, PC78MRX-1, PC78US LC, PC78US-10, PC78US-11, PC78US-6E, PC78US-6Y, PC78UU-10, PC78UU-6E, PC78UUT-6, PC80 LC-3, PC88MR-10, PC88MR-11, PC60-6BL, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60SC-7, PC60SS-1, PC60UU-5, PC70FR-1, PC75R HD, PC75R-2K, PC75UR-2, PC75UR-3, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU-1, PC75UU-2, PC75UU-3, PC76UU-2, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78US-2, PC78US-5, PC78US-6, PC78US-7, PC78US-8, PC78UU-6, PC78UU-8, PC80MR-3, PC80MR-5, PC88MR-2, PC88MR-6, PC88MR-8, PC60 LC, PC60-6B, PC60-6S, PC60-7A, PC60-7B, PC60-7C, PC60-7E, PC60-7S, PC60B-7, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60L-6, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC70-7E, PC75 HD, PC75R-1, PC75R-2, PC75R-8, PC75U-2, PC90R-2, PC95R-1, PC95R-2, PW110RT, PC110R, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-7, PC60-8, PC60-9, PC60BL, PC60SS, PC70-1, PC70-4, PC70-6, PC70-7, PC70-8, PC70FR, PC75-1, PC75-2, PC75-3, PC75U1, PC75UL, PC75UR, PC75US, PC75UU, PC78LC, PC78MR, PC78US, PC78UU, PC80-1, PC80-3, PC80-5, PC80MR, PC88MR, PC90-1, PC90-5, PC90-6, PC90-7, PC95-1, PC95-2, PC95-5, PC95-6, PC95RT, PC60B, PC60L, PC60S, PC60U, PC75R, PC75U, PC78R, PC78U, PC95R, PC60, PC70, PC71, PC75, PC78, PC80, PC88, PC90, PC91, PC95 |
| Linkbelt | 75 SPIN ACE, 80 SPIN ACE, 75 X3, 80 X3 |
| Lonking | CDM6065 |
| Sany | SY65 C, SY75C, SY85C, SY65, SY70, SY75, SY80, SY85, SY75C PRO, SY55C-9, SY60C-9, SY75C-9 |
| Sumitomo | SH75XU-3B, rSH60B65, SH80X-3, SH80X-6, SH60-2, SH80-3, SH60B, SH75U, S160 |
| Takeuchi | TB180FR, TB175W, TB070, TB175, TB285, TB68S |
| Volvo | EC80D PRO, EC70VV, EC70V, EC75D, EC80D, EC70 |
| XCMG | XE80E |
| Yanmar | VIO100, SV100, VIO70, VIO75, VIO80 |
