JMA Attachments

JMA Attachments Ditching Bucket | Bucket Width 48" inches | Pin Size 70mm Pins | For 15 – 18 Tons Excavators

JMA Attachments Ditching Bucket | Bucket Width 48" inches | Pin Size 70mm Pins | For 15 – 18 Tons Excavators

Regular price $5,716.70
Regular price Sale price $5,716.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Volume Virtuoso: 0.63 m³ capacity ensures you move more material in fewer passes, dramatically improving job site productivity.
  • Durability Redefined: Constructed from high-grade AR450 Steel to withstand the most demanding work environments.
  • Edge Excellence: Equipped with a Reversible Bolt-On Cutting Edge for exceptional cutting performance and reduced maintenance needs.
View full details

Product Description

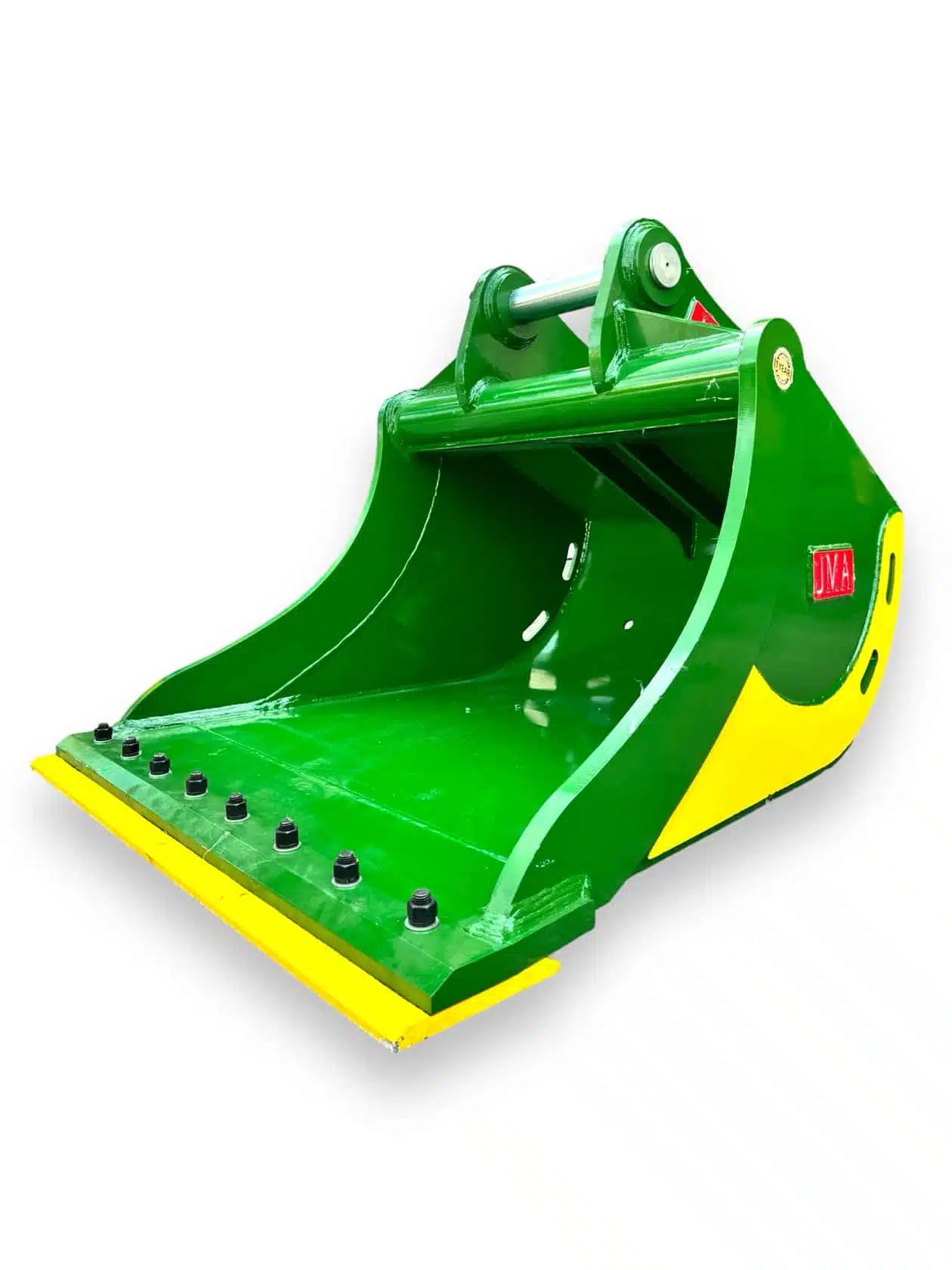

JMA Attachments Ditching Bucket | Bucket Width 48" inches | Pin Size 70mm Pins | For 15 – 18 Tons Excavators

Description

Unleash the full potential of your Excavator with the game-changing 48" Ditching Bucket for 15 - 18 Tons Excavators. 70mm Pins. This innovative ditching bucket is set to revolutionize your approach to drainage and grading projects.

Key Features

  • Capacity Maximized: 0.63 m³ volume allows you to move more material with each pass, significantly reducing project timelines.
  • Built for the Long Haul: AR400 Steel construction ensures years of reliable service in the most demanding environments.
  • Cutting-Edge Performance: Reversible Bolt-On Cutting Edge delivers clean, efficient cuts while minimizing wear and tear.
  • Perfect Fit Technology: Engineered specifically for Excavators in the 30,000 - 36,000 lbs category, ensuring seamless integration and enhanced capabilities.
  • Optimized Profile: Designed for superior material release, preventing clogging and maintaining productivity in various soil conditions.

Detailed Specifications

Attribute Value
Carrier Weight Class (tn) 15 - 18 Tons
Bucket Width (mm) 1,219.2 mm
Bucket Width (in) 48"
Inner Bucket Height (mm) 856 mm
Bucket Side Wall Thickness (mm) 30 mm
Bucket Depth (mm) 562 mm
Capacity (yd³) 0.82 yd³
Capacity (m³) 0.63 m³
Edge Style Reversible Bolt-On Cutting Edge
Material Type AR400 Steel
Finish Powder-Coated Green
Front Pin Length (mm) 530 mm
Rear Pin Length (mm) 530 mm
Front Pin Diameter (mm) 70 mm
Rear Pin Diameter (mm) 70 mm
Front Ear to Ear Distance (mm) 283 mm
Rear Ear to Ear Distance (mm) 283 mm
Center to Center Distance (mm) 464 mm
Carrier Weight Class (lbs) 30,000 - 36,000 lbs
Drain Holes (ct) 6
Features 3x Reinforced Side Plates
Product Weight (lbs) 1,243.41 lb
Product Weight (kg) 564 kg



Fits To

Brand

Model

Caterpillar 315D2 GC, 315F LCR, 315 GC, 315D2L, 317BLN, 318BL2, 318BLN, 318CLN, 318D2L, 318DL2, 318EL2, 318FL2, 315BL, 315CL, 315DL, 315LN, 316EL, 316FL, 316GC, 317BL, 317GC, 318CN, M313D, 315B, 315C, 315D, 315F, 315L, 316E, 317B, 317N, 318B, 318E, 215, 315, 317
Hyundai R160LC-3, R160LC-7, R160LC-9, R180LC-3, R180LC-7, R180LC-9, R210LC-3, R170W-3, R200W-2, R200W-3, R160LC, R180LC, R200LC, R220LC
Kato 700SEV2, HD700SE, HD700V2, HD700, 900
Kobelco SK170LC-8
Komatsu PC160 LC-7A E0, PC150 HD LC-5, PC150N HD-5K, PC158US LC-2, PC160 LC-7E0, PC160 LC-7KA, PC180 LC-7E0, PC180N LC-5K, PC180N LC-6K, PC180N LC-7K, PC150 HD-5K, PC150 LC-3W, PC150 LC-6K, PC150 LC-8K, PC150 LGP-6, PC150N HD-5, PC160 LC-6K, PC160 LC-7E, PC160 LC-7K, PC160 LC-7L, PC160LC-7EO, PC170 LC-10, PC170 LC-11, PC180 LC-5K, PC180 LC-6K, PC180 LC-7K, PC180L LC-3, PC180N LC-3, PC180N LC-5, PC180N LC-6, PC180N LC-7, PC150 HD-3, PC150 HD-5, PC150 LC-1, PC150 LC-3, PC150 LC-5, PC150 LC-6, PC150 LC-7, PC158US LC, PC160 LC-6, PC160 LC-7, PC160 LC-8, PC180 LC-3, PC180 LC-5, PC180 LC-6, PC180 LC-7, PC150N HD, PC158US-2, PC160N LC, PC180N LC, PC150 HD, PC150 LC, PC150 SE, PC150-3W, PC150-5K, PC150-6K, PC150C-3, PC150C-6, PC150L-6, PC158 LC, PC160 LC, PC160-6K, PC160-7K, PC168 LC, PC170 LC, PC180 LC, PC180-3K, PC180-5K, PC180-6K, PC150-1, PC150-3, PC150-5, PC150-6, PC160-6, PC160-7, PC160-8, PC180-3, PC180-5, PC180-6, PC180-7, PC150C, PC150L, PC150, PC158, PC160, PC180, PW150
Liebherr 922
Samsung SE130LC
Sumitomo LS2800FJ, S2800FJ
Volvo EC160B LC, EC160C LC, EC150 LC, EC160 LC, SE170W-3, EC160CL, EC160DL, EC160EL, EC170DL, EC180CL, EC180DL, EC180EL, MX175WS, EC150B, EC150C, EC160B, EC160C, EC160N, EC160P, EC180B, EC180C, EC180D, EC150, EC160, EW170
