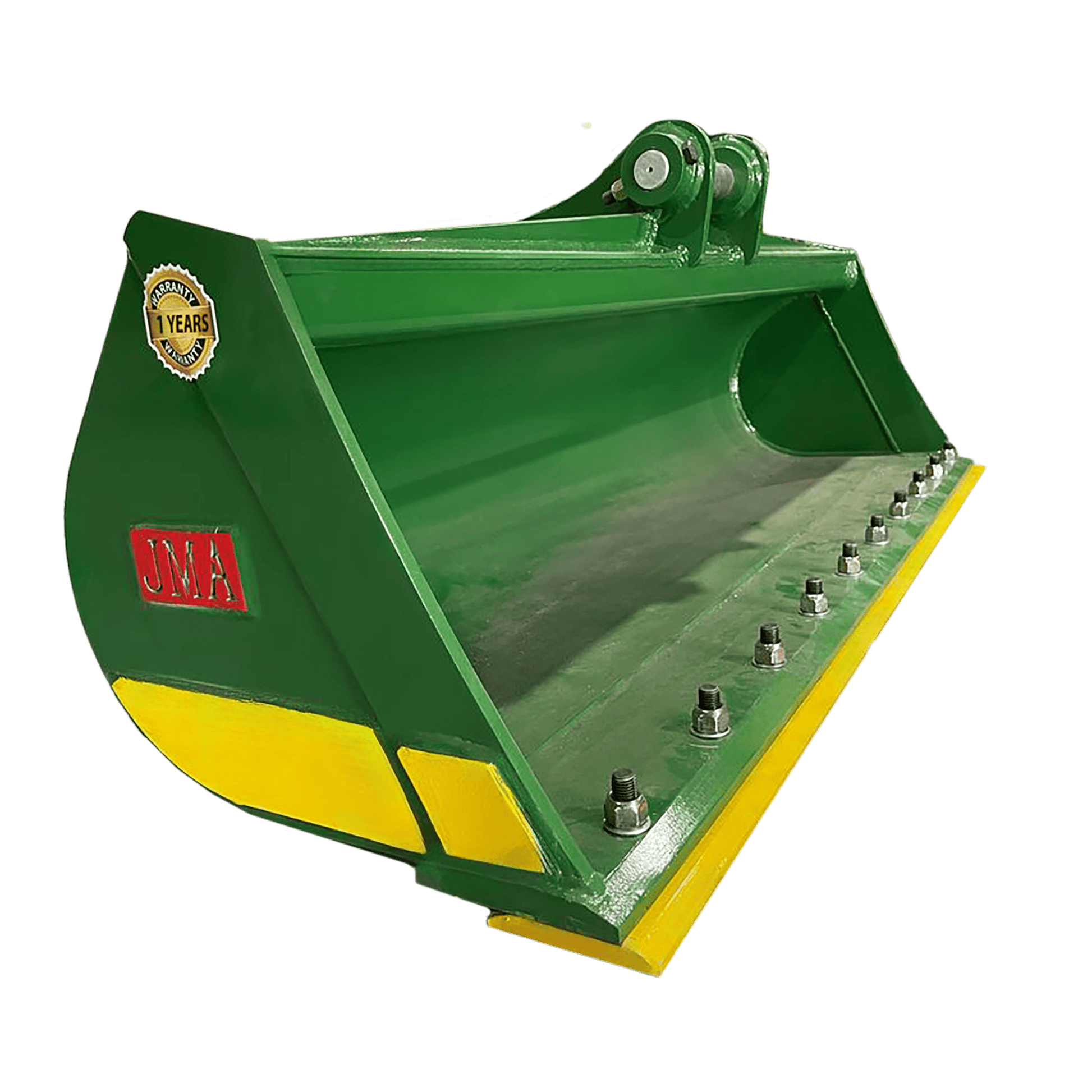

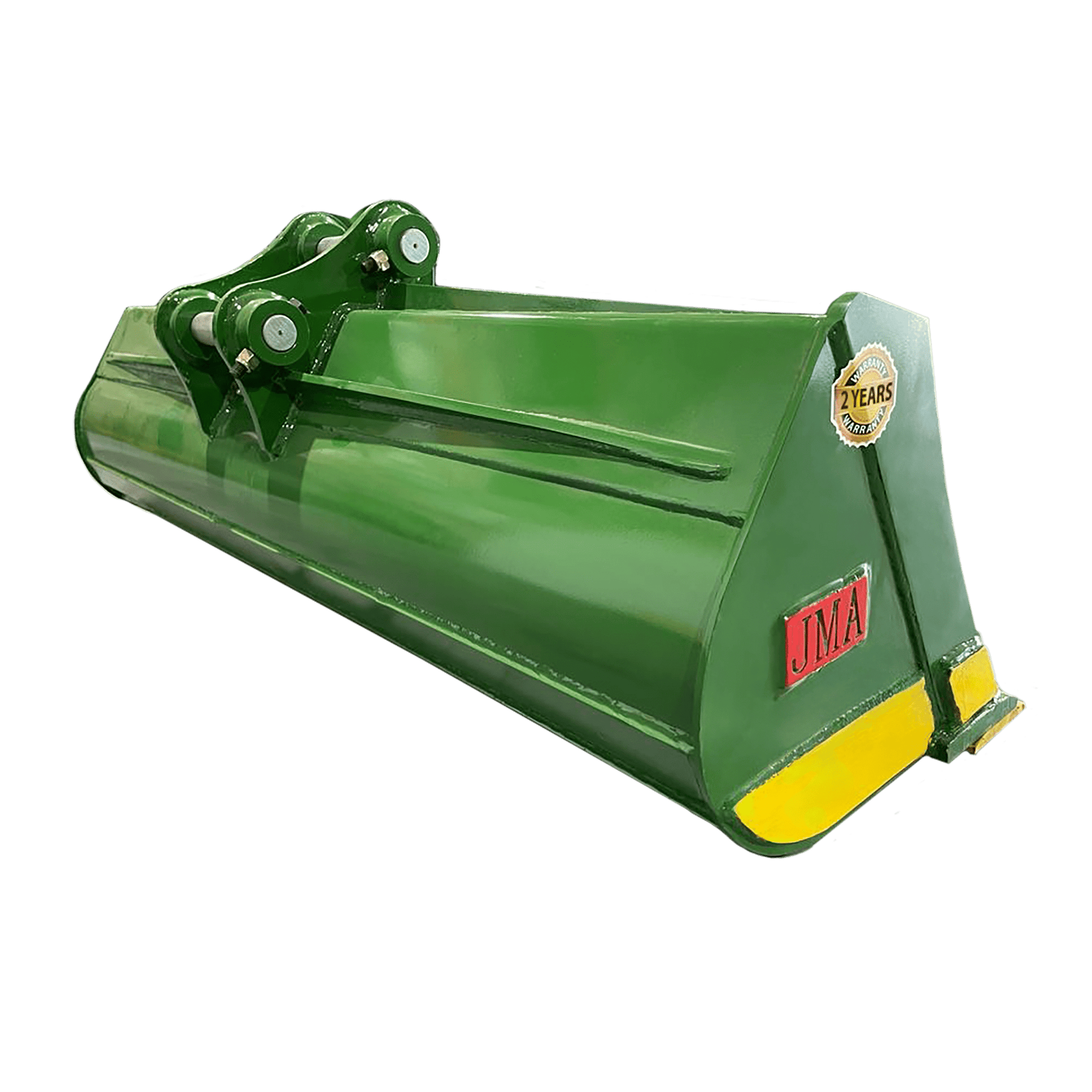

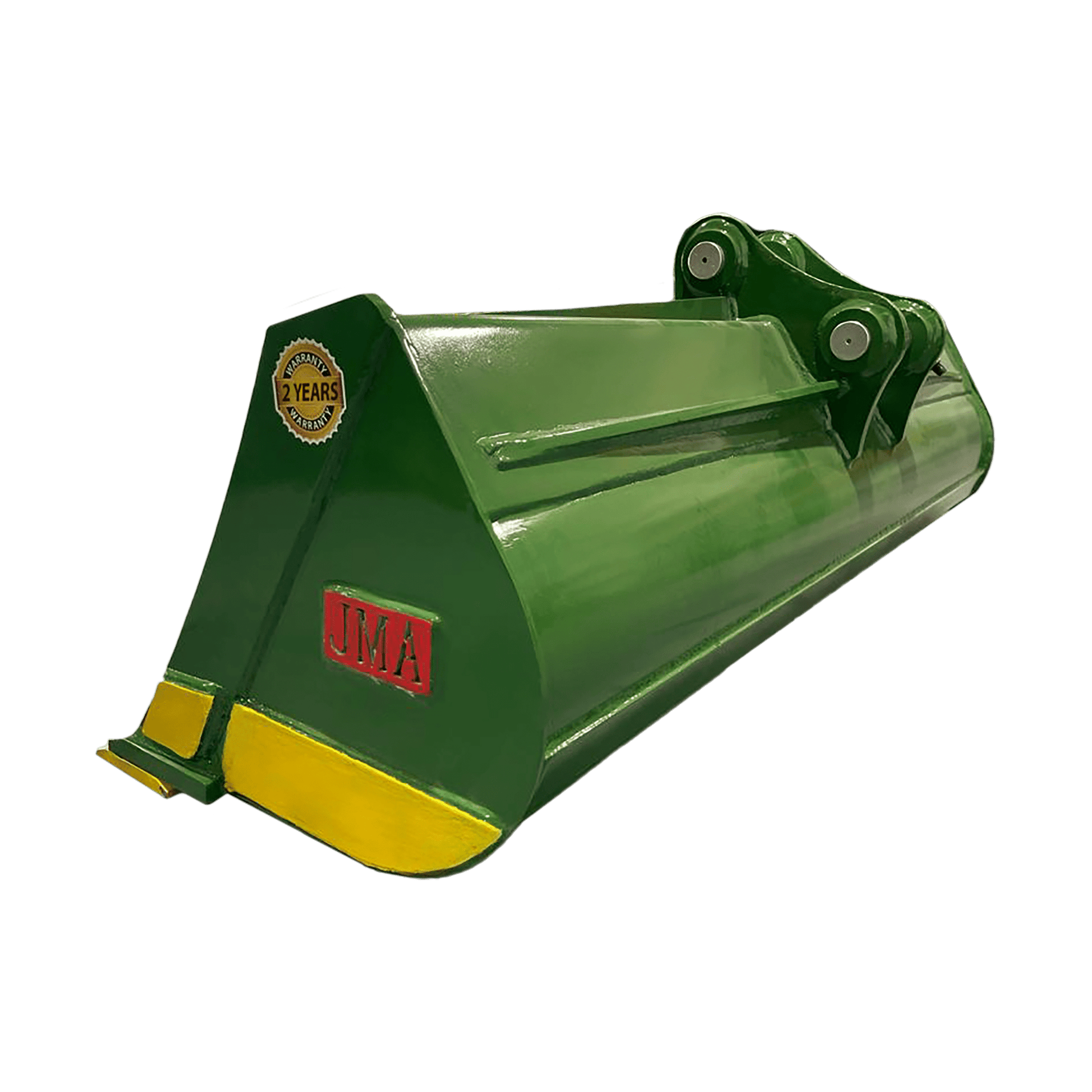

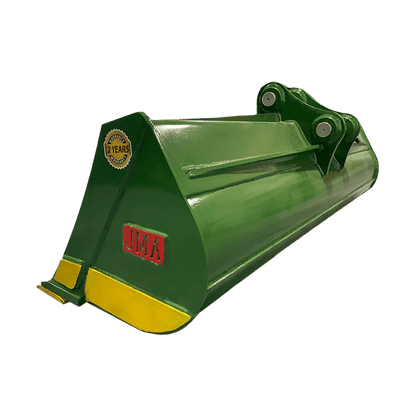

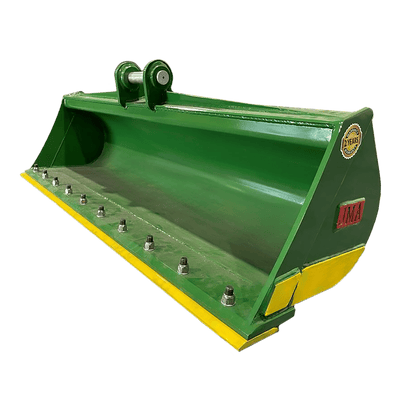

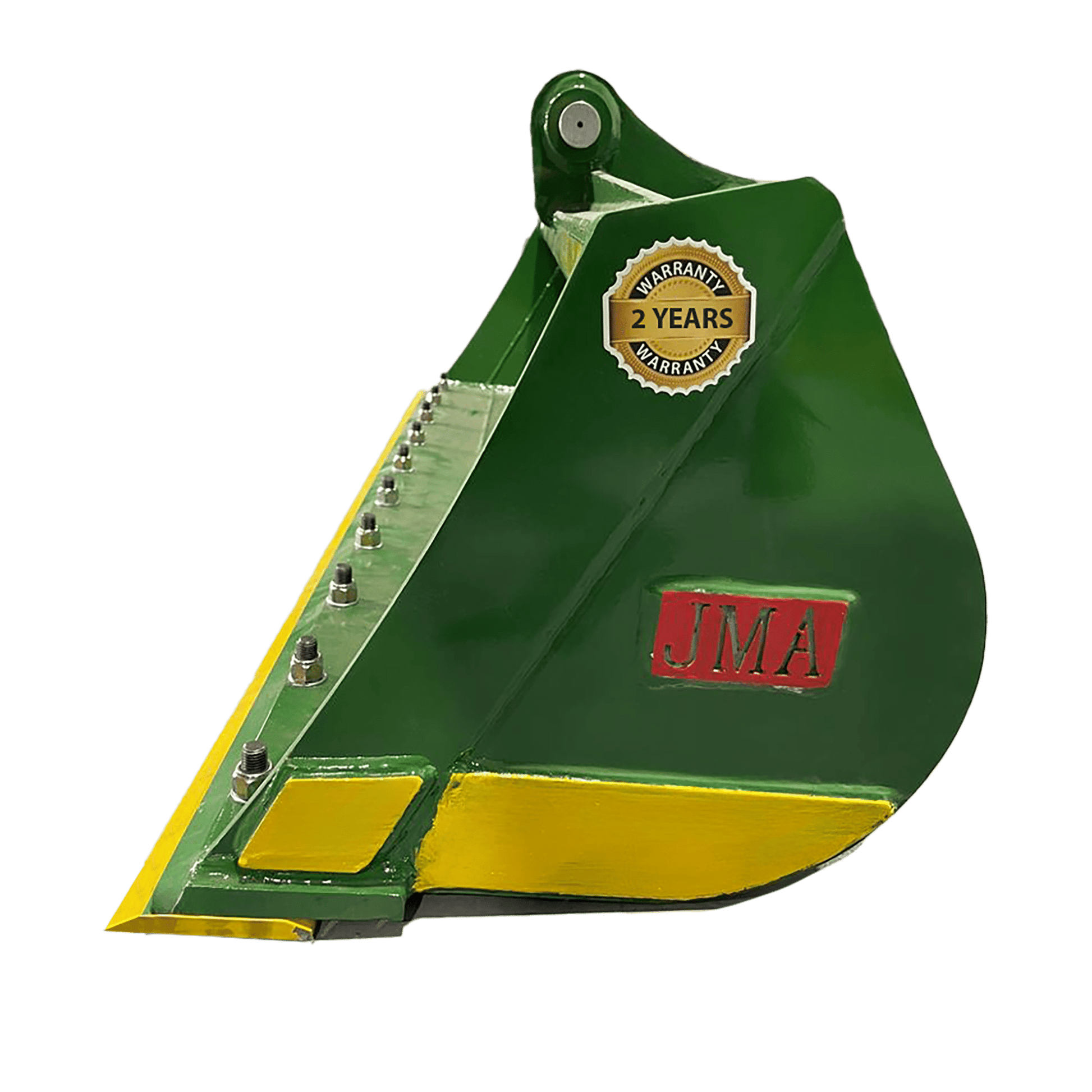

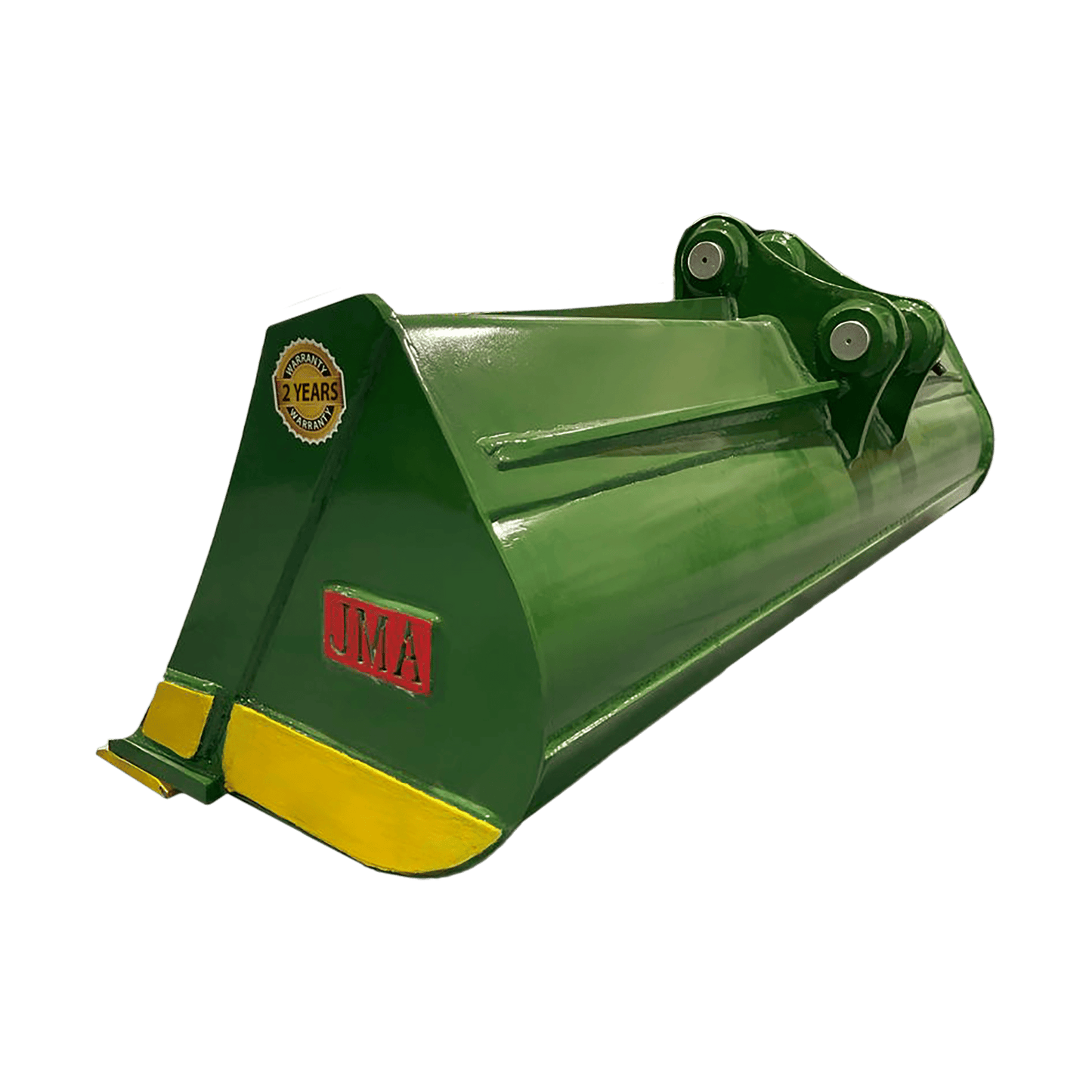

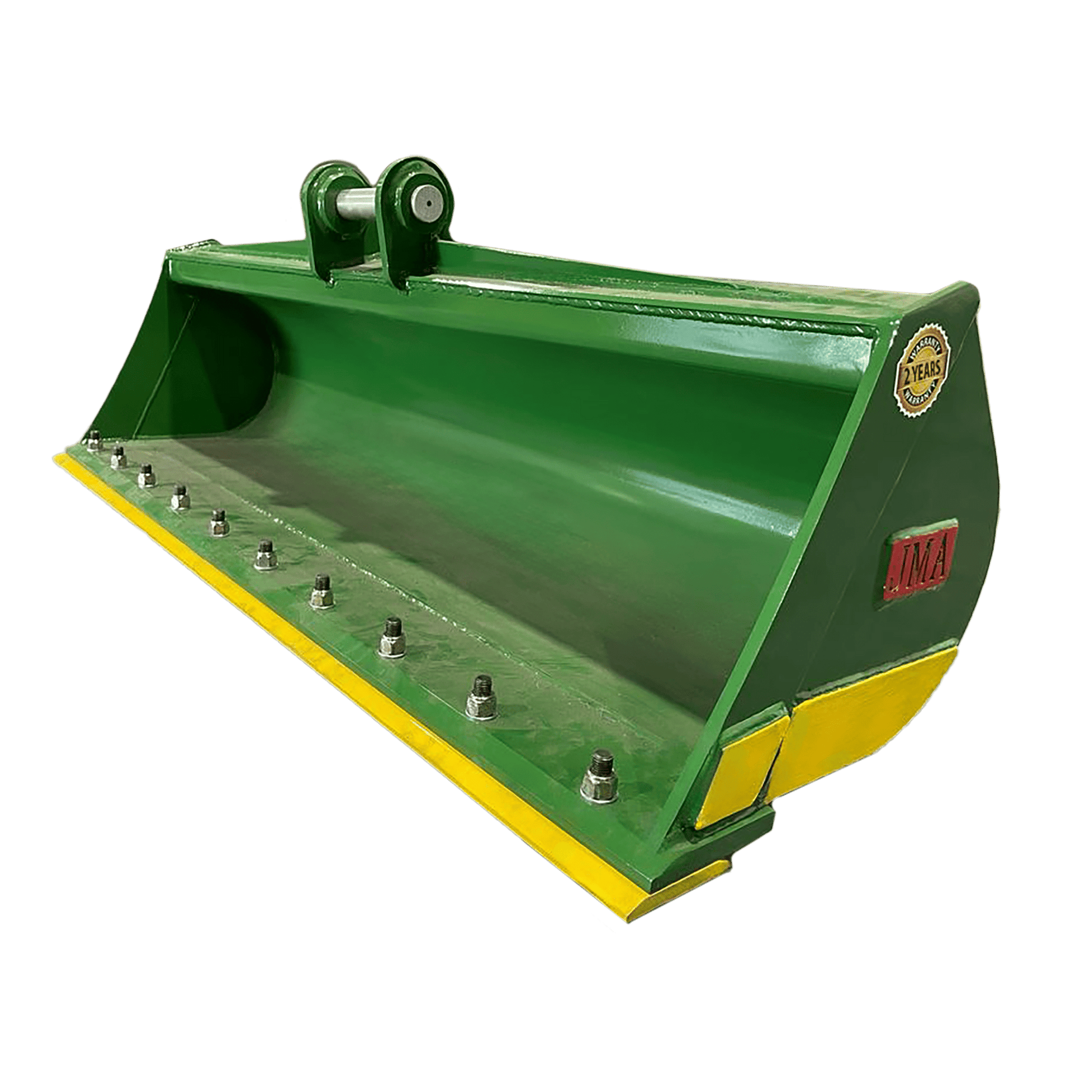

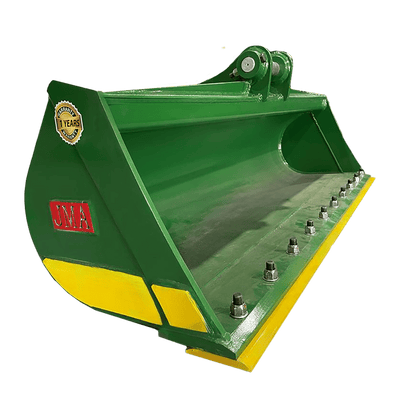

JMA Attachments Ditching Bucket | Bucket Width 60" inches | Pin Size 40mm Pins | For 3 – 4.5 Tons Excavators
Description
Discover the game-changing 60" Ditching Bucket for 3 - 4.5 Tons Mini Excavators. 40mm Pins – where innovation meets precision earthwork. This 0.35 m³ marvel is set to redefine your expectations of what a ditching bucket can do.
Key Features
- Capacity Redefined: 0.35 m³ volume ensures you move more material with less effort, significantly improving job site efficiency.
- Built to Last: Premium AR400 Steel construction guarantees unmatched durability in any condition.
- Cutting System Excellence: Reversible Bolt-On Cutting Edge provides clean, efficient cuts while minimizing maintenance needs.
- Mini Excavator Synergy: Engineered to work in perfect harmony with 6,000 - 9,000 lbs class machines, maximizing capabilities and ROI.
- Flow Optimization: Designed to prevent material buildup and ensure smooth operation in various soil types.
Detailed Specifications
| Attribute | Value |
|---|---|
| Carrier Weight Class (tn) | 3 - 4.5 Tons |
| Bucket Width (mm) | 1,524 mm |
| Bucket Width (in) | 60" |
| Inner Bucket Height (mm) | 472 mm |
| Bucket Side Wall Thickness (mm) | 14 mm |
| Bucket Depth (mm) | 308 mm |
| Capacity (yd³) | 0.46 yd³ |
| Capacity (m³) | 0.35 m³ |
| Edge Style | Reversible Bolt-On Cutting Edge |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Front Pin Length (mm) | 273 mm |
| Rear Pin Length (mm) | 273 mm |
| Front Pin Diameter (mm) | 40 mm |
| Rear Pin Diameter (mm) | 40 mm |
| Front Ear to Ear Distance (mm) | 136 mm |
| Rear Ear to Ear Distance (mm) | 136 mm |
| Center to Center Distance (mm) | 200 mm |
| Carrier Weight Class (lbs) | 6,000 - 9,000 lbs |
| Drain Holes (ct) | 6 |
| Features | 3x Reinforced Side Plates |
| Product Weight (lbs) | 407.85 lb |
| Product Weight (kg) | 185 kg |
Fits To
|
Brand |
Model |
|---|---|
| Airman | AX30U-5F, AX30UC-4, AX30UC-5, AX33U-5A, AX35U-5F, AX38U-5A, AX30-U2, AX30U-4, AX33Mu, AX30, AX35 |
| Case | CX31B, CX36B, CX33, CX37 |
| Caterpillar | 303.5D2 CR, 303.5E2 CR, 303.5C CR, 303.5D CR, 303.5E CR, 303C2 CR, 303.5CR, 303C CR, 303E CR, 304D CR, 303.4C, 303.5C, 303.5D, 303.5E, 303CR2, 303ESR, 304ECR, 305CR2, 303.5, 303CR, 303GR, 303SR, 304.5, 304CR, 304E2, 303 |
| Daewoo | S030, S035, S35 |
| Develon | DX27Z-7, DX35Z-7, DX42-7 |
| Doosan | DX27Z-7, DX35Z-7, DX35-5, DX35 |
| Ford | 550 |
| Hanix | H36B-R, H30A, H35A, H36A, H36B |
| Hitachi | ZX33U-2 -3, ZX38U-2 -3, EX40UR-2C, EX40UR-2, EX40UR-3, ZX33U-5A, ZX35U-3F, ZX38U-5A, ZX30-U2, ZX30U-2, ZX35U-2, EX30-2, EX33MU, EX35-2, EX40UR, EX50UR, EX30U, EX33U, EX35U, ZX30U, ZX35U, EX35, EX45, ZX26U, ZX30, ZX35 |
| Hyundai | R35-5, R35-7 |
| Ihi | IS35VX-2, IS35N, IS35 |
| John Deere | 27C ZTS, 27D ZTS, 35C ZTS, 35D ZTS, 27 ZTS, 35 ZTS, 27CT, 35CT, 35ZT, 25D, 25E, 26G, 27C, 27D, 30G, 35C, 35D, 35G, 25, 30, 35, 26P, 30P, 35P, 27ZTS, 35ZTS |
| Kobelco | SK30SR-1, SK30SR-2, SK30SR-3, SK30SR-4, SK30SR-5, SK35SR-1, SK35SR-2, SK35SR-3, SK35SR-4, SK35SR-5, SK35SR-6, SK032, SK035 |
| Kubota | U30 Import, KX040-4, KX101-3, KX121-2, KX121-3, KX121-5, KX71-2, KX71-3, KX91-2, KX91-3, KH16W, KX101, KX121, RX302, U35-3, U35-4, U36-4, KH90, KO30, KX71, KX91, U35, KX033, KX040 |
| Linkbelt | HE902, MM40, MM55 |
| Liugong | 9035E |
| Nagano | NS35R-3, NS55R-5, NS45-3, NS35 |
| New Holland | E35B, E33, E37 |
| Nissan | N350 |
| Sany | SY35C, SY35U, SY26, SY35, SY26U, SY27U |
| Sumitomo | SWE50, SWE55 |
| Takeuchi | TB138FR, TB035, TB107, TB108, TB135, TB138, TB235, TB240, TB14, TB16, TB23, TB36 |
| Terex | TC35/TC37, TC48/TC50, TC60 |
| Volvo | EC35 C, EC35C, ECR38 |
| Wacker Neuson | 3003, 3503, 3703, 38Z3, ET35, EZ26, EZ35, EZ36, EZ38, 28Z, 38Z |
| Yanmar | YC18-3, YC25-2, YC30-2, YC35 |
