JMA Attachments Ditching Bucket | Bucket Width 60" inches | Pin Size 50mm Pins | For 7 – 10 Tons Excavators
JMA Attachments Ditching Bucket | Bucket Width 60" inches | Pin Size 50mm Pins | For 7 – 10 Tons Excavators
Regular price
$3,626.70
Regular price
Sale price
$3,626.70
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

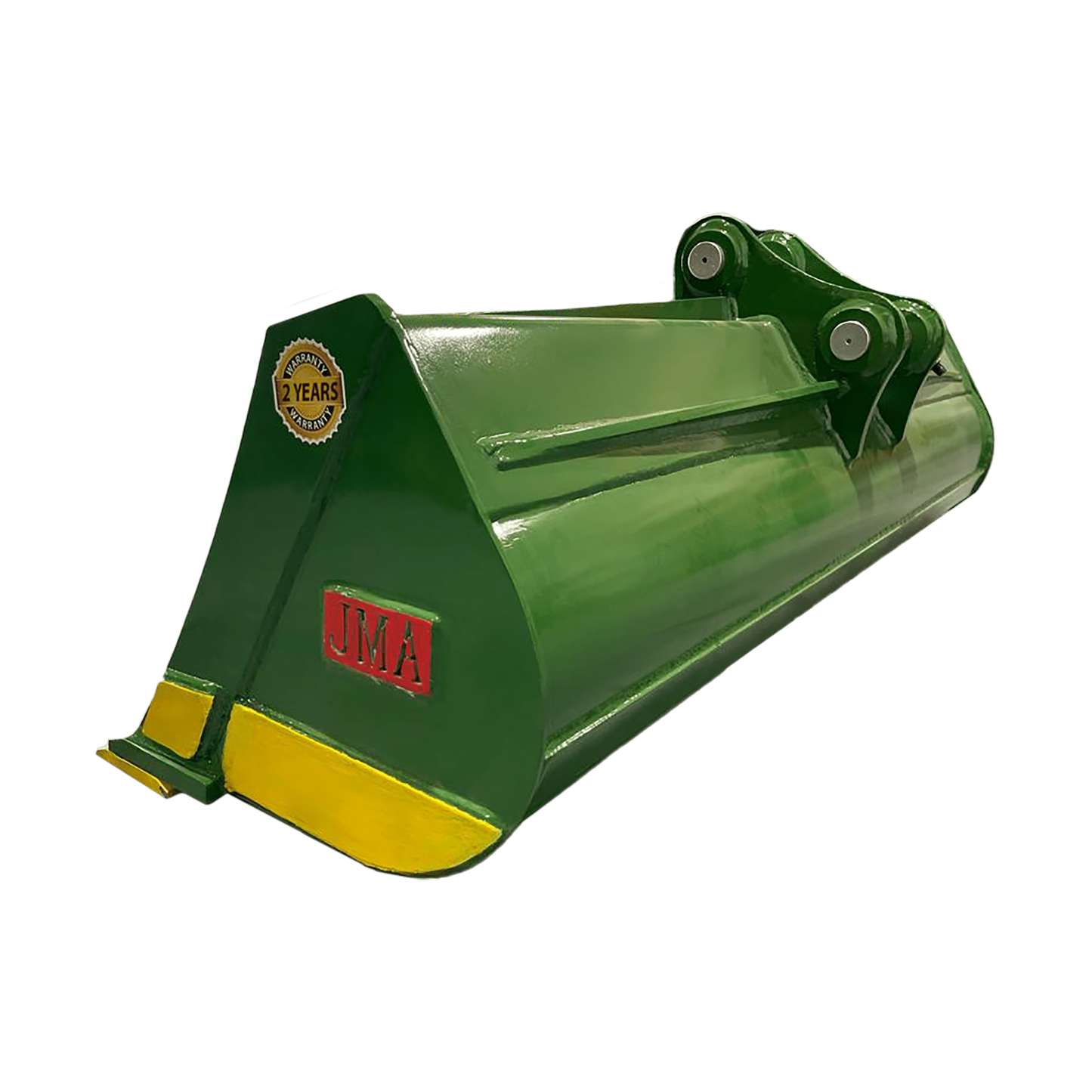

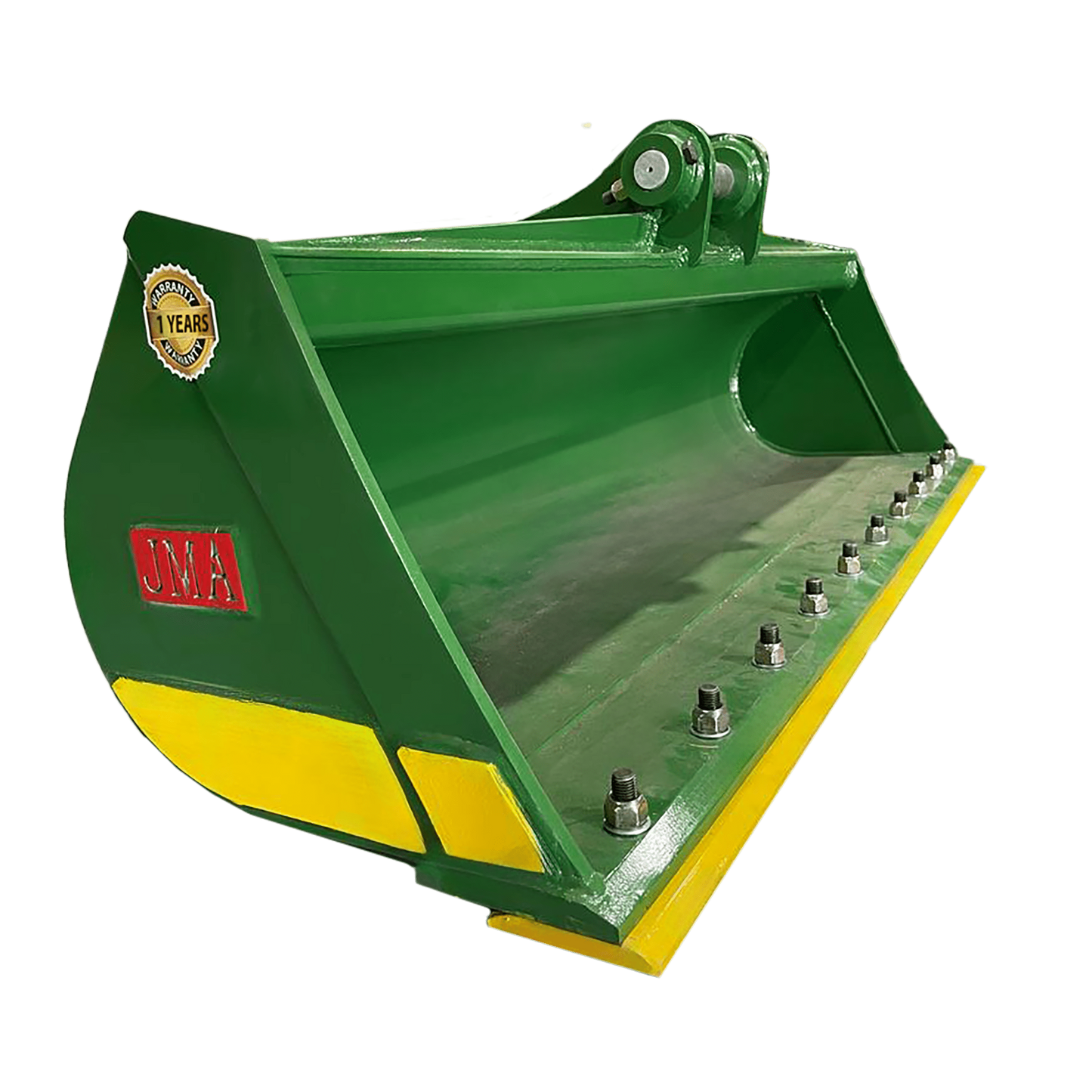

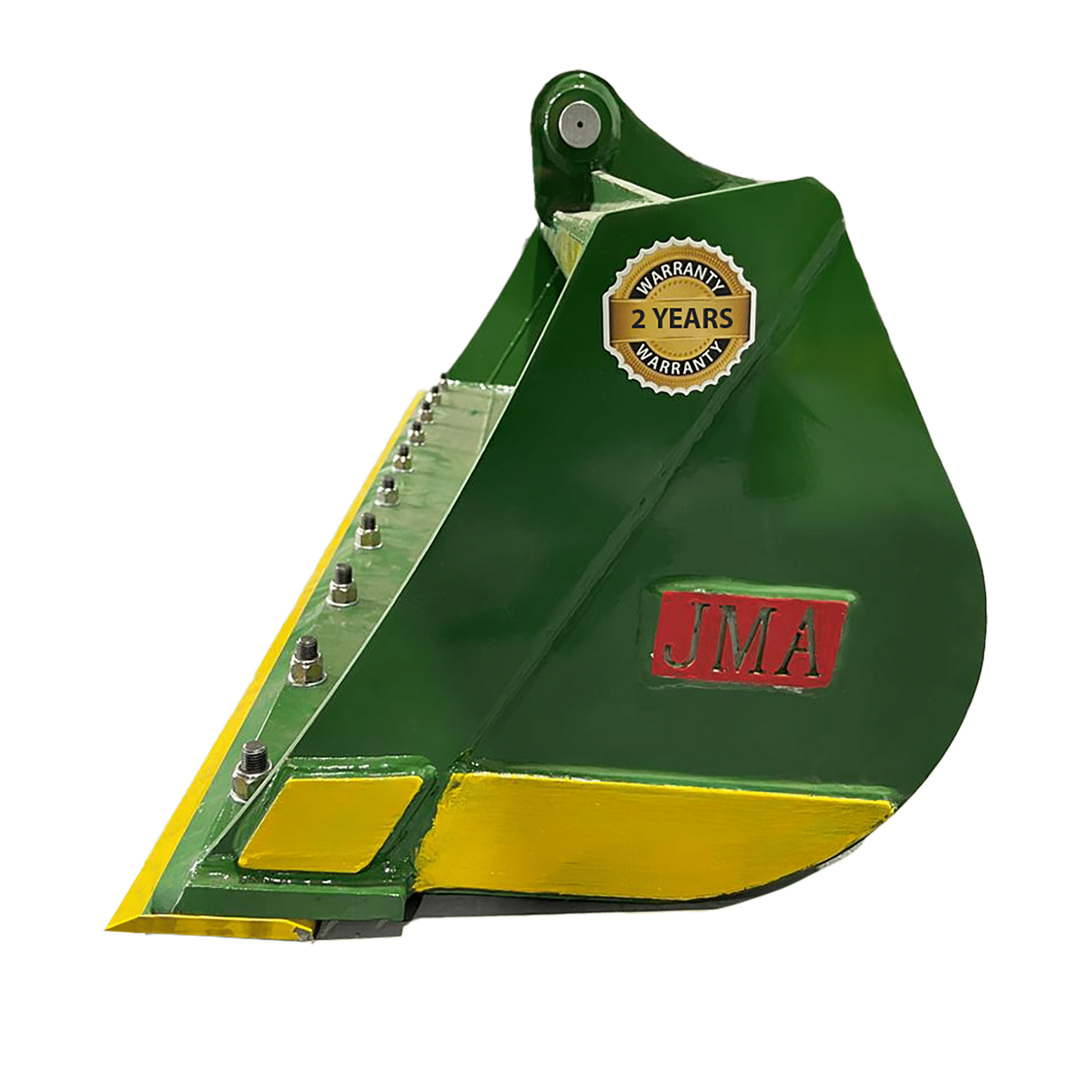

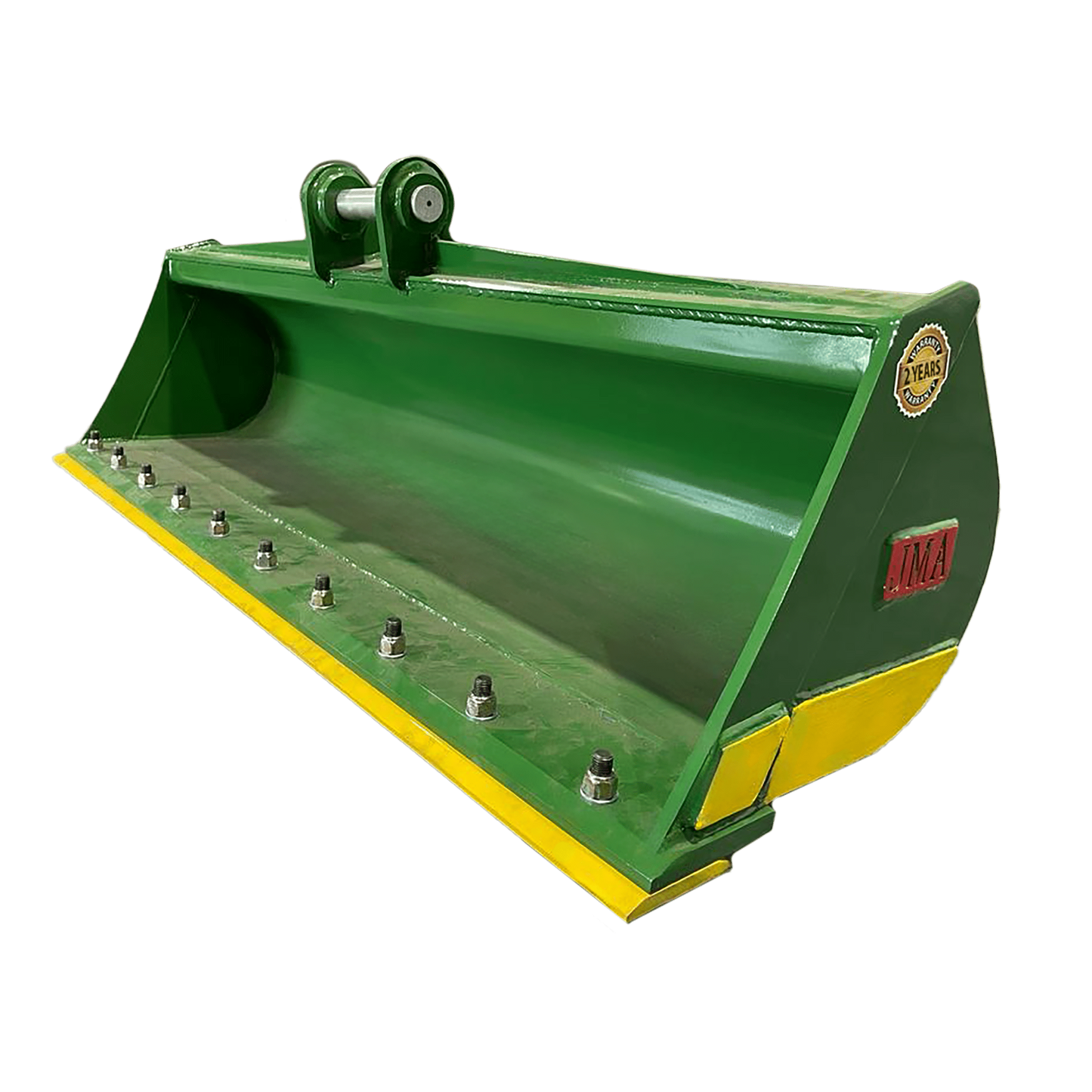

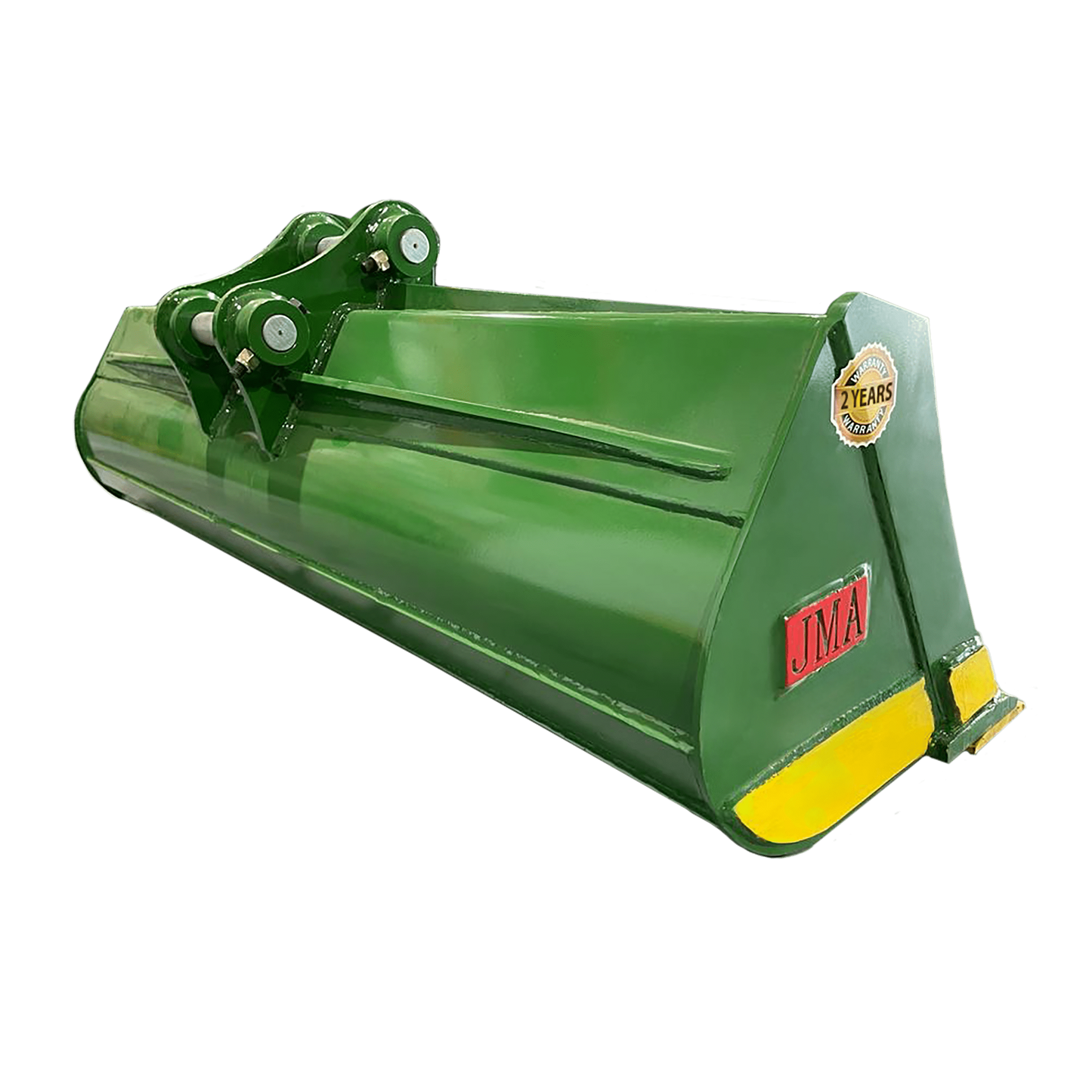

JMA Attachments Ditching Bucket | Bucket Width 60" inches | Pin Size 50mm Pins | For 7 – 10 Tons Excavators
Description
Unleash the full potential of your Excavator with the game-changing 60" Ditching Bucket for 7 - 10 Tons Excavators. 50mm Pins. This innovative ditching bucket is set to revolutionize your approach to drainage and grading projects.
Key Features
- Capacity Maximized: 0.42 m³ volume allows you to move more material with each pass, significantly reducing project timelines.
- Built for the Long Haul: AR400 Steel construction ensures years of reliable service in the most demanding environments.
- Cutting-Edge Performance: Reversible Bolt-On Cutting Edge delivers clean, efficient cuts while minimizing wear and tear.
- Perfect Fit Technology: Engineered specifically for Excavators in the 14,000 - 20,000 lbs category, ensuring seamless integration and enhanced capabilities.
- Optimized Profile: Designed for superior material release, preventing clogging and maintaining productivity in various soil conditions.
Detailed Specifications
| Attribute | Value |
|---|---|
| Carrier Weight Class (tn) | 7 - 10 Tons |
| Bucket Width (mm) | 1,524 mm |
| Bucket Width (in) | 60" |
| Inner Bucket Height (mm) | 662 mm |
| Bucket Side Wall Thickness (mm) | 16 mm |
| Bucket Depth (mm) | 416 mm |
| Capacity (yd³) | 0.55 yd³ |
| Capacity (m³) | 0.42 m³ |
| Edge Style | Reversible Bolt-On Cutting Edge |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Front Pin Length (mm) | 346 mm |
| Rear Pin Length (mm) | 346 mm |
| Front Pin Diameter (mm) | 50 mm |
| Rear Pin Diameter (mm) | 50 mm |
| Front Ear to Ear Distance (mm) | 200 mm |
| Rear Ear to Ear Distance (mm) | 200 mm |
| Center to Center Distance (mm) | 310 mm |
| Carrier Weight Class (lbs) | 14,000 - 20,000 lbs |
| Drain Holes (ct) | 6 |
| Features | 3x Reinforced Side Plates |
| Product Weight (lbs) | 661.39 lb |
| Product Weight (kg) | 300 kg |
Fits To
|
Brand |
Model |
|---|---|
| Airman | AX90 |
| Case | CX80C MSR, CX90D MSR, CX85D SR, CX75 LR, CX75CSR, CX75MSR, CX75SR, CX80SR, CX80B, CX80C, CX90D, CX75, CX80 |
| Caterpillar | 308E2 Z2.1, 309 CR VAB, 307SSR-V2, 308CR VAB, 308E2 CR, 308E2 SR, 308B CR, 308C CR, 308D CR, 308E CR, 308E SR, 307 CR, 307SSR, 308 CR, 308BSR, 308C R, 308CSR, 308DRR, 308DSR, 309 CR, 307.5, 307B2, 308.5, 308SR, 307B, 307C, 307D, 307E, 308D, 308E, 307, 308, 309 |
| Daewoo | S130W |
| Hanix | H75C |
| Hitachi | ZX85USB LCN-3, ZX85USB LC-3, ZX85US LC-3, ZX70 LCN-3, ZX75US-3LC, ZX75USK-5B, ZX85USB-5A, ZX85USB-5N, ZX70 LC-2, ZX70 LC-3, ZX75UR-5B, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75USL-3, ZX80 LC-2, ZX80LCK-3, ZX80SB LC, ZX85US-5A, ZX85USB-3, ZX85USB-5, ZX85USB-6, ZX85USB-7, EX75US-5, ZX75UR-3, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-5, ZX75US-7, ZX75USBL, ZX80 LCK, ZX85US-3, ZX85US-5, ZX85US-6, ZX95US-7, ZX70 LC, ZX70-5A, ZX70-5G, ZX80 LC, EX60-5, EX75US, ZX70-3, ZX70BL, ZX75UR, ZX75US, ZX80SB, ZX85US, EX80U, UH043, WH04D, EX90, ZX70, ZX75, ZX80, ZX90, ZX85USB |
| Ihi | 80NX-3, IS50G, IS55J, IS55N, 65NX, 80NX, IS50, IS55, IS65 |
| John Deere | 75C, 75D, 75G, 80C, 85D, 85G, 70, 75, 80, 80G, 50P, 60P, 75P, 85P |
| Kato | HD140SE, 180G |
| Kobelco | SK070 SR, SK075 SR, SK75SR-3, SK85SR-3, SK070SR, SK60MK5, SK80MSR, SK60-2, SK60SR, SK70SR, SK75UR, SK95UR, K9033, SK80 |
| Komatsu | PC88MR-11E0, PC60-7C BL, PC75UU-3AC, PC78US-6E0, PC78US-6N0, PC78UU-6E0, PC60 LC-5, PC70FR-2B, PC75 LC-6, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3C, PC75UU-3E, PC78MRX-1, PC78US LC, PC78US-10, PC78US-11, PC78US-6E, PC78US-6Y, PC78UU-10, PC78UU-6E, PC78UUT-6, PC80 LC-3, PC88MR-10, PC88MR-11, PC60-6BL, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60SC-7, PC60SS-1, PC60UU-5, PC70FR-1, PC75R HD, PC75R-2K, PC75UR-2, PC75UR-3, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU-1, PC75UU-2, PC75UU-3, PC76UU-2, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78US-2, PC78US-5, PC78US-6, PC78US-7, PC78US-8, PC78UU-6, PC78UU-8, PC80MR-3, PC80MR-5, PC88MR-2, PC88MR-6, PC88MR-8, PC60 LC, PC60-6B, PC60-6S, PC60-7A, PC60-7B, PC60-7C, PC60-7E, PC60-7S, PC60B-7, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60L-6, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC70-7E, PC75 HD, PC75R-1, PC75R-2, PC75R-8, PC75U-2, PC90R-2, PC95R-1, PC95R-2, PW110RT, PC110R, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-7, PC60-8, PC60-9, PC60BL, PC60SS, PC70-1, PC70-4, PC70-6, PC70-7, PC70-8, PC70FR, PC75-1, PC75-2, PC75-3, PC75U1, PC75UL, PC75UR, PC75US, PC75UU, PC78LC, PC78MR, PC78US, PC78UU, PC80-1, PC80-3, PC80-5, PC80MR, PC88MR, PC90-1, PC90-5, PC90-6, PC90-7, PC95-1, PC95-2, PC95-5, PC95-6, PC95RT, PC60B, PC60L, PC60S, PC60U, PC75R, PC75U, PC78R, PC78U, PC95R, PC60, PC70, PC71, PC75, PC78, PC80, PC88, PC90, PC91, PC95 |
| Linkbelt | 75 SPIN ACE, 80 SPIN ACE, 75 X3, 80 X3 |
| Lonking | CDM6065 |
| Sany | SY65 C, SY75C, SY85C, SY65, SY70, SY75, SY80, SY85, SY75C PRO, SY55C-9, SY60C-9, SY75C-9 |
| Sumitomo | SH75XU-3B, rSH60B65, SH80X-3, SH80X-6, SH60-2, SH80-3, SH60B, SH75U, S160 |
| Takeuchi | TB180FR, TB175W, TB070, TB175, TB285, TB68S |
| Volvo | EC80D PRO, EC70VV, EC70V, EC75D, EC80D, EC70 |
| XCMG | XE80E |
| Yanmar | VIO100, SV100, VIO70, VIO75, VIO80 |
