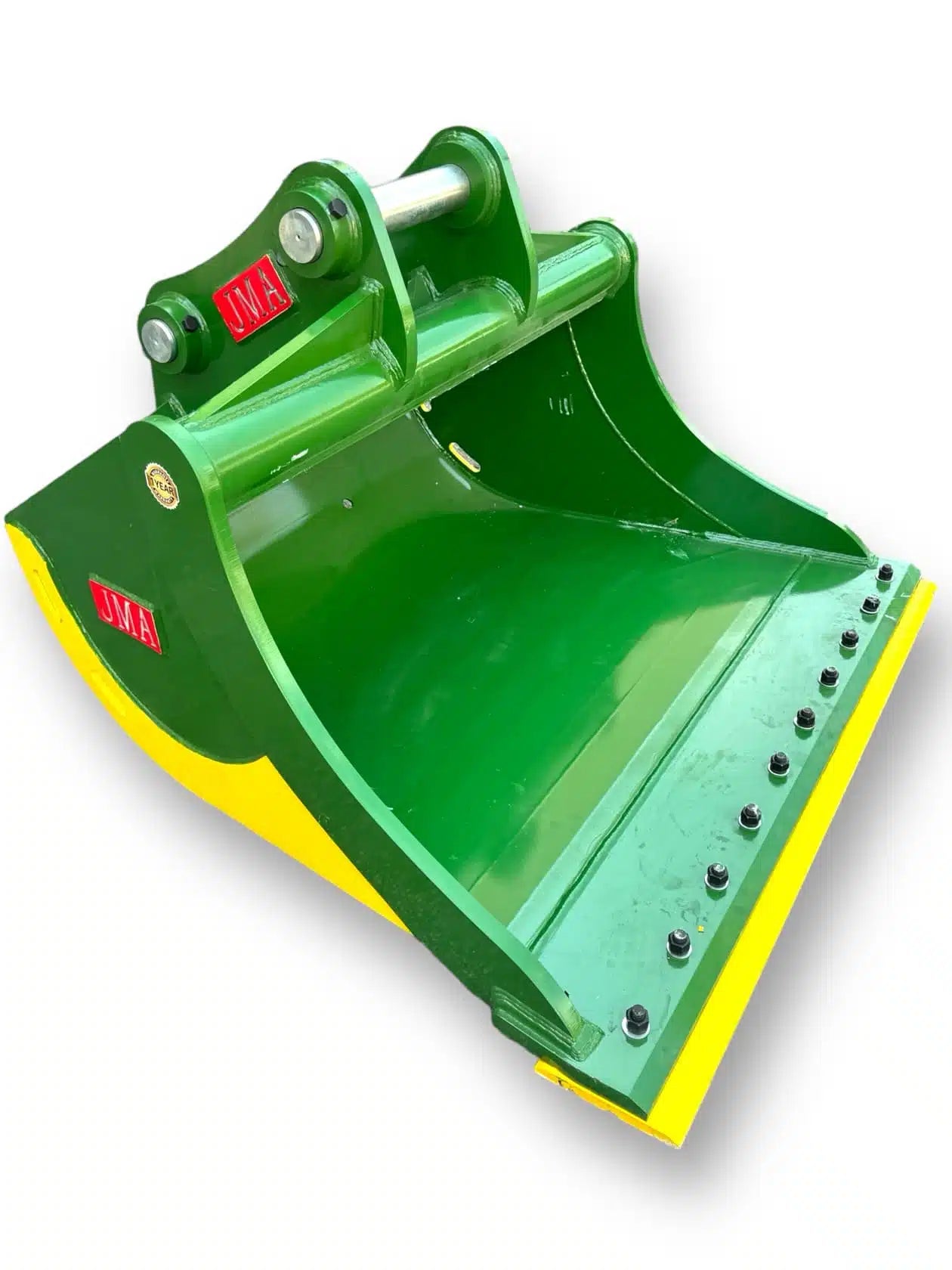

JMA Attachments Ditching Bucket | Bucket Width 60" inches | Pin Size 70mm Pins | For 15 – 18 Tons Excavators
JMA Attachments Ditching Bucket | Bucket Width 60" inches | Pin Size 70mm Pins | For 15 – 18 Tons Excavators
Regular price
$5,496.70
Regular price
Sale price
$5,496.70
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
JMA Attachments Ditching Bucket | Bucket Width 60" inches | Pin Size 65mm Pins | For 10 – 15 Tons Excavators
Description
Discover the game-changing 60" Ditching Bucket for 15 - 18 Tons Excavators. 70mm Pins – where innovation meets precision earthwork. This 0.80 m³ m³ marvel is set to redefine your expectations of what a ditching bucket can do.
Key Features
- Capacity Redefined: 0.80 m³ volume ensures you move more material with less effort, significantly improving job site efficiency.
- Built to Last: Premium AR400 Steel construction guarantees unmatched durability in any condition.
- Cutting System Excellence: Reversible Bolt-On Cutting Edge provides clean, efficient cuts while minimizing maintenance needs.
- Excavator Synergy: Engineered to work in perfect harmony with 30,000 - 36,000 lbs class machines, maximizing capabilities and ROI.
- Flow Optimization: Designed to prevent material buildup and ensure smooth operation in various soil types.
Detailed Specifications
| Attribute | Value |
|---|---|
| Carrier Weight Class (tn) | 15 - 18 Tons |
| Bucket Width (mm) | 1,524 mm |
| Bucket Width (in) | 60" |
| Inner Bucket Height (mm) | 856 mm |
| Bucket Side Wall Thickness (mm) | 30 mm |
| Bucket Depth (mm) | 562 mm |
| Capacity (yd³) | 1.05 yd³ |
| Capacity (m³) | 0.80 m³ |
| Edge Style | Reversible Bolt-On Cutting Edge |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Front Pin Length (mm) | 530 mm |
| Rear Pin Length (mm) | 530 mm |
| Front Pin Diameter (mm) | 70 mm |
| Rear Pin Diameter (mm) | 70 mm |
| Front Ear to Ear Distance (mm) | 283 mm |
| Rear Ear to Ear Distance (mm) | 283 mm |
| Center to Center Distance (mm) | 464 mm |
| Carrier Weight Class (lbs) | 30,000 - 36,000 lbs |
| Drain Holes (ct) | 6 |
| Features | 3x Reinforced Side Plates |
| Product Weight (lbs) | 1,514.57 lb |
| Product Weight (kg) | 687 kg |
Fits To
|
Brand |
Model |
|---|---|
| Caterpillar | 315D2 GC, 315F LCR, 315 GC, 315D2L, 317BLN, 318BL2, 318BLN, 318CLN, 318D2L, 318DL2, 318EL2, 318FL2, 315BL, 315CL, 315DL, 315LN, 316EL, 316FL, 316GC, 317BL, 317GC, 318CN, M313D, 315B, 315C, 315D, 315F, 315L, 316E, 317B, 317N, 318B, 318E, 215, 315, 317 |
| Hyundai | R160LC-3, R160LC-7, R160LC-9, R180LC-3, R180LC-7, R180LC-9, R210LC-3, R170W-3, R200W-2, R200W-3, R160LC, R180LC, R200LC, R220LC |
| Kato | 700SEV2, HD700SE, HD700V2, HD700, 900 |
| Kobelco | SK170LC-8 |
| Komatsu | PC160 LC-7A E0, PC150 HD LC-5, PC150N HD-5K, PC158US LC-2, PC160 LC-7E0, PC160 LC-7KA, PC180 LC-7E0, PC180N LC-5K, PC180N LC-6K, PC180N LC-7K, PC150 HD-5K, PC150 LC-3W, PC150 LC-6K, PC150 LC-8K, PC150 LGP-6, PC150N HD-5, PC160 LC-6K, PC160 LC-7E, PC160 LC-7K, PC160 LC-7L, PC160LC-7EO, PC170 LC-10, PC170 LC-11, PC180 LC-5K, PC180 LC-6K, PC180 LC-7K, PC180L LC-3, PC180N LC-3, PC180N LC-5, PC180N LC-6, PC180N LC-7, PC150 HD-3, PC150 HD-5, PC150 LC-1, PC150 LC-3, PC150 LC-5, PC150 LC-6, PC150 LC-7, PC158US LC, PC160 LC-6, PC160 LC-7, PC160 LC-8, PC180 LC-3, PC180 LC-5, PC180 LC-6, PC180 LC-7, PC150N HD, PC158US-2, PC160N LC, PC180N LC, PC150 HD, PC150 LC, PC150 SE, PC150-3W, PC150-5K, PC150-6K, PC150C-3, PC150C-6, PC150L-6, PC158 LC, PC160 LC, PC160-6K, PC160-7K, PC168 LC, PC170 LC, PC180 LC, PC180-3K, PC180-5K, PC180-6K, PC150-1, PC150-3, PC150-5, PC150-6, PC160-6, PC160-7, PC160-8, PC180-3, PC180-5, PC180-6, PC180-7, PC150C, PC150L, PC150, PC158, PC160, PC180, PW150 |
| Liebherr | 922 |
| Samsung | SE130LC |
| Sumitomo | LS2800FJ, S2800FJ |
| Volvo | EC160B LC, EC160C LC, EC150 LC, EC160 LC, SE170W-3, EC160CL, EC160DL, EC160EL, EC170DL, EC180CL, EC180DL, EC180EL, MX175WS, EC150B, EC150C, EC160B, EC160C, EC160N, EC160P, EC180B, EC180C, EC180D, EC150, EC160, EW170 |
