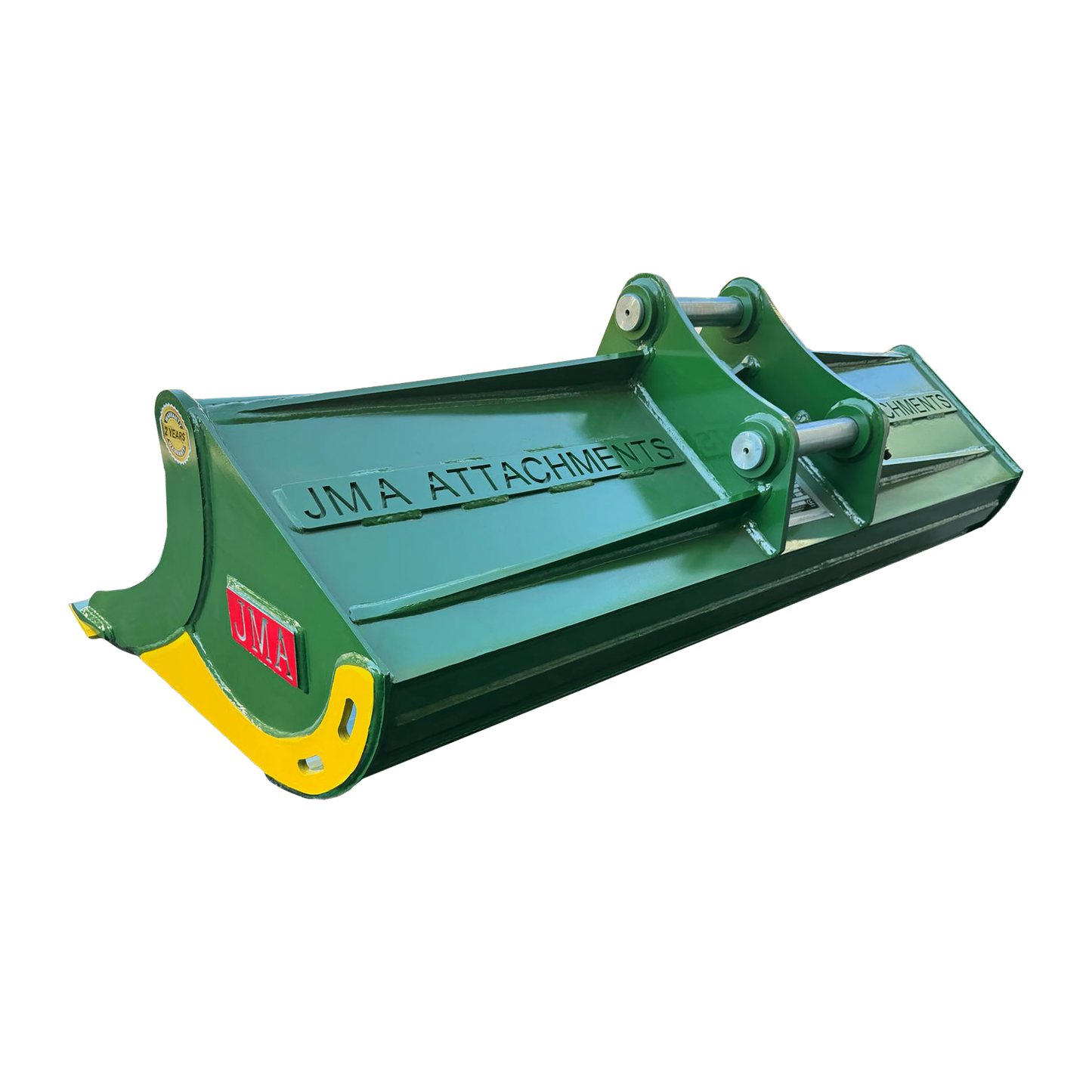

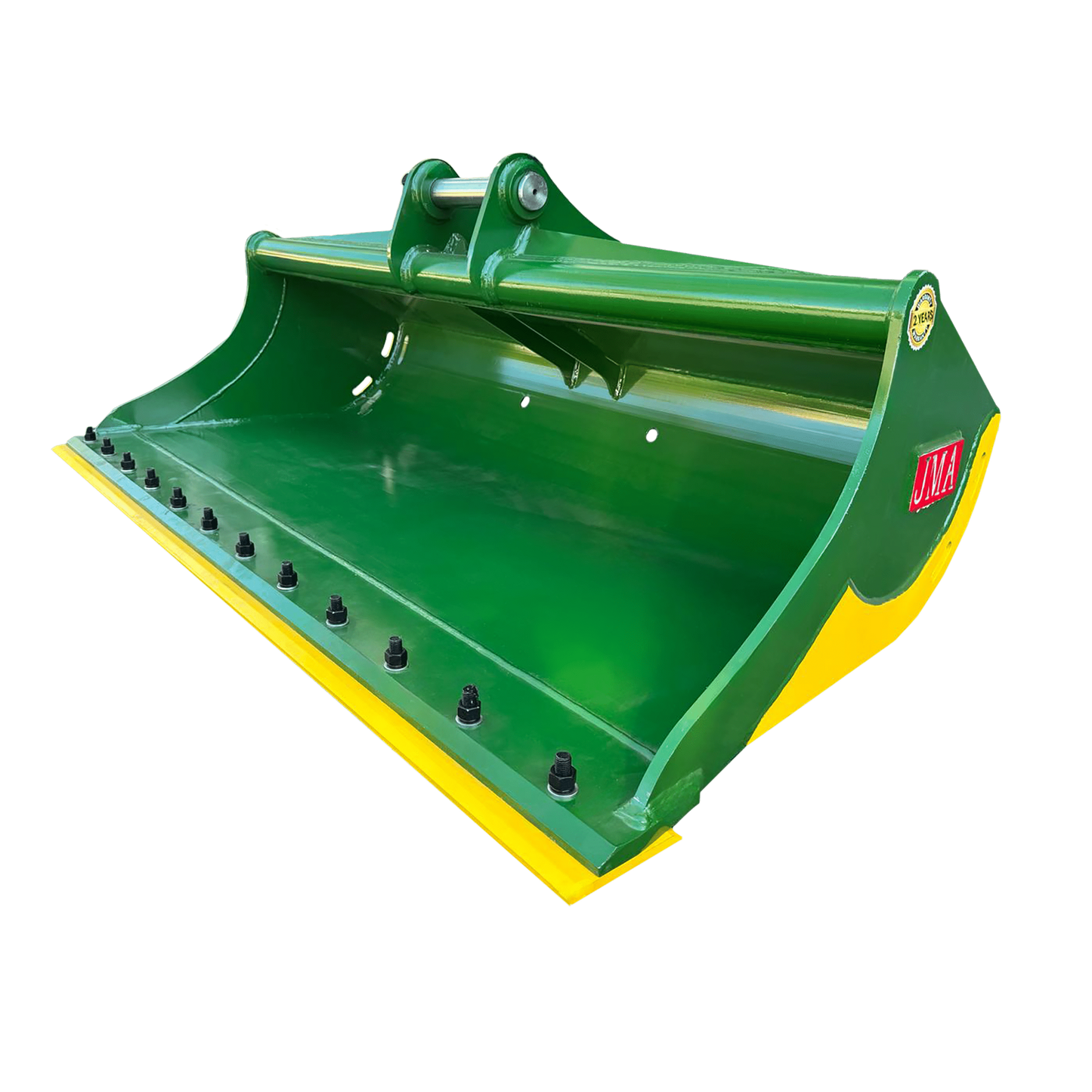

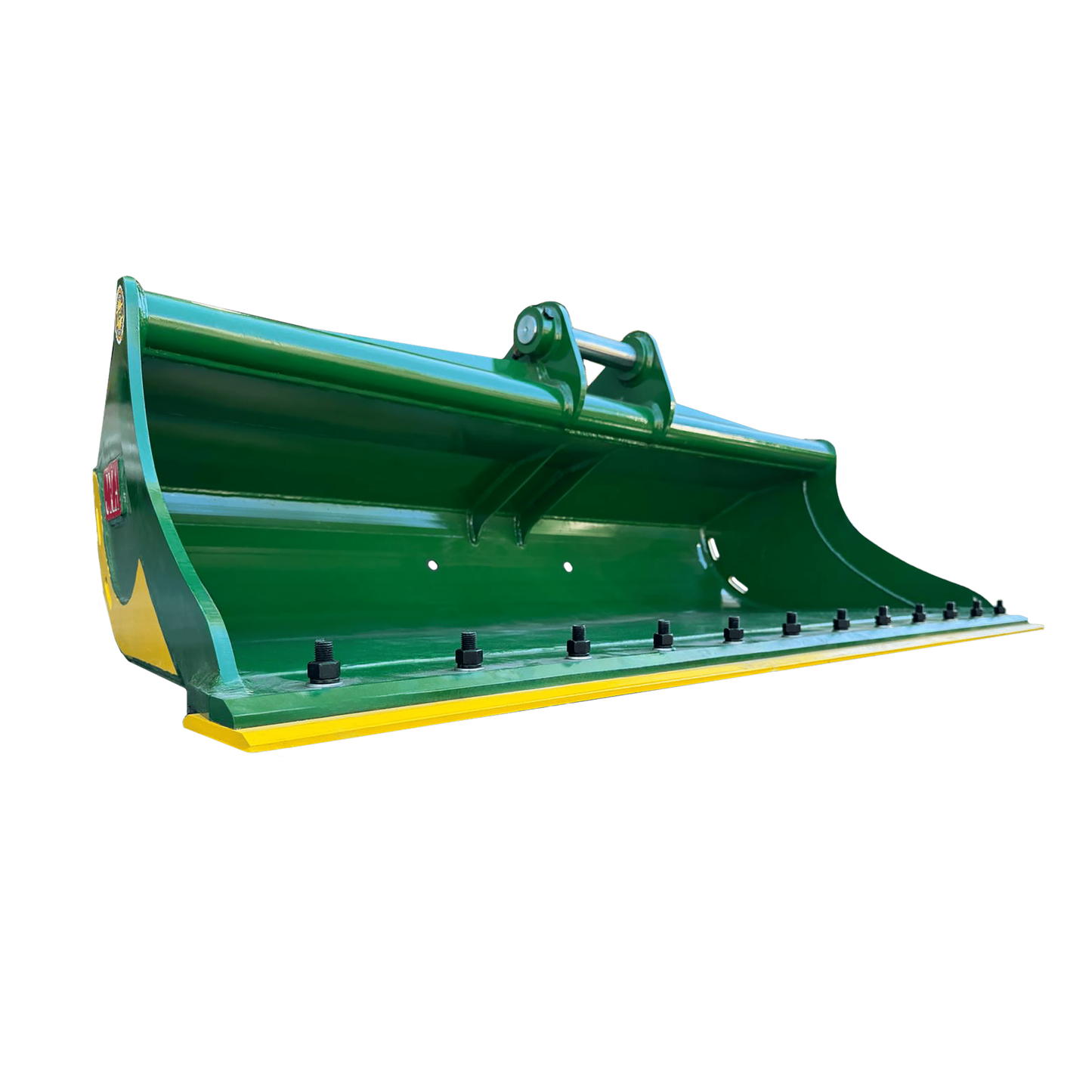

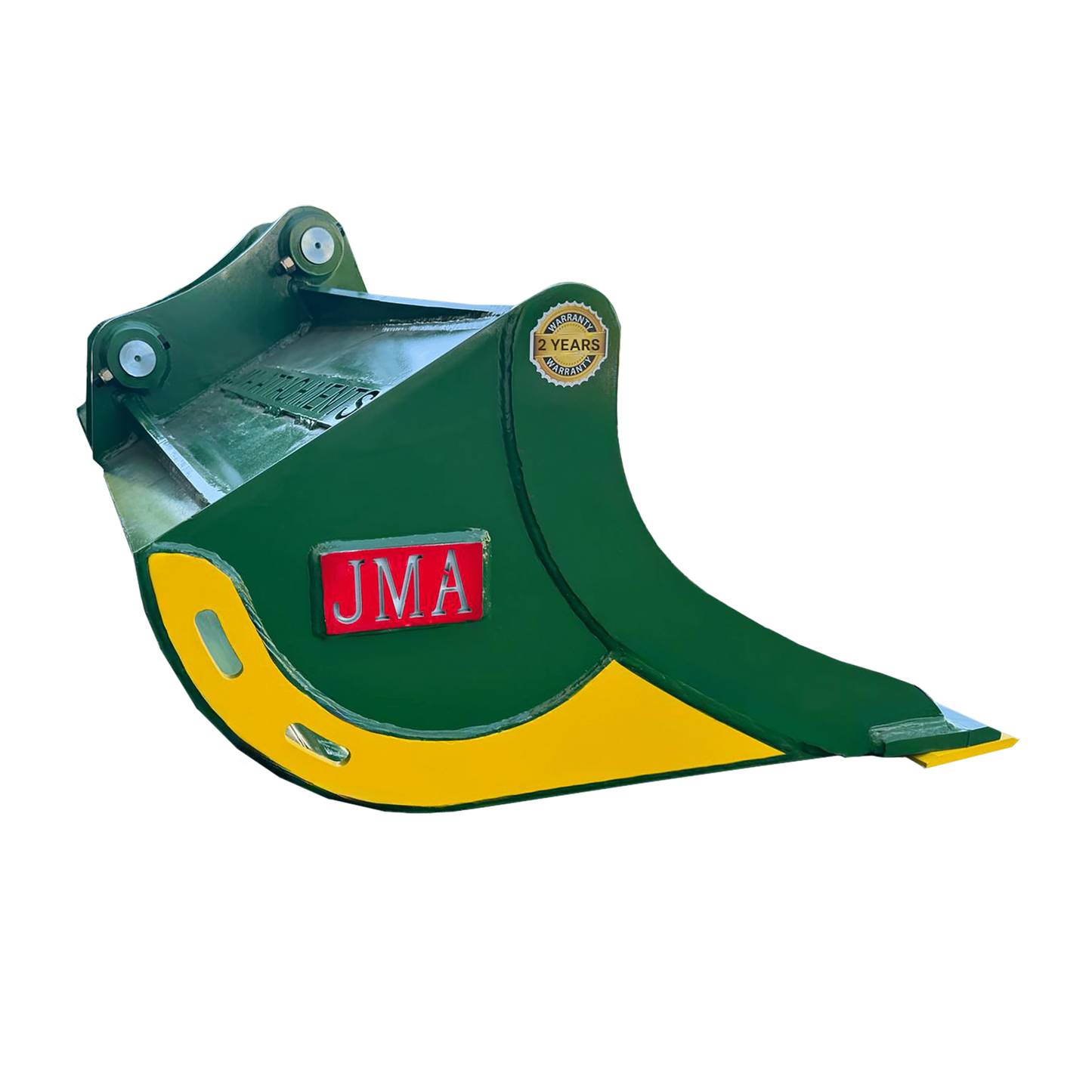

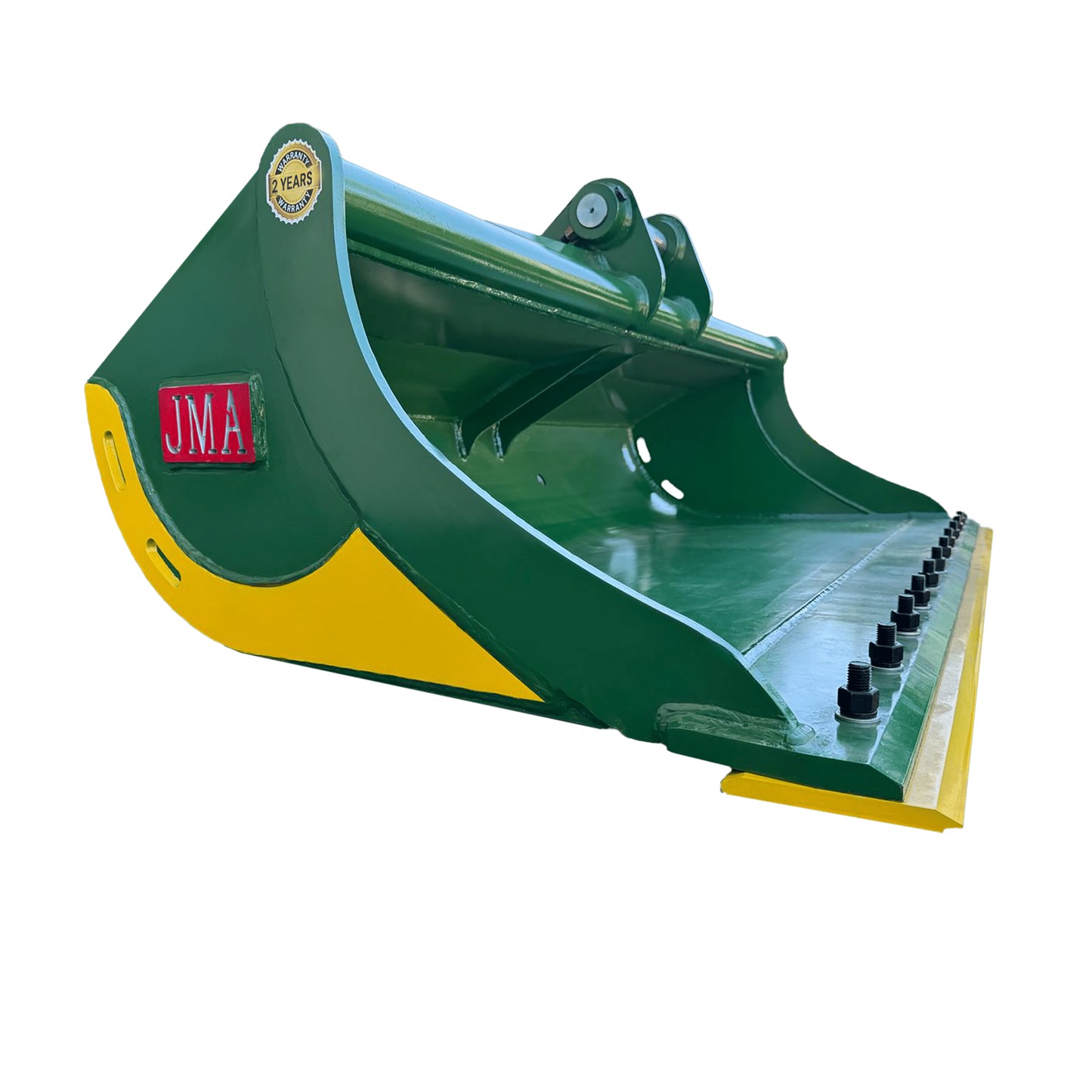

JMA Attachments Ditching Bucket | Bucket Width 72" inches | Pin Size 50mm Pins | For 7 – 10 Tons Excavators
JMA Attachments Ditching Bucket | Bucket Width 72" inches | Pin Size 50mm Pins | For 7 – 10 Tons Excavators
Regular price
$4,066.70
Regular price
Sale price
$4,066.70
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
JMA Attachments Ditching Bucket | Bucket Width 72" inches | Pin Size 50mm Pins | For 7 – 10 Tons Excavators
Description
Introducing the 72" Ditching Bucket for 7 - 10 Tons Excavators. 50mm Pins – where power meets precision in drainage and grading projects. This 0.50 m³ powerhouse is set to transform the way you approach ditch excavation and site preparation.
Key Features
- Capacity Champion: 0.50 m³ volume ensures rapid and efficient material handling, saving you time and effort on every project.
- Durability Defined: Forged from top-grade AR400 Steel for years of reliable service in the toughest conditions.
- Edge Technology: Equipped with a Reversible Bolt-On Cutting Edge for superior cutting performance and reduced maintenance.
- Excavator Enhanced: Engineered to work in perfect harmony with 14,000 - 20,000 lbs class excavators, maximizing capabilities and your investment.
- Flow Mastery: Optimized design ensures smooth material handling and release, boosting productivity in various soil types.
Detailed Specifications
| Attribute | Value |
|---|---|
| Carrier Weight Class (tn) | 7 - 10 Tons |
| Bucket Width (mm) | 1,828.8 mm |
| Bucket Width (in) | 72" |
| Inner Bucket Height (mm) | 662 mm |
| Bucket Side Wall Thickness (mm) | 16 mm |
| Bucket Depth (mm) | 416 mm |
| Capacity (yd³) | 0.65 yd³ |
| Capacity (m³) | 0.50 m³ |
| Edge Style | Reversible Bolt-On Cutting Edge |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Front Pin Length (mm) | 346 mm |
| Rear Pin Length (mm) | 346 mm |
| Front Pin Diameter (mm) | 50 mm |
| Rear Pin Diameter (mm) | 50 mm |
| Front Ear to Ear Distance (mm) | 200 mm |
| Rear Ear to Ear Distance (mm) | 200 mm |
| Center to Center Distance (mm) | 310 mm |
| Carrier Weight Class (lbs) | 14,000 - 20,000 lbs |
| Drain Holes (ct) | 6 |
| Features | 3x Reinforced Side Plates |
| Product Weight (lbs) | 782.64 lb |
| Product Weight (kg) | 355 kg |
Fits To
|
Brand |
Model |
|---|---|
| Airman | AX90 |
| Case | CX80C MSR, CX90D MSR, CX85D SR, CX75 LR, CX75CSR, CX75MSR, CX75SR, CX80SR, CX80B, CX80C, CX90D, CX75, CX80 |
| Caterpillar | 308E2 Z2.1, 309 CR VAB, 307SSR-V2, 308CR VAB, 308E2 CR, 308E2 SR, 308B CR, 308C CR, 308D CR, 308E CR, 308E SR, 307 CR, 307SSR, 308 CR, 308BSR, 308C R, 308CSR, 308DRR, 308DSR, 309 CR, 307.5, 307B2, 308.5, 308SR, 307B, 307C, 307D, 307E, 308D, 308E, 307, 308, 309 |
| Daewoo | S130W |
| Hanix | H75C |
| Hitachi | ZX85USB LCN-3, ZX85USB LC-3, ZX85US LC-3, ZX70 LCN-3, ZX75US-3LC, ZX75USK-5B, ZX85USB-5A, ZX85USB-5N, ZX70 LC-2, ZX70 LC-3, ZX75UR-5B, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75USL-3, ZX80 LC-2, ZX80LCK-3, ZX80SB LC, ZX85US-5A, ZX85USB-3, ZX85USB-5, ZX85USB-6, ZX85USB-7, EX75US-5, ZX75UR-3, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-5, ZX75US-7, ZX75USBL, ZX80 LCK, ZX85US-3, ZX85US-5, ZX85US-6, ZX95US-7, ZX70 LC, ZX70-5A, ZX70-5G, ZX80 LC, EX60-5, EX75US, ZX70-3, ZX70BL, ZX75UR, ZX75US, ZX80SB, ZX85US, EX80U, UH043, WH04D, EX90, ZX70, ZX75, ZX80, ZX90, ZX85USB |
| Ihi | 80NX-3, IS50G, IS55J, IS55N, 65NX, 80NX, IS50, IS55, IS65 |
| John Deere | 75C, 75D, 75G, 80C, 85D, 85G, 70, 75, 80, 80G, 50P, 60P, 75P, 85P |
| Kato | HD140SE, 180G |
| Kobelco | SK070 SR, SK075 SR, SK75SR-3, SK85SR-3, SK070SR, SK60MK5, SK80MSR, SK60-2, SK60SR, SK70SR, SK75UR, SK95UR, K9033, SK80 |
| Komatsu | PC88MR-11E0, PC60-7C BL, PC75UU-3AC, PC78US-6E0, PC78US-6N0, PC78UU-6E0, PC60 LC-5, PC70FR-2B, PC75 LC-6, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3C, PC75UU-3E, PC78MRX-1, PC78US LC, PC78US-10, PC78US-11, PC78US-6E, PC78US-6Y, PC78UU-10, PC78UU-6E, PC78UUT-6, PC80 LC-3, PC88MR-10, PC88MR-11, PC60-6BL, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60SC-7, PC60SS-1, PC60UU-5, PC70FR-1, PC75R HD, PC75R-2K, PC75UR-2, PC75UR-3, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU-1, PC75UU-2, PC75UU-3, PC76UU-2, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78US-2, PC78US-5, PC78US-6, PC78US-7, PC78US-8, PC78UU-6, PC78UU-8, PC80MR-3, PC80MR-5, PC88MR-2, PC88MR-6, PC88MR-8, PC60 LC, PC60-6B, PC60-6S, PC60-7A, PC60-7B, PC60-7C, PC60-7E, PC60-7S, PC60B-7, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60L-6, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC70-7E, PC75 HD, PC75R-1, PC75R-2, PC75R-8, PC75U-2, PC90R-2, PC95R-1, PC95R-2, PW110RT, PC110R, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-7, PC60-8, PC60-9, PC60BL, PC60SS, PC70-1, PC70-4, PC70-6, PC70-7, PC70-8, PC70FR, PC75-1, PC75-2, PC75-3, PC75U1, PC75UL, PC75UR, PC75US, PC75UU, PC78LC, PC78MR, PC78US, PC78UU, PC80-1, PC80-3, PC80-5, PC80MR, PC88MR, PC90-1, PC90-5, PC90-6, PC90-7, PC95-1, PC95-2, PC95-5, PC95-6, PC95RT, PC60B, PC60L, PC60S, PC60U, PC75R, PC75U, PC78R, PC78U, PC95R, PC60, PC70, PC71, PC75, PC78, PC80, PC88, PC90, PC91, PC95 |
| Linkbelt | 75 SPIN ACE, 80 SPIN ACE, 75 X3, 80 X3 |
| Lonking | CDM6065 |
| Sany | SY65 C, SY75C, SY85C, SY65, SY70, SY75, SY80, SY85, SY75C PRO, SY55C-9, SY60C-9, SY75C-9 |
| Sumitomo | SH75XU-3B, rSH60B65, SH80X-3, SH80X-6, SH60-2, SH80-3, SH60B, SH75U, S160 |
| Takeuchi | TB180FR, TB175W, TB070, TB175, TB285, TB68S |
| Volvo | EC80D PRO, EC70VV, EC70V, EC75D, EC80D, EC70 |
| XCMG | XE80E |
| Yanmar | VIO100, SV100, VIO70, VIO75, VIO80 |
