Product Description

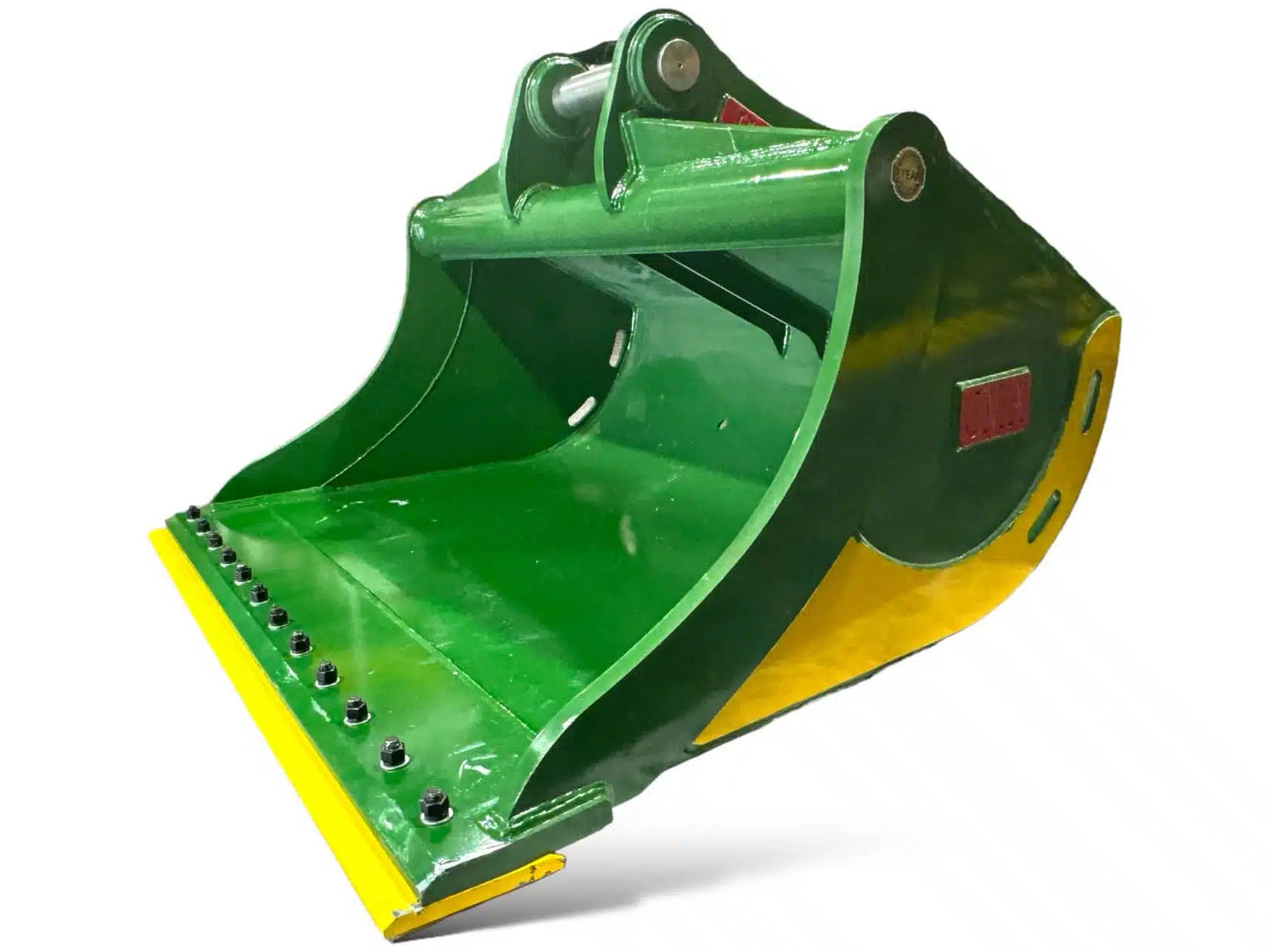

JMA Attachments Ditching Bucket | Bucket Width 72" inches | Pin Size 65mm Pins | For 10 – 15 Tons Excavators
Description
Transform your Excavator into a ditching powerhouse with the 72" Ditching Bucket for 10 - 15 Tons Excavators. 65mm Pins. This 0.95 m³ m³ marvel brings your precision earthwork dreams to life, combining robust design with cutting-edge efficiency.
Key Features
- Capacity Maximized: Handle more material with each pass thanks to the 0.95 m³ volume, boosting your overall productivity.
- Built for Extremes: Premium AR450 Steel construction ensures this bucket stands up to the toughest job sites without breaking a sweat.
- Cutting-Edge Performance: Reversible Bolt-On Cutting Edge provides optimal cutting efficiency and extended service life.
- Machine-Specific Design: Crafted to integrate seamlessly with 22,000 - 33,000 lbs class Excavators, enhancing capabilities and ROI.
- Smooth Operator: Engineered to prevent material buildup and ensure consistent performance in various soil conditions.
Detailed Specifications
| Attribute | Value |
|---|---|
| Carrier Weight Class (tn) | 10 - 15 Tons |
| Bucket Width (mm) | 1,828.8 mm |
| Bucket Width (in) | 72" |
| Inner Bucket Height (mm) | 856 mm |
| Bucket Side Wall Thickness (mm) | 20 mm |
| Bucket Depth (mm) | 562 mm |
| Capacity (yd³) | 1.24 yd³ |
| Capacity (m³) | 0.95 m³ |
| Edge Style | Reversible Bolt-On Cutting Edge |
| Material Type | AR450 Steel |
| Finish | Powder-Coated Green |
| Front Pin Length (mm) | 449 mm |
| Rear Pin Length (mm) | 449 mm |
| Front Pin Diameter (mm) | 65 mm |
| Rear Pin Diameter (mm) | 65 mm |
| Front Ear to Ear Distance (mm) | 260 mm |
| Rear Ear to Ear Distance (mm) | 260 mm |
| Center to Center Distance (mm) | 360 mm |
| Carrier Weight Class (lbs) | 20,000 - 30,000 lbs |
| Drain Holes (ct) | 6 |
| Features | 3x Reinforced Side Plates |
| Product Weight (lbs) | 1,688.74 lb |
| Product Weight (kg) | 766 kg |
Fits To
|
Brand |
Model |
|---|---|
| Case | CX145D MSR, CX130B LC, CX130C LR, CX130D LC, CX130 LC, CX135MS3, CX135MSR, CX145CSR, CX145DSR, CX135CR, CX135SR, CX130B, CX130C, CX130D, CX130E, CX130K, CX135C, CX140E, CX145C, CX130, CX135, CX90 |
| Caterpillar | 314CL LCR, 312B LGP, 312D2 GC, 313D2 GC, 314C LCR, 314D LCR, 314E LCR, 314G LCR, 311DLRR, 311F RR, 311FLRR, 313B CR, 313C CR, 313D CR, 313D2 L, 313FLGC, 314C CR, 314D CR, 314E CR, 314E SR, 314F CR, 311 V2, 311C U, 311DRR, 312 V2, 312BLN, 312CLR, 312D2L, 312F L, 312FGC, 313BSR, 313CSR, 313DSR, 313FGC, 311BL, 311FL, 312BL, 312CL, 312D2, 312DL, 312EL, 312GC, 313D2, 313DL, 313FL, 313GC, 314DL, 314EL, 315FL, E120B, 311B, 311C, 311D, 312B, 312C, 312D, 312E, 312F, 312L, 313B, 313C, 313D, 313E, 313F, 314C, 311, 312, 313, 314 |
| Daewoo | S130W-111, S130 LC V, S155 LC V, S140LC-V, S130-2 |
| Develon | DX140LCR-7K, DX140LC-7K, DX140LCR-7, DX165WR-7, DX100W-7, DX140W-5, DX140W-7, DX160W-7 |
| Doosan | DX160 LC-5 HT, DX140 LC-9C, DX140 LCR-3, DX140 LCR-5, DX140 LCR-7, DX150 LC-9C, DH150 LC-7, DX140 LC-3, DX140 LC-5, DX140 LC-7, DX160 LC-3, DX140LCR-7, DX130-9CN, DX140 LCA, DX140 LCR, DX140WACE, DX150W-9C, DX165WR-7, S140WV RW, DX160 LC, DH140W-7, DH150W-7, DX100W-7, DX140W-3, DX140W-5, DX140W-7, DX160W-3, DX160W-5, DX160W-7, DX165W-5, DX140LC, DX140WA, DX140WE, S140W V, DX140W, DX160W, S130WV, S160WV, DX130, DX140, DX120, DX140LC-7K |
| Hitachi | H15 Super Long, ZX200 H15 Supe, ZX130 LCN-5B, ZX135USOS-5B, ZX130 LC-5N, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-6, ZX130 LCN-7, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USOS-3, ZX135USOS-6, ZX135USTN-Z, EX100WD-3C, ZX120USR-5, ZX130 LC-3, ZX135US LC, ZX135US-5B, ZX135US-5N, ZX135US-6N, ZX135USB-3, ZX135USB-5, ZX135USK-3, ZX135USK-6, ZX135USR-5, EX100WD-1, EX100WD-2, EX100WD-3, EX125WD-5, EX130UR-1, EX130UR-5, EX135UR-1, EX135UR-5, ZX130 LCM, ZX130 LCN, ZX130K HG, ZX130K-5B, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-6, ZX135US-7, ZX135US-E, ZX110M-3, ZX120 IV, ZX120 LC, ZX120-5B, ZX130 LC, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6N, ZX130K-3, ZX130K-6, ZX135USK, ZX135USM, ZX140W-3, EX100-1, EX100-2, EX100-3, EX100-5, EX100WD, EX120-1, EX120-2, EX120-3, EX120-5, EX135UR, ZX110-2, ZX110-3, ZX110BL, ZX120-2, ZX120-3, ZX120-6, ZX120BL, ZX125US, ZX130-3, ZX130-5, ZX130-6, ZX130-7, ZX130BL, ZX130MT, ZX135UR, ZX135US, EX130K, EX130W, ZX110E, ZX110M, ZX120B, ZX120E, ZX130H, ZX130K, ZX130L, ZX135U, ZX140H, EX100, EX120, EX130, EX135, UH053, UH063, ZX110, ZX120, ZX130, ZX135, EX-5, ZX130-7H, ZX135US-7H |
| Hyundai | R125LCR-9A, HX145LCR, R130LC-3, R140LC-7, R140LC-9, R145LC-9, R130W-3, R140W-7, HX140L, R110-7, R130LC, HX125, HX140, HX145, R120W, 130W, HX130A LCR, HX140A L, HX145A LCR |
| JCB | 131LLC, 150X-1, JS130C, JS145W, JS130, JS131, JS135, JS145, JS160, JZ140, JZ141, 131X, 140X, 145X, 150X, 814S |
| John Deere | 120C LC, 120 LC, JD120, 120C, 120D, 130G, 135C, 135D, 135G, 490D, 110, 120, 135 P-Tier |
| Kato | HD513 MR-3, HD512 E, HD512-3, HD512, 450, 512, 572 |
| Kobelco | SK135SR 1E, SK115SRDZ, SK125SR-2, SK135SR-2, SK135SR-3, SK140LC-8, SK120-2, SK120-5, SK130-8, SK130LC, SK130UR, SK135SR, SK120v, K905, SK140SRLC, SK130LC-11 |
| Liebherr | R914 |
| Linkbelt | 135 X3 SPIN, 130 X4LC, 130 LX, 130 X2, 130 X3, 130 X4, 135 LX, 145 X3, 145 X4 |
| Liugong | 915D, 915E |
| Sany | SY135 IV, SY135-3A, SY130-1, SY135-2, SY155U, SY155W, SY115, SY125, SY135, SY155, SY125C PRO, SY140C-9S, SY135C-9, SY155H-9, SY115C, SY135C, SY155C, SY155H |
| Sumitomo | SH120- 2, SH120-A3, SH125X-3, SH145X-6, SH120-1, SH120-3, SH130-5, SH135X, SH120 |
| Takeuchi | TB2150R, TB1140, TB2150 |
| Terex | 145 |
| Volvo | MX135WS/LS, EC135B LC, EC140 LCM, EC140B LC, EC140E LM, SE130LC-3, EC140 LC, EC140CLM, EC140DLM, ECR145CL, ECR145EL, SE130W-3, EC140-7, EC140CL, EC140DL, EC140EL, ECR145C, EC120D, EC140B, EC140C, EC140D, EC140E, EC145E, ECR145, EC120, EC130, EC140, EW130, ECR145E, ECR145SE |
| XCMG | XE155UCR, XE155U, XR155U |
