Product Description

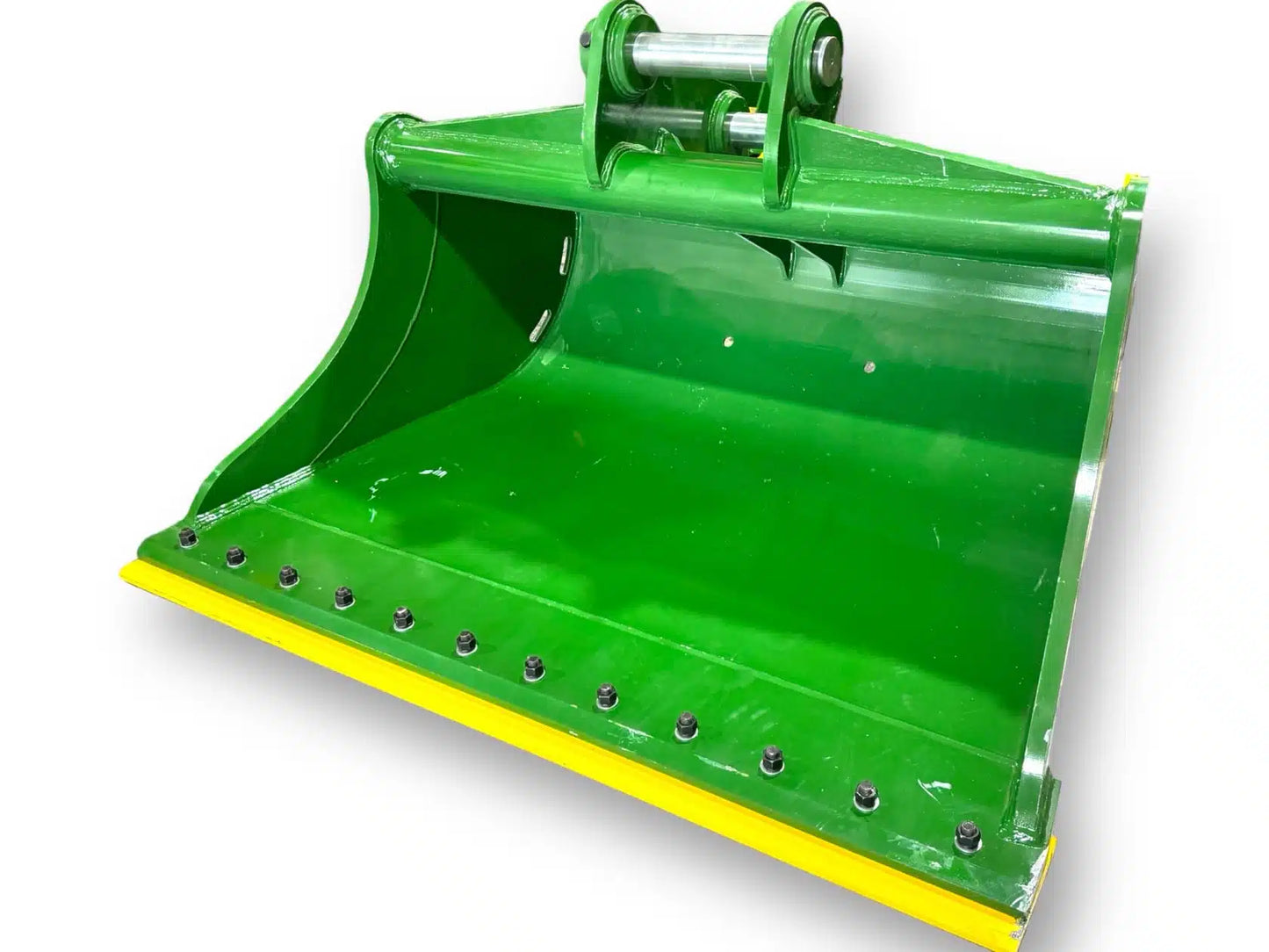

JMA Attachments Ditching Bucket | Bucket Width 72" inches | Pin Size 70mm Pins | For 15 – 18 Tons Excavators
Description
Unlock the full potential of your Excavator with the 72" Ditching Bucket for 15 - 18 Tons Excavators. 70mm Pins. This 0.95 m³ m³ ditching marvel is your key to mastering drainage and grading challenges with unparalleled efficiency.
Key Features
- Volume Virtuoso: 0.95 m³ capacity ensures you move more material in fewer passes, dramatically improving job site productivity.
- Durability Redefined: Constructed from high-grade AR450 Steel to withstand the most demanding work environments.
- Edge Excellence: Equipped with a Reversible Bolt-On Cutting Edge for exceptional cutting performance and reduced maintenance needs.
- Perfect Fit Engineering: Designed specifically for 30,000 - 36,000 lbs class Excavators, guaranteeing optimal performance and seamless operation.
- Flow Optimization: Crafted to maintain smooth material handling and release, even in challenging soil conditions.
Detailed Specifications
| Attribute | Value |
|---|---|
| Carrier Weight Class (tn) | 15 - 18 Tons |
| Bucket Width (mm) | 1,828.8 mm |
| Bucket Width (in) | 72" |
| Inner Bucket Height (mm) | 856 mm |
| Bucket Side Wall Thickness (mm) | 20 mm |
| Bucket Depth (mm) | 562 mm |
| Capacity (yd³) | 1.24 yd³ |
| Capacity (m³) | 0.95 m³ |
| Edge Style | Reversible Bolt-On Cutting Edge |
| Material Type | AR450 Steel |
| Finish | Powder-Coated Green |
| Front Pin Length (mm) | 530 mm |
| Rear Pin Length (mm) | 530 mm |
| Front Pin Diameter (mm) | 70 mm |
| Rear Pin Diameter (mm) | 70 mm |
| Front Ear to Ear Distance (mm) | 283 mm |
| Rear Ear to Ear Distance (mm) | 283 mm |
| Center to Center Distance (mm) | 464 mm |
| Carrier Weight Class (lbs) | 30,000 - 36,000 lbs |
| Drain Holes (ct) | 6 |
| Features | 3x Reinforced Side Plates |
| Product Weight (lbs) | 1,688.74 lb |
| Product Weight (kg) | 766 kg |
Fits To
|
Brand |
Model |
|---|---|
| Caterpillar | 315D2 GC, 315F LCR, 315 GC, 315D2L, 317BLN, 318BL2, 318BLN, 318CLN, 318D2L, 318DL2, 318EL2, 318FL2, 315BL, 315CL, 315DL, 315LN, 316EL, 316FL, 316GC, 317BL, 317GC, 318CN, M313D, 315B, 315C, 315D, 315F, 315L, 316E, 317B, 317N, 318B, 318E, 215, 315, 317 |
| Hyundai | R160LC-3, R160LC-7, R160LC-9, R180LC-3, R180LC-7, R180LC-9, R210LC-3, R170W-3, R200W-2, R200W-3, R160LC, R180LC, R200LC, R220LC |
| Kato | 700SEV2, HD700SE, HD700V2, HD700, 900 |
| Kobelco | SK170LC-8 |
| Komatsu | PC160 LC-7A E0, PC150 HD LC-5, PC150N HD-5K, PC158US LC-2, PC160 LC-7E0, PC160 LC-7KA, PC180 LC-7E0, PC180N LC-5K, PC180N LC-6K, PC180N LC-7K, PC150 HD-5K, PC150 LC-3W, PC150 LC-6K, PC150 LC-8K, PC150 LGP-6, PC150N HD-5, PC160 LC-6K, PC160 LC-7E, PC160 LC-7K, PC160 LC-7L, PC160LC-7EO, PC170 LC-10, PC170 LC-11, PC180 LC-5K, PC180 LC-6K, PC180 LC-7K, PC180L LC-3, PC180N LC-3, PC180N LC-5, PC180N LC-6, PC180N LC-7, PC150 HD-3, PC150 HD-5, PC150 LC-1, PC150 LC-3, PC150 LC-5, PC150 LC-6, PC150 LC-7, PC158US LC, PC160 LC-6, PC160 LC-7, PC160 LC-8, PC180 LC-3, PC180 LC-5, PC180 LC-6, PC180 LC-7, PC150N HD, PC158US-2, PC160N LC, PC180N LC, PC150 HD, PC150 LC, PC150 SE, PC150-3W, PC150-5K, PC150-6K, PC150C-3, PC150C-6, PC150L-6, PC158 LC, PC160 LC, PC160-6K, PC160-7K, PC168 LC, PC170 LC, PC180 LC, PC180-3K, PC180-5K, PC180-6K, PC150-1, PC150-3, PC150-5, PC150-6, PC160-6, PC160-7, PC160-8, PC180-3, PC180-5, PC180-6, PC180-7, PC150C, PC150L, PC150, PC158, PC160, PC180, PW150 |
| Liebherr | 922 |
| Samsung | SE130LC |
| Sumitomo | LS2800FJ, S2800FJ |
| Volvo | EC160B LC, EC160C LC, EC150 LC, EC160 LC, SE170W-3, EC160CL, EC160DL, EC160EL, EC170DL, EC180CL, EC180DL, EC180EL, MX175WS, EC150B, EC150C, EC160B, EC160C, EC160N, EC160P, EC180B, EC180C, EC180D, EC150, EC160, EW170 |
