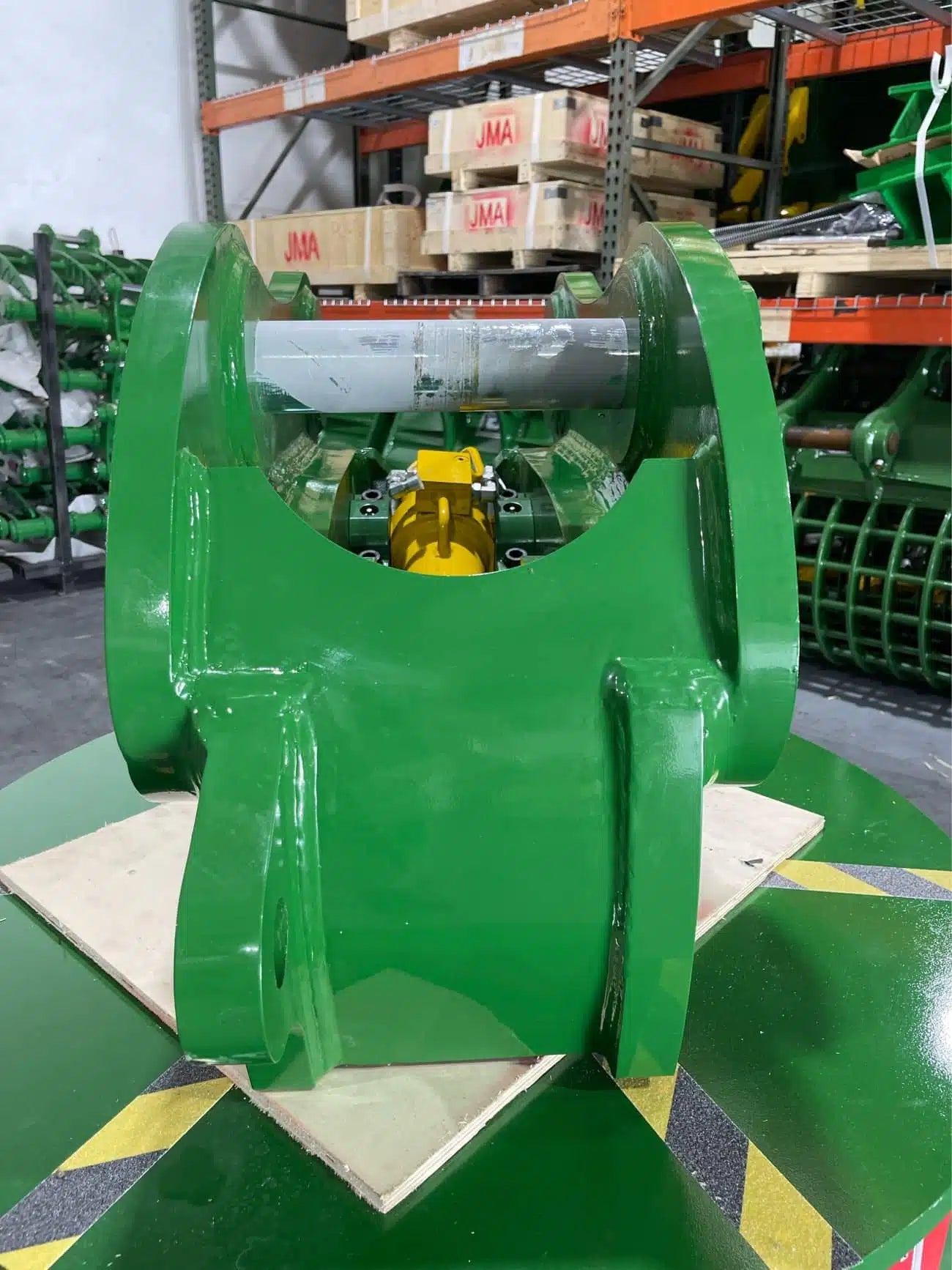

JMA Attachments Dual Lock Hydraulic Quick Coupler | Pin Size 70mm | For 15 – 18 Tons Excavators

JMA Attachments Dual Lock Hydraulic Quick Coupler | Pin Size 70mm | For 15 – 18 Tons Excavators

$5,496.70
$5,496.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Speed Virtuoso: Change attachments in seconds, reducing downtime and increasing overall project efficiency.
  • Engineered for Endurance: AR400 Steel construction ensures this coupler can handle whatever your job site throws at it, day after day.
  • Versatility Supreme: Compatible with 30,000 - 36,000 lbs class machines, expanding your Excavator's range of applications.
View full details

Product Description

JMA Attachments Dual Lock Hydraulic Quick Coupler | Pin Size 70mm | For 15 – 18 Tons Excavators

Description

Elevate your Excavator's capabilities with the Variable Dual Lock Hydraulic Quick Coupler for 15 - 18 Tons Excavators. 70mm Pins. This isn't just a quick coupler; it's your partner in creating more efficient and profitable excavation projects.

Key Features

  • Speed Virtuoso: Change attachments in seconds, reducing downtime and increasing overall project efficiency.
  • Engineered for Endurance: AR400 Steel construction ensures this coupler can handle whatever your job site throws at it, day after day.
  • Versatility Supreme: Compatible with 30,000 - 36,000 lbs class machines, expanding your Excavator's range of applications.
  • Safety Assurance: Dual locking mechanism provides unparalleled attachment security in all working conditions.
  • Precision Fit: Designed for 70 mm pins, ensuring seamless integration with your existing attachment inventory.

Detailed Specifications


      Attribute Value
      Material Type AR400 Steel
      Finish Powder-Coated Green
      Accessories Included Installation Kit
      Front Pin Diameter (mm) 70 mm
      Rear Pin Diameter (mm) 70 mm
      Front Ear to Ear Distance (mm) 283 mm
      Rear Ear to Ear Distance (mm) 283 mm
      Center to Center Distance (mm) 464 mm
      Front Pin Length (mm) 449 mm
      Rear Pin Length (mm) 449 mm
      Carrier Weight Class (tn) 15 - 18 Tons
      Carrier Weight Class (lbs) 30,000 - 36,000 lbs



      Fits To

      Brand

      Model
      Caterpillar 315D2 GC, 315F LCR, 315 GC, 315D2L, 317BLN, 318BL2, 318BLN, 318CLN, 318D2L, 318DL2, 318EL2, 318FL2, 315BL, 315CL, 315DL, 315LN, 316EL, 316FL, 316GC, 317BL, 317GC, 318CN, M313D, 315B, 315C, 315D, 315F, 315L, 316E, 317B, 317N, 318B, 318E, 215, 315, 317
      Hyundai R160LC-3, R160LC-7, R160LC-9, R180LC-3, R180LC-7, R180LC-9, R210LC-3, R170W-3, R200W-2, R200W-3, R160LC, R180LC, R200LC, R220LC
      Kato 700SEV2, HD700SE, HD700V2, HD700, 900
      Kobelco SK170LC-8
      Komatsu PC160 LC-7A E0, PC150 HD LC-5, PC150N HD-5K, PC158US LC-2, PC160 LC-7E0, PC160 LC-7KA, PC180 LC-7E0, PC180N LC-5K, PC180N LC-6K, PC180N LC-7K, PC150 HD-5K, PC150 LC-3W, PC150 LC-6K, PC150 LC-8K, PC150 LGP-6, PC150N HD-5, PC160 LC-6K, PC160 LC-7E, PC160 LC-7K, PC160 LC-7L, PC160LC-7EO, PC170 LC-10, PC170 LC-11, PC180 LC-5K, PC180 LC-6K, PC180 LC-7K, PC180L LC-3, PC180N LC-3, PC180N LC-5, PC180N LC-6, PC180N LC-7, PC150 HD-3, PC150 HD-5, PC150 LC-1, PC150 LC-3, PC150 LC-5, PC150 LC-6, PC150 LC-7, PC158US LC, PC160 LC-6, PC160 LC-7, PC160 LC-8, PC180 LC-3, PC180 LC-5, PC180 LC-6, PC180 LC-7, PC150N HD, PC158US-2, PC160N LC, PC180N LC, PC150 HD, PC150 LC, PC150 SE, PC150-3W, PC150-5K, PC150-6K, PC150C-3, PC150C-6, PC150L-6, PC158 LC, PC160 LC, PC160-6K, PC160-7K, PC168 LC, PC170 LC, PC180 LC, PC180-3K, PC180-5K, PC180-6K, PC150-1, PC150-3, PC150-5, PC150-6, PC160-6, PC160-7, PC160-8, PC180-3, PC180-5, PC180-6, PC180-7, PC150C, PC150L, PC150, PC158, PC160, PC180, PW150
      Liebherr 922
      Samsung SE130LC
      Sumitomo LS2800FJ, S2800FJ
      Volvo EC160B LC, EC160C LC, EC150 LC, EC160 LC, SE170W-3, EC160CL, EC160DL, EC160EL, EC170DL, EC180CL, EC180DL, EC180EL, MX175WS, EC150B, EC150C, EC160B, EC160C, EC160N, EC160P, EC180B, EC180C, EC180D, EC150, EC160, EW170
