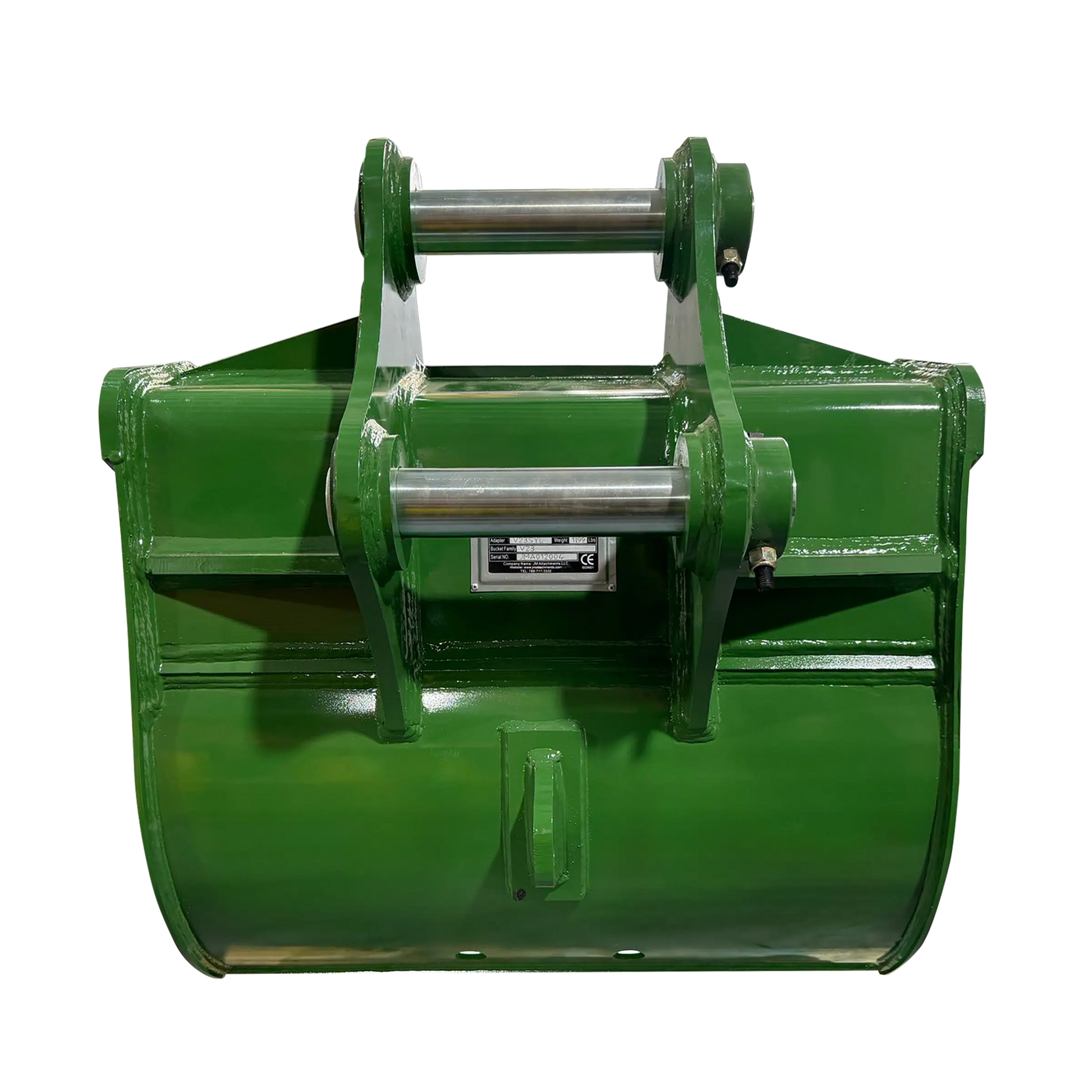

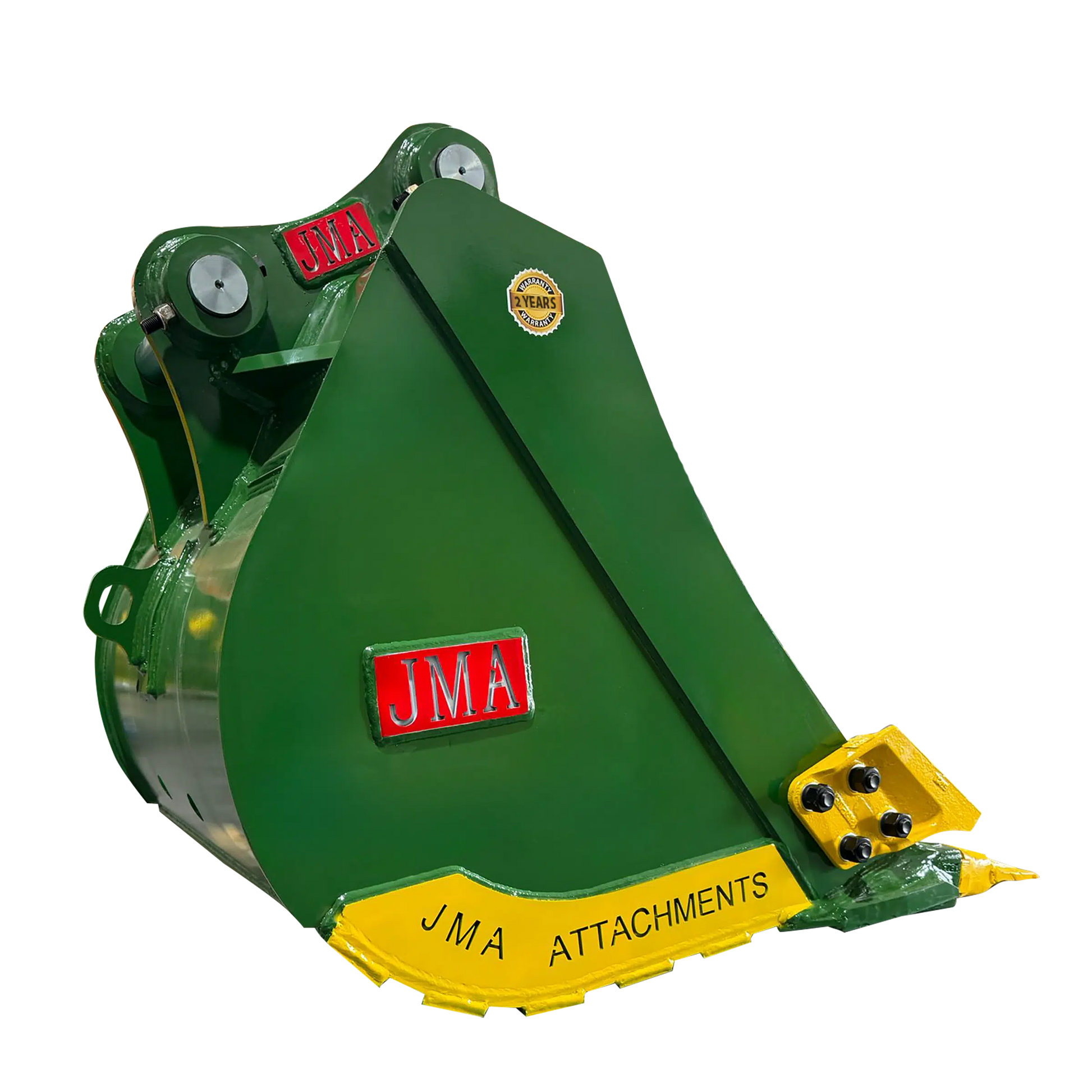

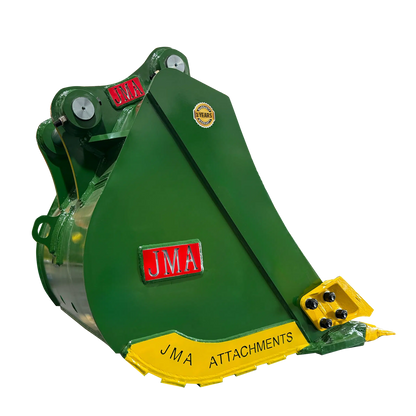

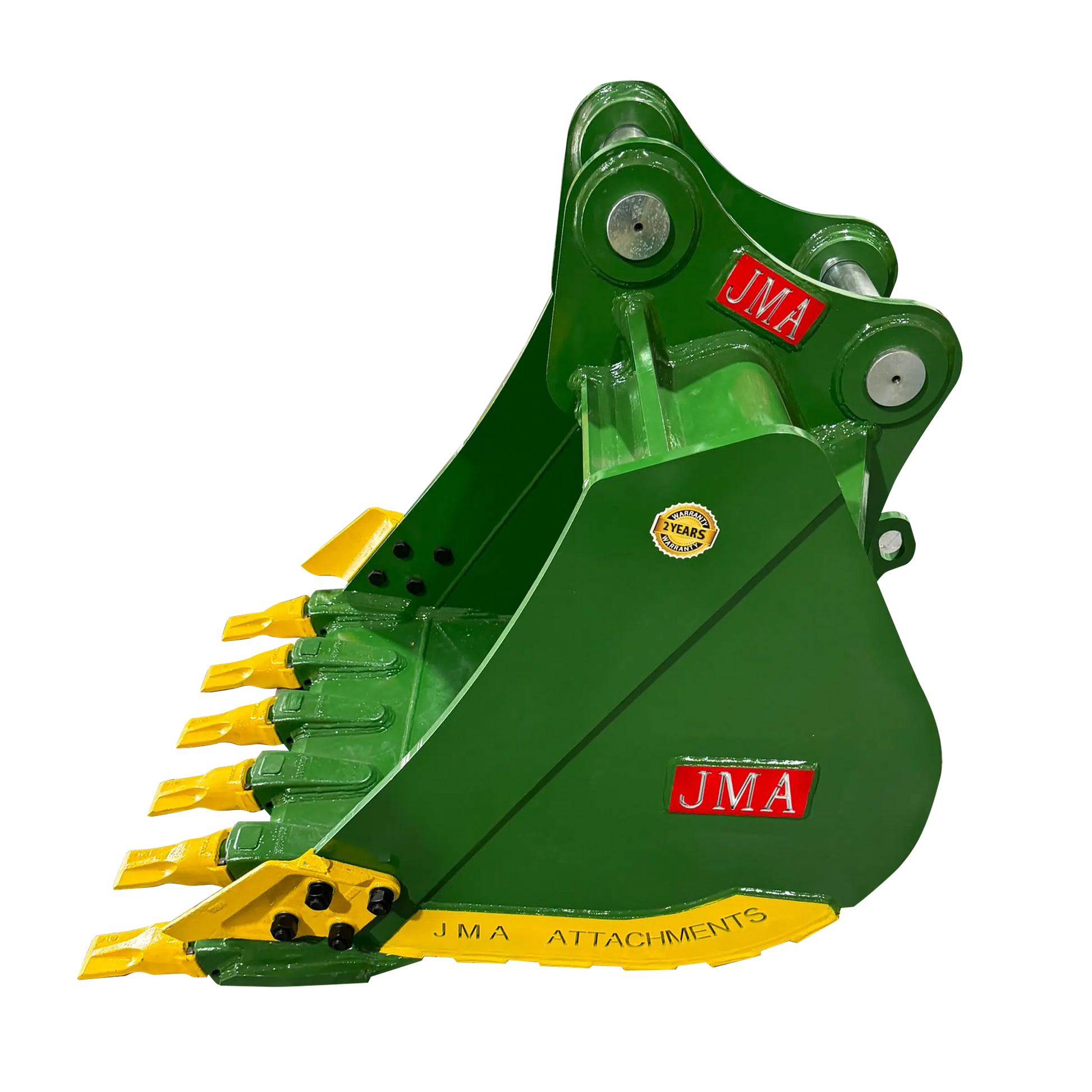

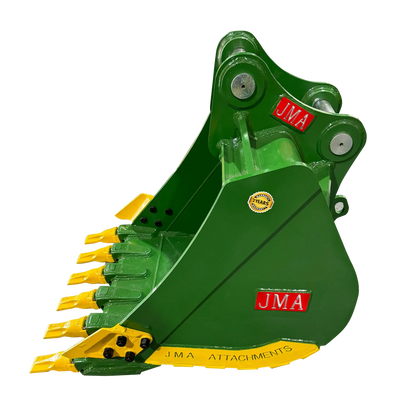

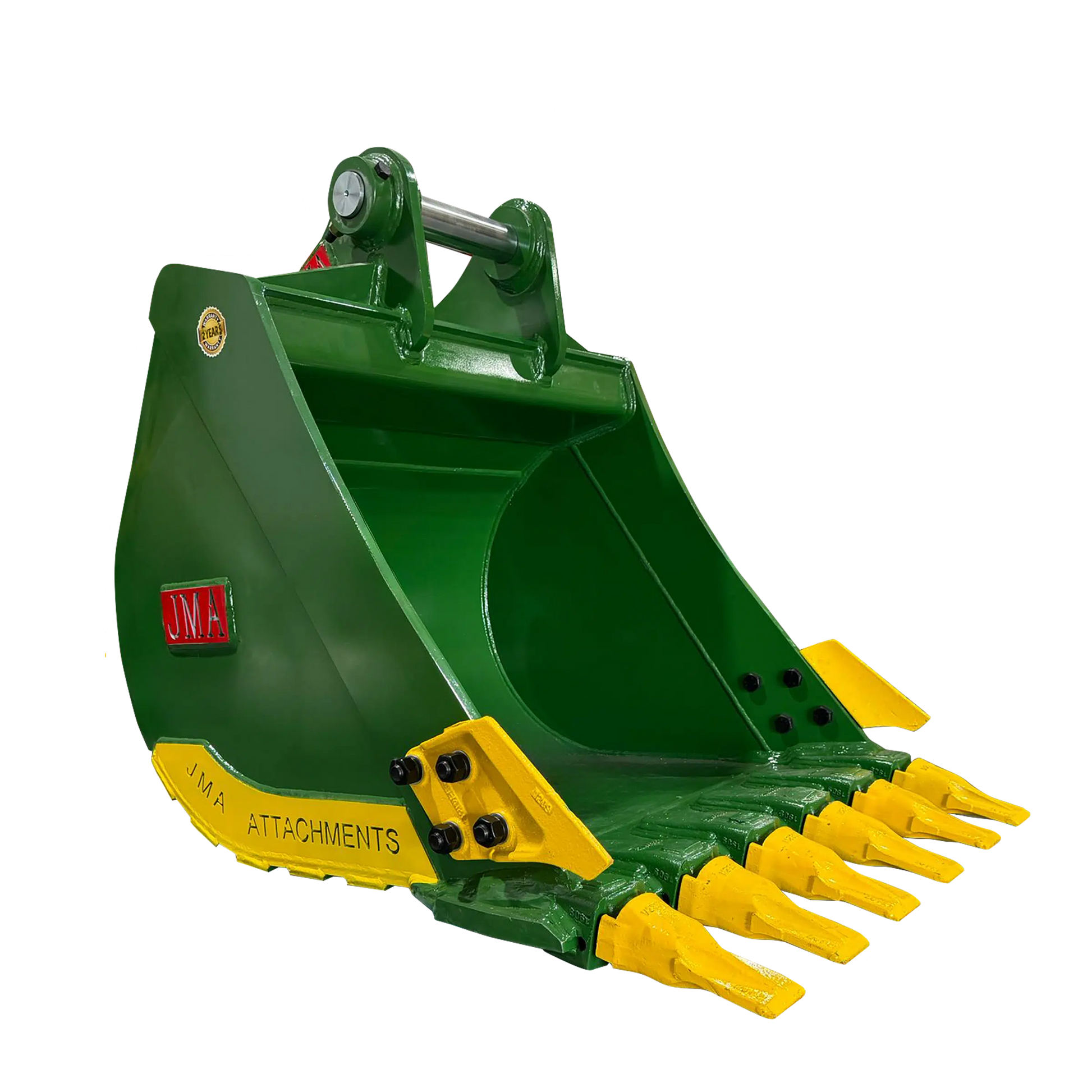

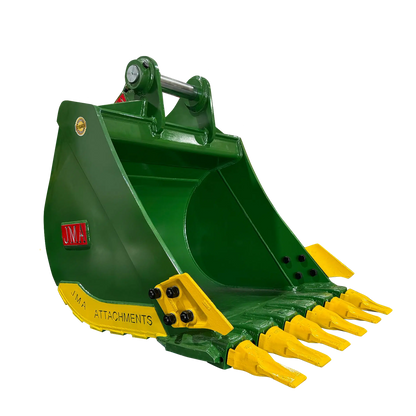

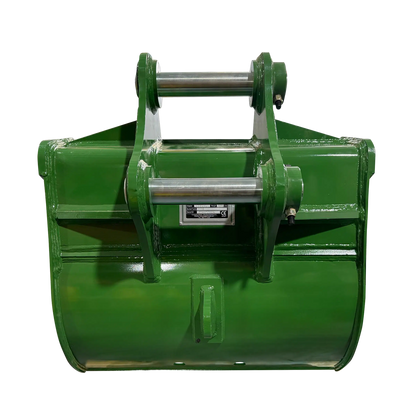

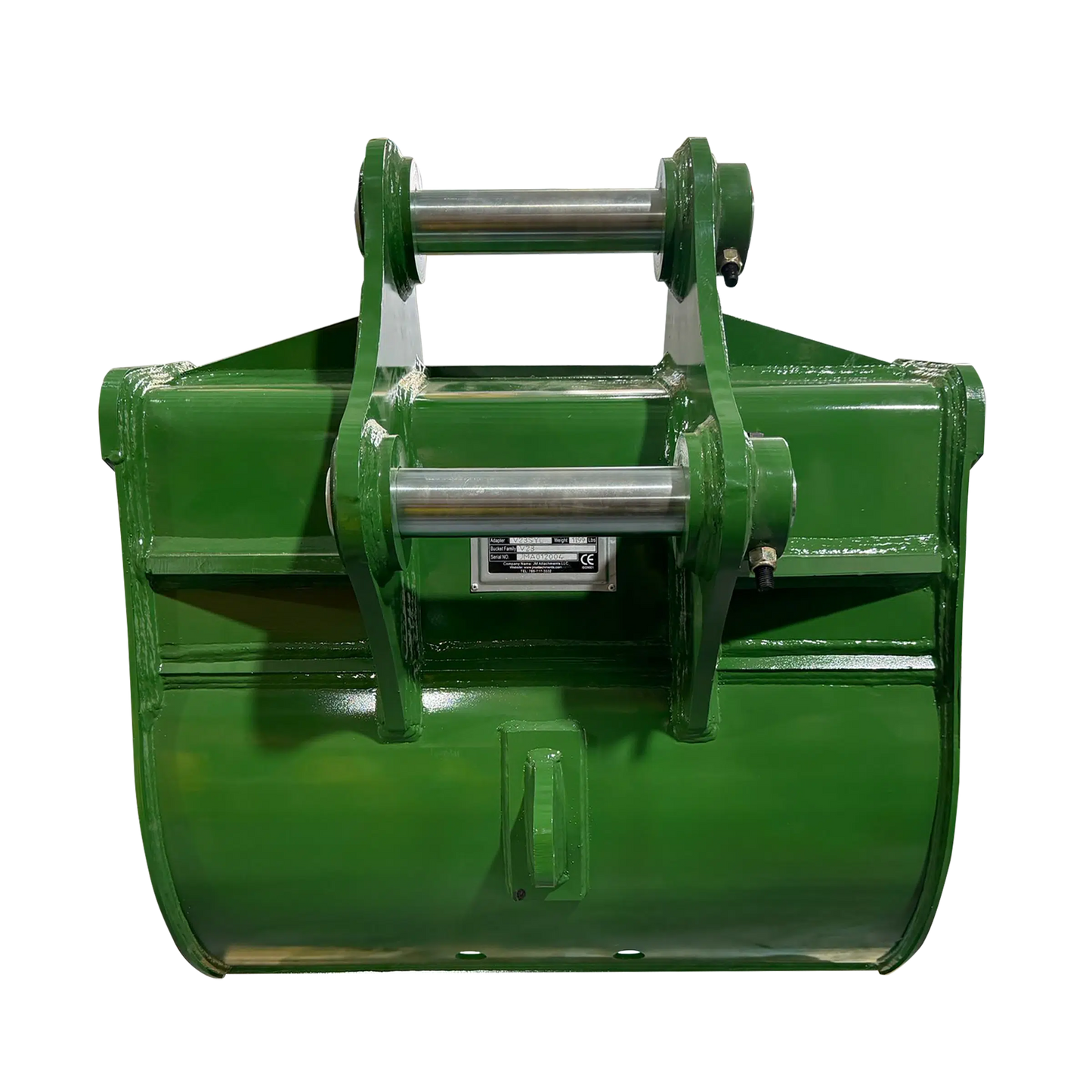

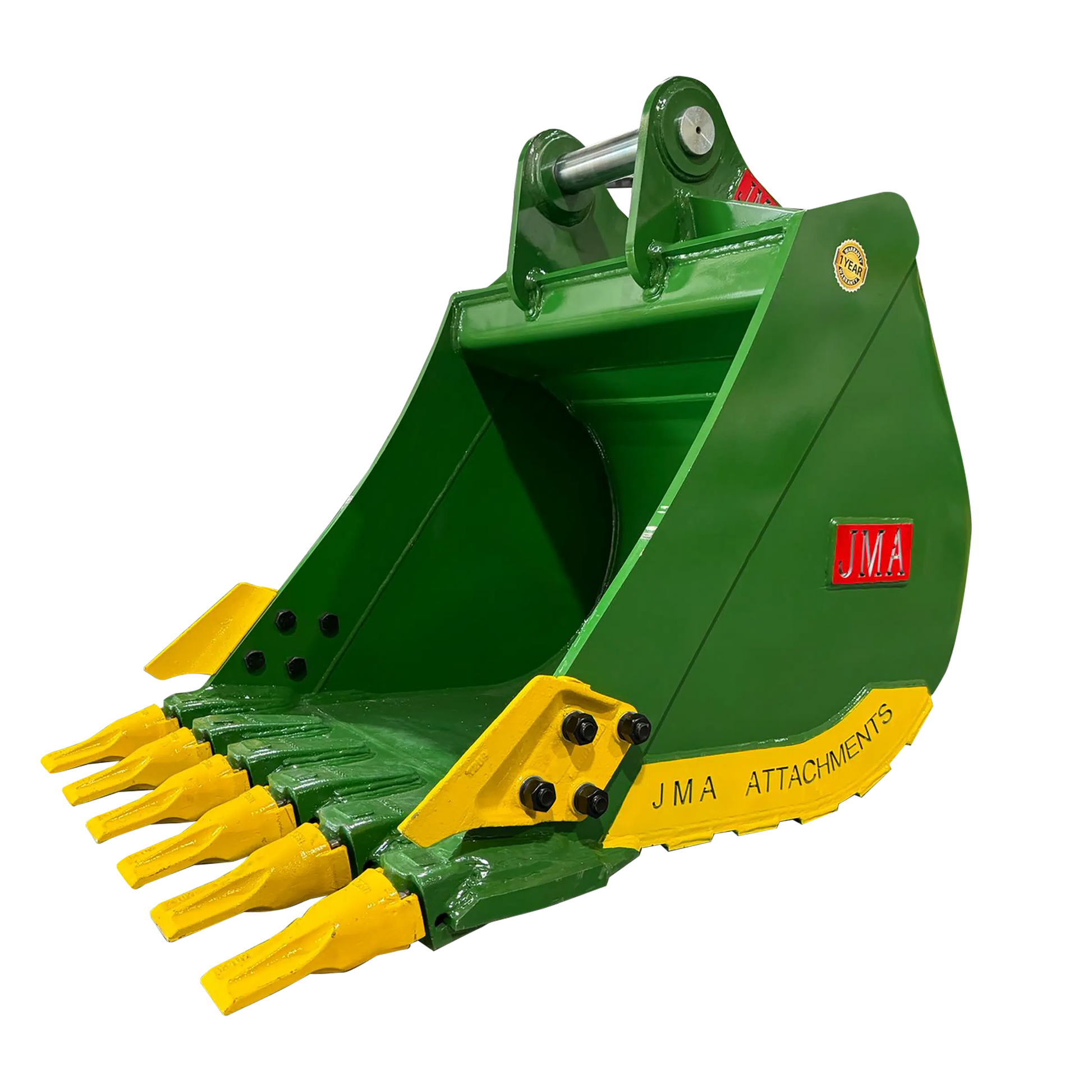

JMA Attachments Heavy Duty Digging Bucket | Bucket Width 36", 42" & 48″ Inches | Pin Size 60mm | For 10 – 15 Tons Excavators

JMA Attachments Heavy Duty Digging Bucket | Bucket Width 36", 42" & 48″ Inches | Pin Size 60mm | For 10 – 15 Tons Excavators

$3,957.03
$3,957.03
Sale Sold out
Customizable
Fast
24/7 Support
  • Superior Capacity: Capacities ranging from 0.55 m³ to 0.75 m³, allowing for efficient handling of substantial material volumes, reducing project timelines.
  • Unmatched Durability: Constructed from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Cutting-Edge Performance: Equipped with Esco Dirt Bucket Teeth (V23 series) for superior ground penetration and material handling capabilities.
View full details

Product Description

JMA Attachments Heavy Duty Digging Bucket | Bucket Width 36", 42" & 48″ Inches | Pin Size 60mm | For 10 – 15 Tons Excavators

Description

Introducing our versatile series of heavy-duty digging buckets, expertly crafted to fit 10 - 15 Ton Excavators. These buckets are engineered for superior performance and durability, making them the perfect choice for a wide range of excavation tasks. With premium AR400 steel construction and Esco Dirt Bucket Teeth from the V23 series, these buckets ensure efficient material handling and ground penetration, enhancing the productivity of your excavation projects.

Key Features

  • Superior Capacity: Capacities ranging from 0.55 m³ to 0.75 m³, allowing for efficient handling of substantial material volumes, reducing project timelines.
  • Unmatched Durability: Constructed from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Cutting-Edge Performance: Equipped with Esco Dirt Bucket Teeth (V23 series) for superior ground penetration and material handling capabilities.
  • Versatility Amplified: Includes an AMH 20 Ton Weld-on Bucket Hook, enhancing your machine's capabilities across diverse projects.
  • Engineered for Efficiency: Featuring 3x Reinforced Side Plates, the design optimizes material flow and reduces cycle times, maintaining productivity in various soil conditions.

Detailed Specifications

Attribute 36" Bucket 42" Bucket 48" Bucket
Carrier Weight Class (tn) 10 - 15 Tons 10 - 15 Tons 10 - 15 Tons
Bucket Width (mm) 914.4 mm 1,066.8 mm 1,219.2 mm
Bucket Width (in) 36" 42" 48"
Inner Bucket Height (mm) 950 mm 950 mm 950 mm
Bucket Side Wall Thickness (mm) 20 mm 20 mm 20 mm
Bucket Depth (mm) 630 mm 630 mm 630 mm
Capacity (yd³) 0.72 yd³ 0.85 yd³ 0.98 yd³
Capacity (m³) 0.55 m³ 0.65 m³ 0.75 m³
Bucket Tooth Series V23 V23 V23
Tooth Style Esco Dirt Bucket Tooth Esco Dirt Bucket Tooth Esco Dirt Bucket Tooth
Tooth (ct.) 6 Teeth 7 Teeth 8 Teeth
Tooth Part Number V23SYL V23SYL V23SYL
Tooth Pin Part Number V23PN V23PN V23PN
Material Type AR400 Steel AR400 Steel AR400 Steel
Finish Powder-Coated Green Powder-Coated Green Powder-Coated Green
Add-on included AMH 20 Ton Weld-on Bucket Hook AMH 20 Ton Weld-on Bucket Hook AMH 20 Ton Weld-on Bucket Hook
Left Side Cutter Part Number PC100L PC100L PC100L
Right Side Cutter Part Number PC100R PC100R PC100R
Front Pin Length (mm) 393 mm 393 mm 393 mm
Rear Pin Length (mm) 393 mm 393 mm 393 mm
Front Pin Diameter (mm) 60 mm 60 mm 60 mm
Rear Pin Diameter (mm) 60 mm 60 mm 60 mm
Front Ear to Ear Distance (mm) 260 mm 260 mm 260 mm
Rear Ear to Ear Distance (mm) 260 mm 260 mm 260 mm
Center to Center Distance (mm) 380 mm 380 mm 380 mm
Carrier Weight Class (lbs) 20,000 - 30,000 lbs 20,000 - 30,000 lbs 20,000 - 30,000 lbs
Drain Holes (ct) 2 2 2
Features 3x Reinforced Side Plates 3x Reinforced Side Plates 3x Reinforced Side Plates
Product Weight (lbs) 1,199.31 lb 1,329.39 lb 1,450.64 lb
Product Weight (kg) 544 kg 603 kg 658 kg

Fits To


36" Bucket

Brand

Model
Caterpillar 310
Hyundai R75-5
Ihi IS110, IS120
Kato HD550SE
Kobelco SK100-2, SK100-3, SK115SR, SK100V, SK100
Komatsu PC138US LC-2E0, PC138US LC-10, PC138US LC-11, PC138US LC-2E, PC120 LC-6E0, PC120 LC-6LE, PC128US LC-2, PC138US LC-2, PC138US LC-3, PC138US LC-7, PC138US LC-8, PC138US-11E0, PC120 LC-5L, PC120 LC-6E, PC120 LC-6L, PC128US-1MB, PC128US-2E0, PC128US-2E1, PC128US-2MB, PC128USI-10, PC128UU-1MB, PC128UU-2E0, PC130 LC-11, PC138US-2E1, PC138US-8NM, PC100 LC-1, PC100 LC-2, PC100 LC-3, PC100 LC-4, PC100 LC-5, PC100 LC-6, PC120 LC-3, PC120 LC-4, PC120 LC-5, PC120 LC-6, PC120 LC-7, PC120-1 -2, PC120SC-6E, PC128US LC, PC128US-10, PC128US-11, PC128US-2A, PC128US-2H, PC128UU-15, PC128UU-1E, PC128UU-1Y, PC130 LC-6, PC130 LC-7, PC130 LC-8, PC138 LC-2, PC138US LC, PC138US-10, PC138US-11, PC138US-2E, PC100-6ZE, PC100SS-3, PC110SP-6, PC118MR-8, PC120-6AC, PC120-6E0, PC120-6ZE, PC120SS-3, PC128US-1, PC128US-2, PC128US-5, PC128US-6, PC128US-8, PC128UU-1, PC128UU-2, PC128UU-6, PC128UU-8, PC128UUMB, PC138US-2, PC138US-8, PC 100-2, PC 100-6, PC 120-6, PC100 LC, PC100-5Z, PC100-6E, PC100L-1, PC100L-2, PC100L-3, PC100L-5, PC100L-6, PC100N-6, PC100U-2, PC100U-3, PC110R-1, PC120 LC, PC120 LE, PC120-11, PC120-15, PC120-3K, PC120-3W, PC120-5C, PC120-5G, PC120-5K, PC120-5Z, PC120-6E, PC120-6J, PC120-6L, PC120-6M, PC120-6Z, PC128 LC, PC128U-2, PC130 LC, PC130-11, PC130-5K, PC130-5S, PC130-6E, PC130-6K, PC130-6W, PC130-7K, PC130F-7, PC138 LC, PC100-1, PC100-2, PC100-3, PC100-4, PC100-5, PC100-6, PC100-7, PC100-8, PC110-1, PC110-2, PC110-7, PC120-1, PC120-2, PC120-3, PC120-4, PC120-5, PC120-6, PC120-7, PC120-8, PC120BE, PC120UU, PC128-1, PC128-2, PC128US, PC128UU, PC130-3, PC130-5, PC130-6, PC130-7, PC130-8, PC138US, PC100L, PC100N, PC100U, PC120B, PC128U, PC100, PC110, PC120, PC128, PC130, PC135, PC138
Kubota KX080-3, KX080-4, KX085-5, KX080
Lonking CDM6150
Nagano NS75-3
Sumitomo S260F2
Volvo ECR88, EC88

42" Bucket

Brand

Model
Caterpillar 310
Hyundai R75-5
Ihi IS110, IS120
Kato HD550SE
Kobelco SK100-2, SK100-3, SK115SR, SK100V, SK100
Komatsu PC138US LC-2E0, PC138US LC-10, PC138US LC-11, PC138US LC-2E, PC120 LC-6E0, PC120 LC-6LE, PC128US LC-2, PC138US LC-2, PC138US LC-3, PC138US LC-7, PC138US LC-8, PC138US-11E0, PC120 LC-5L, PC120 LC-6E, PC120 LC-6L, PC128US-1MB, PC128US-2E0, PC128US-2E1, PC128US-2MB, PC128USI-10, PC128UU-1MB, PC128UU-2E0, PC130 LC-11, PC138US-2E1, PC138US-8NM, PC100 LC-1, PC100 LC-2, PC100 LC-3, PC100 LC-4, PC100 LC-5, PC100 LC-6, PC120 LC-3, PC120 LC-4, PC120 LC-5, PC120 LC-6, PC120 LC-7, PC120-1 -2, PC120SC-6E, PC128US LC, PC128US-10, PC128US-11, PC128US-2A, PC128US-2H, PC128UU-15, PC128UU-1E, PC128UU-1Y, PC130 LC-6, PC130 LC-7, PC130 LC-8, PC138 LC-2, PC138US LC, PC138US-10, PC138US-11, PC138US-2E, PC100-6ZE, PC100SS-3, PC110SP-6, PC118MR-8, PC120-6AC, PC120-6E0, PC120-6ZE, PC120SS-3, PC128US-1, PC128US-2, PC128US-5, PC128US-6, PC128US-8, PC128UU-1, PC128UU-2, PC128UU-6, PC128UU-8, PC128UUMB, PC138US-2, PC138US-8, PC 100-2, PC 100-6, PC 120-6, PC100 LC, PC100-5Z, PC100-6E, PC100L-1, PC100L-2, PC100L-3, PC100L-5, PC100L-6, PC100N-6, PC100U-2, PC100U-3, PC110R-1, PC120 LC, PC120 LE, PC120-11, PC120-15, PC120-3K, PC120-3W, PC120-5C, PC120-5G, PC120-5K, PC120-5Z, PC120-6E, PC120-6J, PC120-6L, PC120-6M, PC120-6Z, PC128 LC, PC128U-2, PC130 LC, PC130-11, PC130-5K, PC130-5S, PC130-6E, PC130-6K, PC130-6W, PC130-7K, PC130F-7, PC138 LC, PC100-1, PC100-2, PC100-3, PC100-4, PC100-5, PC100-6, PC100-7, PC100-8, PC110-1, PC110-2, PC110-7, PC120-1, PC120-2, PC120-3, PC120-4, PC120-5, PC120-6, PC120-7, PC120-8, PC120BE, PC120UU, PC128-1, PC128-2, PC128US, PC128UU, PC130-3, PC130-5, PC130-6, PC130-7, PC130-8, PC138US, PC100L, PC100N, PC100U, PC120B, PC128U, PC100, PC110, PC120, PC128, PC130, PC135, PC138
Kubota KX080-3, KX080-4, KX085-5, KX080
Lonking CDM6150
Nagano NS75-3
Sumitomo S260F2
Volvo ECR88, EC88

48" Bucket

Brand

Model
Caterpillar 310
Hyundai R75-5
Ihi IS110, IS120
Kato HD550SE
Kobelco SK100-2, SK100-3, SK115SR, SK100V, SK100
Komatsu PC138US LC-2E0, PC138US LC-10, PC138US LC-11, PC138US LC-2E, PC120 LC-6E0, PC120 LC-6LE, PC128US LC-2, PC138US LC-2, PC138US LC-3, PC138US LC-7, PC138US LC-8, PC138US-11E0, PC120 LC-5L, PC120 LC-6E, PC120 LC-6L, PC128US-1MB, PC128US-2E0, PC128US-2E1, PC128US-2MB, PC128USI-10, PC128UU-1MB, PC128UU-2E0, PC130 LC-11, PC138US-2E1, PC138US-8NM, PC100 LC-1, PC100 LC-2, PC100 LC-3, PC100 LC-4, PC100 LC-5, PC100 LC-6, PC120 LC-3, PC120 LC-4, PC120 LC-5, PC120 LC-6, PC120 LC-7, PC120-1 -2, PC120SC-6E, PC128US LC, PC128US-10, PC128US-11, PC128US-2A, PC128US-2H, PC128UU-15, PC128UU-1E, PC128UU-1Y, PC130 LC-6, PC130 LC-7, PC130 LC-8, PC138 LC-2, PC138US LC, PC138US-10, PC138US-11, PC138US-2E, PC100-6ZE, PC100SS-3, PC110SP-6, PC118MR-8, PC120-6AC, PC120-6E0, PC120-6ZE, PC120SS-3, PC128US-1, PC128US-2, PC128US-5, PC128US-6, PC128US-8, PC128UU-1, PC128UU-2, PC128UU-6, PC128UU-8, PC128UUMB, PC138US-2, PC138US-8, PC 100-2, PC 100-6, PC 120-6, PC100 LC, PC100-5Z, PC100-6E, PC100L-1, PC100L-2, PC100L-3, PC100L-5, PC100L-6, PC100N-6, PC100U-2, PC100U-3, PC110R-1, PC120 LC, PC120 LE, PC120-11, PC120-15, PC120-3K, PC120-3W, PC120-5C, PC120-5G, PC120-5K, PC120-5Z, PC120-6E, PC120-6J, PC120-6L, PC120-6M, PC120-6Z, PC128 LC, PC128U-2, PC130 LC, PC130-11, PC130-5K, PC130-5S, PC130-6E, PC130-6K, PC130-6W, PC130-7K, PC130F-7, PC138 LC, PC100-1, PC100-2, PC100-3, PC100-4, PC100-5, PC100-6, PC100-7, PC100-8, PC110-1, PC110-2, PC110-7, PC120-1, PC120-2, PC120-3, PC120-4, PC120-5, PC120-6, PC120-7, PC120-8, PC120BE, PC120UU, PC128-1, PC128-2, PC128US, PC128UU, PC130-3, PC130-5, PC130-6, PC130-7, PC130-8, PC138US, PC100L, PC100N, PC100U, PC120B, PC128U, PC100, PC110, PC120, PC128, PC130, PC135, PC138
Kubota KX080-3, KX080-4, KX085-5, KX080
Lonking CDM6150
Nagano NS75-3
Sumitomo S260F2
Volvo ECR88, EC88
