| Attribute | 36" Bucket | 42" Bucket | 48" Bucket |
|---|---|---|---|
| Carrier Weight Class (tn) | 15 - 18 Tons | 15 - 18 Tons | 15 - 18 Tons |
| Bucket Width (mm) | 914.4 mm | 1,066.8 mm | 1,219.2 mm |
| Bucket Width (in) | 36" | 42" | 48" |
| Inner Bucket Height (mm) | 950 mm | 950 mm | 950 mm |
| Bucket Side Wall Thickness (mm) | 20 mm | 20 mm | 20 mm |
| Bucket Depth (mm) | 630 mm | 630 mm | 630 mm |
| Capacity (yd³) | 0.85 yd³ | 0.98 yd³ | 1.02 yd³ |
| Capacity (m³) | 0.65 m³ | 0.75 m³ | 0.78 m³ |
| Bucket Tooth Series | V23 | V23 | V23 |
| Tooth Style | Esco Dirt Bucket Tooth | Esco Dirt Bucket Tooth | Esco Dirt Bucket Tooth |
| Tooth (ct.) | 6 Teeth | 7 Teeth | 8 Teeth |
| Tooth Part Number | V23SYL | V23SYL | V23SYL |
| Tooth Pin Part Number | V23PN | V23PN | V23PN |
| Material Type | AR400 Steel | AR400 Steel | AR400 Steel |
| Finish | Powder-Coated Green | Powder-Coated Green | Powder-Coated Green |
| Add-on included | AMH 20 Ton Weld-on Bucket Hook | AMH 20 Ton Weld-on Bucket Hook | AMH 20 Ton Weld-on Bucket Hook |
| Left Side Cutter Part Number | PC100L | PC100L | PC100L |
| Right Side Cutter Part Number | PC100R | PC100R | PC100R |
| Front Pin Length (mm) | 449 mm | 449 mm | 449 mm |
| Rear Pin Length (mm) | 449 mm | 449 mm | 449 mm |
| Front Pin Diameter (mm) | 70 mm | 70 mm | 70 mm |
| Rear Pin Diameter (mm) | 70 mm | 70 mm | 70 mm |
| Front Ear to Ear Distance (mm) | 283 mm | 283 mm | 283 mm |
| Rear Ear to Ear Distance (mm) | 283 mm | 283 mm | 283 mm |
| Center to Center Distance (mm) | 464 mm | 464 mm | 464 mm |
| Carrier Weight Class (lbs) | 30,000 - 36,000 lbs | 30,000 - 36,000 lbs | 30,000 - 36,000 lbs |
| Drain Holes (ct) | 2 | 2 | 2 |
| Features | 3x Reinforced Side Plates | 3x Reinforced Side Plates | 3x Reinforced Side Plates |
| Product Weight (lbs) | 1,199.31 lb | 1,329.39 lb | 1,450.64 lb |
| Product Weight (kg) | 544 kg | 603 kg | 658 kg |

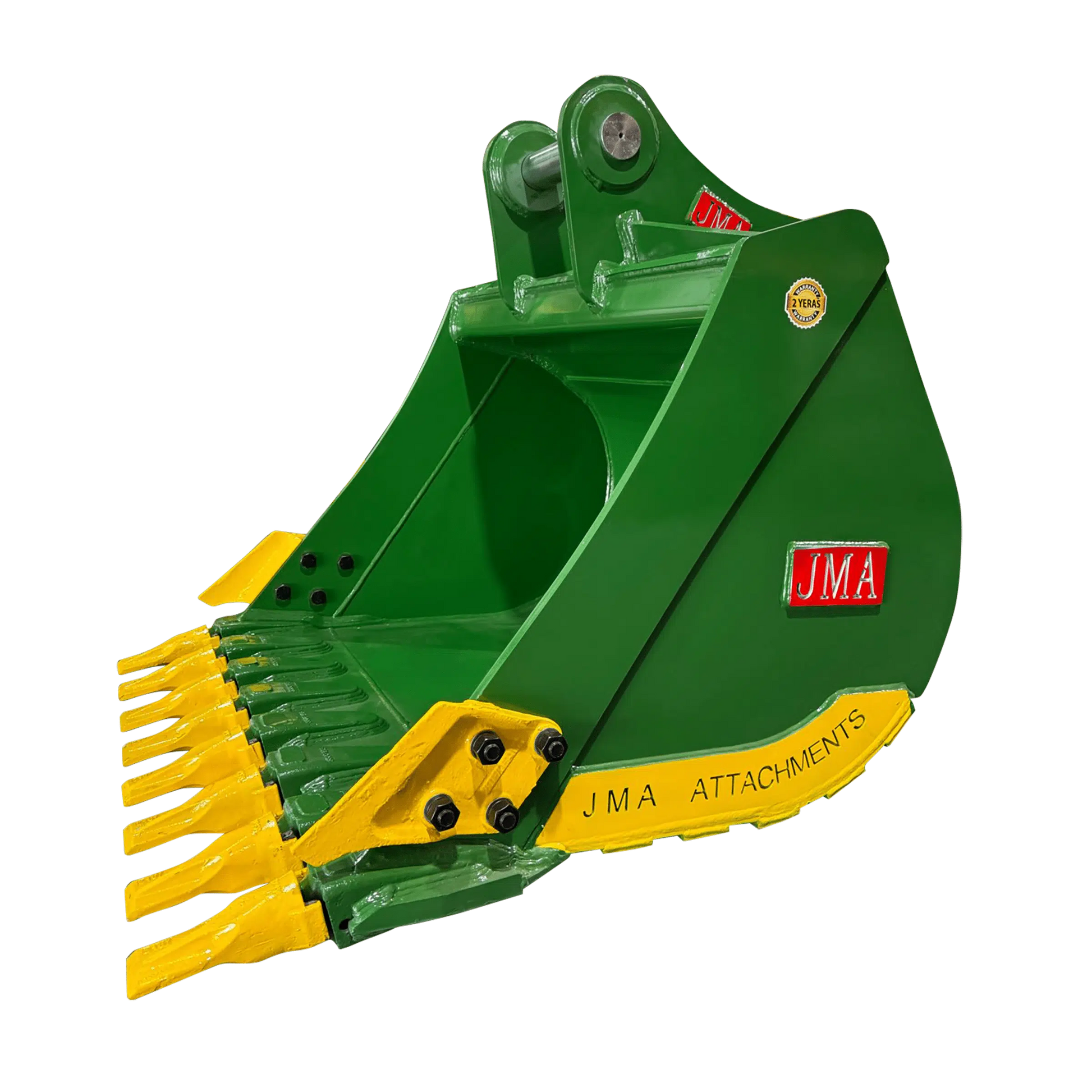

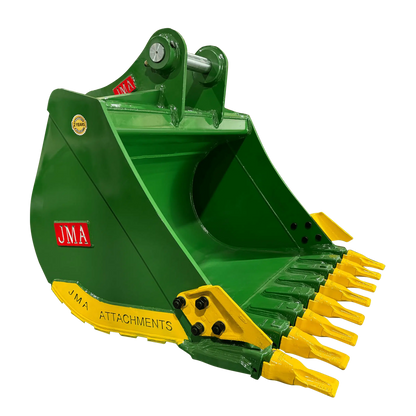

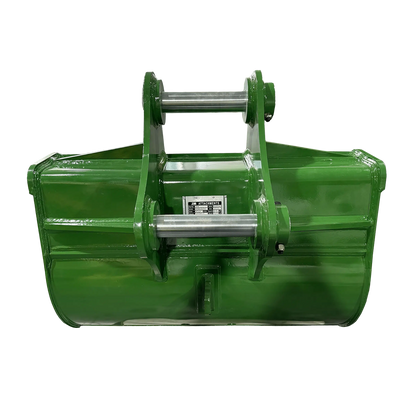

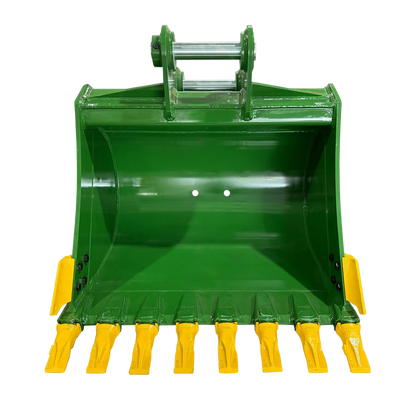

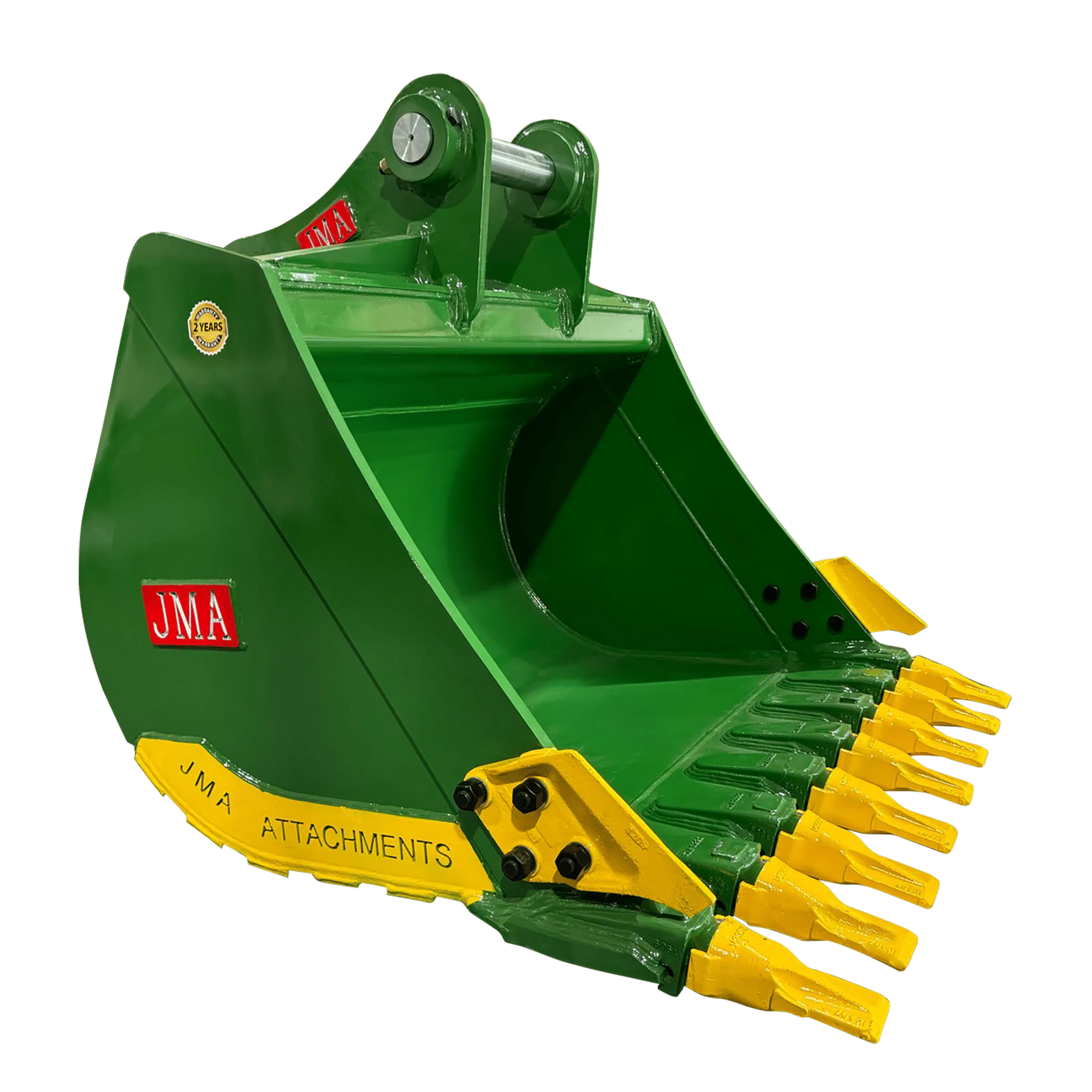

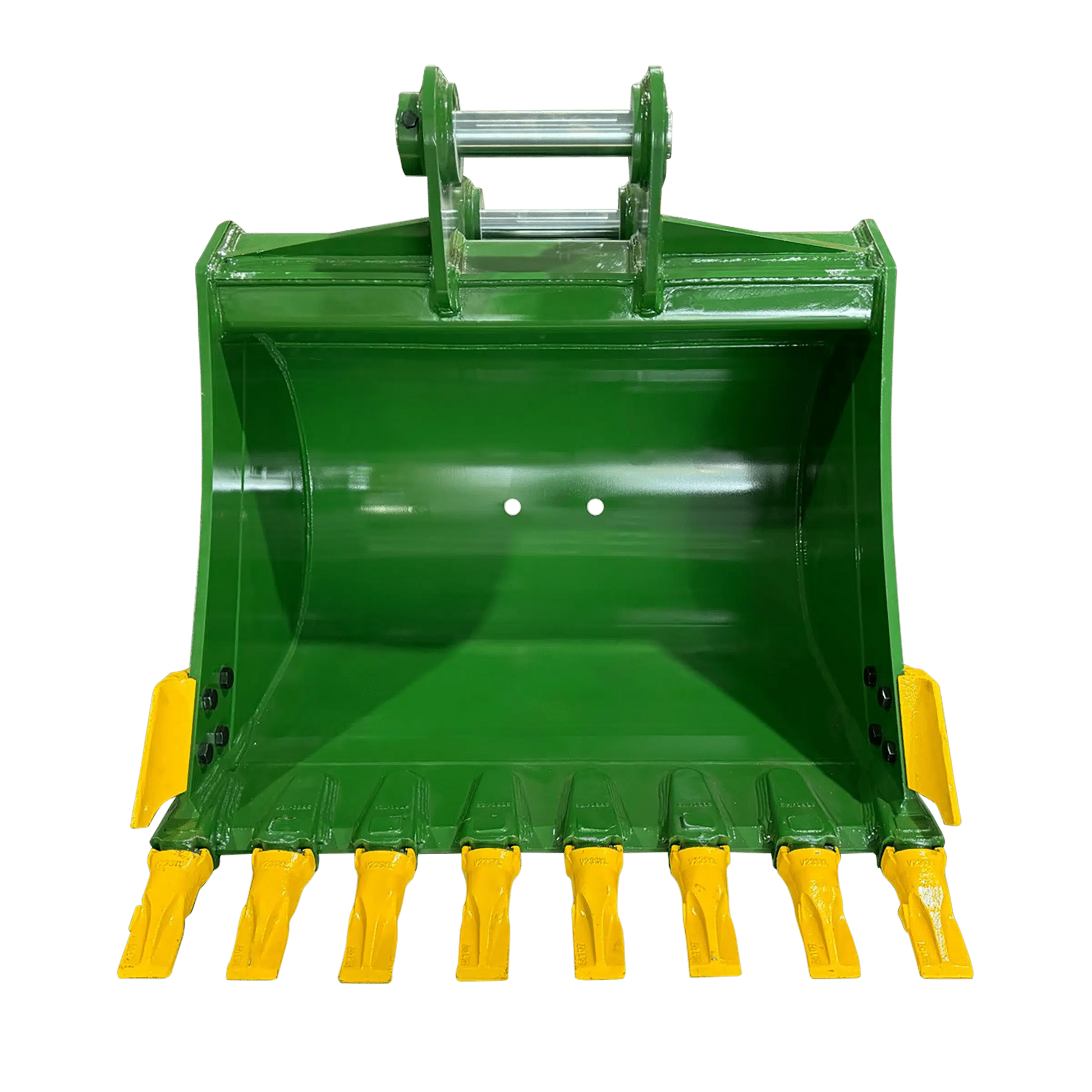

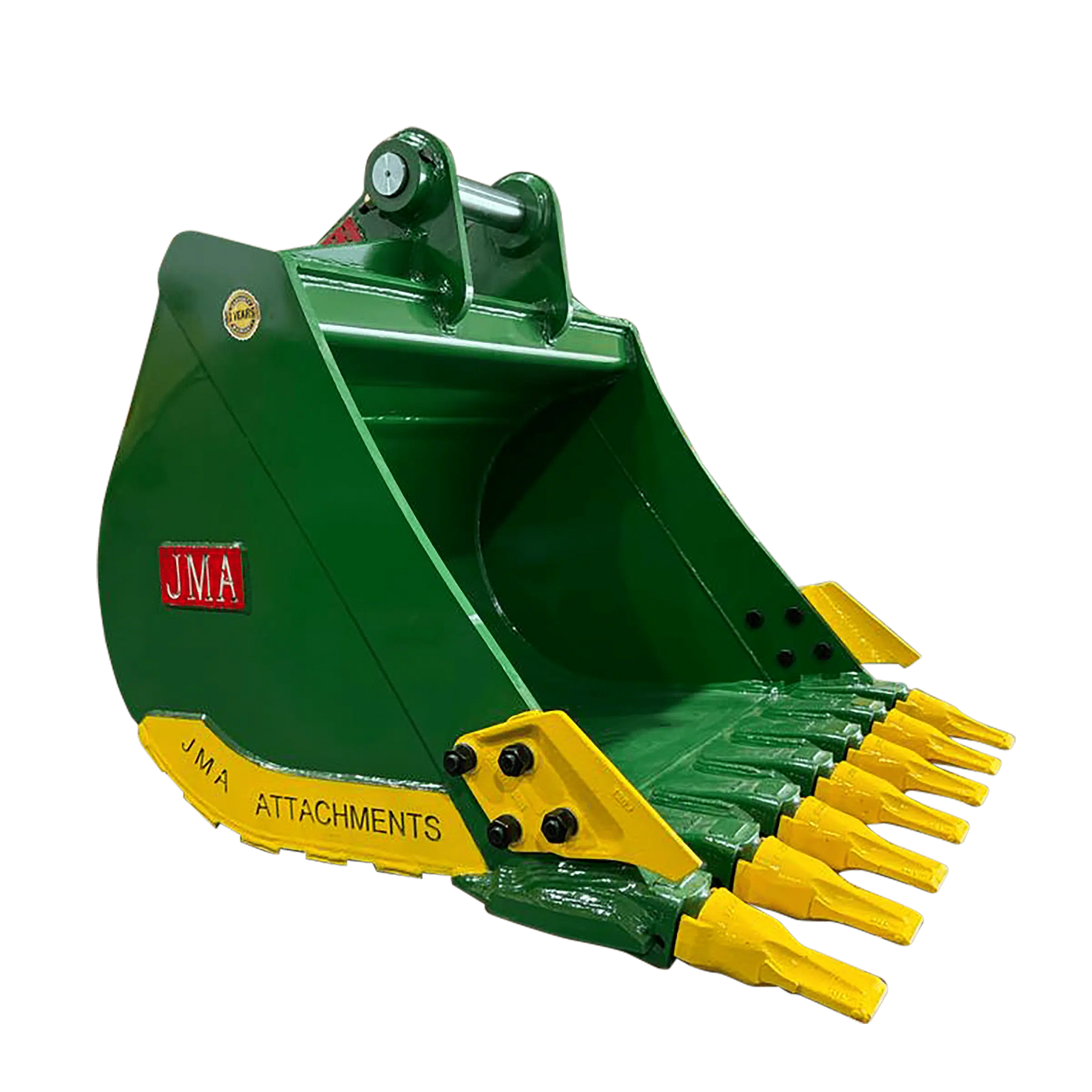

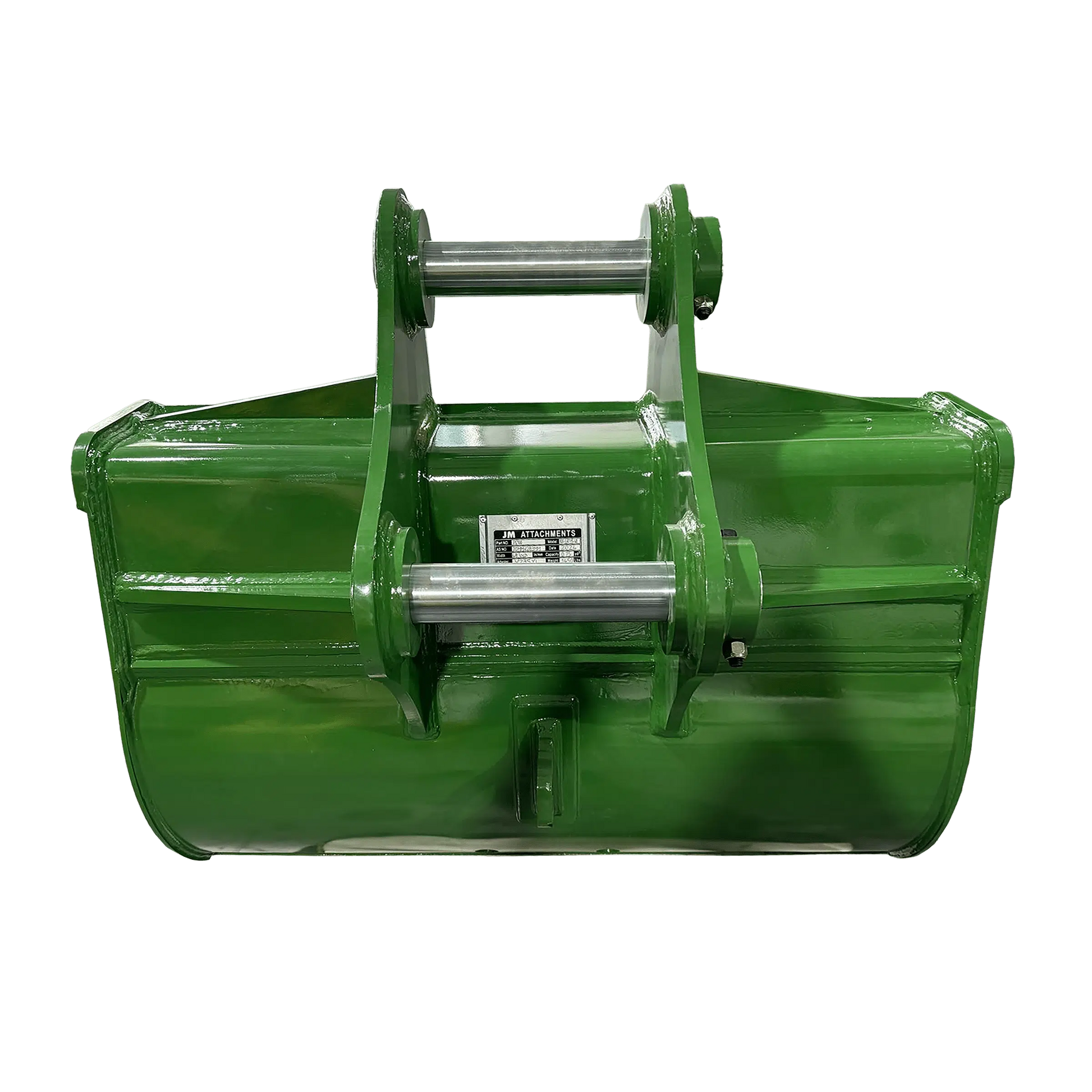

JMA Attachments Heavy Duty Digging Bucket | Bucket Width 36", 42" & 48″ Inches | Pin Size 70mm | For 15 – 18 Tons Excavators
JMA Attachments Heavy Duty Digging Bucket | Bucket Width 36", 42" & 48″ Inches | Pin Size 70mm | For 15 – 18 Tons Excavators
Regular price
$4,254.03
Regular price
Sale price
$4,254.03
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
JMA Attachments Heavy Duty Digging Bucket | Bucket Width 30", 36", 42", 48″ & 54" Inches | Pin Size 80mm | For 16 – 25 Tons Excavators
Description
Introducing the powerful 36", 42", and 48" Excavator Buckets, specifically engineered to fit 15 - 18 Ton machines. Crafted from premium AR400 steel, these buckets offer exceptional durability and superior performance, making them the ideal choice for a range of excavation tasks. Equipped with Esco Dirt Bucket Teeth (V23 series), these buckets ensure efficient material handling and ground penetration, enhancing the productivity of your excavation projects.
Key Features
- Superior Capacity: Capacities ranging from 0.65 m³ to 0.78 m³, these buckets allow for efficient handling of substantial material volumes, reducing project timelines.
- Unmatched Durability: Constructed from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
- Cutting-Edge Performance: Equipped with Esco Dirt Bucket Teeth (V23 series) for superior ground penetration and material handling capabilities.
- Versatility Amplified: Includes an AMH 20 Ton Weld-on Bucket Hook, enhancing your machine's capabilities across diverse projects.
- Engineered for Efficiency: Featuring 3x Reinforced Side Plates, the design optimizes material flow and reduces cycle times, maintaining productivity in various soil conditions.
