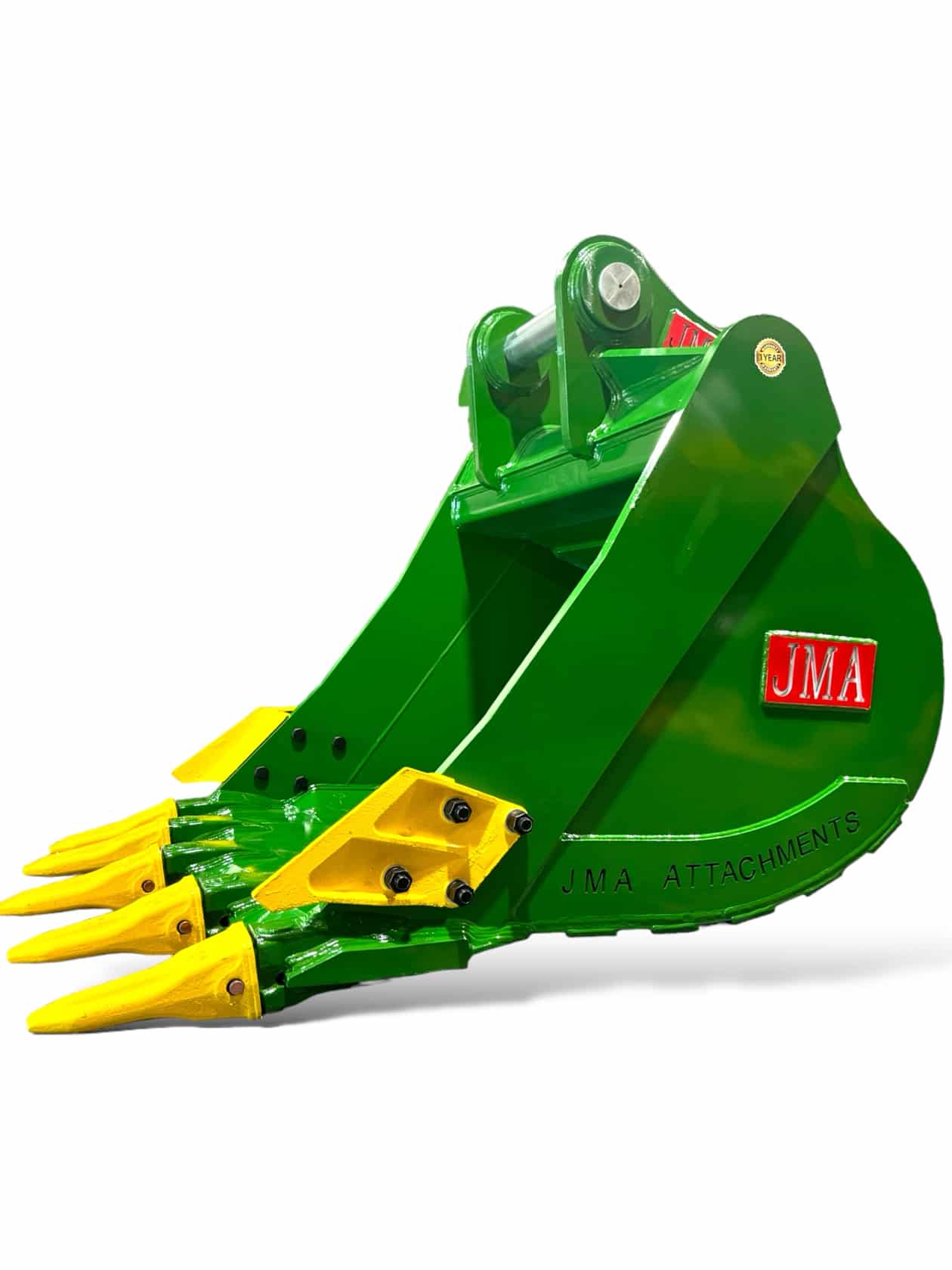

JMA Attachments Heavy Duty Digging Bucket | Bucket Width 48″, 54" & 60" Inches | Pin Size 90mm | For 23 – 36 Tons Excavators

JMA Attachments Heavy Duty Digging Bucket | Bucket Width 48″, 54" & 60" Inches | Pin Size 90mm | For 23 – 36 Tons Excavators

$7,916.70
$7,916.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Note: Pins are not included.
  • Capacity Champion: 5 m³ volume ensures maximum material moved per cycle, driving project efficiency.
  • Uncompromising Durability: AR400 Steel construction guarantees exceptional longevity, minimizing lifetime costs.
  • Advanced Tooth System: 6 Single Tiger Tooth Style teeth (J450 series) provide superior digging performance and reduced maintenance.
  • Versatility Boost: Equipped with an AMH 40 Ton Weld-on Bucket Hook to expand your operational capabilities.
View full details

Product Description

JMA Attachments Heavy Duty Digging Bucket | Bucket Width 48″, 54" & 60" Inches | Pin Size 90mm | For 23 – 36 Tons Excavators

Description

Master the art of efficient earthmoving with the 48″, 54" & 60" Heavy Duty Digging Bucket for 23 - 36 Tons Excavators. 90mm Pins. Engineered for 46,000 - 72,000 lbs class Excavators, this premium bucket is your gateway to enhanced productivity and substantial cost savings.

Key Features

  • Superior Capacity: 1.54 m³, 1.68 m³,  volume ensures more material moved per cycle, significantly reducing project timelines.
  • Unmatched Durability: Crafted from premium AR400 Steel, offering exceptional resistance to wear and impact for extended service life.
  • Cutting-Edge Performance: Equipped with 5 Teeth Rock Chisel Bucket Tooth teeth (J400 series) for superior ground penetration and material handling.
  • Versatility Amplified: Includes an AMH 40 Ton Weld-on Bucket Hook to enhance your machine's capabilities across diverse projects.
  • Engineered for Efficiency: 3x Reinforced Side Plates design optimizes material flow and reduces cycle times.

Detailed Specifications

Comparison Chart for Excavator Buckets

Attribute 48" Bucket 54" Bucket 60" Bucket
Carrier Weight Class (tn) 23 - 36 Tons 23 - 36 Tons 23 - 36 Tons
Bucket Width (mm) 1,219.2 mm 1,371.6 mm 1,524 mm
Bucket Width (in) 48" 54" 60"
Inner Bucket Height (mm) 1,159 mm 1,159 mm 1,159 mm
Bucket Side Wall Thickness (mm) 30 mm 30 mm 30 mm
Bucket Depth (mm) 879 mm 879 mm 879 mm
Capacity (yd³) 2.01 yd³ 2.20 yd³ 2.55 yd³
Capacity (m³) 1.54 m³ 1.68 m³ 1.95 m³
Bucket Tooth Series J400 J400 J400
Tooth Style Rock Chisel Bucket Tooth Rock Chisel Bucket Tooth Rock Chisel Bucket Tooth
Tooth (ct.) 5 Teeth 6 Teeth 6 Teeth
Tooth Part Number 7T3402RC 7T3402RC 7T3402RC
Tooth Pin Part Number 7T3408 7T3408 7T3408
Tooth Retainer Part Number 8E8409 8E8409 8E8409
Material Type AR400 Steel AR400 Steel AR400 Steel
Finish Powder-Coated Green Powder-Coated Green Powder-Coated Green
Add-on Included AMH 40 Ton Weld-on Bucket Hook AMH 40 Ton Weld-on Bucket Hook AMH 40 Ton Weld-on Bucket Hook
Left Side Cutter Part Number 0964747 0964747 0964747
Right Side Cutter Part Number 0964748 0964748 0964748
Front Pin Length (mm) 635 mm 635 mm 635 mm
Rear Pin Length (mm) 635 mm 635 mm 635 mm
Front Pin Diameter (mm) 90 mm 90 mm 90 mm
Rear Pin Diameter (mm) 90 mm 90 mm 90 mm
Front Ear to Ear Distance (mm) 381 mm 381 mm 381 mm
Rear Ear to Ear Distance (mm) 381 mm 381 mm 381 mm
Center to Center Distance (mm) 485 mm 485 mm 485 mm
Carrier Weight Class (lbs) 46,000 - 72,000 lbs 46,000 - 72,000 lbs 46,000 - 72,000 lbs
Drain Holes (ct) 2 2 2
Features 3x Reinforced Side Plates 3x Reinforced Side Plates 3x Reinforced Side Plates
Product Weight (lbs) 2,425.08 lb 2,601.45 lb 2,777.82 lb
Product Weight (kg) 1,100 kg 1,180 kg 1,260 kg



Fits To

60" Bucket

Brand

Model
Case CX240E NHD, CX245D MSR, CX350DN LC, CX240B LR, CX250C LC, CX250D LR, CX260E LR, CX290B LC, CX350D LR, CX365E SR, CX235CSR, CX240 LC, CX240 LR, CX245DSR, CX290 LC, CX330 LC, CX350 LC, CX230B, CX230C, CX230D, CX235C, CX240B, CX240C, CX240D, CX250C, CX250D, CX250E, CX260C, CX260E, CX290B, CX300C, CX300D, CX300E, CX330B, CX350B, CX350C, CX350D, CX360B, CX370B, CX370C, CX370D, CX380C, CX380D, 9050B, CX230, CX240, CX290, CX350, CX360, CX370
Caterpillar 325L D Linkage, 324DLN VA, 329DLN VA, 324DL LR, 324DL ME, 324EL LR, 329DL LR, 329DL ME, 329DL VA, 329E LRE, 324D FM, 324D LR, 324E LN, 324E LR, 329D CS, 329E LR, 324DLN, 326D2L, 326FLN, 329D2L, 329DLN, 329ELN, 330 GC, 324CL, 324DL, 324EL, 324FL, 325 D, 326D2, 326DL, 326FL, 326GC, 328 D, 329DL, 329EL, 329FL, 330BL, 330D2, 330GC, M325B, 324E, 326F, 329D, 329E, 329F, 330C, 330D, 325, 326, 330, 335
Daewoo S280-111, S300LC-V, S290, S320
Doosan S 280 LC III, DX260 LC-9C, DX255 LC-3, DX255 LC-5, DX260 LCA, DX255 LC, DX260 LC, DX300LC, S290 LC, S290 LL, S300
Hitachi ZX245US LC-5N, ZX245US LC-6N, ZX245US LC-7H, ZX245US LC-5, ZX245US LC-6, ZX245US LC-7, ZX250 LCH-3G, ZX250 LCH-5A, ZX250 LCK-3G, ZX250 LCN-5B, ZX230LC - 2, ZX240 LC-3G, ZX250 LC-5B, ZX250 LC-5G, ZX250 LC-5N, ZX250 LC-6N, ZX250 LCH-3, ZX250 LCK-3, ZX250 LCN-3, ZX250 LCN-5, ZX250 LCN-6, ZX280 LC-5G, ZX280 LCH-3, ZX280 LCN-3, ZX230 LC-5, ZX240 LC-3, ZX250 LC-3, ZX250 LC-5, ZX250 LC-6, ZX260LC-5B, ZX270 LC-2, ZX270 LC-3, ZX270 LC-5, ZX280 LC-3, ZX230C LC, ZX230LC-3, ZX240 LCH, ZX240 LCK, ZX240 LCN, ZX240LC-3, ZX240N-5B, ZX240NM-3, ZX250 LCN, ZX250H-3G, ZX250K-3G, ZX250LC-3, ZX280 LCH, ZX280 LCN, ZX230 LC, ZX230 TN, ZX240 LC, ZX240-3G, ZX240-5A, ZX240-5G, ZX240F-3, ZX240N-3, ZX240N-6, ZX250 LC, ZX250-5B, ZX250-6N, ZX250H-3, ZX250K-3, ZX260 LC, ZX260-3G, ZX270 LC, ZX280 LC, ZX280-5G, EX220-1, EX220-2, EX220-3, EX220-5, ZX240-3, ZX240HG, ZX250-2, ZX250-3, ZX270-3, ZX270-5, ZX240H, ZX240K, ZX240N, ZX280T, EX220, EX230, EX270, ZX230, ZX240, ZX250, ZX270, ZX280, ZX250LC-7H
Hyundai R250LC-7, R250LC-9, R290LC-7, R290LC-9, R305LC-7, 280LC
JCB JS240, JS260
John Deere 250G LCR, 230C LC, 270C LC, 270D LC, 230 LC, 270 LC, JD240, JD270, 230C, 250P, 250 P-Tier
Kato HD1430-3, HD1430X
Kobelco SK330NLC-V1, SK320LC-V1, SK330LC-V1, SK220LC-V, SK260LC-8, SK350LC-8, SK220MK5, SK250-8, SK330-8, SK220V, SK300, K909
Komatsu PC308US LC-3E0, PC360 LCI-11EO, PC360N LC-11E0, PC300 HD LC-3, PC300 HD LC-5, PC340 HRD-7E0, PC340N LC-6KJ, PC340N LC-7E0, PC360 LC-11E0, PC300 HD-6LC, PC300 HD-6LE, PC300 HD-6SL, PC300 HD-7E0, PC300 LC-5LC, PC300 LC-6LC, PC300 LC-6LE, PC300 LC-7E0, PC300 LC-7LE, PC300 LC-8M0, PC300 LCSE-7, PC300N LC-3K, PC300N LC-5K, PC308US LC-3, PC340 LC-6KJ, PC340 LC-7E0, PC340N LC-6K, PC340N LC-7K, PC350 LC-7E0, PC350 LC-8M0, PC350N LC-8K, PC360 LCI-11, PC360N LC-10, PC360N LC-11, PC380 LC-6KJ, PC390 LC-8M0, PC390 LCI-11, HB365 LC-3EO, PC300 HD-5L, PC300 HD-6E, PC300 HD-6L, PC300 HD-7L, PC300 LC-10, PC300 LC-5A, PC300 LC-5K, PC300 LC-5L, PC300 LC-6A, PC300 LC-6B, PC300 LC-6C, PC300 LC-6D, PC300 LC-6E, PC300 LC-6K, PC300 LC-6L, PC300 LC-6P, PC300 LC-6Z, PC300 LC-7E, PC300 LC-7L, PC300 LC-8L, PC300N LC-3, PC300N LC-5, PC300N LC-6, PC340 LC-6K, PC340 LC-7K, PC340 LCD-7, PC340N LC-6, PC340N LC-7, PC350 LC-10, PC350 LC-11, PC350 LC-6E, PC350 LC-6Z, PC350 LC-7E, PC350 LC-8K, PC350N LC-8, PC350NHRD-8, PC360 LC-10, PC360 LC-11, PC360 LC-5K, PC360 LC-6K, PC380 LC-6K, PC390 LC-10, PC390 LC-11, PC390HRD-11, HB365 NLC-3, PC300 HD-5, PC300 HD-6, PC300 HD-7, PC300 HD-8, PC300 LC-2, PC300 LC-3, PC300 LC-4, PC300 LC-5, PC300 LC-6, PC300 LC-7, PC300 LC-8, PC300 SE-6, PC300 SE-7, PC300 SE-8, PC308 LC-3, PC308 LC-7, PC308US LC, PC310 LC-5, PC340 LC-6, PC340 LC-7, PC340 LC-8, PC350 HD-8, PC350 LC-6, PC350 LC-7, PC350 LC-8, PC360 LC-3, PC360 LC-5, PC360-11M0, PC380 LC-6, PC380 LC-7, HB365 LC-3, PC300-2C5, PC300-7E0, PC300-8M0, PC300LC-8, PC300LL-6, PC300LL-7, PC300N LC, PC340N LC, PC350-7E0, PC350-8M0, PC360-8M0, PC360LC-5, PC380 LCD, PC300 HD, PC300 LC, PC300 SE, PC300-3B, PC300-5A, PC300-5C, PC300-5K, PC300-5L, PC300-6A, PC300-6E, PC300-6L, PC300-6Z, PC300L-5, PC310 LC, PC330 LC, PC340 LC, PC340-6K, PC350 LC, PC350-10, PC350-6E, PC350-6Z, PC360 LC, PC300-1, PC300-2, PC300-3, PC300-4, PC300-5, PC300-6, PC300-7, PC300-8, PC310-5, PC330-3, PC340-6, PC340-7, PC350-6, PC350-7, PC350-8, PC360-3, PC360-5, PC360-7, HB365-3, PC300L, PC300N, PC380U, PC300, PC308, PC310, PC340, PC350, PC360, PC380
Linkbelt LB400Q/330LX, 235 X3 LC, 240 LX LF, 290 X2 LF, 260 X4S, 355 X4S, LS330LX, LS4300Q, 235 X3, 240 LX, 240 X2, 240 X4, 250 X3, 250 X4, 290 LX, 290 X2, 300 X3, 300 X4, 330 LX, 350 X2, 350 X3, 350 X4
Samsung SE280LC
Sany SY305H, SY235, SY240, SY245, SY255, SY265, SY285, SY305, SY315, SY330, SY335, SY235C PRO, SY240C-9HD, SY245C-9LR, SY245H PRO, SY235C LC, SY265C LC, SY305C LC, SY335C LC, SY235C-9, SY235CLR, SY285C-9, SY265CLR, SY335C-9, SY230C, SY235C, SY235H, SY245H, SY265C, SY310C, SY335C, SY335H
Sumitomo SH240-5, SH300-2, SH300-5, SH330-5, SH220
Volvo EC280 N LC, EC290 LC-3, EC290B LC, EC290C LC, EC300D LC, SE240LC-3, SE280LC-3, EC280 LC, EC290 LC, EC300 LC, EC250DL, EC250EL, EC300DL, EC300EL, ECR305C, MX255LS, MX295LS, EC240B, EC240C, EC250D, EC280N, EC290B, EC290C, EC300D, EC240, EC250, EC280, EC290, EC300

54" Bucket

Brand

Model
Case CX240E NHD, CX245D MSR, CX350DN LC, CX240B LR, CX250C LC, CX250D LR, CX260E LR, CX290B LC, CX350D LR, CX365E SR, CX235CSR, CX240 LC, CX240 LR, CX245DSR, CX290 LC, CX330 LC, CX350 LC, CX230B, CX230C, CX230D, CX235C, CX240B, CX240C, CX240D, CX250C, CX250D, CX250E, CX260C, CX260E, CX290B, CX300C, CX300D, CX300E, CX330B, CX350B, CX350C, CX350D, CX360B, CX370B, CX370C, CX370D, CX380C, CX380D, 9050B, CX230, CX240, CX290, CX350, CX360, CX370
Caterpillar 325L D Linkage, 324DLN VA, 329DLN VA, 324DL LR, 324DL ME, 324EL LR, 329DL LR, 329DL ME, 329DL VA, 329E LRE, 324D FM, 324D LR, 324E LN, 324E LR, 329D CS, 329E LR, 324DLN, 326D2L, 326FLN, 329D2L, 329DLN, 329ELN, 330 GC, 324CL, 324DL, 324EL, 324FL, 325 D, 326D2, 326DL, 326FL, 326GC, 328 D, 329DL, 329EL, 329FL, 330BL, 330D2, 330GC, M325B, 324E, 326F, 329D, 329E, 329F, 330C, 330D, 325, 326, 330, 335
Daewoo S280-111, S300LC-V, S290, S320
Doosan S 280 LC III, DX260 LC-9C, DX255 LC-3, DX255 LC-5, DX260 LCA, DX255 LC, DX260 LC, DX300LC, S290 LC, S290 LL, S300
Hitachi ZX245US LC-5N, ZX245US LC-6N, ZX245US LC-7H, ZX245US LC-5, ZX245US LC-6, ZX245US LC-7, ZX250 LCH-3G, ZX250 LCH-5A, ZX250 LCK-3G, ZX250 LCN-5B, ZX230LC - 2, ZX240 LC-3G, ZX250 LC-5B, ZX250 LC-5G, ZX250 LC-5N, ZX250 LC-6N, ZX250 LCH-3, ZX250 LCK-3, ZX250 LCN-3, ZX250 LCN-5, ZX250 LCN-6, ZX280 LC-5G, ZX280 LCH-3, ZX280 LCN-3, ZX230 LC-5, ZX240 LC-3, ZX250 LC-3, ZX250 LC-5, ZX250 LC-6, ZX260LC-5B, ZX270 LC-2, ZX270 LC-3, ZX270 LC-5, ZX280 LC-3, ZX230C LC, ZX230LC-3, ZX240 LCH, ZX240 LCK, ZX240 LCN, ZX240LC-3, ZX240N-5B, ZX240NM-3, ZX250 LCN, ZX250H-3G, ZX250K-3G, ZX250LC-3, ZX280 LCH, ZX280 LCN, ZX230 LC, ZX230 TN, ZX240 LC, ZX240-3G, ZX240-5A, ZX240-5G, ZX240F-3, ZX240N-3, ZX240N-6, ZX250 LC, ZX250-5B, ZX250-6N, ZX250H-3, ZX250K-3, ZX260 LC, ZX260-3G, ZX270 LC, ZX280 LC, ZX280-5G, EX220-1, EX220-2, EX220-3, EX220-5, ZX240-3, ZX240HG, ZX250-2, ZX250-3, ZX270-3, ZX270-5, ZX240H, ZX240K, ZX240N, ZX280T, EX220, EX230, EX270, ZX230, ZX240, ZX250, ZX270, ZX280, ZX250LC-7H
Hyundai R250LC-7, R250LC-9, R290LC-7, R290LC-9, R305LC-7, 280LC
JCB JS240, JS260
John Deere 250G LCR, 230C LC, 270C LC, 270D LC, 230 LC, 270 LC, JD240, JD270, 230C, 250P, 250 P-Tier
Kato HD1430-3, HD1430X
Kobelco SK330NLC-V1, SK320LC-V1, SK330LC-V1, SK220LC-V, SK260LC-8, SK350LC-8, SK220MK5, SK250-8, SK330-8, SK220V, SK300, K909
Komatsu PC308US LC-3E0, PC360 LCI-11EO, PC360N LC-11E0, PC300 HD LC-3, PC300 HD LC-5, PC340 HRD-7E0, PC340N LC-6KJ, PC340N LC-7E0, PC360 LC-11E0, PC300 HD-6LC, PC300 HD-6LE, PC300 HD-6SL, PC300 HD-7E0, PC300 LC-5LC, PC300 LC-6LC, PC300 LC-6LE, PC300 LC-7E0, PC300 LC-7LE, PC300 LC-8M0, PC300 LCSE-7, PC300N LC-3K, PC300N LC-5K, PC308US LC-3, PC340 LC-6KJ, PC340 LC-7E0, PC340N LC-6K, PC340N LC-7K, PC350 LC-7E0, PC350 LC-8M0, PC350N LC-8K, PC360 LCI-11, PC360N LC-10, PC360N LC-11, PC380 LC-6KJ, PC390 LC-8M0, PC390 LCI-11, HB365 LC-3EO, PC300 HD-5L, PC300 HD-6E, PC300 HD-6L, PC300 HD-7L, PC300 LC-10, PC300 LC-5A, PC300 LC-5K, PC300 LC-5L, PC300 LC-6A, PC300 LC-6B, PC300 LC-6C, PC300 LC-6D, PC300 LC-6E, PC300 LC-6K, PC300 LC-6L, PC300 LC-6P, PC300 LC-6Z, PC300 LC-7E, PC300 LC-7L, PC300 LC-8L, PC300N LC-3, PC300N LC-5, PC300N LC-6, PC340 LC-6K, PC340 LC-7K, PC340 LCD-7, PC340N LC-6, PC340N LC-7, PC350 LC-10, PC350 LC-11, PC350 LC-6E, PC350 LC-6Z, PC350 LC-7E, PC350 LC-8K, PC350N LC-8, PC350NHRD-8, PC360 LC-10, PC360 LC-11, PC360 LC-5K, PC360 LC-6K, PC380 LC-6K, PC390 LC-10, PC390 LC-11, PC390HRD-11, HB365 NLC-3, PC300 HD-5, PC300 HD-6, PC300 HD-7, PC300 HD-8, PC300 LC-2, PC300 LC-3, PC300 LC-4, PC300 LC-5, PC300 LC-6, PC300 LC-7, PC300 LC-8, PC300 SE-6, PC300 SE-7, PC300 SE-8, PC308 LC-3, PC308 LC-7, PC308US LC, PC310 LC-5, PC340 LC-6, PC340 LC-7, PC340 LC-8, PC350 HD-8, PC350 LC-6, PC350 LC-7, PC350 LC-8, PC360 LC-3, PC360 LC-5, PC360-11M0, PC380 LC-6, PC380 LC-7, HB365 LC-3, PC300-2C5, PC300-7E0, PC300-8M0, PC300LC-8, PC300LL-6, PC300LL-7, PC300N LC, PC340N LC, PC350-7E0, PC350-8M0, PC360-8M0, PC360LC-5, PC380 LCD, PC300 HD, PC300 LC, PC300 SE, PC300-3B, PC300-5A, PC300-5C, PC300-5K, PC300-5L, PC300-6A, PC300-6E, PC300-6L, PC300-6Z, PC300L-5, PC310 LC, PC330 LC, PC340 LC, PC340-6K, PC350 LC, PC350-10, PC350-6E, PC350-6Z, PC360 LC, PC300-1, PC300-2, PC300-3, PC300-4, PC300-5, PC300-6, PC300-7, PC300-8, PC310-5, PC330-3, PC340-6, PC340-7, PC350-6, PC350-7, PC350-8, PC360-3, PC360-5, PC360-7, HB365-3, PC300L, PC300N, PC380U, PC300, PC308, PC310, PC340, PC350, PC360, PC380
Linkbelt LB400Q/330LX, 235 X3 LC, 240 LX LF, 290 X2 LF, 260 X4S, 355 X4S, LS330LX, LS4300Q, 235 X3, 240 LX, 240 X2, 240 X4, 250 X3, 250 X4, 290 LX, 290 X2, 300 X3, 300 X4, 330 LX, 350 X2, 350 X3, 350 X4
Samsung SE280LC
Sany SY305H, SY235, SY240, SY245, SY255, SY265, SY285, SY305, SY315, SY330, SY335, SY235C PRO, SY240C-9HD, SY245C-9LR, SY245H PRO, SY235C LC, SY265C LC, SY305C LC, SY335C LC, SY235C-9, SY235CLR, SY285C-9, SY265CLR, SY335C-9, SY230C, SY235C, SY235H, SY245H, SY265C, SY310C, SY335C, SY335H
Sumitomo SH240-5, SH300-2, SH300-5, SH330-5, SH220
Volvo EC280 N LC, EC290 LC-3, EC290B LC, EC290C LC, EC300D LC, SE240LC-3, SE280LC-3, EC280 LC, EC290 LC, EC300 LC, EC250DL, EC250EL, EC300DL, EC300EL, ECR305C, MX255LS, MX295LS, EC240B, EC240C, EC250D, EC280N, EC290B, EC290C, EC300D, EC240, EC250, EC280, EC290, EC300

48" Bucket

Brand

Model
Case CX240E NHD, CX245D MSR, CX350DN LC, CX240B LR, CX250C LC, CX250D LR, CX260E LR, CX290B LC, CX350D LR, CX365E SR, CX235CSR, CX240 LC, CX240 LR, CX245DSR, CX290 LC, CX330 LC, CX350 LC, CX230B, CX230C, CX230D, CX235C, CX240B, CX240C, CX240D, CX250C, CX250D, CX250E, CX260C, CX260E, CX290B, CX300C, CX300D, CX300E, CX330B, CX350B, CX350C, CX350D, CX360B, CX370B, CX370C, CX370D, CX380C, CX380D, 9050B, CX230, CX240, CX290, CX350, CX360, CX370
Caterpillar 325L D Linkage, 324DLN VA, 329DLN VA, 324DL LR, 324DL ME, 324EL LR, 329DL LR, 329DL ME, 329DL VA, 329E LRE, 324D FM, 324D LR, 324E LN, 324E LR, 329D CS, 329E LR, 324DLN, 326D2L, 326FLN, 329D2L, 329DLN, 329ELN, 330 GC, 324CL, 324DL, 324EL, 324FL, 325 D, 326D2, 326DL, 326FL, 326GC, 328 D, 329DL, 329EL, 329FL, 330BL, 330D2, 330GC, M325B, 324E, 326F, 329D, 329E, 329F, 330C, 330D, 325, 326, 330, 335
Daewoo S280-111, S300LC-V, S290, S320
Doosan S 280 LC III, DX260 LC-9C, DX255 LC-3, DX255 LC-5, DX260 LCA, DX255 LC, DX260 LC, DX300LC, S290 LC, S290 LL, S300
Hitachi ZX245US LC-5N, ZX245US LC-6N, ZX245US LC-7H, ZX245US LC-5, ZX245US LC-6, ZX245US LC-7, ZX250 LCH-3G, ZX250 LCH-5A, ZX250 LCK-3G, ZX250 LCN-5B, ZX230LC - 2, ZX240 LC-3G, ZX250 LC-5B, ZX250 LC-5G, ZX250 LC-5N, ZX250 LC-6N, ZX250 LCH-3, ZX250 LCK-3, ZX250 LCN-3, ZX250 LCN-5, ZX250 LCN-6, ZX280 LC-5G, ZX280 LCH-3, ZX280 LCN-3, ZX230 LC-5, ZX240 LC-3, ZX250 LC-3, ZX250 LC-5, ZX250 LC-6, ZX260LC-5B, ZX270 LC-2, ZX270 LC-3, ZX270 LC-5, ZX280 LC-3, ZX230C LC, ZX230LC-3, ZX240 LCH, ZX240 LCK, ZX240 LCN, ZX240LC-3, ZX240N-5B, ZX240NM-3, ZX250 LCN, ZX250H-3G, ZX250K-3G, ZX250LC-3, ZX280 LCH, ZX280 LCN, ZX230 LC, ZX230 TN, ZX240 LC, ZX240-3G, ZX240-5A, ZX240-5G, ZX240F-3, ZX240N-3, ZX240N-6, ZX250 LC, ZX250-5B, ZX250-6N, ZX250H-3, ZX250K-3, ZX260 LC, ZX260-3G, ZX270 LC, ZX280 LC, ZX280-5G, EX220-1, EX220-2, EX220-3, EX220-5, ZX240-3, ZX240HG, ZX250-2, ZX250-3, ZX270-3, ZX270-5, ZX240H, ZX240K, ZX240N, ZX280T, EX220, EX230, EX270, ZX230, ZX240, ZX250, ZX270, ZX280, ZX250LC-7H
Hyundai R250LC-7, R250LC-9, R290LC-7, R290LC-9, R305LC-7, 280LC
JCB JS240, JS260
John Deere 250G LCR, 230C LC, 270C LC, 270D LC, 230 LC, 270 LC, JD240, JD270, 230C, 250P, 250 P-Tier
Kato HD1430-3, HD1430X
Kobelco SK330NLC-V1, SK320LC-V1, SK330LC-V1, SK220LC-V, SK260LC-8, SK350LC-8, SK220MK5, SK250-8, SK330-8, SK220V, SK300, K909
Komatsu PC308US LC-3E0, PC360 LCI-11EO, PC360N LC-11E0, PC300 HD LC-3, PC300 HD LC-5, PC340 HRD-7E0, PC340N LC-6KJ, PC340N LC-7E0, PC360 LC-11E0, PC300 HD-6LC, PC300 HD-6LE, PC300 HD-6SL, PC300 HD-7E0, PC300 LC-5LC, PC300 LC-6LC, PC300 LC-6LE, PC300 LC-7E0, PC300 LC-7LE, PC300 LC-8M0, PC300 LCSE-7, PC300N LC-3K, PC300N LC-5K, PC308US LC-3, PC340 LC-6KJ, PC340 LC-7E0, PC340N LC-6K, PC340N LC-7K, PC350 LC-7E0, PC350 LC-8M0, PC350N LC-8K, PC360 LCI-11, PC360N LC-10, PC360N LC-11, PC380 LC-6KJ, PC390 LC-8M0, PC390 LCI-11, HB365 LC-3EO, PC300 HD-5L, PC300 HD-6E, PC300 HD-6L, PC300 HD-7L, PC300 LC-10, PC300 LC-5A, PC300 LC-5K, PC300 LC-5L, PC300 LC-6A, PC300 LC-6B, PC300 LC-6C, PC300 LC-6D, PC300 LC-6E, PC300 LC-6K, PC300 LC-6L, PC300 LC-6P, PC300 LC-6Z, PC300 LC-7E, PC300 LC-7L, PC300 LC-8L, PC300N LC-3, PC300N LC-5, PC300N LC-6, PC340 LC-6K, PC340 LC-7K, PC340 LCD-7, PC340N LC-6, PC340N LC-7, PC350 LC-10, PC350 LC-11, PC350 LC-6E, PC350 LC-6Z, PC350 LC-7E, PC350 LC-8K, PC350N LC-8, PC350NHRD-8, PC360 LC-10, PC360 LC-11, PC360 LC-5K, PC360 LC-6K, PC380 LC-6K, PC390 LC-10, PC390 LC-11, PC390HRD-11, HB365 NLC-3, PC300 HD-5, PC300 HD-6, PC300 HD-7, PC300 HD-8, PC300 LC-2, PC300 LC-3, PC300 LC-4, PC300 LC-5, PC300 LC-6, PC300 LC-7, PC300 LC-8, PC300 SE-6, PC300 SE-7, PC300 SE-8, PC308 LC-3, PC308 LC-7, PC308US LC, PC310 LC-5, PC340 LC-6, PC340 LC-7, PC340 LC-8, PC350 HD-8, PC350 LC-6, PC350 LC-7, PC350 LC-8, PC360 LC-3, PC360 LC-5, PC360-11M0, PC380 LC-6, PC380 LC-7, HB365 LC-3, PC300-2C5, PC300-7E0, PC300-8M0, PC300LC-8, PC300LL-6, PC300LL-7, PC300N LC, PC340N LC, PC350-7E0, PC350-8M0, PC360-8M0, PC360LC-5, PC380 LCD, PC300 HD, PC300 LC, PC300 SE, PC300-3B, PC300-5A, PC300-5C, PC300-5K, PC300-5L, PC300-6A, PC300-6E, PC300-6L, PC300-6Z, PC300L-5, PC310 LC, PC330 LC, PC340 LC, PC340-6K, PC350 LC, PC350-10, PC350-6E, PC350-6Z, PC360 LC, PC300-1, PC300-2, PC300-3, PC300-4, PC300-5, PC300-6, PC300-7, PC300-8, PC310-5, PC330-3, PC340-6, PC340-7, PC350-6, PC350-7, PC350-8, PC360-3, PC360-5, PC360-7, HB365-3, PC300L, PC300N, PC380U, PC300, PC308, PC310, PC340, PC350, PC360, PC380
Linkbelt LB400Q/330LX, 235 X3 LC, 240 LX LF, 290 X2 LF, 260 X4S, 355 X4S, LS330LX, LS4300Q, 235 X3, 240 LX, 240 X2, 240 X4, 250 X3, 250 X4, 290 LX, 290 X2, 300 X3, 300 X4, 330 LX, 350 X2, 350 X3, 350 X4
Samsung SE280LC
Sany SY305H, SY235, SY240, SY245, SY255, SY265, SY285, SY305, SY315, SY330, SY335, SY235C PRO, SY240C-9HD, SY245C-9LR, SY245H PRO, SY235C LC, SY265C LC, SY305C LC, SY335C LC, SY235C-9, SY235CLR, SY285C-9, SY265CLR, SY335C-9, SY230C, SY235C, SY235H, SY245H, SY265C, SY310C, SY335C, SY335H
Sumitomo SH240-5, SH300-2, SH300-5, SH330-5, SH220
Volvo EC280 N LC, EC290 LC-3, EC290B LC, EC290C LC, EC300D LC, SE240LC-3, SE280LC-3, EC280 LC, EC290 LC, EC300 LC, EC250DL, EC250EL, EC300DL, EC300EL, ECR305C, MX255LS, MX295LS, EC240B, EC240C, EC250D, EC280N, EC290B, EC290C, EC300D, EC240, EC250, EC280, EC290, EC300
