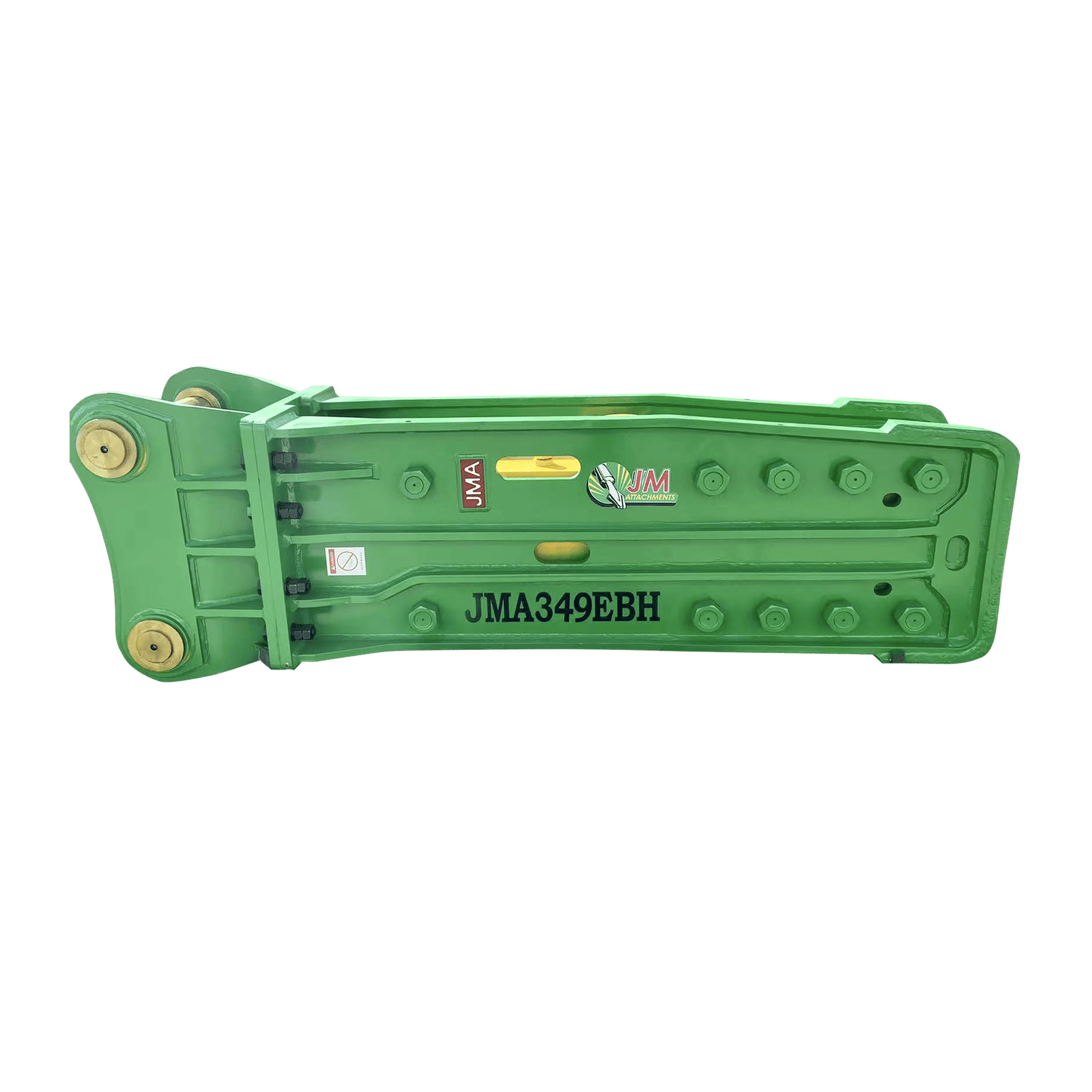

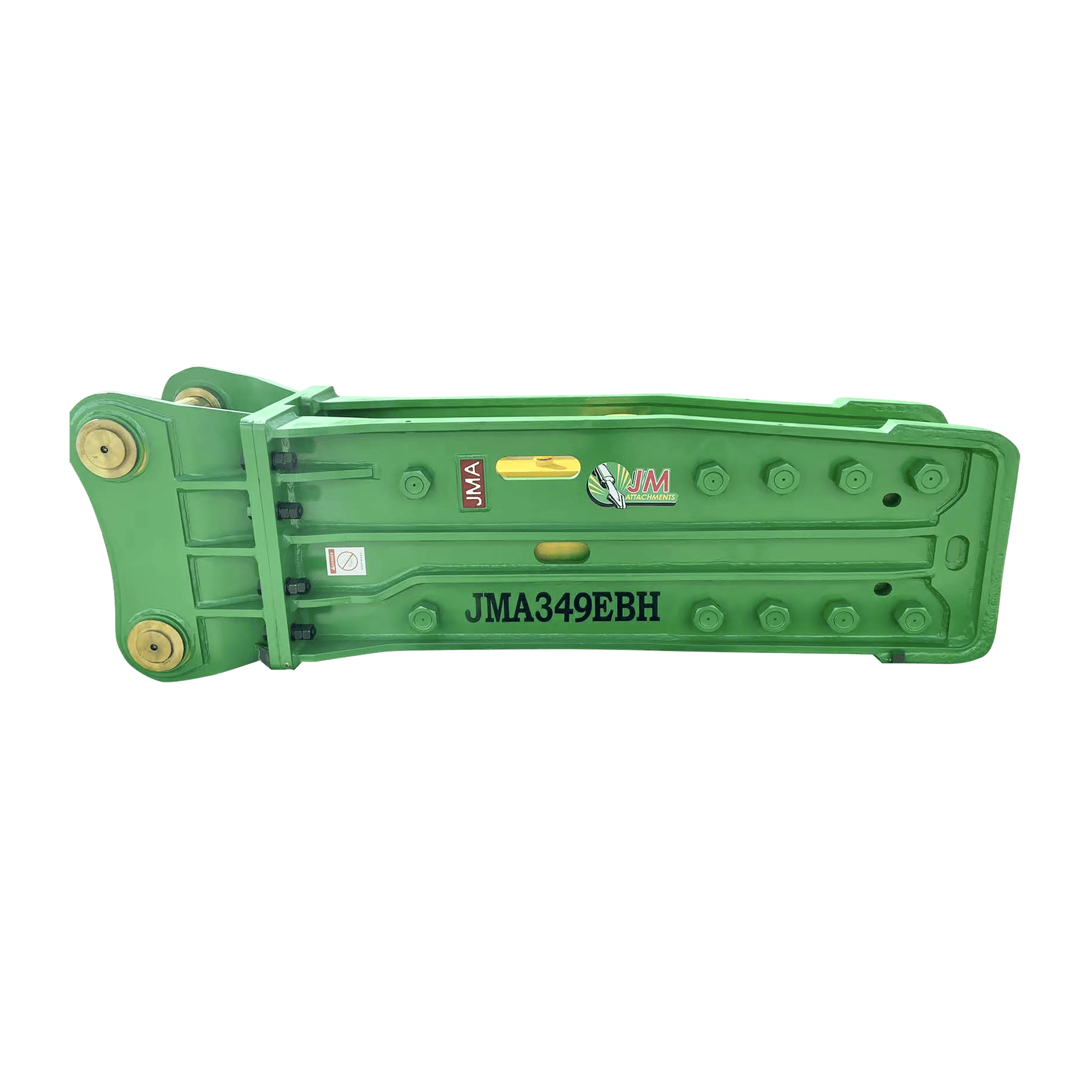

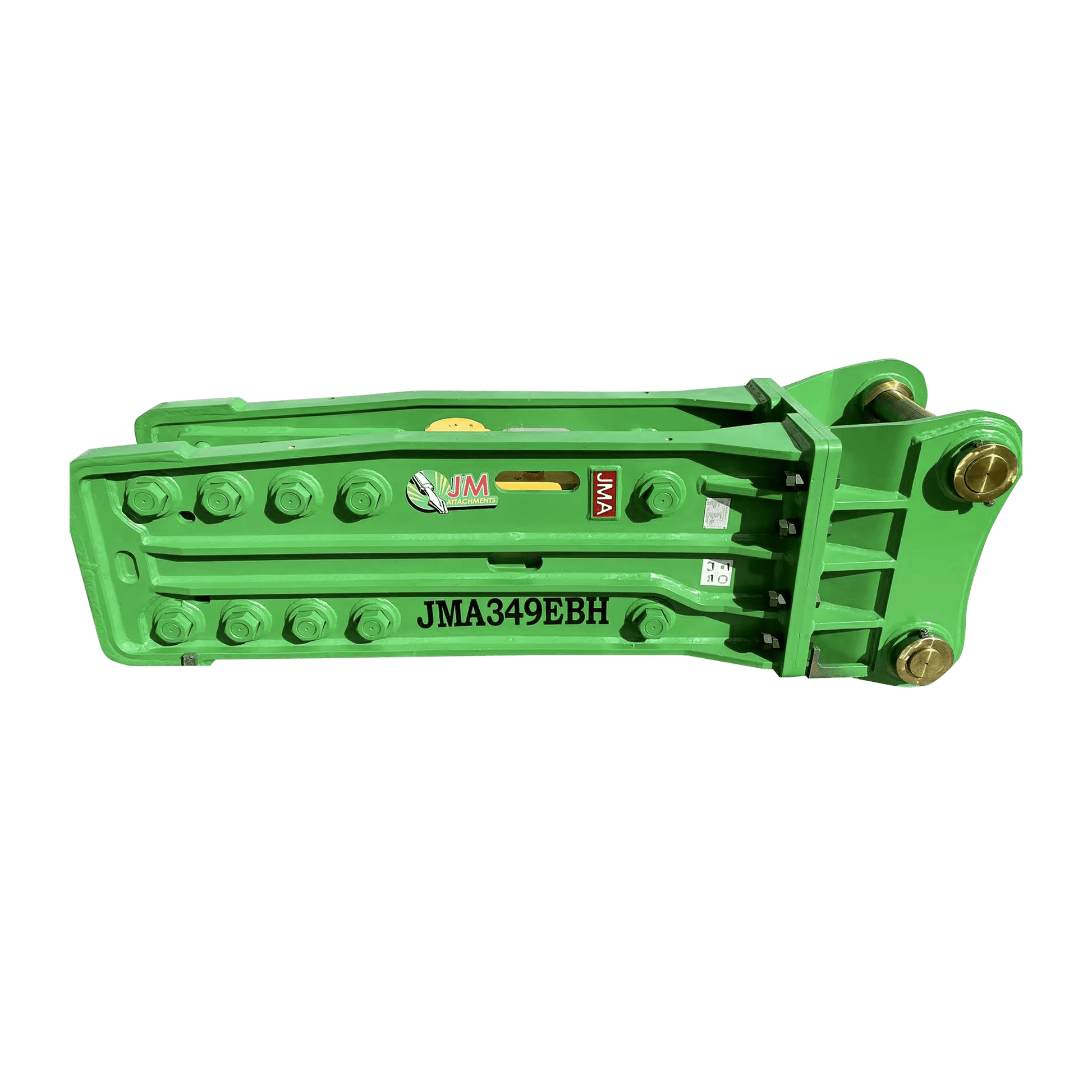

JMA Attachments Hydraulic Hammer | Energy Class 13,500 Joules | For 33 – 55 Tons Excavators
JMA Attachments Hydraulic Hammer | Energy Class 13,500 Joules | For 33 – 55 Tons Excavators
Regular price
$26,396.70
Regular price
Sale price
$26,396.70
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
JMA Attachments Hydraulic Hammer | Energy Class 13,500 Joules | For 33 – 55 Tons Excavators
Description
Experience breakthrough performance with the 13,500 Joules Hydraulic Hammer for 33 - 55 Tons Excavators. Equipped with 110mm | 100mm pins, this hydraulic hammer is tailored to unlock unparalleled productivity in demolition and breaking applications. Built with AR400 steel, it ensures reliability in the toughest environments. With a powerful 13,000 Joules energy class and a rapid-fire impact frequency of 200 - 350 bpm, it accelerates project timelines. The versatile application makes it ideal for primary demolition, secondary breaking, and recycling operations. The comprehensive toolkit includes 2 hydraulic hoses, 1 moil rock chisel bit, 1 wedge rock chisel bit, a toolbox, nitrogen gauge, nitrogen bottle, repair seal kit, 2 greasable pins, and 4 bushings for immediate operation.
Key Features
- Powerful Breaking Force: 13,000 Joules energy class for superior material processing.
- Rapid-Fire Action: 200 - 350 bpm impact frequency accelerates project timelines.
- Built for Extreme Conditions: AR400 Steel construction ensures reliability in the toughest environments.
- Versatile Application: Ideal for primary demolition, secondary breaking, and recycling operations.
- Comprehensive Toolkit: Includes 2 Hydraulic Hoses, 1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, and 4 Bushings for immediate operation.
- Note: Pins are included.
Detailed Specifications
| Details | Specifications |
|---|---|
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Energy Class (J) | 13,000 Joules |
| Energy Class (ft·lb) | 9,588.31 ft·lb |
| Impact Frequency (bpm) | 200 - 350 bpm |
| Operating Pressure (kgf/m²) | 180 - 200 kgf/m² |
| Operating Pressure (lbs/ft²) | 36.87 - 40.96 lb/ft² |
| Oil Flow (GPM) | 52.83 – 68.68 gpm |
| Tool Chisel Bit Diameter (mm) | 175 mm |
| Tool Chisel Bit Length (mm) | 1600 mm |
| Working Weight (kg) | 4057 kg |
| Accessories Included | 2 Hydraulic Hoses, 1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings |
| Front Pin Diameter (mm) | 110 mm |
| Rear Pin Diameter (mm) | 100 mm |
| Front Ear to Ear Distance (mm) | 442 mm |
| Rear Ear to Ear Distance (mm) | 442 mm |
| Center to Center Distance (mm) | 587 mm |
| Carrier Weight Class (tn) | 33 - 55 Tons |
| Carrier Weight Class (lbs) | 66,000 - 110,000 lbs |
| Product Weight (lbs) | 7,735.54 lb |
| Product Weight (kg) | 3,508.79 kg |
Fits To
| Brand | Model |
|---|---|
| Caterpillar | 345BL II UHD, 345BL LC VG, 345BL ME II, 349 NEW GEN, 345B LC II, 345BL GMX, 345BL UHD, 345DL UHD, 349D L XE, 349D2 LME, 349F L XE, 345BL II, 345BL LR, 345BL ME, 345C LRE, 345C UHD, 345CL ME, 345CL VG, 345DL ME, 345DL VG, 349D LME, 349E LME, 349EL VG, 352F LRE, 352F UHD, 345B II, 345B LC, 345C LC, 349E LR, 350L ME, 350L V2, 352F XE, 349D2L, 350 ME, 350 V2, 352LRE, 345 D, 345BL, 345CL, 345DL, 345GC, 349D2, 349DL, 349EL, 349FL, 352FL, 345B, 345C, 345D, 345L, 349D, 349E, 349F, 349L, 350L, 352F, 352L, 345, 349, 350, 352, 355 |
| Daewoo | S400LC-111, DX420 LC V, S420LC-V, S400 |
| Develon | DX420 LC-5, DX420 LC-7 |
| Doosan | DX420 LC-9C, DH420 LC-7, DX400 LC-5, DX420 LC-3, DX420 LC-5, DX420 LC-7, DX420 LC-9, DX420 LCA, S400 LC V, DX420LC, S420LC |
| Hitachi | EX400-1, EX400-3, EX400-5, ZX450-3, EX400, UH23 |
| John Deere | 470 P-TIER, 450C LC, 450D LC, 470G LC, 450 LC |
| Komatsu | 345BL |
| Samsung | SE350LC |
| Sany | SY500H, SY485, SY500, SY550, SY500HRD, SY415H, SY420C, SY465C, SY485H, SY550H |
| Volvo | EC340B LC, SE360LC-3, SE460LC-3, EC330 LC, EC340 LC, EC360 LC, EC320LC, EC330CL, EC340DL, EC350DL, EC350EL, EC360BL, EC360CL, EC360DL, EC380CL, EC380DL, EC380EL, MX365LS, MX455LS, EC330B, EC330C, EC340D, EC350D, EC350E, EC360B, EC360C, EC360D, EC380D, EC460B, EC460C, EC330, EC340, EC360, EC460 |
