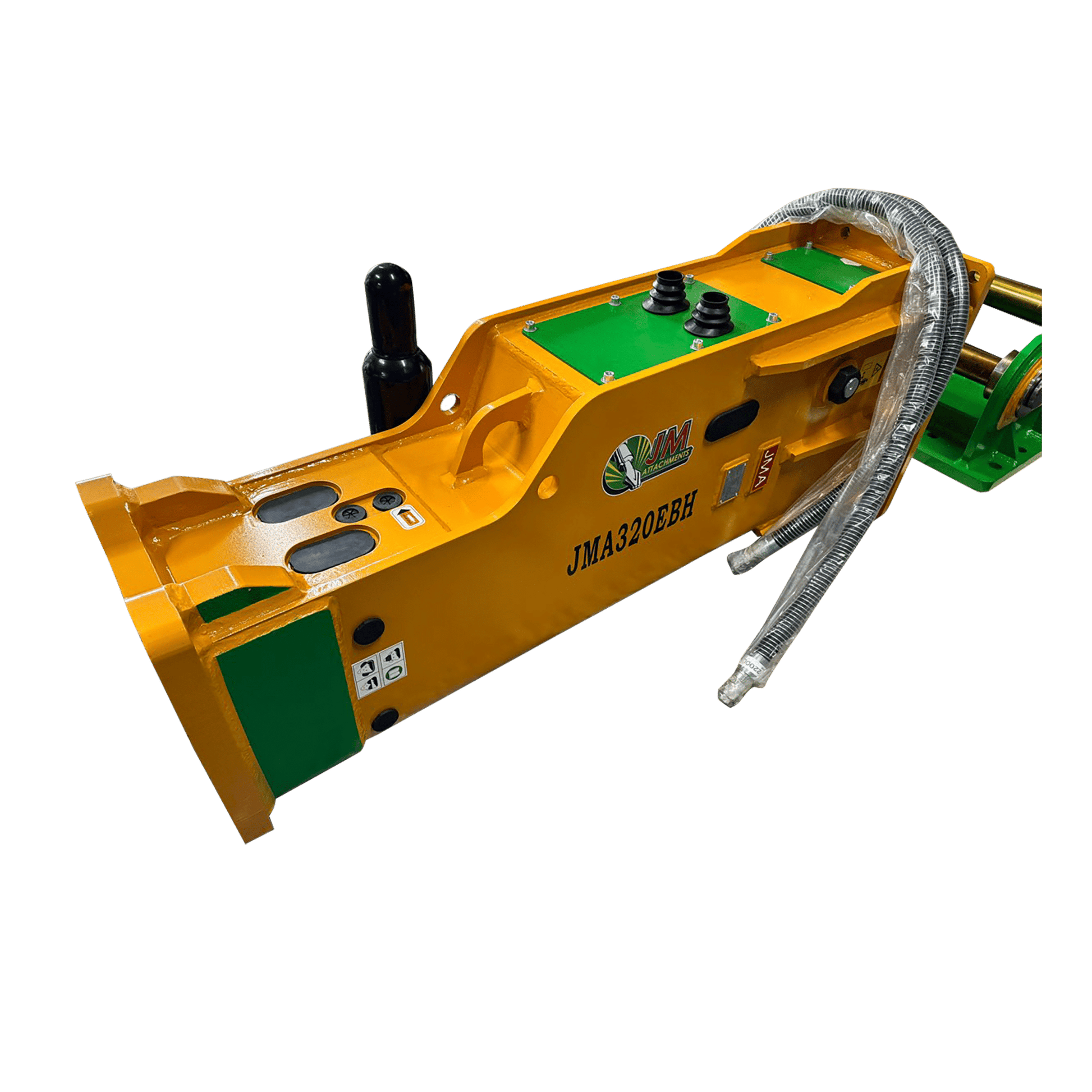

JMA Attachments Hydraulic Hammer | Energy Class 4,500 Joules | For 23 – 36 Tons Excavators
Description
Unleash unparalleled breaking power with the 4,500 Joules Hydraulic Hammer for 23 - 36 Tons Excavators. Equipped with 90mm pins, this high-performance hydraulic hammer is engineered to dominate demolition projects and maximize productivity in the most demanding job sites. Built with AR400 steel, it ensures unmatched durability and longevity. With a powerful 4,500 Joules energy class and a rapid-fire impact frequency of 350 - 500 bpm, it accelerates project timelines and enhances efficiency. Ideal for primary and secondary demolition, recycling, and breaking in various industries, this versatile tool comes with a comprehensive package of accessories for immediate deployment.
Key Features
- Exceptional Impact Strength: 4,500 Joules energy class ensures superior breaking capabilities.
- Rapid-Fire Performance: 350 - 500 bpm impact frequency for faster, more efficient demolition.
- Built Tough: Constructed with AR400 Steel for unmatched durability and longevity.
- Versatile Application: Ideal for primary and secondary demolition, recycling, and breaking in various industries.

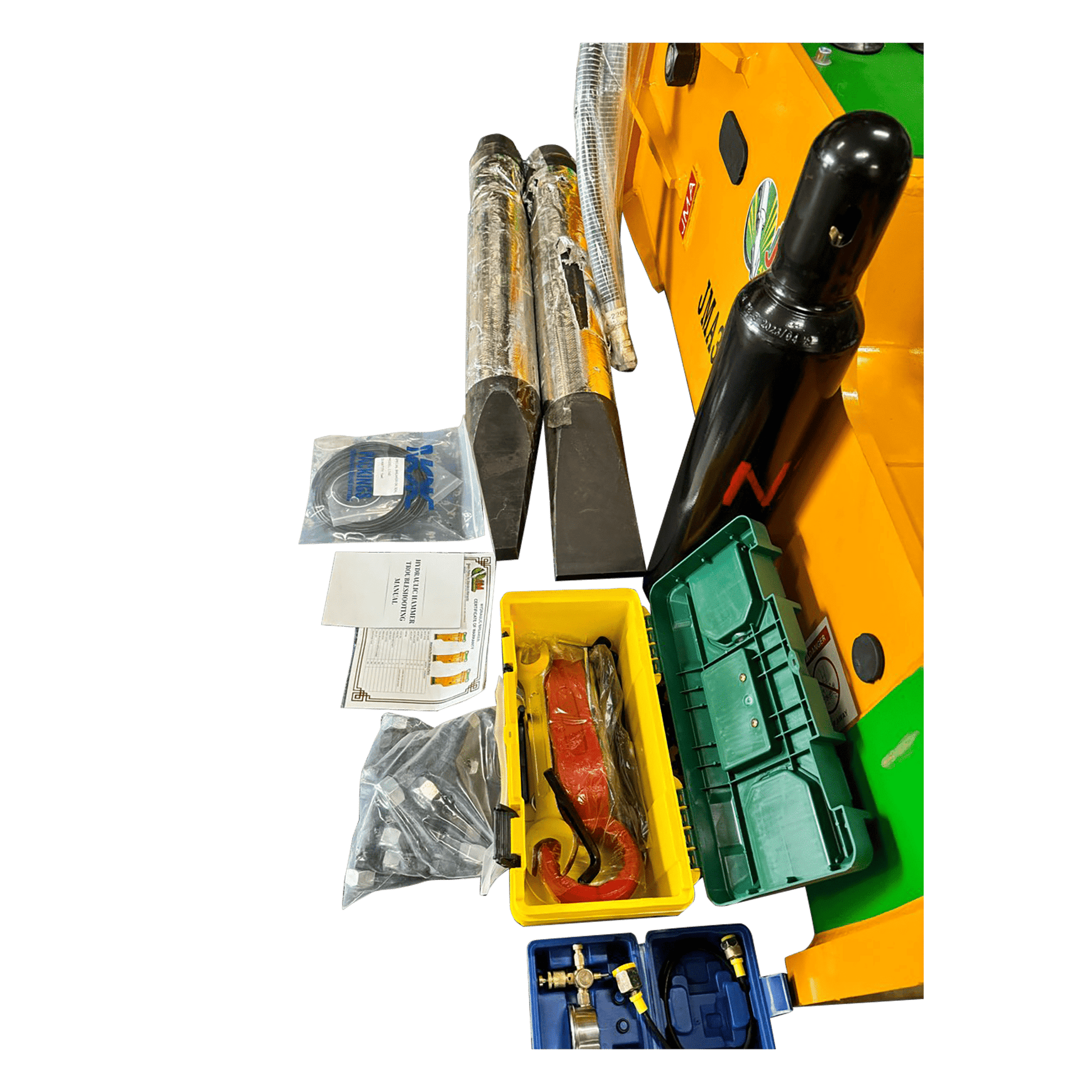

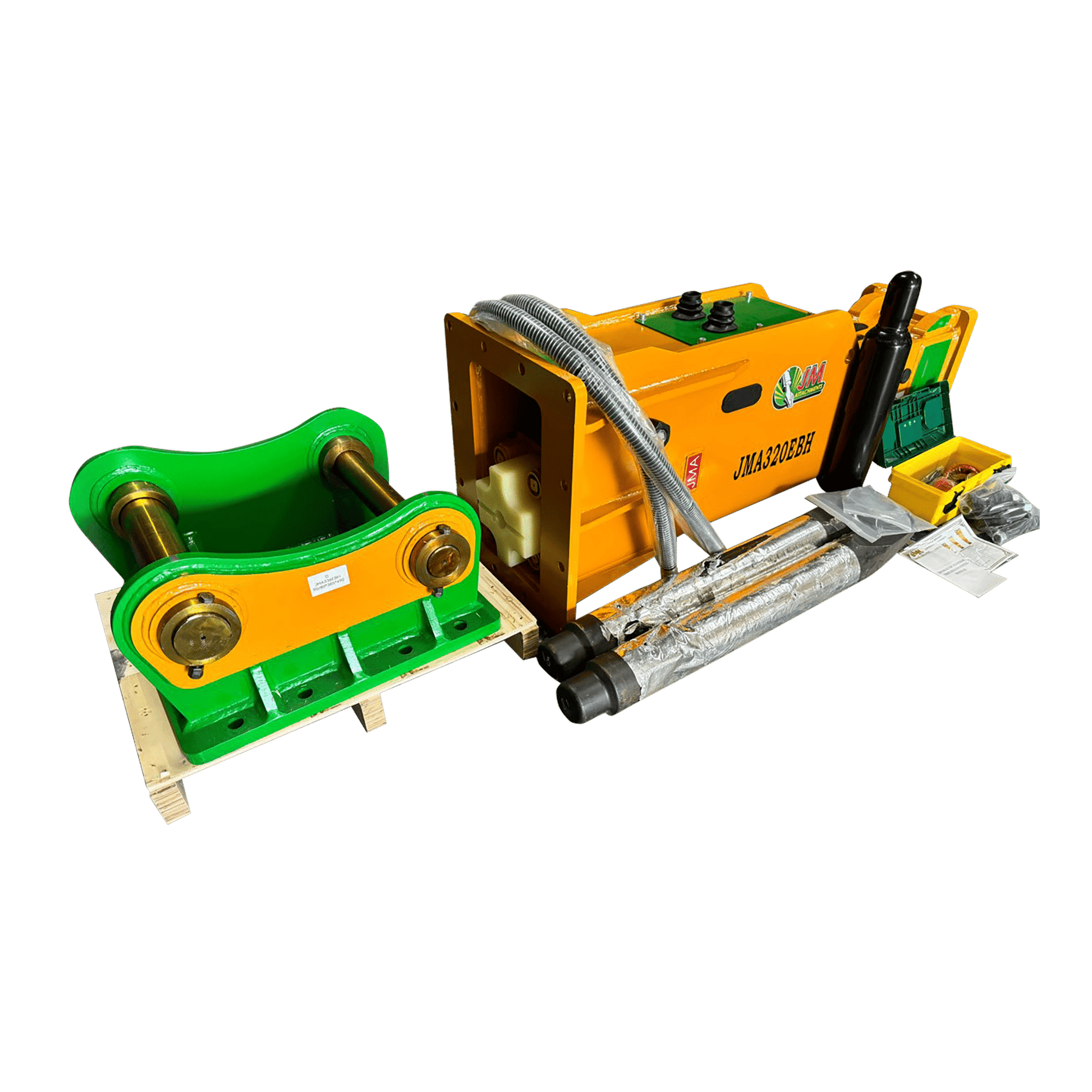

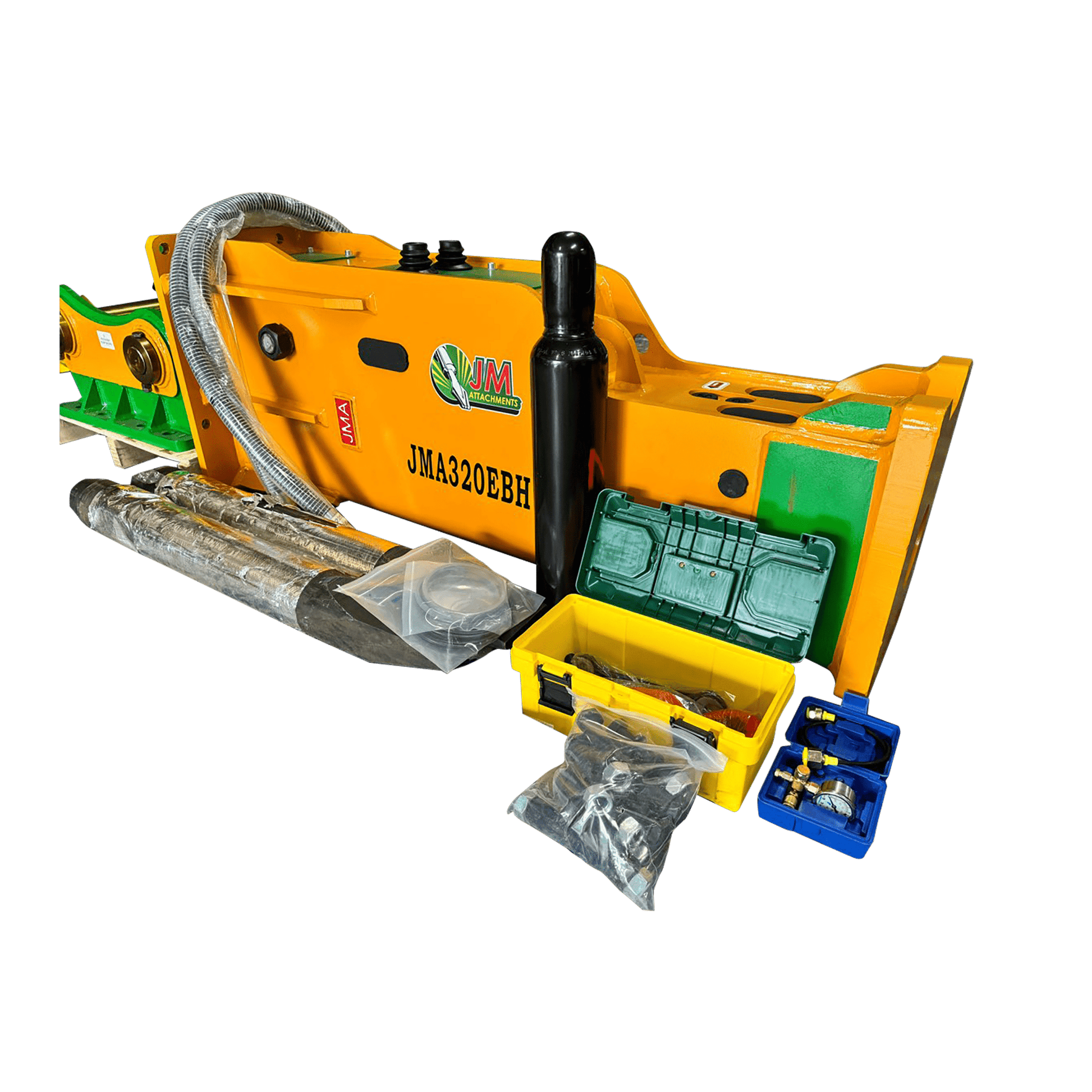

- Comprehensive Package: Includes 2 Hydraulic Hoses, 1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, and 4 Bushings for immediate deployment.
- Note: Pins are included.
Detailed Specifications
| Details | Specifications |
|---|---|
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Energy Class (J) | 4,500 Joules |
| Energy Class (ft·lb) | 3,319.03 ft·lb |
| Impact Frequency (bpm) | 350 - 500 bpm |
| Operating Pressure (kgf/m²) | 160 - 185 kgf/m² |
| Operating Pressure (lbs/ft²) | 32.77 - 37.89 lb/ft² |
| Oil Flow (GPM) | 31.70 – 47.55 gpm |
| Tool Chisel Bit Diameter (mm) | 140 mm |
| Tool Chisel Bit Length (mm) | 1300 mm |
| Working Weight (kg) | 1866 kg |
| Accessories Included | 2 Hydraulic Hoses, 1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings |

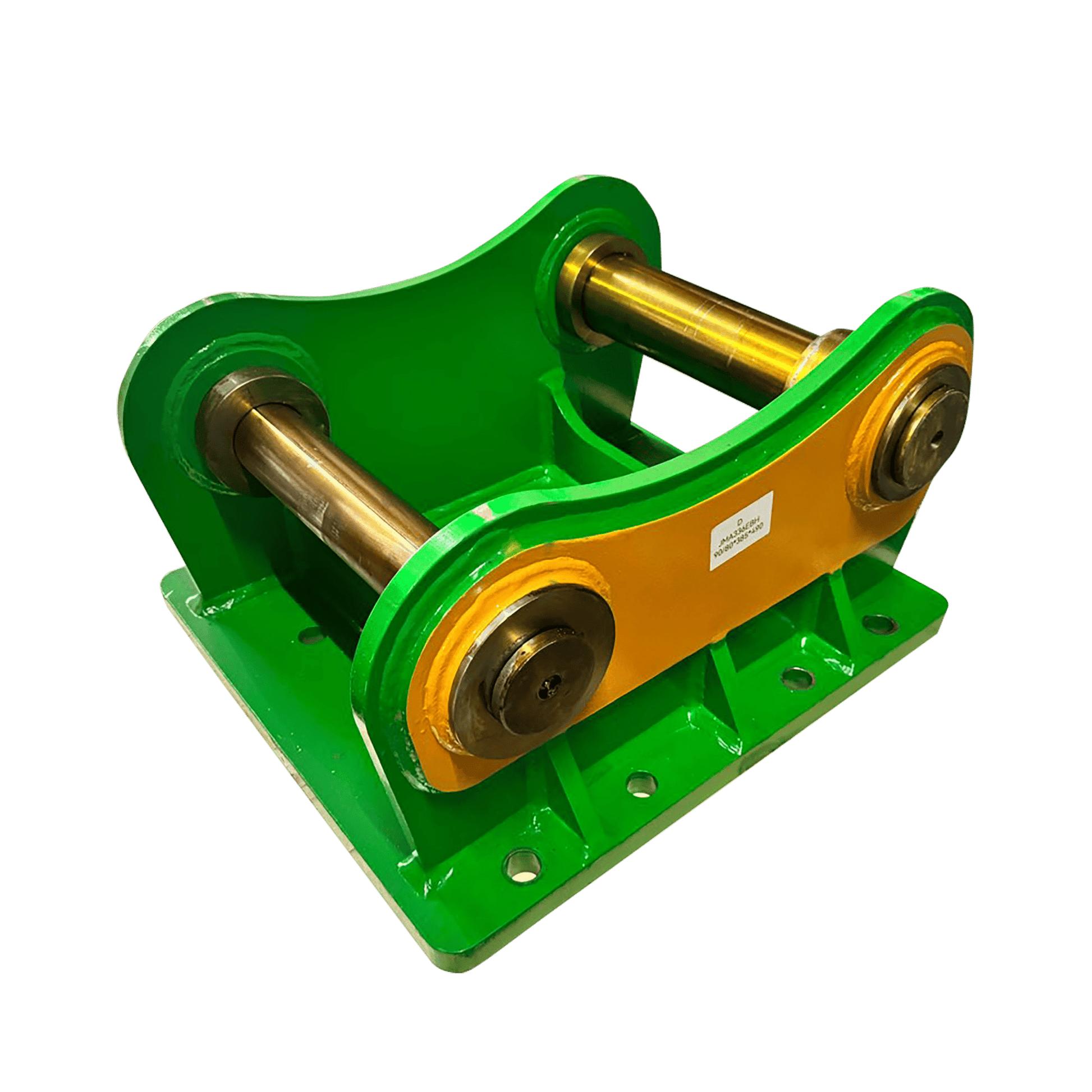

| Front Pin Diameter (mm) | 90 mm |
| Rear Pin Diameter (mm) | 90 mm |
| Front Ear to Ear Distance (mm) | 387 mm |
| Rear Ear to Ear Distance (mm) | 387 mm |
| Center to Center Distance (mm) | 485 mm |
| Carrier Weight Class (tn) | 23 - 36 Tons |
| Carrier Weight Class (lbs) | 46,000 - 72,000 lbs |
| Product Weight (lbs) | 3,901.70 lb |
| Product Weight (kg) | 1,769.78 kg |
Fits To
|
Brand |
Model |
|---|---|
| Case | CX240E NHD, CX245D MSR, CX350DN LC, CX240B LR, CX250C LC, CX250D LR, CX260E LR, CX290B LC, CX350D LR, CX365E SR, CX235CSR, CX240 LC, CX240 LR, CX245DSR, CX290 LC, CX330 LC, CX350 LC, CX230B, CX230C, CX230D, CX235C, CX240B, CX240C, CX240D, CX250C, CX250D, CX250E, CX260C, CX260E, CX290B, CX300C, CX300D, CX300E, CX330B, CX350B, CX350C, CX350D, CX360B, CX370B, CX370C, CX370D, CX380C, CX380D, 9050B, CX230, CX240, CX290, CX350, CX360, CX370 |
| Caterpillar | 325L D Linkage, 324DLN VA, 329DLN VA, 324DL LR, 324DL ME, 324EL LR, 329DL LR, 329DL ME, 329DL VA, 329E LRE, 324D FM, 324D LR, 324E LN, 324E LR, 329D CS, 329E LR, 324DLN, 326D2L, 326FLN, 329D2L, 329DLN, 329ELN, 330 GC, 324CL, 324DL, 324EL, 324FL, 325 D, 326D2, 326DL, 326FL, 326GC, 328 D, 329DL, 329EL, 329FL, 330BL, 330D2, 330GC, M325B, 324E, 326F, 329D, 329E, 329F, 330C, 330D, 325, 326, 330, 335 |
| Daewoo | S280-111, S300LC-V, S290, S320 |
| Doosan | S 280 LC III, DX260 LC-9C, DX255 LC-3, DX255 LC-5, DX260 LCA, DX255 LC, DX260 LC, DX300LC, S290 LC, S290 LL, S300 |
| Hitachi | ZX245US LC-5N, ZX245US LC-6N, ZX245US LC-7H, ZX245US LC-5, ZX245US LC-6, ZX245US LC-7, ZX250 LCH-3G, ZX250 LCH-5A, ZX250 LCK-3G, ZX250 LCN-5B, ZX230LC - 2, ZX240 LC-3G, ZX250 LC-5B, ZX250 LC-5G, ZX250 LC-5N, ZX250 LC-6N, ZX250 LCH-3, ZX250 LCK-3, ZX250 LCN-3, ZX250 LCN-5, ZX250 LCN-6, ZX280 LC-5G, ZX280 LCH-3, ZX280 LCN-3, ZX230 LC-5, ZX240 LC-3, ZX250 LC-3, ZX250 LC-5, ZX250 LC-6, ZX260LC-5B, ZX270 LC-2, ZX270 LC-3, ZX270 LC-5, ZX280 LC-3, ZX230C LC, ZX230LC-3, ZX240 LCH, ZX240 LCK, ZX240 LCN, ZX240LC-3, ZX240N-5B, ZX240NM-3, ZX250 LCN, ZX250H-3G, ZX250K-3G, ZX250LC-3, ZX280 LCH, ZX280 LCN, ZX230 LC, ZX230 TN, ZX240 LC, ZX240-3G, ZX240-5A, ZX240-5G, ZX240F-3, ZX240N-3, ZX240N-6, ZX250 LC, ZX250-5B, ZX250-6N, ZX250H-3, ZX250K-3, ZX260 LC, ZX260-3G, ZX270 LC, ZX280 LC, ZX280-5G, EX220-1, EX220-2, EX220-3, EX220-5, ZX240-3, ZX240HG, ZX250-2, ZX250-3, ZX270-3, ZX270-5, ZX240H, ZX240K, ZX240N, ZX280T, EX220, EX230, EX270, ZX230, ZX240, ZX250, ZX270, ZX280, ZX250LC-7H |
| Hyundai | R250LC-7, R250LC-9, R290LC-7, R290LC-9, R305LC-7, 280LC |
| JCB | JS240, JS260 |
| John Deere | 250G LCR, 230C LC, 270C LC, 270D LC, 230 LC, 270 LC, JD240, JD270, 230C, 250P, 250 P-Tier |
| Kato | HD1430-3, HD1430X |
| Kobelco | SK330NLC-V1, SK320LC-V1, SK330LC-V1, SK220LC-V, SK260LC-8, SK350LC-8, SK220MK5, SK250-8, SK330-8, SK220V, SK300, K909 |
| Komatsu | PC308US LC-3E0, PC360 LCI-11EO, PC360N LC-11E0, PC300 HD LC-3, PC300 HD LC-5, PC340 HRD-7E0, PC340N LC-6KJ, PC340N LC-7E0, PC360 LC-11E0, PC300 HD-6LC, PC300 HD-6LE, PC300 HD-6SL, PC300 HD-7E0, PC300 LC-5LC, PC300 LC-6LC, PC300 LC-6LE, PC300 LC-7E0, PC300 LC-7LE, PC300 LC-8M0, PC300 LCSE-7, PC300N LC-3K, PC300N LC-5K, PC308US LC-3, PC340 LC-6KJ, PC340 LC-7E0, PC340N LC-6K, PC340N LC-7K, PC350 LC-7E0, PC350 LC-8M0, PC350N LC-8K, PC360 LCI-11, PC360N LC-10, PC360N LC-11, PC380 LC-6KJ, PC390 LC-8M0, PC390 LCI-11, HB365 LC-3EO, PC300 HD-5L, PC300 HD-6E, PC300 HD-6L, PC300 HD-7L, PC300 LC-10, PC300 LC-5A, PC300 LC-5K, PC300 LC-5L, PC300 LC-6A, PC300 LC-6B, PC300 LC-6C, PC300 LC-6D, PC300 LC-6E, PC300 LC-6K, PC300 LC-6L, PC300 LC-6P, PC300 LC-6Z, PC300 LC-7E, PC300 LC-7L, PC300 LC-8L, PC300N LC-3, PC300N LC-5, PC300N LC-6, PC340 LC-6K, PC340 LC-7K, PC340 LCD-7, PC340N LC-6, PC340N LC-7, PC350 LC-10, PC350 LC-11, PC350 LC-6E, PC350 LC-6Z, PC350 LC-7E, PC350 LC-8K, PC350N LC-8, PC350NHRD-8, PC360 LC-10, PC360 LC-11, PC360 LC-5K, PC360 LC-6K, PC380 LC-6K, PC390 LC-10, PC390 LC-11, PC390HRD-11, HB365 NLC-3, PC300 HD-5, PC300 HD-6, PC300 HD-7, PC300 HD-8, PC300 LC-2, PC300 LC-3, PC300 LC-4, PC300 LC-5, PC300 LC-6, PC300 LC-7, PC300 LC-8, PC300 SE-6, PC300 SE-7, PC300 SE-8, PC308 LC-3, PC308 LC-7, PC308US LC, PC310 LC-5, PC340 LC-6, PC340 LC-7, PC340 LC-8, PC350 HD-8, PC350 LC-6, PC350 LC-7, PC350 LC-8, PC360 LC-3, PC360 LC-5, PC360-11M0, PC380 LC-6, PC380 LC-7, HB365 LC-3, PC300-2C5, PC300-7E0, PC300-8M0, PC300LC-8, PC300LL-6, PC300LL-7, PC300N LC, PC340N LC, PC350-7E0, PC350-8M0, PC360-8M0, PC360LC-5, PC380 LCD, PC300 HD, PC300 LC, PC300 SE, PC300-3B, PC300-5A, PC300-5C, PC300-5K, PC300-5L, PC300-6A, PC300-6E, PC300-6L, PC300-6Z, PC300L-5, PC310 LC, PC330 LC, PC340 LC, PC340-6K, PC350 LC, PC350-10, PC350-6E, PC350-6Z, PC360 LC, PC300-1, PC300-2, PC300-3, PC300-4, PC300-5, PC300-6, PC300-7, PC300-8, PC310-5, PC330-3, PC340-6, PC340-7, PC350-6, PC350-7, PC350-8, PC360-3, PC360-5, PC360-7, HB365-3, PC300L, PC300N, PC380U, PC300, PC308, PC310, PC340, PC350, PC360, PC380 |
| Linkbelt | LB400Q/330LX, 235 X3 LC, 240 LX LF, 290 X2 LF, 260 X4S, 355 X4S, LS330LX, LS4300Q, 235 X3, 240 LX, 240 X2, 240 X4, 250 X3, 250 X4, 290 LX, 290 X2, 300 X3, 300 X4, 330 LX, 350 X2, 350 X3, 350 X4 |
| Samsung | SE280LC |
| Sany | SY305H, SY235, SY240, SY245, SY255, SY265, SY285, SY305, SY315, SY330, SY335, SY235C PRO, SY240C-9HD, SY245C-9LR, SY245H PRO, SY235C LC, SY265C LC, SY305C LC, SY335C LC, SY235C-9, SY235CLR, SY285C-9, SY265CLR, SY335C-9, SY230C, SY235C, SY235H, SY245H, SY265C, SY310C, SY335C, SY335H |
| Sumitomo | SH240-5, SH300-2, SH300-5, SH330-5, SH220 |
| Volvo | EC280 N LC, EC290 LC-3, EC290B LC, EC290C LC, EC300D LC, SE240LC-3, SE280LC-3, EC280 LC, EC290 LC, EC300 LC, EC250DL, EC250EL, EC300DL, EC300EL, ECR305C, MX255LS, MX295LS, EC240B, EC240C, EC250D, EC280N, EC290B, EC290C, EC300D, EC240, EC250, EC280, EC290, EC300 |
