| Attribute | Value |
|---|---|
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Energy Class (J) | 350 Joules |
| Energy Class (ft·lb) | 258.15 ft·lb |
| Impact Frequency (bpm) | 700 - 1,200 bpm |
| Operating Pressure (kgf/m²) | 90 - 120 kgf/m² |
| Operating Pressure (lbs/ft²) | 18.43 - 24.58 lb/ft² |
| Oil Flow (GPM) | 5.3 - 7.9 gpm |
| Tool Chisel Bit Diameter (mm) | 45 mm |
| Tool Chisel Bit Length (mm) | 500 mm |
| Working Weight (kg) | 126 kg |
| Accessories Included | 2 Hydraulic Hoses, 1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings |
| Front Pin Diameter (mm) | 30 mm |
| Rear Pin Diameter (mm) | 30 mm |
| Front Ear to Ear Distance (mm) | 120 mm |
| Rear Ear to Ear Distance (mm) | 120 mm |
| Center to Center Distance (mm) | 125 mm |
| Carrier Weight Class (tn) | 1 - 2 Tons |
| Carrier Weight Class (lbs) | 2,000 - 4,000 lbs |
| Product Weight (lbs) | 387.54 lb |
| Product Weight (kg) | 175.79 kg |

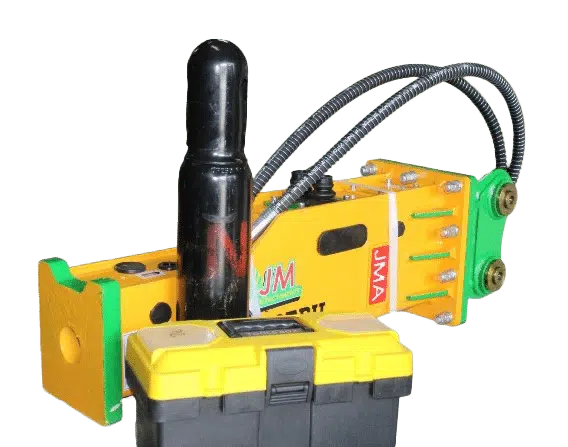

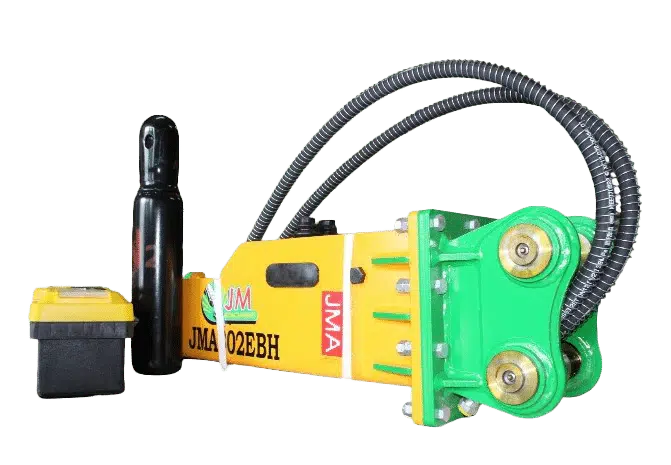

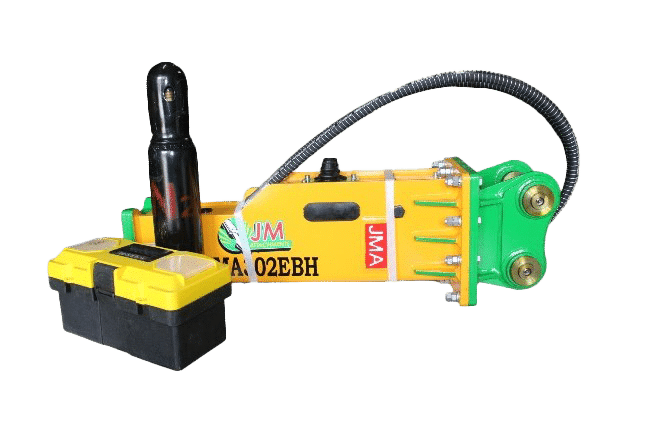

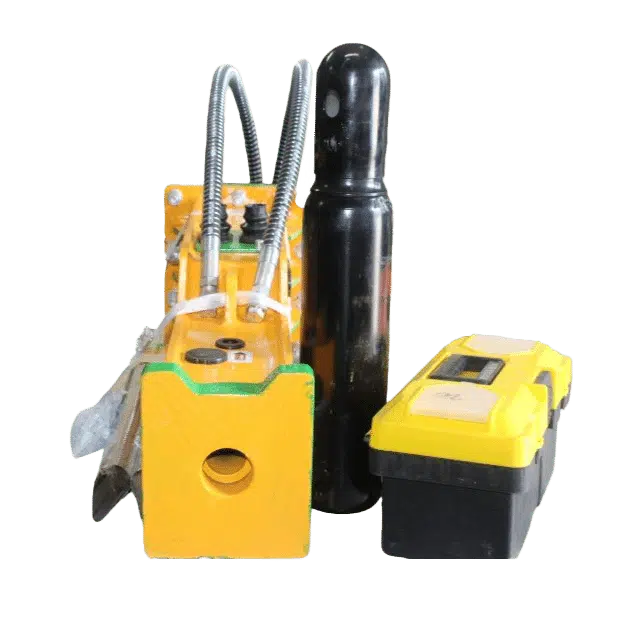

JMA Attachments Hydraulic Hammer | Model JMA-302 EBH | Energy Class 350 Joules | For 1 – 2 Tons Mini Excavators
JMA Attachments Hydraulic Hammer | Model JMA-302 EBH | Energy Class 350 Joules | For 1 – 2 Tons Mini Excavators
Regular price
$3,654.36
Regular price
Sale price
$3,654.36
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
JMA Attachments Hydraulic Hammer | Model JMA-302 EBH | Energy Class 350 Joules | For 1 – 2 Tons Mini Excavators
Description
Master the art of efficient demolition with the 350 Joules Hydraulic Hammer for 1 - 2 Tons Mini Excavators. 30mm Pins. Tailored for Excavators, this premium hydraulic hammer is your gateway to enhanced productivity and substantial cost savings in breaking operations. Elevate your breaking capabilities. The 350 Joules Hydraulic Hammer for 1 - 2 Tons Mini Excavators. 30mm Pins isn't just a hammer – it's a precision-engineered powerhouse designed to revolutionize your demolition projects.
Key Features
- Powerful Impact: 350 Joules energy class for tackling the toughest materials.
- High-Frequency Breaking: 700 -1,200 bpm impact frequency ensures rapid material processing.
- Built for Endurance: AR400 Steel construction guarantees reliability in extreme conditions.
- Versatile Performance: Excels in primary breaking, secondary demolition, and recycling applications.
- Fully Equipped: Includes 2 Hydraulic Hoses,1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings for out-of-the-box functionality.
Detailed Specifications
Fits To
|
Brand |
Model |
|---|---|
| Airman | AX17U-4, AX15-2, AX20U |
| Bobcat | X322D, X322G, X323J, E20Z, X120, X220, X319, X320, X332, E323, X322, X323, X324, X325, X328, E08, E10, E14, E16, E17, E19, E20, E16AEM, X331C, X331D, E10E, E10Z, E17Z, E19E |
| Case | CX17B, CX14 |
| Caterpillar | 301.7D CR, 301.5CR, 301.5SR, 301.7CR, 301.4C, 301.5C, 301.6C, 301.6D, 301.7D, 301.8C, 301.8D, 301.4, 301.5, 301.6, 301.8, 301CR, 301 |
| Daewoo | S018 VT, S15 |
| Develon | DX19Z-7B, DX20Z-7, DX20ZE |
| Doosan | S015 PLUS, S030 PLUS, SL018VT, S018 VT, DX10Z, DX17Z, DX20Z, D20Z, DX19, S015, S018, DX15, DX18 |
| Hanix | H12A, H12B |
| Hitachi | EX10U-1B, EX15U-1B, EX 12-2, EX15U-3, ZX17U-2, EX15-2, EX18-2, EX10U, EX15U, EX17U, EX20U, EX17, UE20, ZX16, ZX17U |
| Hyundai | R17Z-9A, R15-5, R15-7, R16-7, R16-9 |
| Ihi | 15NX, 20VX, IS15 |
| JCB | 15C-1, 16C-1, 18Z-1, 19C-1 |
| Kobelco | SK15SR-1, SK17SR-3, SK13SR, SK15SR, SK014, SK015 |
| Komatsu | PCI5 MRX-1, PC12UU-1, PC12UU-2, PC18MR-2, PC18MR-3, PC20MR-2, PC14R-3, PC10-6, PC18MR, PC 05, PC 07, PC 10, PC1.2, PC05, PC07, PC08, PC10, PC15, PC18 |
| Kubota | KX41-2, KX41-3, KX61-2, KX61-3, U15-3, KH15, KH51, KX41, KX61, U17, U20, U25, KX018-4, U10-5, U17-3, U20-3 |
| Linkbelt | MM20CR, ME15 |
| Nagano | NS 15-2, NS16-3 |
| New Holland | E18SR, N015 |
| Sany | SY16C, SY16, SY18, SY18C, SY18U |
| Sumitomo | SWE17u, SWE18U |
| Takeuchi | TB014, TB016, TB216, TB219, TB15 |
| Volvo | E13, E15 |
| XCMG | XE15U, XE18U, XE20E |
| Yanmar | VIO15-2, YC18-2, VIO12, VIO15, VIO17, SV15, SV18, YC15, B15, B15-3, SV17 |
Manual & Documents
General Warranty Info:
-
Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
