Brand |
Model |
---|---|
Airman | AX30U-5F, AX30UC-4, AX30UC-5, AX33U-5A, AX35U-5F, AX38U-5A, AX30-U2, AX30U-4, AX33Mu, AX30, AX35 |
Case | CX31B, CX36B, CX33, CX37 |
Caterpillar | 303.5D2 CR, 303.5E2 CR, 303.5C CR, 303.5D CR, 303.5E CR, 303C2 CR, 303.5CR, 303C CR, 303E CR, 304D CR, 303.4C, 303.5C, 303.5D, 303.5E, 303CR2, 303ESR, 304ECR, 305CR2, 303.5, 303CR, 303GR, 303SR, 304.5, 304CR, 304E2, 303 |
Daewoo | S030, S035, S35 |
Develon | DX27Z-7, DX35Z-7, DX42-7 |
Doosan | DX27Z-7, DX35Z-7, DX35-5, DX35 |
Ford | 550 |
Hanix | H36B-R, H30A, H35A, H36A, H36B |
Hitachi | ZX33U-2 -3, ZX38U-2 -3, EX40UR-2C, EX40UR-2, EX40UR-3, ZX33U-5A, ZX35U-3F, ZX38U-5A, ZX30-U2, ZX30U-2, ZX35U-2, EX30-2, EX33MU, EX35-2, EX40UR, EX50UR, EX30U, EX33U, EX35U, ZX30U, ZX35U, EX35, EX45, ZX26U, ZX30, ZX35 |
Hyundai | R35-5, R35-7 |
Ihi | IS35VX-2, IS35N, IS35 |
John Deere | 27C ZTS, 27D ZTS, 35C ZTS, 35D ZTS, 27 ZTS, 35 ZTS, 27CT, 35CT, 35ZT, 25D, 25E, 26G, 27C, 27D, 30G, 35C, 35D, 35G, 25, 30, 35, 26P, 30P, 35P, 27ZTS, 35ZTS |
Kobelco | SK30SR-1, SK30SR-2, SK30SR-3, SK30SR-4, SK30SR-5, SK35SR-1, SK35SR-2, SK35SR-3, SK35SR-4, SK35SR-5, SK35SR-6, SK032, SK035 |
Kubota | U30 Import, KX040-4, KX101-3, KX121-2, KX121-3, KX121-5, KX71-2, KX71-3, KX91-2, KX91-3, KH16W, KX101, KX121, RX302, U35-3, U35-4, U36-4, KH90, KO30, KX71, KX91, U35, KX033, KX040 |
Linkbelt | HE902, MM40, MM55 |
Liugong | 9035E |
Nagano | NS35R-3, NS55R-5, NS45-3, NS35 |
New Holland | E35B, E33, E37 |
Nissan | N350 |
Sany | SY35C, SY35U, SY26, SY35, SY26U, SY27U |
Sumitomo | SWE50, SWE55 |
Takeuchi | TB138FR, TB035, TB107, TB108, TB135, TB138, TB235, TB240, TB14, TB16, TB23, TB36 |
Terex | TC35/TC37, TC48/TC50, TC60 |
Volvo | EC35 C, EC35C, ECR38 |
Wacker Neuson | 3003, 3503, 3703, 38Z3, ET35, EZ26, EZ35, EZ36, EZ38, 28Z, 38Z |
Yanmar | YC18-3, YC25-2, YC30-2, YC35 |
Product Description

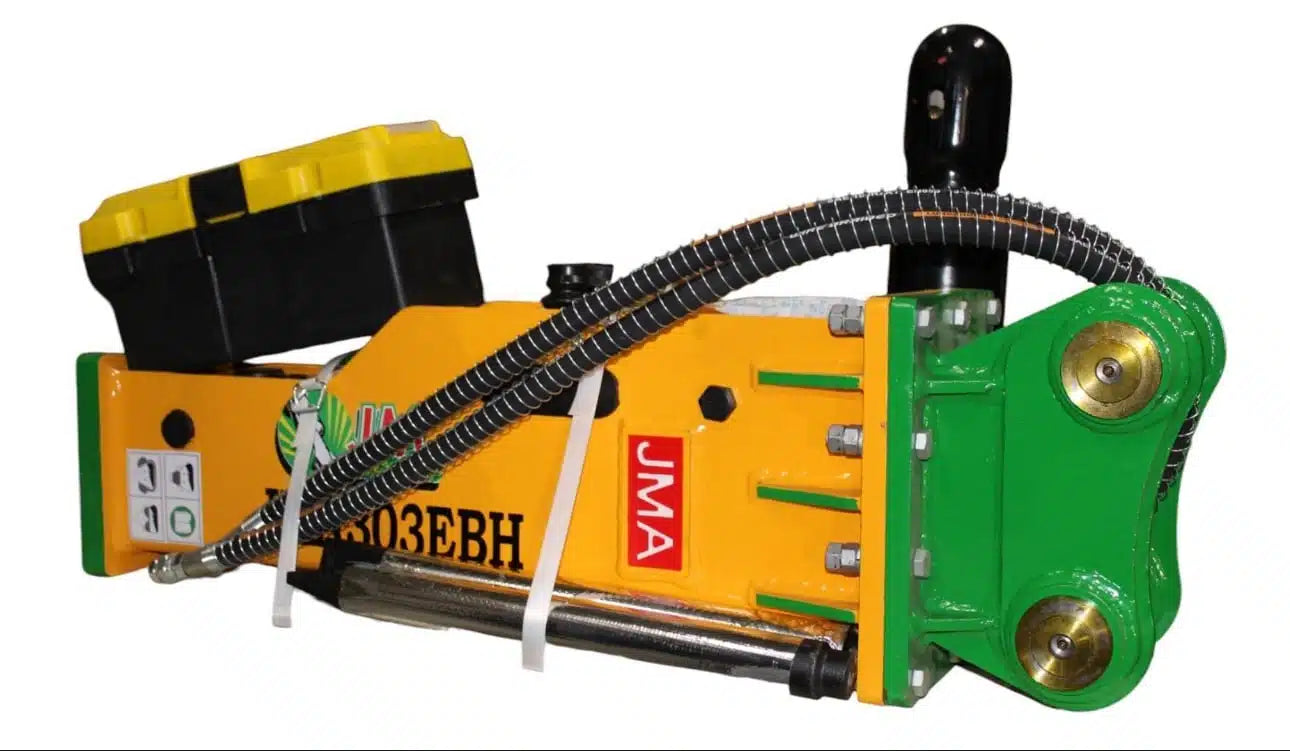

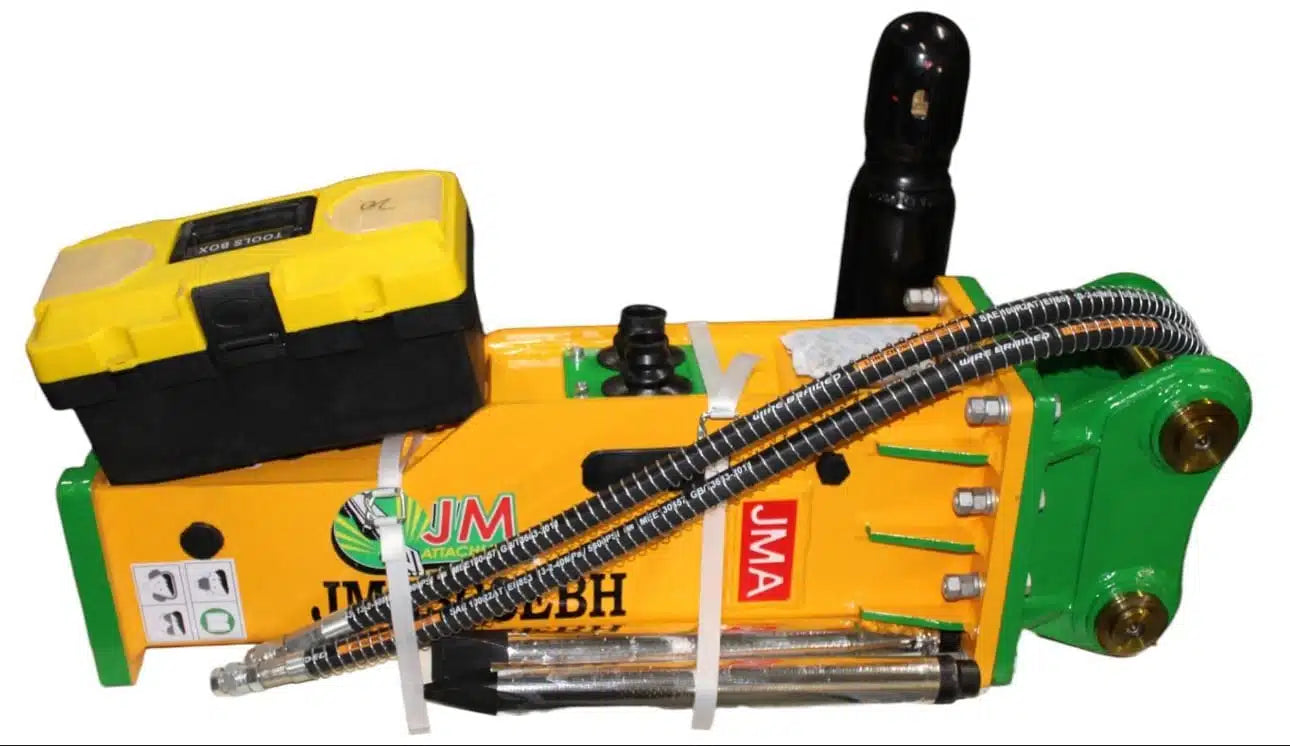

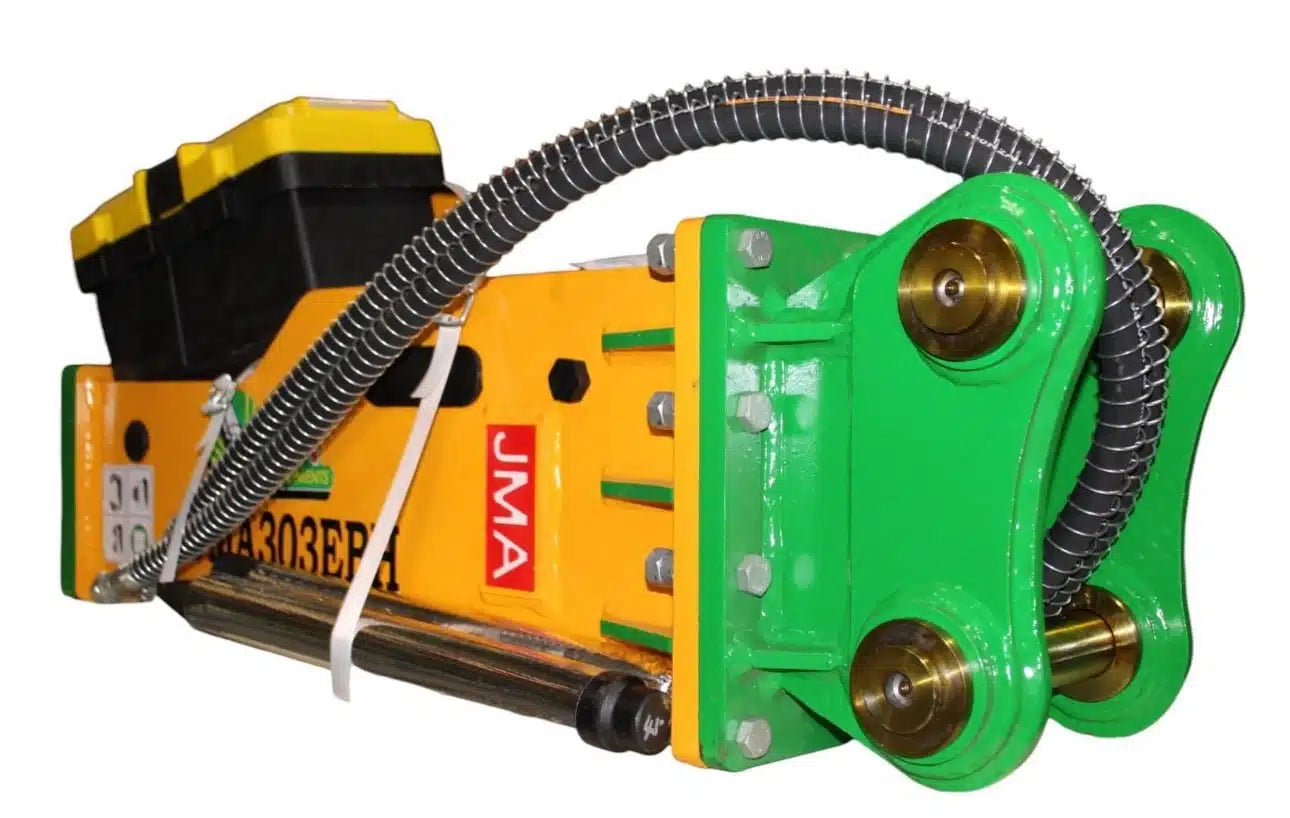

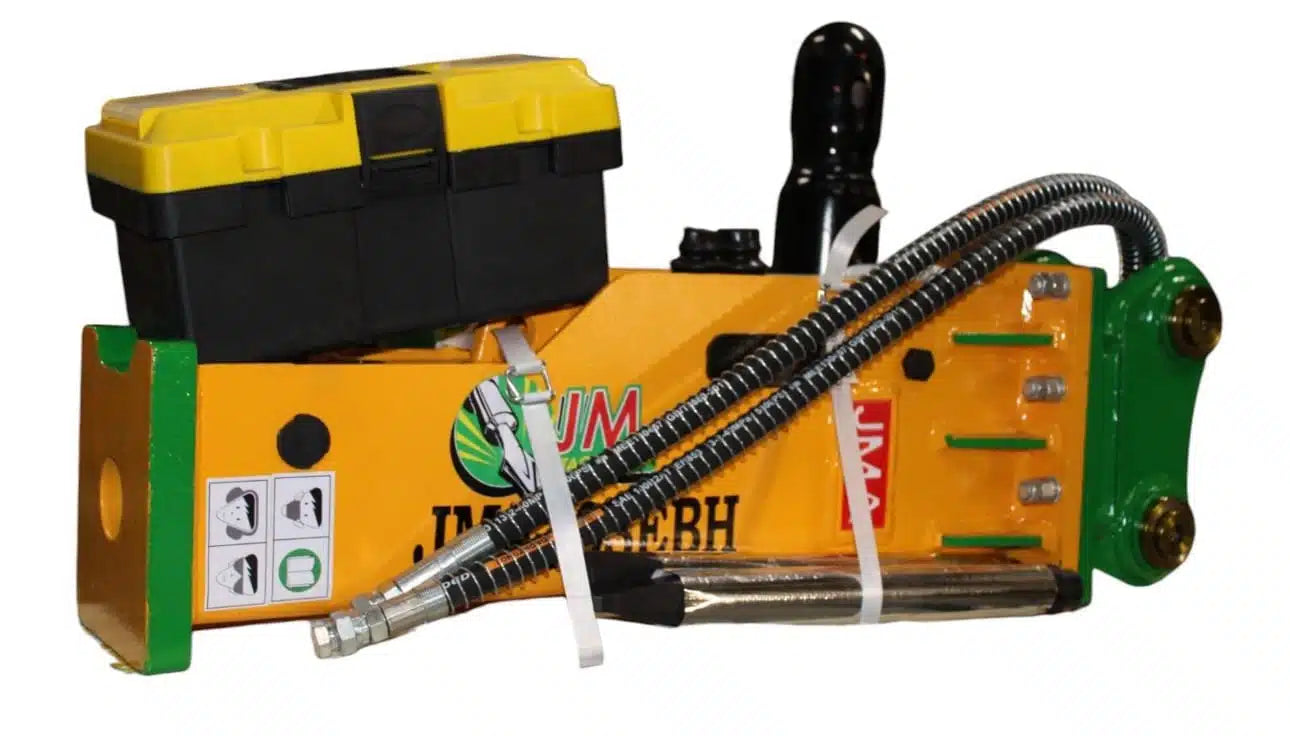

JMA Attachments Hydraulic Hammer | Model JMA-303 EBH | Energy Class 500 Joules | For 3 – 4.5 Tons Mini Excavators
Description
Experience breakthrough performance with the 500 Joules Hydraulic Hammer for 3 - 4.5 Tons Mini Excavators. 40mm Pins. Tailored for Excavators, this hydraulic hammer is your key to unlocking unparalleled productivity in demolition and breaking applications. Elevate your demolition game. The 500 Joules Hydraulic Hammer for 3 - 4.5 Tons Mini Excavators. 40mm Pins isn't just a tool – it's a game-changing solution that delivers tangible returns through increased efficiency and reduced operational costs.
Key Features
- Powerful Breaking Force: 500 Joules energy class for superior material processing.
- Rapid-Fire Action: 600 - 1,000 bpm impact frequency accelerates project timelines.
- Built for Extreme Conditions: AR400 Steel construction ensures reliability in the toughest environments.
- Versatile Application: Ideal for primary demolition, secondary breaking, and recycling operations.
- Comprehensive Toolkit: 2 Hydraulic Hoses,1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings included for immediate operation.
Detailed Specifications
Attribute | Value |
---|---|
Material Type | AR400 Steel |
Finish | Powder-Coated Green |
Energy Class (J) | 500 Joules |
Energy Class (ft·lb) | 368.78 ft·lb |
Impact Frequency (bpm) | 600 - 1,000 bpm |
Operating Pressure (kgf/m²) | 90 - 120 kgf/m² |
Operating Pressure (lbs/ft²) | 18.43 - 24.58 lb/ft² |
Oil Flow (GPM) | 6.6 - 13 gpm |
Tool Chisel Bit Diameter (mm) | 53 mm |
Tool Chisel Bit Length (mm) | 550 mm |
Working Weight (kg) | 152 kg |
Accessories Included | 2 Hydraulic Hoses, 1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings |
Front Pin Diameter (mm) | 40 mm |
Rear Pin Diameter (mm) | 40 mm |
Front Ear to Ear Distance (mm) | 136 mm |
Rear Ear to Ear Distance (mm) | 136 mm |
Center to Center Distance (mm) | 200 mm |
Carrier Weight Class (tn) | 3 - 4.5 Tons |
Carrier Weight Class (lbs) | 6,000 - 9,000 lbs |
Product Weight (lbs) | 491.16 lb |
Product Weight (kg) | 222.79 kg |
