Brand |
Model |
|---|---|
| Caterpillar | 310 |
| Hyundai | R75-5 |
| Ihi | IS110, IS120 |
| Kato | HD550SE |
| Kobelco | SK100-2, SK100-3, SK115SR, SK100V, SK100 |
| Komatsu | PC138US LC-2E0, PC138US LC-10, PC138US LC-11, PC138US LC-2E, PC120 LC-6E0, PC120 LC-6LE, PC128US LC-2, PC138US LC-2, PC138US LC-3, PC138US LC-7, PC138US LC-8, PC138US-11E0, PC120 LC-5L, PC120 LC-6E, PC120 LC-6L, PC128US-1MB, PC128US-2E0, PC128US-2E1, PC128US-2MB, PC128USI-10, PC128UU-1MB, PC128UU-2E0, PC130 LC-11, PC138US-2E1, PC138US-8NM, PC100 LC-1, PC100 LC-2, PC100 LC-3, PC100 LC-4, PC100 LC-5, PC100 LC-6, PC120 LC-3, PC120 LC-4, PC120 LC-5, PC120 LC-6, PC120 LC-7, PC120-1 -2, PC120SC-6E, PC128US LC, PC128US-10, PC128US-11, PC128US-2A, PC128US-2H, PC128UU-15, PC128UU-1E, PC128UU-1Y, PC130 LC-6, PC130 LC-7, PC130 LC-8, PC138 LC-2, PC138US LC, PC138US-10, PC138US-11, PC138US-2E, PC100-6ZE, PC100SS-3, PC110SP-6, PC118MR-8, PC120-6AC, PC120-6E0, PC120-6ZE, PC120SS-3, PC128US-1, PC128US-2, PC128US-5, PC128US-6, PC128US-8, PC128UU-1, PC128UU-2, PC128UU-6, PC128UU-8, PC128UUMB, PC138US-2, PC138US-8, PC 100-2, PC 100-6, PC 120-6, PC100 LC, PC100-5Z, PC100-6E, PC100L-1, PC100L-2, PC100L-3, PC100L-5, PC100L-6, PC100N-6, PC100U-2, PC100U-3, PC110R-1, PC120 LC, PC120 LE, PC120-11, PC120-15, PC120-3K, PC120-3W, PC120-5C, PC120-5G, PC120-5K, PC120-5Z, PC120-6E, PC120-6J, PC120-6L, PC120-6M, PC120-6Z, PC128 LC, PC128U-2, PC130 LC, PC130-11, PC130-5K, PC130-5S, PC130-6E, PC130-6K, PC130-6W, PC130-7K, PC130F-7, PC138 LC, PC100-1, PC100-2, PC100-3, PC100-4, PC100-5, PC100-6, PC100-7, PC100-8, PC110-1, PC110-2, PC110-7, PC120-1, PC120-2, PC120-3, PC120-4, PC120-5, PC120-6, PC120-7, PC120-8, PC120BE, PC120UU, PC128-1, PC128-2, PC128US, PC128UU, PC130-3, PC130-5, PC130-6, PC130-7, PC130-8, PC138US, PC100L, PC100N, PC100U, PC120B, PC128U, PC100, PC110, PC120, PC128, PC130, PC135, PC138 |
| Kubota | KX080-3, KX080-4, KX085-5, KX080 |
| Lonking | CDM6150 |
| Nagano | NS75-3 |
| Sumitomo | S260F2 |
| Volvo | ECR88, EC88 |
JMA Attachments Hydraulic Hammer | Model JMA-310 EBH | Energy Class 1,000 Joules | For 8 – 13 Tons Excavators
JMA Attachments Hydraulic Hammer | Model JMA-310 EBH | Energy Class 1,000 Joules | For 8 – 13 Tons Excavators
Regular price
$8,796.70
Regular price
Sale price
$8,796.70
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

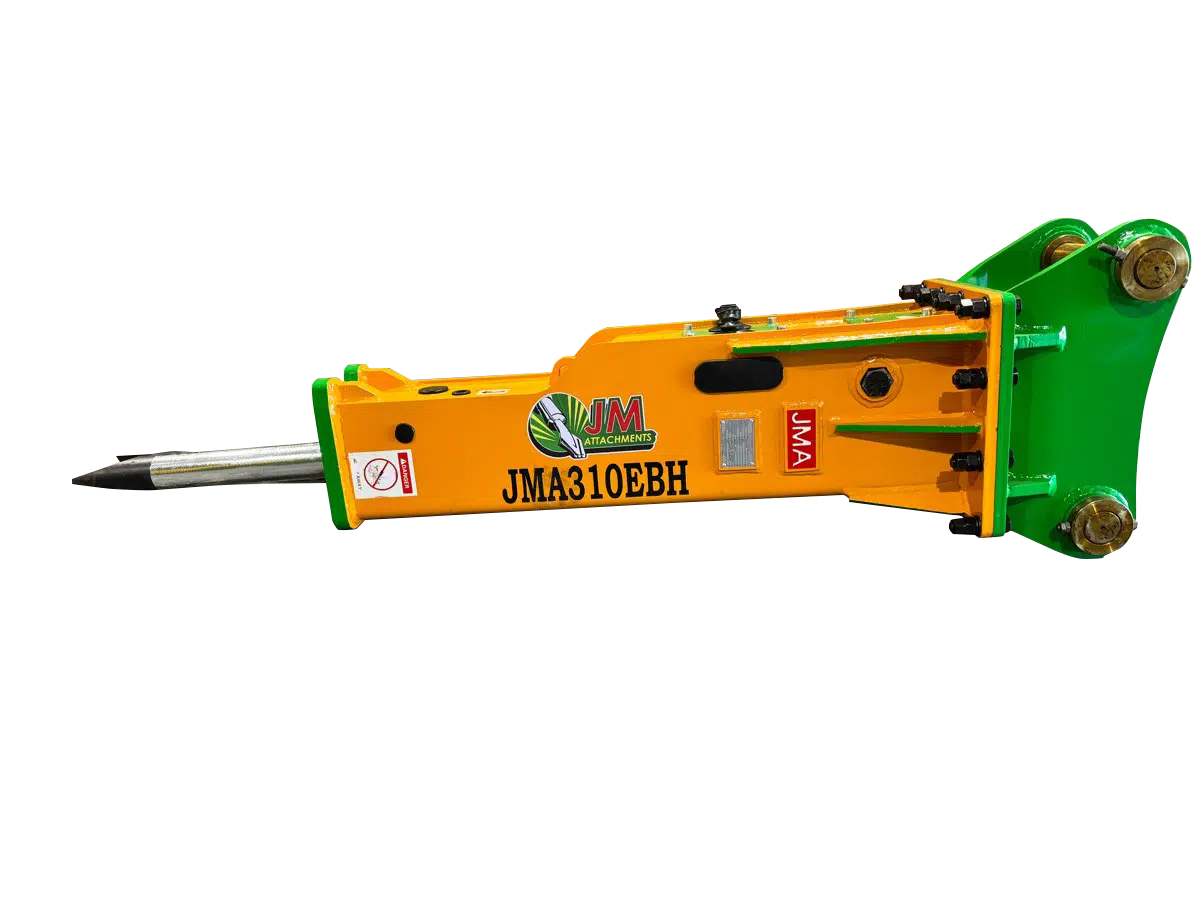

JMA Attachments Hydraulic Hammer | Model JMA-310 EBH | Energy Class 1,000 Joules | For 8 – 13 Tons Excavators
Description
Revolutionize your demolition capabilities with the 1,000 Joules Hydraulic Hammer for 8 - 13 Tons Excavators. 60mm Pins. Precision-crafted for Mini Excavators, this hydraulic hammer sets new standards in breaking power and operational efficiency. Transform your Mini Excavator into a demolition dynamo. With the 1,000 Joules Hydraulic Hammer for 8 - 13 Tons Excavators. 60mm Pins, you're investing in a game-changing tool that delivers results in the most challenging environments.
Key Features
- Powerhouse Performance: 1,000 Joules energy class delivers unmatched breaking force.
- Rapid Demolition: 400 - 800 bpm impact frequency accelerates project completion.
- Extreme Durability: AR400 Steel construction ensures longevity in harsh conditions.
- Noise and Vibration Suppressed: Engineered for operator comfort and environmental compliance.

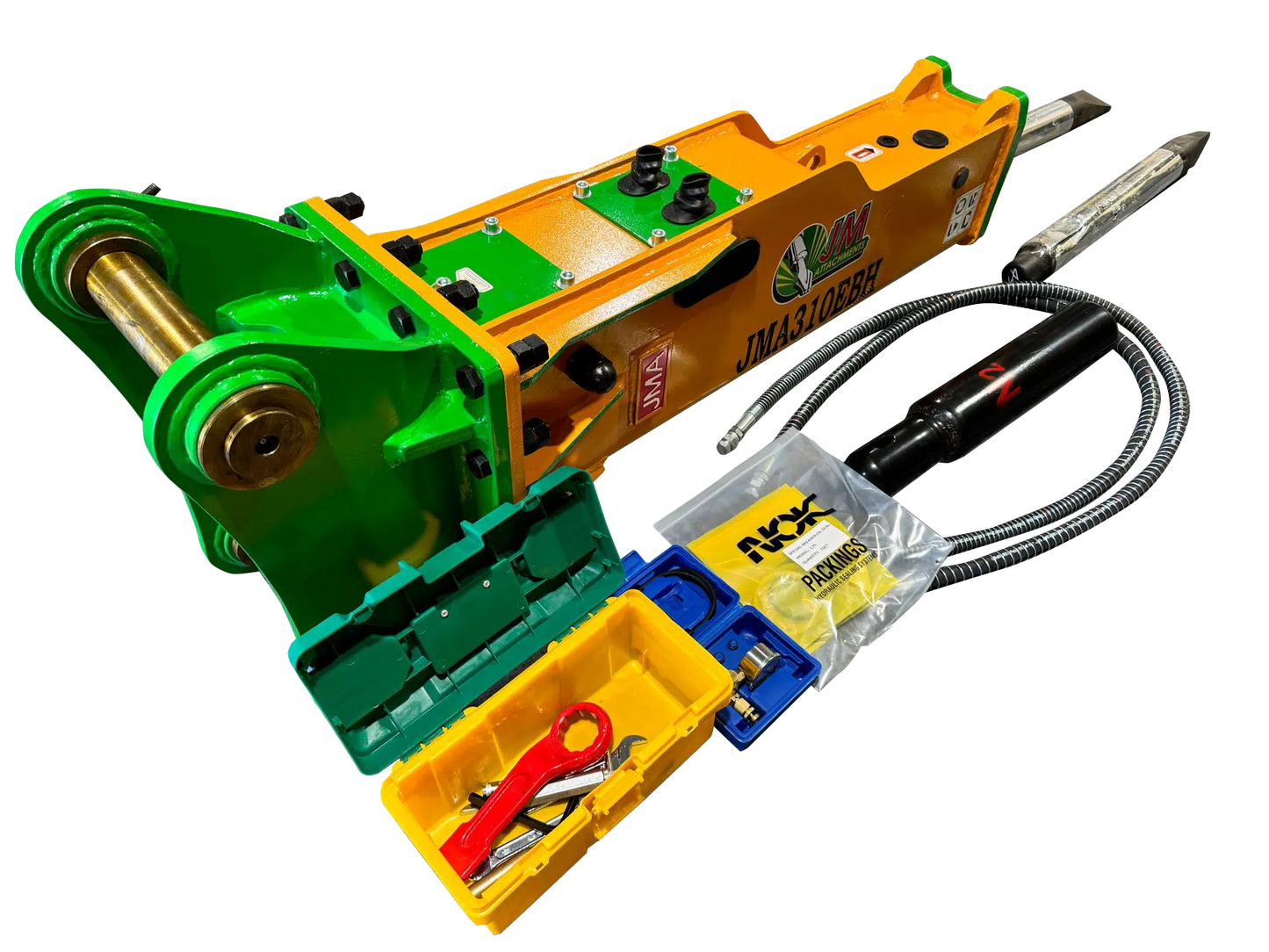

- Ready for Action: Comes with 2 Hydraulic Hoses,1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings for immediate productivity.
Detailed Specifications
| Attribute | Value |
|---|---|
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Energy Class (J) | 1,000 Joules |
| Energy Class (ft·lb) | 737.56 ft·lb |
| Impact Frequency (bpm) | 400 - 800 bpm |
| Operating Pressure (kgf/m²) | 120 - 170 kgf/m² |
| Operating Pressure (lbs/ft²) | 24.58 - 34.82 lb/ft² |
| Oil Flow (GPM) | 13.20 – 23.77 gpm |
| Tool Chisel Bit Diameter (mm) | 75 mm |
| Tool Chisel Bit Length (mm) | 720 mm |
| Working Weight (kg) | 375 kg |
| Accessories Included | 2 Hydraulic Hoses, 1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings |
| Front Pin Diameter (mm) | 60 mm |
| Rear Pin Diameter (mm) | 60 mm |
| Front Ear to Ear Distance (mm) | 216 mm |
| Rear Ear to Ear Distance (mm) | 216 mm |
| Center to Center Distance (mm) | 428 mm |
| Carrier Weight Class (tn) | 8 - 13 Tons |
| Carrier Weight Class (lbs) | 16,000 - 26,000 lbs |
| Product Weight (lbs) | 810.82 lb |
| Product Weight (kg) | 367.78 kg |
Fits To
Manual & Documents
General Warranty Info:
-
Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
