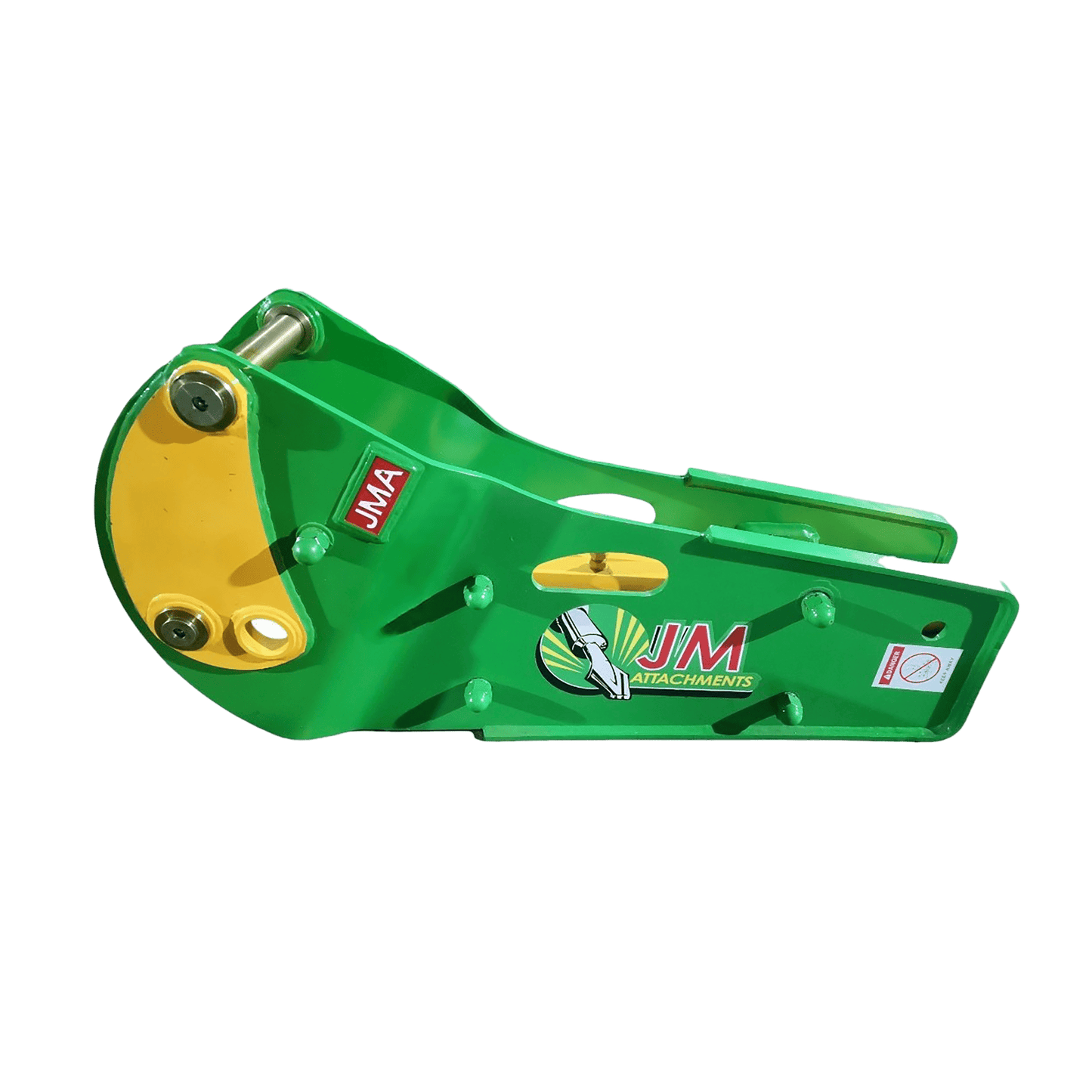

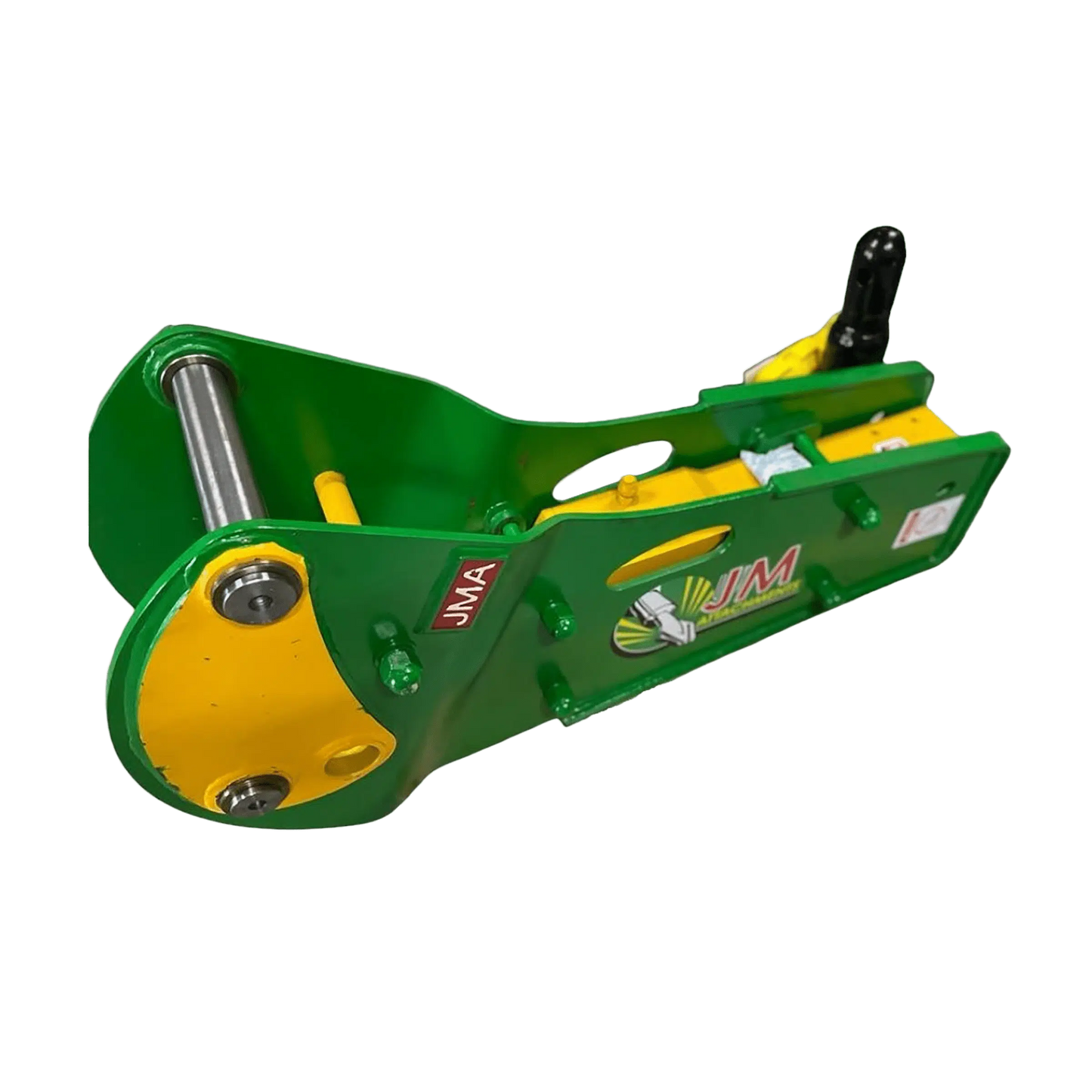

JMA Attachments Hydraulic Hammer | Pin Size 45mm, 50mm & 55mm | Energy Class 800 Joules | For Backhoe Loaders
JMA Attachments Hydraulic Hammer | Pin Size 45mm, 50mm & 55mm | Energy Class 800 Joules | For Backhoe Loaders
Regular price
$4,803.85
Regular price
Sale price
$4,803.85
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
JMA Attachments Hydraulic Hammer | Pin Size 45mm, 50mm & 55mm | Energy Class 800 Joules | For Backhoe Loaders
Description
Revolutionize your demolition capabilities with the 800 Joules Hydraulic Hammer for Backhoe Loaders. 55mm | 50mm Pins. Precision-crafted for Mini Excavators, this hydraulic hammer sets new standards in breaking power and operational efficiency. Transform your Mini Excavator into a demolition dynamo. With the 800 Joules Hydraulic Hammer for Backhoe Loaders. 55mm | 50mm Pins, you're investing in a game-changing tool that delivers results in the most challenging environments.
Key Features
- Powerhouse Performance: 800 Joules energy class delivers unmatched breaking force.
- Rapid Demolition: 500 - 900 bpm impact frequency accelerates project completion.
- Extreme Durability: AR400 Steel construction ensures longevity in harsh conditions.
- Noise and Vibration Suppressed: Engineered for operator comfort and environmental compliance.
-

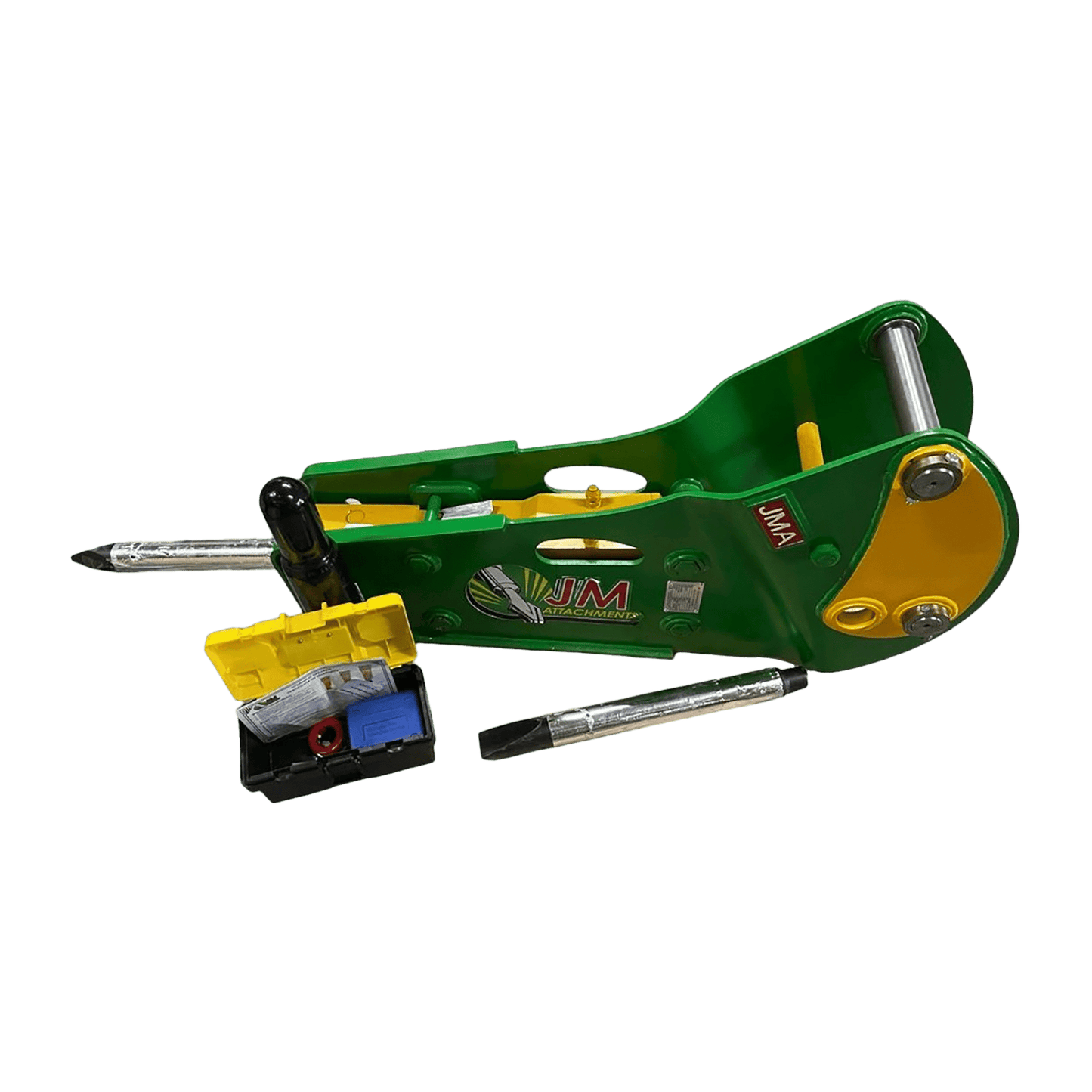

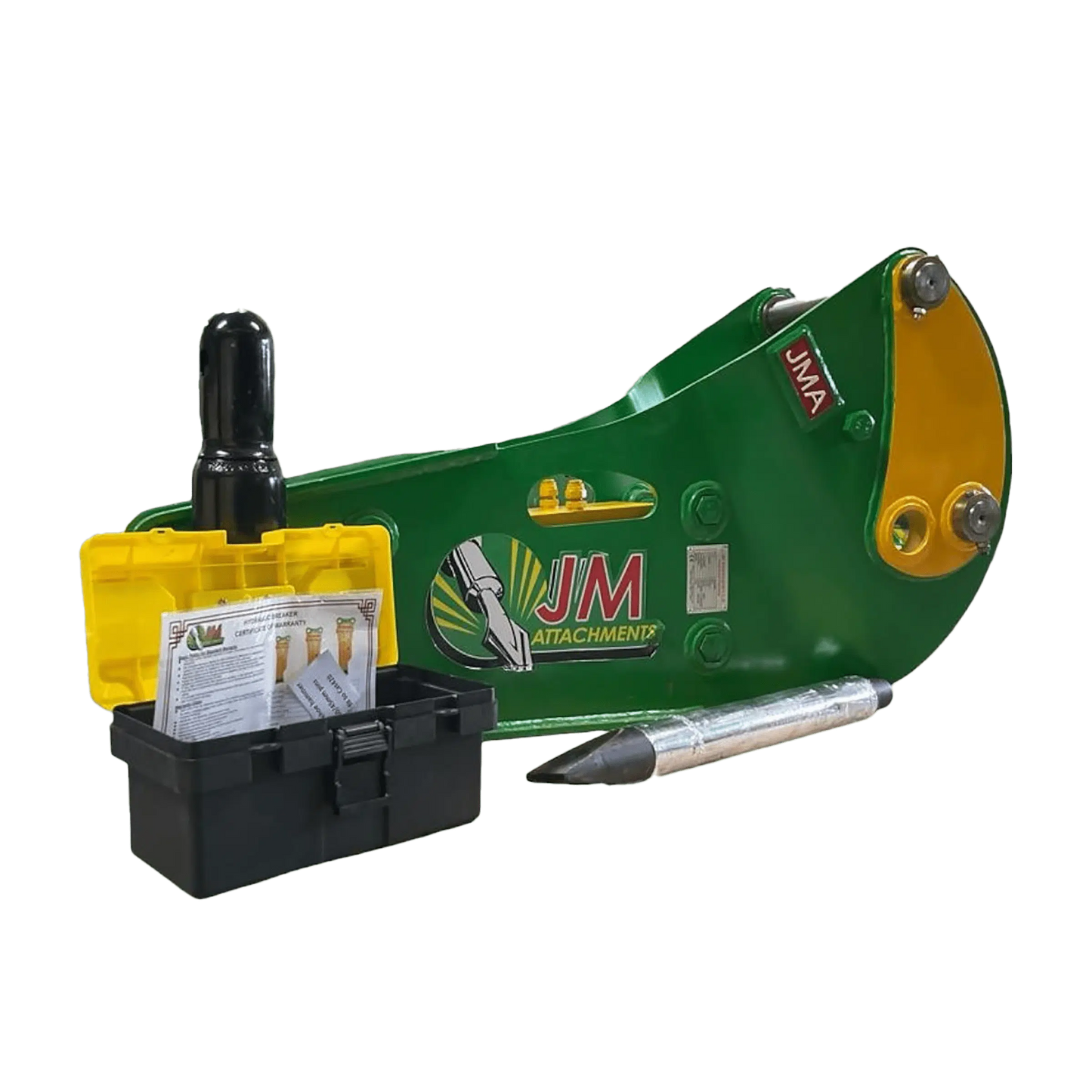

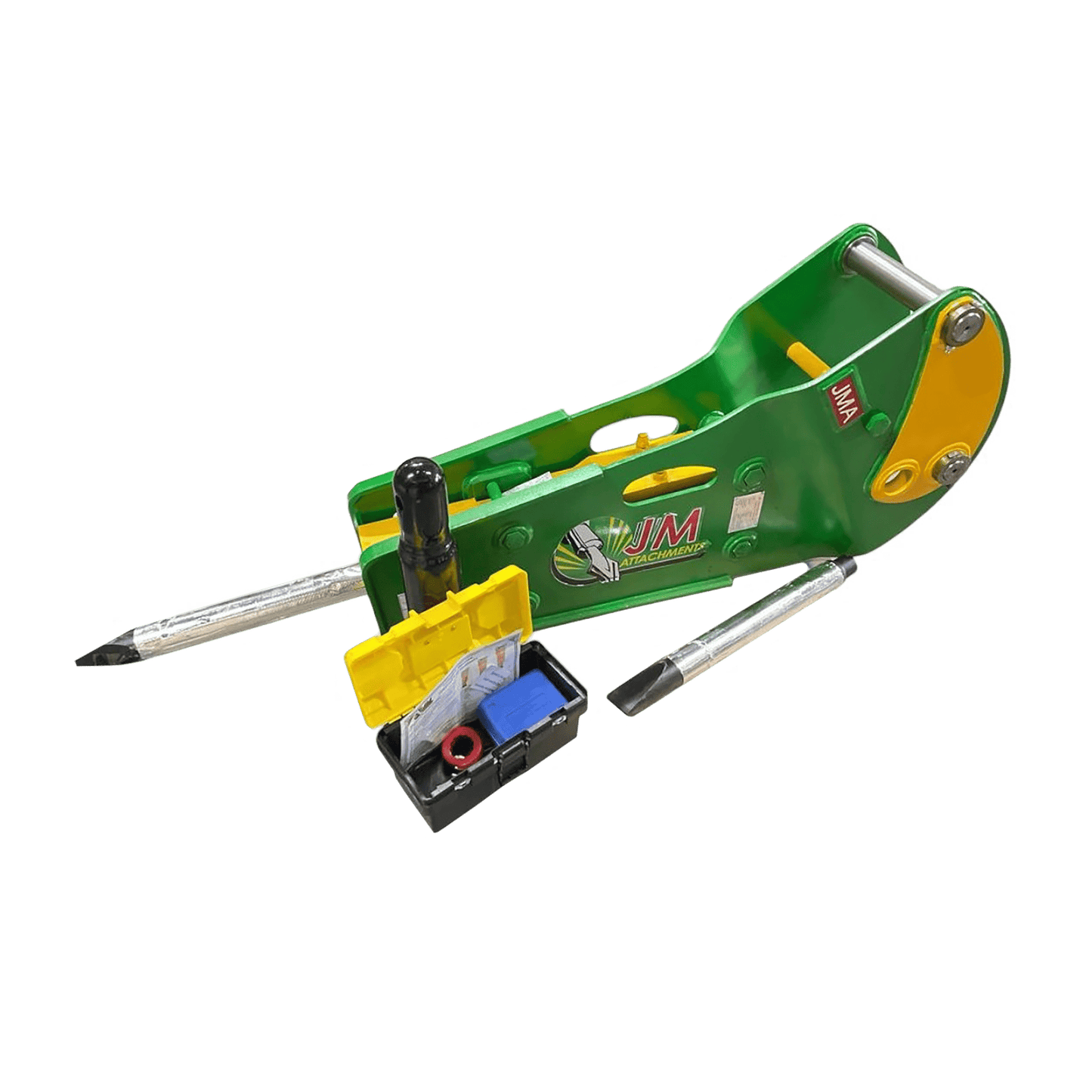

Ready for Action: Comes with 2 Hydraulic Hoses,1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings for immediate productivity.
Detailed Specifications
45mm | 38mm Pins
| Attribute | Value |
|---|---|
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Energy Class (J) | 800 Joules |
| Energy Class (ft·lb) | 590.05 ft·lb |
| Impact Frequency (bpm) | 500 - 900 bpm |
| Operating Pressure (kgf/m²) | 110 - 140 kgf/m² |
| Operating Pressure (lbs/ft²) | 22.53 - 28.67 lb/ft² |
| Oil Flow (GPM) | 10.5 – 18.4 gpm |
| Tool Chisel Bit Diameter (mm) | 68 mm |
| Tool Chisel Bit Length (mm) | 700 mm |
| Working Weight (kg) | 263 kg |
| Accessories Included | 2 Hydraulic Hoses, 1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings |
| Front Pin Diameter (mm) | 45 mm |
| Rear Pin Diameter (mm) | 38 mm |
| Front Ear to Ear Distance (mm) | 252 mm |
| Rear Ear to Ear Distance (mm) | 210 mm |
| Center to Center Distance (mm) | 345 mm |
| Carrier Weight Class (tn) | 6.5 - 9 Tons |
| Carrier Weight Class (lbs) | 13,000 - 18,000 lbs |
| Product Weight (lbs) | 1,115.06 lb |
| Product Weight (kg) | 505.78 kg |
50mm | 45mm Pins
| Attribute | Value |
|---|---|
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Energy Class (J) | 800 Joules |
| Energy Class (ft·lb) | 590.05 ft·lb |
| Impact Frequency (bpm) | 500 - 900 bpm |
| Operating Pressure (kgf/m²) | 110 - 140 kgf/m² |
| Operating Pressure (lbs/ft²) | 22.53 - 28.67 lb/ft² |
| Oil Flow (GPM) | 10.5 – 18.4 gpm |
| Tool Chisel Bit Diameter (mm) | 68 mm |
| Tool Chisel Bit Length (mm) | 700 mm |
| Working Weight (kg) | 263 kg |
| Accessories Included | 2 Hydraulic Hoses, 1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings |
| Front Pin Diameter (mm) | 50 mm |
| Rear Pin Diameter (mm) | 45 mm |
| Front Ear to Ear Distance (mm) | 256 mm |
| Rear Ear to Ear Distance (mm) | 210 mm |
| Center to Center Distance (mm) | 345 mm |
| Carrier Weight Class (tn) | 6.5 - 9 Tons |
| Carrier Weight Class (lbs) | 13,000 - 18,000 lbs |
| Product Weight (lbs) | 810.82 lb |
| Product Weight (kg) | 367.78 kg |
55mm | 50mm Pins
| Attribute | Value |
|---|---|
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Energy Class (J) | 800 Joules |
| Energy Class (ft·lb) | 590.05 ft·lb |
| Impact Frequency (bpm) | 500 - 900 bpm |
| Operating Pressure (kgf/m²) | 110 - 140 kgf/m² |
| Operating Pressure (lbs/ft²) | 22.53 - 28.67 lb/ft² |
| Oil Flow (GPM) | 10.5 – 18.4 gpm |
| Tool Chisel Bit Diameter (mm) | 68 mm |
| Tool Chisel Bit Length (mm) | 700 mm |
| Working Weight (kg) | 263 kg |
| Accessories Included | 2 Hydraulic Hoses, 1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings |
| Front Pin Diameter (mm) | 55 mm |
| Rear Pin Diameter (mm) | 50 mm |
| Front Ear to Ear Distance (mm) | 260 mm |
| Rear Ear to Ear Distance (mm) | 135 mm |
| Center to Center Distance (mm) | 360 mm |
| Carrier Weight Class (tn) | 6.5 - 9 Tons |
| Carrier Weight Class (lbs) | 13,000 - 18,000 lbs |
| Product Weight (lbs) | 810.82 lb |
| Product Weight (kg) | 367.78 kg |
Fits To
45mm
|
Brand |
Model |
|---|---|
| Case | 580SM PLUS III, 590SM PLUS III, 580L II TURBO, 580M TURBO II, 580SM PLUS II, 590L II TURBO, 590M TURBO II, 590SM PLUS II, 580SK TURBO, 590SK TURBO, 580L TURBO, 580M TURBO, 580SM PLUS, 590L TURBO, 590M TURBO, 590SM PLUS, 580SM III, 590SM III, 580M III, 580SL II, 580SM II, 590M III, 590SL II, 590SM II, 575N EP, 580L II, 580L XT, 580M II, 590L II, 590L XT, 590M II, 580SLE, 590SLE, 480CK, 480LE, 480SM, 530CK, 530TC, 550LT, 570ST, 570SV, 575SV, 580LE, 580SD, 580SE, 580SK, 580SL, 580SM, 590LE, 590SD, 590SE, 590SK, 590SL, 590SM, 480B, 480C, 480D, 480E, 480F, 480H, 480K, 480L, 510C, 520K, 530D, 530E, 550L, 560E, 560M, 570T, 580B, 580C, 580D, 580E, 580F, 580G, 580H, 580K, 580L, 580M, 590B, 590C, 590D, 590E, 590F, 590G, 590H, 590K, 590L, 590M, 480, 545, 550, 580, 590 |
| John Deere | 310EK, 310EL, 310EX, 310SE, 310SG, 310SJ, 310SK, 310SL, 315SE, 315SG, 315SJ, 315SK, 315SL, 410SE, 410SG, 310A, 310B, 310C, 310D, 310E, 310F, 310G, 310J, 310K, 310L, 315C, 315D, 315E, 315S, 410A, 410B, 410C, 410D, 410E, 410G, 410J, 410K, 410L, 710B, 710C, 710D, 710G, 710J, 710K, 710L, 310, 710 |
50mm
|
Brand |
Model |
|---|---|
| Caterpillar | 428E, 436C, 436B, 434F, 434E, 432F, 432E, 432D, 430F, 430E, 430D, 428F, 438B, 428D, 428C, 428B, 426C, 426B, 424D, 424B, 422F, 422E, 420F, 420, 446, 444, 440, 438, 436, 434, 432, 430, 426, 424, 420E, 416, 415, 446D, 446B, 444F, 444E, 442E, 442D, 438D, 438C, 426C II, 426 II, 420 XE, 416 II, 446B IT, 438C IT, 436C IT, 430F IT, 430E ST, 430E IT, 430D IT, 428C IT, 426 IT, 420F ST, 420F IT, 420E ST, 420E IT, 420D IT, 416F ST, 416E ST, 416C IT, 430F2 IT, 420F2 IT, 427F2, 416F, 416E, 416D, 416C, 416B, 444F2, 434F2, 432F2, 430F2, 428F2, 416F2 ST, 426F2, 424B2, 422F2, 420ST, 420F2, 416F2, 415F2, 438 II, 436 II, 428 II |
55mm
|
Brand |
Model |
|---|---|
| Case | 580N II, 580SN I, 590N II, 590SN I, 580SN, 590SN, 580N, 590N |
