JMA Attachments

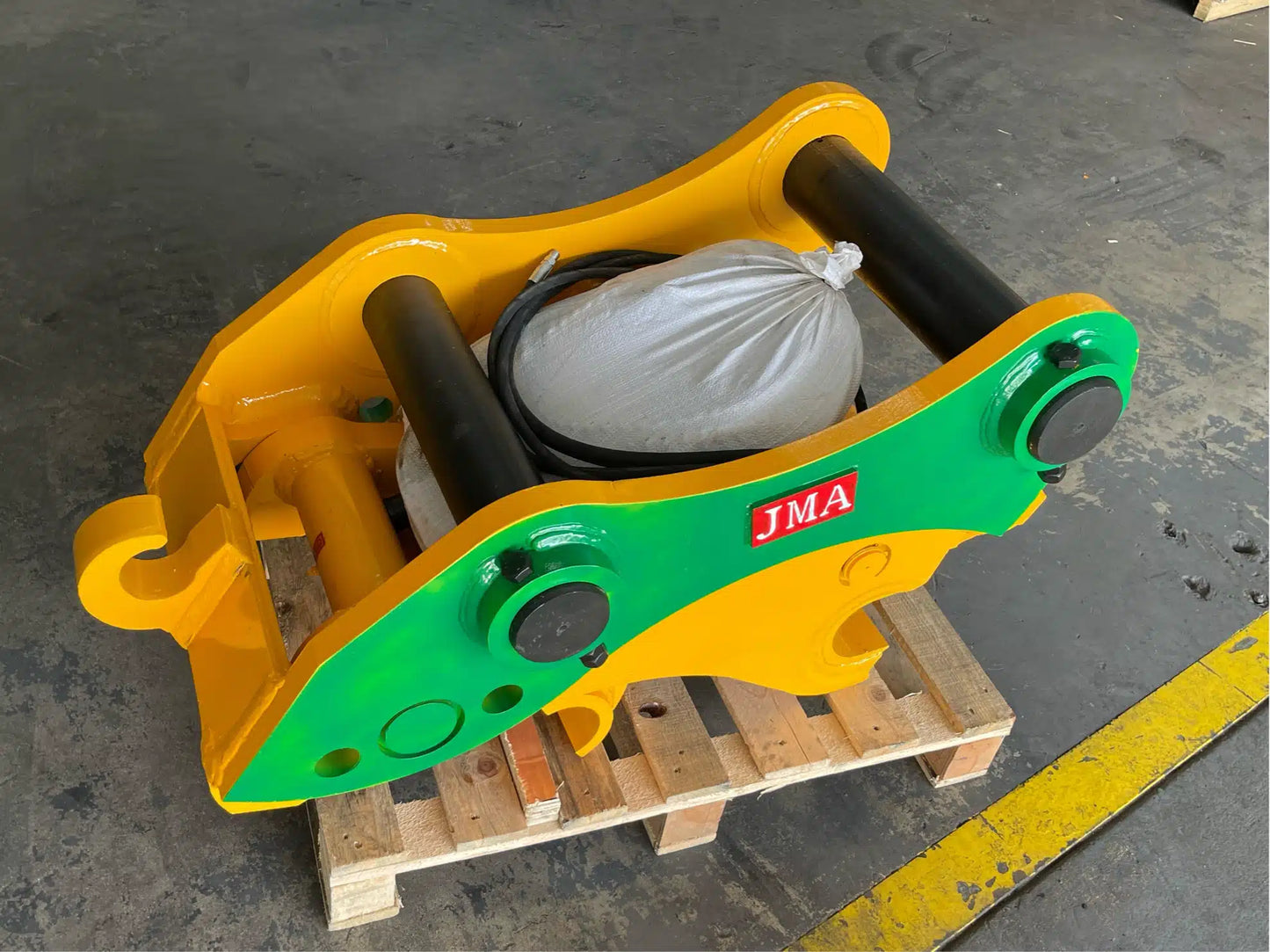

JMA Attachments Hydraulic Quick Coupler | Pin Size 110mm V 100mm | Carrier Weight 33 – 55 Tons | For Excavators

JMA Attachments Hydraulic Quick Coupler | Pin Size 110mm V 100mm | Carrier Weight 33 – 55 Tons | For Excavators

Regular price $10,006.70
Regular price Sale price $10,006.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Rapid Attachment Swaps: Change tools in seconds from the cab, dramatically reducing downtime and increasing productivity.
  • Uncompromising Safety: Advanced locking mechanism with multiple electronic and mechanical safeguards for secure operation.
  • Rugged Resilience: AR400 Steel construction ensures longevity and reliability in the harshest job site conditions.
View full details

Product Description

JMA Attachments Hydraulic Quick Coupler | Pin Size 110mm V 100mm | Carrier Weight 33 – 55 Tons | For Excavators

Description

Elevate your excavation capabilities with the Hydraulic Quick Coupler for 33 - 55 Tons Excavators. 110mm | 100mm Pins. Designed for Excavators in the 66,000 - 110,000 lbs range, this state-of-the-art hydraulic quick coupler system redefines attachment management and operational efficiency.

Key Features

  • Rapid Attachment Swaps: Change tools in seconds from the cab, dramatically reducing downtime and increasing productivity.
  • Uncompromising Safety: Advanced locking mechanism with multiple electronic and mechanical safeguards for secure operation.
  • Rugged Resilience: AR400 Steel construction ensures longevity and reliability in the harshest job site conditions.
  • Hydraulic Excellence: Optimized flow design for superior attachment performance and reduced fuel consumption.
  • Universal Compatibility: Seamlessly works with a wide range of attachments, including advanced grade control systems.

Detailed Specifications

Attribute Value
Material Type AR400 Steel
Finish Powder-Coated Green
Accessories Included Installation Kit
Front Pin Diameter (mm) 110 mm
Rear Pin Diameter (mm) 100 mm
Front Ear to Ear Distance (mm) 442 mm
Rear Ear to Ear Distance (mm) 442 mm
Center to Center Distance (mm) 587 mm
Front Pin Length (mm) 655 mm
Rear Pin Length (mm) 655 mm
Carrier Weight Class (tn) 33 - 55 Tons
Carrier Weight Class (lbs) 66,000 - 110,000 lbs
Product Weight (lbs) 705.48 lb
Product Weight (kg) 320 kg



      Fits To

      Brand

      Model

      Caterpillar 345BL II UHD, 345BL LC VG, 345BL ME II, 349 NEW GEN, 345B LC II, 345BL GMX, 345BL UHD, 345DL UHD, 349D L XE, 349D2 LME, 349F L XE, 345BL II, 345BL LR, 345BL ME, 345C LRE, 345C UHD, 345CL ME, 345CL VG, 345DL ME, 345DL VG, 349D LME, 349E LME, 349EL VG, 352F LRE, 352F UHD, 345B II, 345B LC, 345C LC, 349E LR, 350L ME, 350L V2, 352F XE, 349D2L, 350 ME, 350 V2, 352LRE, 345 D, 345BL, 345CL, 345DL, 345GC, 349D2, 349DL, 349EL, 349FL, 352FL, 345B, 345C, 345D, 345L, 349D, 349E, 349F, 349L, 350L, 352F, 352L, 345, 349, 350, 352, 355
      Daewoo S400LC-111, DX420 LC V, S420LC-V, S400
      Develon DX420 LC-5, DX420 LC-7
      Doosan DX420 LC-9C, DH420 LC-7, DX400 LC-5, DX420 LC-3, DX420 LC-5, DX420 LC-7, DX420 LC-9, DX420 LCA, S400 LC V, DX420LC, S420LC
      Hitachi EX400-1, EX400-3, EX400-5, ZX450-3, EX400, UH23
      John Deere 470 P-TIER, 450C LC, 450D LC, 470G LC, 450 LC
      Komatsu 345BL
      Samsung SE350LC
      Sany SY500H, SY485, SY500, SY550, SY500HRD, SY415H, SY420C, SY465C, SY485H, SY550H
      Volvo EC340B LC, SE360LC-3, SE460LC-3, EC330 LC, EC340 LC, EC360 LC, EC320LC, EC330CL, EC340DL, EC350DL, EC350EL, EC360BL, EC360CL, EC360DL, EC380CL, EC380DL, EC380EL, MX365LS, MX455LS, EC330B, EC330C, EC340D, EC350D, EC350E, EC360B, EC360C, EC360D, EC380D, EC460B, EC460C, EC330, EC340, EC360, EC460
