JMA Attachments

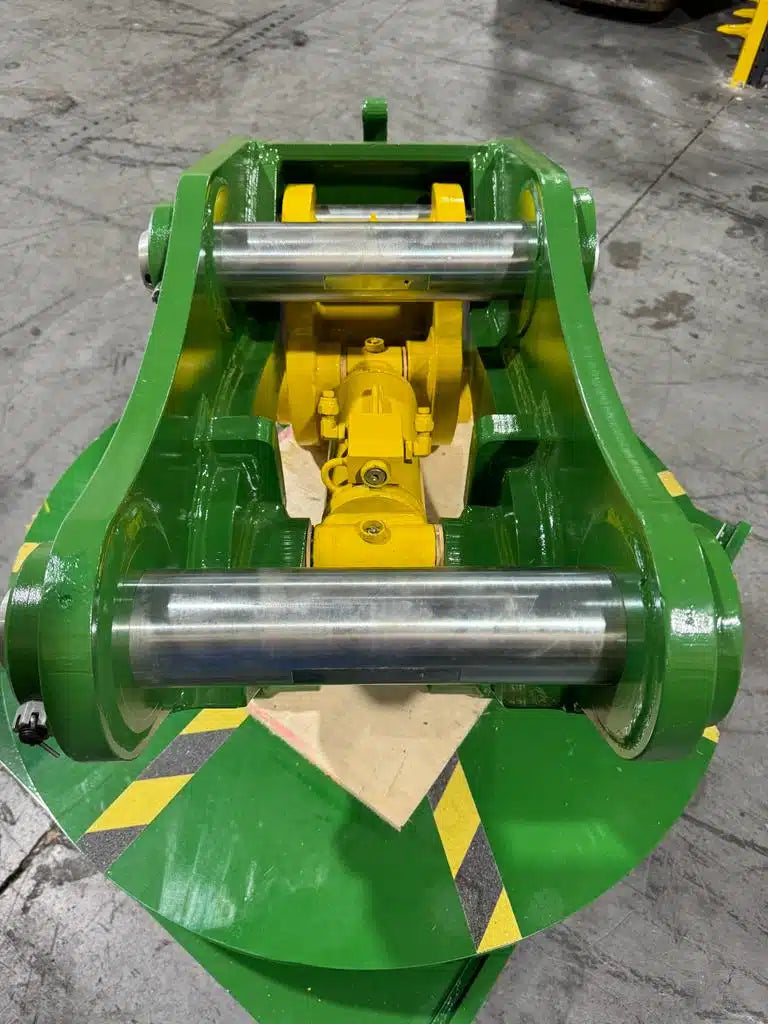

JMA Attachments Hydraulic Quick Coupler | Pin Size 65mm | Carrier Weight 10 – 15 Tons | For Excavators

JMA Attachments Hydraulic Quick Coupler | Pin Size 65mm | Carrier Weight 10 – 15 Tons | For Excavators

$4,176.70
$4,176.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Seamless Attachment Changes: Switch tools in seconds from the safety of your cab, boosting overall productivity.
  • Industry-Leading Safety: Advanced locking mechanism with visual and audible confirmation for operator peace of mind.
  • Durability Assured: AR400 Steel construction withstands the rigors of intense daily use in harsh environments.
View full details

Product Description

JMA Attachments Hydraulic Quick Coupler | Pin Size 110mm V 100mm | Carrier Weight 33 – 55 Tons | For Excavators

Description

Revolutionize your approach to excavation with the Hydraulic Quick Coupler for 10 - 15 Tons Excavators. 65mm Pins. Crafted for Excavators in the 20,000 - 30,000 lbs range, this cutting-edge hydraulic quick coupler system redefines efficiency and versatility in attachment management.

Key Features

  • Seamless Attachment Changes: Switch tools in seconds from the safety of your cab, boosting overall productivity.
  • Industry-Leading Safety: Advanced locking mechanism with visual and audible confirmation for operator peace of mind.
  • Durability Assured: AR400 Steel construction withstands the rigors of intense daily use in harsh environments.
  • Hydraulic Optimization: Superior flow design enhances attachment performance and reduces fuel consumption.
  • Universal Compatibility: Works flawlessly with a wide range of attachments, maximizing your machine's capabilities.

Detailed Specifications

      Attribute Value
      Material Type AR400 Steel
      Finish Powder-Coated Green
      Accessories Included Installation Kit
      Front Pin Diameter (mm) 65 mm
      Rear Pin Diameter (mm) 65 mm
      Front Ear to Ear Distance (mm) 260 mm
      Rear Ear to Ear Distance (mm) 260 mm
      Center to Center Distance (mm) 362 mm
      Front Pin Length (mm) 449 mm
      Rear Pin Length (mm) 449 mm
      Carrier Weight Class (tn) 10 - 15 Tons
      Carrier Weight Class (lbs) 20,000 - 30,000 lbs
      Product Weight (lbs) 396.83 lb
      Product Weight (kg) 180 kg



      Fits To

      Brand

      Model
      Case CX145D MSR, CX130B LC, CX130C LR, CX130D LC, CX130 LC, CX135MS3, CX135MSR, CX145CSR, CX145DSR, CX135CR, CX135SR, CX130B, CX130C, CX130D, CX130E, CX130K, CX135C, CX140E, CX145C, CX130, CX135, CX90
      Caterpillar 314CL LCR, 312B LGP, 312D2 GC, 313D2 GC, 314C LCR, 314D LCR, 314E LCR, 314G LCR, 311DLRR, 311F RR, 311FLRR, 313B CR, 313C CR, 313D CR, 313D2 L, 313FLGC, 314C CR, 314D CR, 314E CR, 314E SR, 314F CR, 311 V2, 311C U, 311DRR, 312 V2, 312BLN, 312CLR, 312D2L, 312F L, 312FGC, 313BSR, 313CSR, 313DSR, 313FGC, 311BL, 311FL, 312BL, 312CL, 312D2, 312DL, 312EL, 312GC, 313D2, 313DL, 313FL, 313GC, 314DL, 314EL, 315FL, E120B, 311B, 311C, 311D, 312B, 312C, 312D, 312E, 312F, 312L, 313B, 313C, 313D, 313E, 313F, 314C, 311, 312, 313, 314
      Daewoo S130W-111, S130 LC V, S155 LC V, S140LC-V, S130-2
      Develon DX140LCR-7K, DX140LC-7K, DX140LCR-7, DX165WR-7, DX100W-7, DX140W-5, DX140W-7, DX160W-7
      Doosan DX160 LC-5 HT, DX140 LC-9C, DX140 LCR-3, DX140 LCR-5, DX140 LCR-7, DX150 LC-9C, DH150 LC-7, DX140 LC-3, DX140 LC-5, DX140 LC-7, DX160 LC-3, DX140LCR-7, DX130-9CN, DX140 LCA, DX140 LCR, DX140WACE, DX150W-9C, DX165WR-7, S140WV RW, DX160 LC, DH140W-7, DH150W-7, DX100W-7, DX140W-3, DX140W-5, DX140W-7, DX160W-3, DX160W-5, DX160W-7, DX165W-5, DX140LC, DX140WA, DX140WE, S140W V, DX140W, DX160W, S130WV, S160WV, DX130, DX140, DX120, DX140LC-7K
      Hitachi H15 Super Long, ZX200 H15 Supe, ZX130 LCN-5B, ZX135USOS-5B, ZX130 LC-5N, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-6, ZX130 LCN-7, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USOS-3, ZX135USOS-6, ZX135USTN-Z, EX100WD-3C, ZX120USR-5, ZX130 LC-3, ZX135US LC, ZX135US-5B, ZX135US-5N, ZX135US-6N, ZX135USB-3, ZX135USB-5, ZX135USK-3, ZX135USK-6, ZX135USR-5, EX100WD-1, EX100WD-2, EX100WD-3, EX125WD-5, EX130UR-1, EX130UR-5, EX135UR-1, EX135UR-5, ZX130 LCM, ZX130 LCN, ZX130K HG, ZX130K-5B, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-6, ZX135US-7, ZX135US-E, ZX110M-3, ZX120 IV, ZX120 LC, ZX120-5B, ZX130 LC, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6N, ZX130K-3, ZX130K-6, ZX135USK, ZX135USM, ZX140W-3, EX100-1, EX100-2, EX100-3, EX100-5, EX100WD, EX120-1, EX120-2, EX120-3, EX120-5, EX135UR, ZX110-2, ZX110-3, ZX110BL, ZX120-2, ZX120-3, ZX120-6, ZX120BL, ZX125US, ZX130-3, ZX130-5, ZX130-6, ZX130-7, ZX130BL, ZX130MT, ZX135UR, ZX135US, EX130K, EX130W, ZX110E, ZX110M, ZX120B, ZX120E, ZX130H, ZX130K, ZX130L, ZX135U, ZX140H, EX100, EX120, EX130, EX135, UH053, UH063, ZX110, ZX120, ZX130, ZX135, EX-5, ZX130-7H, ZX135US-7H
      Hyundai R125LCR-9A, HX145LCR, R130LC-3, R140LC-7, R140LC-9, R145LC-9, R130W-3, R140W-7, HX140L, R110-7, R130LC, HX125, HX140, HX145, R120W, 130W, HX130A LCR, HX140A L, HX145A LCR
      JCB 131LLC, 150X-1, JS130C, JS145W, JS130, JS131, JS135, JS145, JS160, JZ140, JZ141, 131X, 140X, 145X, 150X, 814S
      John Deere 120C LC, 120 LC, JD120, 120C, 120D, 130G, 135C, 135D, 135G, 490D, 110, 120, 135 P-Tier
      Kato HD513 MR-3, HD512 E, HD512-3, HD512, 450, 512, 572
      Kobelco SK135SR 1E, SK115SRDZ, SK125SR-2, SK135SR-2, SK135SR-3, SK140LC-8, SK120-2, SK120-5, SK130-8, SK130LC, SK130UR, SK135SR, SK120v, K905, SK140SRLC, SK130LC-11
      Liebherr R914
      Linkbelt 135 X3 SPIN, 130 X4LC, 130 LX, 130 X2, 130 X3, 130 X4, 135 LX, 145 X3, 145 X4
      Liugong 915D, 915E
      Sany SY135 IV, SY135-3A, SY130-1, SY135-2, SY155U, SY155W, SY115, SY125, SY135, SY155, SY125C PRO, SY140C-9S, SY135C-9, SY155H-9, SY115C, SY135C, SY155C, SY155H
      Sumitomo SH120- 2, SH120-A3, SH125X-3, SH145X-6, SH120-1, SH120-3, SH130-5, SH135X, SH120
      Takeuchi TB2150R, TB1140, TB2150
      Terex 145
      Volvo MX135WS/LS, EC135B LC, EC140 LCM, EC140B LC, EC140E LM, SE130LC-3, EC140 LC, EC140CLM, EC140DLM, ECR145CL, ECR145EL, SE130W-3, EC140-7, EC140CL, EC140DL, EC140EL, ECR145C, EC120D, EC140B, EC140C, EC140D, EC140E, EC145E, ECR145, EC120, EC130, EC140, EW130, ECR145E, ECR145SE
      XCMG XE155UCR, XE155U, XR155U
