JMA Attachments Manual Quick Coupler | Pin Size 60mm | For 8 – 13 Tons Excavators

JMA Attachments Manual Quick Coupler | Pin Size 60mm | For 8 – 13 Tons Excavators

$3,197.80
$3,197.80
Sale Sold out
Customizable
Fast
24/7 Support
  • Universal Attachment Acceptance: Compatible with a wide range of OEM and aftermarket tools.
  • Swift Changeouts: Designed for single-visit, rapid attachment swaps.
  • Safety Prioritized: Features mandatory safety pin system and lock indicators.
View full details

Product Description

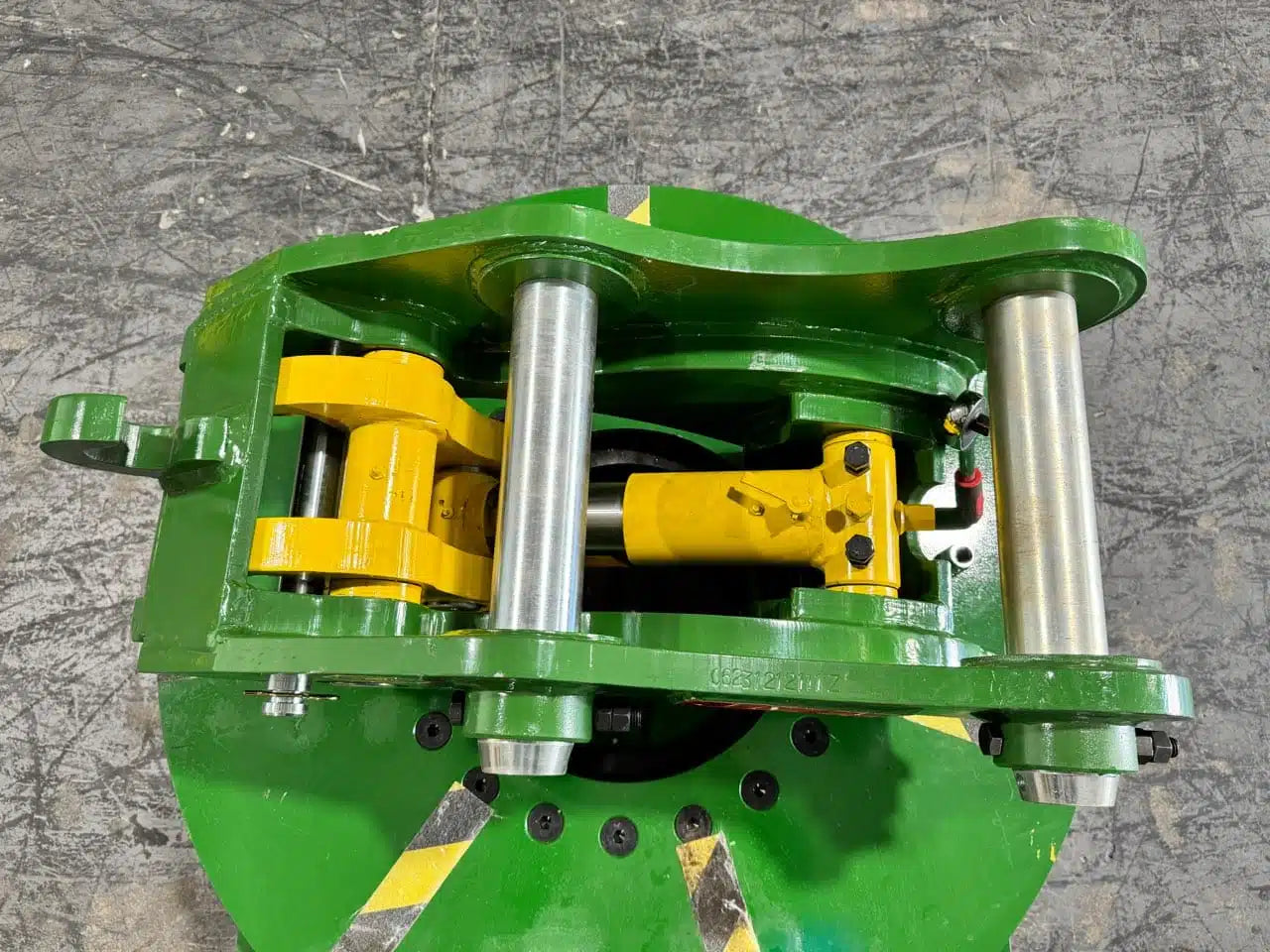

JMA Attachments Manual Quick Coupler | Pin Size 60mm | For 8 – 13 Tons Excavators

Description

Revolutionize your approach to attachment management with the Manual Quick Coupler for 8 - 13 Tons Excavators. 60mm Pins. Crafted for Excavators, this cutting-edge Manual Quick Coupler system redefines efficiency and versatility on the job site.

Key Features

  • Universal Attachment Acceptance: Compatible with a wide range of OEM and aftermarket tools.
  • Swift Changeouts: Designed for single-visit, rapid attachment swaps.
  • Safety Prioritized: Features mandatory safety pin system and lock indicators.
  • Extreme Durability: AR400 Steel construction withstands the rigors of intense daily use.
  • User-Optimized Design: Easy operation and maintenance for minimal downtime.

Detailed Specifications

Attribute Value
Material Type AR400 Steel
Finish Powder-Coated Green
Accessories Included Installation Kit
Front Pin Diameter (mm) 60 mm
Rear Pin Diameter (mm) 60 mm
Front Ear to Ear Distance (mm) 216 mm
Rear Ear to Ear Distance (mm) 216 mm
Center to Center Distance (mm) 428 mm
Front Pin Length (mm) 393 mm
Rear Pin Length (mm) 393 mm
Carrier Weight Class (tn) 8 - 13 Tons
Carrier Weight Class (lbs) 16,000 - 26,000 lb
Product Weight (lbs) 374.79 lb
Product Weight (kg) 170 kg



      Fits To

      Brand

      Model
      Caterpillar 310
      Hyundai R75-5
      Ihi IS110, IS120
      Kato HD550SE
      Kobelco SK100-2, SK100-3, SK115SR, SK100V, SK100
      Komatsu PC138US LC-2E0, PC138US LC-10, PC138US LC-11, PC138US LC-2E, PC120 LC-6E0, PC120 LC-6LE, PC128US LC-2, PC138US LC-2, PC138US LC-3, PC138US LC-7, PC138US LC-8, PC138US-11E0, PC120 LC-5L, PC120 LC-6E, PC120 LC-6L, PC128US-1MB, PC128US-2E0, PC128US-2E1, PC128US-2MB, PC128USI-10, PC128UU-1MB, PC128UU-2E0, PC130 LC-11, PC138US-2E1, PC138US-8NM, PC100 LC-1, PC100 LC-2, PC100 LC-3, PC100 LC-4, PC100 LC-5, PC100 LC-6, PC120 LC-3, PC120 LC-4, PC120 LC-5, PC120 LC-6, PC120 LC-7, PC120-1 -2, PC120SC-6E, PC128US LC, PC128US-10, PC128US-11, PC128US-2A, PC128US-2H, PC128UU-15, PC128UU-1E, PC128UU-1Y, PC130 LC-6, PC130 LC-7, PC130 LC-8, PC138 LC-2, PC138US LC, PC138US-10, PC138US-11, PC138US-2E, PC100-6ZE, PC100SS-3, PC110SP-6, PC118MR-8, PC120-6AC, PC120-6E0, PC120-6ZE, PC120SS-3, PC128US-1, PC128US-2, PC128US-5, PC128US-6, PC128US-8, PC128UU-1, PC128UU-2, PC128UU-6, PC128UU-8, PC128UUMB, PC138US-2, PC138US-8, PC 100-2, PC 100-6, PC 120-6, PC100 LC, PC100-5Z, PC100-6E, PC100L-1, PC100L-2, PC100L-3, PC100L-5, PC100L-6, PC100N-6, PC100U-2, PC100U-3, PC110R-1, PC120 LC, PC120 LE, PC120-11, PC120-15, PC120-3K, PC120-3W, PC120-5C, PC120-5G, PC120-5K, PC120-5Z, PC120-6E, PC120-6J, PC120-6L, PC120-6M, PC120-6Z, PC128 LC, PC128U-2, PC130 LC, PC130-11, PC130-5K, PC130-5S, PC130-6E, PC130-6K, PC130-6W, PC130-7K, PC130F-7, PC138 LC, PC100-1, PC100-2, PC100-3, PC100-4, PC100-5, PC100-6, PC100-7, PC100-8, PC110-1, PC110-2, PC110-7, PC120-1, PC120-2, PC120-3, PC120-4, PC120-5, PC120-6, PC120-7, PC120-8, PC120BE, PC120UU, PC128-1, PC128-2, PC128US, PC128UU, PC130-3, PC130-5, PC130-6, PC130-7, PC130-8, PC138US, PC100L, PC100N, PC100U, PC120B, PC128U, PC100, PC110, PC120, PC128, PC130, PC135, PC138
      Kubota KX080-3, KX080-4, KX085-5, KX080
      Lonking CDM6150
      Nagano NS75-3
      Sumitomo S260F2
      Volvo ECR88, EC88
