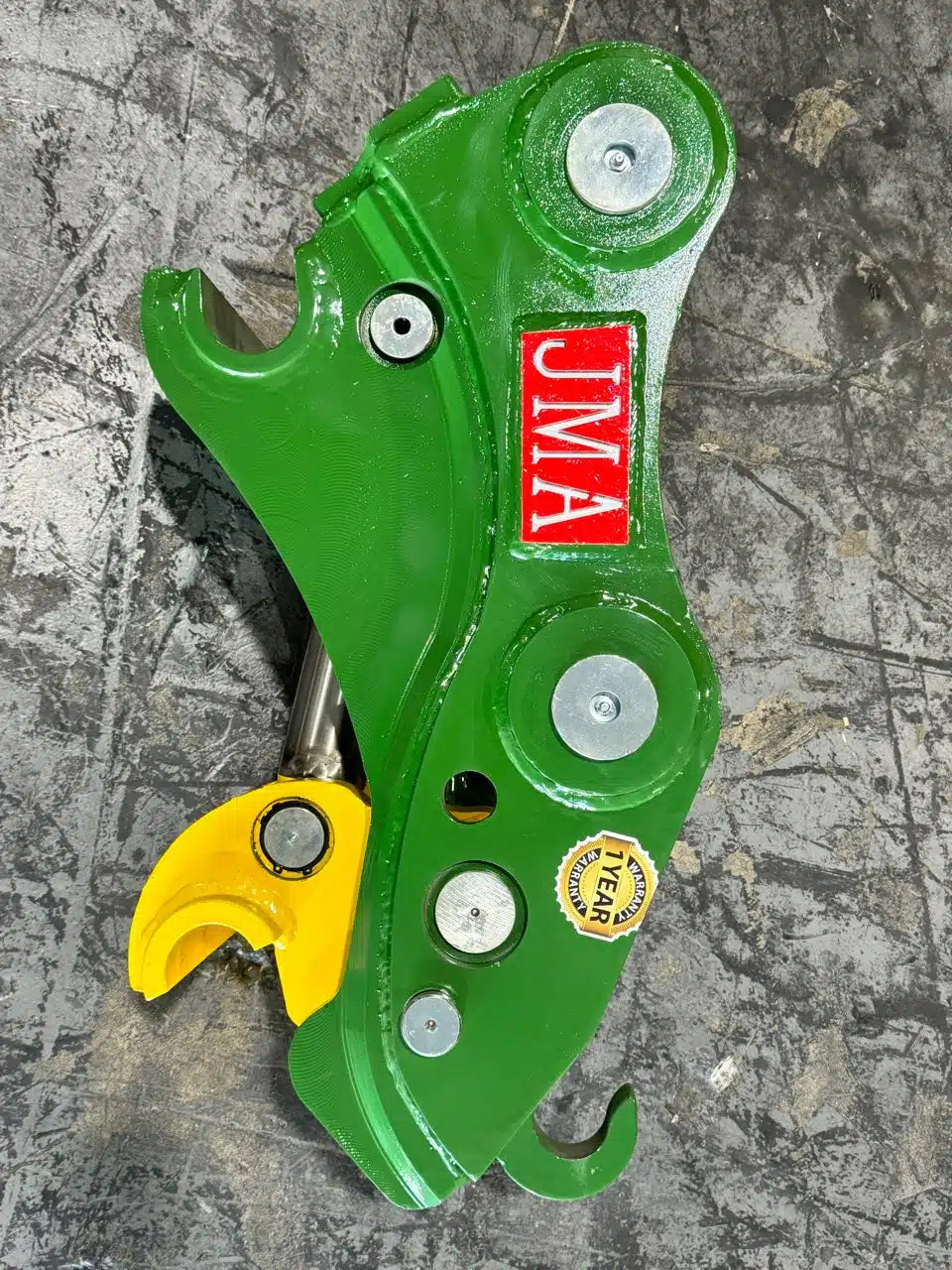

JMA Attachments Manual Quick Coupler | Pin Size 70mm | For 15 – 18 Tons Excavators

JMA Attachments Manual Quick Coupler | Pin Size 70mm | For 15 – 18 Tons Excavators

$4,584.90
$4,584.90
Sale Sold out
Customizable
Fast
24/7 Support
  • Versatile Compatibility: Pairs seamlessly with attachments from various manufacturers.
  • Rapid Tool Switching: Single-handed operation for quick and easy changes.
  • Safety-Centric Design: Incorporates fail-safe locking mechanism with visual indicators.
View full details

Product Description

JMA Attachments Manual Quick Coupler | Pin Size 70mm | For 15 – 18 Tons Excavators

Description

Unleash the full potential of your Excavator with the Manual Quick Coupler for 15 - 18 Tons Excavators. 70mm Pins. This advanced Manual Quick Coupler revolutionizes attachment management and operational efficiency.

Key Features

  • Versatile Compatibility: Pairs seamlessly with attachments from various manufacturers.
  • Rapid Tool Switching: Single-handed operation for quick and easy changes.
  • Safety-Centric Design: Incorporates fail-safe locking mechanism with visual indicators.
  • Built for Endurance: AR400 Steel construction ensures reliability in the most demanding conditions.
  • Optimized for Performance: Low tip radius design maintains maximum breakout force.

Detailed Specifications

Attribute Value
Material Type AR400 Steel
Finish Powder-Coated Green
Accessories Included Installation Kit
Front Pin Diameter (mm) 70 mm
Rear Pin Diameter (mm) 70 mm
Front Ear to Ear Distance (mm) 283 mm
Rear Ear to Ear Distance (mm) 283 mm
Center to Center Distance (mm) 464 mm
Front Pin Length (mm) 449 mm
Rear Pin Length (mm) 449 mm
Carrier Weight Class (tn) 15 - 18 Tons
Carrier Weight Class (lbs) 30,000 - 36,000 lb
Product Weight (lbs) 396.83 lb
Product Weight (kg) 180 kg



      Fits To

      Brand

      Model
      Caterpillar 315D2 GC, 315F LCR, 315 GC, 315D2L, 317BLN, 318BL2, 318BLN, 318CLN, 318D2L, 318DL2, 318EL2, 318FL2, 315BL, 315CL, 315DL, 315LN, 316EL, 316FL, 316GC, 317BL, 317GC, 318CN, M313D, 315B, 315C, 315D, 315F, 315L, 316E, 317B, 317N, 318B, 318E, 215, 315, 317
      Hyundai R160LC-3, R160LC-7, R160LC-9, R180LC-3, R180LC-7, R180LC-9, R210LC-3, R170W-3, R200W-2, R200W-3, R160LC, R180LC, R200LC, R220LC
      Kato 700SEV2, HD700SE, HD700V2, HD700, 900
      Kobelco SK170LC-8
      Komatsu PC160 LC-7A E0, PC150 HD LC-5, PC150N HD-5K, PC158US LC-2, PC160 LC-7E0, PC160 LC-7KA, PC180 LC-7E0, PC180N LC-5K, PC180N LC-6K, PC180N LC-7K, PC150 HD-5K, PC150 LC-3W, PC150 LC-6K, PC150 LC-8K, PC150 LGP-6, PC150N HD-5, PC160 LC-6K, PC160 LC-7E, PC160 LC-7K, PC160 LC-7L, PC160LC-7EO, PC170 LC-10, PC170 LC-11, PC180 LC-5K, PC180 LC-6K, PC180 LC-7K, PC180L LC-3, PC180N LC-3, PC180N LC-5, PC180N LC-6, PC180N LC-7, PC150 HD-3, PC150 HD-5, PC150 LC-1, PC150 LC-3, PC150 LC-5, PC150 LC-6, PC150 LC-7, PC158US LC, PC160 LC-6, PC160 LC-7, PC160 LC-8, PC180 LC-3, PC180 LC-5, PC180 LC-6, PC180 LC-7, PC150N HD, PC158US-2, PC160N LC, PC180N LC, PC150 HD, PC150 LC, PC150 SE, PC150-3W, PC150-5K, PC150-6K, PC150C-3, PC150C-6, PC150L-6, PC158 LC, PC160 LC, PC160-6K, PC160-7K, PC168 LC, PC170 LC, PC180 LC, PC180-3K, PC180-5K, PC180-6K, PC150-1, PC150-3, PC150-5, PC150-6, PC160-6, PC160-7, PC160-8, PC180-3, PC180-5, PC180-6, PC180-7, PC150C, PC150L, PC150, PC158, PC160, PC180, PW150
      Liebherr 922
      Samsung SE130LC
      Sumitomo LS2800FJ, S2800FJ
      Volvo EC160B LC, EC160C LC, EC150 LC, EC160 LC, SE170W-3, EC160CL, EC160DL, EC160EL, EC170DL, EC180CL, EC180DL, EC180EL, MX175WS, EC150B, EC150C, EC160B, EC160C, EC160N, EC160P, EC180B, EC180C, EC180D, EC150, EC160, EW170
