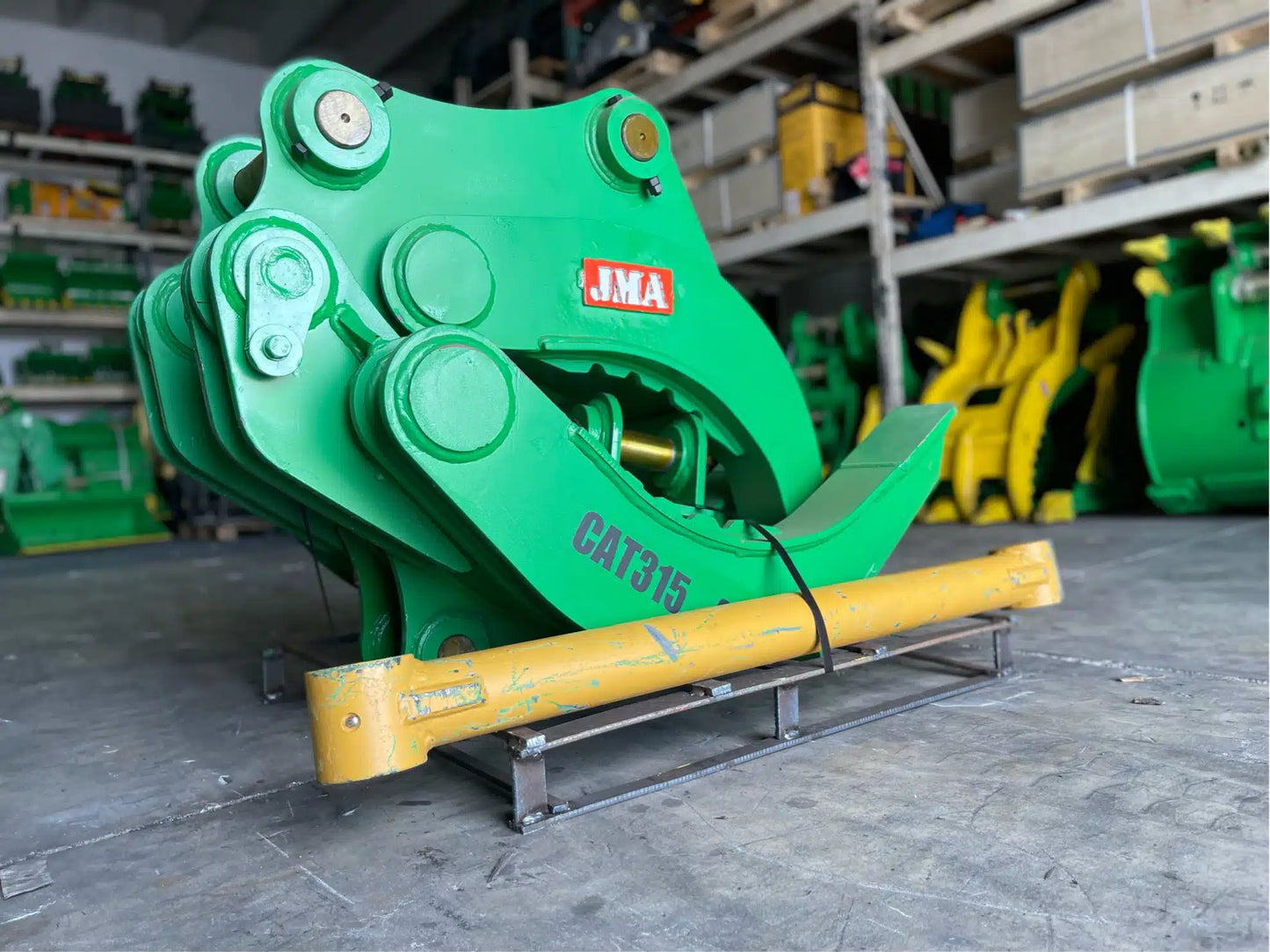

JMA Attachments Mechanical Grapple | Grapple Width 32" inches | Pin Size 65mm | For 11 – 15 Tons Excavators

JMA Attachments Mechanical Grapple | Grapple Width 32" inches | Pin Size 65mm | For 11 – 15 Tons Excavators

$6,156.70
$6,156.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Impressive Capacity: With a maximum jaw opening of 1,460 mm (57.48"), this grapple allows for efficient handling of substantial material volumes.
  • Robust Construction: Made from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Optimized Design: Features a well-thought-out design for optimal material flow, reducing cycle times and maintaining productivity.
View full details

Product Description

JMA Attachments Mechanical Grapple | Grapple Width 32" inches | Pin Size 65mm | For 11 – 15 Tons Excavators

Description

Revolutionize your approach to demolition and material handling with the 32” Mechanical Grapple for 11 - 15 Tons Excavators. 65mm Pins. Crafted for Excavators, this cutting-edge mechanical grapple sets new benchmarks in operational efficiency and versatility.

Key Features

  • Impressive Capacity: With a maximum jaw opening of 1,460 mm (57.48"), this grapple allows for efficient handling of substantial material volumes, significantly reducing project timelines.
  • Robust Construction: Made from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Optimized Design: Features a well-thought-out design for optimal material flow, reducing cycle times and maintaining productivity.
  • Enhanced Versatility: Suitable for various heavy-duty tasks, providing reliability across different conditions.
  • Durable Finish: Powder-coated green finish for added durability and corrosion resistance.

Detailed Specifications

      Attribute Value
      Grapple Width (mm) 812.8 mm
      Grapple Width (in) 32"
      Product Height (mm) 1,057 mm
      Product Height (in) 41.61"
      Material Type AR400 Steel
      Finish Powder-Coated Green
      Moving Jaw Width (mm) 539 mm
      Moving Jaw Width (in) 21.22"
      Fixed Jaw Width (mm) 890 mm
      Fixed Jaw Width (in) 35.03"
      Max Jaw Opening (mm) 1,460 mm
      Max Jaw Opening (in) 57.48"
      Jaw Configuration 4*3
      Front Pin Diameter (mm) 65 mm
      Rear Pin Diameter (mm) 65 mm
      Front Ear to Ear Distance (mm) 220 mm
      Rear Ear to Ear Distance (mm) 220 mm
      Center to Center Distance (mm) 408 mm
      Carrier Weight Class (tn) 11 - 15 Tons
      Carrier Weight Class (lbs) 22,000 - 30,000 lb
      Product Weight (lbs) 1,364 lbs
      Product Weight (kg) 620 kg



      Fits To

      Brand

      Model
      Case CX145D MSR, CX130B LC, CX130C LR, CX130D LC, CX130 LC, CX135MS3, CX135MSR, CX145CSR, CX145DSR, CX135CR, CX135SR, CX130B, CX130C, CX130D, CX130E, CX130K, CX135C, CX140E, CX145C, CX130, CX135, CX90
      Caterpillar 314CL LCR, 312B LGP, 312D2 GC, 313D2 GC, 314C LCR, 314D LCR, 314E LCR, 314G LCR, 311DLRR, 311F RR, 311FLRR, 313B CR, 313C CR, 313D CR, 313D2 L, 313FLGC, 314C CR, 314D CR, 314E CR, 314E SR, 314F CR, 311 V2, 311C U, 311DRR, 312 V2, 312BLN, 312CLR, 312D2L, 312F L, 312FGC, 313BSR, 313CSR, 313DSR, 313FGC, 311BL, 311FL, 312BL, 312CL, 312D2, 312DL, 312EL, 312GC, 313D2, 313DL, 313FL, 313GC, 314DL, 314EL, 315FL, E120B, 311B, 311C, 311D, 312B, 312C, 312D, 312E, 312F, 312L, 313B, 313C, 313D, 313E, 313F, 314C, 311, 312, 313, 314
      Daewoo S130W-111, S130 LC V, S155 LC V, S140LC-V, S130-2
      Develon DX140LCR-7K, DX140LC-7K, DX140LCR-7, DX165WR-7, DX100W-7, DX140W-5, DX140W-7, DX160W-7
      Doosan DX160 LC-5 HT, DX140 LC-9C, DX140 LCR-3, DX140 LCR-5, DX140 LCR-7, DX150 LC-9C, DH150 LC-7, DX140 LC-3, DX140 LC-5, DX140 LC-7, DX160 LC-3, DX140LCR-7, DX130-9CN, DX140 LCA, DX140 LCR, DX140WACE, DX150W-9C, DX165WR-7, S140WV RW, DX160 LC, DH140W-7, DH150W-7, DX100W-7, DX140W-3, DX140W-5, DX140W-7, DX160W-3, DX160W-5, DX160W-7, DX165W-5, DX140LC, DX140WA, DX140WE, S140W V, DX140W, DX160W, S130WV, S160WV, DX130, DX140, DX120, DX140LC-7K
      Hitachi H15 Super Long, ZX200 H15 Supe, ZX130 LCN-5B, ZX135USOS-5B, ZX130 LC-5N, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-6, ZX130 LCN-7, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USOS-3, ZX135USOS-6, ZX135USTN-Z, EX100WD-3C, ZX120USR-5, ZX130 LC-3, ZX135US LC, ZX135US-5B, ZX135US-5N, ZX135US-6N, ZX135USB-3, ZX135USB-5, ZX135USK-3, ZX135USK-6, ZX135USR-5, EX100WD-1, EX100WD-2, EX100WD-3, EX125WD-5, EX130UR-1, EX130UR-5, EX135UR-1, EX135UR-5, ZX130 LCM, ZX130 LCN, ZX130K HG, ZX130K-5B, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-6, ZX135US-7, ZX135US-E, ZX110M-3, ZX120 IV, ZX120 LC, ZX120-5B, ZX130 LC, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6N, ZX130K-3, ZX130K-6, ZX135USK, ZX135USM, ZX140W-3, EX100-1, EX100-2, EX100-3, EX100-5, EX100WD, EX120-1, EX120-2, EX120-3, EX120-5, EX135UR, ZX110-2, ZX110-3, ZX110BL, ZX120-2, ZX120-3, ZX120-6, ZX120BL, ZX125US, ZX130-3, ZX130-5, ZX130-6, ZX130-7, ZX130BL, ZX130MT, ZX135UR, ZX135US, EX130K, EX130W, ZX110E, ZX110M, ZX120B, ZX120E, ZX130H, ZX130K, ZX130L, ZX135U, ZX140H, EX100, EX120, EX130, EX135, UH053, UH063, ZX110, ZX120, ZX130, ZX135, EX-5, ZX130-7H, ZX135US-7H
      Hyundai R125LCR-9A, HX145LCR, R130LC-3, R140LC-7, R140LC-9, R145LC-9, R130W-3, R140W-7, HX140L, R110-7, R130LC, HX125, HX140, HX145, R120W, 130W, HX130A LCR, HX140A L, HX145A LCR
      JCB 131LLC, 150X-1, JS130C, JS145W, JS130, JS131, JS135, JS145, JS160, JZ140, JZ141, 131X, 140X, 145X, 150X, 814S
      John Deere 120C LC, 120 LC, JD120, 120C, 120D, 130G, 135C, 135D, 135G, 490D, 110, 120, 135 P-Tier
      Kato HD513 MR-3, HD512 E, HD512-3, HD512, 450, 512, 572
      Kobelco SK135SR 1E, SK115SRDZ, SK125SR-2, SK135SR-2, SK135SR-3, SK140LC-8, SK120-2, SK120-5, SK130-8, SK130LC, SK130UR, SK135SR, SK120v, K905, SK140SRLC, SK130LC-11
      Liebherr R914
      Linkbelt 135 X3 SPIN, 130 X4LC, 130 LX, 130 X2, 130 X3, 130 X4, 135 LX, 145 X3, 145 X4
      Liugong 915D, 915E
      Sany SY135 IV, SY135-3A, SY130-1, SY135-2, SY155U, SY155W, SY115, SY125, SY135, SY155, SY125C PRO, SY140C-9S, SY135C-9, SY155H-9, SY115C, SY135C, SY155C, SY155H
      Sumitomo SH120- 2, SH120-A3, SH125X-3, SH145X-6, SH120-1, SH120-3, SH130-5, SH135X, SH120
      Takeuchi TB2150R, TB1140, TB2150
      Terex 145
      Volvo MX135WS/LS, EC135B LC, EC140 LCM, EC140B LC, EC140E LM, SE130LC-3, EC140 LC, EC140CLM, EC140DLM, ECR145CL, ECR145EL, SE130W-3, EC140-7, EC140CL, EC140DL, EC140EL, ECR145C, EC120D, EC140B, EC140C, EC140D, EC140E, EC145E, ECR145, EC120, EC130, EC140, EW130, ECR145E, ECR145SE
      XCMG XE155UCR, XE155U, XR155U

      Manual & Documents

      General Warranty Info:

      • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
      • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
      • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
      • Please reach out to us for any specific warranty information needed about products and parts you can’t find!
