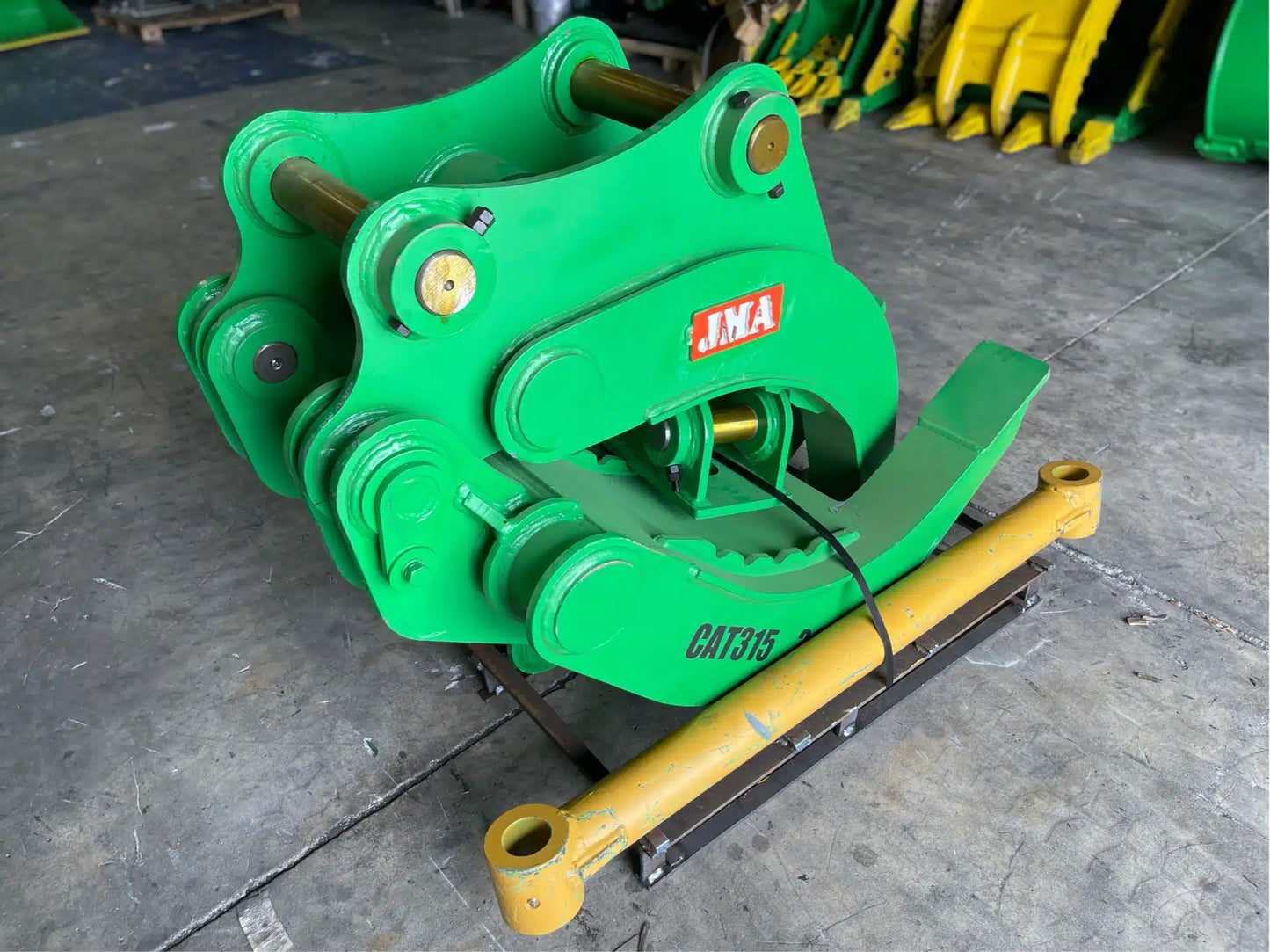

JMA Attachments Mechanical Grapple | Grapple Width 32" inches | Pin Size 70mm | For 15 – 18 Tons Excavators

JMA Attachments Mechanical Grapple | Grapple Width 32" inches | Pin Size 70mm | For 15 – 18 Tons Excavators

$6,156.70
$6,156.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Impressive Capacity: With a maximum jaw opening of 1,460 mm (57.48"), this grapple allows for efficient handling of substantial material volumes
  • Robust Construction: Made from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Optimized Design: Features a well-thought-out design for optimal material flow, reducing cycle times and maintaining productivity.
View full details

Product Description

JMA Attachments Mechanical Grapple | Grapple Width 32" inches | Pin Size 70mm | For 15 – 18 Tons Excavators

Description

Revolutionize your approach to demolition and material handling with the 32” Mechanical Grapple for 15 - 18 Tons Excavators. 70mm Pins. Crafted for Excavators, this cutting-edge mechanical grapple sets new benchmarks in operational efficiency and versatility.

Key Features

  • Impressive Capacity: With a maximum jaw opening of 1,460 mm (57.48"), this grapple allows for efficient handling of substantial material volumes, significantly reducing project timelines.
  • Robust Construction: Made from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Optimized Design: Features a well-thought-out design for optimal material flow, reducing cycle times and maintaining productivity.
  • Enhanced Versatility: Suitable for various heavy-duty tasks, providing reliability across different conditions.
  • Durable Finish: Powder-coated green finish for added durability and corrosion resistance.

Detailed Specifications


      Attribute Value
      Grapple Width (mm) 812.8 mm
      Grapple Width (in) 32"
      Product Height (mm) 1,057 mm
      Product Height (in) 41.61"
      Material Type AR400 Steel
      Finish Powder-Coated Green
      Moving Jaw Width (mm) 539 mm
      Moving Jaw Width (in) 21.22"
      Fixed Jaw Width (mm) 890 mm
      Fixed Jaw Width (in) 35.03"
      Max Jaw Opening (mm) 1,460 mm
      Max Jaw Opening (in) 57.48"
      Jaw Configuration 4*3
      Front Pin Diameter (mm) 70 mm
      Rear Pin Diameter (mm) 70 mm
      Front Ear to Ear Distance (mm) 283 mm
      Rear Ear to Ear Distance (mm) 283 mm
      Center to Center Distance (mm) 464 mm
      Carrier Weight Class (tn) 15 - 18 Tons
      Carrier Weight Class (lbs) 30,000 - 36,000 lb
      Product Weight (lbs) 1,364 lbs
      Product Weight (kg) 620 kg



      Fits To

      Brand

      Model
      Caterpillar 315D2 GC, 315F LCR, 315 GC, 315D2L, 317BLN, 318BL2, 318BLN, 318CLN, 318D2L, 318DL2, 318EL2, 318FL2, 315BL, 315CL, 315DL, 315LN, 316EL, 316FL, 316GC, 317BL, 317GC, 318CN, M313D, 315B, 315C, 315D, 315F, 315L, 316E, 317B, 317N, 318B, 318E, 215, 315, 317
      Hyundai R160LC-3, R160LC-7, R160LC-9, R180LC-3, R180LC-7, R180LC-9, R210LC-3, R170W-3, R200W-2, R200W-3, R160LC, R180LC, R200LC, R220LC
      Kato 700SEV2, HD700SE, HD700V2, HD700, 900
      Kobelco SK170LC-8
      Komatsu PC160 LC-7A E0, PC150 HD LC-5, PC150N HD-5K, PC158US LC-2, PC160 LC-7E0, PC160 LC-7KA, PC180 LC-7E0, PC180N LC-5K, PC180N LC-6K, PC180N LC-7K, PC150 HD-5K, PC150 LC-3W, PC150 LC-6K, PC150 LC-8K, PC150 LGP-6, PC150N HD-5, PC160 LC-6K, PC160 LC-7E, PC160 LC-7K, PC160 LC-7L, PC160LC-7EO, PC170 LC-10, PC170 LC-11, PC180 LC-5K, PC180 LC-6K, PC180 LC-7K, PC180L LC-3, PC180N LC-3, PC180N LC-5, PC180N LC-6, PC180N LC-7, PC150 HD-3, PC150 HD-5, PC150 LC-1, PC150 LC-3, PC150 LC-5, PC150 LC-6, PC150 LC-7, PC158US LC, PC160 LC-6, PC160 LC-7, PC160 LC-8, PC180 LC-3, PC180 LC-5, PC180 LC-6, PC180 LC-7, PC150N HD, PC158US-2, PC160N LC, PC180N LC, PC150 HD, PC150 LC, PC150 SE, PC150-3W, PC150-5K, PC150-6K, PC150C-3, PC150C-6, PC150L-6, PC158 LC, PC160 LC, PC160-6K, PC160-7K, PC168 LC, PC170 LC, PC180 LC, PC180-3K, PC180-5K, PC180-6K, PC150-1, PC150-3, PC150-5, PC150-6, PC160-6, PC160-7, PC160-8, PC180-3, PC180-5, PC180-6, PC180-7, PC150C, PC150L, PC150, PC158, PC160, PC180, PW150
      Liebherr 922
      Samsung SE130LC
      Sumitomo LS2800FJ, S2800FJ
      Volvo EC160B LC, EC160C LC, EC150 LC, EC160 LC, SE170W-3, EC160CL, EC160DL, EC160EL, EC170DL, EC180CL, EC180DL, EC180EL, MX175WS, EC150B, EC150C, EC160B, EC160C, EC160N, EC160P, EC180B, EC180C, EC180D, EC150, EC160, EW170
