| Attribute | Value |
|---|---|
| Product Width (mm) | 470 mm |
| Product Width (in) | 18.5" |
| Product Height (mm) | 597 mm |
| Product Height (in) | 23.5" |
| Product Length (mm) | 831 mm |
| Product Length (in) | 32.72" |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Hydraulic Motor Brand | Permco Hydraulic Motor Pump |
| Tamping Force (kg/cm) | 100 - 130 kg/cm |
| Tamping Force (ft⋅lb) | 7,233 - 9,403 ft⋅lb |
| Hydraulic Flow (LPM) | 70 LPM |
| Hydraulic Flow (GPM) | 18 GPM |
| Revolutions Per Minute (Minimum) | 600 rpm |
| Revolutions Per Minute (max) | 3,000 rpm |
| PSI (max) | 4,640 psi |
| Motor Series | PT7B |
| Motor Force (kw) | 16.5 kw |
| Impluse Force (tn) | 5 Tons |
| Impluse Force (lbs) | 11,023.10 lb |

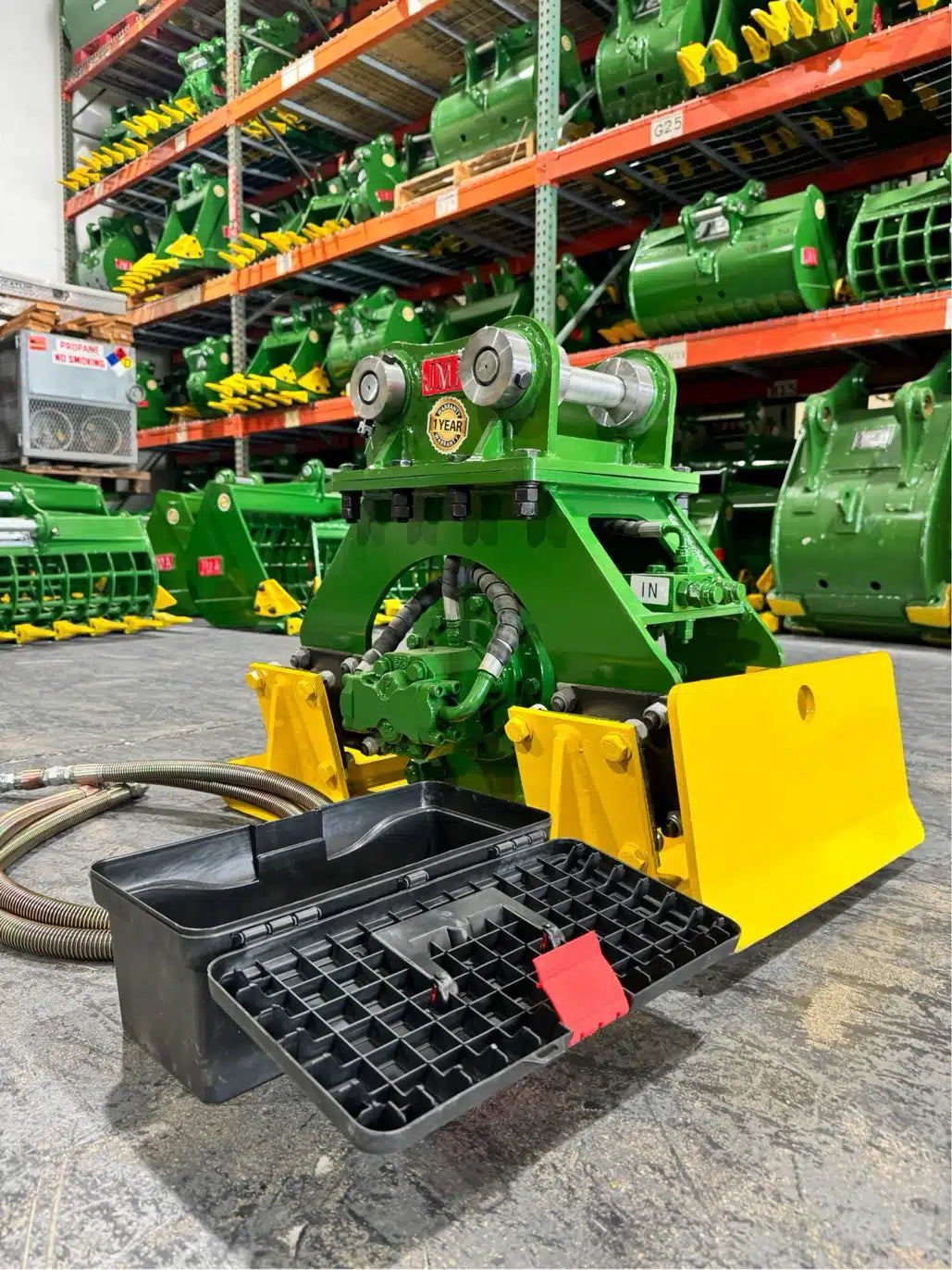

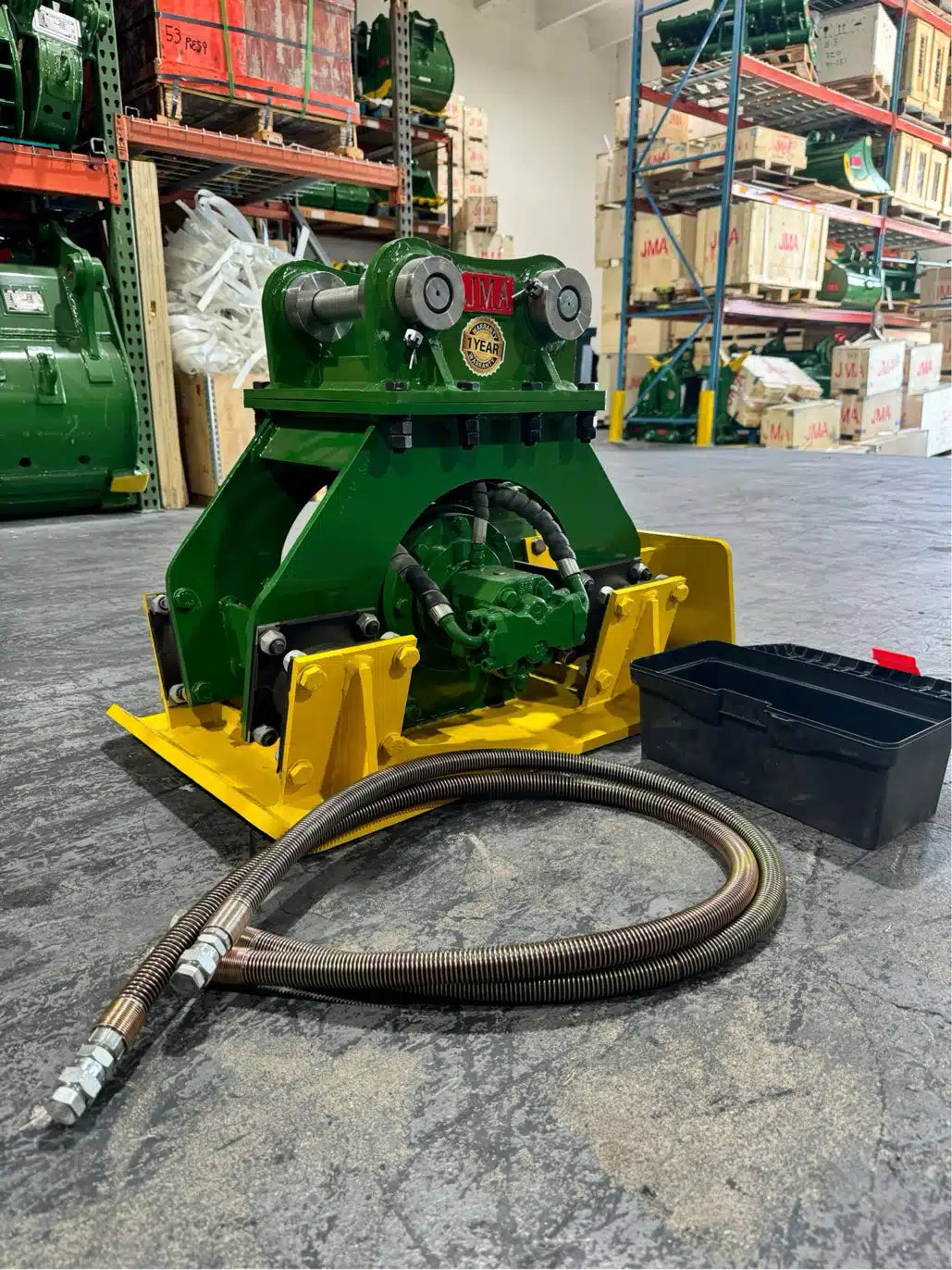

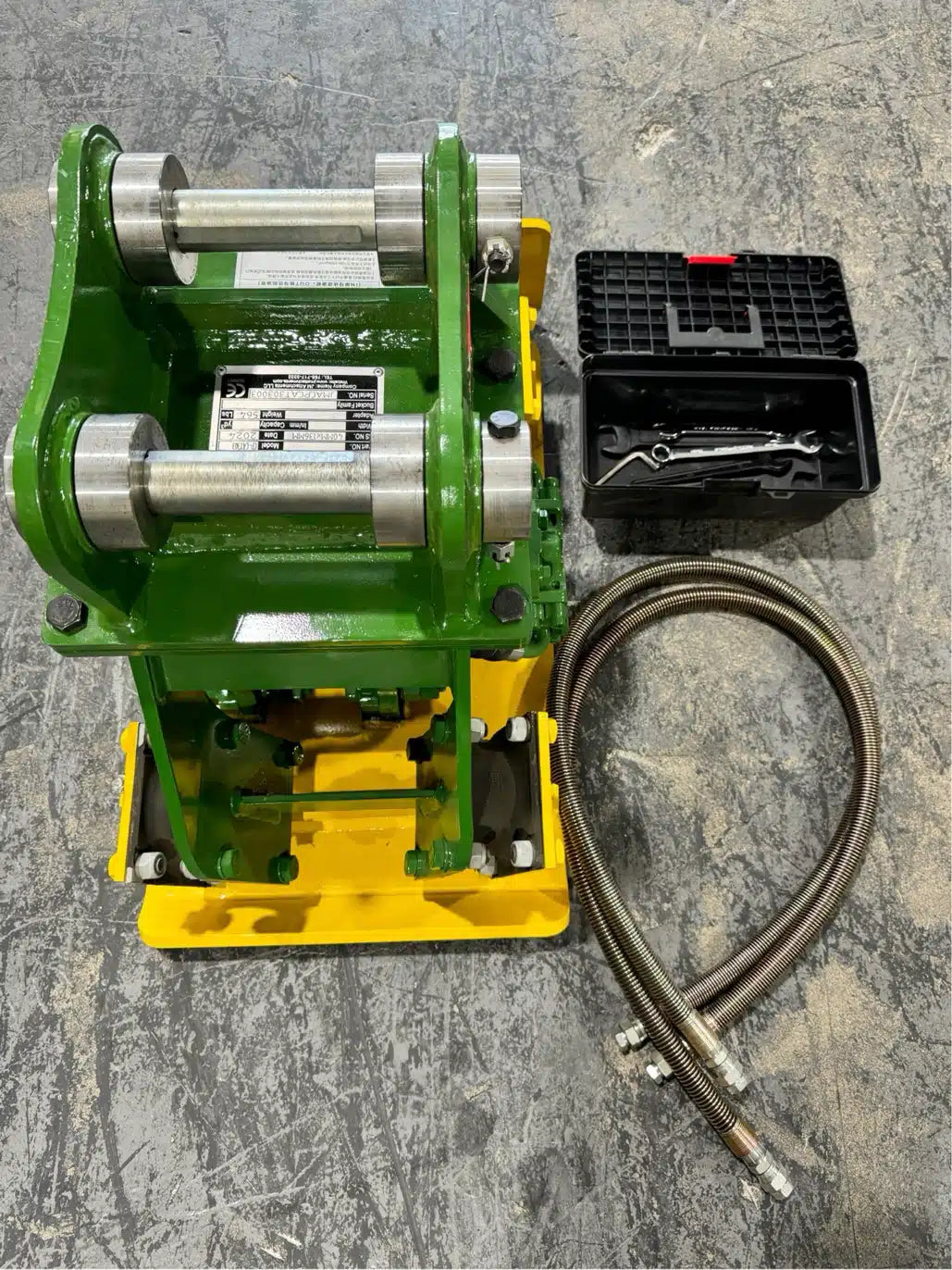

| Accessories Included | Leveling Pushing Blade, Two Hydraulic Hoses and Tools for Servicing |
| Front Pin Diameter (mm) | 40 mm |
| Rear Pin Diameter (mm) | 40 mm |
| Front Ear to Ear Distance (mm) | 136 mm |
| Rear Ear to Ear Distance (mm) | 136 mm |
| Center to Center Distance (mm) | 200 mm |
| Front Pin Length (mm) | 273 mm |
| Rear Pin Length (mm) | 273 mm |
| Carrier Weight Class (tn) | 3 - 4.5 Tons |
| Carrier Weight Class (lbs) | 6,000 - 9,000 lbs |
| Product Weight (lbs) | 528 lbs |
| Product Weight (kg) | 240 kg |
Fits To
|
Brand |
Model |
|---|---|
| Airman | AX30U-5F, AX30UC-4, AX30UC-5, AX33U-5A, AX35U-5F, AX38U-5A, AX30-U2, AX30U-4, AX33Mu, AX30, AX35 |
| Case | CX31B, CX36B, CX33, CX37 |
| Caterpillar | 303.5D2 CR, 303.5E2 CR, 303.5C CR, 303.5D CR, 303.5E CR, 303C2 CR, 303.5CR, 303C CR, 303E CR, 304D CR, 303.4C, 303.5C, 303.5D, 303.5E, 303CR2, 303ESR, 304ECR, 305CR2, 303.5, 303CR, 303GR, 303SR, 304.5, 304CR, 304E2, 303 |
| Daewoo | S030, S035, S35 |
| Develon | DX27Z-7, DX35Z-7, DX42-7 |
| Doosan | DX27Z-7, DX35Z-7, DX35-5, DX35 |
| Ford | 550 |
| Hanix | H36B-R, H30A, H35A, H36A, H36B |
| Hitachi | ZX33U-2 -3, ZX38U-2 -3, EX40UR-2C, EX40UR-2, EX40UR-3, ZX33U-5A, ZX35U-3F, ZX38U-5A, ZX30-U2, ZX30U-2, ZX35U-2, EX30-2, EX33MU, EX35-2, EX40UR, EX50UR, EX30U, EX33U, EX35U, ZX30U, ZX35U, EX35, EX45, ZX26U, ZX30, ZX35 |
| Hyundai | R35-5, R35-7 |
| Ihi | IS35VX-2, IS35N, IS35 |
| John Deere | 27C ZTS, 27D ZTS, 35C ZTS, 35D ZTS, 27 ZTS, 35 ZTS, 27CT, 35CT, 35ZT, 25D, 25E, 26G, 27C, 27D, 30G, 35C, 35D, 35G, 25, 30, 35, 26P, 30P, 35P, 27ZTS, 35ZTS |
| Kobelco | SK30SR-1, SK30SR-2, SK30SR-3, SK30SR-4, SK30SR-5, SK35SR-1, SK35SR-2, SK35SR-3, SK35SR-4, SK35SR-5, SK35SR-6, SK032, SK035 |
| Kubota | U30 Import, KX040-4, KX101-3, KX121-2, KX121-3, KX121-5, KX71-2, KX71-3, KX91-2, KX91-3, KH16W, KX101, KX121, RX302, U35-3, U35-4, U36-4, KH90, KO30, KX71, KX91, U35, KX033, KX040 |
| Linkbelt | HE902, MM40, MM55 |
| Liugong | 9035E |
| Nagano | NS35R-3, NS55R-5, NS45-3, NS35 |
| New Holland | E35B, E33, E37 |
| Nissan | N350 |
| Sany | SY35C, SY35U, SY26, SY35, SY26U, SY27U |
| Sumitomo | SWE50, SWE55 |
| Takeuchi | TB138FR, TB035, TB107, TB108, TB135, TB138, TB235, TB240, TB14, TB16, TB23, TB36 |
| Terex | TC35/TC37, TC48/TC50, TC60 |
| Volvo | EC35 C, EC35C, ECR38 |
| Wacker Neuson | 3003, 3503, 3703, 38Z3, ET35, EZ26, EZ35, EZ36, EZ38, 28Z, 38Z |
| Yanmar | YC18-3, YC25-2, YC30-2, YC35 |
