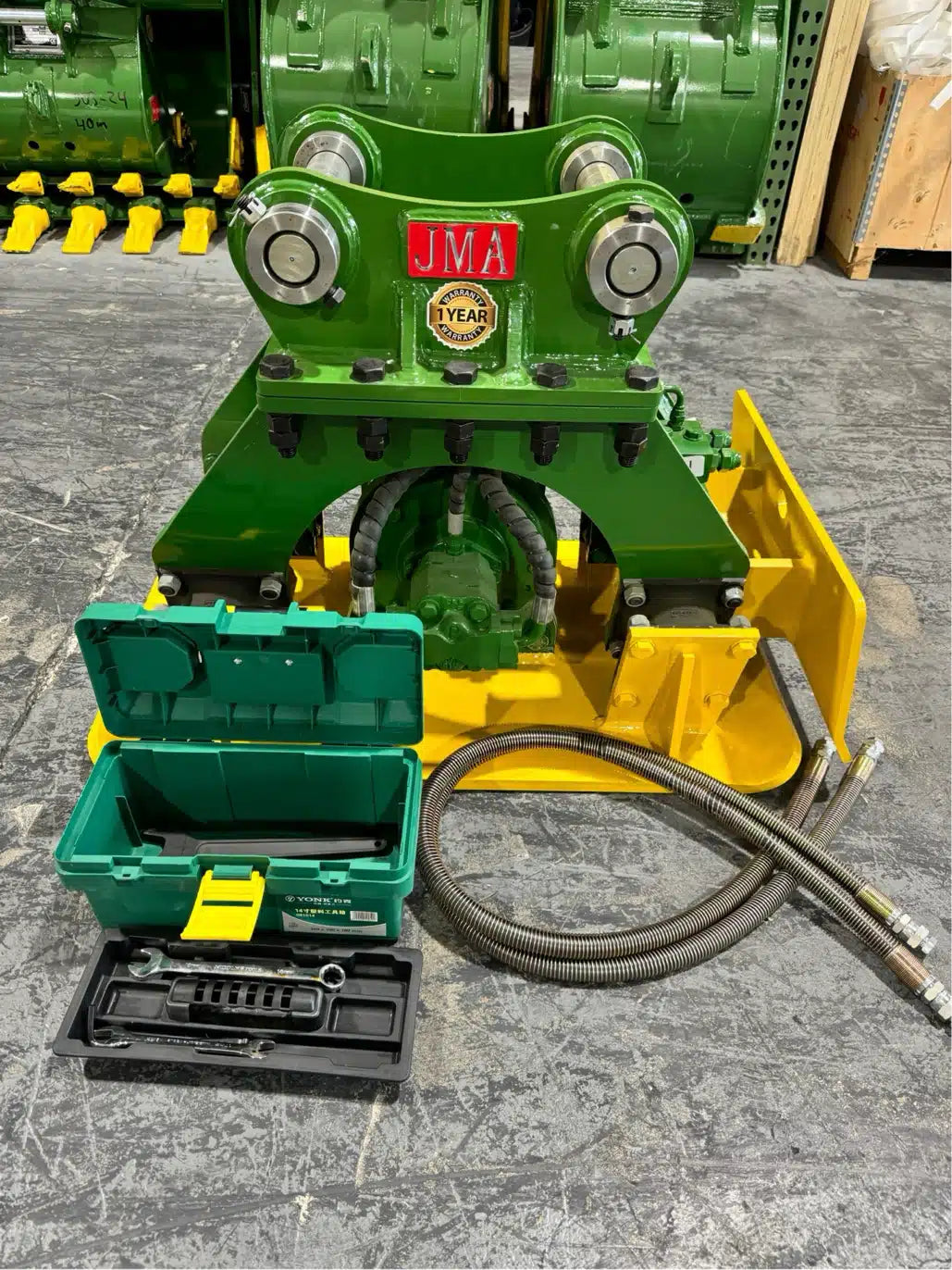

JMA Attachments Plate Compactor | Pin Size 50mm | For 7 – 10 Tons Mini Excavators

JMA Attachments Plate Compactor | Pin Size 50mm | For 7 – 10 Tons Mini Excavators

Regular price $8,576.70
Regular price Sale price $8,576.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Powerful Performance: 11,023.10 lb impulse force combined with 7,233 - 9,403 ft⋅lb tamping force for rapid, effective compaction.
  • Easy Integration: 50 mm pin size ensures seamless attachment to your Mini Excavator.
  • Built to Last: AR400 Steel construction guarantees durability in demanding environments.
View full details

Product Description

JMA Attachments Plate Compactor | Pin Size 50mm | For 7 – 10 Tons Mini Excavators

Description

Unlock unprecedented compaction potential with the Plate Compactor For 7 - 10 Tons Mini Excavators. 50mm Pin. Designed for Mini Excavators, this advanced plate compactor redefines efficiency in soil and trench compaction.

Key Features

  • Powerful Performance: 11,023.10 lb impulse force combined with 7,233 - 9,403 ft⋅lb tamping force for rapid, effective compaction.
  • Easy Integration: 50 mm pin size ensures seamless attachment to your Mini Excavator.
  • Built to Last: AR400 Steel construction guarantees durability in demanding environments.
  • Fully Equipped: Comes with Leveling Pushing Blade, Two Hydraulic Hoses and Tools for Servicing for out-of-the-box productivity.
  • Operator Comfort: Achieve superior compaction results from the safety of your cab.

Detailed Specifications

      Attribute Value
      Product Width (mm) 551 mm
      Product Width (in) 21.69"
      Product Height (mm) 701 mm
      Product Height (in) 27.6"
      Product Length (mm) 975 mm
      Product Length (in) 38.39"
      Material Type AR400 Steel
      Finish Powder-Coated Green
      Hydraulic Motor Brand Permco Hydraulic Motor Pump
      Tamping Force (kg/cm) 100 - 130 kg/cm
      Tamping Force (ft⋅lb) 7,233 - 9,403 ft⋅lb
      Hydraulic Flow (LPM) 70 LPM
      Hydraulic Flow (GPM) 18 GPM
      Revolutions Per Minute (Minimum) 600 rpm
      Revolutions Per Minute (max) 3,000 rpm
      PSI (max) 4,640 psi
      Motor Series PT7B
      Motor Force (kw) 16.5 kw
      Impluse Force (tn) 5 Tons
      Impluse Force (lbs) 11,023.10 lb
      Accessories Included Leveling Pushing Blade, Two Hydraulic Hoses and Tools for Servicing
      Front Pin Diameter (mm) 50 mm
      Rear Pin Diameter (mm) 50 mm
      Front Ear to Ear Distance (mm) 200 mm
      Rear Ear to Ear Distance (mm) 200 mm
      Center to Center Distance (mm) 310 mm
      Front Pin Length (mm) 346 mm
      Rear Pin Length (mm) 346 mm
      Carrier Weight Class (tn) 7 - 10 Tons
      Carrier Weight Class (lbs) 14,000 - 20,000 lbs
      Product Weight (lbs) 649 lbs
      Product Weight (kg) 295 kg



      Fits To

      Brand

      Model

      Airman AX90
      Case CX80C MSR, CX90D MSR, CX85D SR, CX75 LR, CX75CSR, CX75MSR, CX75SR, CX80SR, CX80B, CX80C, CX90D, CX75, CX80
      Caterpillar 308E2 Z2.1, 309 CR VAB, 307SSR-V2, 308CR VAB, 308E2 CR, 308E2 SR, 308B CR, 308C CR, 308D CR, 308E CR, 308E SR, 307 CR, 307SSR, 308 CR, 308BSR, 308C R, 308CSR, 308DRR, 308DSR, 309 CR, 307.5, 307B2, 308.5, 308SR, 307B, 307C, 307D, 307E, 308D, 308E, 307, 308, 309
      Daewoo S130W
      Hanix H75C
      Hitachi ZX85USB LCN-3, ZX85USB LC-3, ZX85US LC-3, ZX70 LCN-3, ZX75US-3LC, ZX75USK-5B, ZX85USB-5A, ZX85USB-5N, ZX70 LC-2, ZX70 LC-3, ZX75UR-5B, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75USL-3, ZX80 LC-2, ZX80LCK-3, ZX80SB LC, ZX85US-5A, ZX85USB-3, ZX85USB-5, ZX85USB-6, ZX85USB-7, EX75US-5, ZX75UR-3, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-5, ZX75US-7, ZX75USBL, ZX80 LCK, ZX85US-3, ZX85US-5, ZX85US-6, ZX95US-7, ZX70 LC, ZX70-5A, ZX70-5G, ZX80 LC, EX60-5, EX75US, ZX70-3, ZX70BL, ZX75UR, ZX75US, ZX80SB, ZX85US, EX80U, UH043, WH04D, EX90, ZX70, ZX75, ZX80, ZX90, ZX85USB
      Ihi 80NX-3, IS50G, IS55J, IS55N, 65NX, 80NX, IS50, IS55, IS65
      John Deere 75C, 75D, 75G, 80C, 85D, 85G, 70, 75, 80, 80G, 50P, 60P, 75P, 85P
      Kato HD140SE, 180G
      Kobelco SK070 SR, SK075 SR, SK75SR-3, SK85SR-3, SK070SR, SK60MK5, SK80MSR, SK60-2, SK60SR, SK70SR, SK75UR, SK95UR, K9033, SK80
      Komatsu PC88MR-11E0, PC60-7C BL, PC75UU-3AC, PC78US-6E0, PC78US-6N0, PC78UU-6E0, PC60 LC-5, PC70FR-2B, PC75 LC-6, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3C, PC75UU-3E, PC78MRX-1, PC78US LC, PC78US-10, PC78US-11, PC78US-6E, PC78US-6Y, PC78UU-10, PC78UU-6E, PC78UUT-6, PC80 LC-3, PC88MR-10, PC88MR-11, PC60-6BL, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60SC-7, PC60SS-1, PC60UU-5, PC70FR-1, PC75R HD, PC75R-2K, PC75UR-2, PC75UR-3, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU-1, PC75UU-2, PC75UU-3, PC76UU-2, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78US-2, PC78US-5, PC78US-6, PC78US-7, PC78US-8, PC78UU-6, PC78UU-8, PC80MR-3, PC80MR-5, PC88MR-2, PC88MR-6, PC88MR-8, PC60 LC, PC60-6B, PC60-6S, PC60-7A, PC60-7B, PC60-7C, PC60-7E, PC60-7S, PC60B-7, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60L-6, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC70-7E, PC75 HD, PC75R-1, PC75R-2, PC75R-8, PC75U-2, PC90R-2, PC95R-1, PC95R-2, PW110RT, PC110R, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-7, PC60-8, PC60-9, PC60BL, PC60SS, PC70-1, PC70-4, PC70-6, PC70-7, PC70-8, PC70FR, PC75-1, PC75-2, PC75-3, PC75U1, PC75UL, PC75UR, PC75US, PC75UU, PC78LC, PC78MR, PC78US, PC78UU, PC80-1, PC80-3, PC80-5, PC80MR, PC88MR, PC90-1, PC90-5, PC90-6, PC90-7, PC95-1, PC95-2, PC95-5, PC95-6, PC95RT, PC60B, PC60L, PC60S, PC60U, PC75R, PC75U, PC78R, PC78U, PC95R, PC60, PC70, PC71, PC75, PC78, PC80, PC88, PC90, PC91, PC95
      Linkbelt 75 SPIN ACE, 80 SPIN ACE, 75 X3, 80 X3
      Lonking CDM6065
      Sany SY65 C, SY75C, SY85C, SY65, SY70, SY75, SY80, SY85, SY75C PRO, SY55C-9, SY60C-9, SY75C-9
      Sumitomo SH75XU-3B, rSH60B65, SH80X-3, SH80X-6, SH60-2, SH80-3, SH60B, SH75U, S160
      Takeuchi TB180FR, TB175W, TB070, TB175, TB285, TB68S
      Volvo EC80D PRO, EC70VV, EC70V, EC75D, EC80D, EC70
      XCMG XE80E
      Yanmar VIO100, SV100, VIO70, VIO75, VIO80
