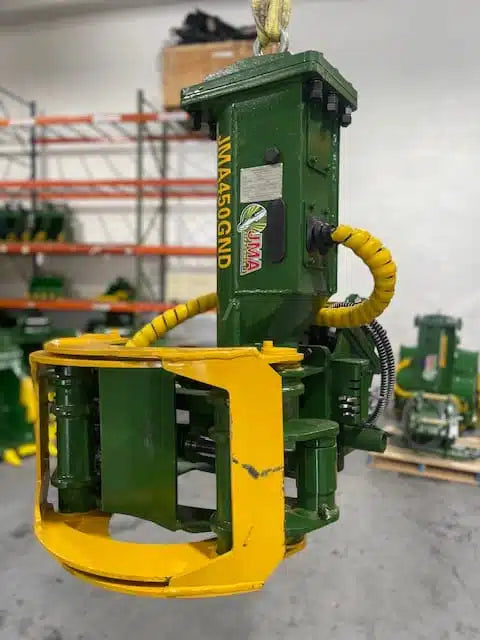

JMA Attachments Post Driver Hammer | Model JMA-45 GND | Energy Class 350 Joules | For 1 – 4.5 Tons Mini Excavators & Skid Steers
JMA Attachments Post Driver Hammer | Model JMA-45 GND | Energy Class 350 Joules | For 1 – 4.5 Tons Mini Excavators & Skid Steers
Regular price
$6,596.70
Regular price
Sale price
$6,596.70
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
JMA Attachments Post Driver Hammer | Model JMA-45 GND | Energy Class 350 Joules | For 1 – 4.5 Tons Mini Excavators & Skid Steers
Description
Unlock unprecedented post driving potential with the 350 Joules Post Driver Hammer For 1 - 4.5 Tons Mini Excavators with 35mm pins & Skid Steers & Skid Steers. Designed for professionals, this advanced post driver hammer redefines efficiency in fencing and signage installation. Experience the pinnacle of post driving technology. With the 3350 Joules Post Driver Hammer For 1 - 4.5 Tons Mini Excavators with 35mm pins & Skid Steers, you're not just driving posts – you're elevating your entire operation to new heights of efficiency.
Key Features
- Powerful Performance: 350 Joules energy class for superior driving force.
- High-Speed Operation: 700 -1,200 bpm impact frequency for rapid post installation.
- Precision Engineering: 45 mm chisel bit diameter and 500 mm length for versatile applications.
- Optimal Pressure Range: 18.43 - 24.58 lb/ft² ensures consistent and reliable performance.
- Built to Last: AR400 Steel construction guarantees durability in demanding environments.
- Fully Equipped: Comes with 1 Hydraulic Joystick, 2 Hydraulic Hoses,1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings for out-of-the-box productivity.
Detailed Specifications
| Attribute | Value |
|---|---|
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Max Jaw Opening (mm) | 1,286 mm |
| Max Jaw Opening (in) | 50.63" |
| Jaw Configuration | 2 x 2 |
| Energy Class (J) | 350 Joules |
| Energy Class (ft·lb) | 258.15 ft·lb |
| Impact Frequency (bpm) | 700 - 1,200 bpm |
| Operating Pressure (kgf/m²) | 90 - 120 kgf/m² |
| Operating Pressure (lbs/ft²) | 18.43 - 24.58 lb/ft² |
| Oil Flow (GPM) | 5.3 - 7.9 gpm |
| Tool Chisel Bit Diameter (mm) | 45 mm |
| Tool Chisel Bit Length (mm) | 500 mm |
| Working Weight (kg) | 126 kg |
| Front Pin Diameter (mm) | 35 mm |
| Rear Pin Diameter (mm) | 35 mm |
| Front Ear to Ear Distance (mm) | 136 mm |
| Rear Ear to Ear Distance (mm) | 136 mm |
| Center to Center Distance (mm) | 165 mm |
| Carrier Weight Class (tn) | 1 - 4.5 Tons |
| Carrier Weight Class (lbs) | 2,000 - 9,000 lbs |
| Accessories Included | 1 Hydraulic Joystick, 2 Hydraulic Hoses, 1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings |
| Product Weight (lbs) | 737.70 lb |
| Product Weight (kg) | 334.62 kg |
Fits To
|
Brand |
Model |
|---|---|
| Airman | AX20U-3, AX22, AX25 |
| Bobcat | E35ER2, E32EM, E32R2, E35EM, X328G, X331G, X425G, E26C, E32I, E32M, E32R, E35I, E35R, E35Z, X331, X425, X428, X334, X335, X337, X341, 425G, E25, E26, E32, E34, E35, E37, E38, 334, 341, 418, 425, 425ZHS, 428, 430, 430AG ZHS, 430HAG, 430ZHS, 435HAG, 435ZHS, 435HEGZHS, 430HGZHS, 435AGZHS, 430D ZHS, 430GZHS, 435DZHS, 435GZHS, 435, 418AA, 425EG, 428EG, 430AG, 430CD, 435AG, 435EG, 435HG, E25EM, E26EM, E26GM, E35R2, 442A, 442B, 442C, 442D, 442E, 442G, 442R, 442X, 444A, 444B, 418A, 428G, 428U, 430D, 430E, 430G, 430H, 435G, 435H, E27Z, E35M, E26GAM |
| Case | CX22B, CX27B, CX20, CX22, CX23, CX25 |
| Caterpillar | 302.5C CR, 302.7D CR, 302.7CR, 302C CR, 302.2D, 302.4D, 302.5C, 302.7D, 302ESR, 302.7, 302.5, 302CR |
| Doosan | DX27Z, DX30Z, DX35Z, DX27, DH35, S30 |
| Hanix | H15A, H15B, H22A, H22B, H24A, H25B, H26B, H26C, H29A, 20S |
| Hitachi | EX30UR-2C, EX20UR-2, EX20UR-3, EX30UR-2, EX30UR-3, ZX26U-5A, EX20U-3, ZX22U-2, ZX27U-2, EX20UR, EX22-2, EX25-2, EX30UR, EX27U, EX30, ZX19U |
| Hyundai | R27Z-9, R30-9A, R25-5, R28-5 |
| Ihi | IS35NX-2, 30NX-2, IS28J, IS30J, 25NX, 28NX, 30NX, IS25, IS27, IS28, IS30, 28G, 32J |
| JCB | 802.7 ZTS, 8025 ZTS, 8026 CTS, 8027 ZTS, 8030 ZTS, 8032 ZTS, 8035 CTS, 8035 C, 802.4, 802.7, 8025, 8026, 8029, 8030, 8035, 1CX, 2CX, 802, 803, 8035 ZTS, 35Z-1 |
| John Deere | 17G, 17P |
| Kobelco | SK20SR-1, SK20SR-3, SK20SR-5, SK25SR-1, SK25SR-2, SK25SR-5, SK27SR-3, SK27SR-5, SK20SR, SK30SR, SK025, SK027, SK030 |
| Komatsu | PC27 MRX-1, PC30 MRX-1, PC30 MRX-2, PC30 MR-3, PC35MRX-1, PC27MR-2, PC27MR-3, PC28UU-1, PC28UU-2, PC30MR-2, PC30MR-3, PC35MR-2, PC35MR-3, PC27R-8, PC30 MR, PC35R-8, PC20-6, PC30-6, PC30-7, PC35RS, PC25, PC26, PC27, PC30, PC35 |
| Kubota | U27-4, U25-3 |
| Linkbelt | MS035 |
| Liugong | 9027F ZTS |
| Nagano | NS25-3 |
| New Holland | E25-2SR, E27-2SR |
| Sumitomo | SWE40u, SWE30, SWE45 |
| Takeuchi | TB 125, TB28FR, TB025, TB125, TB228, TB230, TB23R, TB25, TB30 |
| Terex | TC25 |
| Volvo | E25 |
| Yanmar | VIO20-2, VIO20 |
