JMA Attachments Quick Couplers Main Pin Hydraulic Thumb | Pin Size 70mm | For 15 - 18 Tons Excavators
JMA Attachments Quick Couplers Main Pin Hydraulic Thumb | Pin Size 70mm | For 15 - 18 Tons Excavators
Regular price
$5,997.00
Regular price
Sale price
$5,997.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

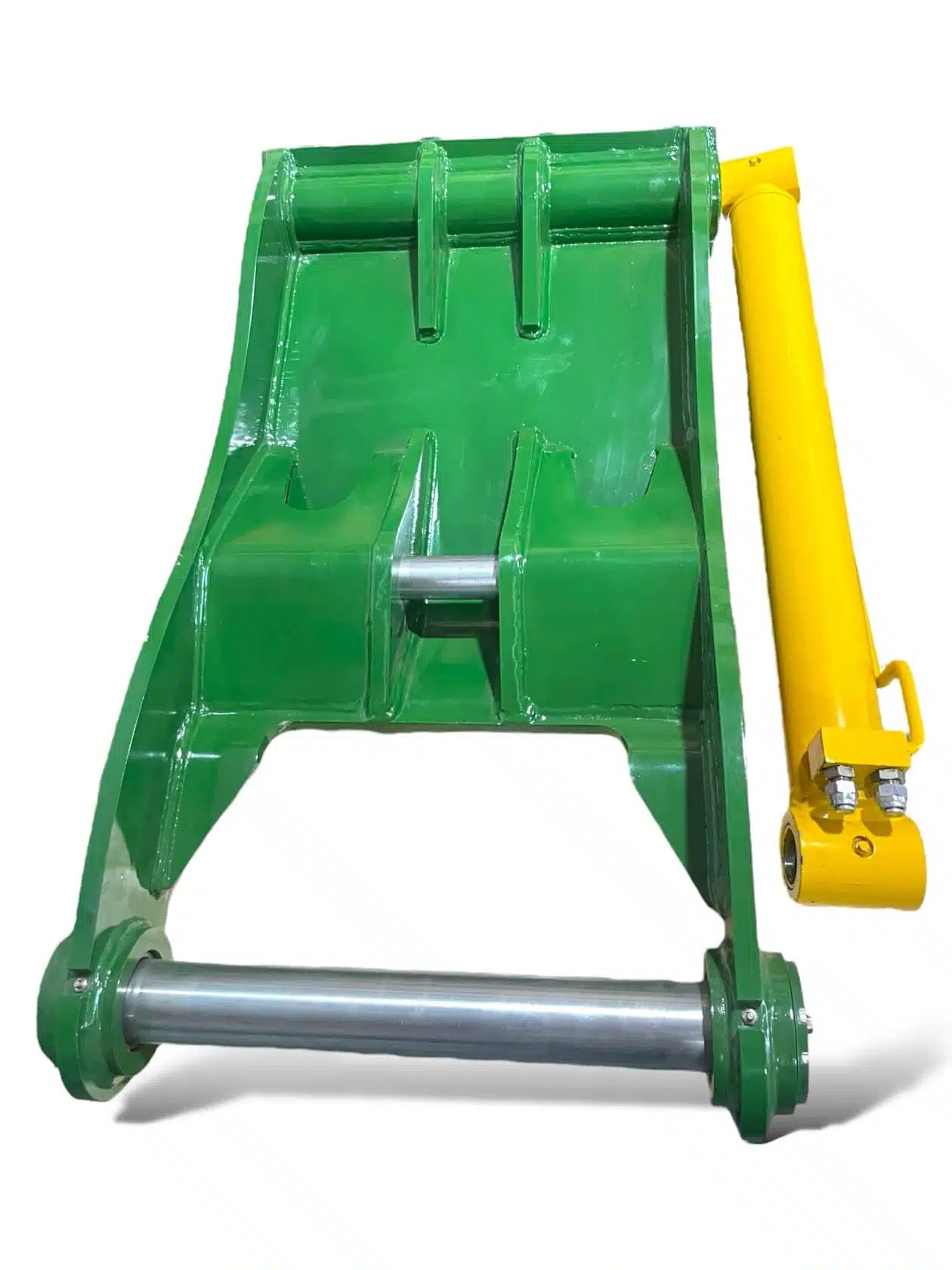

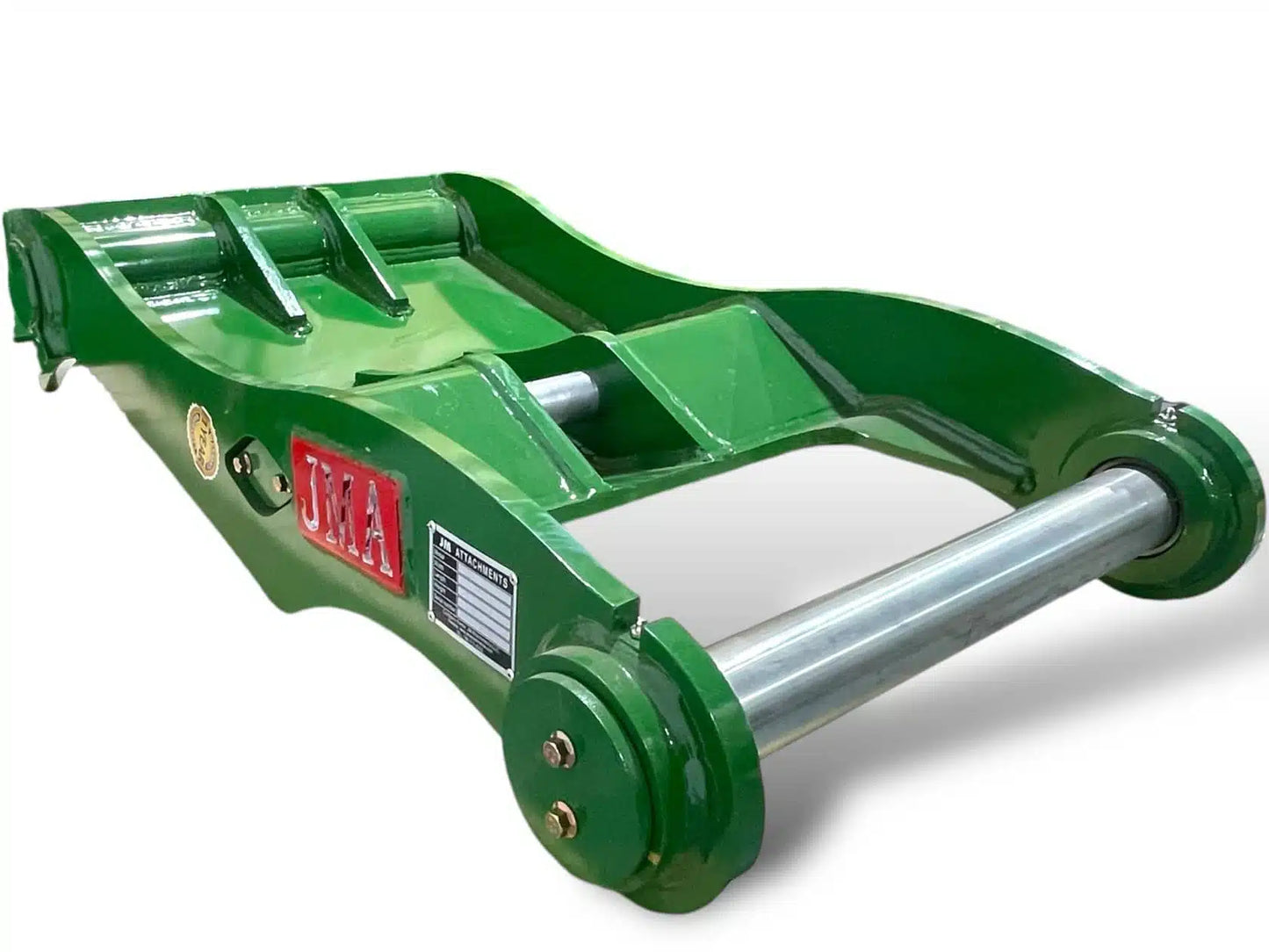

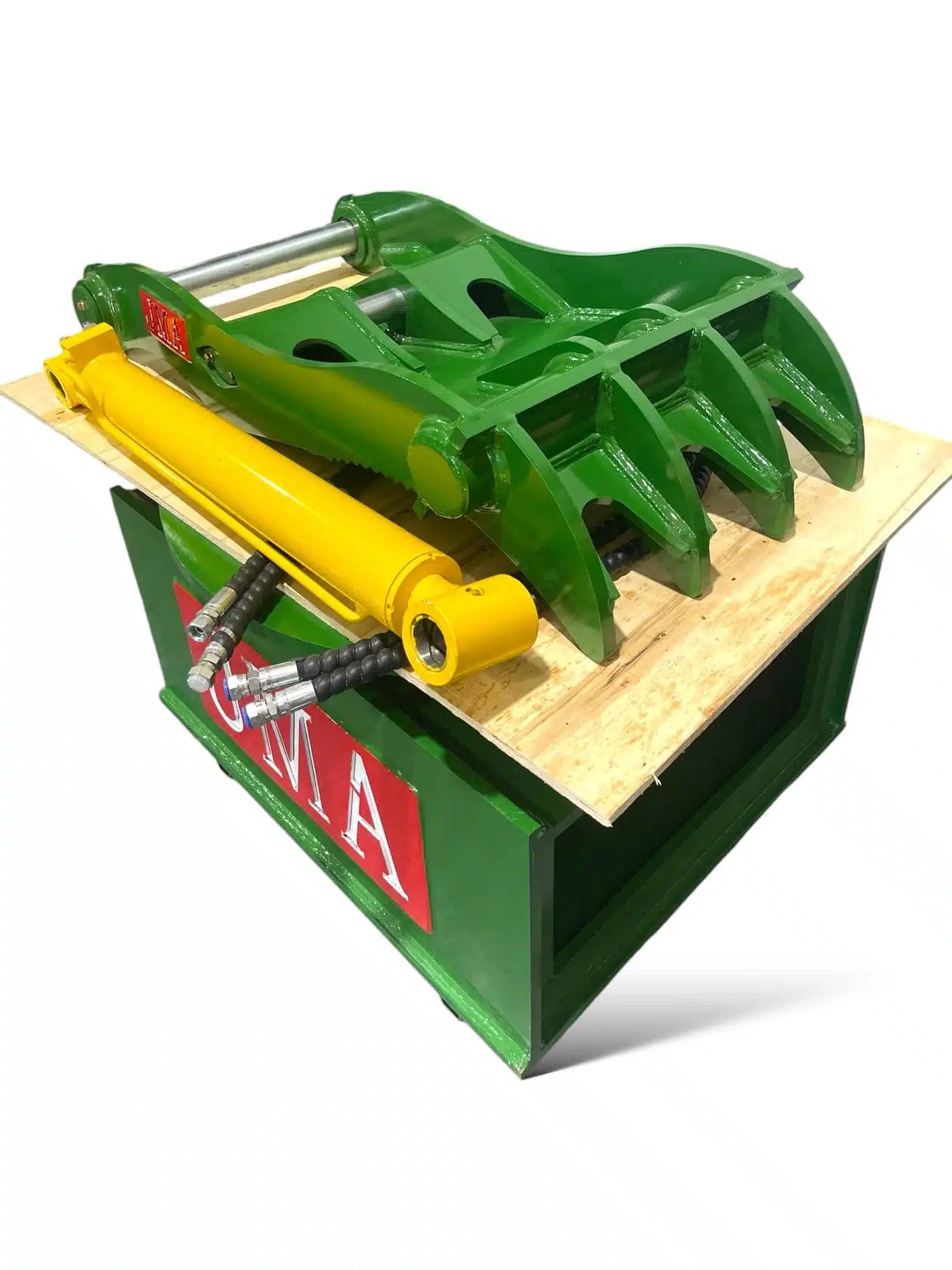

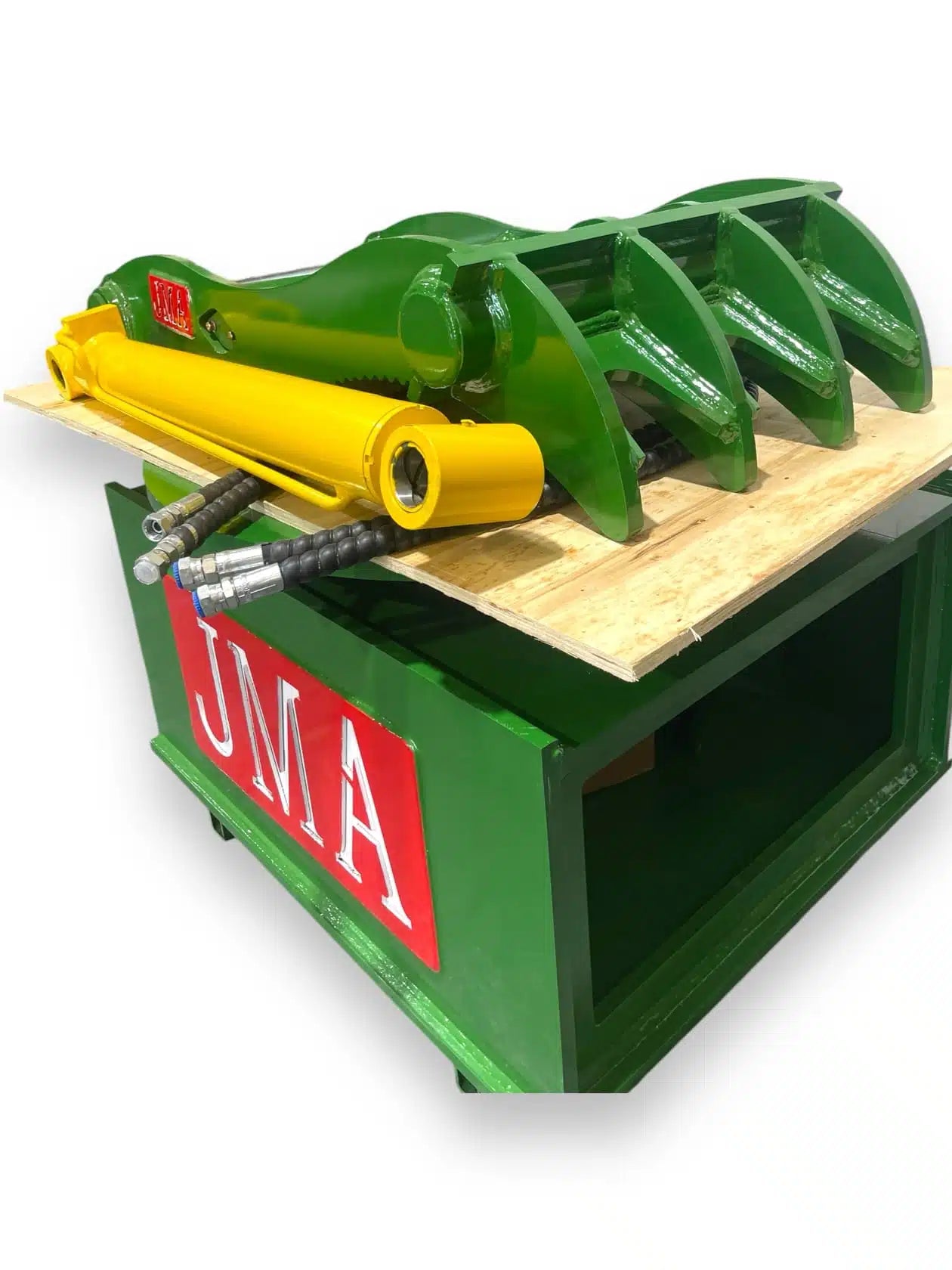

JMA Attachments Quick Couplers Main Pin Hydraulic Thumb | Pin Size 70mm | For 15 - 18 Tons Excavators
Description
Revolutionize your approach to material handling with the 70mm QC Main Pin Hydraulic Thumb for 15 - 18 Tons Excavators. Crafted for professionals, this cutting-edge Quick Coupler Main Pin Style hydraulic thumb sets new benchmarks in operational efficiency and versatility.
Key Features
- Superior Control: Up to 140-degree rotation for precise material positioning.

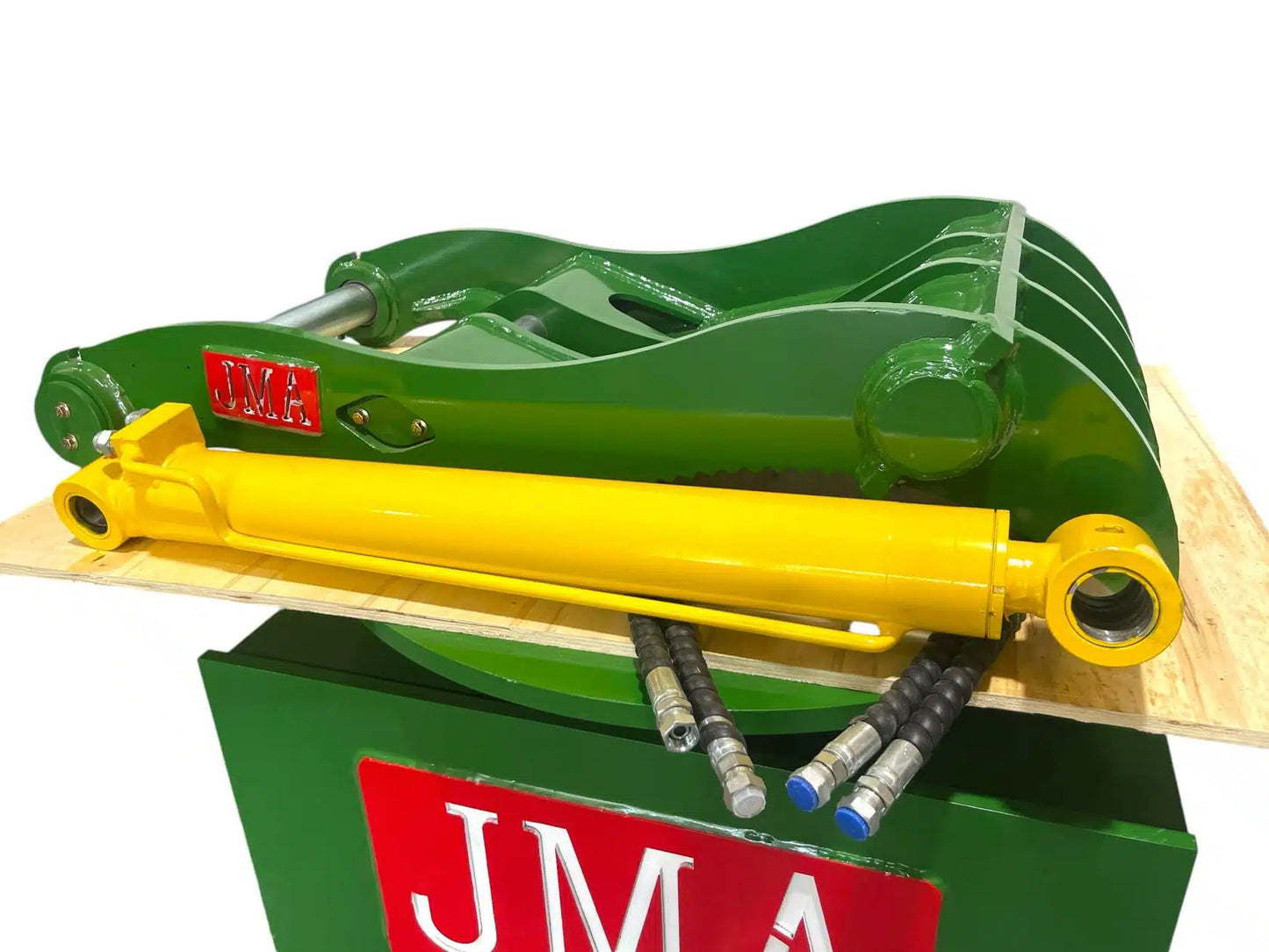

- Extended Capabilities: 1,655 mm hydraulic cylinder length for increased operational flexibility.

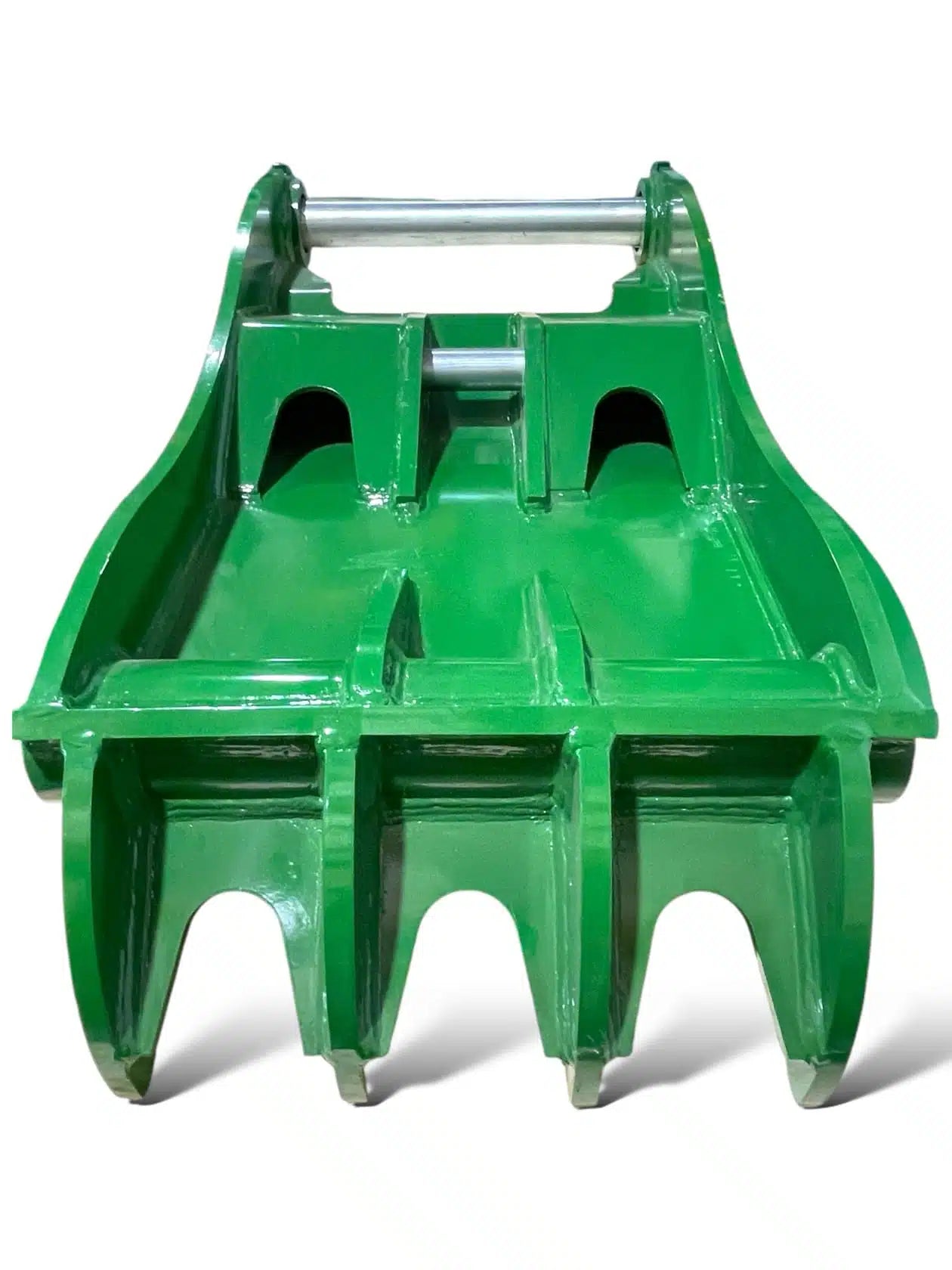

- Powerful Grip: Equipped with 4 robust tines for handling various materials.
- Custom Integration: Tailored for Excavators, guaranteeing optimal performance.
- Versatile Usage: Perfect for demolition, land clearing, and recycling operations.
-
Efficient Design: Retracts against the stick, allowing for continuous excavation work.
Detailed Specifications
| Feature | Value |
|---|---|
| Product Width (mm) | 630 mm |
| Product Width (in) | 25" |
| Product Length (mm) | 1769.7 mm |
| Product Length (in) | 70" |
| Tines (ct.) | 4 |
| Tines Thickness (in) | 1" |
| Tines Thickness (mm) | 2025 mm |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Tines Spacing (mm) | 165 mm |
| Hydraulic Cylinder Length Retracted (mm) | 990 mm |
| Hydraulic Cylinder Length Extended (mm) | 1655 mm |
| Main Pin Diameter (mm) | 70 mm |
| Front Ear to Ear Distance (mm) | 510 mm |
| Carrier Weight Class (tn) | 15 - 18 tons |
| Carrier Weight Class (lbs) | 22,000 - 33,000 lbs |
| Product Weight (lbs) | 950 lbs |
| Product Weight (kg) | 409 kg |
Fits To
|
Brand |
Model |
|---|---|
| Caterpillar | 315D2 GC, 315F LCR, 315 GC, 315D2L, 317BLN, 318BL2, 318BLN, 318CLN, 318D2L, 318DL2, 318EL2, 318FL2, 315BL, 315CL, 315DL, 315LN, 316EL, 316FL, 316GC, 317BL, 317GC, 318CN, M313D, 315B, 315C, 315D, 315F, 315L, 316E, 317B, 317N, 318B, 318E, 215, 315, 317 |
| Hyundai | R160LC-3, R160LC-7, R160LC-9, R180LC-3, R180LC-7, R180LC-9, R210LC-3, R170W-3, R200W-2, R200W-3, R160LC, R180LC, R200LC, R220LC |
| Kato | 700SEV2, HD700SE, HD700V2, HD700, 900 |
| Kobelco | SK170LC-8 |
| Komatsu | PC160 LC-7A E0, PC150 HD LC-5, PC150N HD-5K, PC158US LC-2, PC160 LC-7E0, PC160 LC-7KA, PC180 LC-7E0, PC180N LC-5K, PC180N LC-6K, PC180N LC-7K, PC150 HD-5K, PC150 LC-3W, PC150 LC-6K, PC150 LC-8K, PC150 LGP-6, PC150N HD-5, PC160 LC-6K, PC160 LC-7E, PC160 LC-7K, PC160 LC-7L, PC160LC-7EO, PC170 LC-10, PC170 LC-11, PC180 LC-5K, PC180 LC-6K, PC180 LC-7K, PC180L LC-3, PC180N LC-3, PC180N LC-5, PC180N LC-6, PC180N LC-7, PC150 HD-3, PC150 HD-5, PC150 LC-1, PC150 LC-3, PC150 LC-5, PC150 LC-6, PC150 LC-7, PC158US LC, PC160 LC-6, PC160 LC-7, PC160 LC-8, PC180 LC-3, PC180 LC-5, PC180 LC-6, PC180 LC-7, PC150N HD, PC158US-2, PC160N LC, PC180N LC, PC150 HD, PC150 LC, PC150 SE, PC150-3W, PC150-5K, PC150-6K, PC150C-3, PC150C-6, PC150L-6, PC158 LC, PC160 LC, PC160-6K, PC160-7K, PC168 LC, PC170 LC, PC180 LC, PC180-3K, PC180-5K, PC180-6K, PC150-1, PC150-3, PC150-5, PC150-6, PC160-6, PC160-7, PC160-8, PC180-3, PC180-5, PC180-6, PC180-7, PC150C, PC150L, PC150, PC158, PC160, PC180, PW150 |
| Liebherr | 922 |
| Samsung | SE130LC |
| Sumitomo | LS2800FJ, S2800FJ |
| Volvo | EC160B LC, EC160C LC, EC150 LC, EC160 LC, SE170W-3, EC160CL, EC160DL, EC160EL, EC170DL, EC180CL, EC180DL, EC180EL, MX175WS, EC150B, EC150C, EC160B, EC160C, EC160N, EC160P, EC180B, EC180C, EC180D, EC150, EC160, EW170 |
