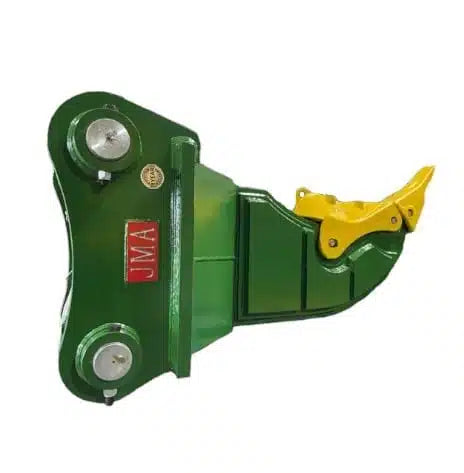

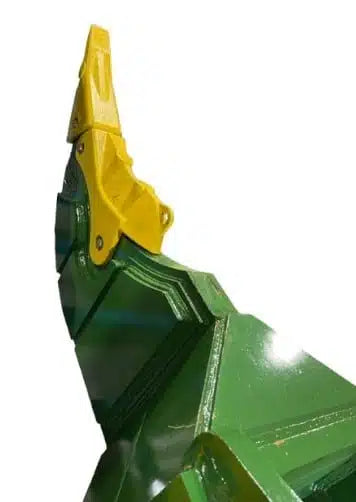

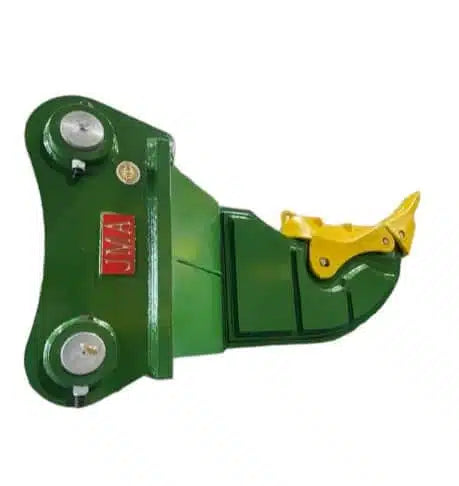

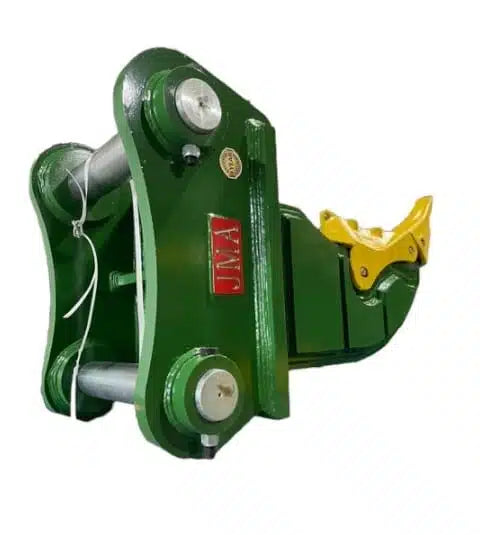

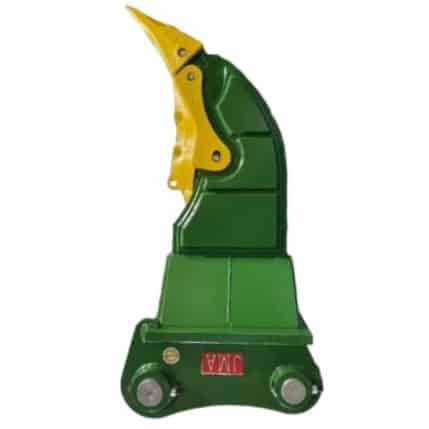

JMA Attachments Ripper Tooth | Pin Size 110mm | For 33 – 55 Tons Excavators

JMA Attachments Ripper Tooth | Pin Size 110mm | For 33 – 55 Tons Excavators

Regular price $12,866.70
Regular price Sale price $12,866.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Premium Material: Constructed from robust AR450 Steel to withstand extreme conditions.
  • Deep Penetration: Achieves 78.39" penetration for superior ground-breaking performance.
  • Tailored Compatibility: Specifically designed for Excavators, ensuring optimal integration.
View full details

Product Description

JMA Attachments Ripper Tooth | Pin Size 110mm | For 33 – 55 Tons Excavators

Description

Unleash unprecedented ground-breaking power with the Ripper Tooth for 33 - 55 Tons Excavators. 110mm | 100mm Pins. This heavy-duty Ripper Tooth redefines efficiency in tackling the most demanding excavation tasks. Experience the pinnacle of excavation technology. With the Ripper Tooth for 33 - 55 Tons Excavators. 110mm | 100mm Pins, you're not just breaking ground – you're setting new standards in excavation efficiency.

Key Features

  • Premium Material: Constructed from robust AR450 Steel to withstand extreme conditions.
  • Deep Penetration: Achieves 78.39" penetration for superior ground-breaking performance.
  • Tailored Compatibility: Specifically designed for Excavators, ensuring optimal integration.
  • Secure Attachment: Features a 110 mm front pin diameter for stable operation.
  • Versatile Performance: Excels in breaking frozen ground, removing stubborn roots, and more.
  • Cost-Effective Solution: Extends equipment life by pre-ripping tough materials.

Detailed Specifications

Attribute Value
Bucket Tooth Series R500
Tooth Style Rock Chisel Bucket Tooth
Tooth (ct.) 1
Tooth Part Number 4T4501
Tooth Pin Part Number 6Y3909
Tooth Retainer Part Number 4T4707
Shank Protector Part Number 9W8365
Penetration (in) 78.39"
Penetration (mm) 1,991 mm
Material Type AR450 Steel
Finish Powder-Coated Green
Front Pin Diameter (mm) 110 mm
Rear Pin Diameter (mm) 100 mm
Front Ear to Ear Distance (mm) 445 mm
Rear Ear to Ear Distance (mm) 445 mm
Center to Center Distance (mm) 587 mm
Front Pin Length (mm) 655 mm
Carrier Weight Class (tn) 33 - 55 Tons
Carrier Weight Class (lbs) 66,000 - 110,000 lbs
Product Weight (lbs) 2,050.30 lb
Product Weight (kg) 930 kg

Fits To

Brand

Model

Caterpillar 345BL II UHD, 345BL LC VG, 345BL ME II, 349 NEW GEN, 345B LC II, 345BL GMX, 345BL UHD, 345DL UHD, 349D L XE, 349D2 LME, 349F L XE, 345BL II, 345BL LR, 345BL ME, 345C LRE, 345C UHD, 345CL ME, 345CL VG, 345DL ME, 345DL VG, 349D LME, 349E LME, 349EL VG, 352F LRE, 352F UHD, 345B II, 345B LC, 345C LC, 349E LR, 350L ME, 350L V2, 352F XE, 349D2L, 350 ME, 350 V2, 352LRE, 345 D, 345BL, 345CL, 345DL, 345GC, 349D2, 349DL, 349EL, 349FL, 352FL, 345B, 345C, 345D, 345L, 349D, 349E, 349F, 349L, 350L, 352F, 352L, 345, 349, 350, 352, 355
Daewoo S400LC-111, DX420 LC V, S420LC-V, S400
Develon DX420 LC-5, DX420 LC-7
Doosan DX420 LC-9C, DH420 LC-7, DX400 LC-5, DX420 LC-3, DX420 LC-5, DX420 LC-7, DX420 LC-9, DX420 LCA, S400 LC V, DX420LC, S420LC
Hitachi EX400-1, EX400-3, EX400-5, ZX450-3, EX400, UH23
John Deere 470 P-TIER, 450C LC, 450D LC, 470G LC, 450 LC
Komatsu 345BL
Samsung SE350LC
Sany SY500H, SY485, SY500, SY550, SY500HRD, SY415H, SY420C, SY465C, SY485H, SY550H
Volvo EC340B LC, SE360LC-3, SE460LC-3, EC330 LC, EC340 LC, EC360 LC, EC320LC, EC330CL, EC340DL, EC350DL, EC350EL, EC360BL, EC360CL, EC360DL, EC380CL, EC380DL, EC380EL, MX365LS, MX455LS, EC330B, EC330C, EC340D, EC350D, EC350E, EC360B, EC360C, EC360D, EC380D, EC460B, EC460C, EC330, EC340, EC360, EC460

Manual & Documents

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!
