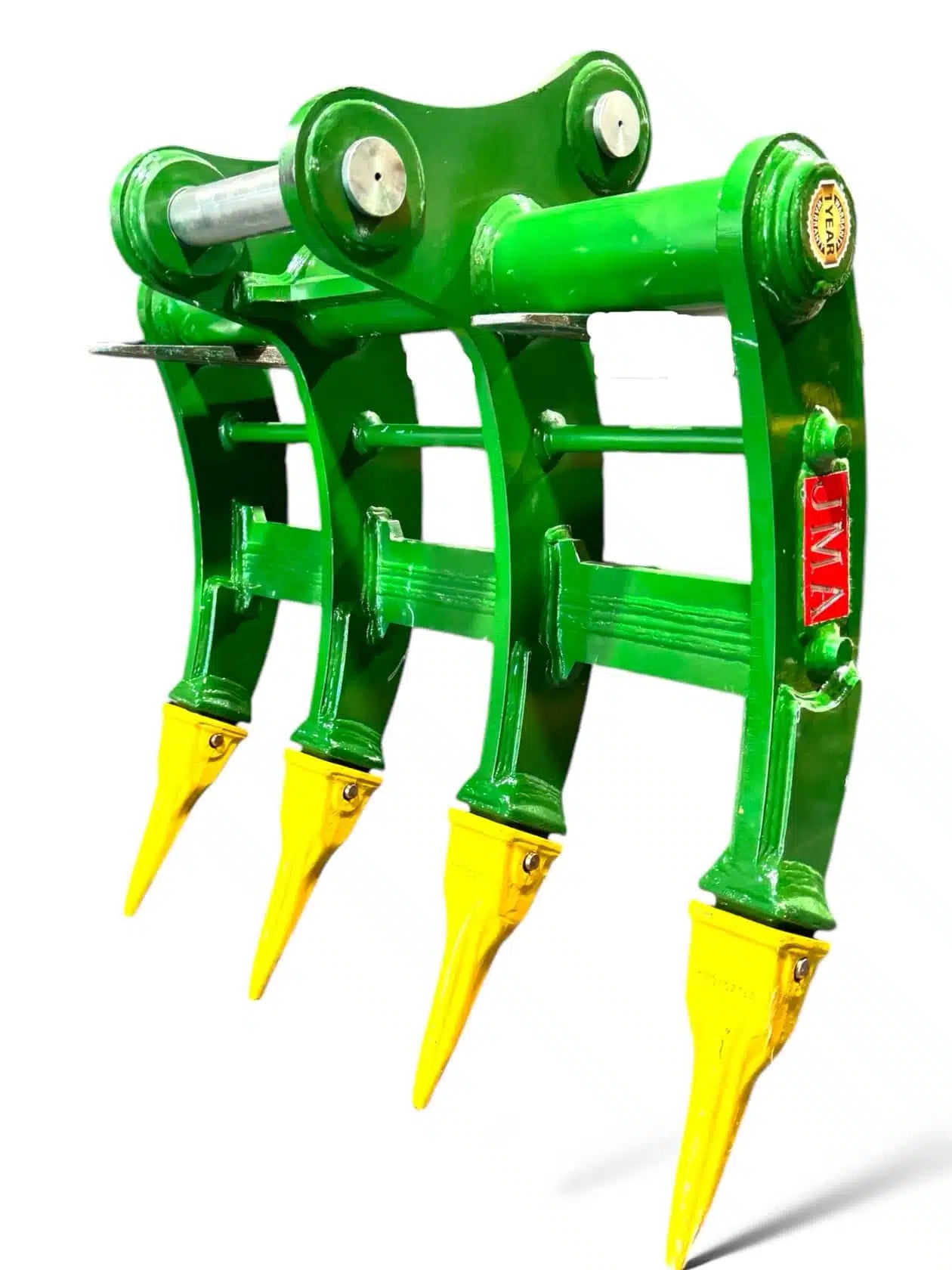

JMA Attachments Root Rake | Rake Width 40" Inches | Pin Size 65mm | For 10 – 15 Tons Excavators

JMA Attachments Root Rake | Rake Width 40" Inches | Pin Size 65mm | For 10 – 15 Tons Excavators

$4,176.70
$4,176.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Optimized Tine Configuration: 4 heavy-duty tines, each 25 mm thick, for superior debris collection.
  • Rugged Construction: Engineered from AR400 Steel to endure high-stress clearing environments.
  • Deep Penetration: Achieves 35.15" ground penetration for effective root and rock removal.
View full details

Product Description

JMA Attachments Root Rake | Rake Width 40" Inches | Pin Size 65mm | For 10 – 15 Tons Excavators

Description

Master the art of land clearing with the 40" Root Rake for 10 - 15 Tons Excavators. 65mm Pins. This robust Root Rake is your solution to the most challenging site preparation tasks in construction, landscaping, and forestry.

Key Features

  • Optimized Tine Configuration: 4 heavy-duty tines, each 25 mm thick, for superior debris collection.
  • Rugged Construction: Engineered from AR400 Steel to endure high-stress clearing environments.
  • Deep Penetration: Achieves 35.15" ground penetration for effective root and rock removal.
  • Broad Equipment Compatibility: Designed for use with a range of heavy excavation machinery.
  • Efficient Debris Separation: Expertly spaced tines retain large debris while allowing soil to pass through.
  • Professional Performance: Meets the stringent demands of commercial land clearing projects.

Detailed Specifications

Attribute Value
Rake Width (mm) 1,016 mm
Rake Width (in) 40"
Rake Length (mm) 893 mm
Rake Length (in) 35.15"
Tooth Series J450
Tooth Style Single Tiger Tooth Style
Tooth (ct.) 4 teeth
Tooth Part Number 1U3352TLZ
Tooth Pin Part Number 9J2358
Tooth Retainer Part Number 8E6359
Tines (ct.) 4
Tines Thickness (mm) 25 mm
Tines Thickness (in) 1"
Penetration (mm) 893 mm
Penetration (in) 35.15"
Material Type AR400 Steel
Finish Powder-Coated Green
Tines Spacing (mm) 304 mm
Front Pin Diameter (mm) 65 mm
Rear Pin Diameter (mm) 65 mm
Front Ear to Ear Distance (mm) 262 mm
Rear Ear to Ear Distance (mm) 262 mm
Center to Center Distance (mm) 362 mm
Carrier Weight Class (tn) 10 - 15 Tons
Carrier Weight Class (lbs) 22,000 - 33,000 lbs
Product Weight (lbs) 1,122 lbs
Product Weight (kg) 510 kg


Fits To

Brand

Model
Case CX145D MSR, CX130B LC, CX130C LR, CX130D LC, CX130 LC, CX135MS3, CX135MSR, CX145CSR, CX145DSR, CX135CR, CX135SR, CX130B, CX130C, CX130D, CX130E, CX130K, CX135C, CX140E, CX145C, CX130, CX135, CX90
Caterpillar 314CL LCR, 312B LGP, 312D2 GC, 313D2 GC, 314C LCR, 314D LCR, 314E LCR, 314G LCR, 311DLRR, 311F RR, 311FLRR, 313B CR, 313C CR, 313D CR, 313D2 L, 313FLGC, 314C CR, 314D CR, 314E CR, 314E SR, 314F CR, 311 V2, 311C U, 311DRR, 312 V2, 312BLN, 312CLR, 312D2L, 312F L, 312FGC, 313BSR, 313CSR, 313DSR, 313FGC, 311BL, 311FL, 312BL, 312CL, 312D2, 312DL, 312EL, 312GC, 313D2, 313DL, 313FL, 313GC, 314DL, 314EL, 315FL, E120B, 311B, 311C, 311D, 312B, 312C, 312D, 312E, 312F, 312L, 313B, 313C, 313D, 313E, 313F, 314C, 311, 312, 313, 314
Daewoo S130W-111, S130 LC V, S155 LC V, S140LC-V, S130-2
Develon DX140LCR-7K, DX140LC-7K, DX140LCR-7, DX165WR-7, DX100W-7, DX140W-5, DX140W-7, DX160W-7
Doosan DX160 LC-5 HT, DX140 LC-9C, DX140 LCR-3, DX140 LCR-5, DX140 LCR-7, DX150 LC-9C, DH150 LC-7, DX140 LC-3, DX140 LC-5, DX140 LC-7, DX160 LC-3, DX140LCR-7, DX130-9CN, DX140 LCA, DX140 LCR, DX140WACE, DX150W-9C, DX165WR-7, S140WV RW, DX160 LC, DH140W-7, DH150W-7, DX100W-7, DX140W-3, DX140W-5, DX140W-7, DX160W-3, DX160W-5, DX160W-7, DX165W-5, DX140LC, DX140WA, DX140WE, S140W V, DX140W, DX160W, S130WV, S160WV, DX130, DX140, DX120, DX140LC-7K
Hitachi H15 Super Long, ZX200 H15 Supe, ZX130 LCN-5B, ZX135USOS-5B, ZX130 LC-5N, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-6, ZX130 LCN-7, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USOS-3, ZX135USOS-6, ZX135USTN-Z, EX100WD-3C, ZX120USR-5, ZX130 LC-3, ZX135US LC, ZX135US-5B, ZX135US-5N, ZX135US-6N, ZX135USB-3, ZX135USB-5, ZX135USK-3, ZX135USK-6, ZX135USR-5, EX100WD-1, EX100WD-2, EX100WD-3, EX125WD-5, EX130UR-1, EX130UR-5, EX135UR-1, EX135UR-5, ZX130 LCM, ZX130 LCN, ZX130K HG, ZX130K-5B, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-6, ZX135US-7, ZX135US-E, ZX110M-3, ZX120 IV, ZX120 LC, ZX120-5B, ZX130 LC, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6N, ZX130K-3, ZX130K-6, ZX135USK, ZX135USM, ZX140W-3, EX100-1, EX100-2, EX100-3, EX100-5, EX100WD, EX120-1, EX120-2, EX120-3, EX120-5, EX135UR, ZX110-2, ZX110-3, ZX110BL, ZX120-2, ZX120-3, ZX120-6, ZX120BL, ZX125US, ZX130-3, ZX130-5, ZX130-6, ZX130-7, ZX130BL, ZX130MT, ZX135UR, ZX135US, EX130K, EX130W, ZX110E, ZX110M, ZX120B, ZX120E, ZX130H, ZX130K, ZX130L, ZX135U, ZX140H, EX100, EX120, EX130, EX135, UH053, UH063, ZX110, ZX120, ZX130, ZX135, EX-5, ZX130-7H, ZX135US-7H
Hyundai R125LCR-9A, HX145LCR, R130LC-3, R140LC-7, R140LC-9, R145LC-9, R130W-3, R140W-7, HX140L, R110-7, R130LC, HX125, HX140, HX145, R120W, 130W, HX130A LCR, HX140A L, HX145A LCR
JCB 131LLC, 150X-1, JS130C, JS145W, JS130, JS131, JS135, JS145, JS160, JZ140, JZ141, 131X, 140X, 145X, 150X, 814S
John Deere 120C LC, 120 LC, JD120, 120C, 120D, 130G, 135C, 135D, 135G, 490D, 110, 120, 135 P-Tier
Kato HD513 MR-3, HD512 E, HD512-3, HD512, 450, 512, 572
Kobelco SK135SR 1E, SK115SRDZ, SK125SR-2, SK135SR-2, SK135SR-3, SK140LC-8, SK120-2, SK120-5, SK130-8, SK130LC, SK130UR, SK135SR, SK120v, K905, SK140SRLC, SK130LC-11
Liebherr R914
Linkbelt 135 X3 SPIN, 130 X4LC, 130 LX, 130 X2, 130 X3, 130 X4, 135 LX, 145 X3, 145 X4
Liugong 915D, 915E
Sany SY135 IV, SY135-3A, SY130-1, SY135-2, SY155U, SY155W, SY115, SY125, SY135, SY155, SY125C PRO, SY140C-9S, SY135C-9, SY155H-9, SY115C, SY135C, SY155C, SY155H
Sumitomo SH120- 2, SH120-A3, SH125X-3, SH145X-6, SH120-1, SH120-3, SH130-5, SH135X, SH120
Takeuchi TB2150R, TB1140, TB2150
Terex 145
Volvo MX135WS/LS, EC135B LC, EC140 LCM, EC140B LC, EC140E LM, SE130LC-3, EC140 LC, EC140CLM, EC140DLM, ECR145CL, ECR145EL, SE130W-3, EC140-7, EC140CL, EC140DL, EC140EL, ECR145C, EC120D, EC140B, EC140C, EC140D, EC140E, EC145E, ECR145, EC120, EC130, EC140, EW130, ECR145E, ECR145SE
XCMG XE155UCR, XE155U, XR155U
