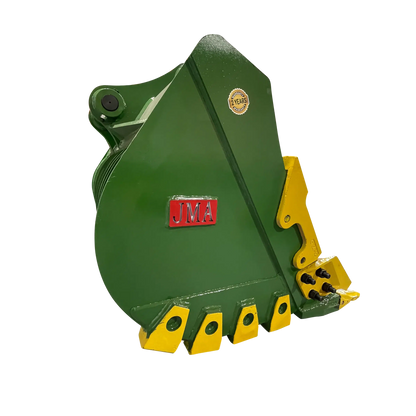

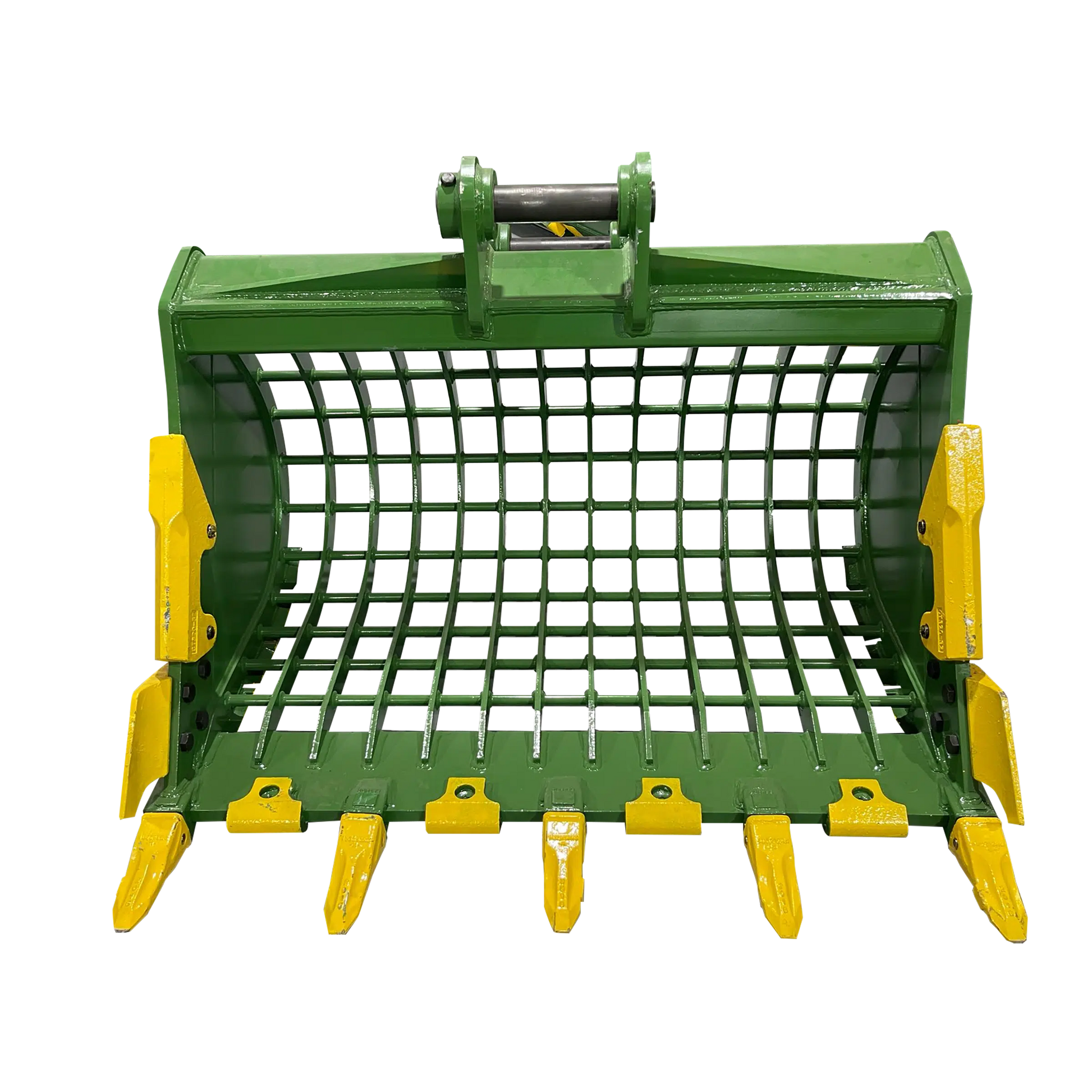

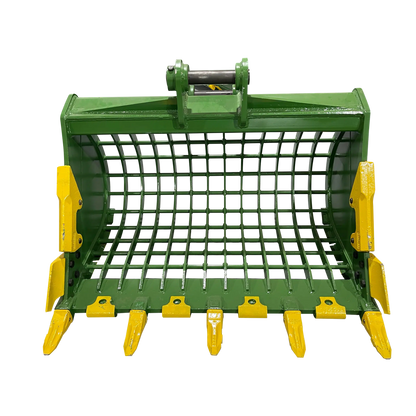

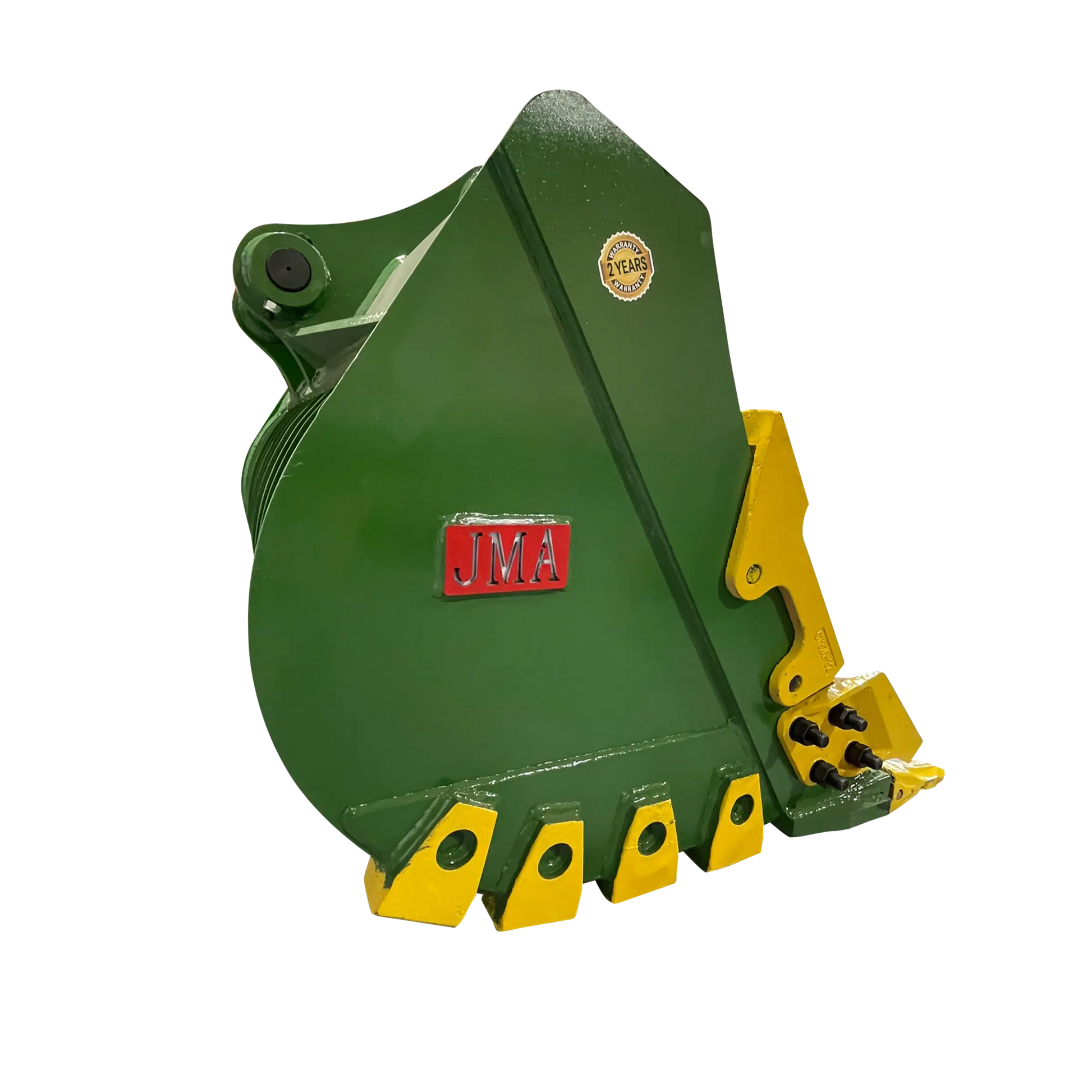

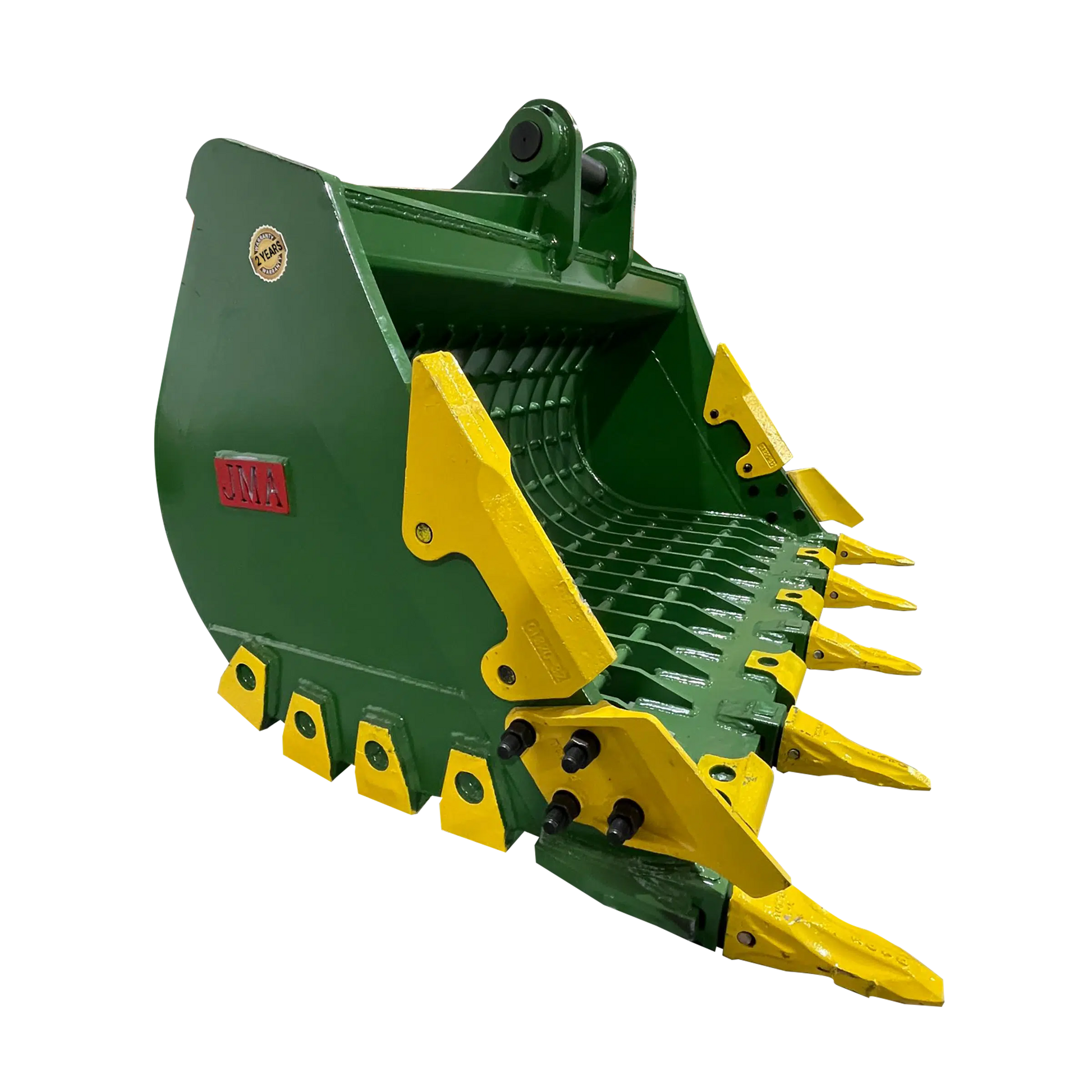

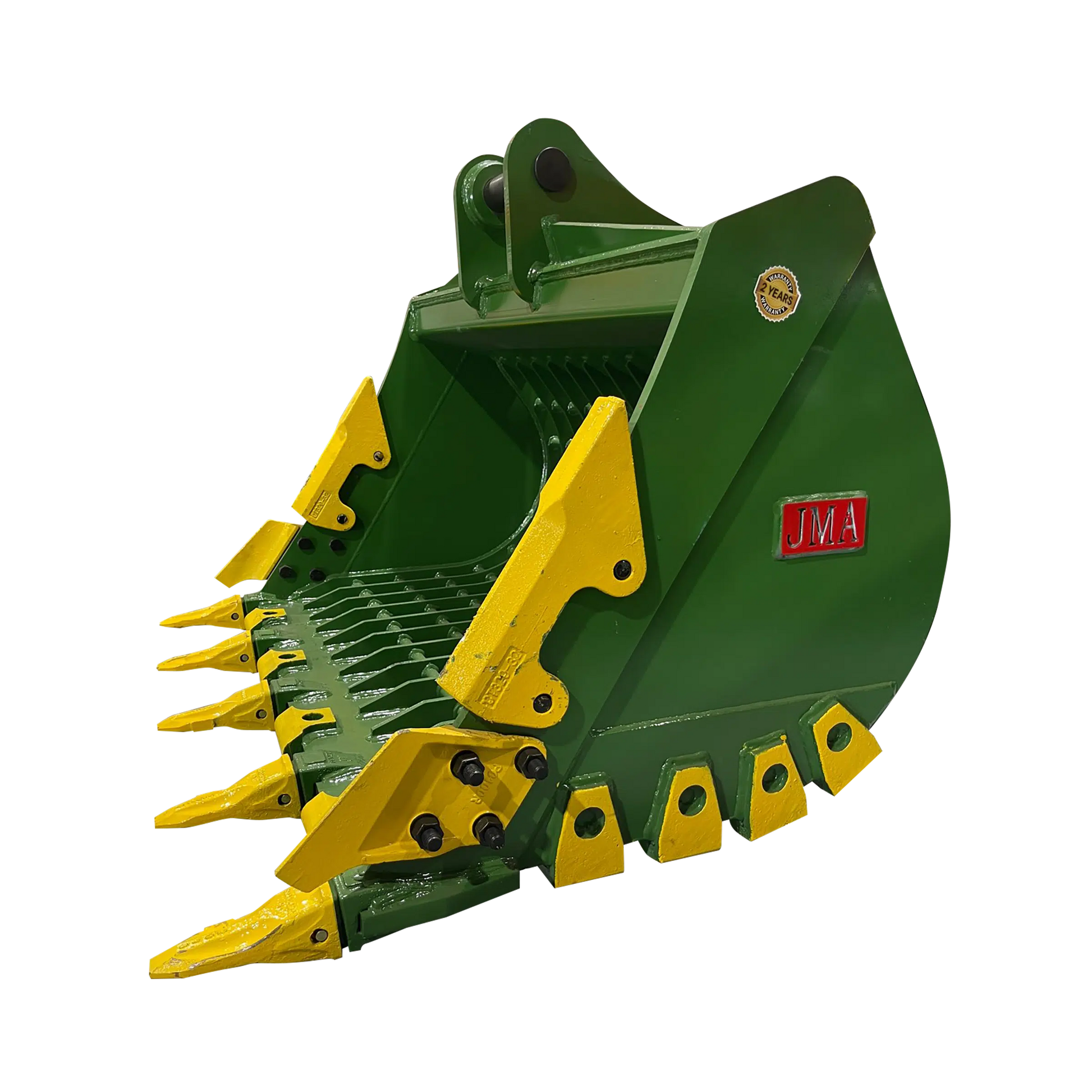

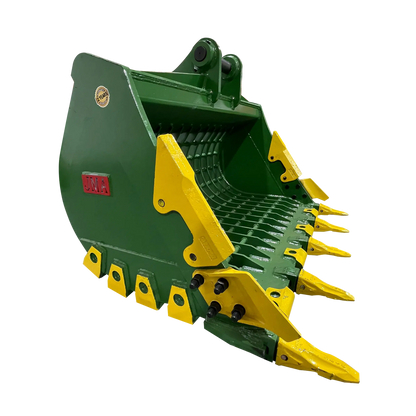

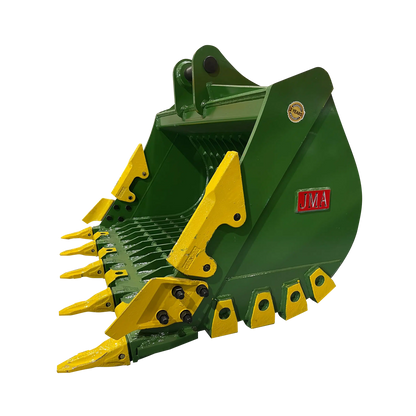

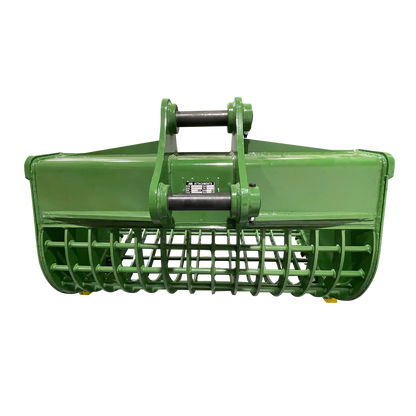

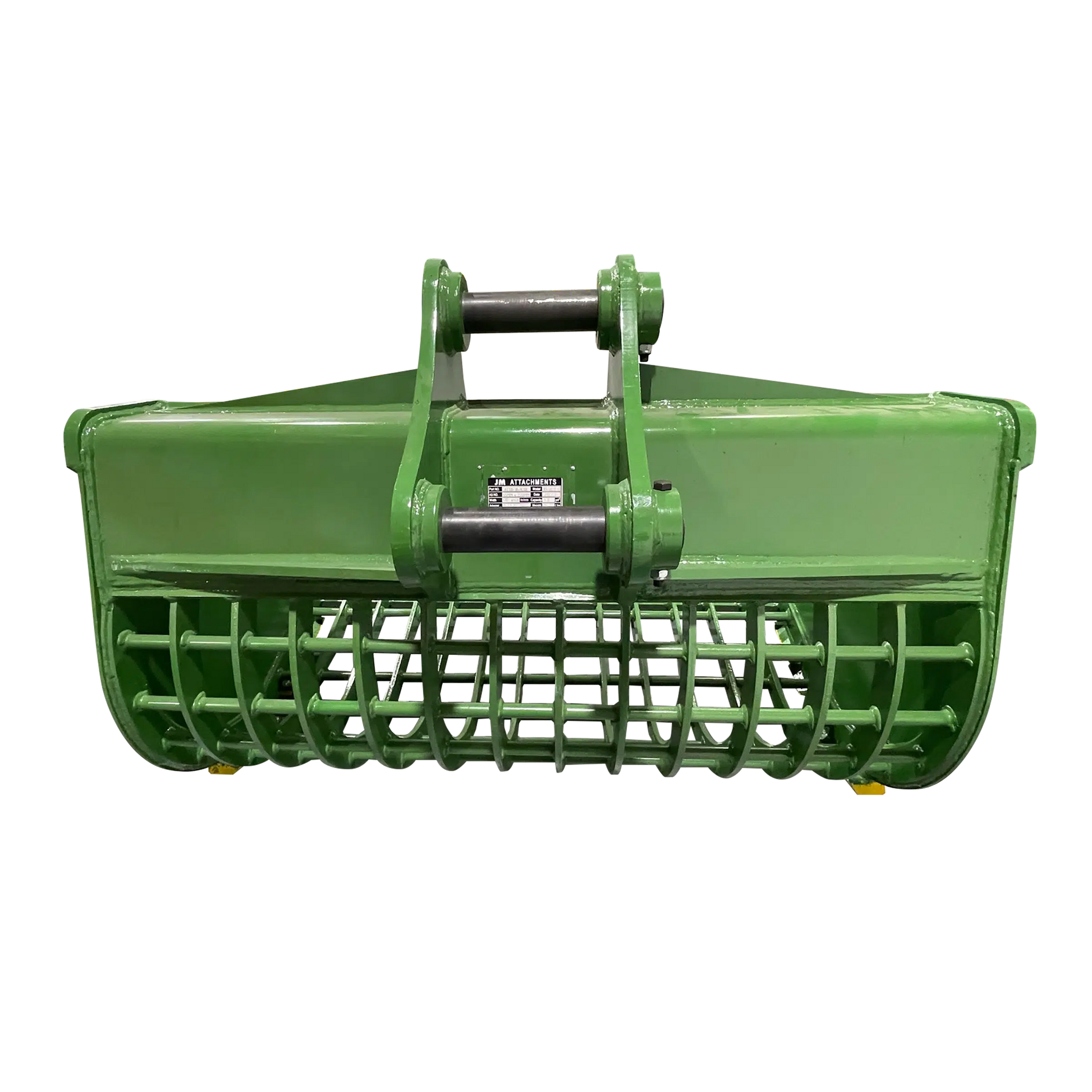

JMA Attachments Severe Duty Skeleton Bucket with Teeth | Bucket Width 60" inches | Pin Size 70mm | For 15 – 18 Tons Excavators

JMA Attachments Severe Duty Skeleton Bucket with Teeth | Bucket Width 60" inches | Pin Size 70mm | For 15 – 18 Tons Excavators

$7,586.70
$7,586.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Versatile Design: Ideal for Excavators, enhancing your equipment's capabilities in various applications.
  • Robust Construction: Crafted from AR400 Steel with 25 mm thick side walls for exceptional durability.
  • Efficient Material Separation: Features 12 tines, each 12 mm thick, for optimal sorting of materials.
View full details

Product Description

JMA Attachments Severe Duty Skeleton Bucket with Teeth | Bucket Width 60" inches | Pin Size 70mm | For 15 – 18 Tons Excavators

Description

Revolutionize your material sorting and heavy-duty excavation with the 60" Severe Duty Skeleton Bucket with Teeth for 15 - 18 Tons Excavators. 70mm Pins. This high-performance 60" Severe Duty Skeleton Bucket with Teeth is engineered for unparalleled efficiency in separating materials and tackling the toughest digging tasks.

Key Features

  • Versatile Design: Ideal for Excavators, enhancing your equipment's capabilities in various applications.
  • Robust Construction: Crafted from AR400 Steel with 25 mm thick side walls for exceptional durability.
  • Efficient Material Separation: Features 12 tines, each 12 mm thick, for optimal sorting of materials.
  • Superior Digging Power: Equipped with 5 Teeth teeth for effective penetration in challenging conditions.
  • Impressive Capacity: Boasts a 1.20 m³ capacity for efficient high-volume operations.
  • Enhanced Performance: 3x Reinforced Side Plates for improved functionality and longevity.

Detailed Specifications

Attribute Value
Carrier Weight Class (tn) 15 - 18 Tons
Bucket Width (mm) 1,524 mm
Bucket Width (in) 60"
Inner Bucket Height (mm) 950 mm
Bucket Side Wall Thickness (mm) 25 mm
Bucket Depth (mm) 655 mm
Capacity (yd³) 1.57 yd³
Capacity (m³) 1.20 m³
Bucket Tooth Series J250
Tooth Style Rock Chisel Bucket Tooth
Tooth (ct.) 5 Teeth
Tooth Part Number 1U3252RC
Tooth Pin Part Number 9J2258
Tooth Retainer Part Number 8E6259
Shank Protector Part Number 112-2489
Tines (ct.) 12
Tines Thickness (in) 0.47"
Tines Thickness (mm) 12 mm
Tines Spacing (mm) 100 mm
Material Type AR400 Steel
Finish Powder-Coated Green
Left Side Cutter Part Number PC100L
Right Side Cutter Part Number PC100R
Front Pin Length (mm) 449 mm
Rear Pin Length (mm) 449 mm
Front Pin Diameter (mm) 70 mm
Rear Pin Diameter (mm) 70 mm
Front Ear to Ear Distance (mm) 283 mm
Rear Ear to Ear Distance (mm) 283 mm
Center to Center Distance (mm) 464 mm
Carrier Weight Class (lbs) 30,000 - 36,000 lbs
Features 3x Reinforced Side Plates
Product Weight (lbs) 1,631.42 lb
Product Weight (kg) 740 kg



Fits To

Brand

Model
Caterpillar 315D2 GC, 315F LCR, 315 GC, 315D2L, 317BLN, 318BL2, 318BLN, 318CLN, 318D2L, 318DL2, 318EL2, 318FL2, 315BL, 315CL, 315DL, 315LN, 316EL, 316FL, 316GC, 317BL, 317GC, 318CN, M313D, 315B, 315C, 315D, 315F, 315L, 316E, 317B, 317N, 318B, 318E, 215, 315, 317
Hyundai R160LC-3, R160LC-7, R160LC-9, R180LC-3, R180LC-7, R180LC-9, R210LC-3, R170W-3, R200W-2, R200W-3, R160LC, R180LC, R200LC, R220LC
Kato 700SEV2, HD700SE, HD700V2, HD700, 900
Kobelco SK170LC-8
Komatsu PC160 LC-7A E0, PC150 HD LC-5, PC150N HD-5K, PC158US LC-2, PC160 LC-7E0, PC160 LC-7KA, PC180 LC-7E0, PC180N LC-5K, PC180N LC-6K, PC180N LC-7K, PC150 HD-5K, PC150 LC-3W, PC150 LC-6K, PC150 LC-8K, PC150 LGP-6, PC150N HD-5, PC160 LC-6K, PC160 LC-7E, PC160 LC-7K, PC160 LC-7L, PC160LC-7EO, PC170 LC-10, PC170 LC-11, PC180 LC-5K, PC180 LC-6K, PC180 LC-7K, PC180L LC-3, PC180N LC-3, PC180N LC-5, PC180N LC-6, PC180N LC-7, PC150 HD-3, PC150 HD-5, PC150 LC-1, PC150 LC-3, PC150 LC-5, PC150 LC-6, PC150 LC-7, PC158US LC, PC160 LC-6, PC160 LC-7, PC160 LC-8, PC180 LC-3, PC180 LC-5, PC180 LC-6, PC180 LC-7, PC150N HD, PC158US-2, PC160N LC, PC180N LC, PC150 HD, PC150 LC, PC150 SE, PC150-3W, PC150-5K, PC150-6K, PC150C-3, PC150C-6, PC150L-6, PC158 LC, PC160 LC, PC160-6K, PC160-7K, PC168 LC, PC170 LC, PC180 LC, PC180-3K, PC180-5K, PC180-6K, PC150-1, PC150-3, PC150-5, PC150-6, PC160-6, PC160-7, PC160-8, PC180-3, PC180-5, PC180-6, PC180-7, PC150C, PC150L, PC150, PC158, PC160, PC180, PW150
Liebherr 922
Samsung SE130LC
Sumitomo LS2800FJ, S2800FJ
Volvo EC160B LC, EC160C LC, EC150 LC, EC160 LC, SE170W-3, EC160CL, EC160DL, EC160EL, EC170DL, EC180CL, EC180DL, EC180EL, MX175WS, EC150B, EC150C, EC160B, EC160C, EC160N, EC160P, EC180B, EC180C, EC180D, EC150, EC160, EW170
