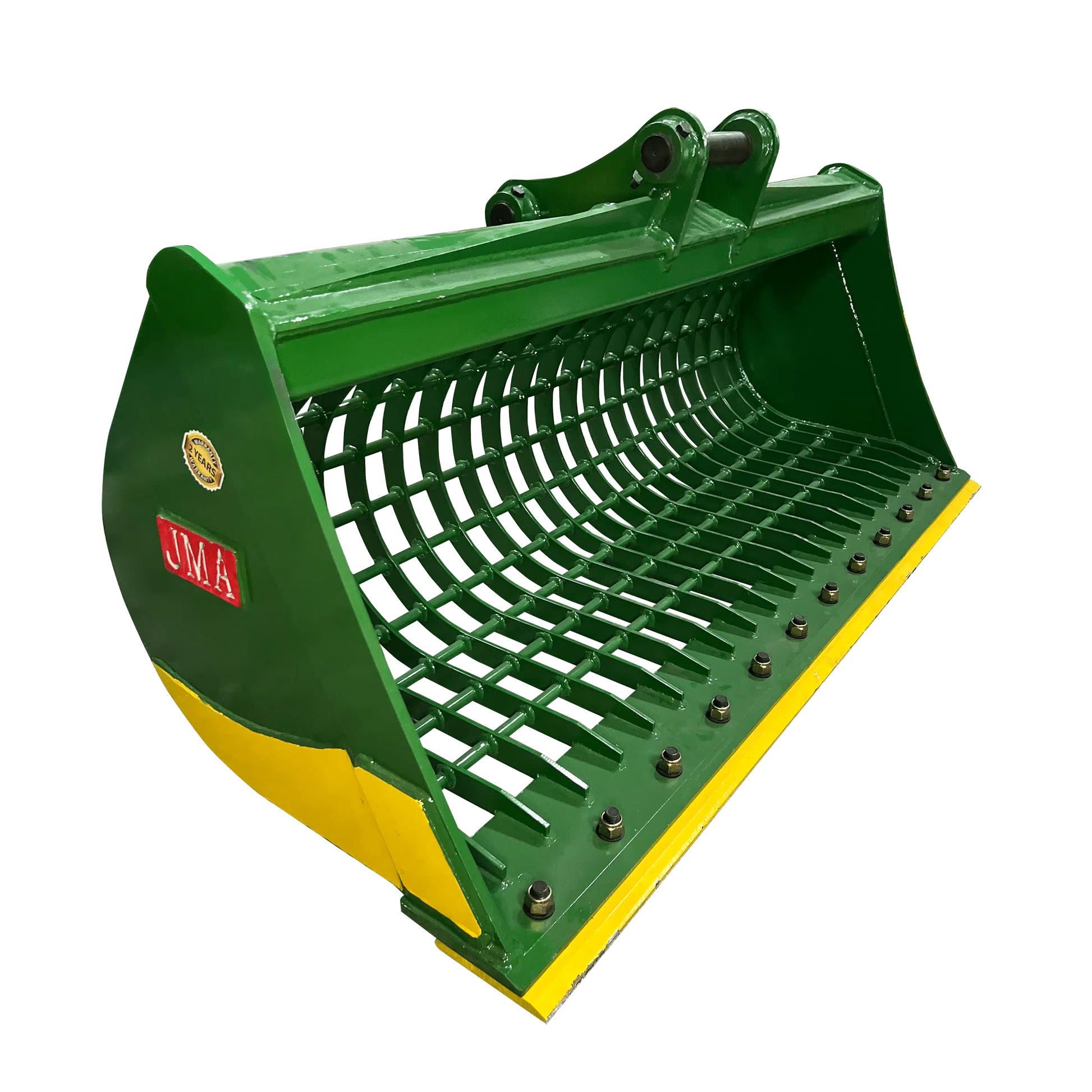

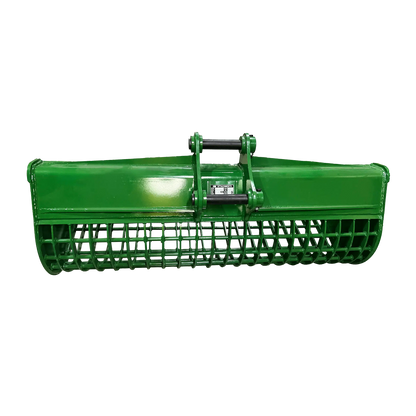

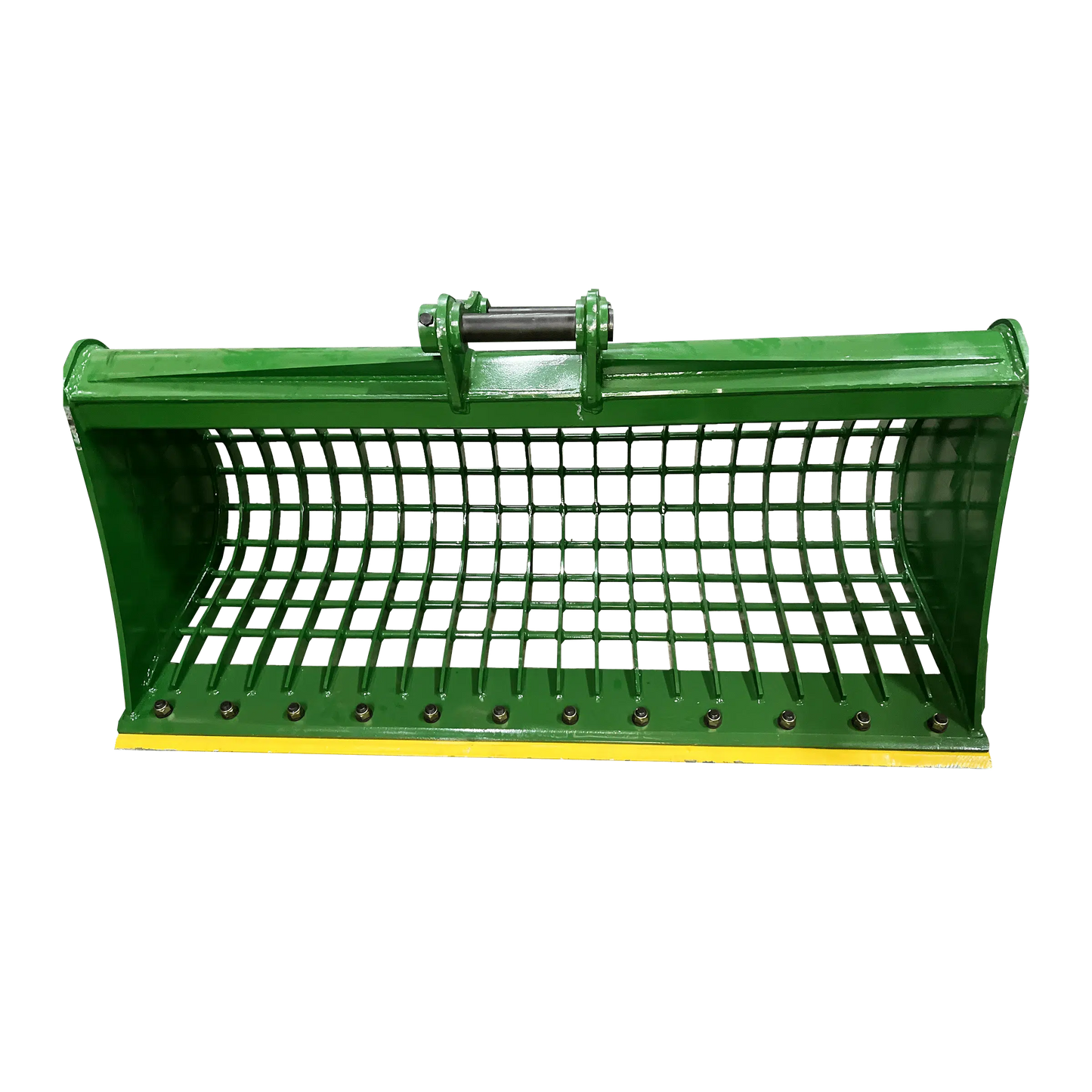

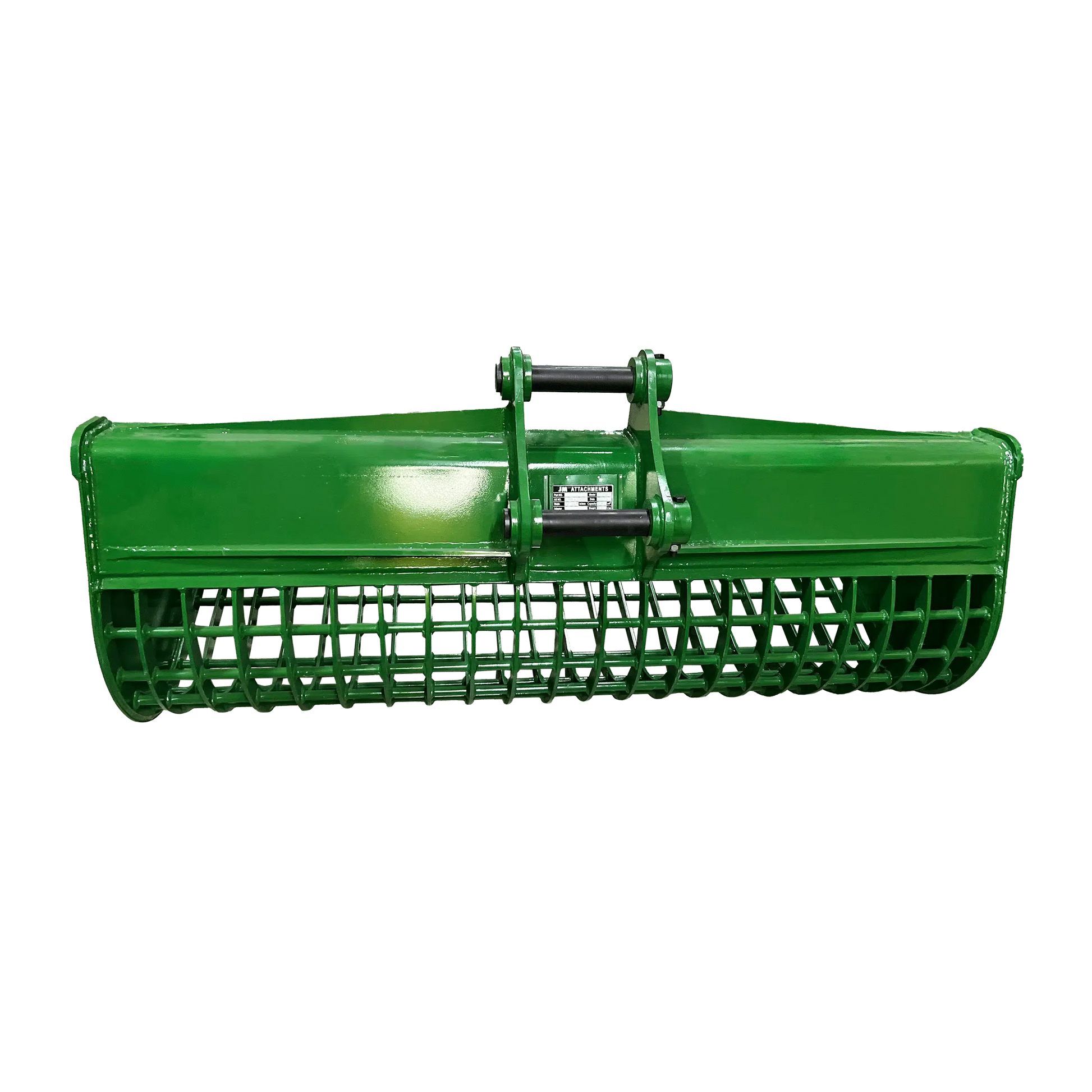

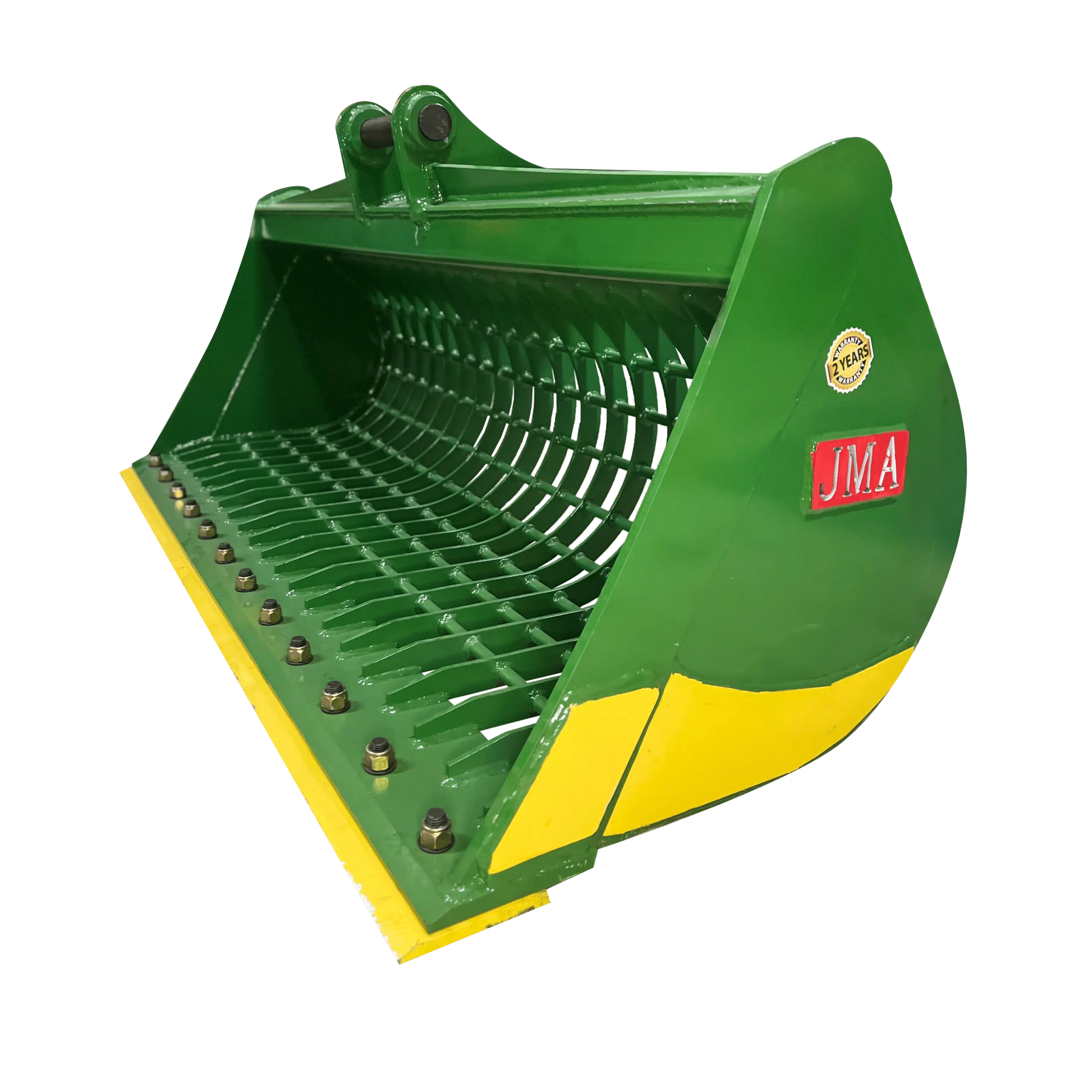

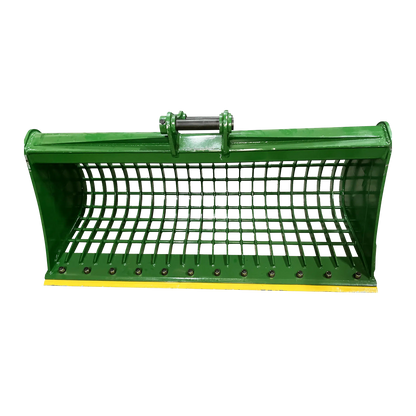

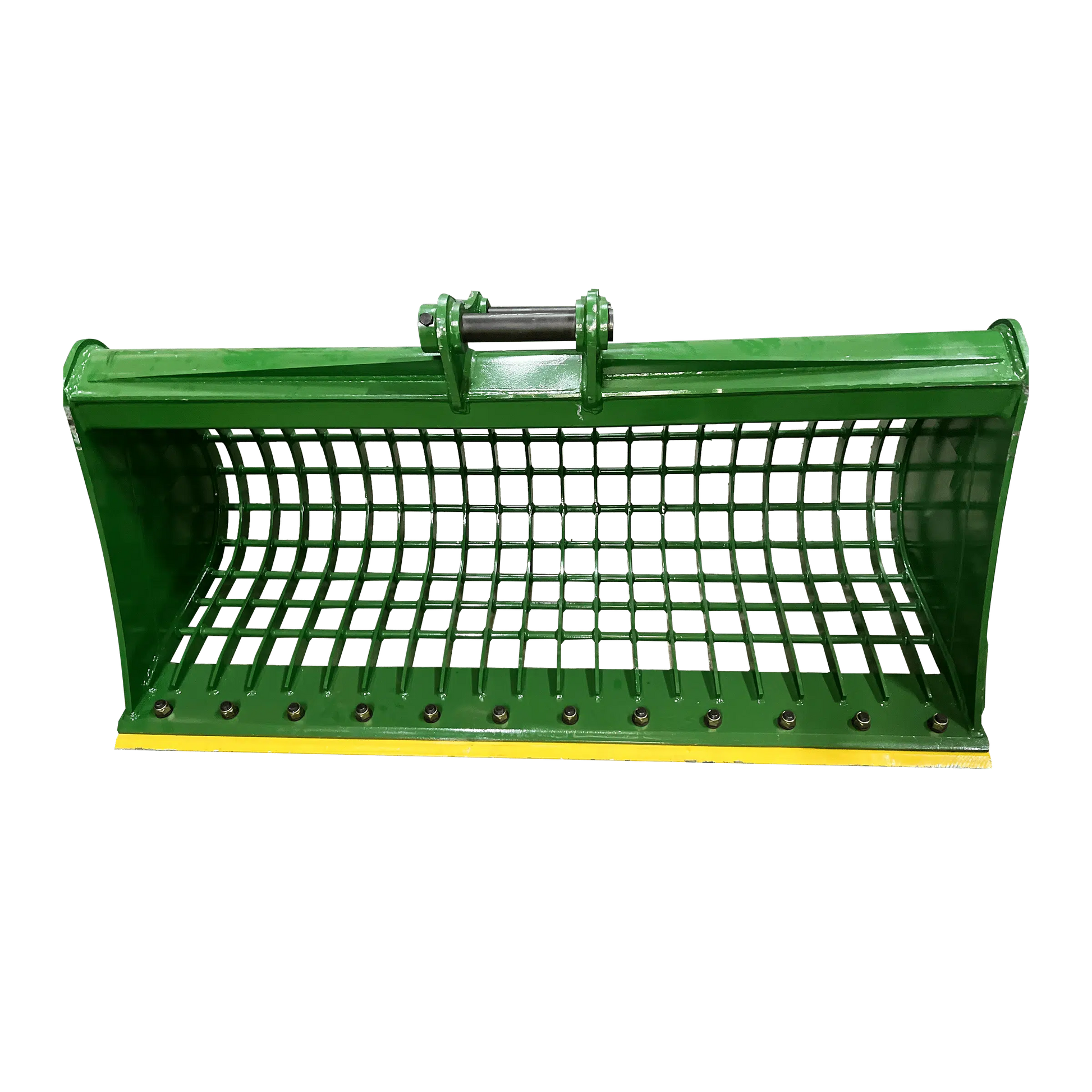

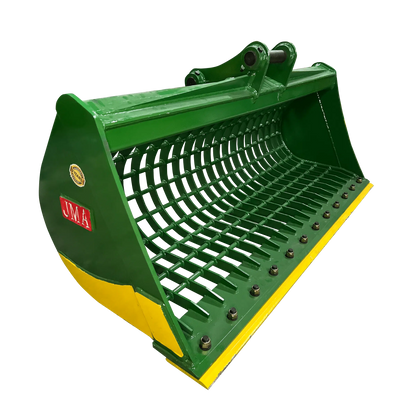

JMA Attachments Skeleton Bucket Bolt-On Edge | Bucket Width 36", 48", 60" & 72" inches | Pin Size 50mm | For 7 – 10 Tons Excavators

JMA Attachments Skeleton Bucket Bolt-On Edge | Bucket Width 36", 48", 60" & 72" inches | Pin Size 50mm | For 7 – 10 Tons Excavators

$3,076.70
$3,076.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Superior Capacity: Capacities ranging from 0.43 m³ to 0.84 m³, allowing for efficient handling of substantial material volumes, reducing project timelines.
  • Unmatched Durability: Constructed from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Cutting-Edge Performance: Equipped with a reversible bolt-on cutting edge for superior cutting performance and reduced maintenance needs.
View full details

Product Description

JMA Attachments Skeleton Bucket Bolt-On Edge | Bucket Width 36", 48", 60" & 72" inches | Pin Size 50mm | For 7 – 10 Tons Excavators

Description

Introducing our versatile series of heavy-duty digging buckets, specifically designed for 7 - 10 Ton Excavators. These buckets are engineered to offer superior performance and durability, making them the ideal choice for a wide range of excavation tasks. Crafted from premium AR400 steel and equipped with a reversible bolt-on cutting edge, these buckets ensure efficient material handling and enhanced productivity.

Key Features

  • Superior Capacity: Capacities ranging from 0.43 m³ to 0.84 m³, allowing for efficient handling of substantial material volumes, reducing project timelines.
  • Unmatched Durability: Constructed from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Cutting-Edge Performance: Equipped with a reversible bolt-on cutting edge for superior cutting performance and reduced maintenance needs.
  • Optimized Design: 3x Reinforced Side Plates optimize material flow and reduce cycle times, maintaining productivity in various soil conditions.
  • Robust Tine Design: Equipped with tines of 0.35" (9 mm) thickness and 80 mm spacing, enhancing material handling efficiency.

Detailed Specifications

    Attribute 36" Bucket 48" Bucket 60" Bucket 72" Bucket
    Carrier Weight Class (tn) 7 - 10 Tons 7 - 10 Tons 7 - 10 Tons 7 - 10 Tons
    Bucket Width (mm) 914.4 mm 1,219.2 mm 1,524 mm 1,828.8 mm
    Bucket Width (in) 36" 48" 60" 72"
    Inner Bucket Height (mm) 700 mm 700 mm 700 mm 700 mm
    Bucket Side Wall Thickness (mm) 14 mm 14 mm 14 mm 14 mm
    Bucket Depth (mm) 504 mm 504 mm 504 mm 504 mm
    Capacity (yd³) 0.56 yd³ 0.56 yd³ 0.90 yd³ 1.10 yd³
    Capacity (m³) 0.43 m³ 0.43 m³ 0.69 m³ 0.84 m³
    Edge Style Reversible Bolt-On Cutting Edge Reversible Bolt-On Cutting Edge Reversible Bolt-On Cutting Edge Reversible Bolt-On Cutting Edge
    Tines (ct.) 9 13 16 20
    Tines Thickness (in) 0.35" 0.35" 0.35" 0.35"
    Tines Thickness (mm) 9 mm 9 mm 9 mm 9 mm
    Tines Spacing (mm) 80 mm 80 mm 80 mm 80 mm
    Material Type AR400 Steel AR400 Steel AR400 Steel AR400 Steel
    Finish Powder-Coated Green Powder-Coated Green Powder-Coated Green Powder-Coated Green
    Front Pin Length (mm) 346 mm 346 mm 346 mm 346 mm
    Rear Pin Length (mm) 346 mm 346 mm 346 mm 346 mm
    Front Pin Diameter (mm) 50 mm 50 mm 50 mm 50 mm
    Rear Pin Diameter (mm) 50 mm 50 mm 50 mm 50 mm
    Front Ear to Ear Distance (mm) 200 mm 200 mm 200 mm 200 mm
    Rear Ear to Ear Distance (mm) 200 mm 200 mm 200 mm 200 mm
    Center to Center Distance (mm) 310 mm 310 mm 310 mm 310 mm
    Carrier Weight Class (lbs) 14,000 - 20,000 lbs 14,000 - 20,000 lbs 14,000 - 20,000 lbs 14,000 - 20,000 lbs
    Features 3x Reinforced Side Plates 3x Reinforced Side Plates 3x Reinforced Side Plates 3x Reinforced Side Plates
    Product Weight (lbs) 507.06 lb 593.04 lb 692.25 lb 800.28 lb
    Product Weight (kg) 230 kg 269 kg 314 kg 363 kg
