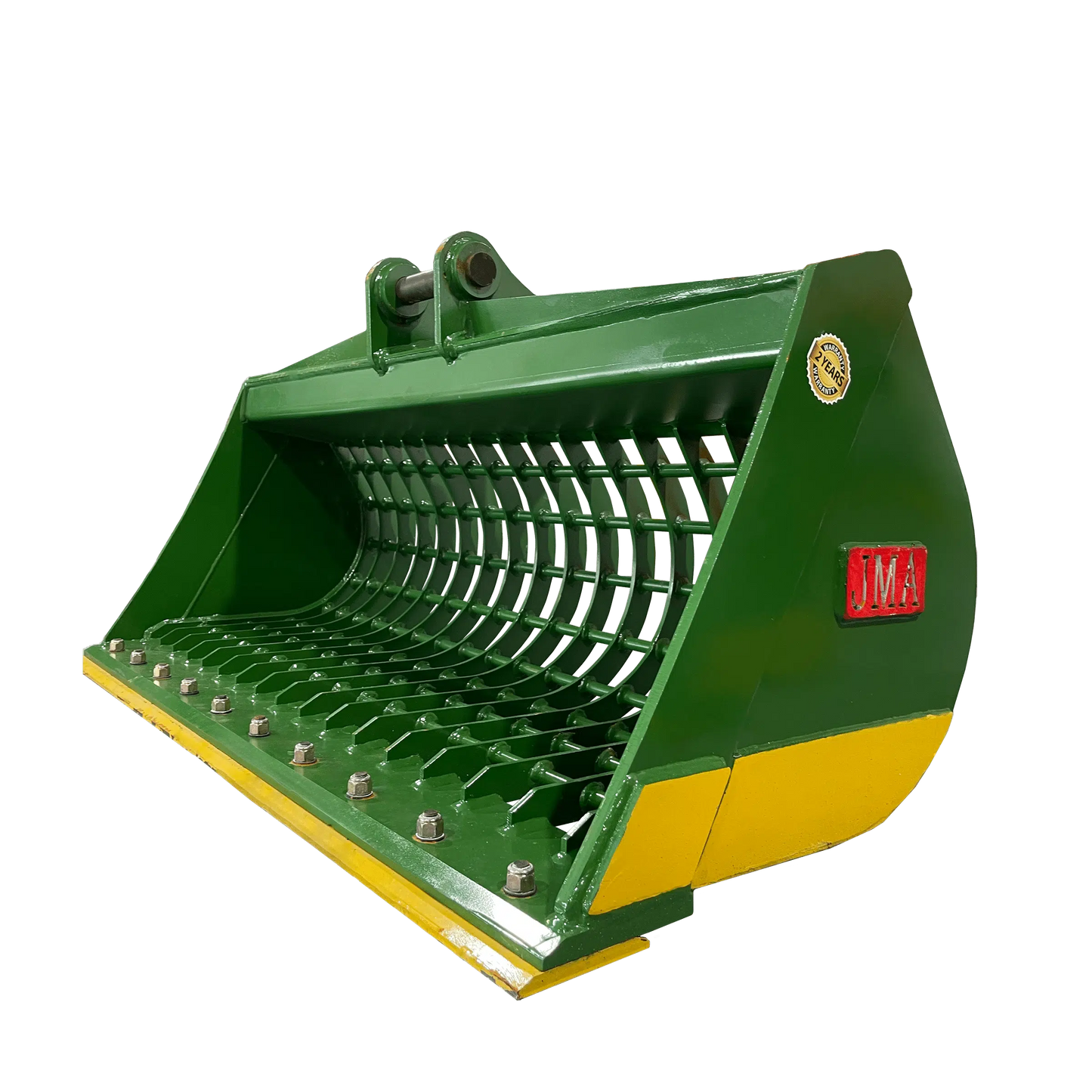

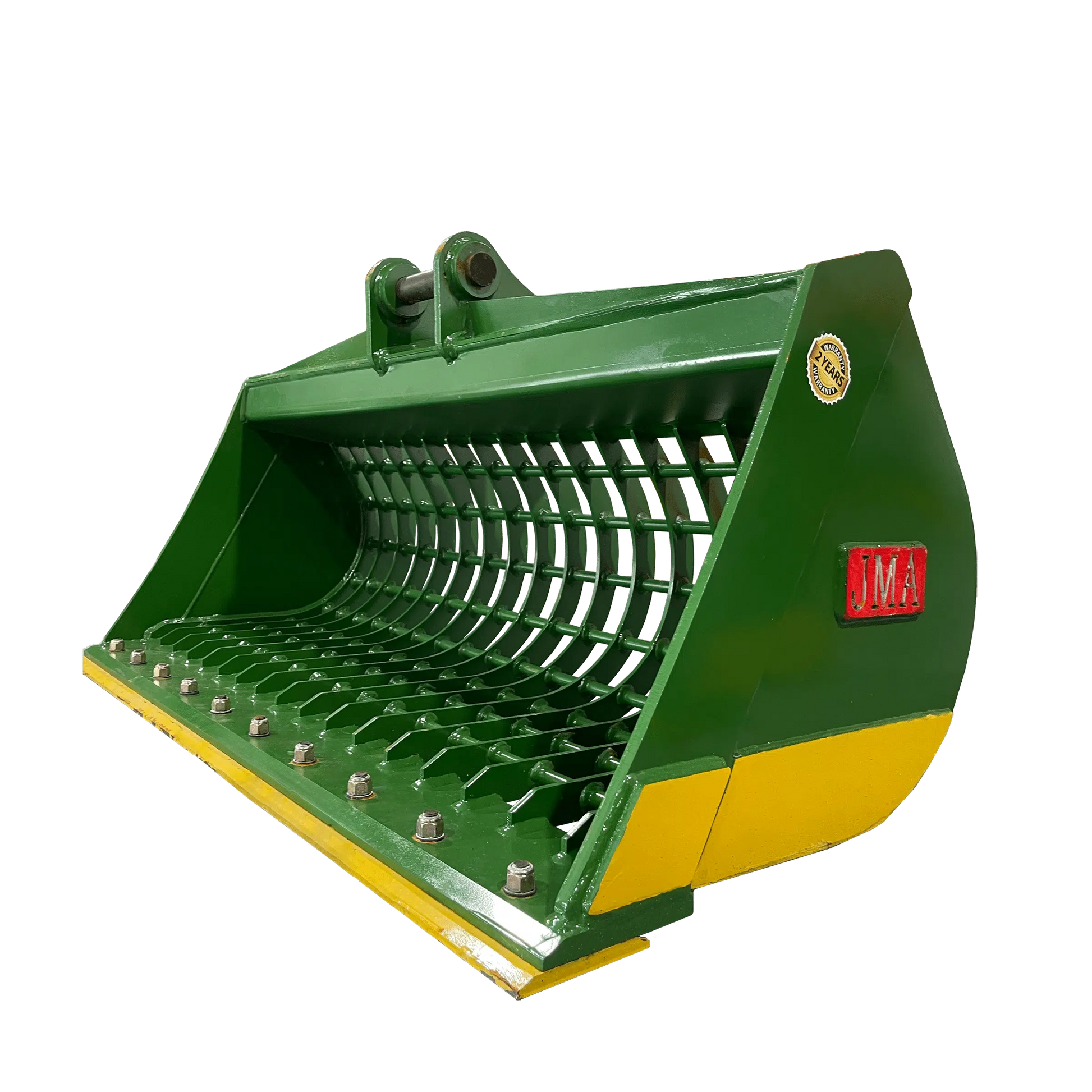

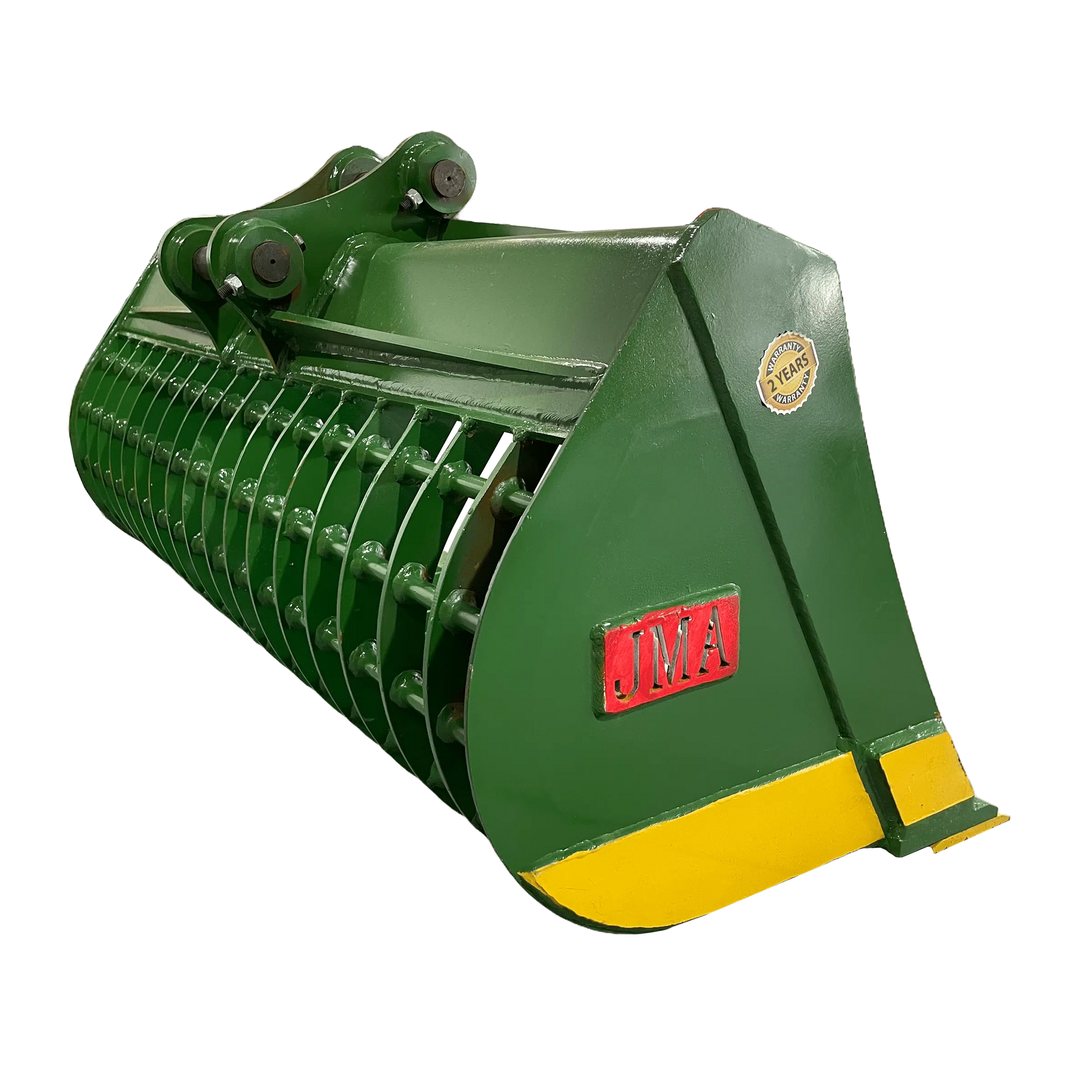

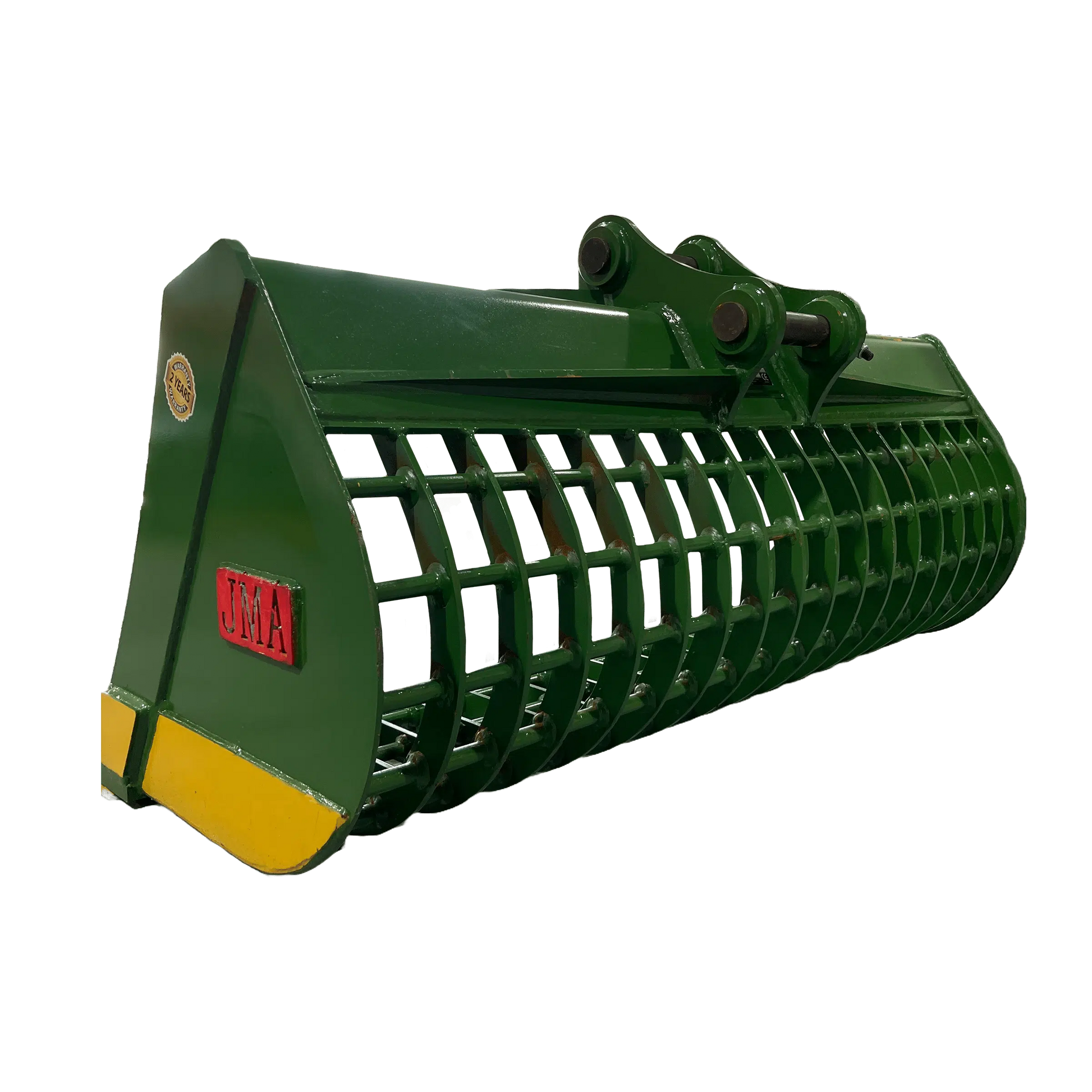

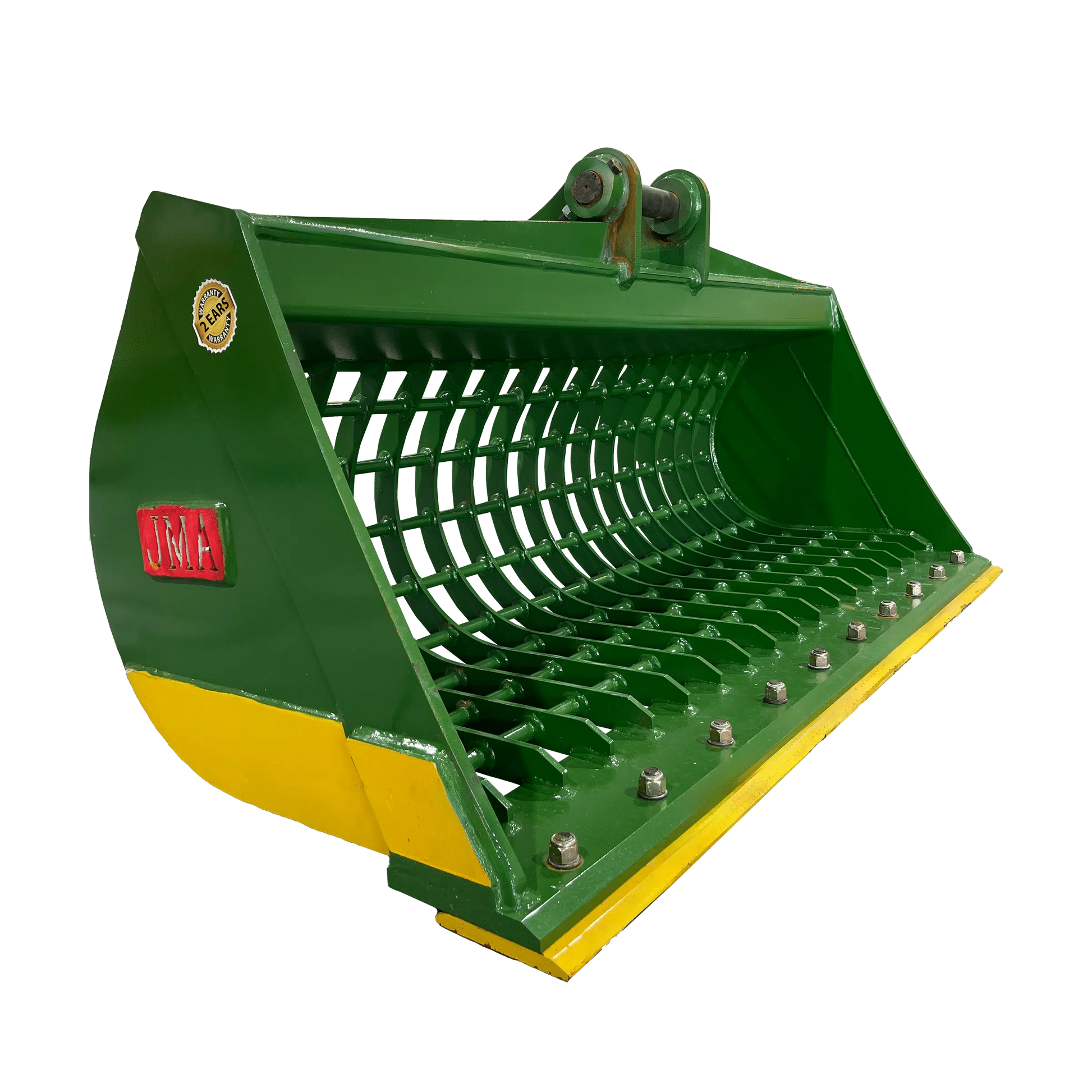

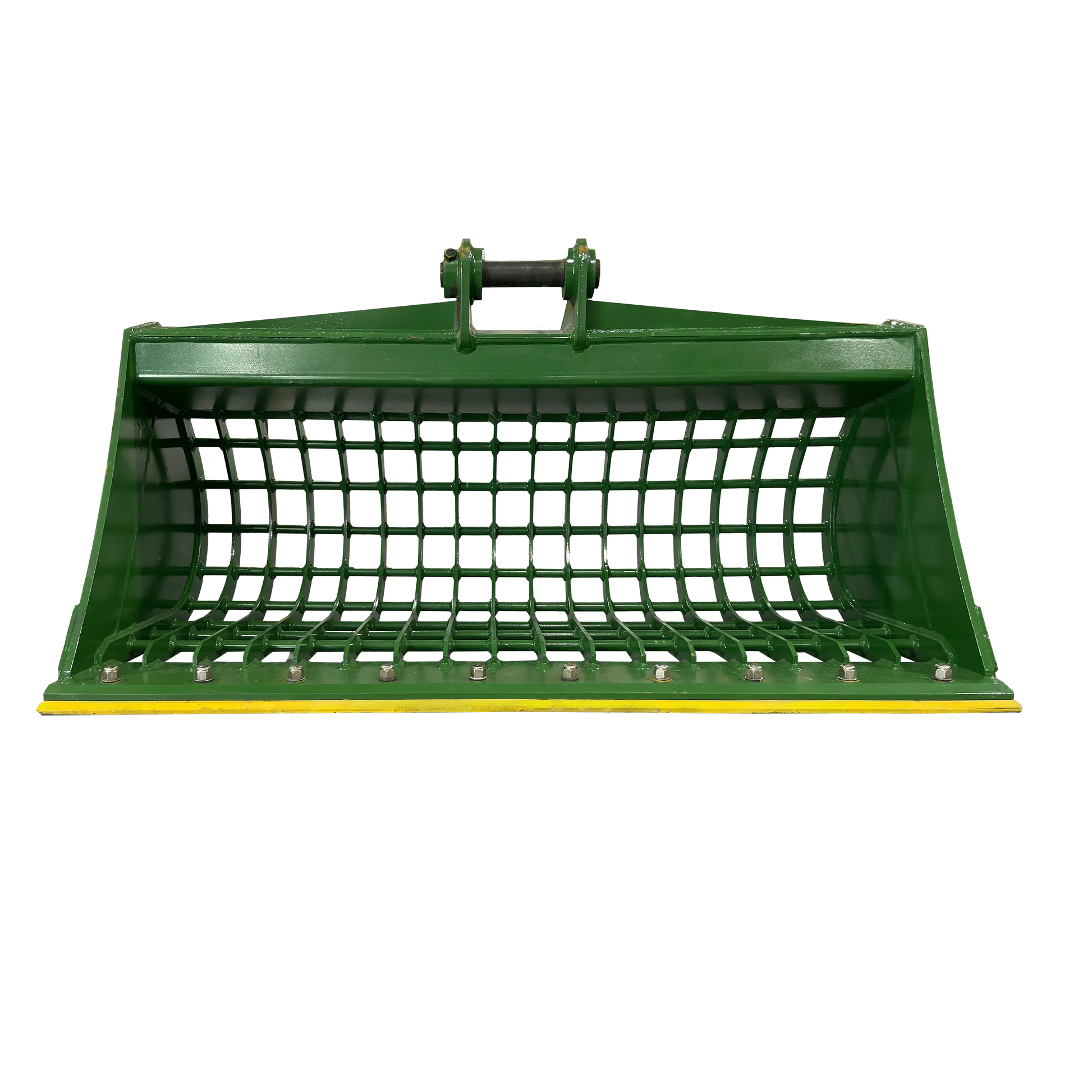

JMA Attachments Skeleton Bucket Bolt-On Edge | Bucket Width 60" inches | Pin Size 45mm | For 5 – 6.5 Tons Mini Excavators
JMA Attachments Skeleton Bucket Bolt-On Edge | Bucket Width 60" inches | Pin Size 45mm | For 5 – 6.5 Tons Mini Excavators
Regular price
$3,516.70
Regular price
Sale price
$3,516.70
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
JMA Attachments Skeleton Bucket Bolt-On Edge | Bucket Width 60" inches | Pin Size 45mm | For 5 – 6.5 Tons Mini Excavators
Description
Revolutionize your material handling operations with the 60" Skeleton Bucket Bolt-On Edge for 5 - 6.5 Tons Mini Excavators. 45mm Pins. This innovative 60" Skeleton Bucket Bolt-On Edge combines the efficiency of a skeleton bucket with the versatility of a Reversible Bolt-On Cutting Edge, setting new standards in performance and adaptability.
Key Features
- Versatile Design: Ideal for Mini Excavators, enhancing your equipment's capabilities across various applications.
- Robust Construction: Crafted from AR400 Steel for exceptional durability in demanding conditions.
- Efficient Material Separation: Features 16 tines, each 8 mm thick, for optimal sorting of materials.
- Unique Reversible Bolt-On Cutting Edge: Offers enhanced cutting performance and easy replacement for prolonged bucket life.
- Advanced Functionality: 3x Reinforced Side Plates for improved performance and longevity.
- Superior Adaptability: Excels in sifting, sorting, and handling various materials with ease.
Detailed Specifications
| Attribute | Value |
|---|---|
| Carrier Weight Class (tn) | 5 - 6.5 Tons |
| Bucket Width (mm) | 1,524 mm |
| Bucket Width (in) | 60" |
| Inner Bucket Height (mm) | 650 mm |
| Bucket Side Wall Thickness (mm) | 14 mm |
| Bucket Depth (mm) | 475 mm |
| Capacity (yd³) | 0.78 yd³ |
| Capacity (m³) | 0.60 m³ |
| Edge Style | Reversible Bolt-On Cutting Edge |
| Tines (ct.) | 16 |
| Tines Thickness (in) | 0.31" |
| Tines Thickness (mm) | 8 mm |
| Tines Spacing (mm) | 80 mm |
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Front Pin Length (mm) | 303 mm |
| Rear Pin Length (mm) | 303 mm |
| Front Pin Diameter (mm) | 45 mm |
| Rear Pin Diameter (mm) | 45 mm |
| Front Ear to Ear Distance (mm) | 156 mm |
| Rear Ear to Ear Distance (mm) | 156 mm |
| Center to Center Distance (mm) | 260 mm |
| Carrier Weight Class (lbs) | 10,000 - 13,000 lbs |
| Features | 3x Reinforced Side Plates |
| Product Weight (lbs) | 634.93 lb |
| Product Weight (kg) | 288 kg |
