JMA Attachments Skeleton Bucket with Teeth | Bucket Width 36", 48", 60" & 72" inches | Pin Size 50mm | For 7 – 10 Tons Excavators

JMA Attachments Skeleton Bucket with Teeth | Bucket Width 36", 48", 60" & 72" inches | Pin Size 50mm | For 7 – 10 Tons Excavators

$3,186.70
$3,186.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Superior Capacity: Capacities ranging from 0.29 m³ to 0.68 m³, allowing for efficient handling of substantial material volumes, reducing project timelines.
  • Unmatched Durability: Constructed from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Cutting-Edge Performance: Equipped with Rock Chisel Bucket Teeth (J200 series) for superior ground penetration and material handling capabilities.
View full details

Product Description

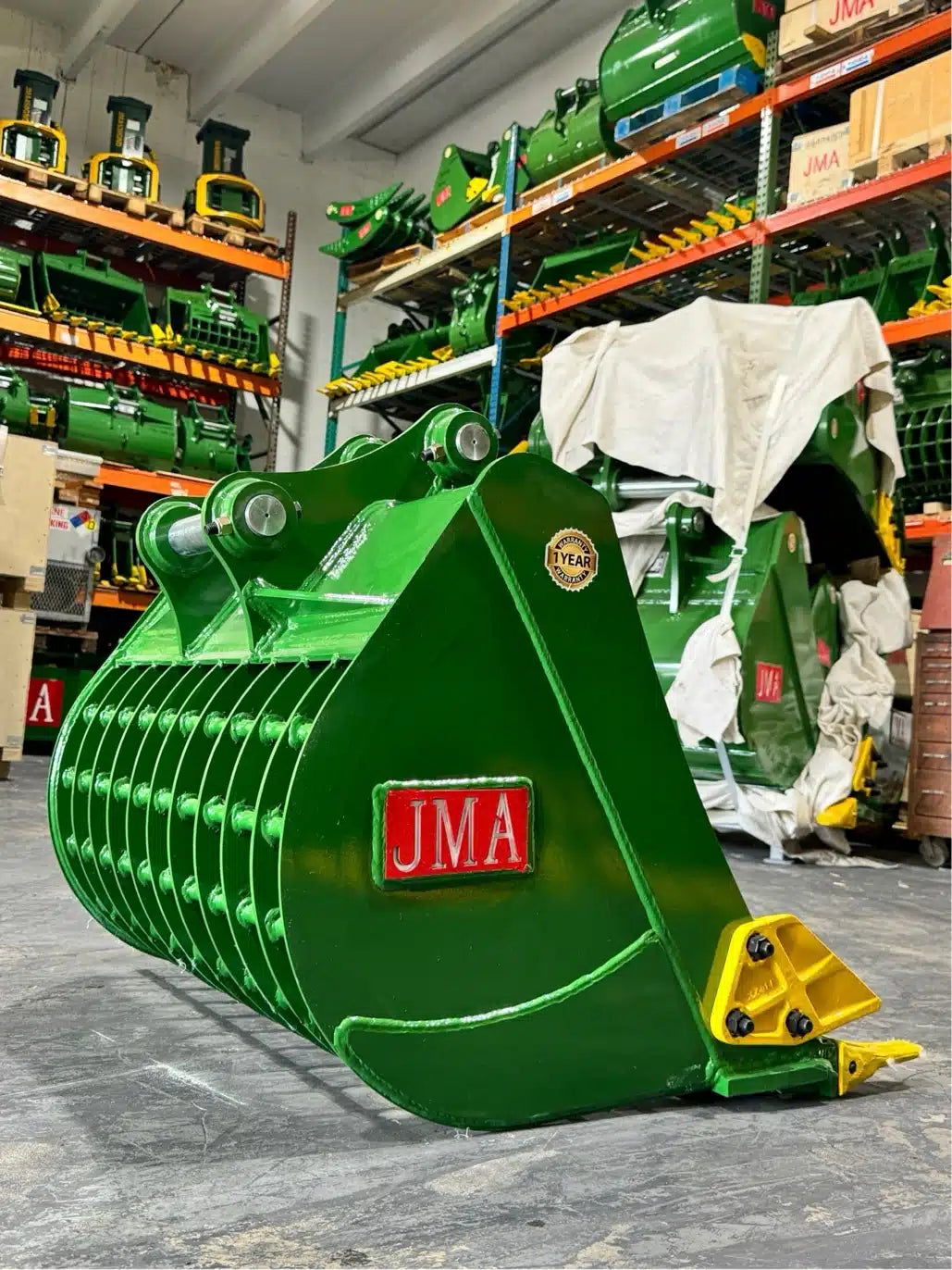

JMA Attachments Skeleton Bucket with Teeth | Bucket Width 36", 48", 60" & 72" inches | Pin Size 50mm | For 7 – 10 Tons Excavators

Description

Introducing our efficient series of heavy-duty digging buckets, specifically designed for 7 - 10 Ton Excavators. These buckets are engineered to offer superior performance and durability, making them the perfect choice for a variety of excavation tasks. Crafted from premium AR400 steel and equipped with Rock Chisel Bucket Teeth from the J200 series, these buckets ensure efficient material handling and ground penetration, enhancing your excavation productivity.

Key Features

  • Superior Capacity: Capacities ranging from 0.29 m³ to 0.68 m³, allowing for efficient handling of substantial material volumes, reducing project timelines.
  • Unmatched Durability: Constructed from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Cutting-Edge Performance: Equipped with Rock Chisel Bucket Teeth (J200 series) for superior ground penetration and material handling capabilities.
  • Optimized Design: 3x Reinforced Side Plates optimize material flow and reduce cycle times, maintaining productivity in various soil conditions.
  • Robust Tine Design: Equipped with tines of 0.35" (9 mm) and 0.79" (20 mm) thickness with 80 mm spacing, enhancing material handling efficiency.

Detailed Specifications

Attribute 36" Bucket 48" Bucket 60" Bucket 72" Bucket
Carrier Weight Class (tn) 7 - 10 Tons 7 - 10 Tons 7 - 10 Tons 7 - 10 Tons
Bucket Width (mm) 914.4 mm 1,219 mm 1,524 mm 1,828 mm
Bucket Width (in) 36" 48" 60" 72"
Inner Bucket Height (mm) 700 mm 700 mm 700 mm 700 mm
Bucket Side Wall Thickness (mm) 14 mm 14 mm 14 mm 14 mm
Bucket Depth (mm) 504 mm 504 mm 504 mm 504 mm
Capacity (yd³) 0.38 yd³ 0.55 yd³ 0.82 yd³ 0.89 yd³
Capacity (m³) 0.29 m³ 0.42 m³ 0.63 m³ 0.68 m³
Bucket Tooth Series J200 J200 J200 J200
Tooth Style Rock Chisel Bucket Tooth Rock Chisel Bucket Tooth Rock Chisel Bucket Tooth Rock Chisel Bucket Tooth
Tooth (ct.) 6 Teeth 9 Teeth 11 Teeth 13 Teeth
Tooth Part Number 1U3202RC 1U3202RC 1U3202RC 1U3202RC
Tooth Pin Part Number 9W7112 9W7112 9W7112 9W7112
Tooth Retainer Part Number 8E6209 8E6209 8E6209 8E6209
Tines (ct.) 9 13 16 20
Tines Thickness (in) 0.35" 0.79" 0.79" 0.79"
Tines Thickness (mm) 9 mm 20 mm 20 mm 20 mm
Tines Spacing (mm) 80 mm 80 mm 80 mm 80 mm
Material Type AR400 Steel AR400 Steel AR400 Steel AR400 Steel
Finish Powder-Coated Green Powder-Coated Green Powder-Coated Green Powder-Coated Green
Left Side Cutter Part Number CLZ-01-L CLZ-01-L CLZ-01-L CLZ-01-L
Right Side Cutter Part Number CLZ-01-D CLZ-01-D CLZ-01-D CLZ-01-D
Front Pin Length (mm) 346 mm 346 mm 346 mm 346 mm
Rear Pin Length (mm) 346 mm 346 mm 346 mm 346 mm
Front Pin Diameter (mm) 50 mm 50 mm 50 mm 50 mm
Rear Pin Diameter (mm) 50 mm 50 mm 50 mm 50 mm
Front Ear to Ear Distance (mm) 200 mm 200 mm 200 mm 200 mm
Rear Ear to Ear Distance (mm) 200 mm 200 mm 200 mm 200 mm
Center to Center Distance (mm) 310 mm 310 mm 310 mm 310 mm
Carrier Weight Class (lbs) 14,000 - 20,000 lbs 14,000 - 20,000 lbs 14,000 - 20,000 lbs 14,000 - 20,000 lbs
Features 3x Reinforced Side Plates 3x Reinforced Side Plates 3x Reinforced Side Plates 3x Reinforced Side Plates
Product Weight (lbs) 485.02 lb 593.04 lb 692.25 lb 800.28 lb
Product Weight (kg) 220 kg 269 kg 314 kg 363 kg




    Fits To

    36" Bucket

    Brand

    Model
    Airman AX90
    Case CX80C MSR, CX90D MSR, CX85D SR, CX75 LR, CX75CSR, CX75MSR, CX75SR, CX80SR, CX80B, CX80C, CX90D, CX75, CX80
    Caterpillar 308E2 Z2.1, 309 CR VAB, 307SSR-V2, 308CR VAB, 308E2 CR, 308E2 SR, 308B CR, 308C CR, 308D CR, 308E CR, 308E SR, 307 CR, 307SSR, 308 CR, 308BSR, 308C R, 308CSR, 308DRR, 308DSR, 309 CR, 307.5, 307B2, 308.5, 308SR, 307B, 307C, 307D, 307E, 308D, 308E, 307, 308, 309
    Daewoo S130W
    Hanix H75C
    Hitachi ZX85USB LCN-3, ZX85USB LC-3, ZX85US LC-3, ZX70 LCN-3, ZX75US-3LC, ZX75USK-5B, ZX85USB-5A, ZX85USB-5N, ZX70 LC-2, ZX70 LC-3, ZX75UR-5B, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75USL-3, ZX80 LC-2, ZX80LCK-3, ZX80SB LC, ZX85US-5A, ZX85USB-3, ZX85USB-5, ZX85USB-6, ZX85USB-7, EX75US-5, ZX75UR-3, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-5, ZX75US-7, ZX75USBL, ZX80 LCK, ZX85US-3, ZX85US-5, ZX85US-6, ZX95US-7, ZX70 LC, ZX70-5A, ZX70-5G, ZX80 LC, EX60-5, EX75US, ZX70-3, ZX70BL, ZX75UR, ZX75US, ZX80SB, ZX85US, EX80U, UH043, WH04D, EX90, ZX70, ZX75, ZX80, ZX90, ZX85USB
    Ihi 80NX-3, IS50G, IS55J, IS55N, 65NX, 80NX, IS50, IS55, IS65
    John Deere 75C, 75D, 75G, 80C, 85D, 85G, 70, 75, 80, 80G, 50P, 60P, 75P, 85P
    Kato HD140SE, 180G
    Kobelco SK070 SR, SK075 SR, SK75SR-3, SK85SR-3, SK070SR, SK60MK5, SK80MSR, SK60-2, SK60SR, SK70SR, SK75UR, SK95UR, K9033, SK80
    Komatsu PC88MR-11E0, PC60-7C BL, PC75UU-3AC, PC78US-6E0, PC78US-6N0, PC78UU-6E0, PC60 LC-5, PC70FR-2B, PC75 LC-6, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3C, PC75UU-3E, PC78MRX-1, PC78US LC, PC78US-10, PC78US-11, PC78US-6E, PC78US-6Y, PC78UU-10, PC78UU-6E, PC78UUT-6, PC80 LC-3, PC88MR-10, PC88MR-11, PC60-6BL, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60SC-7, PC60SS-1, PC60UU-5, PC70FR-1, PC75R HD, PC75R-2K, PC75UR-2, PC75UR-3, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU-1, PC75UU-2, PC75UU-3, PC76UU-2, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78US-2, PC78US-5, PC78US-6, PC78US-7, PC78US-8, PC78UU-6, PC78UU-8, PC80MR-3, PC80MR-5, PC88MR-2, PC88MR-6, PC88MR-8, PC60 LC, PC60-6B, PC60-6S, PC60-7A, PC60-7B, PC60-7C, PC60-7E, PC60-7S, PC60B-7, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60L-6, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC70-7E, PC75 HD, PC75R-1, PC75R-2, PC75R-8, PC75U-2, PC90R-2, PC95R-1, PC95R-2, PW110RT, PC110R, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-7, PC60-8, PC60-9, PC60BL, PC60SS, PC70-1, PC70-4, PC70-6, PC70-7, PC70-8, PC70FR, PC75-1, PC75-2, PC75-3, PC75U1, PC75UL, PC75UR, PC75US, PC75UU, PC78LC, PC78MR, PC78US, PC78UU, PC80-1, PC80-3, PC80-5, PC80MR, PC88MR, PC90-1, PC90-5, PC90-6, PC90-7, PC95-1, PC95-2, PC95-5, PC95-6, PC95RT, PC60B, PC60L, PC60S, PC60U, PC75R, PC75U, PC78R, PC78U, PC95R, PC60, PC70, PC71, PC75, PC78, PC80, PC88, PC90, PC91, PC95
    Linkbelt 75 SPIN ACE, 80 SPIN ACE, 75 X3, 80 X3
    Lonking CDM6065
    Sany SY65 C, SY75C, SY85C, SY65, SY70, SY75, SY80, SY85, SY75C PRO, SY55C-9, SY60C-9, SY75C-9
    Sumitomo SH75XU-3B, rSH60B65, SH80X-3, SH80X-6, SH60-2, SH80-3, SH60B, SH75U, S160
    Takeuchi TB180FR, TB175W, TB070, TB175, TB285, TB68S
    Volvo EC80D PRO, EC70VV, EC70V, EC75D, EC80D, EC70
    XCMG XE80E
    Yanmar VIO100, SV100, VIO70, VIO75, VIO80

    48" Bucket

    Brand

    Model
    Airman AX90
    Case CX80C MSR, CX90D MSR, CX85D SR, CX75 LR, CX75CSR, CX75MSR, CX75SR, CX80SR, CX80B, CX80C, CX90D, CX75, CX80
    Caterpillar 308E2 Z2.1, 309 CR VAB, 307SSR-V2, 308CR VAB, 308E2 CR, 308E2 SR, 308B CR, 308C CR, 308D CR, 308E CR, 308E SR, 307 CR, 307SSR, 308 CR, 308BSR, 308C R, 308CSR, 308DRR, 308DSR, 309 CR, 307.5, 307B2, 308.5, 308SR, 307B, 307C, 307D, 307E, 308D, 308E, 307, 308, 309
    Daewoo S130W
    Hanix H75C
    Hitachi ZX85USB LCN-3, ZX85USB LC-3, ZX85US LC-3, ZX70 LCN-3, ZX75US-3LC, ZX75USK-5B, ZX85USB-5A, ZX85USB-5N, ZX70 LC-2, ZX70 LC-3, ZX75UR-5B, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75USL-3, ZX80 LC-2, ZX80LCK-3, ZX80SB LC, ZX85US-5A, ZX85USB-3, ZX85USB-5, ZX85USB-6, ZX85USB-7, EX75US-5, ZX75UR-3, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-5, ZX75US-7, ZX75USBL, ZX80 LCK, ZX85US-3, ZX85US-5, ZX85US-6, ZX95US-7, ZX70 LC, ZX70-5A, ZX70-5G, ZX80 LC, EX60-5, EX75US, ZX70-3, ZX70BL, ZX75UR, ZX75US, ZX80SB, ZX85US, EX80U, UH043, WH04D, EX90, ZX70, ZX75, ZX80, ZX90, ZX85USB
    Ihi 80NX-3, IS50G, IS55J, IS55N, 65NX, 80NX, IS50, IS55, IS65
    John Deere 75C, 75D, 75G, 80C, 85D, 85G, 70, 75, 80, 80G, 50P, 60P, 75P, 85P
    Kato HD140SE, 180G
    Kobelco SK070 SR, SK075 SR, SK75SR-3, SK85SR-3, SK070SR, SK60MK5, SK80MSR, SK60-2, SK60SR, SK70SR, SK75UR, SK95UR, K9033, SK80
    Komatsu PC88MR-11E0, PC60-7C BL, PC75UU-3AC, PC78US-6E0, PC78US-6N0, PC78UU-6E0, PC60 LC-5, PC70FR-2B, PC75 LC-6, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3C, PC75UU-3E, PC78MRX-1, PC78US LC, PC78US-10, PC78US-11, PC78US-6E, PC78US-6Y, PC78UU-10, PC78UU-6E, PC78UUT-6, PC80 LC-3, PC88MR-10, PC88MR-11, PC60-6BL, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60SC-7, PC60SS-1, PC60UU-5, PC70FR-1, PC75R HD, PC75R-2K, PC75UR-2, PC75UR-3, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU-1, PC75UU-2, PC75UU-3, PC76UU-2, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78US-2, PC78US-5, PC78US-6, PC78US-7, PC78US-8, PC78UU-6, PC78UU-8, PC80MR-3, PC80MR-5, PC88MR-2, PC88MR-6, PC88MR-8, PC60 LC, PC60-6B, PC60-6S, PC60-7A, PC60-7B, PC60-7C, PC60-7E, PC60-7S, PC60B-7, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60L-6, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC70-7E, PC75 HD, PC75R-1, PC75R-2, PC75R-8, PC75U-2, PC90R-2, PC95R-1, PC95R-2, PW110RT, PC110R, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-7, PC60-8, PC60-9, PC60BL, PC60SS, PC70-1, PC70-4, PC70-6, PC70-7, PC70-8, PC70FR, PC75-1, PC75-2, PC75-3, PC75U1, PC75UL, PC75UR, PC75US, PC75UU, PC78LC, PC78MR, PC78US, PC78UU, PC80-1, PC80-3, PC80-5, PC80MR, PC88MR, PC90-1, PC90-5, PC90-6, PC90-7, PC95-1, PC95-2, PC95-5, PC95-6, PC95RT, PC60B, PC60L, PC60S, PC60U, PC75R, PC75U, PC78R, PC78U, PC95R, PC60, PC70, PC71, PC75, PC78, PC80, PC88, PC90, PC91, PC95
    Linkbelt 75 SPIN ACE, 80 SPIN ACE, 75 X3, 80 X3
    Lonking CDM6065
    Sany SY65 C, SY75C, SY85C, SY65, SY70, SY75, SY80, SY85, SY75C PRO, SY55C-9, SY60C-9, SY75C-9
    Sumitomo SH75XU-3B, rSH60B65, SH80X-3, SH80X-6, SH60-2, SH80-3, SH60B, SH75U, S160
    Takeuchi TB180FR, TB175W, TB070, TB175, TB285, TB68S
    Volvo EC80D PRO, EC70VV, EC70V, EC75D, EC80D, EC70
    XCMG XE80E
    Yanmar VIO100, SV100, VIO70, VIO75, VIO80
    60" Bucket

    Brand

    Model
    Airman AX90
    Case CX80C MSR, CX90D MSR, CX85D SR, CX75 LR, CX75CSR, CX75MSR, CX75SR, CX80SR, CX80B, CX80C, CX90D, CX75, CX80
    Caterpillar 308E2 Z2.1, 309 CR VAB, 307SSR-V2, 308CR VAB, 308E2 CR, 308E2 SR, 308B CR, 308C CR, 308D CR, 308E CR, 308E SR, 307 CR, 307SSR, 308 CR, 308BSR, 308C R, 308CSR, 308DRR, 308DSR, 309 CR, 307.5, 307B2, 308.5, 308SR, 307B, 307C, 307D, 307E, 308D, 308E, 307, 308, 309
    Daewoo S130W
    Hanix H75C
    Hitachi ZX85USB LCN-3, ZX85USB LC-3, ZX85US LC-3, ZX70 LCN-3, ZX75US-3LC, ZX75USK-5B, ZX85USB-5A, ZX85USB-5N, ZX70 LC-2, ZX70 LC-3, ZX75UR-5B, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75USL-3, ZX80 LC-2, ZX80LCK-3, ZX80SB LC, ZX85US-5A, ZX85USB-3, ZX85USB-5, ZX85USB-6, ZX85USB-7, EX75US-5, ZX75UR-3, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-5, ZX75US-7, ZX75USBL, ZX80 LCK, ZX85US-3, ZX85US-5, ZX85US-6, ZX95US-7, ZX70 LC, ZX70-5A, ZX70-5G, ZX80 LC, EX60-5, EX75US, ZX70-3, ZX70BL, ZX75UR, ZX75US, ZX80SB, ZX85US, EX80U, UH043, WH04D, EX90, ZX70, ZX75, ZX80, ZX90, ZX85USB
    Ihi 80NX-3, IS50G, IS55J, IS55N, 65NX, 80NX, IS50, IS55, IS65
    John Deere 75C, 75D, 75G, 80C, 85D, 85G, 70, 75, 80, 80G, 50P, 60P, 75P, 85P
    Kato HD140SE, 180G
    Kobelco SK070 SR, SK075 SR, SK75SR-3, SK85SR-3, SK070SR, SK60MK5, SK80MSR, SK60-2, SK60SR, SK70SR, SK75UR, SK95UR, K9033, SK80
    Komatsu PC88MR-11E0, PC60-7C BL, PC75UU-3AC, PC78US-6E0, PC78US-6N0, PC78UU-6E0, PC60 LC-5, PC70FR-2B, PC75 LC-6, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3C, PC75UU-3E, PC78MRX-1, PC78US LC, PC78US-10, PC78US-11, PC78US-6E, PC78US-6Y, PC78UU-10, PC78UU-6E, PC78UUT-6, PC80 LC-3, PC88MR-10, PC88MR-11, PC60-6BL, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60SC-7, PC60SS-1, PC60UU-5, PC70FR-1, PC75R HD, PC75R-2K, PC75UR-2, PC75UR-3, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU-1, PC75UU-2, PC75UU-3, PC76UU-2, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78US-2, PC78US-5, PC78US-6, PC78US-7, PC78US-8, PC78UU-6, PC78UU-8, PC80MR-3, PC80MR-5, PC88MR-2, PC88MR-6, PC88MR-8, PC60 LC, PC60-6B, PC60-6S, PC60-7A, PC60-7B, PC60-7C, PC60-7E, PC60-7S, PC60B-7, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60L-6, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC70-7E, PC75 HD, PC75R-1, PC75R-2, PC75R-8, PC75U-2, PC90R-2, PC95R-1, PC95R-2, PW110RT, PC110R, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-7, PC60-8, PC60-9, PC60BL, PC60SS, PC70-1, PC70-4, PC70-6, PC70-7, PC70-8, PC70FR, PC75-1, PC75-2, PC75-3, PC75U1, PC75UL, PC75UR, PC75US, PC75UU, PC78LC, PC78MR, PC78US, PC78UU, PC80-1, PC80-3, PC80-5, PC80MR, PC88MR, PC90-1, PC90-5, PC90-6, PC90-7, PC95-1, PC95-2, PC95-5, PC95-6, PC95RT, PC60B, PC60L, PC60S, PC60U, PC75R, PC75U, PC78R, PC78U, PC95R, PC60, PC70, PC71, PC75, PC78, PC80, PC88, PC90, PC91, PC95
    Linkbelt 75 SPIN ACE, 80 SPIN ACE, 75 X3, 80 X3
    Lonking CDM6065
    Sany SY65 C, SY75C, SY85C, SY65, SY70, SY75, SY80, SY85, SY75C PRO, SY55C-9, SY60C-9, SY75C-9
    Sumitomo SH75XU-3B, rSH60B65, SH80X-3, SH80X-6, SH60-2, SH80-3, SH60B, SH75U, S160
    Takeuchi TB180FR, TB175W, TB070, TB175, TB285, TB68S
    Volvo EC80D PRO, EC70VV, EC70V, EC75D, EC80D, EC70
    XCMG XE80E
    Yanmar VIO100, SV100, VIO70, VIO75, VIO80

    72" Bucket

    Brand

    Model
    Airman AX90
    Case CX80C MSR, CX90D MSR, CX85D SR, CX75 LR, CX75CSR, CX75MSR, CX75SR, CX80SR, CX80B, CX80C, CX90D, CX75, CX80
    Caterpillar 308E2 Z2.1, 309 CR VAB, 307SSR-V2, 308CR VAB, 308E2 CR, 308E2 SR, 308B CR, 308C CR, 308D CR, 308E CR, 308E SR, 307 CR, 307SSR, 308 CR, 308BSR, 308C R, 308CSR, 308DRR, 308DSR, 309 CR, 307.5, 307B2, 308.5, 308SR, 307B, 307C, 307D, 307E, 308D, 308E, 307, 308, 309
    Daewoo S130W
    Hanix H75C
    Hitachi ZX85USB LCN-3, ZX85USB LC-3, ZX85US LC-3, ZX70 LCN-3, ZX75US-3LC, ZX75USK-5B, ZX85USB-5A, ZX85USB-5N, ZX70 LC-2, ZX70 LC-3, ZX75UR-5B, ZX75US-5A, ZX75US-5B, ZX75US-5N, ZX75USL-3, ZX80 LC-2, ZX80LCK-3, ZX80SB LC, ZX85US-5A, ZX85USB-3, ZX85USB-5, ZX85USB-6, ZX85USB-7, EX75US-5, ZX75UR-3, ZX75US A, ZX75US-2, ZX75US-3, ZX75US-5, ZX75US-7, ZX75USBL, ZX80 LCK, ZX85US-3, ZX85US-5, ZX85US-6, ZX95US-7, ZX70 LC, ZX70-5A, ZX70-5G, ZX80 LC, EX60-5, EX75US, ZX70-3, ZX70BL, ZX75UR, ZX75US, ZX80SB, ZX85US, EX80U, UH043, WH04D, EX90, ZX70, ZX75, ZX80, ZX90, ZX85USB
    Ihi 80NX-3, IS50G, IS55J, IS55N, 65NX, 80NX, IS50, IS55, IS65
    John Deere 75C, 75D, 75G, 80C, 85D, 85G, 70, 75, 80, 80G, 50P, 60P, 75P, 85P
    Kato HD140SE, 180G
    Kobelco SK070 SR, SK075 SR, SK75SR-3, SK85SR-3, SK070SR, SK60MK5, SK80MSR, SK60-2, SK60SR, SK70SR, SK75UR, SK95UR, K9033, SK80
    Komatsu PC88MR-11E0, PC60-7C BL, PC75UU-3AC, PC78US-6E0, PC78US-6N0, PC78UU-6E0, PC60 LC-5, PC70FR-2B, PC75 LC-6, PC75UU-2A, PC75UU-2B, PC75UU-2E, PC75UU-3C, PC75UU-3E, PC78MRX-1, PC78US LC, PC78US-10, PC78US-11, PC78US-6E, PC78US-6Y, PC78UU-10, PC78UU-6E, PC78UUT-6, PC80 LC-3, PC88MR-10, PC88MR-11, PC60-6BL, PC60-7BE, PC60-7BH, PC60-7BK, PC60-7BL, PC60SC-7, PC60SS-1, PC60UU-5, PC70FR-1, PC75R HD, PC75R-2K, PC75UR-2, PC75UR-3, PC75US-1, PC75US-2, PC75US-3, PC75US-5, PC75US-6, PC75UU-1, PC75UU-2, PC75UU-3, PC76UU-2, PC78MR-1, PC78MR-2, PC78MR-5, PC78MR-6, PC78MR-8, PC78US-2, PC78US-5, PC78US-6, PC78US-7, PC78US-8, PC78UU-6, PC78UU-8, PC80MR-3, PC80MR-5, PC88MR-2, PC88MR-6, PC88MR-8, PC60 LC, PC60-6B, PC60-6S, PC60-7A, PC60-7B, PC60-7C, PC60-7E, PC60-7S, PC60B-7, PC60L-1, PC60L-2, PC60L-3, PC60L-5, PC60L-6, PC60U-1, PC60U-2, PC60U-3, PC60U-5, PC60U-8, PC70-7E, PC75 HD, PC75R-1, PC75R-2, PC75R-8, PC75U-2, PC90R-2, PC95R-1, PC95R-2, PW110RT, PC110R, PC60-1, PC60-2, PC60-3, PC60-4, PC60-5, PC60-6, PC60-7, PC60-8, PC60-9, PC60BL, PC60SS, PC70-1, PC70-4, PC70-6, PC70-7, PC70-8, PC70FR, PC75-1, PC75-2, PC75-3, PC75U1, PC75UL, PC75UR, PC75US, PC75UU, PC78LC, PC78MR, PC78US, PC78UU, PC80-1, PC80-3, PC80-5, PC80MR, PC88MR, PC90-1, PC90-5, PC90-6, PC90-7, PC95-1, PC95-2, PC95-5, PC95-6, PC95RT, PC60B, PC60L, PC60S, PC60U, PC75R, PC75U, PC78R, PC78U, PC95R, PC60, PC70, PC71, PC75, PC78, PC80, PC88, PC90, PC91, PC95
    Linkbelt 75 SPIN ACE, 80 SPIN ACE, 75 X3, 80 X3
    Lonking CDM6065
    Sany SY65 C, SY75C, SY85C, SY65, SY70, SY75, SY80, SY85, SY75C PRO, SY55C-9, SY60C-9, SY75C-9
    Sumitomo SH75XU-3B, rSH60B65, SH80X-3, SH80X-6, SH60-2, SH80-3, SH60B, SH75U, S160
    Takeuchi TB180FR, TB175W, TB070, TB175, TB285, TB68S
    Volvo EC80D PRO, EC70VV, EC70V, EC75D, EC80D, EC70
    XCMG XE80E
    Yanmar VIO100, SV100, VIO70, VIO75, VIO80
