JMA Attachments

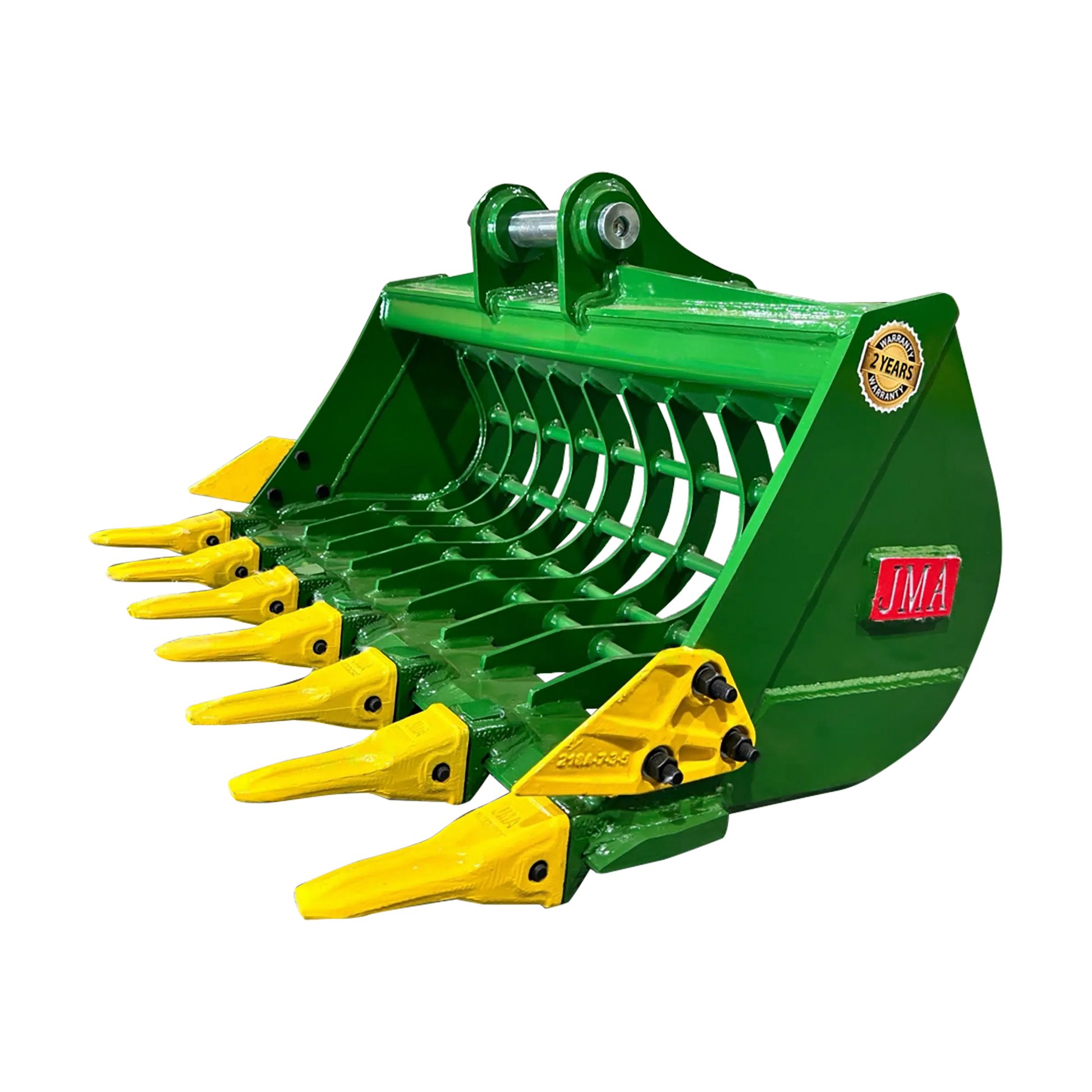

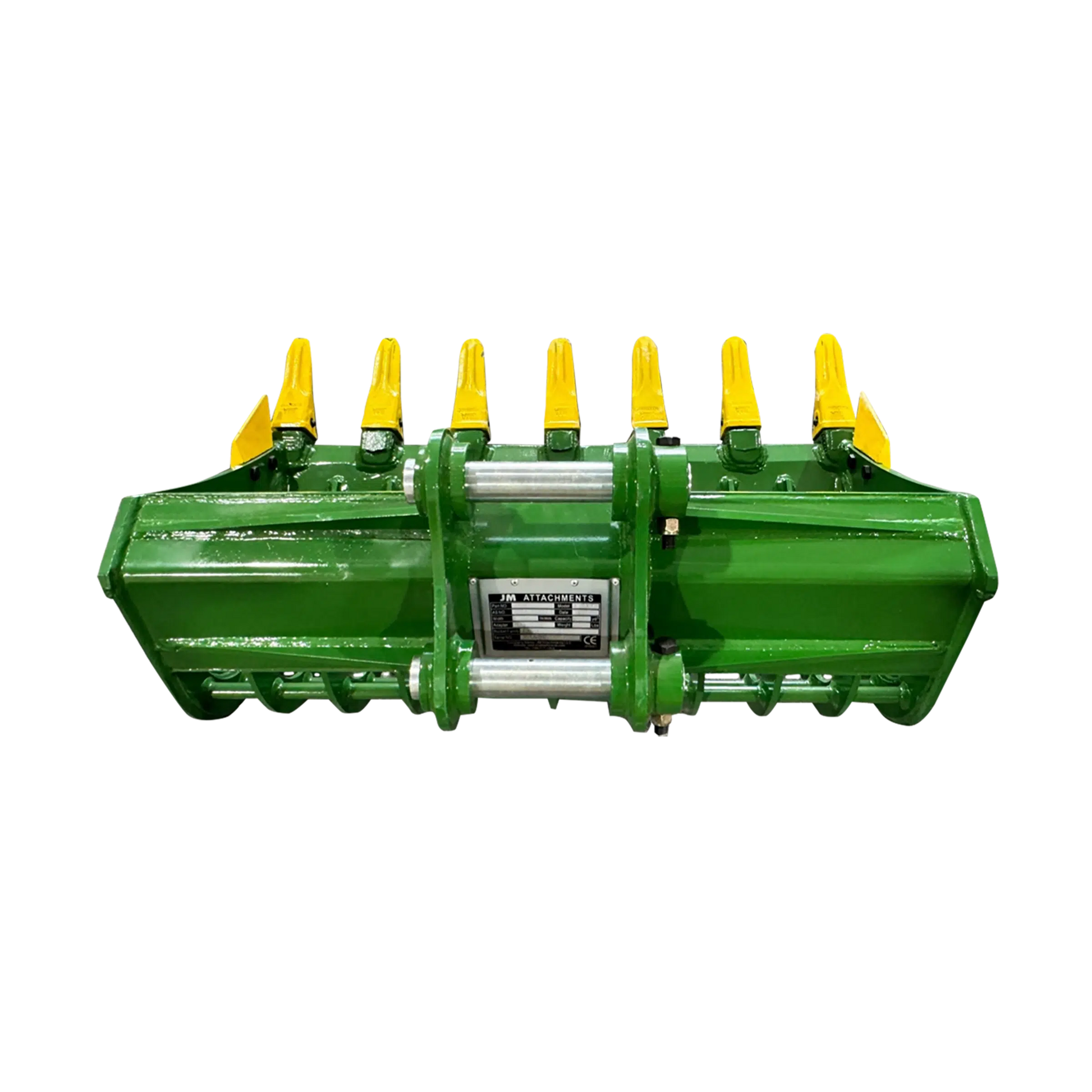

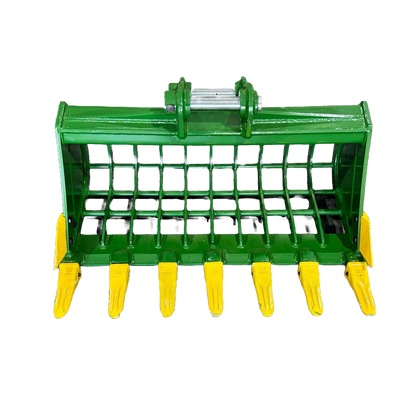

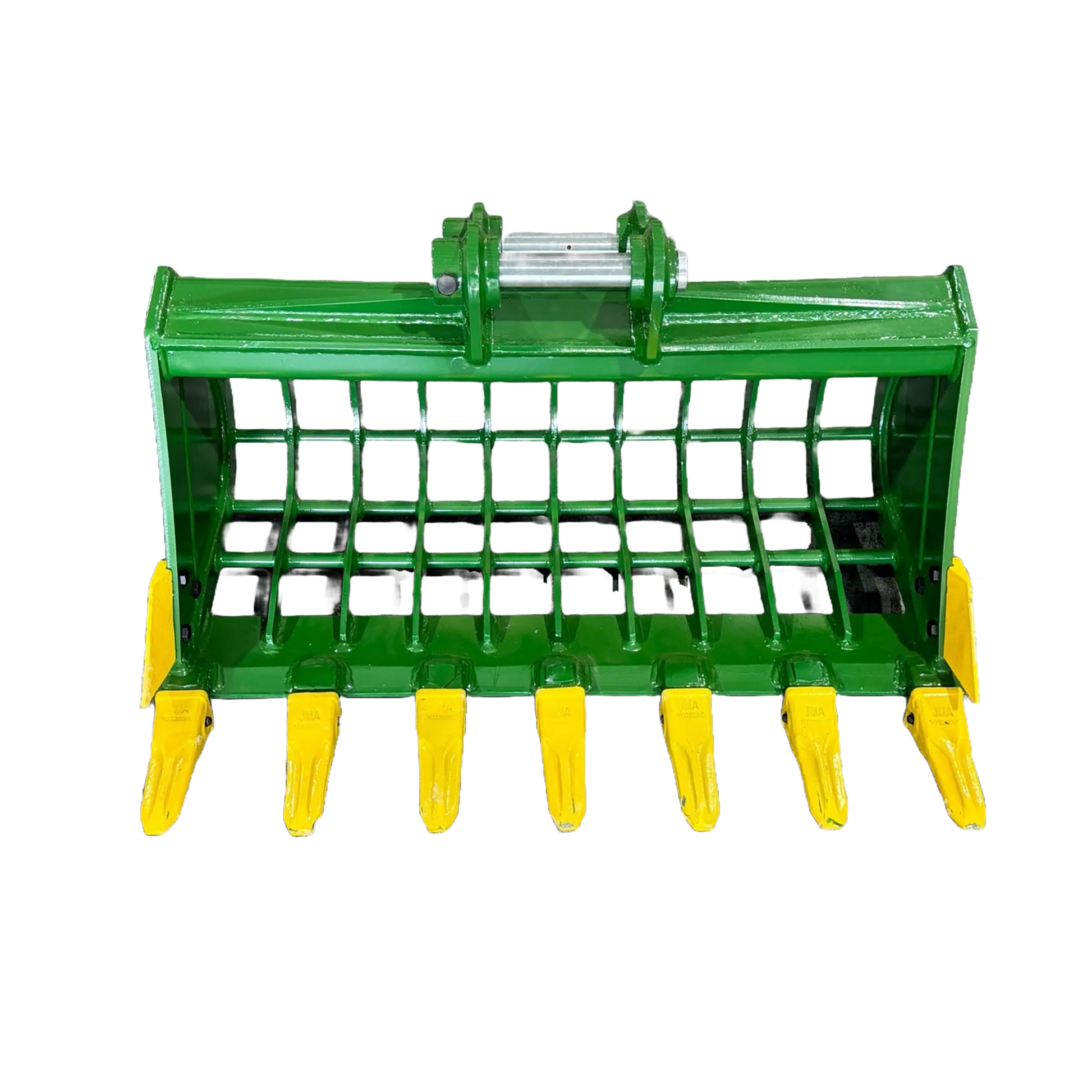

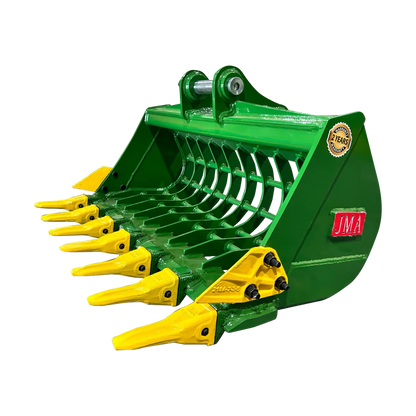

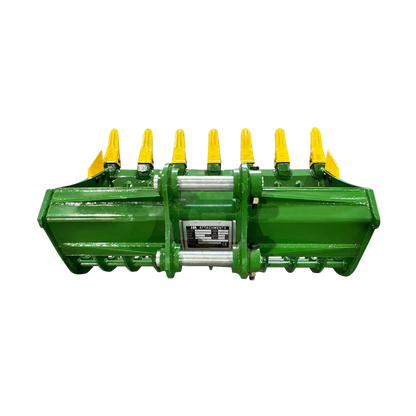

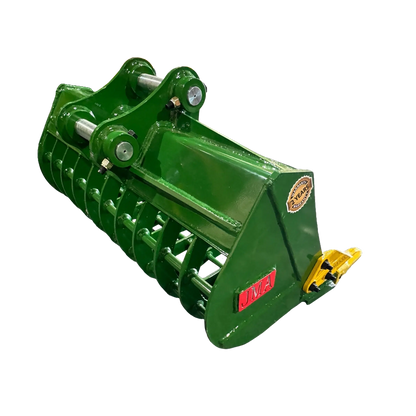

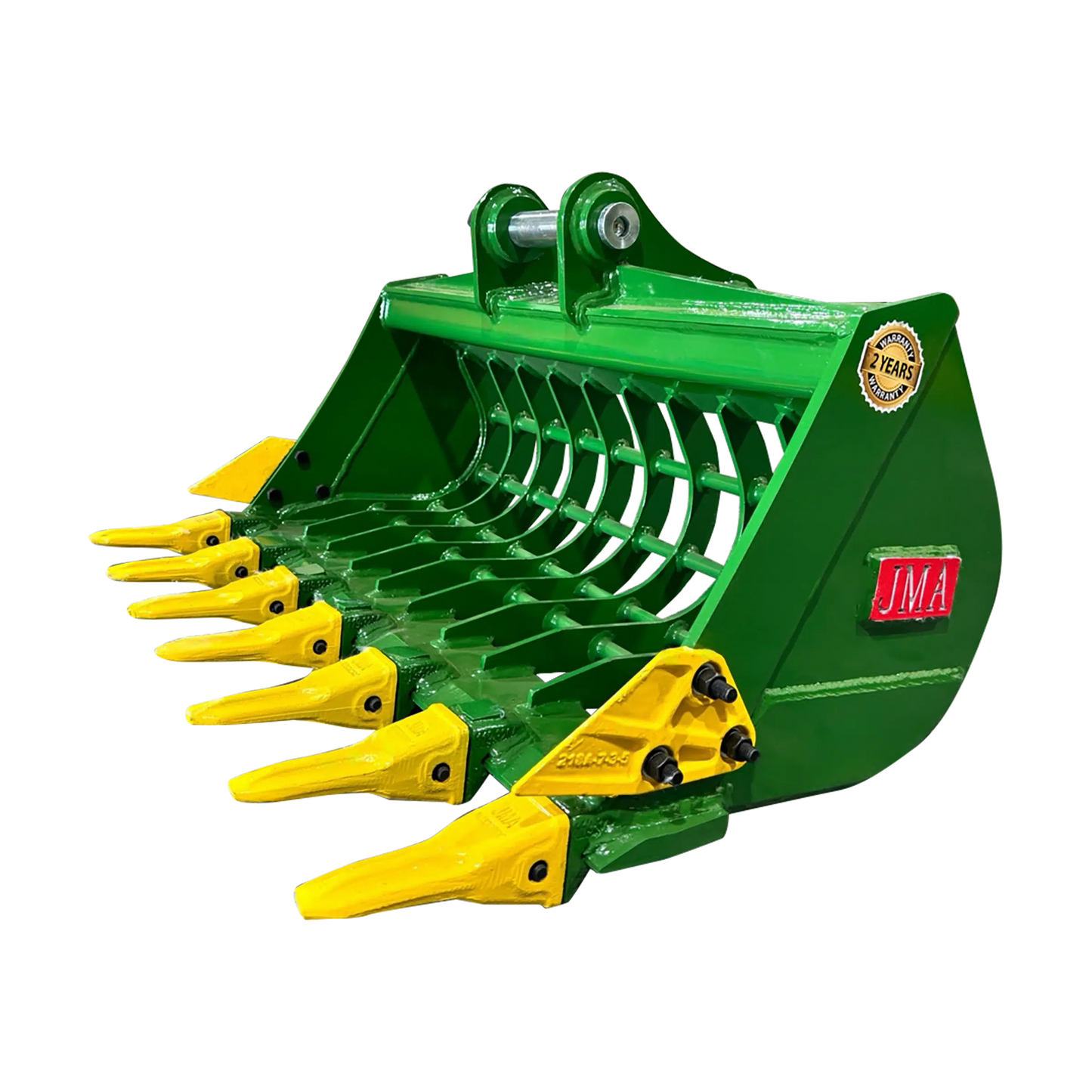

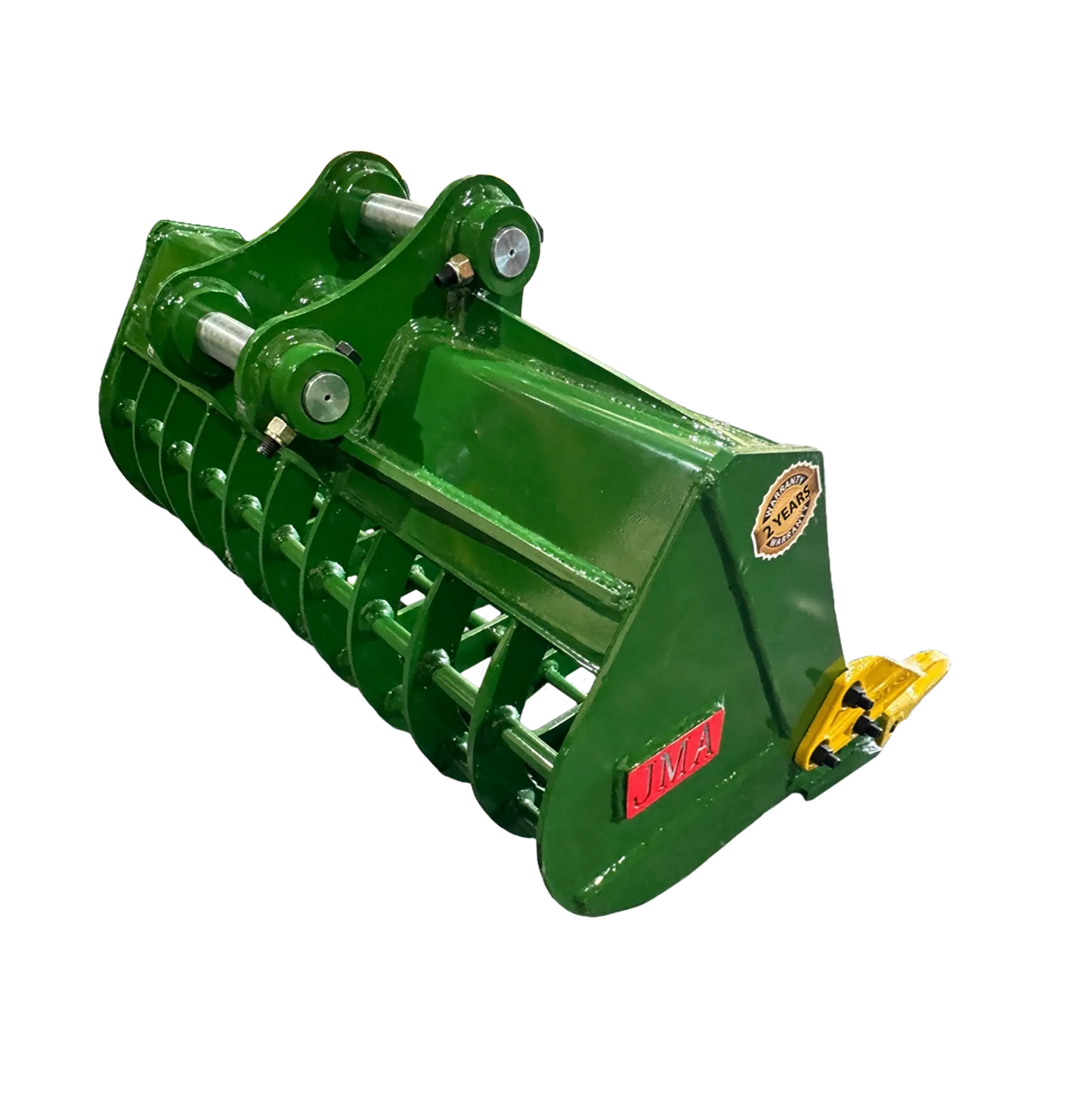

JMA Attachments Skeleton Bucket with Teeth | Bucket Width 36", 48", 60" inches | Pin Size 45mm | For 5 – 6.5 Tons Mini Excavators

JMA Attachments Skeleton Bucket with Teeth | Bucket Width 36", 48", 60" inches | Pin Size 45mm | For 5 – 6.5 Tons Mini Excavators

$2,636.70
$2,636.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Superior Capacity: Capacities ranging from 0.32 m³ to 0.81 m³, allowing for efficient handling of substantial material volumes, reducing project timelines.
  • Unmatched Durability: Constructed from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Cutting-Edge Performance: Equipped with Rock Chisel Bucket Teeth (J200 series) for superior ground penetration and material handling capabilities.
View full details

Product Description

JMA Attachments Skeleton Bucket with Teeth | Bucket Width 36", 48", 60" & 72" inches | Pin Size 50mm | For 7 – 10 Tons Excavators

Description

Introducing our high-performance series of heavy-duty digging buckets, specifically designed for 5 - 6.5 Ton Excavators. These buckets are engineered to offer superior performance and durability, making them the perfect choice for a variety of excavation tasks. Crafted from premium AR400 steel and equipped with Rock Chisel Bucket Teeth from the J200 series, these buckets ensure efficient material handling and ground penetration, enhancing your excavation productivity.

Key Features

  • Superior Capacity: Capacities ranging from 0.32 m³ to 0.81 m³, allowing for efficient handling of substantial material volumes, reducing project timelines.
  • Unmatched Durability: Constructed from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Cutting-Edge Performance: Equipped with Rock Chisel Bucket Teeth (J200 series) for superior ground penetration and material handling capabilities.
  • Optimized Design: 3x Reinforced Side Plates optimize material flow and reduce cycle times, maintaining productivity in various soil conditions.
  • Robust Tine Design: Equipped with tines of 0.71" (18 mm) thickness and 80 mm spacing, enhancing material handling efficiency.

Detailed Specifications


Attribute 36" Bucket 48" Bucket 60" Bucket
Carrier Weight Class (tn) 5 - 6.5 Tons 5 - 6.5 Tons 5 - 6.5 Tons
Bucket Width (mm) 914 mm 1,219 mm 1,524 mm
Bucket Width (in) 36" 48" 60"
Inner Bucket Height (mm) 640 mm 640 mm 640 mm
Bucket Side Wall Thickness (mm) 14 mm 14 mm 14 mm
Bucket Depth (mm) 475 mm 475 mm 475 mm
Capacity (yd³) 0.42 yd³ 0.52 yd³ 0.62 yd³
Capacity (m³) 0.32 m³ 0.68 yd³ 0.81 yd³
Bucket Tooth Series J200 J200 J200
Tooth Style Rock Chisel Bucket Tooth Rock Chisel Bucket Tooth Rock Chisel Bucket Tooth
Tooth (ct.) 7 Teeth 9 Teeth 11 Teeth
Tooth Part Number 1U3202RC 1U3202RC 1U3202RC
Tooth Pin Part Number 9W7112 9W7112 9W7112
Tooth Retainer Part Number 8E6209 8E6209 8E6209
Tines (ct.) 9 13 16
Tines Thickness (in) 0.71" 0.71" 0.71"
Tines Thickness (mm) 18 mm 18 mm 18 mm
Tines Spacing (mm) 80 mm 80 mm 80 mm
Material Type AR400 Steel AR400 Steel AR400 Steel
Finish Powder-Coated Green Powder-Coated Green Powder-Coated Green
Left Side Cutter Part Number CLZ-01-L CLZ-01-L CLZ-01-L
Right Side Cutter Part Number CLZ-01-D CLZ-01-D CLZ-01-D
Front Pin Length (mm) 303 mm 303 mm 303 mm
Rear Pin Length (mm) 303 mm 303 mm 303 mm
Front Pin Diameter (mm) 45 mm 45 mm 45 mm
Rear Pin Diameter (mm) 45 mm 45 mm 45 mm
Front Ear to Ear Distance (mm) 156 mm 156 mm 156 mm
Rear Ear to Ear Distance (mm) 156 mm 156 mm 156 mm
Center to Center Distance (mm) 260 mm 260 mm 260 mm
Carrier Weight Class (lbs) 10,000 - 13,000 lbs 10,000 - 13,000 lbs 10,000 - 13,000 lbs
Features 3x Reinforced Side Plates 3x Reinforced Side Plates 3x Reinforced Side Plates
Product Weight (lbs) 520.29 lb 584.22 lb 705.48 lb
Product Weight (kg) 236 kg 265 kg 320 kg

Fits To

36" Bucket

Brand

Model
Airman AX40U-5F, AX48U-5A, AX50U-5F, AX55U-5A, AX50U-4, AX50-2, AX40U, AX40, AX45, AX50
Bobcat E42R2, E45EM, E42M, E45M, E55Z, X435, E40, E42, E45, E48, E50, E55, E58, E60, E62 EM, E63, E55EM, E55R2, E60EA, E60R2, E48R2, E50EM, E50R2, E55M, E60A, E63M, E50M, E50Z, E55W, E57W, E65W
Case CX50B, CX55B, CX65D, CX40, CX47, CX50, CX55, CX57, CX58, CX60
Caterpillar 305.5E2 CR, 305.5D CR, 305.5E CR, 305E2 CR, 305SR II, 304C CR, 305.5SR, 305C CR, 305D CR, 305E CR, 304CCR, 305.5E, 428MK1, 428MK2, 305.5, 305BR, 305CR, 305SR, 306.5, 306CR, 305C, 305D, 305E, 306D, 306E, E70B, 305, 306
Daewoo S55 V PLUS, S75 LC V, S55V-G, S55W V, S75-V, S50 V, S055, S50
Develon DX60WN ECO, DX50Z-7, DX55R-7, DX57W-7, DX63-7, DX55
Doosan DX55-9CN ACE, DX55MT ACE, S55 V PLUS, DX60WN ECO, DX60E-9CN, DX60E-10N, DX75E-9CN, DX60W ECO, DX55MT-5, DX60-9CN, DX75-9CN, DX55W-5K, DX55W-5L, DX55WACE, DX60E-9C, DX60W-9C, DX55-5K, DX60-9C, DX62R-3, DX62R-7, DX65-9C, DX75-5B, DX75-9C, DX85R-3, DX89R-7, DX42-5K, DX50-5K, DX50Z-7, DX55-9C, DX55R-7, DX55W-5, DX57W-5, DX57W-7, DX70-9C, DH55-V, DH60-7, DH70-7, DH80-7, DX63-3, DH55-7, DX42-5, DX50-5, S55W V, DX55WA, DX55WK, DX85R, DX55A, DX55E, DX80R, DX50Z, DX53W, DX55W, DX60R, DX60W, DX55, DX60, DX62, DX63, DX80, DX85, SL55, DH55, DH70, DH80, DX75, DX42, DX50, S55, S70, S75
Ford 555C, 555, 655
Hanix H50B, H50C, H56B, H56C, H45, H50
Hitachi ZX65USB-5A CLP, ZX65USB-5A CLR, ZX65USB-5A LC, ZX60USB-3CLR, ZX60USBNA-3, ZX48U-2 -3, ZX55U-2 -3, ZX60USB LC, ZX60USB-3F, ZX60USB-5N, ZX65USB-3F, ZX65USB-5A, ZX60USB-3, ZX60USB-5, ZX65USB-3, ZX65USB-5, ZX65USB-6, EX55UR-3, EX75UR-3, ZX48U-5A, ZX50U-3F, ZX55U-5A, ZX55UR-3, ZX50U-2, ZX50U-3, ZX60-5A, ZX60USB, EX40-2, EX45-2, EX55UR, EX58MU, EX60-1, EX60-2, EX60-3, EX60UR, EX75UU, ZX50-2, ZX60-2, ZX60-3, ZX60US, EX40U, EX50U, ZX40U, EX40, EX50, EX58, UE02, ZX60, ZX50U, ZX60U
Hyundai R60CR-9, R60W-9S, R55-3, R55-7, R55-9
Ihi IS40-JX, 50NX, 50VX, 55NX, IS40, IS45
JCB 8080 ZTS, 100C-1, 50Z-2, 51R-1, 56Z-2, 57C-1, 60C-2, 65R-1, 67C-1, 805.2, 8052C, 8060C, 85Z-1, 86C-1, 90Z-1, 8052, 8060, 8065, 8080, 8085, 45Z, 48Z, 55Z, 65R, 67C, 85Z, 86C, 90Z
John Deere 50C ZTS, 50D ZTS, 50 ZTS, 55 ZTS, 50C, 50D, 50G, 60D, 60G, 70D, 50
Kobelco SK040SR-3, SK040SR-5, SK050SR-3, SK050SR-5, SK40SR-1, SK40SR-2, SK40SR-3, SK40SR-5, SK45SR-1, SK45SR-2, SK50SR-3, SK50SR-5, SK50UR-2, SK55SR-5, SK045-1, SK045-2, SK045-3, SK045SR, SK40SR, SK50UR, SK042, SK045
Komatsu PC45 MRX-1, PC50 MRX-2, PC40MRC-2, PC40MRX-1, PC50UUT-2, PC40MR-2, PC40MR-3, PC50MR-2, PC50UU-1, PC50UU-2, PC50UU-3, PC55MR-3, PC58SF-1, PC58UU-3, PC40MRX, PC40R-8, PC45R-8, PC50 MR, PC50UUT, PC40-7, PC45-1, WB97, WB93, WB91, PC45, PC55
Kubota KX057-4, KX121-4, KX161-2, KX161-3, KH191, KX060, KX151, KX161, U45-3, U48-4, U48-5, U50-3, U50-5, U55-4, U56-6, K045, KH28, KO40, KX75, U40, U45, KX057-5, U55
Linkbelt MS070
Nagano NS55-3
New Holland EH50 BSR, E50-2SR, NH115 B
Sany SY50U, SY50
Takeuchi TB153FR, TB53FR, TB045, TB145, TB153, TB250, TB260, TB45
Volvo EC55 - 12 Volt, EC55B PRO, EC60B LC, EC50/W, MX55/W, SE50-3, EC60C, EC60D, EC60E, ECR58, BL71, EC55
Wacker Neuson 6003, 6503, EZ53, 50Z
XCMG XCG60-8
Yanmar VIO50B50, VIO40-2, VIO40-7, VIO45-5, VIO50-2, VIO55-5, YC45-7, VIO50, VIO55, VIO57, SV60



48" Bucket

Brand

Model
Airman AX40U-5F, AX48U-5A, AX50U-5F, AX55U-5A, AX50U-4, AX50-2, AX40U, AX40, AX45, AX50
Bobcat E42R2, E45EM, E42M, E45M, E55Z, X435, E40, E42, E45, E48, E50, E55, E58, E60, E62 EM, E63, E55EM, E55R2, E60EA, E60R2, E48R2, E50EM, E50R2, E55M, E60A, E63M, E50M, E50Z, E55W, E57W, E65W
Case CX50B, CX55B, CX65D, CX40, CX47, CX50, CX55, CX57, CX58, CX60
Caterpillar 305.5E2 CR, 305.5D CR, 305.5E CR, 305E2 CR, 305SR II, 304C CR, 305.5SR, 305C CR, 305D CR, 305E CR, 304CCR, 305.5E, 428MK1, 428MK2, 305.5, 305BR, 305CR, 305SR, 306.5, 306CR, 305C, 305D, 305E, 306D, 306E, E70B, 305, 306
Daewoo S55 V PLUS, S75 LC V, S55V-G, S55W V, S75-V, S50 V, S055, S50
Develon DX60WN ECO, DX50Z-7, DX55R-7, DX57W-7, DX63-7, DX55
Doosan DX55-9CN ACE, DX55MT ACE, S55 V PLUS, DX60WN ECO, DX60E-9CN, DX60E-10N, DX75E-9CN, DX60W ECO, DX55MT-5, DX60-9CN, DX75-9CN, DX55W-5K, DX55W-5L, DX55WACE, DX60E-9C, DX60W-9C, DX55-5K, DX60-9C, DX62R-3, DX62R-7, DX65-9C, DX75-5B, DX75-9C, DX85R-3, DX89R-7, DX42-5K, DX50-5K, DX50Z-7, DX55-9C, DX55R-7, DX55W-5, DX57W-5, DX57W-7, DX70-9C, DH55-V, DH60-7, DH70-7, DH80-7, DX63-3, DH55-7, DX42-5, DX50-5, S55W V, DX55WA, DX55WK, DX85R, DX55A, DX55E, DX80R, DX50Z, DX53W, DX55W, DX60R, DX60W, DX55, DX60, DX62, DX63, DX80, DX85, SL55, DH55, DH70, DH80, DX75, DX42, DX50, S55, S70, S75
Ford 555C, 555, 655
Hanix H50B, H50C, H56B, H56C, H45, H50
Hitachi ZX65USB-5A CLP, ZX65USB-5A CLR, ZX65USB-5A LC, ZX60USB-3CLR, ZX60USBNA-3, ZX48U-2 -3, ZX55U-2 -3, ZX60USB LC, ZX60USB-3F, ZX60USB-5N, ZX65USB-3F, ZX65USB-5A, ZX60USB-3, ZX60USB-5, ZX65USB-3, ZX65USB-5, ZX65USB-6, EX55UR-3, EX75UR-3, ZX48U-5A, ZX50U-3F, ZX55U-5A, ZX55UR-3, ZX50U-2, ZX50U-3, ZX60-5A, ZX60USB, EX40-2, EX45-2, EX55UR, EX58MU, EX60-1, EX60-2, EX60-3, EX60UR, EX75UU, ZX50-2, ZX60-2, ZX60-3, ZX60US, EX40U, EX50U, ZX40U, EX40, EX50, EX58, UE02, ZX60, ZX50U, ZX60U
Hyundai R60CR-9, R60W-9S, R55-3, R55-7, R55-9
Ihi IS40-JX, 50NX, 50VX, 55NX, IS40, IS45
JCB 8080 ZTS, 100C-1, 50Z-2, 51R-1, 56Z-2, 57C-1, 60C-2, 65R-1, 67C-1, 805.2, 8052C, 8060C, 85Z-1, 86C-1, 90Z-1, 8052, 8060, 8065, 8080, 8085, 45Z, 48Z, 55Z, 65R, 67C, 85Z, 86C, 90Z
John Deere 50C ZTS, 50D ZTS, 50 ZTS, 55 ZTS, 50C, 50D, 50G, 60D, 60G, 70D, 50
Kobelco SK040SR-3, SK040SR-5, SK050SR-3, SK050SR-5, SK40SR-1, SK40SR-2, SK40SR-3, SK40SR-5, SK45SR-1, SK45SR-2, SK50SR-3, SK50SR-5, SK50UR-2, SK55SR-5, SK045-1, SK045-2, SK045-3, SK045SR, SK40SR, SK50UR, SK042, SK045
Komatsu PC45 MRX-1, PC50 MRX-2, PC40MRC-2, PC40MRX-1, PC50UUT-2, PC40MR-2, PC40MR-3, PC50MR-2, PC50UU-1, PC50UU-2, PC50UU-3, PC55MR-3, PC58SF-1, PC58UU-3, PC40MRX, PC40R-8, PC45R-8, PC50 MR, PC50UUT, PC40-7, PC45-1, WB97, WB93, WB91, PC45, PC55
Kubota KX057-4, KX121-4, KX161-2, KX161-3, KH191, KX060, KX151, KX161, U45-3, U48-4, U48-5, U50-3, U50-5, U55-4, U56-6, K045, KH28, KO40, KX75, U40, U45, KX057-5, U55
Linkbelt MS070
Nagano NS55-3
New Holland EH50 BSR, E50-2SR, NH115 B
Sany SY50U, SY50
Takeuchi TB153FR, TB53FR, TB045, TB145, TB153, TB250, TB260, TB45
Volvo EC55 - 12 Volt, EC55B PRO, EC60B LC, EC50/W, MX55/W, SE50-3, EC60C, EC60D, EC60E, ECR58, BL71, EC55
Wacker Neuson 6003, 6503, EZ53, 50Z
XCMG XCG60-8
Yanmar VIO50B50, VIO40-2, VIO40-7, VIO45-5, VIO50-2, VIO55-5, YC45-7, VIO50, VIO55, VIO57, SV60

60" Bucket

Brand

Model
Airman AX40U-5F, AX48U-5A, AX50U-5F, AX55U-5A, AX50U-4, AX50-2, AX40U, AX40, AX45, AX50
Bobcat E42R2, E45EM, E42M, E45M, E55Z, X435, E40, E42, E45, E48, E50, E55, E58, E60, E62 EM, E63, E55EM, E55R2, E60EA, E60R2, E48R2, E50EM, E50R2, E55M, E60A, E63M, E50M, E50Z, E55W, E57W, E65W
Case CX50B, CX55B, CX65D, CX40, CX47, CX50, CX55, CX57, CX58, CX60
Caterpillar 305.5E2 CR, 305.5D CR, 305.5E CR, 305E2 CR, 305SR II, 304C CR, 305.5SR, 305C CR, 305D CR, 305E CR, 304CCR, 305.5E, 428MK1, 428MK2, 305.5, 305BR, 305CR, 305SR, 306.5, 306CR, 305C, 305D, 305E, 306D, 306E, E70B, 305, 306
Daewoo S55 V PLUS, S75 LC V, S55V-G, S55W V, S75-V, S50 V, S055, S50
Develon DX60WN ECO, DX50Z-7, DX55R-7, DX57W-7, DX63-7, DX55
Doosan DX55-9CN ACE, DX55MT ACE, S55 V PLUS, DX60WN ECO, DX60E-9CN, DX60E-10N, DX75E-9CN, DX60W ECO, DX55MT-5, DX60-9CN, DX75-9CN, DX55W-5K, DX55W-5L, DX55WACE, DX60E-9C, DX60W-9C, DX55-5K, DX60-9C, DX62R-3, DX62R-7, DX65-9C, DX75-5B, DX75-9C, DX85R-3, DX89R-7, DX42-5K, DX50-5K, DX50Z-7, DX55-9C, DX55R-7, DX55W-5, DX57W-5, DX57W-7, DX70-9C, DH55-V, DH60-7, DH70-7, DH80-7, DX63-3, DH55-7, DX42-5, DX50-5, S55W V, DX55WA, DX55WK, DX85R, DX55A, DX55E, DX80R, DX50Z, DX53W, DX55W, DX60R, DX60W, DX55, DX60, DX62, DX63, DX80, DX85, SL55, DH55, DH70, DH80, DX75, DX42, DX50, S55, S70, S75
Ford 555C, 555, 655
Hanix H50B, H50C, H56B, H56C, H45, H50
Hitachi ZX65USB-5A CLP, ZX65USB-5A CLR, ZX65USB-5A LC, ZX60USB-3CLR, ZX60USBNA-3, ZX48U-2 -3, ZX55U-2 -3, ZX60USB LC, ZX60USB-3F, ZX60USB-5N, ZX65USB-3F, ZX65USB-5A, ZX60USB-3, ZX60USB-5, ZX65USB-3, ZX65USB-5, ZX65USB-6, EX55UR-3, EX75UR-3, ZX48U-5A, ZX50U-3F, ZX55U-5A, ZX55UR-3, ZX50U-2, ZX50U-3, ZX60-5A, ZX60USB, EX40-2, EX45-2, EX55UR, EX58MU, EX60-1, EX60-2, EX60-3, EX60UR, EX75UU, ZX50-2, ZX60-2, ZX60-3, ZX60US, EX40U, EX50U, ZX40U, EX40, EX50, EX58, UE02, ZX60, ZX50U, ZX60U
Hyundai R60CR-9, R60W-9S, R55-3, R55-7, R55-9
Ihi IS40-JX, 50NX, 50VX, 55NX, IS40, IS45
JCB 8080 ZTS, 100C-1, 50Z-2, 51R-1, 56Z-2, 57C-1, 60C-2, 65R-1, 67C-1, 805.2, 8052C, 8060C, 85Z-1, 86C-1, 90Z-1, 8052, 8060, 8065, 8080, 8085, 45Z, 48Z, 55Z, 65R, 67C, 85Z, 86C, 90Z
John Deere 50C ZTS, 50D ZTS, 50 ZTS, 55 ZTS, 50C, 50D, 50G, 60D, 60G, 70D, 50
Kobelco SK040SR-3, SK040SR-5, SK050SR-3, SK050SR-5, SK40SR-1, SK40SR-2, SK40SR-3, SK40SR-5, SK45SR-1, SK45SR-2, SK50SR-3, SK50SR-5, SK50UR-2, SK55SR-5, SK045-1, SK045-2, SK045-3, SK045SR, SK40SR, SK50UR, SK042, SK045
Komatsu PC45 MRX-1, PC50 MRX-2, PC40MRC-2, PC40MRX-1, PC50UUT-2, PC40MR-2, PC40MR-3, PC50MR-2, PC50UU-1, PC50UU-2, PC50UU-3, PC55MR-3, PC58SF-1, PC58UU-3, PC40MRX, PC40R-8, PC45R-8, PC50 MR, PC50UUT, PC40-7, PC45-1, WB97, WB93, WB91, PC45, PC55
Kubota KX057-4, KX121-4, KX161-2, KX161-3, KH191, KX060, KX151, KX161, U45-3, U48-4, U48-5, U50-3, U50-5, U55-4, U56-6, K045, KH28, KO40, KX75, U40, U45, KX057-5, U55
Linkbelt MS070
Nagano NS55-3
New Holland EH50 BSR, E50-2SR, NH115 B
Sany SY50U, SY50
Takeuchi TB153FR, TB53FR, TB045, TB145, TB153, TB250, TB260, TB45
Volvo EC55 - 12 Volt, EC55B PRO, EC60B LC, EC50/W, MX55/W, SE50-3, EC60C, EC60D, EC60E, ECR58, BL71, EC55
Wacker Neuson 6003, 6503, EZ53, 50Z
XCMG XCG60-8
Yanmar VIO50B50, VIO40-2, VIO40-7, VIO45-5, VIO50-2, VIO55-5, YC45-7, VIO50, VIO55, VIO57, SV60
