JMA Attachments Tilt Bucket | Model EC5S | Bucket Width 48" inches | Pin Size 45mm | For 4.5 – 6.5 Tons Mini Excavators

JMA Attachments Tilt Bucket | Model EC5S | Bucket Width 48" inches | Pin Size 45mm | For 4.5 – 6.5 Tons Mini Excavators

$5,056.70
$5,056.70
Sale Sold out
Customizable
Fast
24/7 Support
  • Impressive Capacity: With a volume of 0.28 m³ (0.37 yd³), this bucket allows for efficient handling of substantial material volumes, significantly reducing project timelines.
  • Unmatched Durability: Crafted from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Cutting-Edge Performance: Equipped with a reversible bolt-on cutting edge for superior cutting performance and reduced maintenance needs.
View full details

Product Description

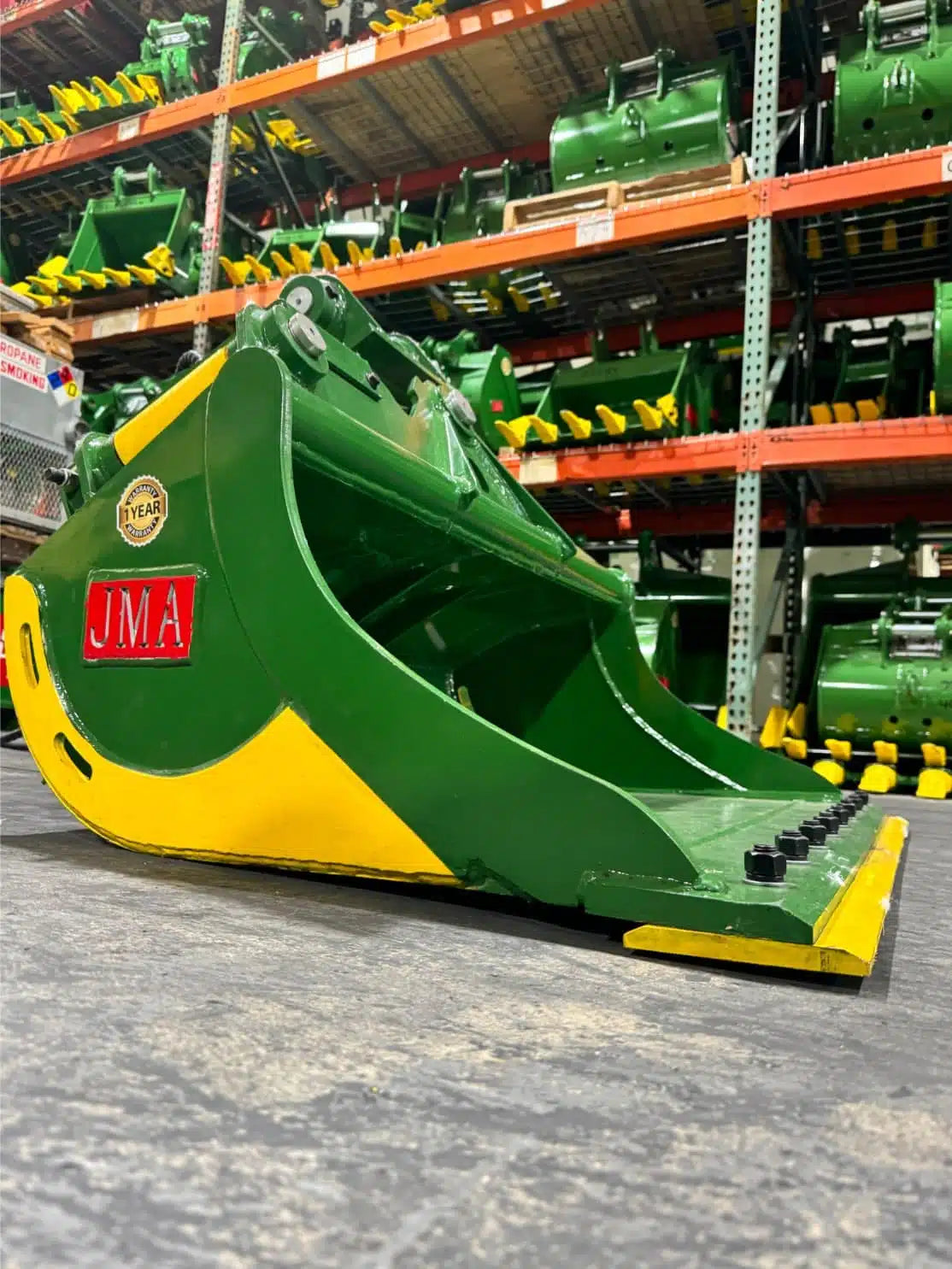

JMA Attachments Tilt Bucket | Bucket Width 48" inches | Pin Size 45mm | For 4.5 – 6.5 Tons Mini Excavators

Description

Introducing our versatile 48" Excavator Bucket, designed specifically for 4.5 - 6.5 Ton machines. This bucket is engineered to deliver exceptional performance and durability, making it ideal for a wide range of excavation tasks. Constructed from premium AR400 steel and equipped with a reversible bolt-on cutting edge, this bucket ensures efficient material handling and enhanced productivity.

Key Features

  • Impressive Capacity: With a volume of 0.28 m³ (0.37 yd³), this bucket allows for efficient handling of substantial material volumes, significantly reducing project timelines.
  • Unmatched Durability: Crafted from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Cutting-Edge Performance: Equipped with a reversible bolt-on cutting edge for superior cutting performance and reduced maintenance needs.
  • Optimized Design: 3x Reinforced Side Plates optimize material flow and reduce cycle times, maintaining productivity in various soil conditions.
  • Robust Construction: Powder-coated green finish for added durability and corrosion resistance.

Detailed Specifications

    Attribute Value
    Carrier Weight Class (tn) 4.5 - 6.5 Tons
    Bucket Width (mm) 1,219.2 mm
    Bucket Width (in) 48"
    Inner Bucket Height (mm) 595 mm
    Bucket Side Wall Thickness (mm) 15 mm
    Bucket Depth (mm) 387 mm
    Capacity (yd³) 0.37 yd³
    Capacity (m³) 0.28 m³
    Edge Style Reversible Bolt-On Cutting Edge
    Material Type AR400 Steel
    Finish Powder-Coated Green
    Front Pin Length (mm) 303 mm
    Rear Pin Length (mm) 303 mm
    Front Pin Diameter (mm) 45 mm
    Rear Pin Diameter (mm) 45 mm
    Front Ear to Ear Distance (mm) 160 mm
    Rear Ear to Ear Distance (mm) 160 mm
    Center to Center Distance (mm) 221 mm
    Carrier Weight Class (lbs) 9,000 - 13,000 lbs
    Drain Holes (ct) 2
    Features 3x Reinforced Side Plates
    Product Weight (lbs) 811.30 lb
    Product Weight (kg) 368 kg



    Fits To

    Brand

    Model
    Airman AX40U-5F, AX48U-5A, AX50U-5F, AX55U-5A, AX50U-4, AX50-2, AX40U, AX40, AX45, AX50
    Bobcat E42R2, E45EM, E42M, E45M, E55Z, X435, E40, E42, E45, E48, E50, E55, E58, E60, E62 EM, E63, E55EM, E55R2, E60EA, E60R2, E48R2, E50EM, E50R2, E55M, E60A, E63M, E50M, E50Z, E55W, E57W, E65W
    Case CX50B, CX55B, CX65D, CX40, CX47, CX50, CX55, CX57, CX58, CX60
    Caterpillar 305.5E2 CR, 305.5D CR, 305.5E CR, 305E2 CR, 305SR II, 304C CR, 305.5SR, 305C CR, 305D CR, 305E CR, 304CCR, 305.5E, 428MK1, 428MK2, 305.5, 305BR, 305CR, 305SR, 306.5, 306CR, 305C, 305D, 305E, 306D, 306E, E70B, 305, 306
    Daewoo S55 V PLUS, S75 LC V, S55V-G, S55W V, S75-V, S50 V, S055, S50
    Develon DX60WN ECO, DX50Z-7, DX55R-7, DX57W-7, DX63-7, DX55
    Doosan DX55-9CN ACE, DX55MT ACE, S55 V PLUS, DX60WN ECO, DX60E-9CN, DX60E-10N, DX75E-9CN, DX60W ECO, DX55MT-5, DX60-9CN, DX75-9CN, DX55W-5K, DX55W-5L, DX55WACE, DX60E-9C, DX60W-9C, DX55-5K, DX60-9C, DX62R-3, DX62R-7, DX65-9C, DX75-5B, DX75-9C, DX85R-3, DX89R-7, DX42-5K, DX50-5K, DX50Z-7, DX55-9C, DX55R-7, DX55W-5, DX57W-5, DX57W-7, DX70-9C, DH55-V, DH60-7, DH70-7, DH80-7, DX63-3, DH55-7, DX42-5, DX50-5, S55W V, DX55WA, DX55WK, DX85R, DX55A, DX55E, DX80R, DX50Z, DX53W, DX55W, DX60R, DX60W, DX55, DX60, DX62, DX63, DX80, DX85, SL55, DH55, DH70, DH80, DX75, DX42, DX50, S55, S70, S75
    Ford 555C, 555, 655
    Hanix H50B, H50C, H56B, H56C, H45, H50
    Hitachi ZX65USB-5A CLP, ZX65USB-5A CLR, ZX65USB-5A LC, ZX60USB-3CLR, ZX60USBNA-3, ZX48U-2 -3, ZX55U-2 -3, ZX60USB LC, ZX60USB-3F, ZX60USB-5N, ZX65USB-3F, ZX65USB-5A, ZX60USB-3, ZX60USB-5, ZX65USB-3, ZX65USB-5, ZX65USB-6, EX55UR-3, EX75UR-3, ZX48U-5A, ZX50U-3F, ZX55U-5A, ZX55UR-3, ZX50U-2, ZX50U-3, ZX60-5A, ZX60USB, EX40-2, EX45-2, EX55UR, EX58MU, EX60-1, EX60-2, EX60-3, EX60UR, EX75UU, ZX50-2, ZX60-2, ZX60-3, ZX60US, EX40U, EX50U, ZX40U, EX40, EX50, EX58, UE02, ZX60, ZX50U, ZX60U
    Hyundai R60CR-9, R60W-9S, R55-3, R55-7, R55-9
    Ihi IS40-JX, 50NX, 50VX, 55NX, IS40, IS45
    JCB 8080 ZTS, 100C-1, 50Z-2, 51R-1, 56Z-2, 57C-1, 60C-2, 65R-1, 67C-1, 805.2, 8052C, 8060C, 85Z-1, 86C-1, 90Z-1, 8052, 8060, 8065, 8080, 8085, 45Z, 48Z, 55Z, 65R, 67C, 85Z, 86C, 90Z
    John Deere 50C ZTS, 50D ZTS, 50 ZTS, 55 ZTS, 50C, 50D, 50G, 60D, 60G, 70D, 50
    Kobelco SK040SR-3, SK040SR-5, SK050SR-3, SK050SR-5, SK40SR-1, SK40SR-2, SK40SR-3, SK40SR-5, SK45SR-1, SK45SR-2, SK50SR-3, SK50SR-5, SK50UR-2, SK55SR-5, SK045-1, SK045-2, SK045-3, SK045SR, SK40SR, SK50UR, SK042, SK045
    Komatsu PC45 MRX-1, PC50 MRX-2, PC40MRC-2, PC40MRX-1, PC50UUT-2, PC40MR-2, PC40MR-3, PC50MR-2, PC50UU-1, PC50UU-2, PC50UU-3, PC55MR-3, PC58SF-1, PC58UU-3, PC40MRX, PC40R-8, PC45R-8, PC50 MR, PC50UUT, PC40-7, PC45-1, WB97, WB93, WB91, PC45, PC55
    Kubota KX057-4, KX121-4, KX161-2, KX161-3, KH191, KX060, KX151, KX161, U45-3, U48-4, U48-5, U50-3, U50-5, U55-4, U56-6, K045, KH28, KO40, KX75, U40, U45, KX057-5, U55
    Linkbelt MS070
    Nagano NS55-3
    New Holland EH50 BSR, E50-2SR, NH115 B
    Sany SY50U, SY50
    Takeuchi TB153FR, TB53FR, TB045, TB145, TB153, TB250, TB260, TB45
    Volvo EC55 - 12 Volt, EC55B PRO, EC60B LC, EC50/W, MX55/W, SE50-3, EC60C, EC60D, EC60E, ECR58, BL71, EC55
    Wacker Neuson 6003, 6503, EZ50, EZ53, 50Z
    XCMG XCG60-8
    Yanmar VIO50B50, VIO40-2, VIO40-7, VIO45-5, VIO50-2, VIO55-5, YC45-7, VIO50, VIO55, VIO57, SV60

    Manual & Documents

    General Warranty Info:

    • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
    • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
    • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
    • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

    Videos

    Shipping

    General Shipping Info:

    • Instantly calculate shipping quotes to the lower 48 states by 1. adding this product to your cart, 2. click continue to the checkout page and 3. enter your shipping address to check rates. Contact us for quotes for shipping to Hawaii, Alaska, Canada, Mexico and Internationally.
    • Complimentary lift gate service on all freight shipments where it’s possible. We guarantee safe delivery!
    • Low shipping rates for customers. We have negotiated the best possible rates for customers from our trusted carriers (ODFL, ESTES, UPS, and FedEx).
    • Negotiate shipping rates if you think we can do better please reach out. Keep in mind some shipping rates also include assembly & configuration that as well!
