Kasco Hay Master Min-Till Drill | Model KHM-72 & KHM-96 | Working Width 72" & 96" | Horsepower 45-55 HP | For Tractors
Kasco Hay Master Min-Till Drill | Model KHM-72 & KHM-96 | Working Width 72" & 96" | Horsepower 45-55 HP | For Tractors
Regular price
$15,730.00
Regular price
Sale price
$15,730.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Kasco Hay Master Min-Till Drill | Model KHM-72 & KHM-96 | Working Width 72" & 96" | Horsepower 45-55 HP | For Tractors
DESCRIPTION

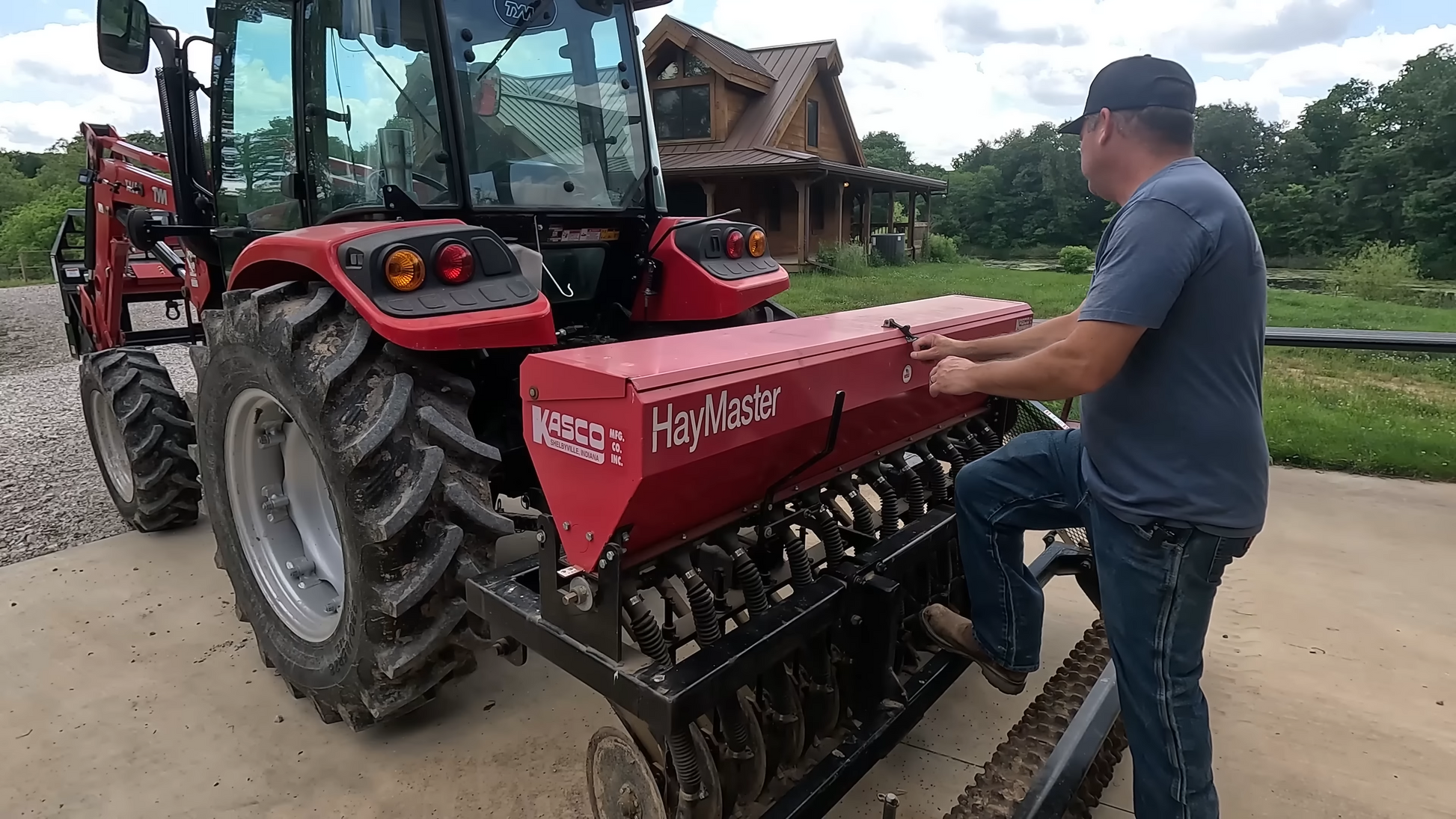

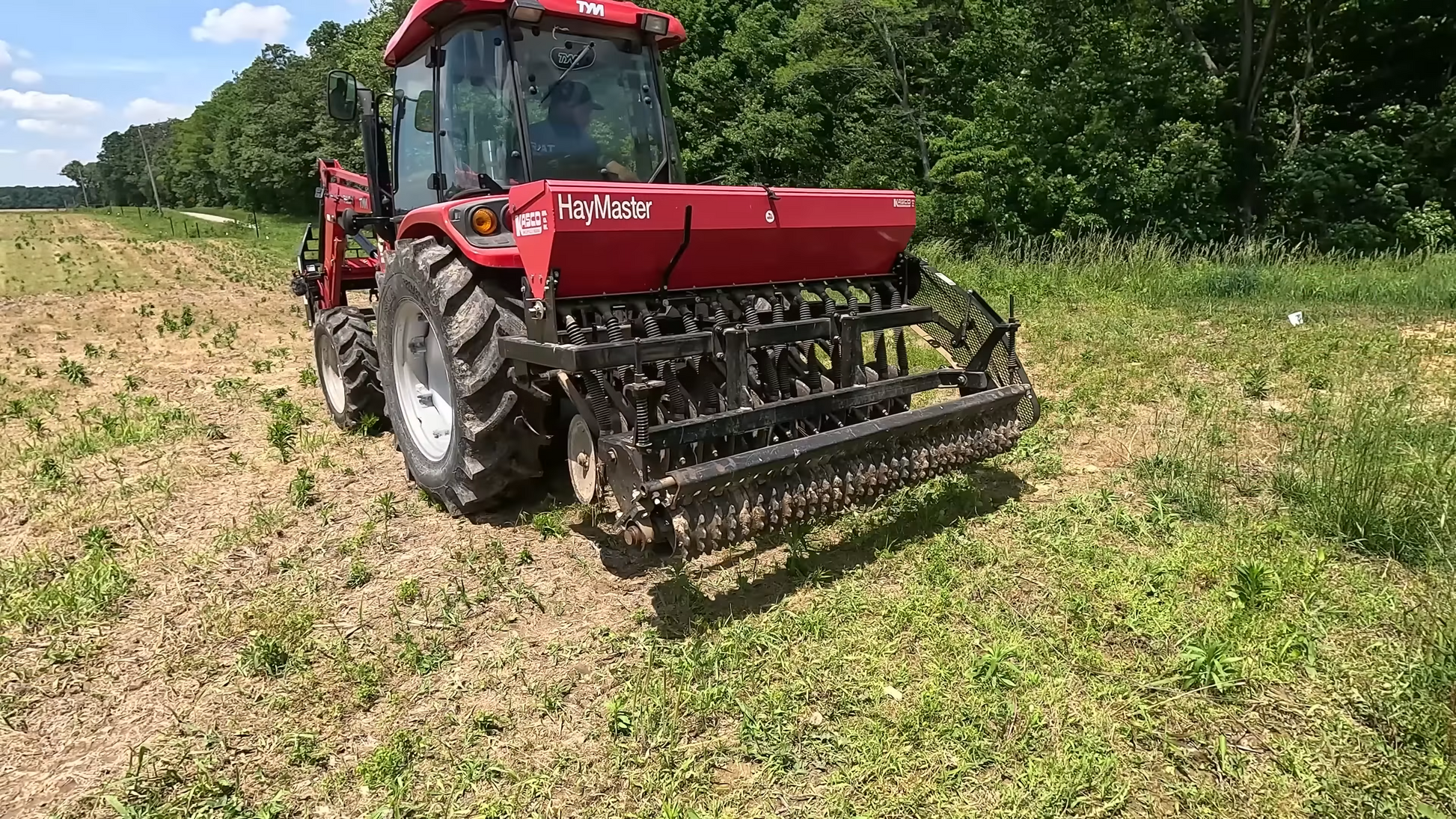

Built for pasture renovation, roadside restoration, and wildlife habitat development, the Kasco Hay Master Min-Till Drill Series offers rugged performance with minimal soil disturbance. Featuring tight 6" row spacing, spring-loaded disc blades, and cast iron cultipackers, these drills ensure consistent seed placement and optimal germination—even on rough terrain. With ground-driven metering and optional brome agitators, the Hay Master series delivers versatility and efficiency for hay producers and land managers.
Key Features
- Available Working Widths: 72" (KHM-72) and 96" (KHM-96) models for varying field requirements
- Horsepower Range: Designed for 45–55 HP tractors
- Row Configuration: 12 rows on KHM-72; 16 rows on KHM-96 with consistent 6" row spacing

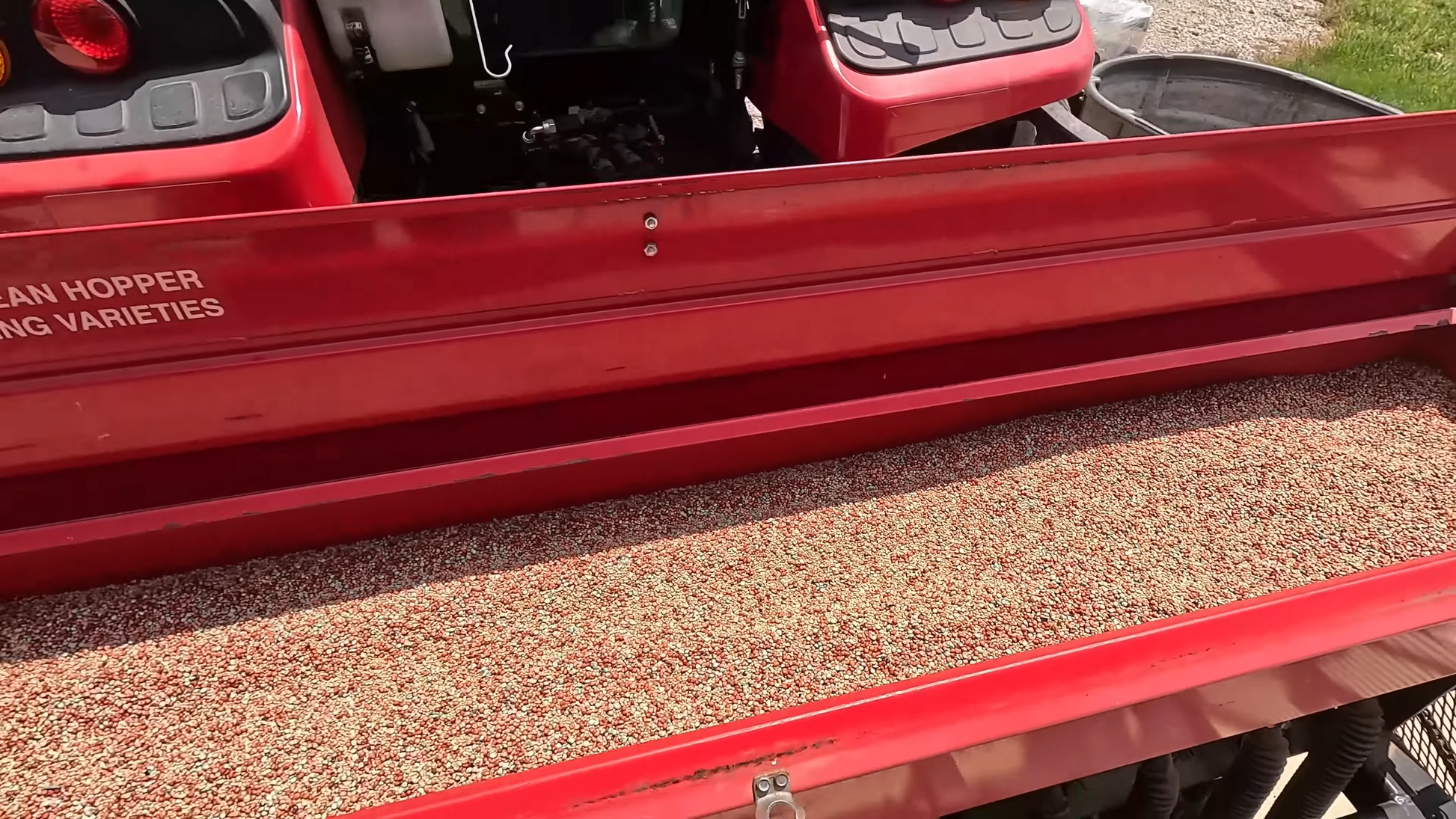

- Seedbox Capacity: 4.4 bushels on KHM-72; 7.7 bushels on KHM-96 for extended operation
- Hitch Compatibility: Fits 3-point Category I & II tractors for versatile mounting
- Metering System: Ground-driven for simple, reliable seed metering
- Agitator Option: Optional Brome Agitator available for specialty seeding applications
- Cultipacker Design: Spring-loaded cast iron ensures consistent seed-to-soil contact
- Frame Architecture: Compact close-coupled frame ideal for precision tillage
- Unit Weight: 1060 lbs (KHM-72) and 1400 lbs (KHM-96) — robust builds for tough terrain
Detailed Specifications
KHM Series Seed Drill |
||
|---|---|---|
Attribute |
KHM72 |
KHM96 |
| Working Width | 72" | 96" |
| HP Requirement | 45 HP | 55 HP |
| Number of Rows | 12 | 16 |
| Row Spacing | 6" | 6" |
| Weight | 1060 lbs | 1400 lbs |
| Hitch Type | 3-Point, Category I & II | 3-Point, Category I & II |
| Seedbox Capacity | 4.4 Bushels | 7.7 Bushels |
| Agitator Option | Brome Agitator (Optional) | Brome Agitator (Optional) |
| Cultipacker Type | Spring-Loaded Cast Iron | Spring-Loaded Cast Iron |
| Metering System | Ground-Driven | Ground-Driven |
| Frame Style | Close-Coupled | Close-Coupled |
