Product Description
Kidd Farm Machinery Bale Chopper | Model KD 806 Mounted & Trailed | 6' 8" Width | 50 HP | For Tractors & Loaders
DESCRIPTION

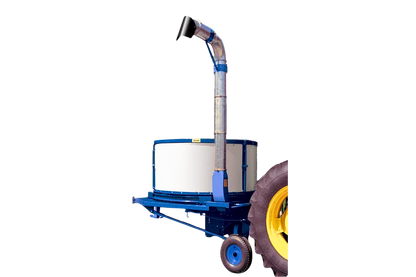

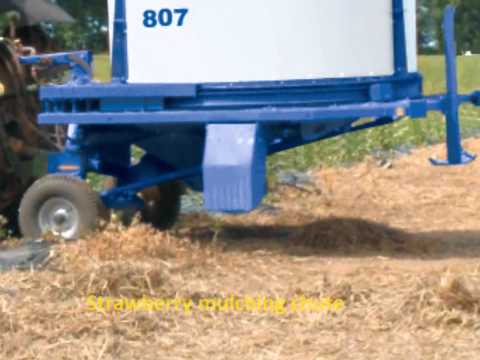

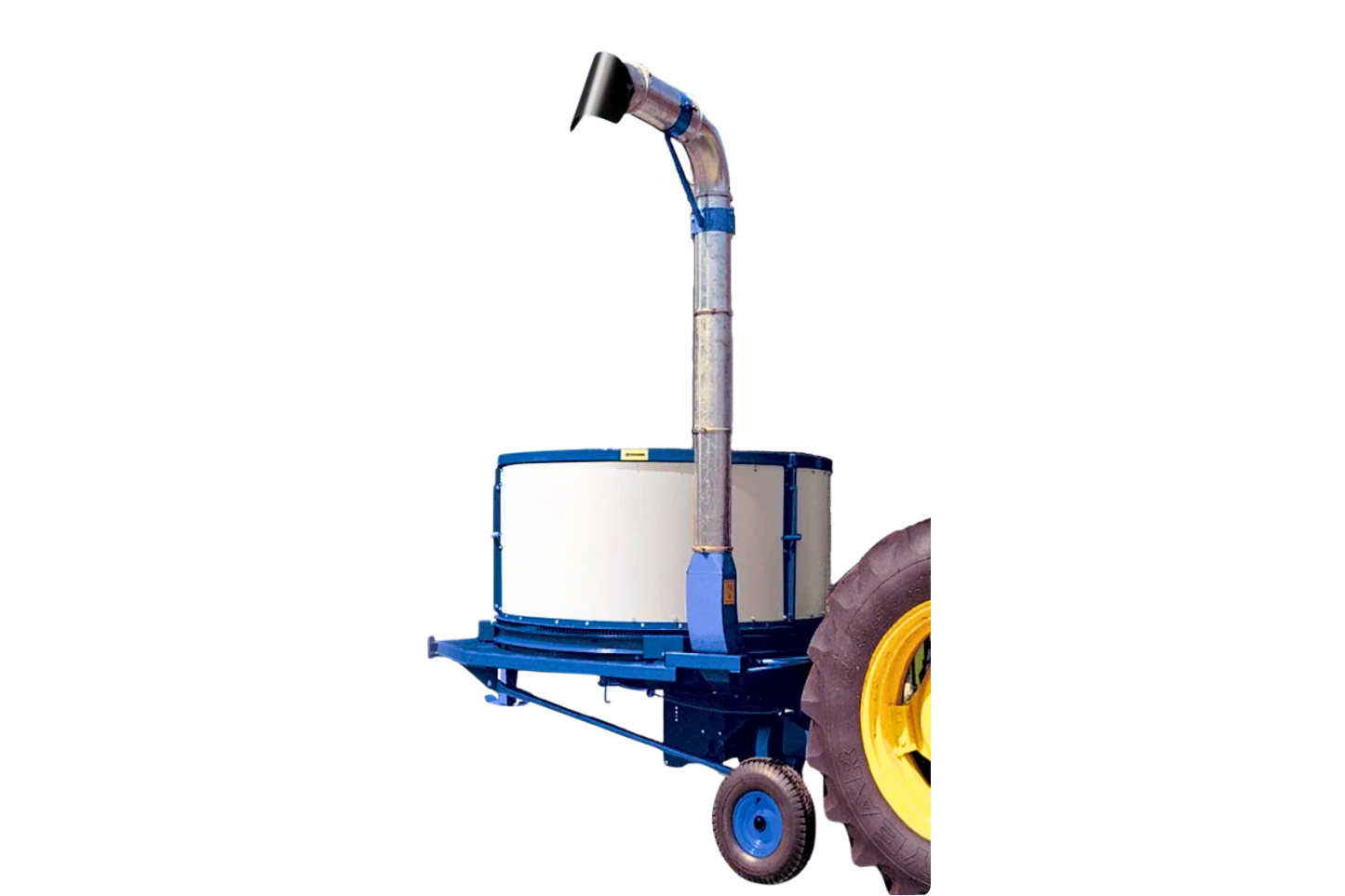

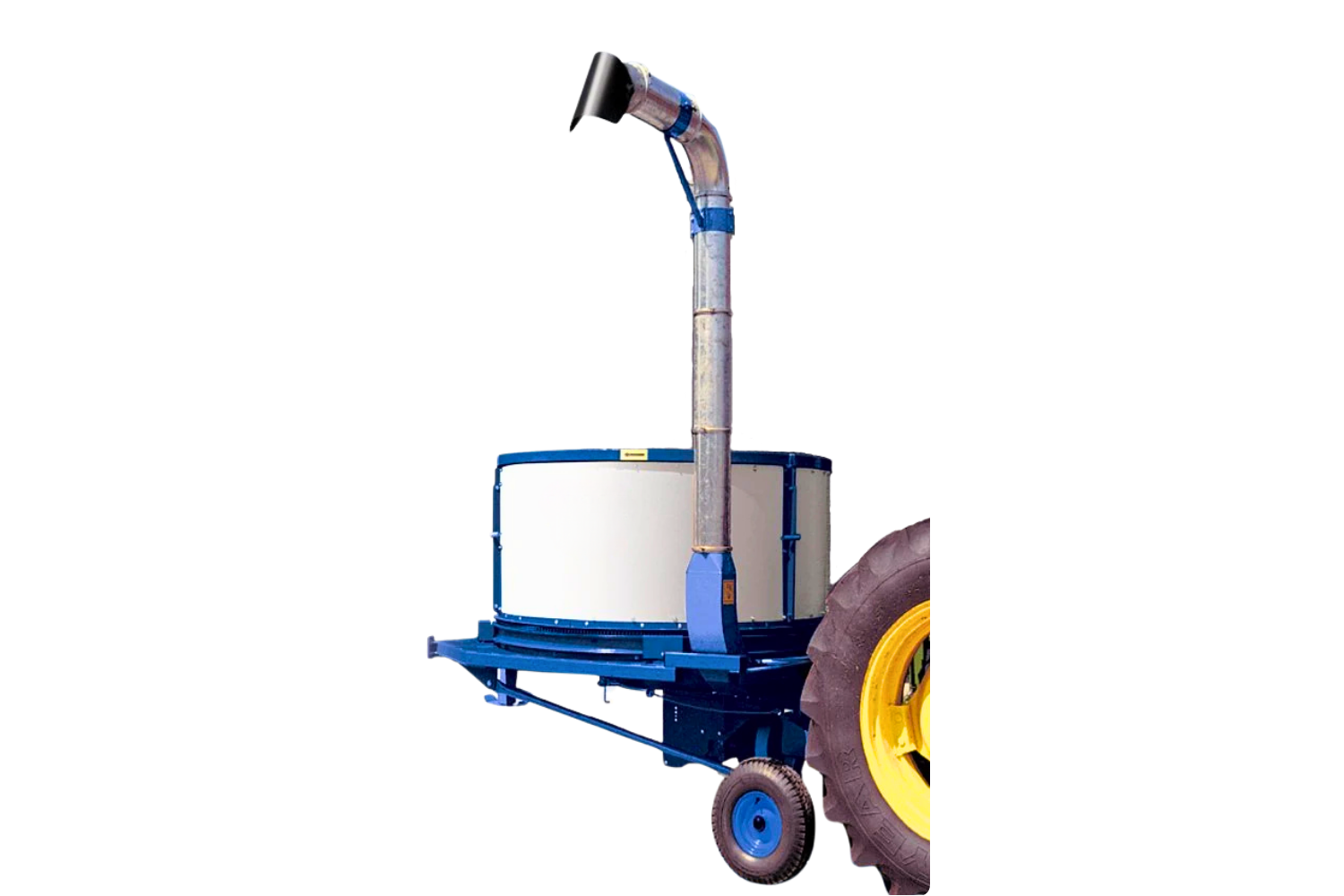

The Kidd Bale Chopper Model 806 is the ultimate solution for efficiently chopping and mulching straw into bedding material. With its versatile design, this mounted unit provides both side and rear discharge options, making it ideal for a variety of applications, from bedding livestock to mulching strawberries. Built for durability and efficiency, this chopper features a hydraulically driven adjustable rotating tub and a heavy-duty bevel gearbox, ensuring smooth operation even under demanding conditions. The Cat II 3-point hitch and PTO shaft with slip clutch make for easy compatibility with tractors and loaders. With the addition of the bedding chute and Swan Neck kit, this model is the perfect fit for your farm’s bedding and mulching needs.
Key Features
- Hydraulically Driven Adjustable Tub for smooth, efficient operation and consistent chopping.
- Heavy-Duty Bevel Gearbox ensures reliable performance and durability over time.
- Cat II 3-Point Hitch for easy mounting on tractors and loaders, perfect for quick set-up.
- PTO Shaft with Slip Clutch offers flexibility and protection during operation.
- Discharge Ports on Both Sides enable versatile material placement, ensuring optimal efficiency.
- Hydraulic Bale Lift ensures easy start-up, especially when working with large bales.
- Load Bearing Wheels offer extra stability and easier maneuverability when in use.
- Bedding Chute and Swan Neck Kit are included for hassle-free material delivery.
- Quick-Release A-Frame allows for rapid setup and breakdown.
- Wide Tub Diameter of 6' 2" for processing large bales with ease.
- Painted Finish with Shot-Blast Preparation ensures long-lasting, high-quality protection.
- Heavy-Duty Chain Drive for reliable power transfer and minimal maintenance.
- Designed for 50 HP Tractors for maximum performance in tough farming conditions.
- Optional Short Chop Kit allows for finer material processing.
- Three-Way Valve adds more customization to control discharge and material flow.
Detailed Specifications
| Specification | Kidd Bale Chopper Model KD 806 Mounted & Trailed |
|---|---|
| Width | 6' 8" (2.0 m) |
| Height | 6' 2" (1.9 m) |
| Length | 8' 10" (2.7 m) |
| Weight | 1,742 lbs (790 kg) |
| Required PTO Power | 50 HP |
| Hydraulic Flow | 15 To 30 GPM. |
| Discharge Height | 3' 3" (1.0 m) |
| Tub Diameter | 6' 2" (1.88 m) |
| Mounting Method | Cat II 3-Point Hitch |
| Hydraulic Bale Lift | Yes |
| Load Bearing Wheels | Yes |
| Discharge Ports | Side and Rear |
| Chute Options | Bedding Chute, Swan Neck Kit |
| Gearbox | Heavy-Duty Bevel |
| Drive | Chain Driven |
| Discharge Time | 5-10 Minutes |
