Product Description
Killbros SeedVeyor Seed Tender | Models 260 & 360 | High-Capacity Dual Compartment Hopper | Efficient Seed Delivery System
DESCRIPTION

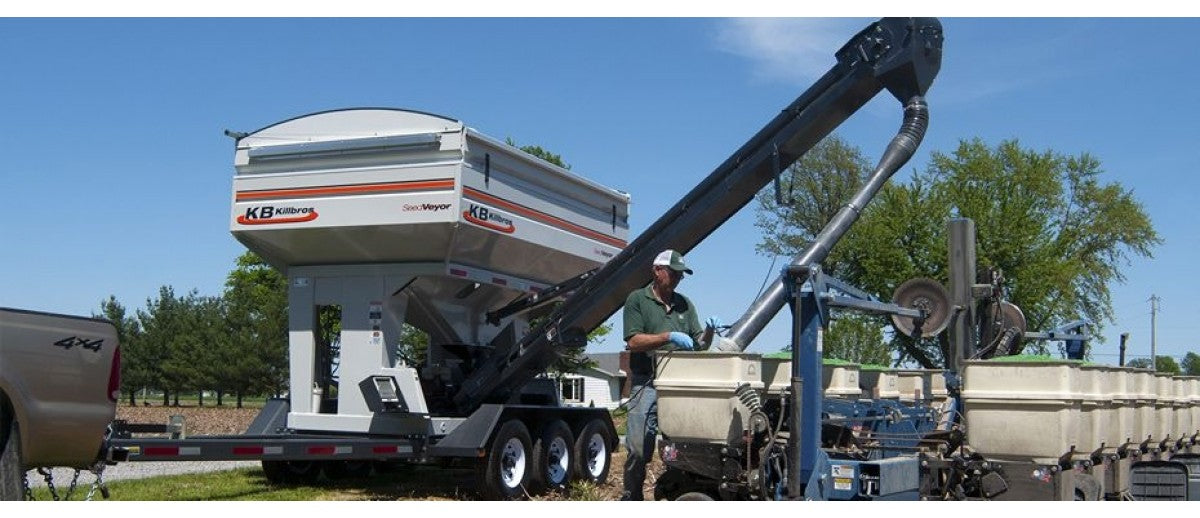

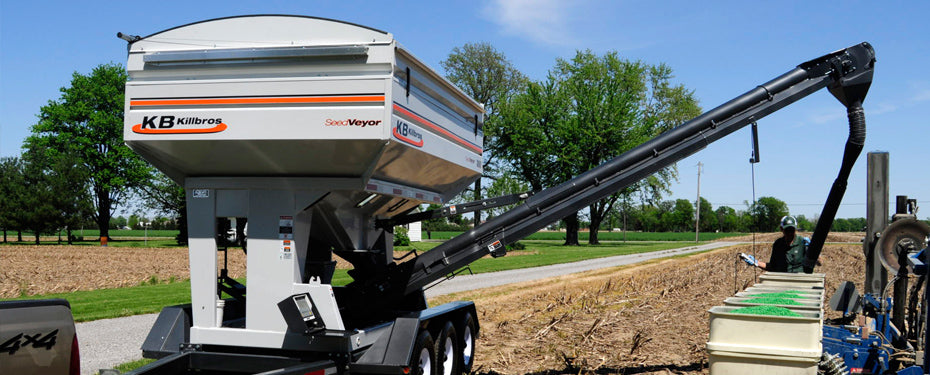

Maximize your planting efficiency with the Killbros SeedVeyor Seed Tender models 260 and 360. Designed to save you time and increase convenience, these seed tenders offer dual compartment hoppers with capacities of 260 and 360 seed units. The SeedVeyor's advanced features ensure quick and complete unloading, protecting your valuable seeds from adverse weather and making field and planter deliveries seamless. Equipped with a high-performance conveyor or auger system, these seed tenders guarantee gentle and efficient seed handling, making them an indispensable addition to your planting operation.
Key Features
- High Capacity: Choose between 260 and 360 seed unit capacities with dual compartment hoppers.

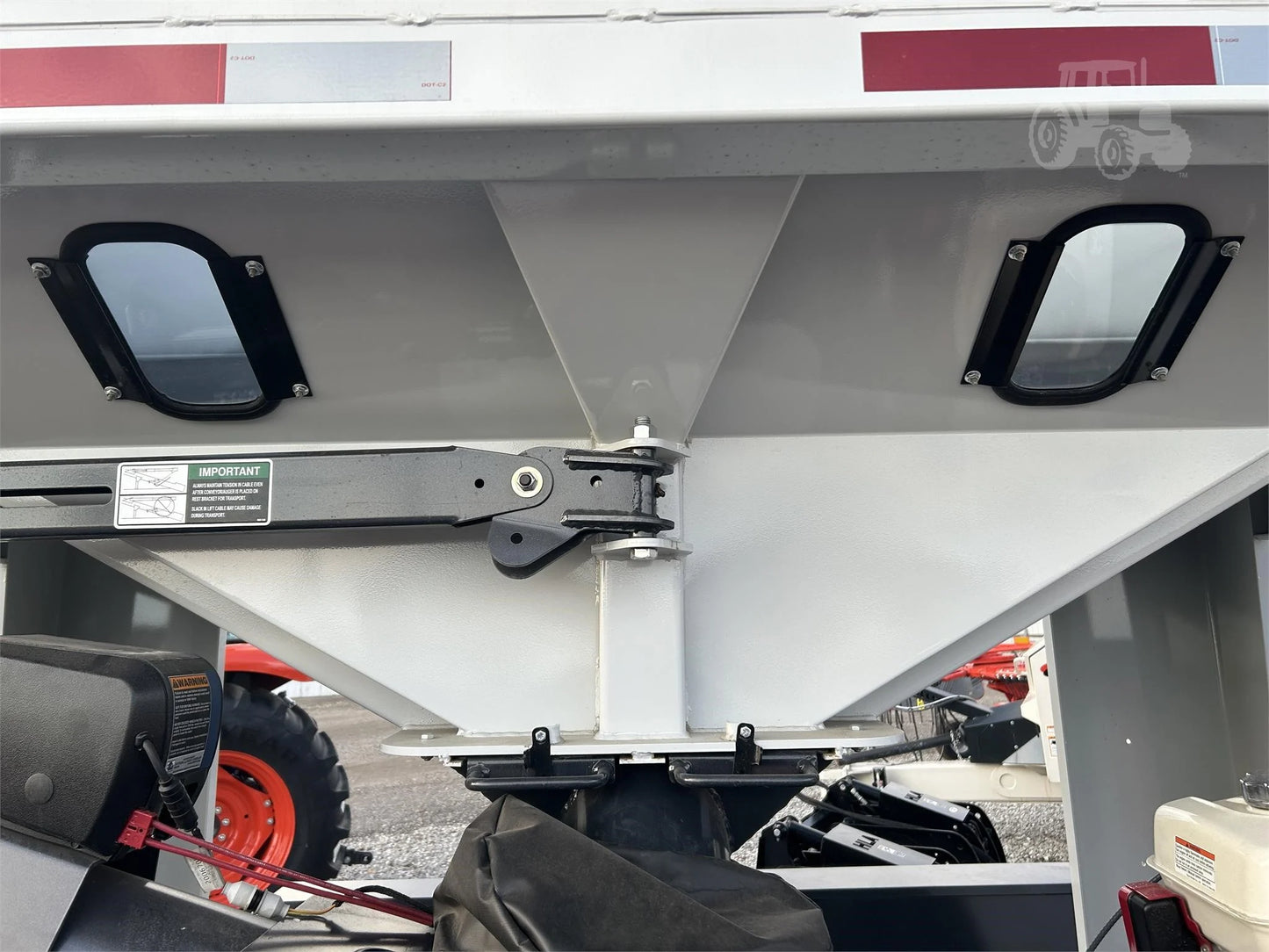

- Efficient Unloading: Steep-sloped sidewalls for fast, complete unloading and dual viewing windows for easy content monitoring.
- Weather Protection: Standard 18oz. weatherguard roll-over tarp protects contents from adverse weather.
- Easy Access: Standard side-mounted ladder with flip-down lower step for easy hopper viewing.
- Operator Convenience: Standard on/off wired remote with magnetic mount and 18' long steel tube with 4'-6' telescoping downspout.
-
Versatile Conveyor Options:
- 8" conveyor for up to 25 bushels per minute
- 6" conveyor for up to 12 bushels per minute
- Durable Construction: Heavy-duty undercarriage with rubber-cushioned suspension and electric brakes.
- Transport Ready: Highway-rated tires, lights, reflectors, 2 5/16" ball hitch, and transport chain.
Detailed Specifications
| pecifications | Model 260 | Model 360 |
|---|---|---|
| Approx. empty weight (lbs.) | 5100 | 5900 |
| Tongue weight — loaded (lbs.) | 1000 | 1000 |
| Hitch type | 2 5/16" ball | 2 5/16" ball |
| Lighting connector | 7-pin flat | 7-pin flat |
| A Overall length | 24' 5" | 24' 5" |
| B Transport width | 8' 6" | 8' 6" |
| C Transport height | 9' 11" | 10' 11" |
| D Overall load height | 9' 3" | 10' 3" |
| E Tank length | 12' | 12' |
| F Tank width | 8' | 8' |
| G Tank height | 8' 1" | 9' 1" |
| H Undercarriage length | 21' | 21' |
| I Deck height | 1' 10" | 1' 10" |
| J Tank base length | 9' 4" | 9' 4" |
| K Tank base width | 5' | 5' |
| Height — transport | 6' 10" | 6' 10" |
| L Max. unload height | 12' 6" | 12' 6" |
| M Reach (max. height) | 12' 5" | 12' 5" |
| N Min. unload height | 6' 10" | 6' 10" |
| O Reach (min. height) | 14' 8" | 14' 8" |
Model 260
- Approx. Empty Weight: 5100 lbs.
- Tongue Weight (loaded): 1000 lbs.
- Hitch Type: 2 5/16" ball
- Lighting Connector: 7-pin flat
- Overall Length: 24' 5"
- Transport Width: 8' 6"
- Transport Height: 9' 11"
- Overall Load Height: 9' 3"
- Tank Dimensions: 12' (length) x 8' (width) x 8' 1" (height)
- Max Unload Height: 12' 6"
- Min Unload Height: 6' 10"
- Reach: 14' 8" (min height) / 12' 5" (max height)

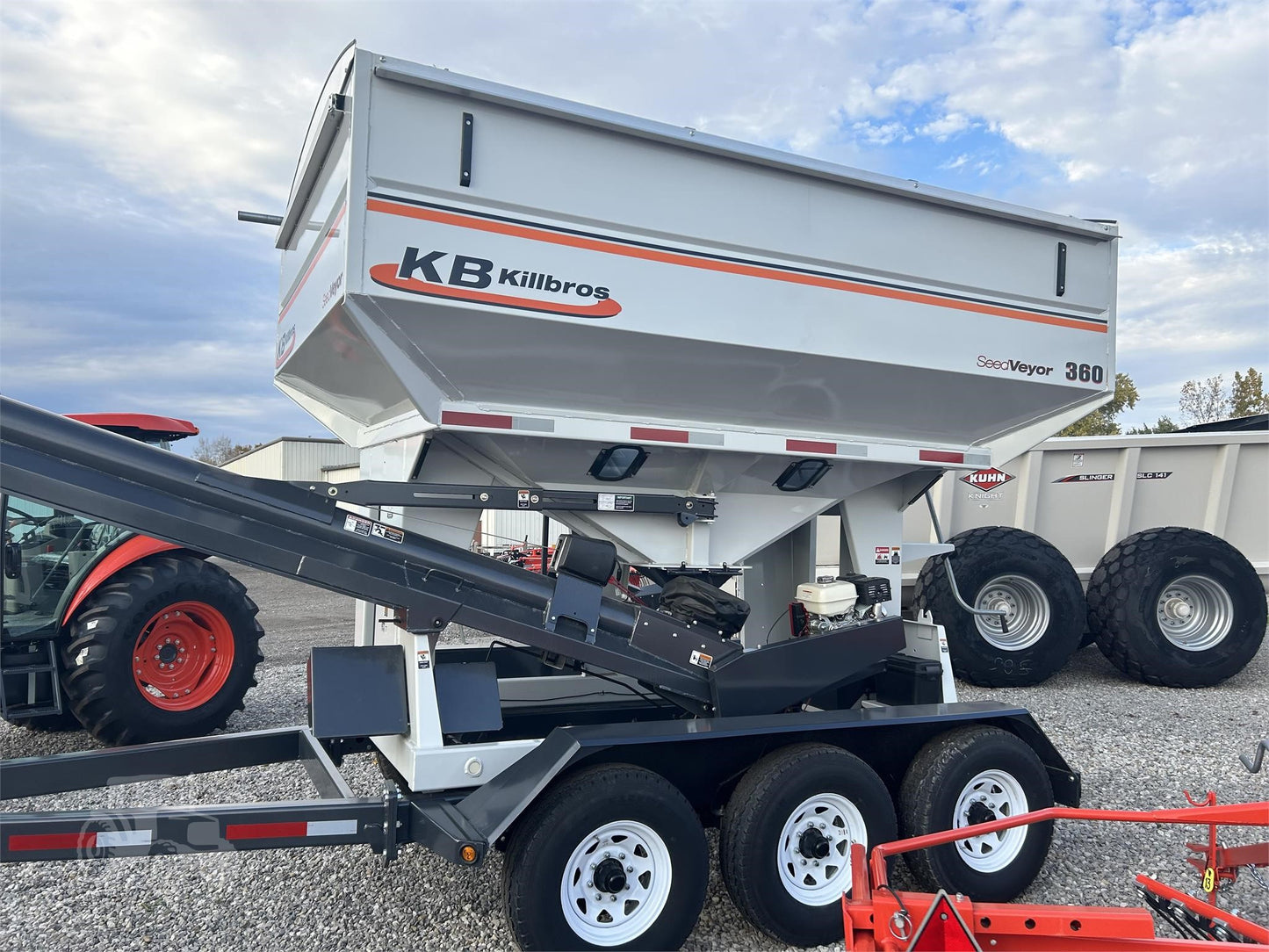

Model 360
- Approx. Empty Weight: 5900 lbs.
- Tongue Weight (loaded): 1000 lbs.
- Hitch Type: 2 5/16" ball
- Lighting Connector: 7-pin flat
- Overall Length: 24' 5"
- Transport Width: 8' 6"
- Transport Height: 10' 11"
- Overall Load Height: 10' 3"
- Tank Dimensions: 12' (length) x 8' (width) x 9' 1" (height)
- Max Unload Height: 12' 6"
- Min Unload Height: 6' 10"
- Reach: 14' 8" (min height) / 12' 5" (max height)
In Package
- Dual compartment hopper (260 or 360 seed unit capacity)
- 18oz. weatherguard roll-over tarp
- Side-mounted ladder with flip-down lower step

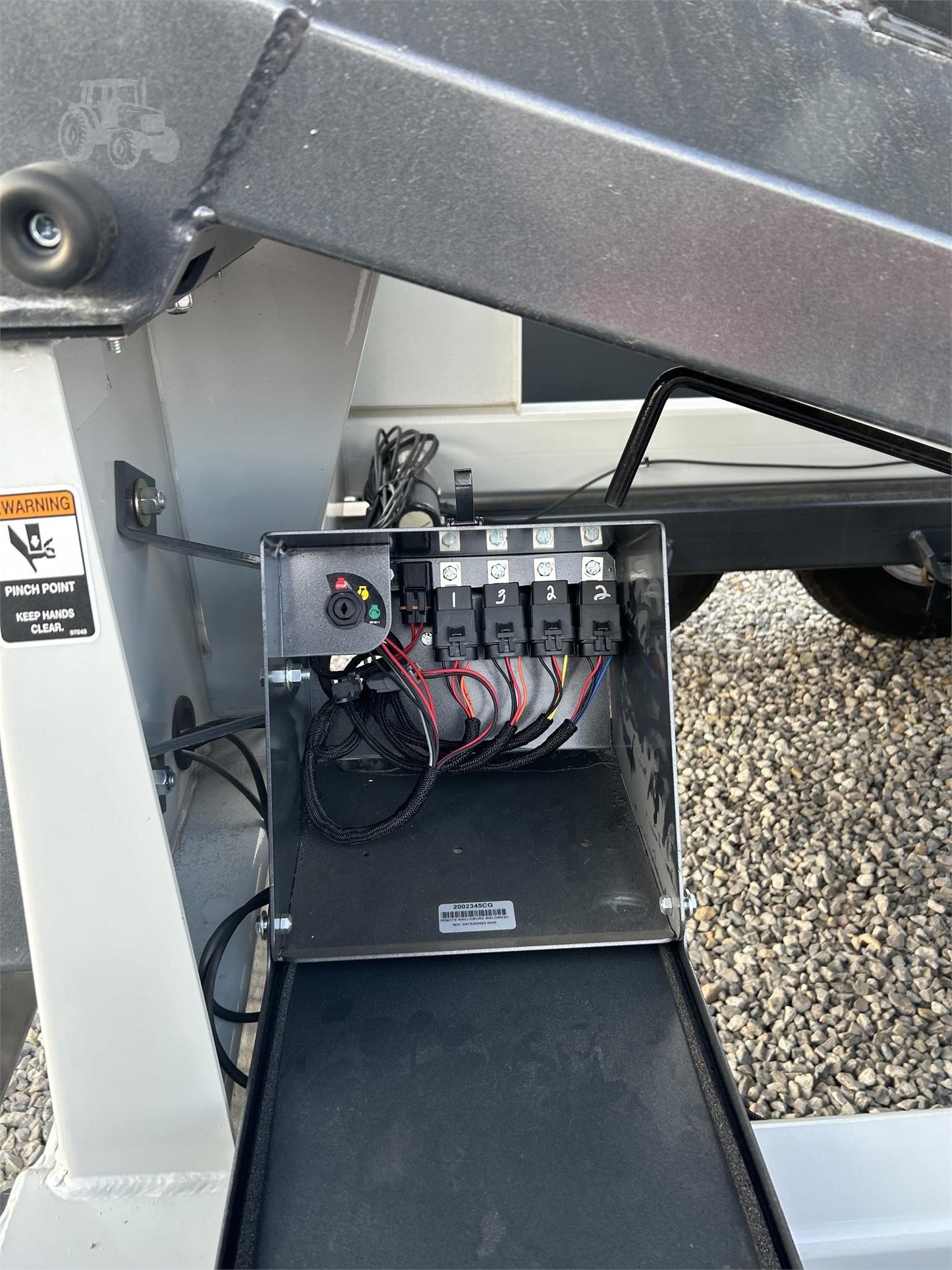

- Wired remote with magnetic mount

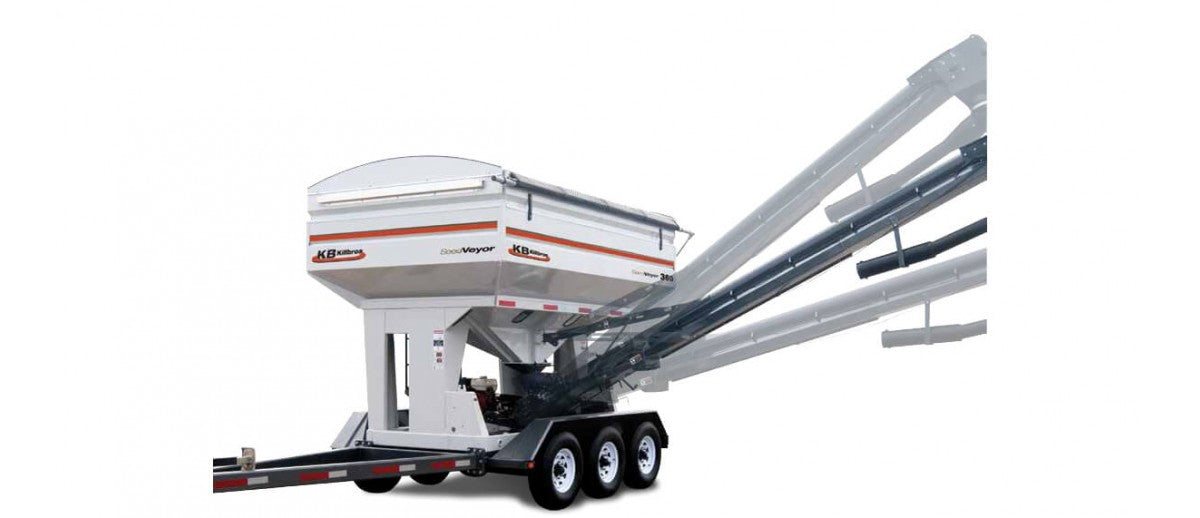

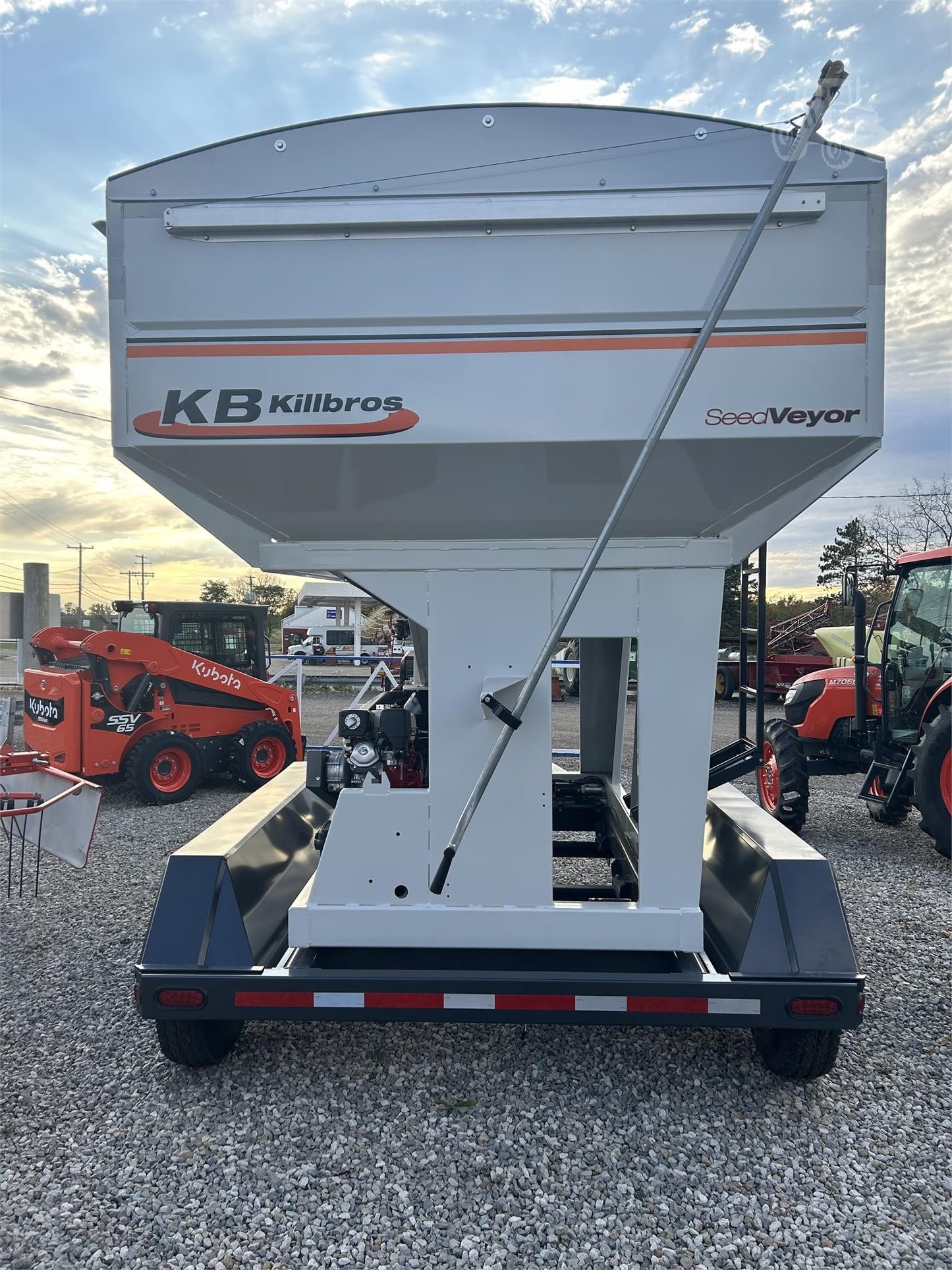

- Steel tube with telescoping downspout
- Hinged bottom door for easy cleanout
- Winch-controlled height adjustment

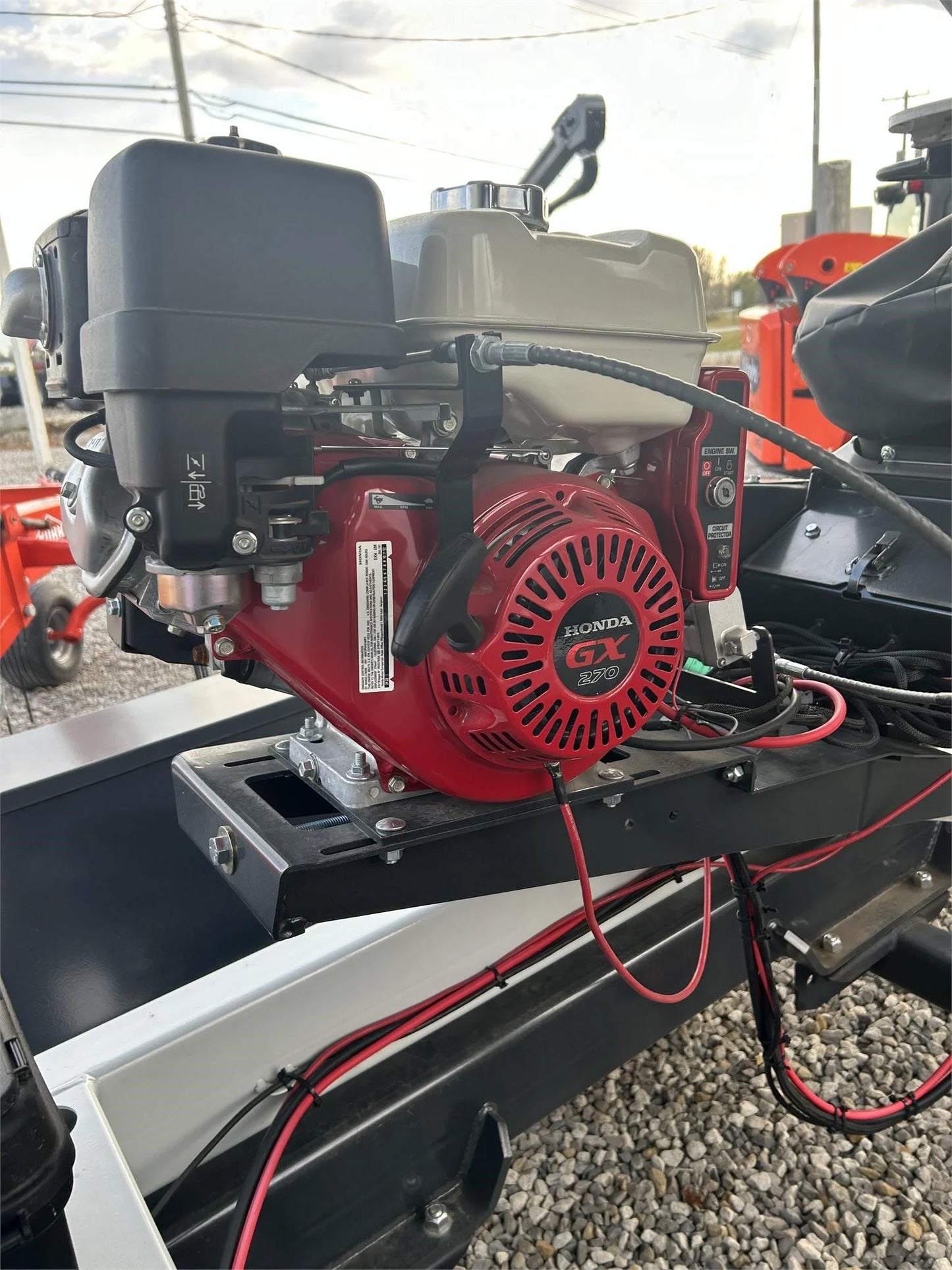

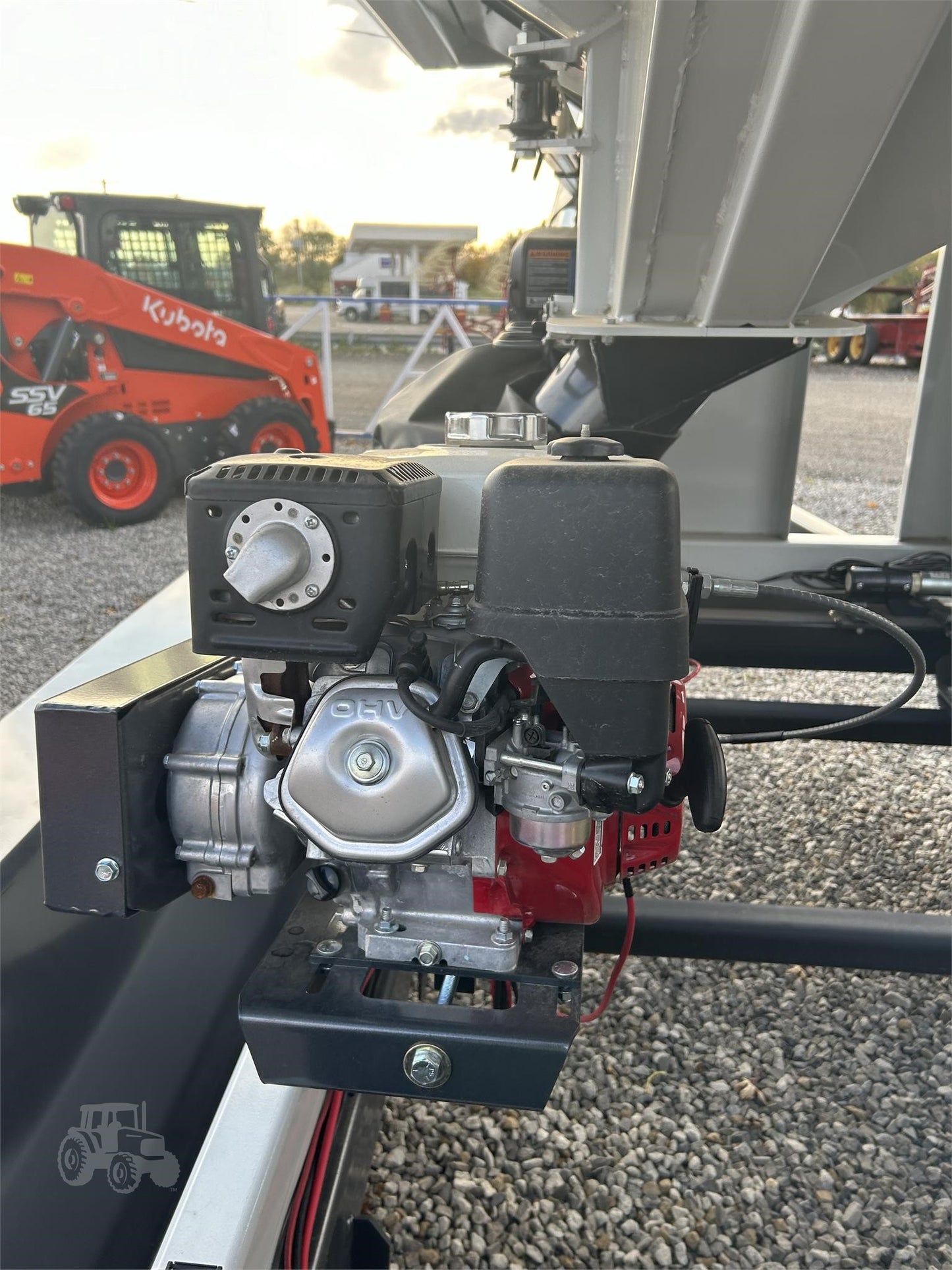

- Electric start Honda® gas engine with centrifugal clutch direct-drive system
- Conveyor or auger system with cupped and cleated belt or poly/steel auger flighting
- Heavy-duty undercarriage with rubber-cushioned suspension and electric brakes
- Highway-rated tires, lights, reflectors, ball hitch, and transport chain
