Kinedyne Grade 70 Grab Hook Chain Assembly | Width 3/8" | Length 16' | Working Load Limit 3,000 Kg | 25 Units Per Barrel | For Cargo & Industrial Tie-Down Applications

Kinedyne Grade 70 Grab Hook Chain Assembly | Width 3/8" | Length 16' | Working Load Limit 3,000 Kg | 25 Units Per Barrel | For Cargo & Industrial Tie-Down Applications

Regular price $3,766.78
Regular price $1,534.59 Sale price $3,766.78
Sale Sold out
Customizable
Fast
24/7 Support
  • Size: 3/8-inch diameter, 16-foot length
  • Working Load Limit: 6,600 lbs / 3,000 kg
  • Breaking Strength: 26,400 lbs / 11,975 kg
  • Hooks: Forged alloy steel Clevis Grab Hooks
  • Weight: 618 lbs / 280 kg per barrel (25 units)
View full details

Product Description

Kinedyne Grade 70 Grab Hook Chain Assembly | Width 3/8" | Length 16' | Working Load Limit 3,000 Kg | 25 Units Per Barrel | For Cargo & Industrial Tie-Down Applications


DESCRIPTION

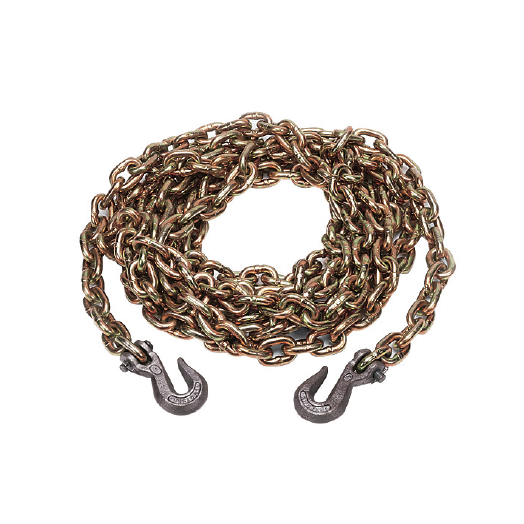

The Kinedyne 3/8" x 16' Grade 70 Grab Hook Chain Assembly is engineered for heavy-duty cargo securement, offering superior strength and durability. Manufactured from heat-treated carbon steel with a gold dichromate zinc-plated finish, this chain assembly provides a Working Load Limit (WLL) of 6,600 lbs (3,000 kg) and a Breaking Strength of 26,400 lbs (11,975 kg).

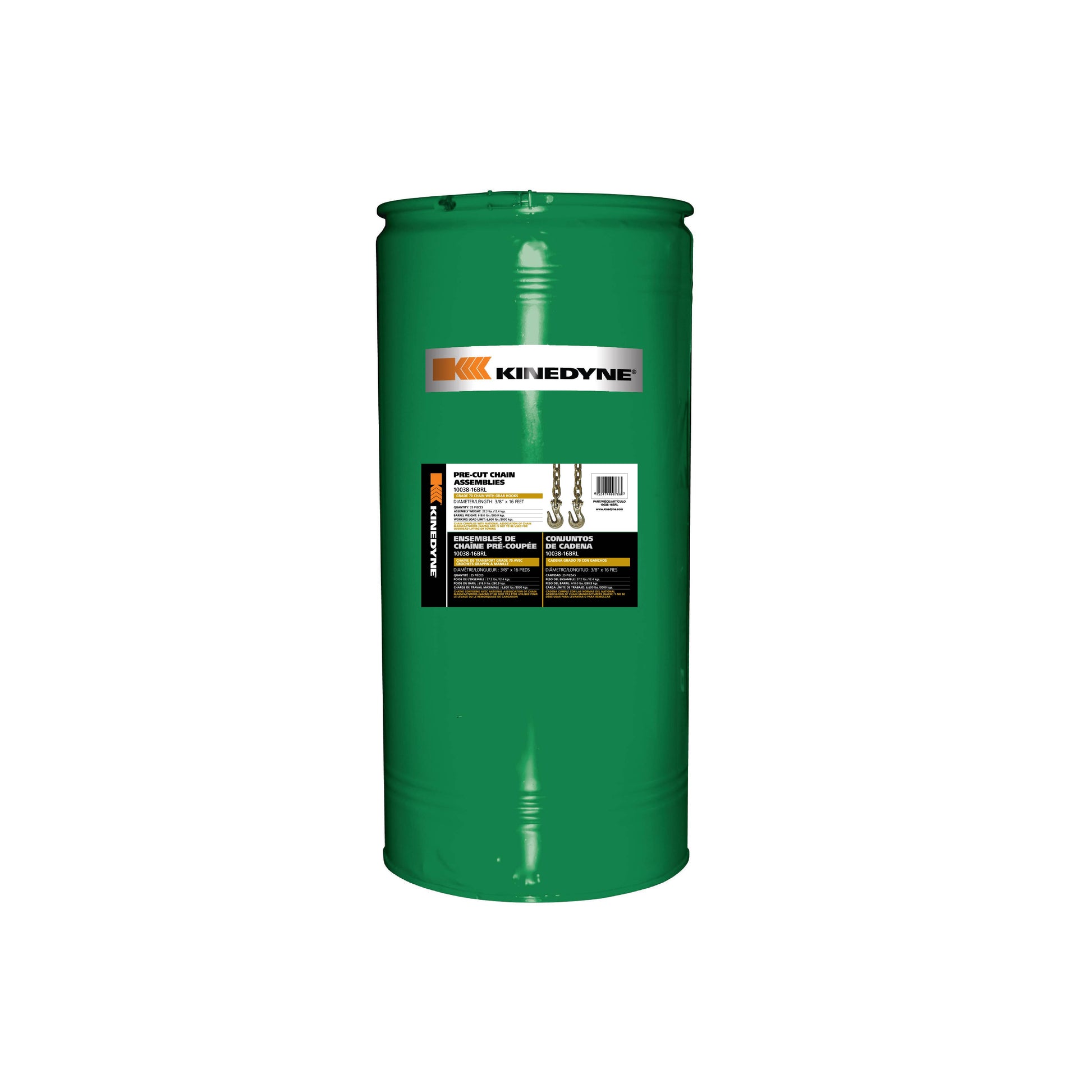

Each assembly comes pre-cut at 16 feet and is equipped with forged alloy steel Clevis Grab Hooks, designed with a narrow throat for secure, no-slip handling. Packaged in a reusable steel barrel with 25 units per barrel, these assemblies are ready to use immediately, saving time and effort for fleets, flatbed operators, and industrial users.

Compliant with National Association of Chain Manufacturers (NACM) standards, each chain is embossed with the manufacturer’s identification mark and the grade designation “70.”

⚠️ Note: Not intended for overhead lifting.

Key Features

  • Material: Heat-treated carbon steel construction
  • Size: 3/8-inch diameter, 16-foot length
  • Working Load Limit: 6,600 lbs / 3,000 kg
  • Breaking Strength: 26,400 lbs / 11,975 kg
  • Hooks: Forged alloy steel Clevis Grab Hooks
  • Weight: 618 lbs / 280 kg per barrel (25 units)
  • Finish: Gold dichromate zinc-plated coating
  • Identification: Embossed with Grade 70 marking
  • Compliance: Meets NACM manufacturing standards
  • Packaging: 25 chain assemblies per steel barrel
  • Applications: Transport, cargo securement, industrial use
  • Restrictions: Not for overhead lifting

Detailed Specifications

Specification Details
Brand Kinedyne
Model 3/8" x 16' Grade 70 Grab Hook Chain Assembly
Product Code 10038-16BRL
UPC Code 52474007863
Type Transport Chain Assembly
Material Heat-Treated Carbon Steel, Zinc Plated
Chain Grade 70
Diameter 3/8 inch (0.3 inches width)
Length 16 feet per assembly
Working Load Limit (WLL) 6,600 lbs / 3,000 kg
Breaking Strength 26,400 lbs / 11,975 kg
Hooks Forged Alloy Steel Clevis Grab Hooks
Hooks WLL 6,600 lbs / 3,000 kg
Hooks Breaking Strength 26,400 lbs / 11,975 kg
Hooks Finish Zinc Plated, Gold Dichromate
Hooks Color Gold Dichromate
Barrel Weight 618 lbs / 280 kg (25 assemblies)
Packaging Steel Barrel, 25 Units
Compliance NACM Recommendations
Identification Embossed with Manufacturer’s ID & Grade “70”
Applications Cargo Securement, Transport, Industrial, Commercial Projects
Restrictions Not for Overhead Lifting
Welded Chain True
Finish Zinc Plated, Gold Dichromate Color
Country of Origin China
Shipping Days 3–5
Proposition 65 No
Specification Met NACM – National Association of Chain Manufacturers
