Kinedyne Grade 70 Grab Hook Chain Assembly | Width 5/16" | Length 20' | Working Load Limit 2,135 Kg | 25 Units Per Barrel | For Cargo & Industrial Tie-Down Applications
Kinedyne Grade 70 Grab Hook Chain Assembly | Width 5/16" | Length 20' | Working Load Limit 2,135 Kg | 25 Units Per Barrel | For Cargo & Industrial Tie-Down Applications
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Kinedyne Grade 70 Grab Hook Chain Assembly | Width 5/16" | Length 20' | Working Load Limit 2,135 Kg | 25 Units Per Barrel | For Cargo & Industrial Tie-Down Applications
DESCRIPTION

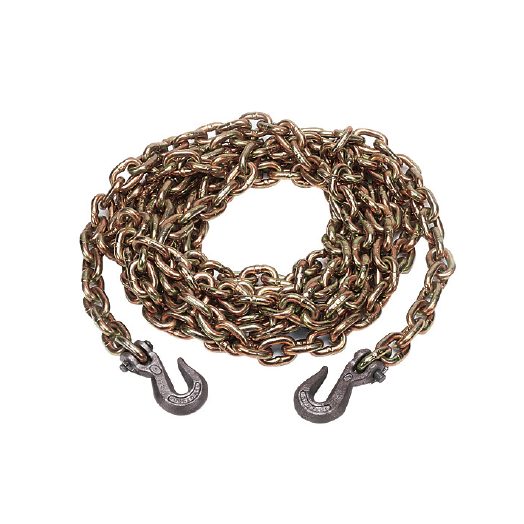

The Kinedyne 5/16" x 20' Grade 70 Grab Hook Chain Assembly is engineered to deliver the strength and durability required by fleets, flatbed operators, and industrial users. Manufactured from heat-treated carbon steel with a gold dichromate zinc-plated finish, this chain assembly provides a Working Load Limit (WLL) of 4,700 lbs (2,135 kg) and a Breaking Strength of 18,800 lbs (8,528 kg).

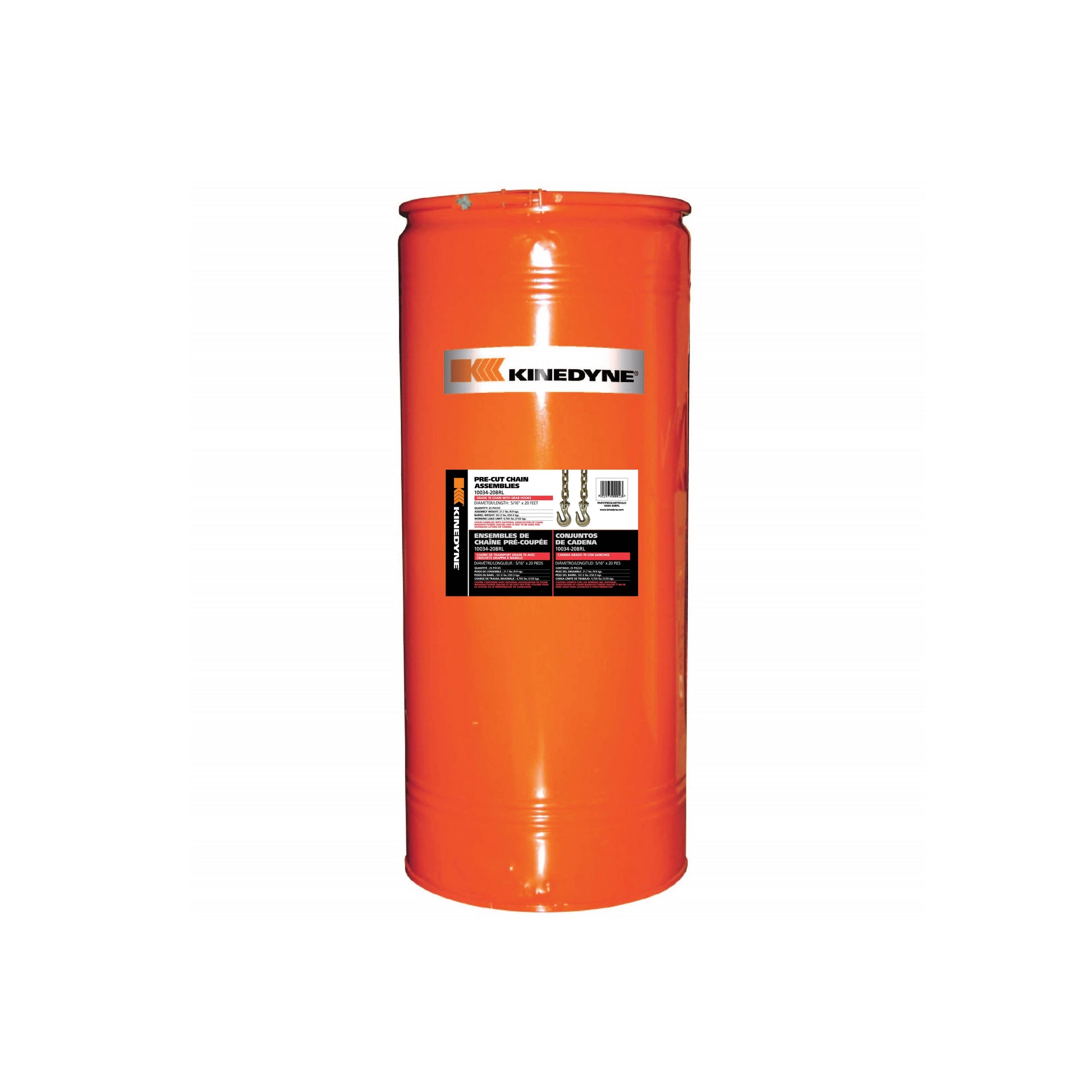

Each assembly comes pre-cut at 20 feet and is equipped with forged alloy steel Clevis Grab Hooks, designed with a narrow throat for secure, no-slip handling. Packaged in a reusable steel barrel with 25 units per barrel, these assemblies are ready to use immediately, offering convenience and efficiency for cargo securement operations.
Compliant with National Association of Chain Manufacturers (NACM) standards, each chain is embossed with the manufacturer’s identification mark and the grade designation “70.”
⚠️ Note: Not intended for overhead lifting.
Key Features
- Material: Heat-treated carbon steel construction
- Size: 5/16-inch diameter, 20-foot length
- Working Load Limit: 4,700 lbs / 2,135 kg
- Breaking Strength: 18,800 lbs / 8,528 kg
- Hooks: Forged alloy steel Clevis Grab Hooks
- Weight: 551 lbs / 250 kg per barrel (25 units)
- Finish: Gold dichromate zinc-plated coating
- Identification: Embossed with Grade 70 marking
- Compliance: Meets NACM manufacturing standards
- Packaging: 25 chain assemblies per steel barrel
- Applications: Transport, cargo securement, industrial use
- Restrictions: Not for overhead lifting
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Kinedyne |
| Model | 5/16" x 20' Grade 70 Grab Hook Chain Assembly |
| Product Code | 10034-20BRL |
| UPC Code | 52474000123 |
| Type | Transport Chain Assembly |
| Material | Heat-Treated Carbon Steel, Zinc Plated |
| Chain Grade | 70 |
| Diameter | 5/16 inch (0.3 inches width) |
| Length | 20 feet per assembly |
| Working Load Limit (WLL) | 4,700 lbs / 2,135 kg |
| Breaking Strength | 18,800 lbs / 8,528 kg |
| Hooks | Forged Alloy Steel Clevis Grab Hooks |
| Hooks WLL | 4,700 lbs / 2,135 kg |
| Hooks Breaking Strength | 18,800 lbs / 8,528 kg |
| Hooks Finish | Zinc Plated, Gold Dichromate |
| Hooks Color | Gold Dichromate |
| Barrel Weight | 551 lbs / 250 kg (25 assemblies) |
| Packaging | Steel Barrel, 25 Units |
| Compliance | NACM Recommendations |
| Identification | Embossed with Manufacturer’s ID & Grade “70” |
| Applications | Cargo Securement, Transport, Industrial, Commercial Projects |
| Restrictions | Not for Overhead Lifting |
| Welded Chain | True |
| Finish | Zinc Plated, Gold Dichromate Color |
| Country of Origin | China |
| Shipping Days | 3–5 |
| Proposition 65 | No |
| Specification Met | NACM – National Association of Chain Manufacturers |
