Product Description
Kinedyne Grade 70 Grab Hook Chain Assembly | Width 5/16" | Length 25' | Working Load Limit 2,135 Kg | 20 Units Per Barrel | For Cargo & Industrial Tie-Down Applications
DESCRIPTION
The Kinedyne 5/16" x 25' Grade 70 Grab Hook Chain Assembly is designed to meet the rigorous demands of fleets, flatbed operators, and industrial cargo control. Manufactured from heat-treated carbon steel with a gold dichromate zinc-plated finish, this chain assembly provides a Working Load Limit (WLL) of 4,700 lbs (2,135 kg) and a Breaking Strength of 18,800 lbs (8,528 kg).

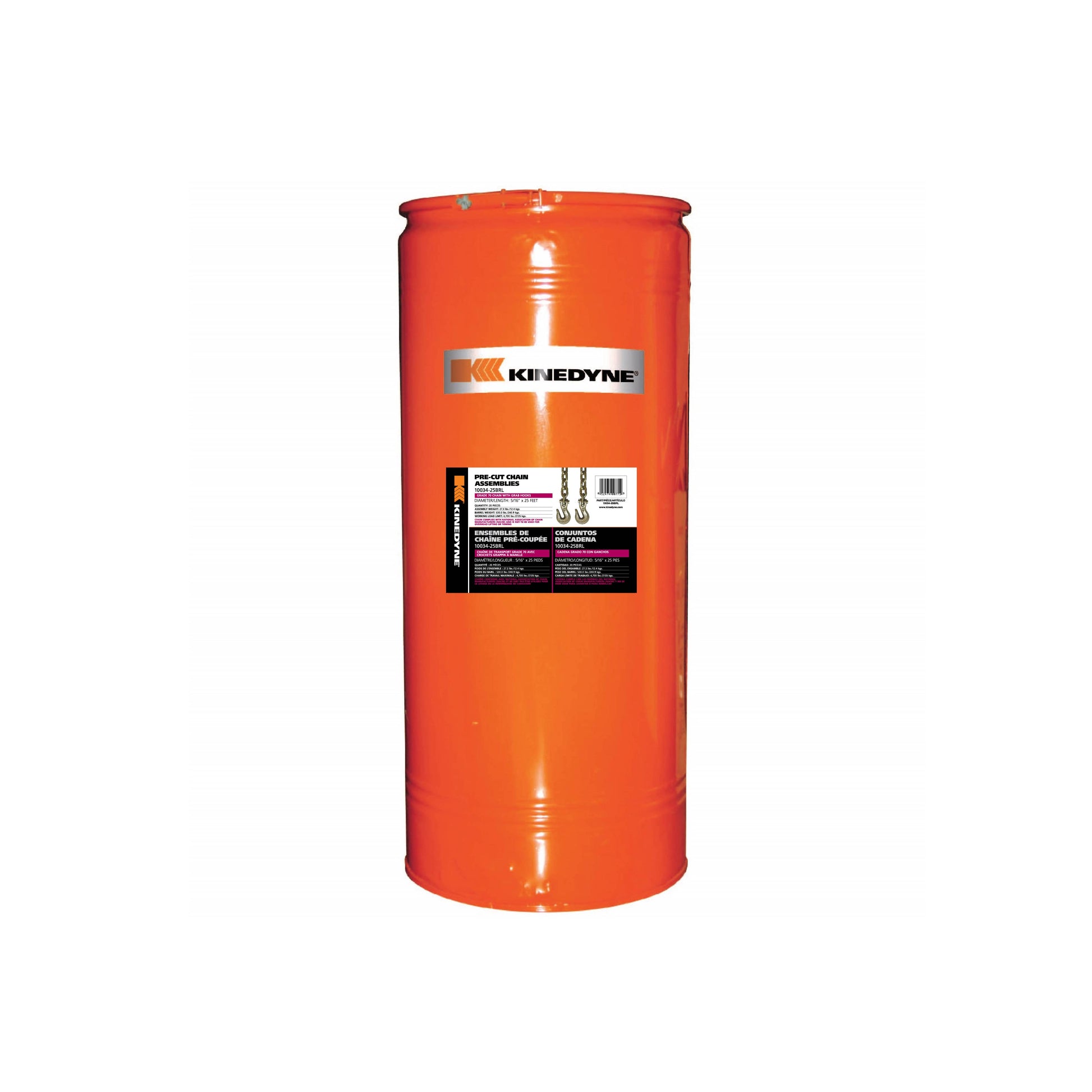

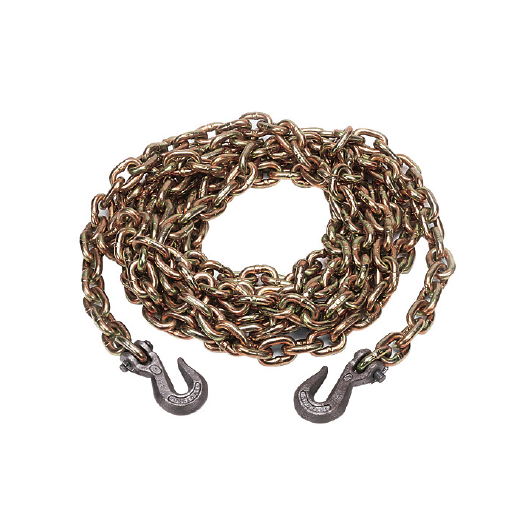

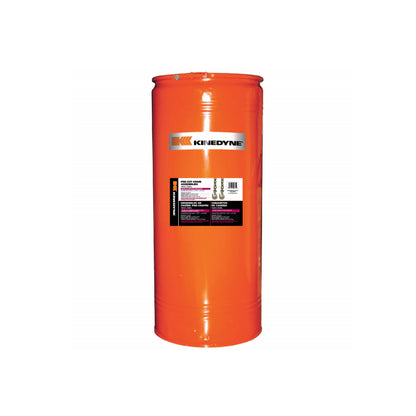

Each assembly comes pre-cut at 25 feet and is equipped with forged alloy steel Clevis Grab Hooks, engineered with a narrow throat for secure, no-slip handling. Packaged in a reusable steel barrel with 20 units per barrel, these assemblies are ready to use immediately, offering convenience and efficiency for heavy-duty cargo securement.
Compliant with National Association of Chain Manufacturers (NACM) standards, each chain is embossed with the manufacturer’s identification mark and the grade designation “70.”
⚠️ Note: Not intended for overhead lifting.
Key Features
- Material: Heat-treated carbon steel construction
- Size: 5/16-inch diameter, 25-foot length
- Working Load Limit: 4,700 lbs / 2,135 kg
- Breaking Strength: 18,800 lbs / 8,528 kg
- Hooks: Forged alloy steel Clevis Grab Hooks
- Weight: 530 lbs / 240 kg per barrel (20 units)
- Finish: Gold dichromate zinc-plated coating
- Identification: Embossed with Grade 70 marking
- Compliance: Meets NACM manufacturing standards
- Packaging: 20 chain assemblies per steel barrel
- Applications: Transport, cargo securement, industrial use
- Restrictions: Not for overhead lifting
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Kinedyne |
| Model | 5/16" x 25' Grade 70 Grab Hook Chain Assembly |
| Product Code | 10034-25BRL |
| UPC Code | 52474007719 |
| Type | Transport Chain Assembly |
| Material | Heat-Treated Carbon Steel, Zinc Plated |
| Chain Grade | 70 |
| Diameter | 5/16 inch (0.3 inches width) |
| Length | 25 feet per assembly |
| Working Load Limit (WLL) | 4,700 lbs / 2,135 kg |
| Breaking Strength | 18,800 lbs / 8,528 kg |
| Hooks | Forged Alloy Steel Clevis Grab Hooks |
| Hooks WLL | 4,700 lbs / 2,135 kg |
| Hooks Breaking Strength | 18,800 lbs / 8,528 kg |
| Hooks Finish | Zinc Plated, Gold Dichromate |
| Hooks Color | Gold Dichromate |
| Barrel Weight | 530 lbs / 240 kg (20 assemblies) |
| Packaging | Steel Barrel, 20 Units |
| Compliance | NACM Recommendations |
| Identification | Embossed with Manufacturer’s ID & Grade “70” |
| Applications | Cargo Securement, Transport, Industrial, Commercial Projects |
| Restrictions | Not for Overhead Lifting |
| Welded Chain | True |
| Finish | Zinc Plated, Gold Dichromate Color |
| Country of Origin | China |
| Shipping Days | 3–5 |
| Proposition 65 | No |
| Specification Met | NACM – National Association of Chain Manufacturers |
