Product Description

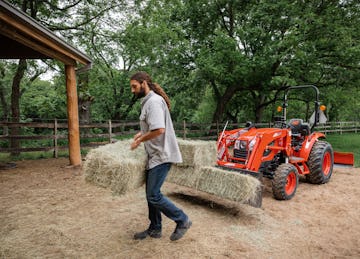

Kioti CK2620M Compact Manual Tractor | 24HP Gross Power Diesel Engine | 54" Width | High Ground Clearance
Description

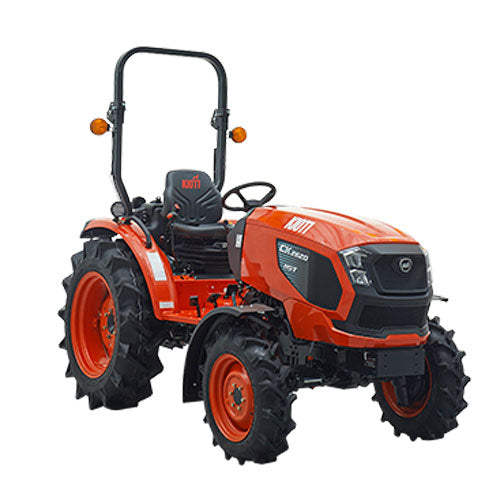

The KIOTI CK2620M Manual Tractor is a compact powerhouse, designed for small farms, landscaping, and property maintenance. With a 24.5 HP Tier 4 diesel engine, this tractor combines fuel efficiency and quiet operation, perfect for tackling various tasks with ease. The manual 9x3 transmission offers precise control, while the impressive ground clearance and live rear PTO allow this tractor to handle rugged terrain and a wide range of attachments.
Equipped with a foldable ROPS for added safety and a single-lever joystick for intuitive loader control, the CK2620M provides versatility and comfort. Its ergonomic operator station and optional field cab make it suitable for extended use in all weather conditions, making it a reliable choice for demanding environments.
Key Features
- Engine Power: 24.5 HP eco-friendly diesel engine for efficient performance
- Manual Transmission: 9x3 manual transmission provides reliable power control
- Live PTO: 540 RPM rear PTO for seamless implement operation
- Single Lever Joystick: Effortless control over loader functions
- High Ground Clearance: 13.4 inches for easy maneuverability over rough terrain
- Hydrostatic Power Steering: Ensures smooth handling for increased operator comfort
- Foldable ROPS: Added safety and flexibility for various working conditions
- 3-Point Hitch: Category I with 1,631 lbs lift capacity at 24” aft of hitch
- Compact Size: Suitable for smaller spaces with easy maneuverability
- Optional Cab: Available with an all-weather cab for year-round use
Detailed Specifications
| Category | Specification |
|---|---|
| Engine Model | 3A165LWM-U |
| Engine Gross Power | 24.5 HP (18.2 kW) |
| Rated Speed | 2,400 RPM |
| No. of Cylinders | 3 |
| Fuel Type | Diesel |
| Displacement | 100.5 cu. in. (1,647 cc) |
| Fuel Tank Capacity | 9.0 gal. (34 L) |
| Transmission Type | 9x3 Manual |
| PTO Type | Live |
| PTO Power | 19.5 HP (14.5 kW) |
| Rear PTO Speed | 540 RPM |
| Mid PTO Speed (Optional) | 2,000 RPM |
| Brakes | Wet Multi Disc |
| Clutch | Dry Dual Stage |
| Total Pump Flow | 11.73 GPM (44.4 L/min) |
| 3-Point Hitch | Category I |
| Lift Capacity | 1,631 lbs (740 kg) at 24” aft of hitch |
| Length w/ 3-Point Hitch | 120.87 in (3,070 mm) |
| Width | 54.5 in (1,385 mm) |
| Height from Top of ROPS | 92.91 in (2,360 mm) |
| Wheelbase | 65.7 in (1,670 mm) |
| Ground Clearance | 13.4 in (340 mm) |
| Turning Radius w/ Brake | 107.5 in (2,730 mm) |
| Weight (with ROPS) | 2,635 lbs (1,195 kg) |
In Package

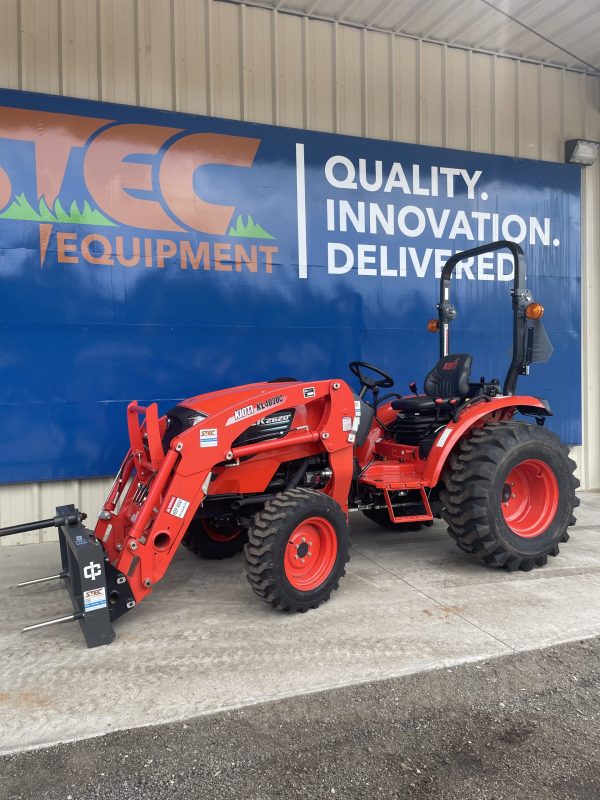

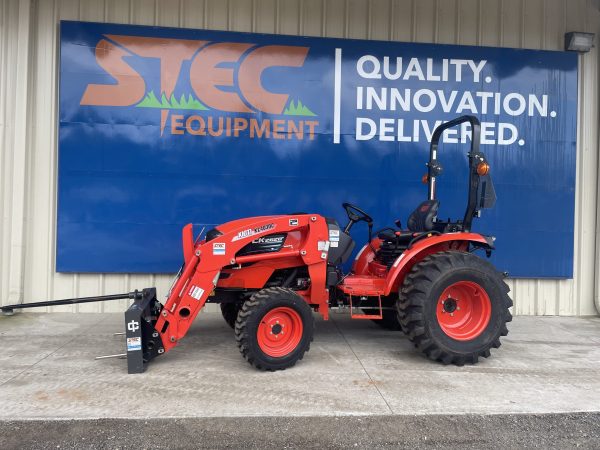

- KIOTI CK2620M Tractor
- Loader Attachment

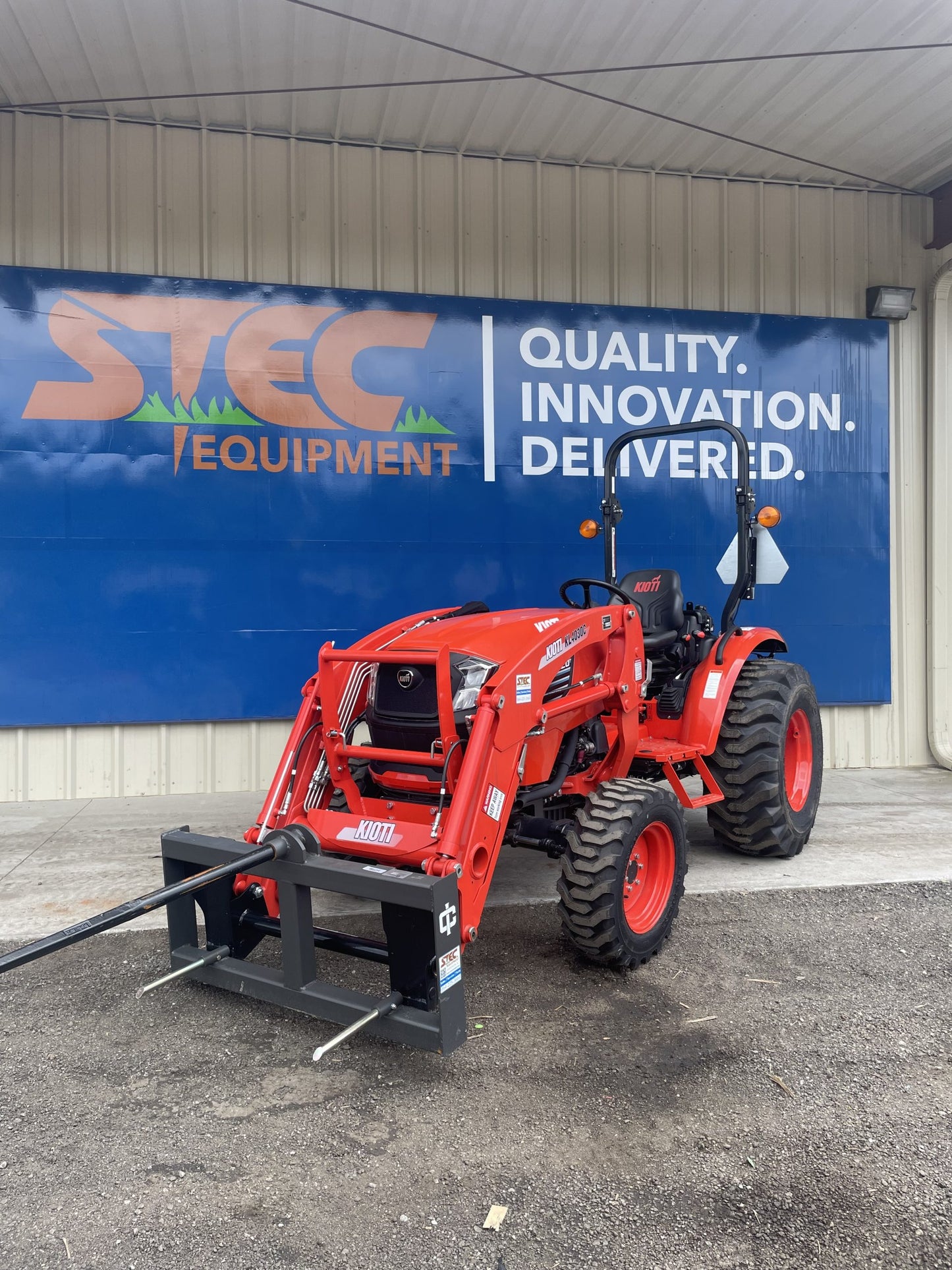

- Hay Spear Attachment
- User Manual
Available Options
- Tire Options: Agricultural, Turf
- Field Cab with AC and Heat
