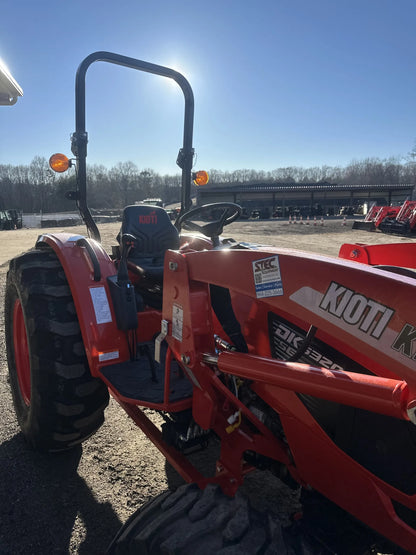

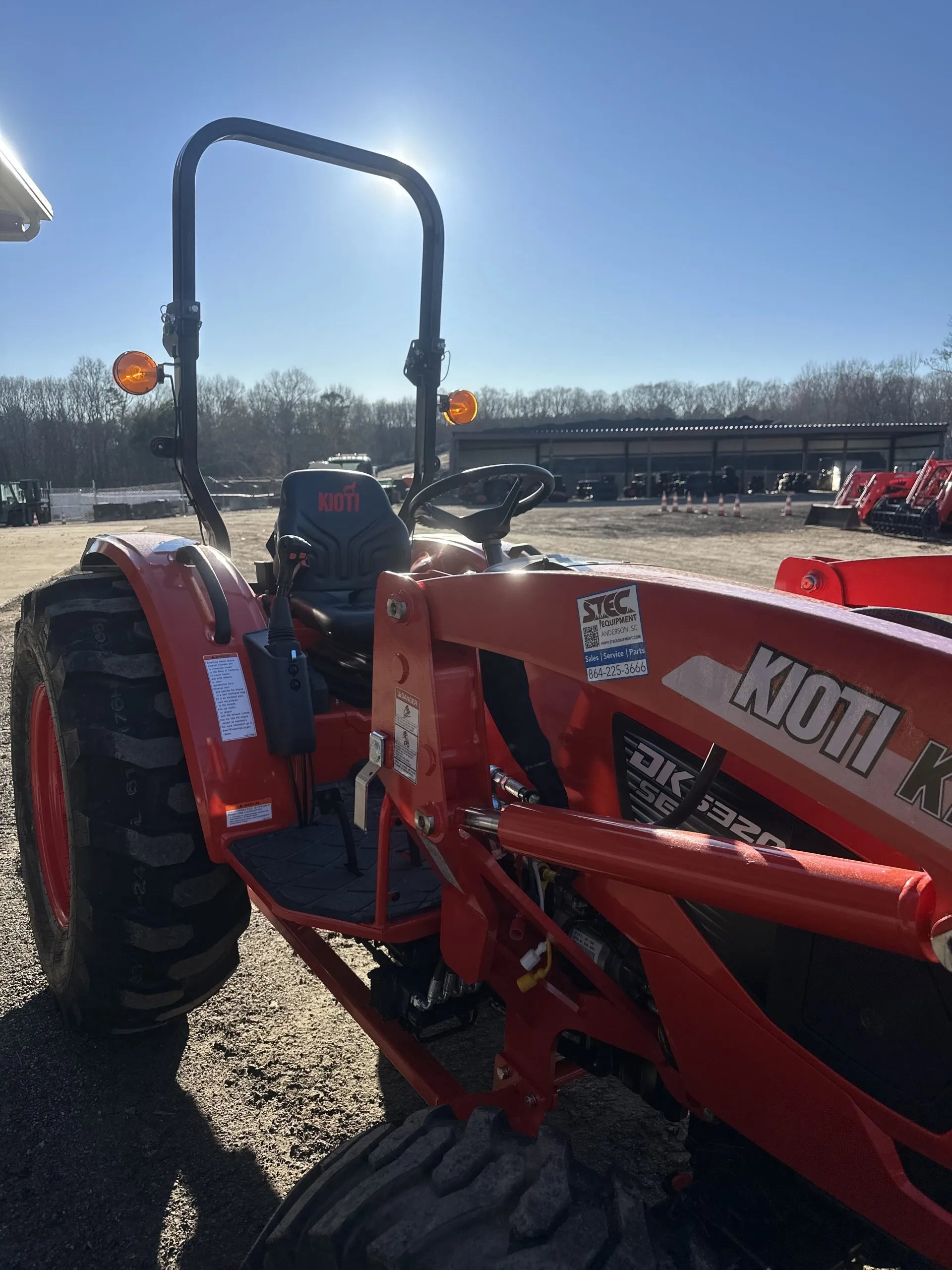

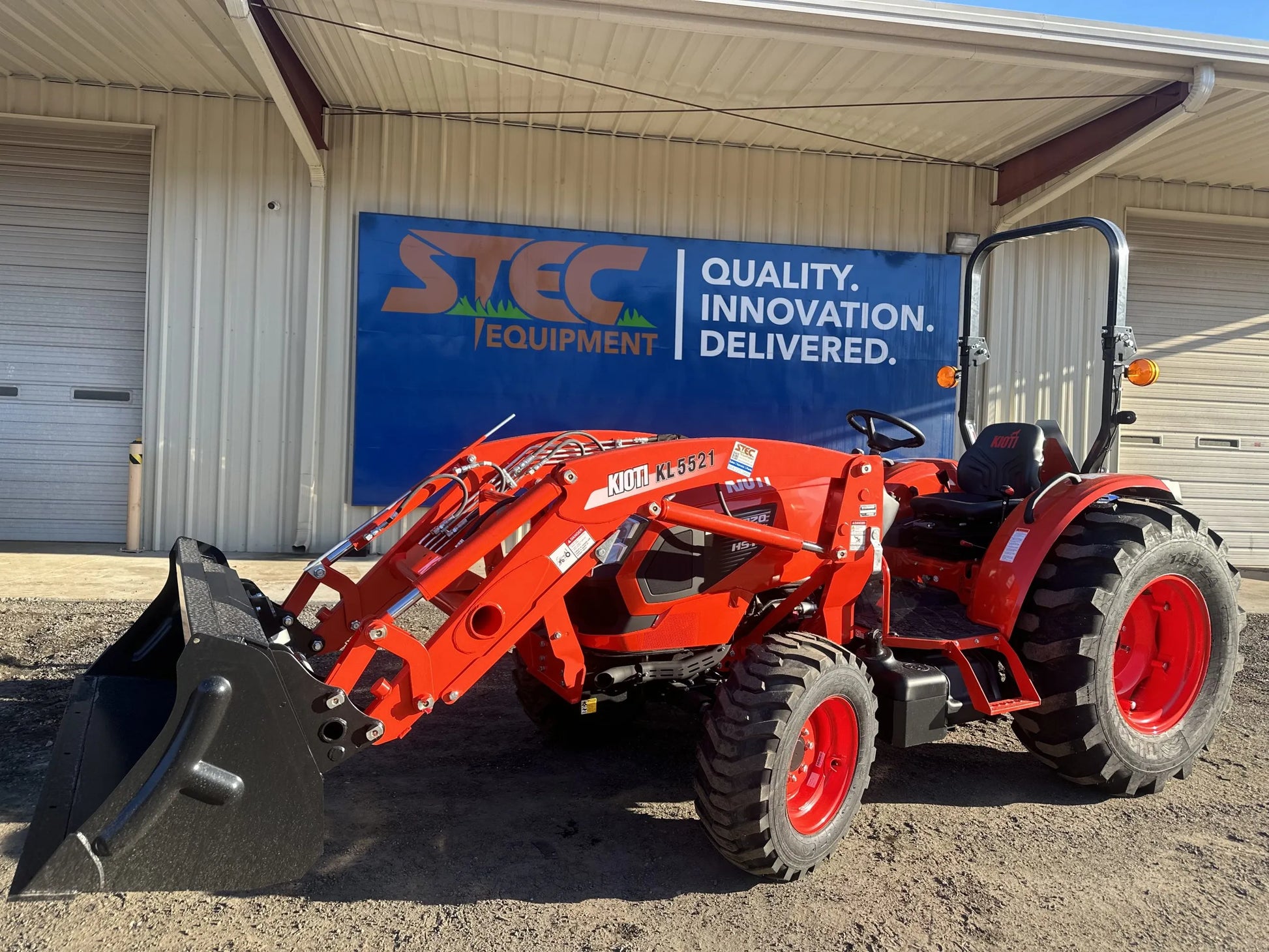

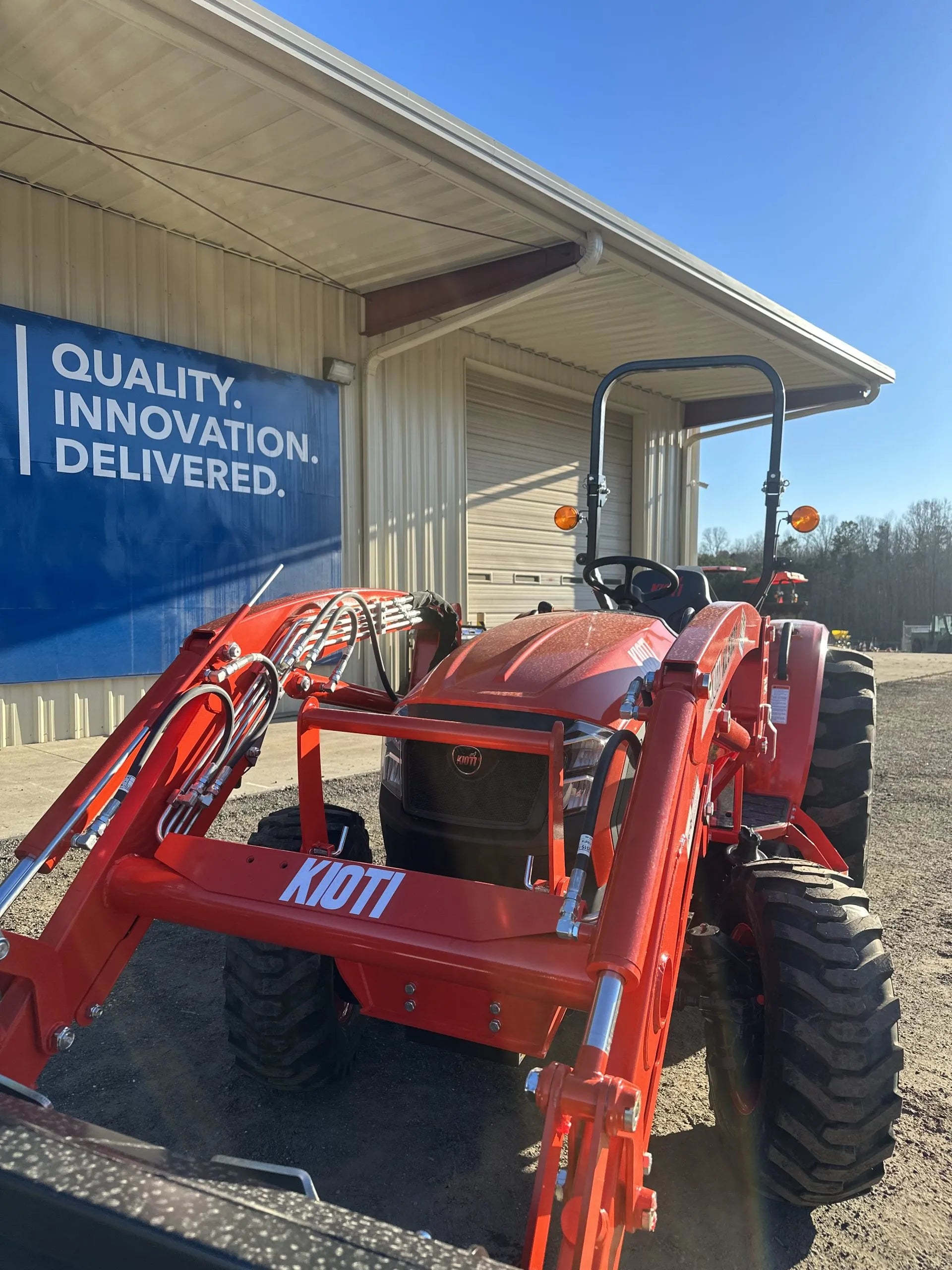

KIOTI Hydrostatic Tractor with Loader | DK5320SE | 62.8" Width | 50.3 HP
DESCRIPTION
The Kioti DK5320SE Hydrostatic Tractor with Loader is a robust and versatile powerhouse tailored to meet the demands of modern agricultural and utility tasks. Powered by a reliable 50.3-horsepower diesel engine, this open station tractor delivers consistent performance, whether you’re plowing, lifting, or towing heavy loads. Its hydrostatic transmission with infinite forward and reverse speed ranges across three modes ensures smooth operation and precise control for varied terrain and jobs.
Designed for operator convenience and efficiency, the DK5320SE features intuitive controls and hydrostatic power steering that makes long work hours comfortable and productive. The independent PTO system, producing 28.9 horsepower, guarantees reliable power for running implements like mowers and balers. The gear-driven hydraulic pump offers 16.5 GPM of flow capacity and enables a lift capacity of 2,716 lbs., making heavy-duty operations seamless and efficient.
This durable tractor is built with wet multi-disc brakes for reliable stopping power and a Category 1 three-point hitch that provides compatibility with a range of implements. Compact yet powerful, its high ground clearance and tight turning radius ensure superior maneuverability, while an optional front-end loader expands its capabilities to tackle material handling and excavation tasks.
Key Features
Powerful Diesel Engine: The 50.3-horsepower KIOTI engine provides robust performance and efficient fuel consumption for demanding operations.
Hydrostatic Transmission: Features infinite forward and reverse speeds across three modes for optimal control and adaptability.
Independent PTO System: Offers 28.9 PTO horsepower with rear and optional mid-speed settings for efficient operation of implements.
Durable Hydraulics: Gear-driven pump delivers 16.5 GPM flow capacity, enabling a lift capacity of 2,716 lbs. for heavy-duty applications.

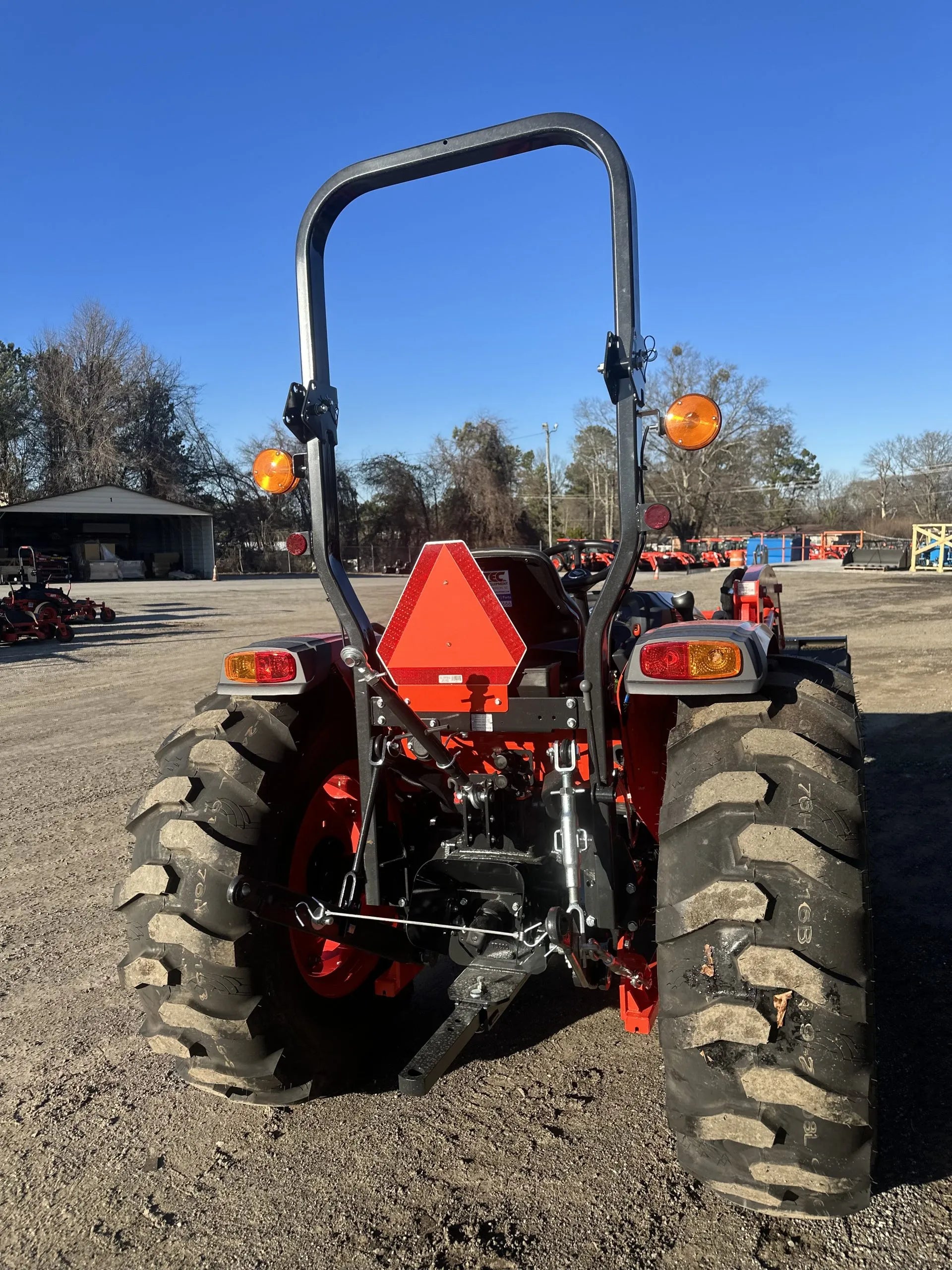

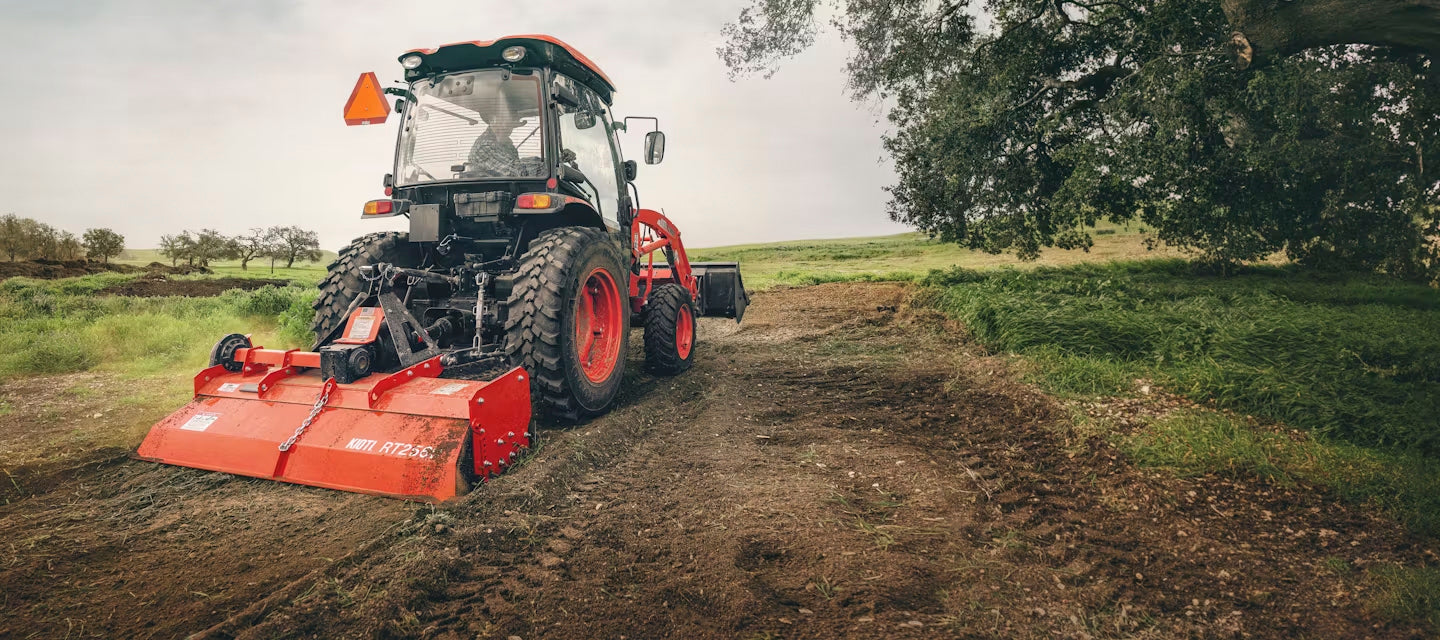

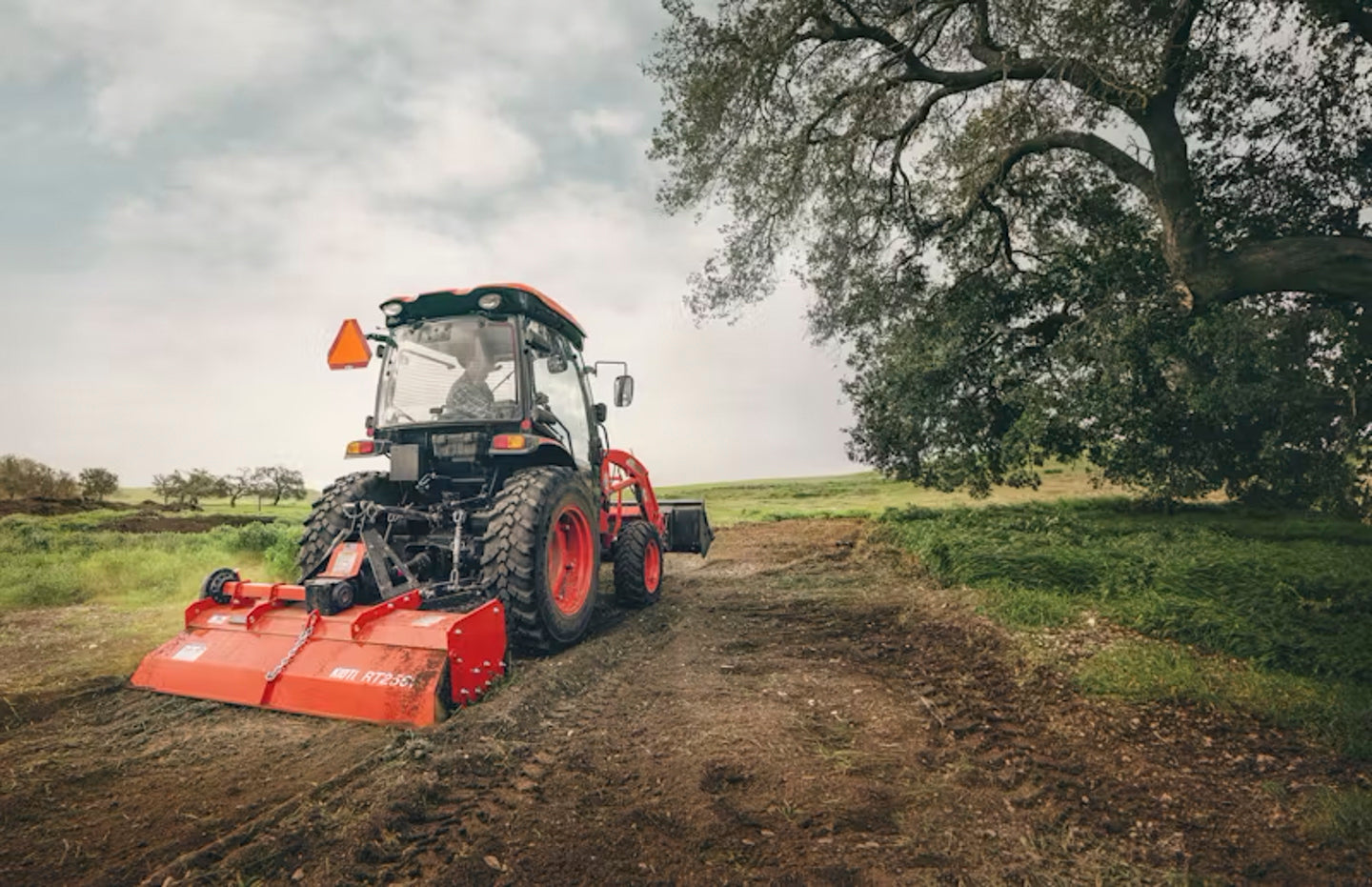

Three-Point Hitch: Category 1 hitch with position control ensures compatibility with various implements and precision in operation.

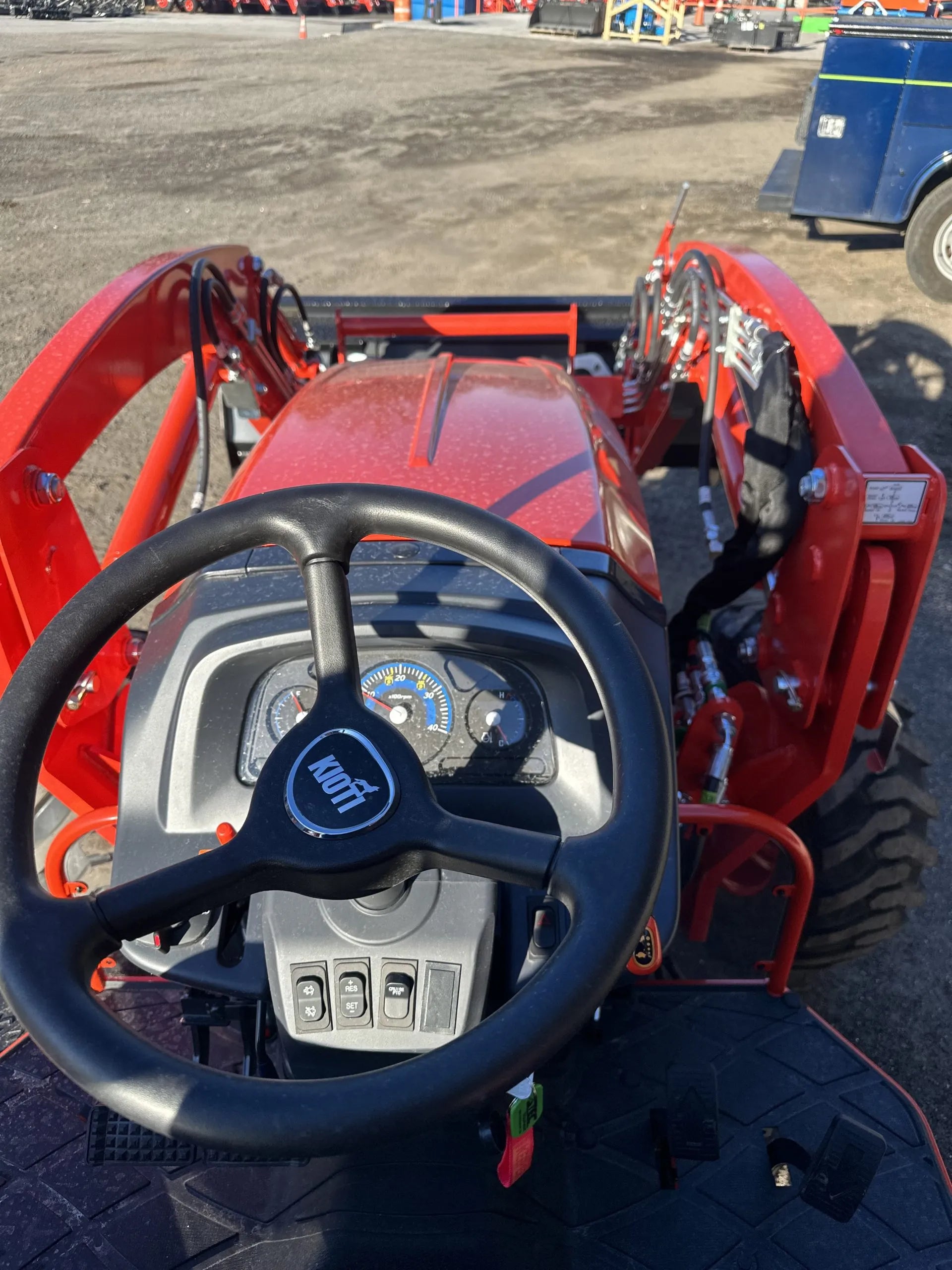

Operator-Friendly Design: Open station layout with hydrostatic power steering and ergonomic controls for ease of use during extended shifts.
Compact and Maneuverable: High ground clearance of 14.5 inches and tight turning radius allow navigation through rugged terrain and tight spaces.

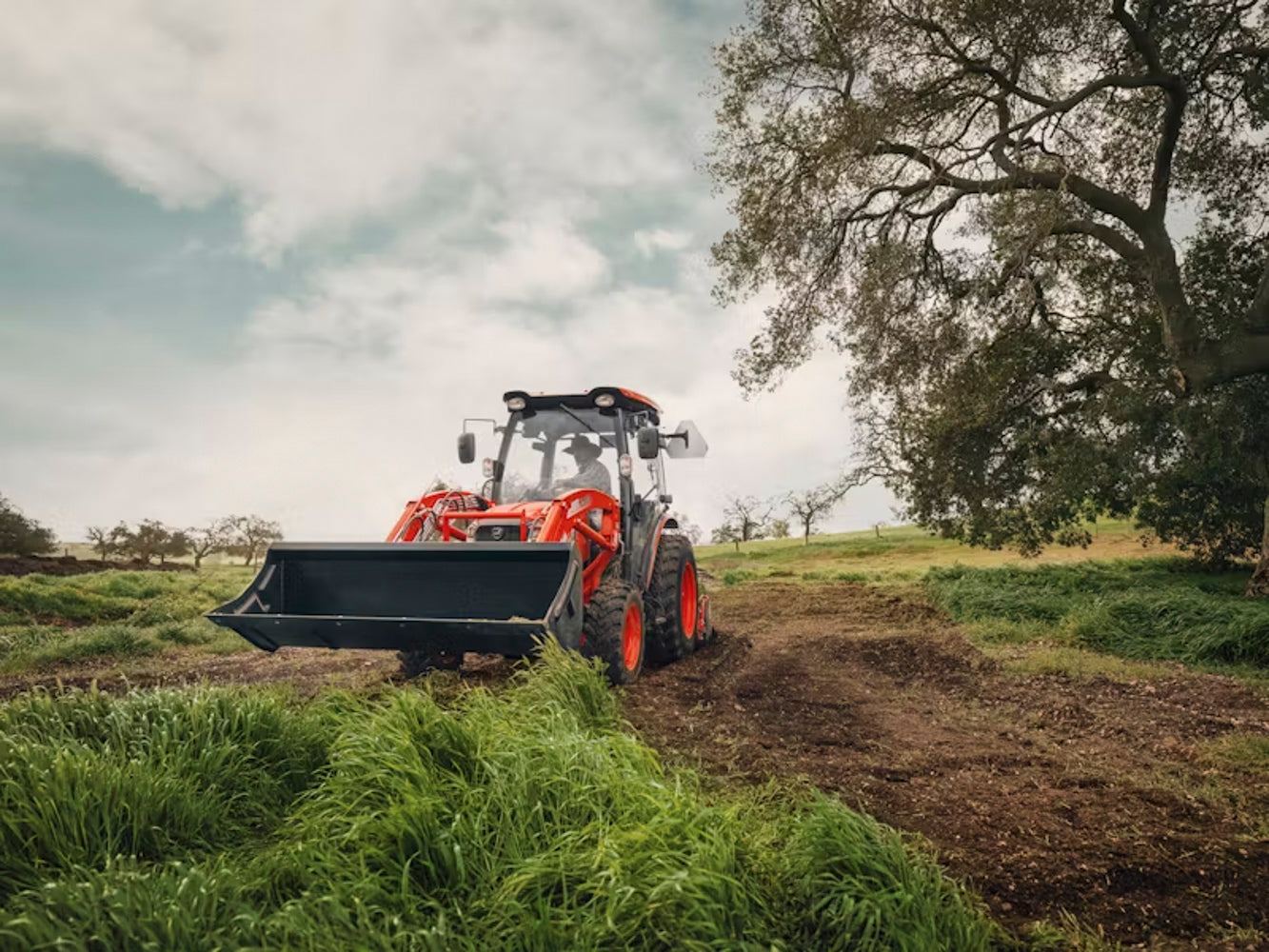

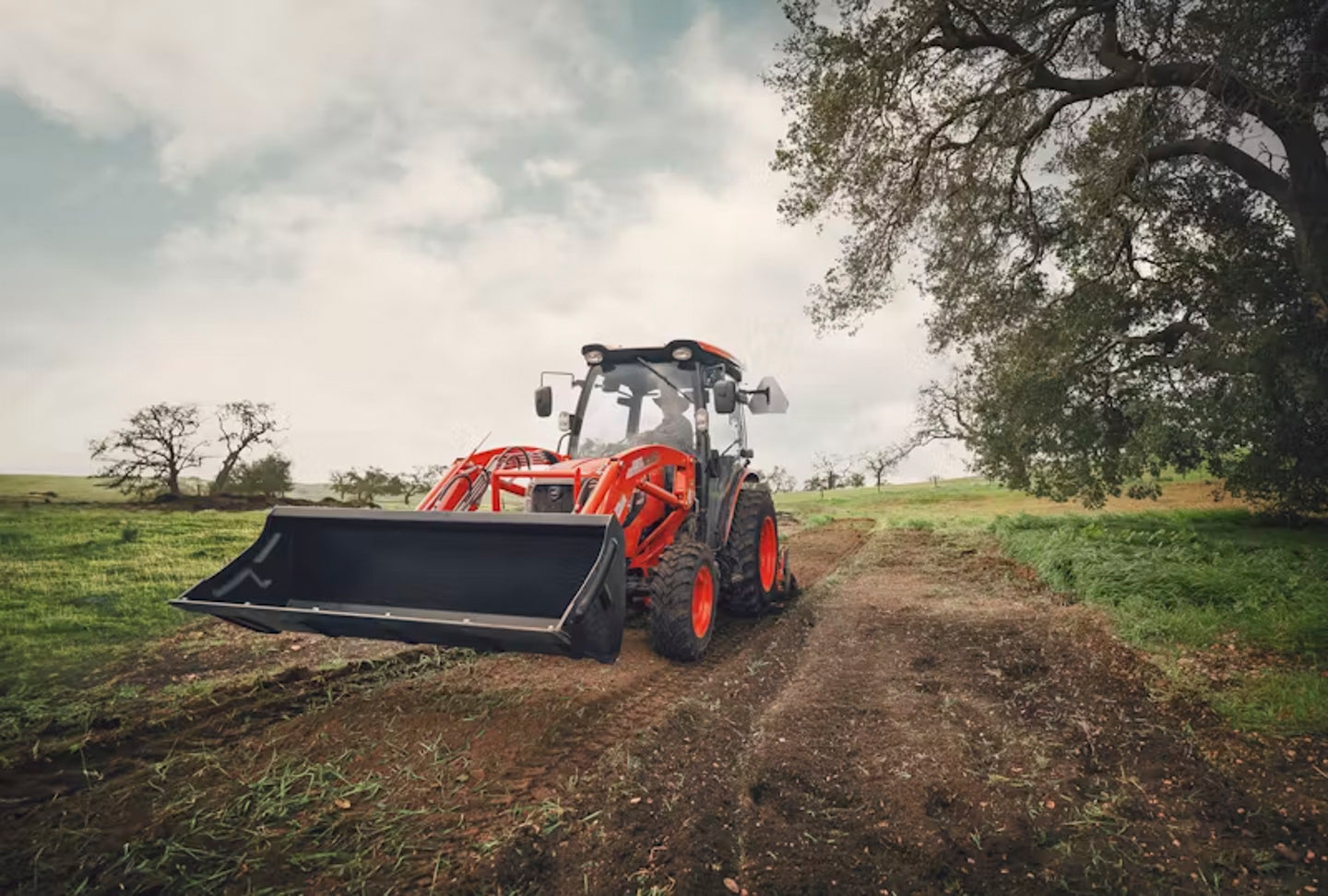

Optional Loader Attachment: Boosts functionality for material handling, lifting, and excavation tasks.
Reliable Construction: Built with wet multi-disc brakes and durable components for consistent reliability under challenging conditions.
Detailed Specifications
Specification
Details
Engine Power
50.3 hp (37.5 kW)
Engine Displacement
111.40 cu. in. (1,826 cc)
RPM
2,600 rpm
Fuel Capacity
12.7 gal (48 L)
Transmission
Hydrostatic
Travel Speeds (Max Forward)
16.7 mph (26.9 km/h)
Travel Speeds (Max Reverse)
16.3 mph (26.2 km/h)
PTO Power
28.9 hp (21.6 kW)
Rear PTO Speed
540 rpm
Mid PTO Speed
2,000 rpm
Pump Capacity
16.5 gpm (62.4 lpm)
Hitch Category
Category 1
Lift Capacity
2,716 lbs. (1,232 kg)
Dimensions (Length)
125.5 in (3,189 mm)
Width
62.8 in (1,596 mm)
Weight
3,523 lbs. (1,598 kg)
Ground Clearance
14.5 in (368 mm)
Turning Radius
8.56 ft (2.6 m)
Height
98.6 in (2,458 mm)
