Kioti K9 2400 Utility Vehicles Engine 24 hp (17.89 kW)
Kioti K9 2400 Utility Vehicles Engine 24 hp (17.89 kW)
Regular price
$19,769.00
Regular price
Sale price
$19,769.00
Unit price
/
per
Couldn't load pickup availability
Couldn't load pickup availability
Questions? Call us!
(561) 914-4534![Customizable](https://cdn.shopify.com/s/files/1/0550/4407/9795/files/3_c2591eef-e710-4e25-a261-d2646c1c3510.png?v=1724683443)
![Fast](https://cdn.shopify.com/s/files/1/0550/4407/9795/files/4_f360af48-d3d4-44f0-b557-4dd59a6c8dea.png?v=1724683442)
![24/7 Support](https://cdn.shopify.com/s/files/1/0550/4407/9795/files/1_37e8b031-4671-4c86-a046-0a292cabb81b.png?v=1724683443)

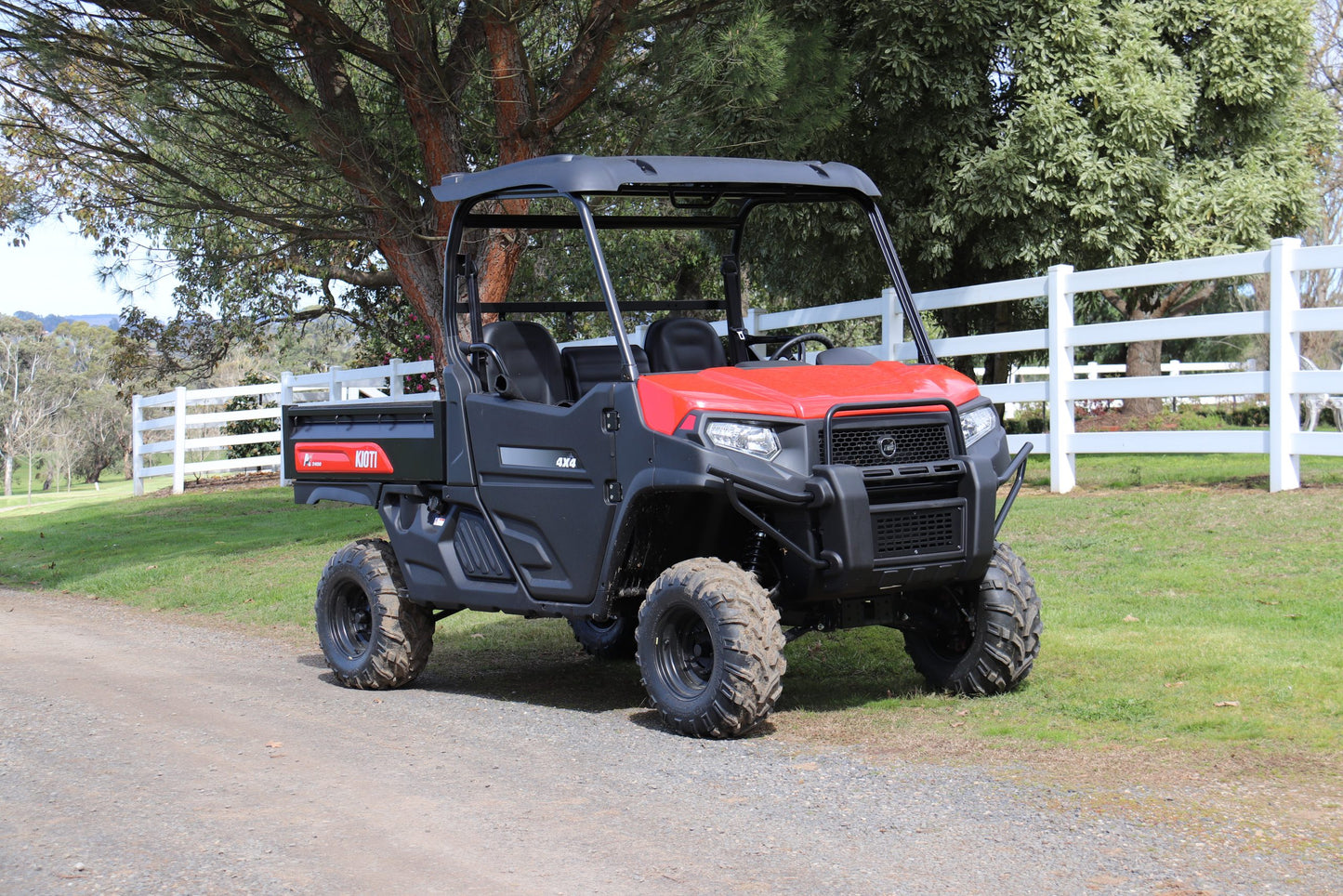

Kioti K9 2400 Utility Vehicles 24 hp (17.89 kW)
DESCRIPTION
The new KIOTI K9 UTV. A Landowners Best Friend. Fully-Featured, Tough, and Reliable Companion. The K9 offers contemporary styling, enhanced ergonomics and an abundance of storage. With a 24 horsepower, 3 cylinder, in-line vertical, water-cooled Daedong diesel engine with a ground speed up to 31 mph, landowners will rejoice. *Payload capacity includes passengers.
- Engine Gross Power: 24 hp (17.89 kW)
- PTO Type: N/A
- Transmission Type: Belt Driven CVT
- Shuttle: N/A
FEATURES
- Hydraulic Power Steering
- 4WD
- 12.5” ground clearance
- 1,598 lbs. payload capacity
- 1,300 lbs. towing capacity
- Independent wishbone type front and rear suspension
- Four wheel hydraulic disc brakes
SPECIFICATIONS
Engine
Engine Model | 3C100LFU-U2 |
Engine Type | 4-Cycle Diesel, 3 Cyl., In-line Vertical, Water-Cooled |
Engine Gross | 24 hp (17.89 kW) |
Displacement | 61.45 cu. in. (1,007 cc) |
Rated Revolution | 3,000 rpm |
Fuel Tank Capacity | 9.7 gal. (37 ℓ) |
Drive Train
Type | Belt CVT |
Gear Range | Low, High, Neutral, Reverse |
Ground Speed | 0-31 Mph (0-50 Km/H) |
Brake | Front/Rear Hydraulic Disc |
Suspension
Front Suspension | Independent, Double A-Arm (Wishbone Type) |
Rear Suspension | Independent, Double A-Arm (Wishbone Type) |
Steering
Type | Hydraulic Power |
Dimensions
Length | 119.8 In. (3,045 Mm) |
Width | 62.5 In. (1,590 Mm) |
Height | 76.7 In. (1,950 Mm) |
Max Front Wheel Tread | 49.7 In. (1,262 Mm) |
Max Rear Wheel Tread | 49.8 In. (1,264 Mm) |
Wheelbase | 85.8 In. (2,180 Mm) |
Weight | 2,050 Lbs. (930 Kg) |
Ground Clearance | 12.5 In. (318 Mm) |
Towing Capacity | 1,300 Lbs. (590 Kg) |
Payload Capacity | 1,598 Lbs. (725 Kg) |
Turning Radius | 14.1 Ft. (4.3 M) |
Cargo Bed
Length X Width X Depth | 43.7 X 58.2 X 11.5 In. (1,110 X 1,480 X 293 Mm) |
Bed Capacity | 1,102 Lbs. (500 Kg) |
