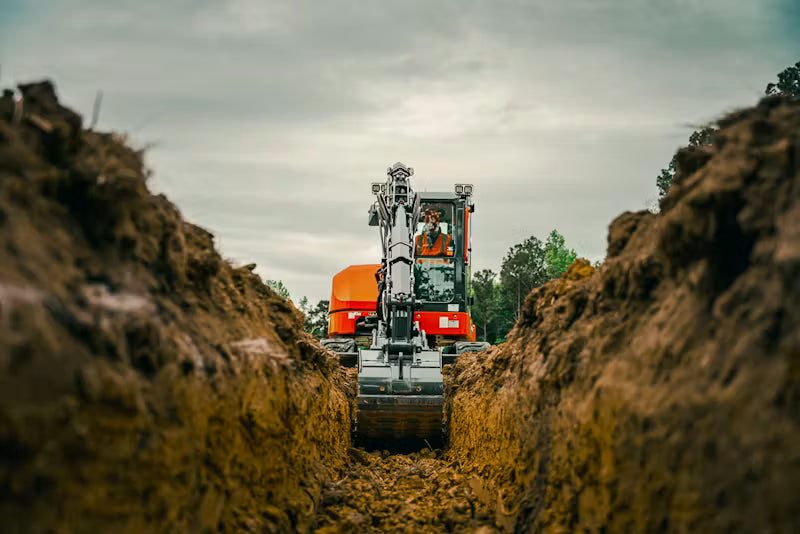

The KIOTI MX570A Mini Excavator is a powerful 5.7-ton compact excavator engineered for contractors, landscapers, municipalities, and construction professionals who demand reliable performance in confined workspaces. Powered by a dependable 34.5 HP Yanmar turbo diesel engine, the MX570A combines exceptional digging capability with smooth hydraulic operation for maximum productivity. Its Zero & Reduced Tail Swing design enhances maneuverability in tight job sites, while the 40 GPM hydraulic system, mechanical quick coupler, hydraulic thumb, and heavy-duty angle blade provide outstanding versatility for excavation, grading, lifting, and material handling. Designed for comfort and efficiency, the machine also features 2-speed travel, suspension seating, and a variable piston pump for precise control. Built with durable construction and job-ready standard equipment, the KIOTI MX570A delivers the performance, reliability, and operator comfort professionals need to complete demanding projects with confidence.
| Specification | Details |
|---|---|
| Brand | KIOTI |
| Model | MX570A |
| Machine Type | Mini Excavator |
| Operating Weight | 13,076 lbs (5.7 Tons) |
| Engine Manufacturer | Yanmar |
| Engine Model | 4TNV86CT |
| Engine Power | 34.5 HP (34.6 kW) |
| Engine Type | Turbocharged Diesel |
| Engine Displacement | 127.6 cu. in. (2,091 cc) |
| Hydraulic Pump Type | Gear Pump |
| Maximum Hydraulic Flow | 40 GPM |
| Maximum Hydraulic Pressure | 2,901 PSI |
| Auxiliary Hydraulic Flow | 26.4 GPM / 10 GPM |
| Auxiliary Hydraulic Pressure | 1,435 PSI / 972 PSI |
| Fuel Tank Capacity | 16.6 gal |
| Hydraulic Reservoir Capacity | 13.7 gal |
| Rated Lift Capacity (Over Blade @ 10 ft Reach) | 7,193 lbs |
| Rated Lift Capacity (Over Side @ 10 ft Reach) | 4,945 lbs |
| Swing Speed | 40 RPM |
| Boom Swing Angle | 40° Left / 33° Right |
| Overall Length | 223.2 in. |
| Overall Width | 78 in. |
| Overall Height | 102 in. |
| Ground Clearance | 10 in. |
| Crawler Track Length | 99.6 in. |
| Track Shoe Width | 16 in. |
| Travel Speed | 2-Speed Drive |
| Quick Coupler | Mechanical (Standard) |
| Hydraulic Thumb | Standard |
| Blade Type | Heavy-Duty Angle Blade |
| Tail Swing Design | Zero & Reduced Tail Swing |
| Operator Seat | Suspension Seat |
